RPARFR6RFID Tag Reader/Writer

1 RF-MODULE-V6(Model: 050-34901) User’s Manual Ver. 1.0 Riso Kagaku Corporation 2 This manual describes the use, the functions and the performance of the Radio Frequency Identification System RF-MODULE-V6(Model: 050-34901). The system is so manufactured that it can not be repaired or replaced by the user; and therefore, if there are such needs, please contact Riso Kagaku Corporation or its agent. No service work should be started before the service person has read this manual. Features This product uses radio frequency of 13.56 MHz to communicate with the tags or cards; thus, it should conform to any relative laws and regulations of the country or the region. Cautions 1. Use or store this product on the temperature and humidity conditions mentioned below, so as to maintain its operational reliability. 2. Use or store this product in an environment free of explosive gases, inflammable gases, corrosive gases, oils, organic solvents, dust, salt and metal powders. 3. Keep this product free of direct shock, strong vibration or sunshine. 4. To communicate with the tags or cards, this product uses 13.56 MHz radio frequency, which may be interfered by radio waves (noises) emitted from a transceiver, a motor, a monitor, a power supply (including a power supply IC), etc. Please make sure that such interferences will not occur before using the product in a place near to these devices. 5. Take proper measures to avoid any possible electrostatic discharge to the product, which may damage the product. 6. After doing the wiring, make sure the connectors are fastened properly. Warning Do not alter any part of the product. Alteration of the printed wiring board, the antennas or the connecting cables of the module may damage the control board of the printer, and is an illegal act if it causes the modular transmitter emissions out of the limits provided by laws or regulations. 3 Specifications Dimensions Less than 32mm×18mm Transmitting Frequency 13.56 MHz Transmission field strength Less than 500 μV/m at 3m Operating Temperature 0 to +40 o C Storage Temperature -20 to +60 o C Operating Humidity 25 to 85% RH (Without condensation) Supply voltage 5 V dc +/- 10% Discarding the Product The product should be discarded as normal printed wiring boards. If you do not know how such boards should be discarded, ask Riso Kagaku Corporation, its agent or the government. Pin Assignments PIN No. Description 1 RUN Module running signal (VIH:2.66V(min),VIL:0.66V(max))HI ACTIVE 2 /RESET Device Reset. (VIH:2.66V(min),VIL:0.66V(max))LO ACTIVE 3 RXD Recirve data (HOST to MODULE) (VIH:2.66V(min),VIL:0.66V(max)) 4 TXD Transfar data (Module to HOST) (VIH:2.66V(min),VIL:0.66V(max)) 5 GND Ground. 6 VCC +5V DC5%(4.5V – 5.5V) Connector: BM06B-SRSS-TBT-LF-SNJST Connecting 4 Host Interface Protocol: ASYNC(3.3VCMOS) Baud rate:38400bps Data length:8 bit Parity : None Stop bit: 1 bit Hnad Shaking: None Voltage level : CMOS (VIH:2.66V(min),VIL:0.66V(max)) Sample Application 1) "UIDRD" on desktop is double-clicked. Double click 2) The execution screen is displayed. 5 3) When "UIDREAD" button is pushed, UID of tag is read. Push Notice about the law and the standard FCC ID: RPARFR6 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that unauthorized changes or modifications not approved could void the user's authority to operate the equipment. IC: 4819A-RFR6 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Display Reading Data Display UID Data

Applicant/Grantee RISO KAGAKU CORPORATION FCC ID: RPARFAR6 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Device is equipped with Metal shielding to cover RF section. Refer to internal photos Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. All inputs to the modules are buffered through logic. Refer to Block Diagram. Y 3 The modular transmitter must have its own power supply regulation. Internal 3.3V power regulator. Refer to Block diagram Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Device is equipped with unique antenna SM02B-SRSS-TB-LF-SN JST connector. Refer to internal photos Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). Device was tested stand-alone. Refer to setup photos. Y 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: RPARFAR6” shall be placed on the outside of final host system. “RPARFAR6” is the ID of the module. Y 7 The modular transmitter must comply with any specific rules or operating requirements thatordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to “User’s Guide” Exhibit Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Meet RF exposure compliance requirement Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

050-34901 Antenna Side 050-34901 Antenna side 050-34901 (Connector Side) 050-34901 Connector side

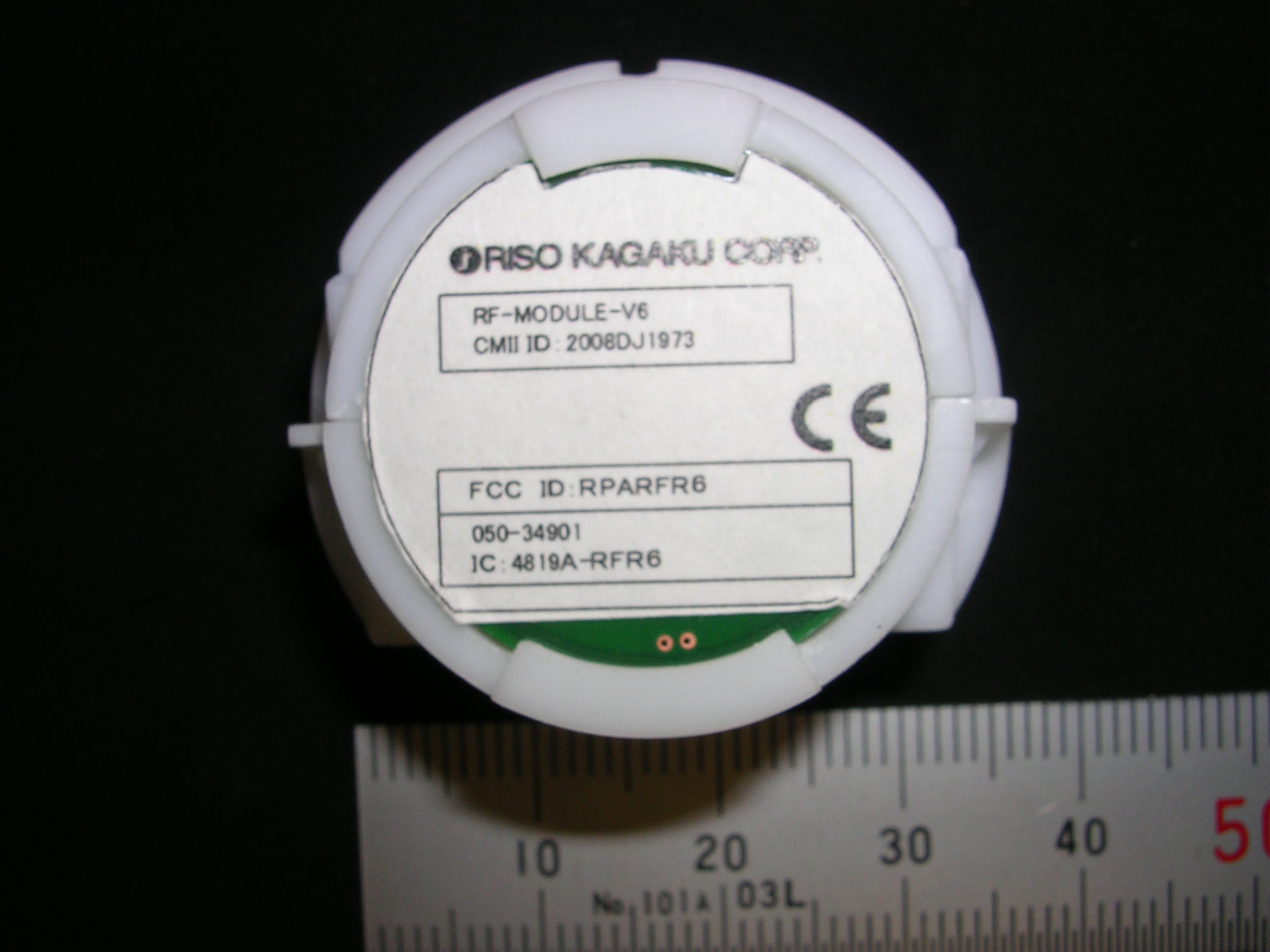

FCC ID LABEL AND LOCATION FCC ID Label for 050-34901 FCC ID LABEL LOCATION

050-34901 Component side 050-34901 Solder side 050-34901 solder side 050-34902 Antenna Component side 050-34902 (Antenna) 050-34901 and Antenna

Page 1 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 JQA File No.: 441-80219 Issued Date: August 11, 2008 TEST REPORT APPLICANT : RISO KAGAKU CORPORATION ADDRESS : 127-7 Taninosawa, Fukuda, Ami-machi, Inashiki-gun, Ibaraki-ken 300-1156, Japan PRODUCTS : RF-Module(RFID Tag Reader/Writer) MODEL No. : 050-34901 SERIAL No. : - FCC ID : RPARFR6 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C TEST LOCATION : Japan Quality Assurance Organization Safety & EMC Center EMC Engineering Department, TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, Japan TEST RESULTS : Passed DATE OF TEST : July 28, 2008 – August 1, 2008 This report must not used by the client to Masanori Takahashi claim product endorsement by NVLAP or Manager NIST or any agency of the U.S. Government. Japan Quality Assurance Organization Safety & EMC Center EMC Engineering Department, TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JQA File No. : 441-80219 Issue Date: August 11, 2008 Model No. : 050-34901 FCC ID: RPARFR6 Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 2 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 Table of Contents Documentation Page 1 Test Regulation 3 2 Test Location 3 3 Recognition of Test Laboratory 3 4 Description of the Equipment Under Test 4 5 Test Condition 5-7 6 Preliminary Test and Test-Setup 8-14 7 Equipment Under Test Modification 15 8 Responsible Party 15 9 Deviation from Standard 15 10 Test Results 16-18 11 Summary 19 12 Operating Condition 20 13 Test Configuration 21 14 Equipment Under Test Arrangement (Drawings) 21 Appendix A : Test Data 22-27 Appendix B : Test Arrangement (Photographs) 28-29 Appendix C : Test Instruments 30-33 Definitions for Abbreviation and Symbols Used In This Test Report “EUT” means Equipment Under the Test. “AE” means Associated Equipment. “N/A” means that Not Applicable. “N/T” means that Not Tested. -indicates that the listed condition, standard or equipment is applicable for this report. -indicates that the listed condition, standard or equipment is not applicable for this report. JQA File No. : 441-80219 Issue Date: August 11, 2008 Model No. : 050-34901 FCC ID: RPARFR6 Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 3 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Test procedure : ANSI C63.4-2003 2 Test Location Japan Quality Assurance Organization Safety & EMC Center EMC Engineering Department, TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, JAPAN 3 Recognition of Test Laboratory Japan Quality Assurance Organization, Safety & EMC Center EMC Engineering Department, TSURU EMC Branch is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is accredited by the following bodies . VLAC Code: VLAC-001-4 (Effective through : April 3, 2010) NVLAP Lab Code:200192-0 (Effective through : June 30, 2009) BSMI Recognition Number: SL2-IN-E-6004, SL2-IS-E-6004, SL2-A1-E-6004 (Effective through : September 14, 2010) VCCI Registration Number: R-004, R-824, R-828, C-003, C-005, C-859, C-860, C-864, C-3085, T-1420, T-1421, T-1422, T-1423, T-1424, T-1425 (Effective through : April 3, 2010) FCC Registration Number : 342182 (Date of Listing : March 30, 2005) IC Registration Number : 4126-1, 4126-2, 4126-3 (Effective through : August 29, 2008) Accredited as conformity assessment body for Japan electrical appliances and material law by METI. (Effective through : February 22, 2010) JQA File No. : 441-80219 Issue Date: August 11, 2008 Model No. : 050-34901 FCC ID: RPARFR6 Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 4 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 4 Description of the Equipment Under Test 1 Manufacturer : RISO KAGAKU CORPORATION 127-7 Taninosawa, Fukuda, Ami-machi, Inashiki-gun, Ibaraki-ken 300-1156, Japan 2 Products : RF-Module(RFID Tag Reader/ Writer) 3 Model No. : 050-34901 4 Serial No. : - 5 Product Type : Prototype 6 Date of Manufacture : - 7 Power Rating : 5.0VDC *The EUT was operated with the DC Power Supply. (Input: 120VAC 60HzOutput:5.0VDC) 8 EUT Grounding : None 10 EUT Authorization : Certification 11 EUT Highest Frequency Used/Generated : 13.56MHz(Section 15.225) Operation within the band 13.110 – 14.010 MHz 12 Modulation : ASK(10%) 13 Antenna type : Fixed using 14 Temperature Range : 0 ~ 40 degree 15 Received Date of EUT : July 28, 2008 JQA File No. : 441-80219 Issue Date: August 11, 2008 Model No. : 050-34901 FCC ID: RPARFR6 Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 5 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION Technical document No. 23160-0701 5 Test Condition 5.1 AC Powerline Conducted Emission The requirements are -Applicable [-Tested -Not tested by applicant request.] -Not Applicable Used test site & instruments : Type Number of test site & instruments (Refer to Appendix C) Test Site OS-1 OS-2 AC-1 SR-A SR-B SR-C Test Receiver R-3 R-4 R-5 Cable CB-3 CB-4 CB-5 Network (for EUT) L-1 L-2 L-3 L-4 L-5 L-6 L-7 L-8 L-9 L-10 L-11 L-12 L-13 Network (for AE) …
