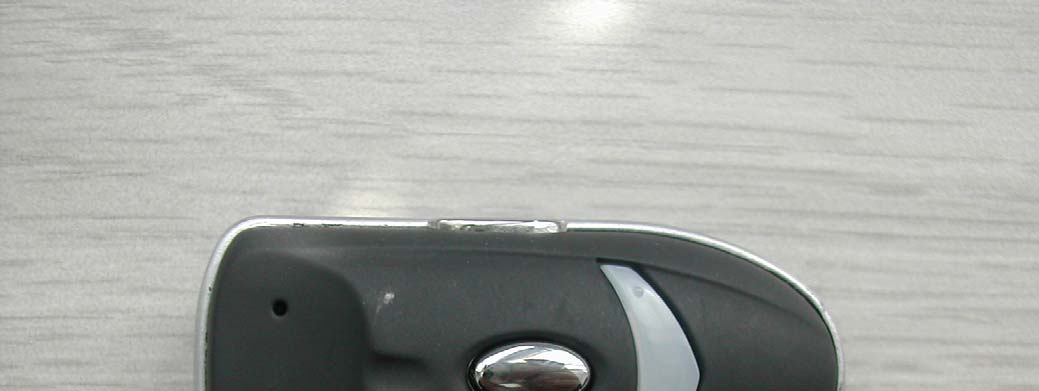

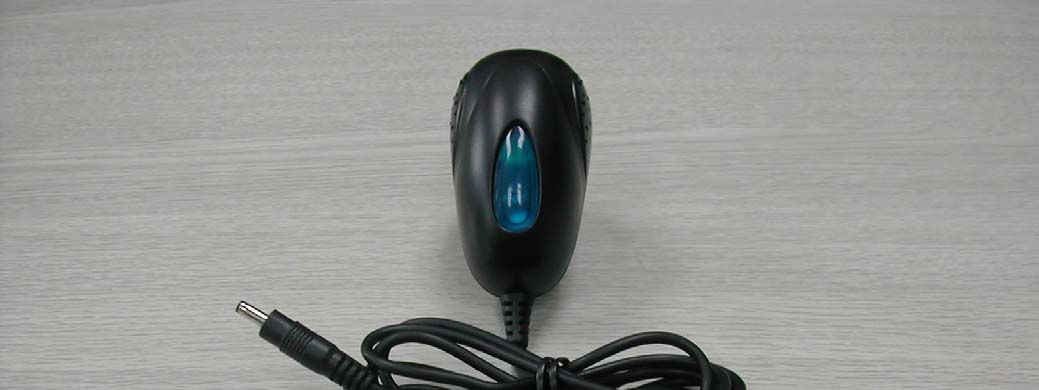

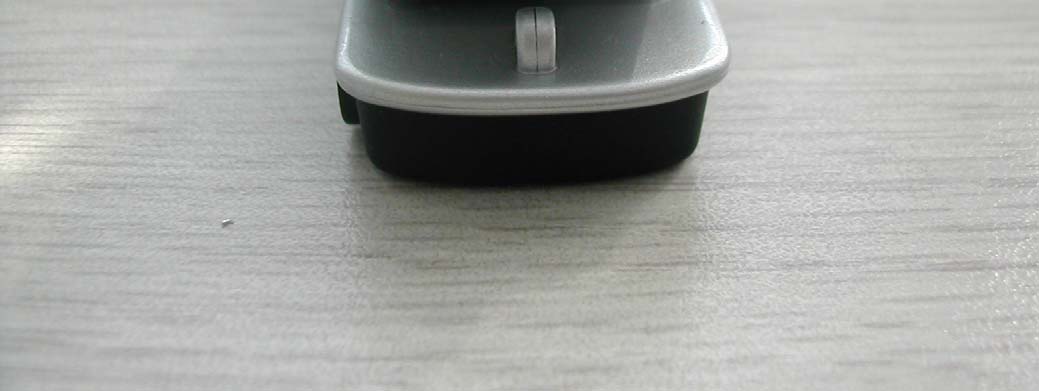

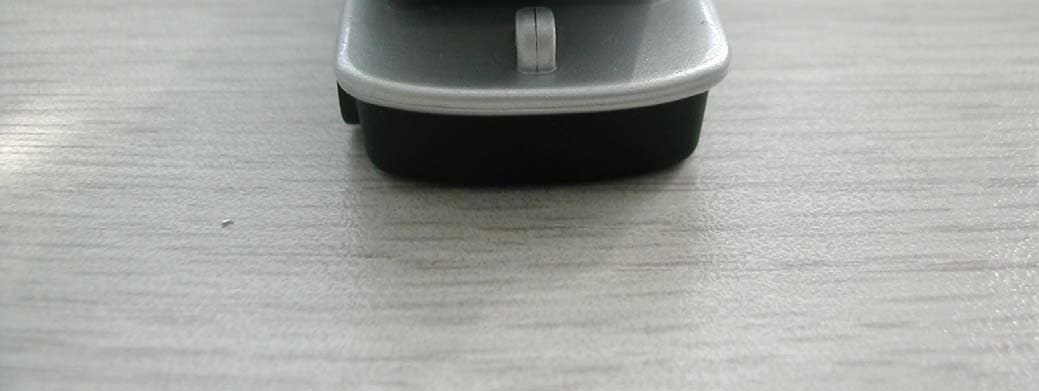

RR7BT-019Bluetooth Headset

Bluetooth headset BT-019 User's Manual BT-019 Bluetooth headset Welcome to use BT-019 1、 Introduction 1.1 Bluetooth introduction 1.2 headset chart 1.3 indicator specification 2、 headset basic operation 2.1Bluetooth headset pairing 2.2 Wearing 2.3 How to receive a call 2.4 How to end a call 2.5 How to reject a call 2.6 How to dial a call 2.7 How to redial last call 2.8 Voice transition from mobile phone to headset 2.9 How to open Bluetooth headset 2.10 How to close Bluetooth headset 2.11 How to adjust volume in speaking 2.12 How to charge battery of BT-019 3、Specification 4、Appendix 1、 Introduction 1.1 Bluetooth introduction Bluetooth is nickname of king in Denmark in the Dark Ages. Bluetooth technology is ISM frequency working in global common 2.4GHz frequency. It provides low cost, close wireless communication and forms personal network in communication environment of fixed and mobile devices to realize seamless resource sharing for kinds of devices nearby. BT-019 is a standard headset in accordance with Bluetooth 2.0+EDR and supports Headset and Headsfree at the same time. The working effective range is within 10m. 1.2 headset chart It can realize speaking function when you use press-key on BT-019 Bluetooth headset and no need to touch mobile phone. 1.3 indicator specification Indicator Headset state it flashes blue every 3sec. Headset is in power on state and can not be used now. Blue and red flash alternately Headset is in standby state and waits for connection with mobile phone. After blue and red flash alternately, blue light flashes 8 times continuously Connection between headset and mobile phone. it flashes blue every 2sec. Headset is in standby state and can be used. it flashes red slowly. low battery for headset 2、 headset basic operation 2.1Bluetooth headset pairing “Pairing” is a Bluetooth term and refers to let your Bluetooth device make wireless communication by simple setting, inform chain circuit, your headset can only make wireless speaking with mobile phone. Pairing only needs to make once. Then, you open mobile phone every time; BT-019 will connect with mobile phone automatically. If it shows “whether connection BT-019 or not” on mobile phone, you only need to press Confirm Button on mobile phone. Vo l u m e increase key Tr a n s p a r e n t l i g h t导光饰片 Volume reduction key Microphone Charging interface Earphone interface Earphon Multifunction speaking key a．Make sure headset is in power-on mode. (Details as 2.9 How to open headset) b．Make sure without other Bluetooth devices in pairing mode within 10m. c．Long press “VOL + and VOL－” about 3sec till BLUE AND RED LED flash alternatively. Loose “VOL + and VOL－”, headset is in waiting mode. d．Choose Bluetooth on the connection type of Bluetooth mobile phone, after entry menu, choose “lookup and search pairing device” ( Details as Bluetooth mobile phone specification) e. Then，press Confirm on mobile phone, it shows “input ID Code” on screen of mobile phone，please enter PIN Code“0000”；When BLUE LED of Bluetooth headset flashes slowly, it means successful pairing. The headset is in standby mode and can be used normally. Note：If RED LED of headset flashes, it shows low battery of Bluetooth headset. 2．2 Wearing BT-019 Bluetooth headset： With clip type design, you can clip BT-019 on clothes and wear earphone on left and right ear if you like. 2．3 Receiving a phone call When there is an incoming call, press the Multi-function Button once to answer the phone call. 2．4 How to end a phone call During a phone call, press the Multi-function Button once to answer the phone call. 2．5 Refuse an incoming call After hearing indication voice for incoming call, press VOL- for 3sec. Note: the function needs mobile phone to support. 2．6 Make a call a．Make a call through mobile phone, set up on mobile phone firstly, send calling to handsfree or headset, then dial number as usual, begin speaking after answer, headset will connect automatically. If end up a call, press the Multi-function Button. b．Make a call by voice command (only apply to mobile phone supported the function). Firstly, connect headset by handsfree operation. Secondly, long press VOL+, you will hear voice prompt. Then speak name and telephone number loudly and clearly to microphone on headset. If there is trained voice command on mobile phone, it can dial telephone you want. 2．7 Redial the last calling phone Press “VOL -” for 3sec, redial the last telephone number after hearing the voice. Note： a．Mobile phone has not any incoming call and is not in speaking mode. b．The function only works on Bluetooth mobile phone under application mode of handsfree. 2．8 Voice transfer from headset to mobile phone When you need to use mobile phone to make a call, please press VOL+. The voice has transferred from headset to mobile phone after hearing the voice for 3sec. 2．9 How to open headset When using headset again, you need not to pair headset with mobile phone and only need to open headset to connect automatically. Power-on method: press Multifunction Speaking Button for 5sec until BLUE LED flashes, then loose. If successful connection, BLUE LED flashes 3 times every 3sec, it shows headset can open telephone or be in standby mode. Note：RED LED will flashes if low battery. 2．10 Close headset Press Multifunction Speaking Button about 3sec till RED LED flashed, you will hear a voice from headset and then loose Multifunction Speaking Button, the headset will power off now. 2．11 Adjust volume Add volume during speaking, you need press VOL+ lightly; reduce volume during speaking, you need press VOL- lightly. 2．12 Charging battery When you use BT-019 for the first time, please charging over 3hrs till RED LED is put off. During charging, please not to make other application at the same time. When use BT-019 again, charging about 3hrs. Please insert charger to charging port on BT-019. During charging, RED LED will flash. When charging is over, LED will put off and battery is full charge. ▲ Note： A．W…

Text truncated - open the document above for the full version.

À¶ÑÀ¶ú»ú BT-019

FCC ID: RR7BT-019 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation mW 2.402 2.480 2.441 24.19 Maximum measured transmitter power: Pout Conducted (mW) Maximum Antenna Gain dBi Pout EIRP (mW) 0.159 0.5 0.178 Threshold for no SAR evaluation is 24.19 mW Maximum TX Power is 0.159 mW Conducted and 0.178 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold
