RS3DB101ADSL Modem

User Manual must provide user information: Instruction Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example – use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

DB101 USB ADSL MODEM USER’S MANUAL V3.0 DARE TECHNOLOGIES CO., LTD. http://www.dare-tech.com DB101 ADSL MODEM Manual - 1 - CONTENTS 1. OVERVIEW....................................................................................................................................................... 2 1.1 ABOUT ADSL .............................................................................................................................................. 2 1.2 DEVICE INTRODUCTION .......................................................................................................................... 2 1.3 PROTOCOL AND DRIVER..........................................................................................................................2 1.4 CHARACTERISTICS ................................................................................................................................... 3 2. USB ADSL MODEM INSTALLATION AND SOFTWARE CONFIGURATION...................................... 4 2.1 SYSTEM REQUIREMENTS. ....................................................................................................................... 4 2.1.1 HARDWARE ........................................................................................................................................ 4 2.1.2 SOFTWARE.......................................................................................................................................... 4 2.2 HARDWARE INSTALLATION....................................................................................................................4 2.2.1 CONNECTION..................................................................................................................................... 4 2.2.2 PROCEDURE. ...................................................................................................................................... 4 2.3 DRIVER INSTALLATION .......................................................................................................................... 5 3. CUSTOMER CONFIGURATION................................................................................................................... 9 4. UNINSTALLATION....................................................................................................................................... 11 5. CONNECTION SETUP.................................................................................................................................. 13 5.1 PHYSICAL LAYER CONNECTION.......................................................................................................... 13 5.2 DIAL-UP CONNECTION.. ......................................................................................................................... 14 5.3 PRIVATE LINE CONNECTION ................................................................................................................. 16 6. PPPOE CONFIGURATION........................................................................................................................... 18 7. SPECIFICATION............................................................................................................................................ 19 7.1 POWER SUPPLY ........................................................................................................................................ 19 7.2 DIMENSION ............................................................................................................................................... 19 7.3 WEIGHT...................................................................................................................................................... 19 7.4 CERTIFICATION ........................................................................................................................................ 19 7.5 OPERATING ENVIRONMENT ................................................................................................................. 19 APPENDIX A GLOSSARY................................................................................................................................20 APPENDIX B TROUBLESHOOTING............................................................................................................. 22 APPENDIX C SPLITTER CONNECTION...................................................................................................... 23 APPENDIX D SHIPPING LIST........................................................................................................................ 24 DB101 ADSL MODEM Manual - 2 - 1. OVERVIEW 1.1 ABOUT ADSL An ADSL MODEM is a broadband access device, which utilizes the high frequency segment of a phone line to transmit high-speed data without interfering with the voice transmission. The frequency of the ADSL signal is higher than that of voice, so the voice and ADSL signal can coexist in one line by using a Splitter to insulate the two. ADSL data transfer adapts asymmetry model. It has an upstream maximum transmission rate of 1 Mbps and downstream maximum transmission rates of 8 Mbps. This ability makes ADSL an ideal device for broadband access. 1.2 DEVICE INTRODUCTION 1 2 3 4 Figure 1  POWER indicator  LINK indicator  USB port  LINE port 1.3 PROTOCOL AND DRIVER 1. PPP over ATM (PPPoA) VCMUX (RFC2364) 2. PPP over ATM (PPPoA) LLC (RFC2364) 3. PPP over Ethernet (PPPoE) LLCSNAP (RFC2516) 4. PPP over Ethernet (PPPoE) VCMUX (RFC2516) DB101 ADSL MODEM Manual - 3 - 5. Bridged IP over ATM LLCSNAP (RFC1483) 6. Routed IP over ATM LLCSNAP (RFC1483) 7. Bridged IP over ATM VCMUX (RFC1483) 8. Routed IP over ATM VCMUX (RFC1483) 9. Classical IP over ATM (RFC1577) Driver Types and OS Supported Ta b l e 1 Driver Ty pe Protocol OS LAN RFC 1483 RFC 1577 Windows® Me Windows® 98 Windows® 98 SE Windows® 2000 Windows® XP WA N RFC 2364 RFC 2516 Windows® Me Windows® 98 Windows® 98 SE Windows® 2000 Windows® XP 1.4 CHARACTERISTICS • USB v…

Text truncated - open the document above for the full version.

——————————————————————————————————————— Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: RS3DB101 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram, Schematic diagrams and Internal Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Zhou Zhimin

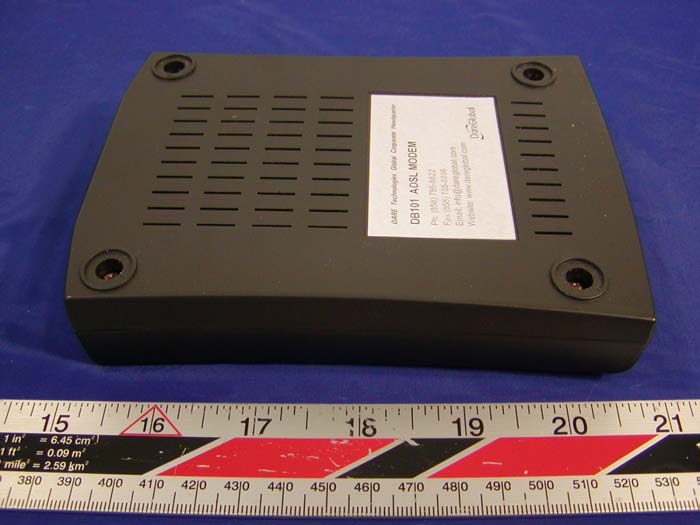

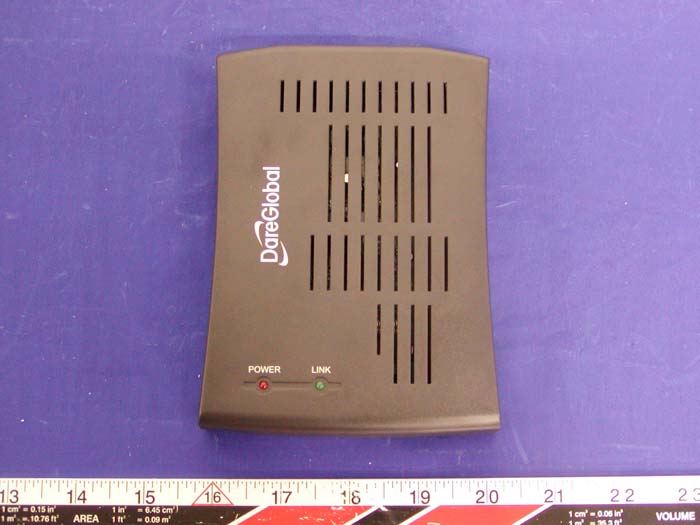

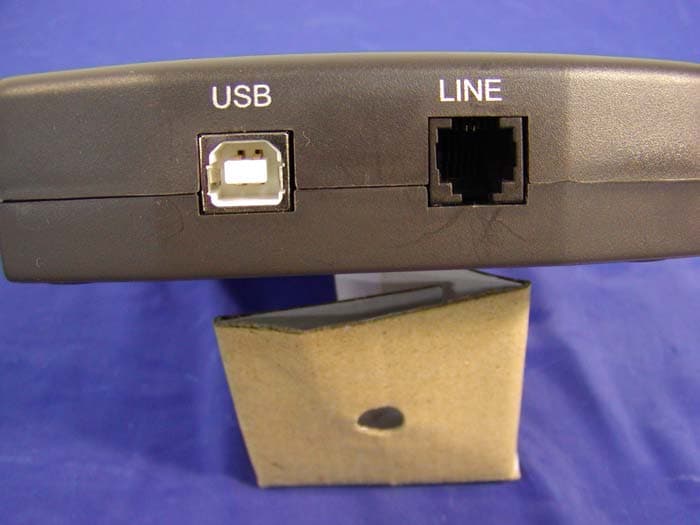

Shanghai Dare Technologies Co., Ltd FCC ID: RS3DB101 EXHIBIT C - EUT PHOTOGRAPHS EUT – Top View EUT – Front View Shanghai Dare Technologies Co., Ltd FCC ID: RS3DB101 EUT – Bottom View EUT – Rear View

§15.19, §15.21, §15.27, §15.105 - FCC PRODUCT LABELING AND WARNING STATEMENT Proposed FCC Label Format Specifications : Text is black or white in color and is left justified. Labels are silk-screened and are “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of EUT/Proposed FCC Label Location FCC ID: RS3DB101

DB101 ADSL MODEM Operational Description 1. ABOUT ADSL DB101 ADSL MODEM is a broadband Internet access device, which utilizes the high frequency segment of the phone line to transmit high-speed data without interfering with the voice transmission. The frequency of ADSL signal is higher than that of voice, so voice and ADSL signal can coexist in one line by using a splitter to insulate each from the other. ADSL data transfer on the asymmetry way. The upload speed is up to 1Mbps and download speed is up to 8 Mbps. It is an ideal device for broadband access. 2. DEVICE FEATURES 1. USB v1.1 Compatible. 2. Utilizes USB BUS power; no additional power supply required. 3. Supports Hot-plug / Hot-swap 4. Supports Plug & Play 5. Supports ATM WAN Miniport, NDIS 5.0, and NDIS 4.0 Miniport. 6. Supports ANSI T1.413 ISSUE 2 and G.992.1 (G.DMT), G.992.2 (G.LITE). 7. Provides configuration and monitoring programs. 8. Upstream maximum transmission rates of 1 Mbps 9. Downstream maximum transmission rates of 8 Mbps 10. Maximum transmission distance of 5 km. 11. DB101 ADSL MODEM supports the following protocols: 1) PPP over ATM (PPPoA) VCMUX (RFC2364) 2) PPP over ATM (PPPoA) LLC (RFC2364) 3) PPP over Ethernet (PPPoE) LLCSNAP (RFC2516) 4) PPP over Ethernet (PPPoE) VCMUX (RFC2516) 5) Bridged IP over ATM LLCSNAP (RFC1483) 6) Routed IP over ATM LLCSNAP (RFC1483) 7) Bridged IP over ATM VCMUX (RFC1483) 8) Routed IP over ATM VCMUX (RFC1483) 9) Classical IP over ATM (RFC1577) 3. SPECIFICATION Power supply z Uses USB bus for power. No power supply is needed. z Power consumption ≤ 2.5W Dimension z 138mmLengthx 104mmWidthx 13mmHeight Weight z Weight: about 300 gram Environment Requirements z Temperature: -545(23F113F) z Relative humidity:10%90% z Electromagnetic disturbanceClass B

Part list COMPONENTS MANUFACTURER MODEL RATINGS 1 Enclosed Suzhou Huamei Plastic Co., Ltd. PH075 2 PCB China Circuit Technology (Shantou) Corporation / 3 Switch Power Yueqing Zhongxun Electron Ind Co KCD11 4 fuse Hollyland Co Ltd. 32S 250V/250mA 5 Cord connected Power Leader Electronic Inc. 481207 120V/12V 700mA

Note: This test report is specially limited to the use of the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product Endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 ID EMI MEASUREMENT AND TEST REPORT For Shanghai Dare Technologies Co., Ltd 22 F Shanghai Information Building No. 1555 KongJiang Road, Shanghai, China FCC ID: RS3DB101 2004-01-23 This Report Concerns: Original Report Equipment Type: ADSL Modem - ITE Test Engineer: Hang Tan Report No.: R0312221 Test Date: 2003-01-07, 2003-01-17 Reviewed By: Ling Zhang Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 Shanghai Dare Technologies Co., Ltd FCC ID: RS3DB101 Report # R0312221RPT Page 2 of 13 FCC 15 Subpart B Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................4 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SYSTEM..............................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................6 §15.107 - CONDUCTED EMISSIONS ........................................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 SPECTRUM ANALYZER SETUP......................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 ENVIRONMENTAL CONDITIONS....................................................................................................................................8 TEST RESULTS SUMMARY............................................................................................................................................8 CONDUCTED EMISSIONS TEST DATA...........................................................................................................................8 PLOTS OF CONDUCTED EMISSION................................................................................................................................8 §15.109 - RADIATED EMISSIONS...........................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 SPECTRUM ANALYZER SETUP....................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE........................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT A - TEST SETUP PHOTOGRAPHS Conducted Emission Setup – Front View Conducted Emission Setup – Side View Shanghai Dare Technologies Co., Ltd FCC ID: RS3DB101 Radiated Emission Setup – Front View Radiated Emission Setup – Rear View
