RS3DB120-WLADSL Modem/ADSL2+Router

User Manual V 1.1 User Manual Page 2 Total 20 Pages CONTENTS 1.OVERVIEW....................................................................................................................................................... 3 1.1 ABOUT ADSL ...................................................................................................................................... 3 1.2 ABOUT ADSL2/2+............................................................................................................................... 3 1.3 FEATURES........................................................................................................................................... 3 2 SPECIFICATION.............................................................................................................................................. 4 2.1 INTERFACE INTRODUCTION .......................................................................................................... 4 2.1.1 INDICATOR AND INTERFACE ..................................................................................................4 2.1.2 SPLITTER SPEC........................................................................................................................... 4 2.2 HARDWARE CONNECTION ............................................................................................................. 5 2.3 LED STATUS INDICATION................................................................................................................ 5 3. CONFIGURATION.......................................................................................................................................... 6 3.1 DEFAULT CONFIGURATION ............................................................................................................ 6 3.2 COMPUTER CONFIGURATION........................................................................................................ 6 3.3 ADSL MODEM CONFIGURATION ................................................................................................... 6 3.3.1 LOG IN.......................................................................................................................................... 6 3.3.2 SAVE SETTING............................................................................................................................ 6 3.4 WA N CONFIGURATION .................................................................................................................... 7 3.4.1 CONFIGURATION GUIDE.......................................................................................................... 7 3.4.2 RFC1483 BRIDGE CONFIGURATION....................................................................................... 9 3.4.3 PPPOE CONFIGURATION ........................................................................................................ 11 3.4.4 STATIC ADDRESS ..................................................................................................................... 12 3.5 WIRELESS CONFIGURATION................................................................................................................. 12 3.5.1 WIRELESS SETUP..................................................................................................................... 13 3.5.2 WIRELESS SECURITY ............................................................................................................. 13 3.5.3 WIRELESS MAC Filter .............................................................................................................. 14 4 OTHER CONFIGURATION ......................................................................................................................... 16 4.1 LAN CONFIGURATION ...................................................................................................................16 4.1.1 CONFIGURATION OF MODEM’S IP ADDRESS.................................................................... 16 4.1.2 DHCP CONFIGURATION ......................................................................................................... 16 4.2 PASSWORD CONFIGURATION.................................................................................................. 17 5. TROUBLESHOOTING ................................................................................................................................. 18 5.1 UNABLE TO ACCESS INTERNET .................................................................................................. 18 5.1.1 CHECK THE LINE AND THE DEVICE ................................................................................... 18 5.1.2 CHECK YOUR CONFIGURATION .......................................................................................... 18 ANNEX：SHIPPING LIST............................................................................................................................... 19 User Manual Page 3 Total 20 Pages 1.OVERVIEW 1.1 ABOUT ADSL An ADSL MODEM is a broadband Internet access device, which utilizes the high frequency segment of the phone line to transmit high-speed data without affecting the voice transmission. The frequency of the ADSL signal is higher than that of voice, so voice and ADSL signal can coexist in one line by using a splitter to insulate each from the other. ADSL data transfer adapts the asymmetry model. It supports upload transmission speed up to 1Mbps and download speed up to 8 Mbps (24Mbps for ADSL2+). ADSL is an ideal device for broadband access. 1.2 ABOUT ADSL2/2+ Transmission performance of ADSL2 is improved comparing with the first generation of ADSL. These improvements are mainly concerned with long distance, anti-line-loss, anti-noise, etc. By doubling the transmission bandwidth, ADSL2+ has implemented a downlink rate as high as 24 Mbps. Therefore, Internet applications such as synchronous transmission of multi video stream, online games and huge capacity of download…

Text truncated - open the document above for the full version.

Hardware Diagram DSP/ Communication Processor with ADSL DSP Broadcom BCM6338 SDRAM (16MB) CLOCK 64MHz RJ11x1 POWER: +5.0V +3.3V +1.2V +2.5V +1.8V POWER JACK RJ45×4 POWER SWITCH Line Driver Bcm6301 FLASH(4MB) RX 4 port Switch BCM5325E POWER +11.0V Indicator LED BCM4318 802.11g RF Transceiver PA M Antenna 2412-2462 MHz

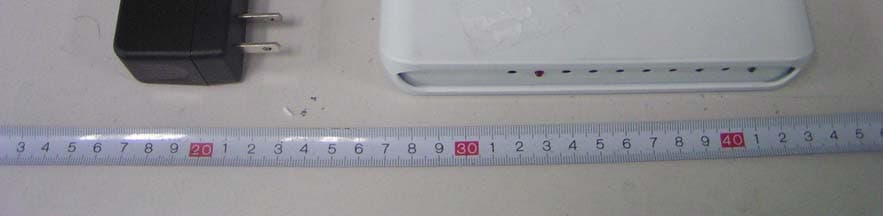

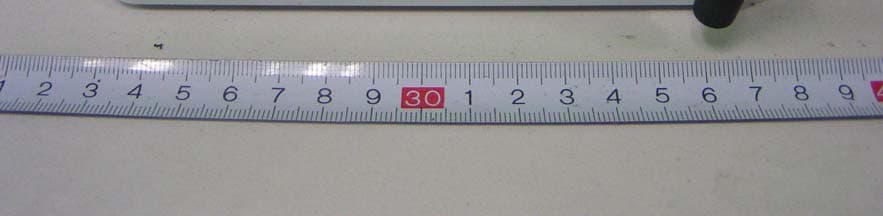

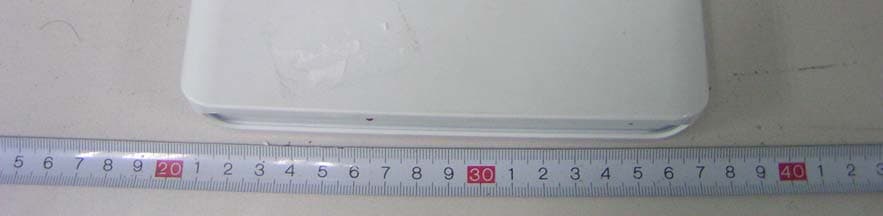

External Photos EUT and Accessories View EUT – Front View EUT – Back View EUT – Bottom View

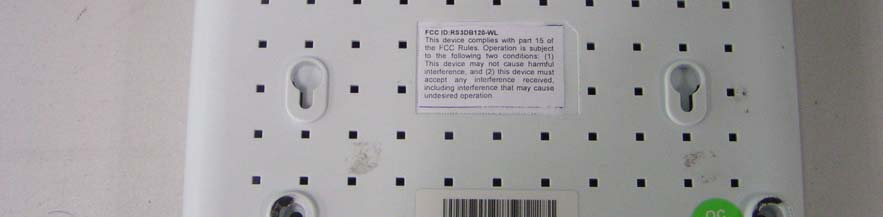

ID Label/Location FCC ID Label Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location: FCC ID: RS3DB120-WL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that ma y cause undesired operation.

Internal Photos EUT – Inside View EUT – Main Board Top Components View EUT – Main Board Bottom Components View

Circuit Description a. Transmitter section Data from the host is sent to the U6(BCM4318) through the RF_OUT interface. After being converted from digital to analog signals by the I and Q transmit digital-to-analog converters (DAC) in the U6(BCM4318) the output signals are routed to the Transceiver SIGE2521A60 (U17) . Antenna1 connect to SIGEI-PLEX connector. b. Receiver section The input signal to the radio is received through either antenna1 or antenna2. The received signal from the selected antenna connect to SIGE2521A60.Which is fed to a bandpass filter. Then, the signal is routed to multilayer balun(U15:HHM1520). After the U15(HHM1520) the signal output to BCM4318 , which the signals direct ADC to BCM6338. c. RF VCO section The RF VCO(2.412-2.484Ghz)(BCM4318) operates at twice the channel frequency. It is divided by two in a flip-flop circuit to form accurate in-phase (I) and quadrature (Q) LO signals at the channel frequency. The VCO is phase locked to the 20MHz crystal-controlled clock by the synthesizer in the U6 (transceiver BCM4318) and therefore constitutes an accurate channel frequency reference for the radio.

Shanghai Dareglobal Technologies Co., Ltd. FCC ID: RS3DB120-WL Report No.: RSH07051752 Rev B Page 10 of 58 FCC Part 15.247 Test Report §15.247 (i) and §1.1307 (b) (1) - MAXIMUM PERMISSIBLE EXPOSURE Limit According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4SR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 802.11b Mode Maximum peak output power at antenna input terminal (dBm): 13.91 Maximum peak output power at antenna input terminal (mW): 24.6 Prediction distance(cm): 20 Prediction frequency(MHz): 2437 Antenna Gain (typical)(dBi): 2.5 Maximum Antenna Gain(numeric): 1.778 Power density at prediction frequency at 20 cm (mW/cm 2 ): 0.009 MPE limit for uncontrolled exposure at predication frequency(mW/cm 2 ): 1.0 Shanghai Dareglobal Technologies Co., Ltd. FCC ID: RS3DB120-WL Report No.: RSH07051752 Rev B Page 11 of 58 FCC Part 15.247 Test Report 802.11g Mode Maximum peak output power at antenna input terminal (dBm): 5.94 Maximum peak output power at antenna input terminal (mW): 3.93 Prediction distance(cm): 20 Prediction frequency(MHz): 2437 Antenna Gain (typical)(dBi): 2.5 Maximum Antenna Gain(numeric): 1.778 Power density at prediction frequency at 20 cm (mW/cm 2 ): 0.001 MPE limit for uncontrolled exposure at predication frequency(mW/cm 2 ): 1.0 Test Result The predicted power density level at 20 cm is 0.009 mW/cm 2 for 802.11 b mode and 0.001 mW/cm 2 for 802.11 g mode. Both are below the uncontrolled exposure limit of 1.0 mW/cm 2 at 2437 MHz. The EUT is used at least 20 cm away from user’s body. It is determined as mobile equipment and complies with the MPE limit.

T0047211C-PL (3).sch-1 - Mon Jun 04 16:48:08 2007 T0047211C-PL (3).sch-2 - Mon Jun 04 16:48:09 2007 T0047211C-PL (3).sch-3 - Mon Jun 04 16:48:10 2007 T0047211C-PL (3).sch-4 - Mon Jun 04 16:48:23 2007 T0047211C-PL (3).sch-5 - Mon Jun 04 16:48:27 2007 T0047211C-PL (3).sch-6 - Mon Jun 04 16:48:28 2007 T0047211C-PL (3).sch-7 - Mon Jun 04 16:48:29 2007 T0047211C-PL (3).sch-8 - Mon Jun 04 16:48:30 2007 T0047211C-PL (3).sch-9 - Mon Jun 04 16:48:32 2007 2412-2462 MHz

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the Federal Government. FCC PART 15.247 MEASUREMENT AND TEST REPORT For Shanghai Dareglobal Technologies Co., Ltd. 22F, Info Tech Building, No.1555, Kongjiang Road, Shanghai, China This Report Concerns: Original Report Equipment Type: ADSL Modem/ADSL2+Router Test Engineer: Henry Yang Report No.: RSH07051752 Rev B Test Date: 2007-07-18 to 2008-02-24 Report Date: 2007-09-06 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 FCC ID: RS3DB120-WL Shanghai Dareglobal Technologies Co., Ltd. FCC ID: RS3DB120-WL Report No.: RSH07051752 Rev B Page 2 of 58 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 HOST SYSTEM CONFIGURATION LIST AND DETAILS....................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................7 CONFIGURATION OF TEST SETUP.................................................................................................................................7 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................8 SUMMARY OF TEST RESULTS ...............................................................................................................................9 §15.247 (i) and §1.1307 (b) (1) - MAXIMUM PERMISSIBLE EXPOSURE..............................................................10 LIMIT.........................................................................................................................................................................10 §15.203 - ANTENNA REQUIREMENT....................................................................................................................12 STANDARD APPLICABLE............................................................................................................................................12 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................12 §15.207 - CONDUCTED EMISSIONS ......................................................................................................................13 SECTION 15.207 CONDUCTED LIMITS:........................................................................................................................13 EUT SETUP................................................................................................................................................................13 EMI TEST RECEIVER SETUP.......................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST RESULTS SUMMARY..........................................................................................................................................14 TEST DATA................................................................................................................................................................15 PLOT(S) OF TEST DATA..............................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions - Front View (30-1000MHz) for Transmitting Mode Radiated Emissions - Rear View (30-1000MHz) for Transmitting Mode Radiated Emissions - Front View (Above 1GHz) for Transmitting Mode Radiated Emissions - Rear View (Above 1GHz) for Transmitting Mode
