RSFEM717CYYMicrowave Oven

SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. INSTRUCTION MANUAL MODEL:EM717CKE Microwave Oven 120V~ 60Hz 1050W 700W 0.6 Cu.ft. Specifications EM717CKE 2 Handling the cord on this press or cords associated with accessories sold with this product, will expose you to lead a chemical known to the state of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handle. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) DOOR (bent) (2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEALS AND SEALING SURFACE (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. Model: Rated Voltage: Rated Input Power(Microwave): Rated Output Power(Microwave): Oven Capacity: Turntable Diameter: External Dimensions (WxHxD): Net Weight: Warning: 8.6 inch 17.0X12.9X10.2 inch Approx. 21.2 Lbs If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. ADDENDUM 3 SAFETY 1. The oven must be on a leveled surface. 2. The turntable and turntable roller rest must be in the oven during cooking. Place the cookware gently on the turntable and handle it carefully to avoid possible breakage. 3. Incorrect use of browning dish may cause the turntable to break. 4. Use only the specified bag size when using Direct Access Popcorn. 5. The oven has several built-in safety switches to ensure that the power remains off when the door is open. Do not tamper with these switches. 6. Do not operate the microwave oven empty. Operating the oven with no food or food that is extremely low in moisture can cause fire, charring or sparking. 7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable may cause the turntable to break. 8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating may occur and could cause physical injury. 9. Do not heat narrow-necked containers, such as syrup bottles. 10. Do not attempt to deep-fry in your microwave oven. 11. Do not attempt home canning in this microwave oven, as it is impossible to be sure all contents of the jar have reached boiling temperature. 12. Do not use this microwave oven for commercial purpose. This microwave oven is made for household use only. 13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself, stir liquid before placing the container in the oven and again halfway through cooking time. Let stand in the oven for a short time and stir again before removing the container. 14. Use carefully when cooking food in the microwave oven to avoid burning due to excessive cooking. 15. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. 16. Failure to maintain the oven in a clean condition could lead to deterioration that could adversely affect the life of the appliance and possibly result in a hazardous situation. 4 IMPORTANT SAFETY INSTRUCTIONS WARNING 1. Read all instructions before using the appliance. 2. Read and follow the specific: "PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" 3. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity. If materials inside the oven ignite: 1. Keep the oven door closed. 2. Turn the oven off, and unplug the appliance. 3. Disconnect the power cord, shut off power at the fuse or circuit breaker panel. 4. Do not overcook food. Carefully attend the appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. 5. Do not use the oven cavity for storage purposes. Do not store combustible items such as bread, cookies, paper products, etc. inside the oven. 6. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. 7. This oven must be grounded. Connect only to properly grounded outlet. See "GROUN-DING INSTRUCTIONS". 8. Install or locate this oven only in accordance with the installation instructions provided. 9. Some products such as whole eggs, water with oil or fat, sealed to explode and therefore should not be heated in this oven. To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 10. Use this appliance only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use. 11. As with any appliance, close supervision is necessary when used by children. 12. Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 13. This appliance should be serviced only by qualified service technicians. Contact the nearest authorized service facility for examination, repair or adjustment. 14. Do not cover or block any vents on the oven. 15. Do not store or use this appliance outdoors. 16. Do not use this oven near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. 17.…

Text truncated - open the document above for the full version.

External Photos EUT-Front View EUT-Rear View

ID Label Label

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location

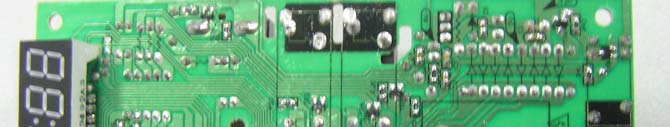

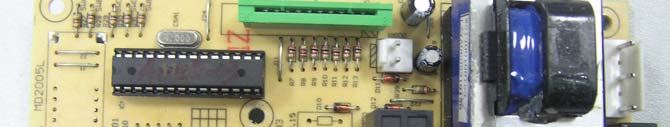

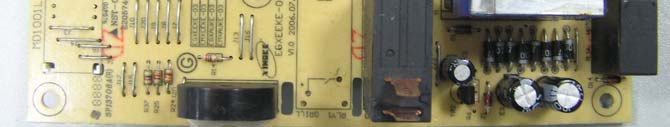

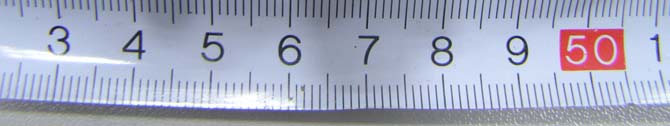

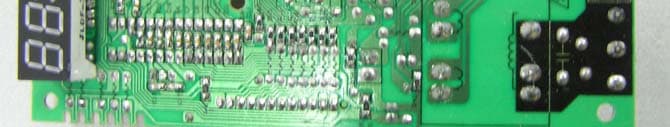

Internal Photos EUT – Inside View EUT – Microwave Emitter Front View EUT- Microwave Emitter Back View EUT – Main Board PCB Front View EUT – Main Board PCB Back View EUT – Power Input PCB Front View EUT – Power Input PCB Back View

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Guangdong MD Microwave Oven Manufacturing Co., Ltd. Penglai Road, Beijiao, Shunde, Foshan, Guangdong Province,People’s Republic of China FCC ID: RSFEM717CYY October 11, 2006 This Report Concerns: Original Report Equipment Type: Microwave Oven Test Engineer: Henry Yang Report Number: RSZ06092152 Test Date: September 25-October 8, 2006 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Guangdong MD Microwave Oven Manufacturing Co., Ltd. FCC ID: RSFEM717CYY Report # RSZ06092152 Page 2 of 24 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL CABLE LIST AND DETAILS.........................................................................................................................4 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSION...........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................8 PLOT(S) OF TEST DATA................................................................................................................................................8 RADIATION HAZARD MEASUREMENT .............................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 RADIATION HAZARD MEASUREMENT........................................................................................................................11 INPUT POWER.............................................................................................................................................................11 LOAD FOR MICROWAVE OVENS.................................................................................................................................12 RF OUTPUT POWER MEASUREMENT..........................................................................................................................12 OPERATING FREQUENCY MEASUREMENT..................................................................................................................14 RADIATED EMISSION DATA.................................................................................................................................20 MEASUREMENT UNCERTAINTY..................................................................................................................................20 EUT SETUP........................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission– Front View Conducted Emission– Side View Radiated Emission (30MHz to 1000MHz) - Front View Radiated Emission (30MHz to 1000MHz) - Rear View Radiated Emission (Above 1 GHz) - Front View Radiated Emission (Above 1 GHz) - Rear View
