RSFEM920AMNMicrowave Oven

INSTRUCTION MANUAL Microwave Oven SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your microwave oven, And keep it carefully for future reference. If you follow the instructions, your oven will provide you with many years of good service. MODEL:EM920AFW-P 1 SPECIFICATIONS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy.It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) DOOR(dent) (2) HINGES AND LATCHES(broken or loosened) (3) DOOR SEALS AND SEALING SURFACE (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. Model: Power Source: Power Consumption: Maximum Output: Oven Capacity: Turntable Diameter: External Dimensions (LxWxH): Net weight: E(A)M920AFW-P 120V~ 60Hz 1300 W 900W 0.7Cu.ft. 9.7 inches 20.3X15.2X13.0 inches Approx. 25.1LB SAFETY 2 1. The oven must be on a leveled surface. 2. The turntable and turntable roller rest must be in the oven during cooking. Place the cookware gently on the turntable and handle it carefully to avoid possible breakage. 3. Incorrect use of browning dish may cause the turntable to break. 4. Use only the specified bag size when using Direct Access Popcorn. 5. The oven has several built-in safety switches to ensure that the power remains off when the door is open. Do not tamper with these switches. 6. Do not operate the microwave oven empty. Operating the oven with no food or food that is extremely low in moisture can cause fire, charring or sparking. 7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable may cause the turntable to break. 8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating may occur and could cause physical injury. 9. Do not heat narrow-necked containers, such as syrup bottles. 10. Do not attempt to deep-fry in your microwave oven. 11. Do not attempt home canning in this microwave oven as it is impossible to be sure all contents of the jar have reached boiling temperature. 12. Do not use this microwave oven for commercial purpose. This microwave oven is made for household use only. 13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself, stir liquid before placing the container in the oven and again halfway through cooking time. Let stand in the oven for a short time and stir again before removing the container. 14. Please do notice the food in the microwave oven to avoid burning due to excessive cooking when cooking food in it. 15. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. 16. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 1. Read all instructions before using the appliance. 2. Read and follow the specific:" PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY". 3. As with most cooking appliances,close supervision is necessary to reduce the risk of a fire in the oven cavity. If materials inside the oven ignite: 1.Keep the oven door closed 2.Turn the oven off, and unplug the appliance. 3.Disconnect the power at the fuse or circuit breaker panel. Keep in mind the following rules at all times: 1.Do not overcook food. Carefully attend the appliance when paper,plastic,or other combus- tible materials are placed inside the oven to facilitate cooking. 2.Do not use the oven cavity for storage pur- poses. Do not store combustible items su- ch as bread, cookies, paper products, etc. inside the oven. If lightning strikes the power line, the oven may turn on by itself. 3.Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. 4.This oven must be grounded. Connect only to properly grounded outlet. See"GROUN- DING INSTRUCTIONS". 5. Install or locate this oven only in accordance with the installation instructions provided. 6. Some products such as whole eggs, water with oil or fat, sealed containers and closed glass jars are able to explode and therefore should not be heated in this oven. 7. Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use. 8. As with any appliance, close supervision is necessary when used by children. 9. Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 10. This appliance should be serviced only by qualified service technicians. Contact the nearest authorized service facility for examination,repair or adjustment. 11. Do not cover or block any vents on the oven. 12. Do not store or use this appliance outdoors. 13. Do not use this oven near water,for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. 14. Do not immerse cord or plug in water. 15. Keep cord away from heated surfaces. 16. Do not let cord hang over edge of table or counter. 17. When cleaning door and oven surfaces use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. Important Safety Instructions SAFETY WARNING— To reduce the risk of the fire, electric shock, injury to persons, or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 4 SAVE TH…

Text truncated - open the document above for the full version.

Cooling system (fan motor/blade/bracket) Power system(H. V. Transformer, H. V. Ca p acitor and H.V. diode ) Control system (PCB ) Microwave output Microwave generation system (Magnetron fre q uenc y 2450MHZ ) Microwave transfer system (wave-guide) Food cooking Turntable drive system (Turntable m o tor/tray/roller) Microwave resonance system (oven cavity) Lighting system Lam p /lam p holder Power suply 120V 60HZ/125V 60HZ E M 9 20 A FW-P block diagram

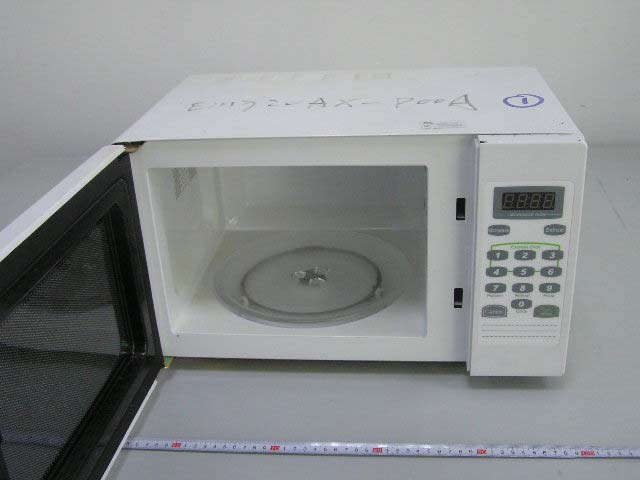

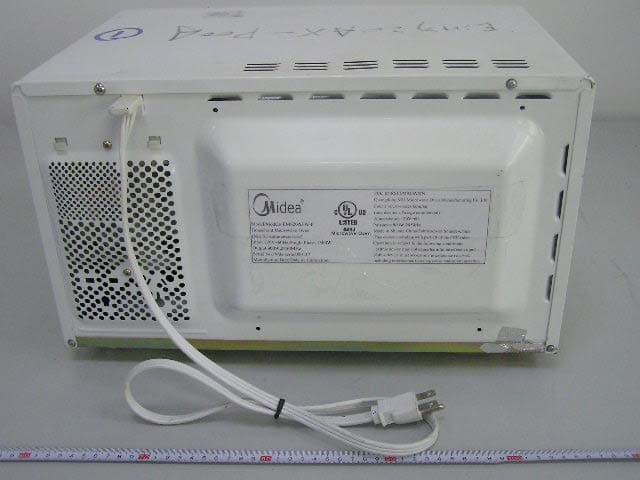

External Photos EUT-Front View EUT-Rear View EUT-Open Door View

ID Label Label

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location

Internal Photos EUT – Uncovered View (1) EUT – Uncovered View (2) EUT – Uncovered View (3) EUT – Capacitor View EUT- Magnetron View (1) EUT- Magnetron View (2) EUT- Transformer View EUT – Fan View (1) EUT – Fan View (2) EUT – Display and Button View EUT – Display and Button Uncover View EUT – Display and Button Inside View EUT – Display and Button Front View EUT – Display and Button Rear View EUT – Power PCB Front View EUT – Power PCB Rear View

When the microwave oven is plug into a wall outlet, the oven display “0:00”, Press “clock”, the LCD display 00:00, you can set the clock (You can press stop if you don’t want to set the clock). Then you can select cooking mode. There are several cooking modes, you can select power, auto cook, and auto defrosts, and so on. There is program in the Microcontroller of the control board, the cooking time and power level are pre-set in the program. Here we can choose the power level to cook food, so we can see how the microwave oven work. Put the food in the cavity glass tray, then press “power”, we can select one of ten power level (P100 to P10). We can select the difference power level by increasing the impulse ratio. The control of the power elements uses the keyboard commands. Then press “1-9”, we can set cooking time. As a final step, press “start”. (If you want to stop cooking, press “stop” or “pause”). Then magnetron power supply system will work, and High Voltage transformer, High Voltage diode, High Voltage capacitor will supply power to magnetron, and about 3 second the magnetron will work. The magnetron is a radio transmitter. . If it was on a radio mast it would be able to send radio signals a long way. But it is inside a metal box which keeps the signal in. The frequency of the transmitter is 2450MHz (megahertz), which is a wavelength of 12cm, rather than short waves, medium waves or long waves. In microwave cooking, the radio waves penetrate the food and excite water and fat molecules pretty much evenly throughout the food. Anything with water in it has all these molecules being moved this way and that by the electrical field, and heated up. Microwaves in this frequency range have another interesting property: they are not absorbed by most plastics, glass or ceramics. The dishes, walls of the oven , etc, don't pick up radio, so don't get heated up. The cooling system will start working, the lamp will be lighted, and the turntable will rotate, at the same time when the power supply system work. After we press “start”, the fan will running, it can get rid of its excess heat, and cooling the magnetron and High voltage transformer. You mustn't block the vents or the oven will overheat. At the same time, the turntable motor will turn. The turning system including the turntable motor, shaft, roller, and glass tray will start working.It is used for better cooking. An AC motor rotates the plate with constant speed about 5 rpm. When the start button is pushed the motor starts. A light that lights when the door is opened and when the oven is working. So we can see the food in cavity clearly! A ring alarm that makes a sound when cooking is done.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A3 Date: 5-Sep-2005 Sheet of File: Drawn By: BUZ1 R23 220 R20 220 R19 220 R18 220 R17 220 TR138050 R54 4.7K TR12 8050 R21 220 R25 220 R27 220 J RLY3 MICRO D164148 R4720K R4447K VCC +12 R553.3k VCC L MOTOR D17 4148 J RLY1 D11 4148 TR88050 R421K +12 TR98550 +12 D124148 R434.7K TR108550 C110.1 μ F R464.7KR4010K VCC R48220 C3 10uF/16V R4110K R531K C2104 E1 1000U/25V TR78050 C5104 C4104 +12 Z25V6 E2 1000U/16V E3 470U/16V 1 2 R9 390/1/4W D2 4007 D9 4007 D104007 D34007 D44007D5 4007 D64007 D7 4007 123 CN1 POWER_SOCKT 1 345 2 6 T1PT-6329A PE2 1 PE3 2 PA2 4 T0 6 RESET 7 GND 8 PB0 9 PB1 10 PB2 11 PB3 12 PD0 13 PD1 14 PD2 15 PD3 16 PC0 17 PC1 18 PC2 19 PC3 20 VDD 21 OSCO 22 OSCI 23 PA0 24 PA1 25 PF0 26 PE0 27 PE1 28 PF1 3 PA3 5 IC1 SH69P25 CSA1 4MHz VCC DOOR1 R26 10K R24 10K R22 10K R28 10K VCC LED-1LED-2 LED-3 LED-4 ZERO RES RES VCC R452K C10 471 C60.1uF VCC C7104 E4 47uF/16V abcdef gdp LED-5 R13 1K R14 1K PB0PB1PB2PB3 R38 10K R39 10K PA3PA2 PB0PB1PB2PB3 PA1PA0 PD0 5 4 3 2 13 12 11 10 9 8 7 6 1 led1 VCC R15 1K R16 1K R503.3K C1 471 R82K R72K Z14.7V D14148 VCC R11 1K R12 1K PD3 SWD SWC R332K R352K VCC ZERO DIG1 DIG2 DIG3 DIG4 abcdef gdp DIG5 SWB SWA R292K R312K R37 10K R10 1K 1 2 3 4 5 6 7 8 9 10 11 12 CN2 LED-1LED-2LED-3LED-4 R34.7K TR3 8550 R54.7K TR68550 VCC R24.7K TR28550 R64.7K TR58550 LED-1 LED-2 LED-4 LED-3 R14.7K TR18550 LED-5 TR48550 R43.3K LED-1LED-2 LED-3 LED-4 PD0 PC0 R3020K R3420K R3620K R3220K PC0 PA0 D144148D154148D84148D134148 C16101 C18101 C17101 C19101 C13 101 C15 101 C14 101 L(IN)N(IN) L(OUT) N(OUT) FUSE C10. 1 uF/275V FILTER R1510K/1/2W C2222C3222

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Guangdong MD Microwave Oven Manufacturing Co., Ltd Penglai Road, Beijiao, Shunde, Foshan, Guangdong Province, People’s Republic of China FCC ID: RSFEM920AMN December 22, 2005 This Report Concerns: Original Report Equipment Type: Microwave cooking appliance Test Engineer: William Chan Report Number: RSZ05121453 Test Date: December 14-19, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Guangdong MD Microwave Oven Manufacturing Co., Ltd FCC ID: RSFEM920AMN Report # RSZ05121453 Page 2 of 23 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 O BJECTIVE ...................................................................................................................................................................3 R ELATED S UBMITTAL ( S )/G RANT ( S ).............................................................................................................................3 T EST M ETHODOLOGY ..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL CABLE LIST AND DETAILS.........................................................................................................................4 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSION...........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................8 P LOT ( S ) OF T EST D ATA ................................................................................................................................................8 RADIATION HAZARD MEASUREMENT .............................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 RADIATION HAZARD MEASUREMENT........................................................................................................................11 INPUT POWER.............................................................................................................................................................11 LOAD FOR MICROWAVE COOKING APPLIANCES.........................................................................................................12 RF OUTPUT POWER MEASUREMENT..........................................................................................................................12 OPERATING FREQUENCY MEASUREMENT..................................................................................................................14 RADIATED EMISSION DATA.................................................................................................................................20 MEASUREMENT UNCERTAINTY..................................................................................................................................20 EUT SETUP........................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission–Front View Conducted Emission–Side View Radiated Emission (30MHz to 1000MHz) - Front View Radiated Emission (30MHz to 1000MHz) - Rear View Radiated Emission (Above 1 GHz) - Front View Radiated Emission (Above 1 GHz) - Rear View
