RSFEM925CYYMicrowave Oven

NOTE This device complies with part 18 of the FCC Rules. 1, Before commissioning this oven please read this instruction manual and keep it carefully. 2, There must be more than 30cm high space necessary above the top surface of oven. 3, Do not repair the oven yourself, please consult an authorized expert. 4, The contents of feeding bottles and bay food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns. 5, Check the oven and the cable regularly for damage. If there is any kind of damage, the oven should not be used. „ Do not attempt to operate this oven with the door open since open- door operation can result in harmfulexposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. „ Carefully clean door seala and sealing surfaces. „ Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the : (1) door(bent). (2) hinges and latches( broken or loosened). (3) door seals and sealing surfaces. „ Utensils sould be checked to ensure that they are suitable for use in microwave ovens. When heating food in plastic or paper containers, check the oven frequently due to the possibility of ignition. „ Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container. „ If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. „ Egg in their shell and whole hard- bolled eggs shall not be heated in microwave ovens since they may explode. „ If the door or door seals are damaged. The oven must not be operated until it has been repaired by a trained person. „ Liquids or other foods must not be heated in sealed containers since they are liable to explode. Warning: 1, It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover which gives protection against exposure to microwave energy. 2, Only allow children to use the oven without supervision when adequate instructions have been given so that the children is able to use the oven in a safe way and understands the hazards of improper use. 3, If the supply cord is damaged, it must be replaced by the manufacture of its service agent or a similarly qualified person in order to avoid a hazard. 4, This product will make disturbance in AV product, if any disturbance is occurred, use different electrical source jack to supply electricity or use low power or away from them. Note: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZATED MODIFICATIONS TO THIS EQUIPMENT .SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

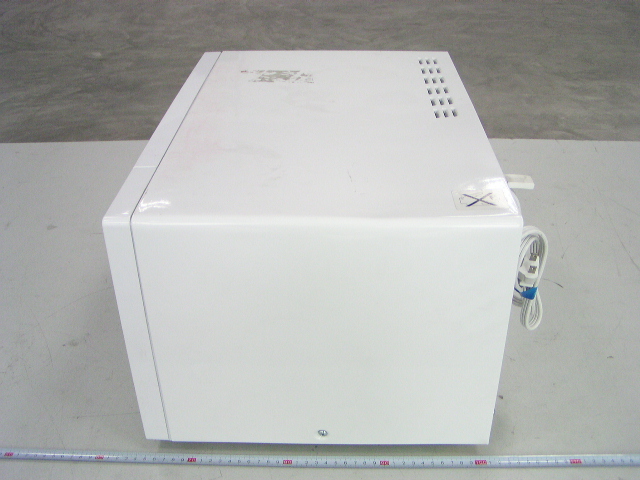

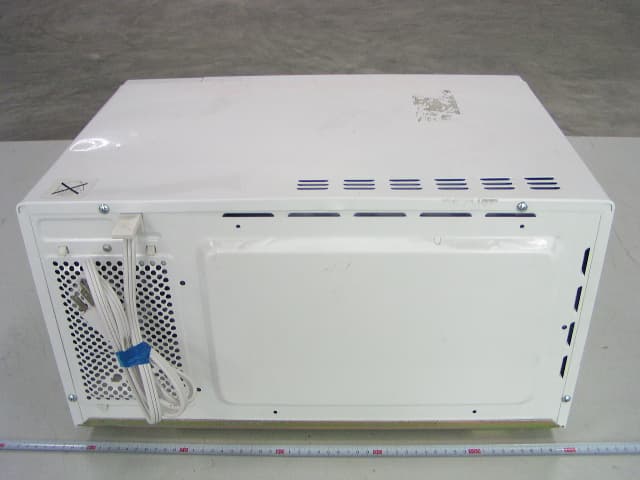

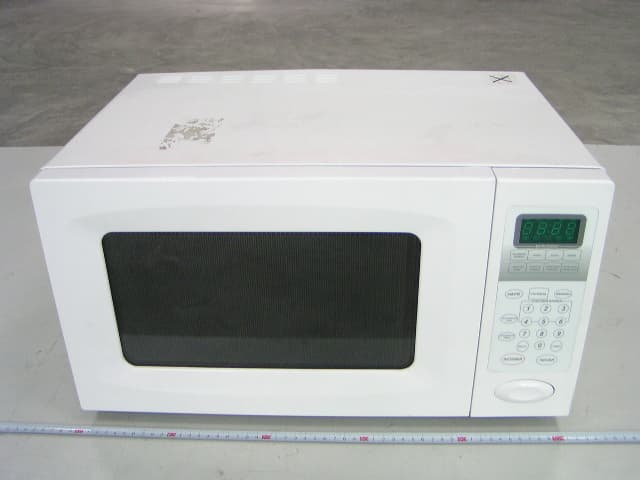

External Photos EUT-Front View EUT-Rear View EUT-Side View

ID Label Label

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location

Internal Photos EUT – Inside View EUT – Display Part View EUT – Capacitor View EUT- Magnetron View EUT- Transformer View EUT- Transformer Label View EUT – Fan View EUT – PCB 1 Front View EUT – PCB 1 Rear View EUT – PCB 2 Front View EUT – PCB 2 Rear View

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA BUZ1 R23 220 R20 220 R19 220 R18 220 R17 220 TR138050 R54 4.7K TR12 8050 R21 220 R25 220 R27 220 J RLY3 MICRO D164148 R4720K R4447K VCC +12 R553.3k VCC L MOTOR D17 4148 J RLY1 D11 4148 TR88050 R421K +12 TR98550 +12 D124148 R434.7K TR108550 C110.1 μ F R464.7KR4010K VCC R48220 C3 10uF/16V R4110K R531K C2104 E1 470U/25V TR78050 C5104 C4104 +12 Z25V6 E2 470U/16V E3 220U/16V 1 2 R9 390/1/4W D2 4007 D9 4007 D104007 D34007 D44007D5 4007 D64007 D7 4007 123 CN1 POWER_SOCKT 1 345 2 6 T1PT-6329A PE2 1 PE3 2 PA2 4 T0 6 RESET 7 GND 8 PB0 9 PB1 10 PB2 11 PB3 12 PD0 13 PD1 14 PD2 15 PD3 16 PC0 17 PC1 18 PC2 19 PC3 20 VDD 21 OSCO 22 OSCI 23 PA0 24 PA1 25 PF0 26 PE0 27 PE1 28 PF1 3 PA3 5 IC1 SH69P25 CSA1 4MHz VCC DOOR1 R26 10K R24 10K R22 10K R28 10K VCC LED-1LED-2 LED-3 LED-4 ZERO RES RES VCC R452K C10 471 C60.1uF VCC C7104 E4 47uF/16V abcdef gdp LED-5 R13 1K R14 1K PB0PB1PB2PB3 R38 10K R39 10K PA3PA2 PB0PB1PB2PB3 PA1PA0 PD0PD1 5 4 3 2 13 12 11 10 9 8 7 6 1 led1 VCC R15 1K R16 1K R503.3K C1 471 R82K R72K Z14.7V D14148 VCC R11 1K R12 1K PD2PD3 SWD SWC R332K R352K VCC ZERO DIG1 DIG2 DIG3 DIG4 abcdef gdp DIG5 SWB SWA R292K R312K R37 10K R10 1K 1 2 3 4 5 6 7 8 9 10 11 12 CN2 LED-1LED-2LED-3LED-4 R34.7K TR3 8550 R54.7K TR68550 VCC R24.7K TR28550 R64.7K TR58550 LED-1 LED-2 LED-4 LED-3 R14.7K TR18550 LED-5 TR48550 R43.3K LED-1LED-2 LED-3 LED-4 PD0 PC0 R3020K R3420K R3620K R3220K PC0 PA0 D144148D154148D84148D134148 A0 1 A1 2 A2 3 Vss 4 SDA 5 SCL 6 WP 7 Vcc 8 IC224C02 VCC C12104/25V R5110K R5210K VCC C16101 C18101 C17101 C19101 C13 101 C15 101 C14 101

标 记 处数 更改单号 签 名 日 期 设 计 校 对 审 核 会 签 标准化 批 准共1页 第1页 产品 名称 图名 图号 电路原理图 美的微波炉滤波板 MDFLT12B-2-C004 1 L1 LT-T22-12-1.5MH FILTER L(IN) L(OUT) N(IN) N(OUT) FUSE 15A125V-20A/125V/250V ） C1 0.1UF C2 222/250VAC C3 222/250VAC R1510K/0.5W GND

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Guangdong MD Microwave Oven Manufacturing Co., Ltd Penglai Road, Beijiao, Shunde, Foshan, Guangdong Province, People’s Republic of China FCC ID: RSFEM925CYY August 25, 2006 This Report Concerns: Original Report Equipment Type: Microwave Oven Test Engineer: Hansen Hu Report Number: RSZ06081152 Test Date: August 14-17, 2006 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Guangdong MD Microwave Oven Manufacturing Co., Ltd FCC ID: RSFEM925CYY Report # RSZ06081152 Page 2 of 25 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................2 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................2 OBJECTIVE...................................................................................................................................................................2 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................2 TEST METHODOLOGY..................................................................................................................................................2 TEST FACILITY.............................................................................................................................................................2 EXTERNAL CABLE LIST AND DETAILS.........................................................................................................................2 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................2 JUSTIFICATION.............................................................................................................................................................2 EQUIPMENT MODIFICATIONS.......................................................................................................................................2 CONFIGURATION OF TEST SETUP.................................................................................................................................2 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................2 CONDUCTED EMISSION...........................................................................................................................................2 MEASUREMENT UNCERTAINTY....................................................................................................................................2 EUT SETUP..................................................................................................................................................................2 EMI TEST RECEIVER SETUP.........................................................................................................................................2 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................2 TEST PROCEDURE........................................................................................................................................................2 TEST RESULTS SUMMARY............................................................................................................................................2 TEST DATA..................................................................................................................................................................2 PLOT(S) OF TEST DATA................................................................................................................................................2 RADIATION HAZARD MEASUREMENT ...............................................................................................................2 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................2 RADIATION HAZARD MEASUREMENT..........................................................................................................................2 INPUT POWER...............................................................................................................................................................2 LOAD FOR MICROWAVE OVENS...................................................................................................................................2 RF OUTPUT POWER MEASUREMENT............................................................................................................................2 OPERATING FREQUENCY MEASUREMENT....................................................................................................................2 RADIATED EMISSION DATA...................................................................................................................................2 MEASUREMENT UNCERTAINTY....................................................................................................................................2 EUT SETUP............................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission–Front View Conducted Emission–Side View Radiated Emission (30MHz to 1000MHz) - Front View Radiated Emission (30MHz to 1000MHz) - Rear View Radiated Emission (Above 1 GHz) - Front View Radiated Emission (Above 1 GHz) - Rear View
