RTP-550-10016-3Wireless LAN Access Device

1 of 342-10-3300-02 CN3300 Quickstart This guide explains how to install and start the CN3300, connect it to the Internet, and test the public access interface. For detailed configuration and operating information download the CN3300 Administrator’s Guide and the Public Access Interface Administrator’s Guide from the Colubris Networks web site at: register.colubris.com Anatomy Installation Important: Installation must be performed by a professional installer familiar with local regulations governing wireless devices. Important: Unless shielded cables are used, a full-loop ferrite must be placed on the internet port cable (Fair-Rite PN: 0443164151 or equivalent). Important: Do not connect the LAN or Internet port directly to a metropolitan area network (MAN) or wide area network (WAN). . Important: CH 36, 40, 44, 48 for Indoor use only (5.15-5.25GHz) When mounting the CN3300 on a wall, ceiling or other surface, make sure that: • the surface you attach the CN3300 to and the fasteners you use are able to support at least 5.1 kg (11.25 pounds) • cable pull (accidental or otherwise), must not make the unit exceed the 5.1 kg (11.25 pound) limit Plenum installations Plenum rated cables and attachment hardware must be used if the CN3300 is installed in a plenum. Since the CN3300 power adapter (optional) is not rated for plenum installations, only the CN3300 and appropriate cabling can be located in the plenum. Note: Colubris Networks supplied PoE injectors (available separately) cannot be installed inside the plenum. Configuration To configure the CN3300, you use the Web-based management tool built into the CN3300. You access this tool by establishing a Web browser connection to the CN3300. You must use a JavaScript-enabled Web browser (Netscape 7.1 or higher, or Microsoft Internet Explorer 6.0 or higher with all applicable updates), to do this. 1Connect the antennas. Use the following antennas (sold separately): Note: By default, the CN3300 has radio 1 set to B/G mode, and radio 2 set to Monitor mode (scanning only). Both the Main and Aux antennas are used to transmit and receive. If a single antenna is used, it must be attached to the Main connector. The connectors are reverse-polarity SMA male jacks. This means antennas or cable connectors must be SMA female connectors with reverse polarity. Antennas can be either directly attached or attached via a coax cable. MainAux Front Rear Reset button LAN port Power light Wireless light Ethernet light Power connector Serial port 10101 Internet port MainAux Radio 1Radio 2 To reset to factory default, press and hold button until the status lights begin to flash, then release. An important note about wireless security For easy access to the management interface via a wireless connection, the CN3300 ships with all wireless security options disabled. Once the unit is installed, it is strongly recommended that you enable a wireless security option to properly safeguard the wireless network from intruders. See the CN3300 Administrator's Guide for more information. RadioAntenna typeColubris Networks part number 802.11b/g2.4 Ghz.71-05-0100 802.11a5 Ghz.71-05-0200 802.11a or b/g2.4/5 Ghz.71-05-0300 2 of 342-10-3300-02 2Connect your computer a.Use a cross-over cable (not supplied) to connect the LAN port on your computer to the LAN port on the CN3300. b.Configure your computer with the static IP address 192.168.1.2. 3Power-on the CN3300. Connect the power supply (sold separately) or use PoE (802.3af) to power-up the CN3300. PoE is only supported on the LAN port. The CN3300 is fully operational when the power light stops flashing. 4Start the management tool. a.Start your Web browser and specify the following in the address box: HTTPS://192.168.1.1 and press Enter. b.You will be prompted to accept a Colubris Networks security certificate. Do so to continue. c.The CN3300 login page opens. Login with username admin and password admin. d.If this is the first time you are logging in, you will be prompted to change the default administrator password. Specify a new password and click Save. e.If you are using the CN3300 outside of the USA, set the country that the CN3300 is operating in on the Management > Country page. 5Configure the wireless network. By default the CN3300 is configured to: • automatically choose the best operating channel (frequency) •automatically choose the optimum power level • create a wireless network named “Colubris Networks” There is no need to change these settings for most installations. 6Configure the Internet connection a.Connect the Internet port to your Internet connection. b.Open the Network > Ports > Internet port page. c.Select the addressing option supported by your ISP, click Configure, and define all settings as required by your ISP. 7Enable local mode This will let you test the CN3300 without using a RADIUS server to authenticate customers. Authentication is handled by the CN3300. a.Open the Security > Authentication page. b.Disable CN3300 RADIUS authentication. c.Open the Security > Users page. d.Add usernames and passwords for one or more test customers. 8Test the public access interface To test your installation, use a wireless client station to log onto the public access interface. (For this to work, the CN3300 must be configured as the client’s default gateway. This is done by default if the wireless client is using DHCP.) Note: By default, the CN3300 has radio 1 set to B/G mode, and radio 2 set to Monitor mode (scanning only), therefore the wireless client station must have either a B or G radio. a.Start the client station’s web browser and enter the IP address (or domain name) of a web site on the Internet. b.The CN3300 should intercept the URL and display the Login page. (Depending on the type of certificate that is installed on the CN3300, you may see a security warning first.) c.Specify a valid customer name and password to login. d.The Session page will open. e.Next, you are automatically redirected to the web site you or…

Text truncated - open the document above for the full version.

Response to TCB Findings 1. A letter from the applicant is needed to state that the RF circuitry of the previous application with FCC ID: RTP-55010016-1 has not changed. This is needed because the antenna conducted test data from that application is used as part of this application. File attached. Please see “CN3300 Non-Modification” document. 2. Please clarify the difference between models CN3300 and CN330. The CN330 and CN3300 do not differ in Radio or radio functionality. The only difference is the presence of a serial port in the CN3300 for diagnostic purposes. This connection is not normally used. The test sample provided was of a CN3300. 3. Please specify the label material. Labels are produced using a UL Recognized permanent label system. They consist of a polyester laminate label with a permanent pressure sensitive adhesive. 4. Please clarify how this device complies with 15.407(c) requirement. Per Colubris - The Attestation on file under Cert. # RTP-550-10016-1 still pertains and reads as follows; “The Devices are either an IP bridge or router and only transmit if they have IP traffic to transmit, with the exception of some control frames. Also, at the physical level, the radio is half duplex with acknowledgement, which means that one end of the radio link must give the chance to the other end, at the minimum, to reply with acknowledgement frames. Finally, the 802.11 protocol requires that frames have a maximum length and that some silence period follows the transmission of a frame. “ 5. It appears there is a power over ethernet option through the LAN port of the device. The report does not include AC line conducted emissions test data for this configuration. Please clarify. Attached is the report from the original filing consisting of the single radio option. The system passes by significant margin and the addition of a second identical radio should not alter these results beyond measurement uncertainty. 6. Has the device shown compliance at 2.4835GHz restricted band-edge point for worst case 15.247 operation? Please clarify. A new file is attached showing compliance using the 2dBi antenna. Additional Question: Does the data supplied represent worst case combinations? In other words, both radios active and transmitting at 2.4G range (802.11b/g). Please clarify. The emission was pretested with different combinations of dual radio channels and this was found not to affect the emission at the band edge. The band edge channel was then configured at different data rates and the worst case readings were recorded in the table. 7. CN3300 QuickStart guide mentions multiple antenna part numbers under "Configuration" section. Please clarify these multiple antenna options. The 3 antennas are a-band, b/g-band and a/b/g band. The antennas are all of the same type. The antenna tested was the a/b/g-band model which has equal or higher gain than the others and is considered the worst case. 8. Under the “installation” section of the QuickStart guide shielded cables are mentioned for LAN and internet ports. The EUT configuration in the test report shows unshielded cables. Please clarify if testing has been conducted with unshielded cables for this device. If testing has only been conducted with unshielded cables, this statement must be removed. The use of ferrite is a requirement and not an option under this circumstance Testing was performed with unshielded cables. This statement is a carryover from the original grant for the single radio module. Since none of the spurious emissions found were related to the radio board, the addition of a second board should not negatively impact these results. Additional testing was performed without the shielded cables (but with ferrite) as an alternative to the shielded cables. 9. Please clarify how the ferrite modification on DC power and ethernet cables will be ensured on the final devices. The QuickStart guide must include a warning about this requirement. The required ferrite will be molded to the DC power cable of the provided power supply. A statement in the QuickStart guide instructs the user/installer as to the proper placement of the Ethernet ferrite. New file attached. 10. The QuickStart guide mentions professional installation. Is this required for compliance purposes or because of the complexity of the installation? Please clarify. Per Colubris - This is specified due to complexity of equipment configuration. 11. 5.15 to 5.25 GHz indoor operation requirement must be included in the QuickStart guide. Included. Revised document attached 12. How are different frequency and channel selections handled for different countries? Does the end-user select these? Please clarify. Per Colubris - Frequency and Channel selection are under software control. Units intended to ship to the United States are pre-set to allow only operation in bands allowable in the US. It is not possible for the operator or the installer to access this configuration file.

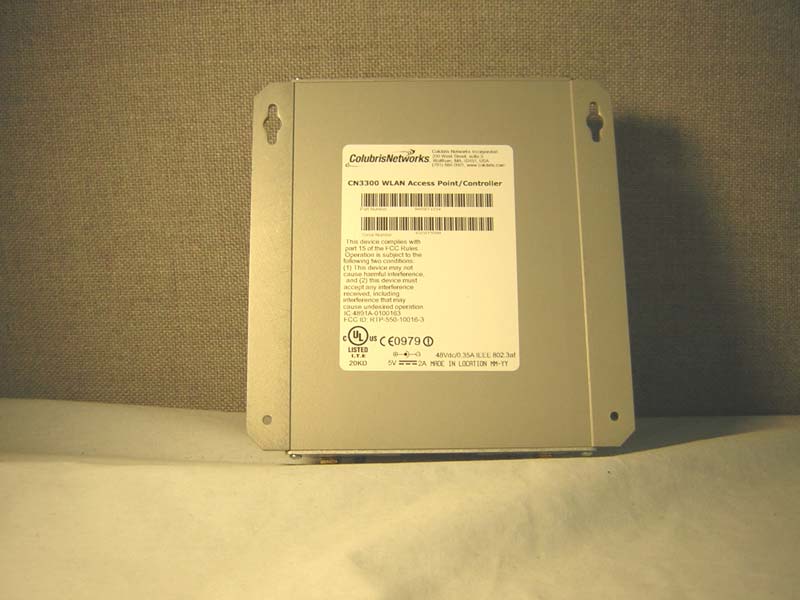

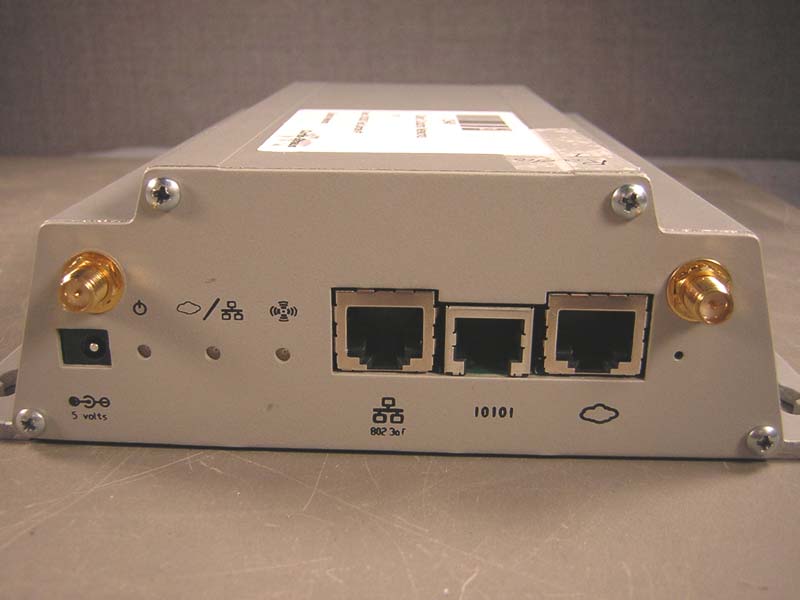

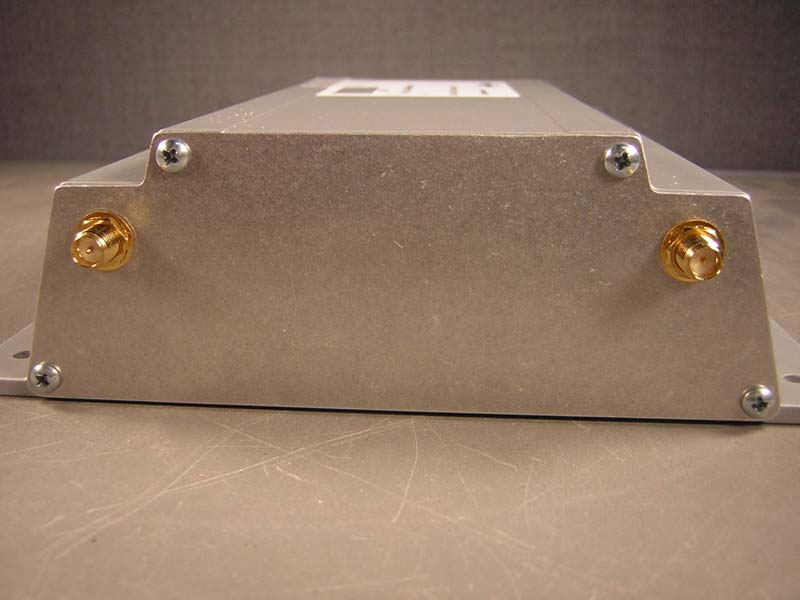

FCC ID:RTP-550-10016-3 IC: 4891A-0100163 FCC ID:RTP-550-10016-3 IC: 4891A-0100163 FCC ID:RTP-550-10016-3 IC: 4891A-0100163

FCC ID: RTP-550-10016-3 RF Section Pictures FCC ID: RTP-550-10016-3 FCC ID: RTP-550-10016-3

FCC ID:RTP-550-10016-3 IC: 4891A-0100163 RF Section

MPE Calculations Below are MPE calculations for mobile use in each band of operation. 802.11b/g Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:18.37 (dBm) Maximum peak output power at the antenna terminal:68.706844 (mW) Antenna gain(typical):4 (dBi) Maximum antenna gain:2.511886432 (numeric) Prediction distance:20 (cm) Prediction frequency:2412 (MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm^2) Power densit y at prediction frequency:0.034334(mW/cm^2) Maximum allowable antenna gain:18.64269855 (dBi) 2 4R PG S ∪ ∪ 802.11a - (a)(1) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:13.33 (dBm) Maximum peak output power at the antenna terminal:21.52781735 (mW) Antenna gain(typical):5 (dBi) Maximum antenna gain:3.16227766 (numeric) Prediction distance:20 (cm) Prediction frequency:5240 (MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm^2) Power densit y at prediction frequency:0.013543(mW/cm^2) Maximum allowable antenna gain:23.68269855 (dBi) 2 4R PG S ∪ ∪ 802.11a - (a)(2) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:20.05 (dBm) Maximum peak output power at the antenna terminal:101.1579454 (mW) Antenna gain(typical):4.7 (dBi) Maximum antenna gain:2.951209227 (numeric) Prediction distance:20 (cm) Prediction frequency:5280 (MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm^2) Power densit y at prediction frequency:0.059392(mW/cm^2) Maximum allowable antenna gain:16.96269855 (dBi) 2 4R PG S 802.11a - (a)(3) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:20.03 (dBm) Maximum peak output power at the antenna terminal:100.6931669 (mW) Antenna gain(typical):4.5 (dBi) Maximum antenna gain:2.818382931 (numeric) Prediction distance:20 (cm) Prediction frequency:5745 (MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm^2) Power densit y at prediction frequency:0.056459(mW/cm^2) Maximum allowable antenna gain:16.98269855 (dBi) 2 4R PG S Conclusion The above calculations are for a single radio. Since this device can operate with two radios simultaneously, a worst case prediction as to the power density with both radios can be determined by doubling the highest power density found above. At 5745MHz Pd(single) = 0.06mW/cm 2 @ 20cm Therefore Pd(dual) = 0.12mW/cm 2 @ 20cm which is well below the limit of 1mW/cm 2 @ 20cm

Radiated Emissions Table Curtis-Straus LLC Date: 05-Jan-05 Company: Colubris Work Order: E0865 Engineer: Evan Gould EUT Desc: CN3300 Frequency Range:just those shownMeasurement Distance:1 m Notes: RBW=1MHz VBW=3MHz (10Hz for ave) AntennaPreampAntennaCableAdjusted47 CFR 15.209 PolarizationFrequencyReadingFactorFactorFactorReadingLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) 802.11b; Ch.11; 1Mbps; Power=16--------------------- Vpk2487.856.820.129.81.067.583.5-16.0Pass Vav2487.352.220.129.81.062.963.5-0.6Marginal 802.11b; Ch.11; 11Mbps; Power=16--------------------- Vpk2489.259.120.129.81.069.883.5-13.7Pass Vav 2489.748.920.129.81.059.663.5-3.9Pass 802.11g; Ch.11; 6Mbps; Power=16 --------------------- Vpk 2483.970.820.129.81.081.583.5-2.0Marginal Vav2483.943.220.129.81.053.963.5-9.6Pass 802.11g; Ch.11; 54Mbps; Power=16--------------------- Vpk2483.962.020.129.81.072.783.5-10.8Pass Vav2483.945.620.129.81.056.363.5-7.2Pass Test Site:"T"Pre-Amp:Yel-BlkCable:7 Microflex Analyzer:GreenAntenna:Orange Horn

70 Codman Hill Road Boxborough MA 01719 Colubris Networks, Model: SolingDates of Test: December 15, 2003 - February 7, 2004 Report # 30519782FCC Part 15.247 Subpart C Table of Contents 1.0Summary of Tests..................................................................................................................................................3 2.0General Description..............................................................................................................................................4 2.1Product Description................................................................................................................................4 2.2Related Submittal(s) Grants....................................................................................................................4 2.3Test Facility..............................................................................................................................................5 2.4Test Equipment and Support Equipment.............................................................................................6 3.0RF Output Power and Exposure, and 6 dB Bandwidth.....................................................................................7 3.1Test Procedure.........................................................................................................................................7 3.2Test Results..............................................................................................................................................7 4.0Peak Power Spectral Density..............................................................................................................................8 4.1Test Procedure.........................................................................................................................................8 4.2Test Results..............................................................................................................................................8 5.0 Antenna Conducted Spurious Emissions and Band Edge Compliance...........................................................9 5.1Test Procedure.........................................................................................................................................9 5.2Test Results..............................................................................................................................................9 6.0 Radiated emissions in restricted bands.............................................................................................................22 6.1Test Procedure.......................................................................................................................................22 6.2Test Results............................................................................................................................................22 6.3Configuration Photographs – Radiated Emissions..........................................................................23 70 Codman Hill Road Boxborough MA 01719 Colubris Networks, Model: SolingDates of Test: December 15, 2003 - February 7, 2004 Report # 30519783FCC Part 15.247 Subpart C 1.0Summary of Tests Colubris Networks’s Access Point Model: Soling Serial #: M021-00017 Rule PartDESCRIPTION OF TESTRESULTSREPORT PAGE 15.247(a)(2), (b)(3) 1.1310 RF Output Power and Exposure, and 6 dB BandwidthPassed7 15.247(d)Peak Power Spectral DensityPassed8 15.247(c)Antenna Conducted Spurious EmissionsPassed9 15.247(c)Radiated Emissions in Restricted BandsPassed16 70 Codman Hill Road Boxborough MA 01719 Colubris Networks, Model: SolingDates of Test: December 15, 2003 - February 7, 2004 Report # 30519784FCC Part 15.247 Subpart C 2.0General Description 2.1Product Description The Access Point, Model: Soling, is a wireless LAN router conforming to the IEEE 802.11a/b/g standards. The normal temperature range of operation is from 0 to 50 degrees celsius. The Soling unit contains two 802.11a/b/g radios, designated Wvlan0 and Wvlan1 during testing. A production version of the EUT was received on December 8, 2003 in good operating condition. As declared by the Applicant, it is identical to production units. Overview of the EUT DescriptionAccess Point Model No. , Part No.Access Point Model: Soling Serial #: M021-00017 Operating FrequencyIEEE 802.11b/g: 2.412 – 2.462 GHz (Channels 1 – 11) IEEE 802.11a: 5.18-5.32 GHz (Channels 36 – 64) 5.745 – 5.805 GHz (Channels 149 – 161) Number of ChannelsIEEE 802.11b/g: 11 Channels, IEEE 802.11a: 19 Channels Type of ModulationIEEE 802.11a/b/g Operating Temperature0 0 C to +50 0 C AntennaIEEE 802.11b/g: Cushcraft SRSM2400MRA 2.0 dBi Gain Reverse-SMA IEEE 802.11a: Cushcraft SRSM5150MRA 2.0 dBi Gain Reverse-SMA The Colubris Networks Access Point, Model: Soling, has been tested at the request of: Company:Colubris Networks 420 Armand-Frappier Suite 200 QC, H7V 4B4, Canada Name of contact:Mr. Claude Robitaille Telephone:450-680-1661 Fax:450-680-1910 Email:[email protected] 2.2Related Submittal(s) Grants None. 70 Codman Hill Road Boxborough MA 01719 Colubris Networks, Model: SolingDates of Test: December 15, 2003 - February 7, 2004 Report # 30519785FCC Part 15.247 Subpart C 2.3Test Facility Site 2C (Middle Site) is a 3m and 10m sheltered EMI measurement range located in a light commercial environment in Boxborough, Massachusetts. It meets the technical requirements of ANSI C63.4-1992 and CISPR 22:1993/EN 55022:1994 for radiated and conducted emission measurements. The shelter structure is entirely fiberglass and plastic, with outside dimensions of 33 ft x 57 ft. The structure resembles a quonset hut with a center ceiling height of 16.5 ft. The testing floor is covered by a galvanized sheet metal groundplane that is earth-grounded via copper rods around the perimeter of the site. The joints between individual metal sheets are bridged with 2 inch wide metal strips to provide lo…

Text truncated - open the document above for the full version.

Report Number: 3051978 1 of 35 Originator’s Report Number: 3051978 Project Number: 3051978 February 16, 2004 Evaluation of the Access Point, Model: Soling to (checked standards) FCC Part 15, Subpart B ETSI 301 489-1 VCCI V-3 / 2000.04 Class B For Colubris Networks Date of Test: December 15, 2003 – February 16 Testing performed by: Intertek Testing Services 70 Codman Hill Road Boxborough, MA, 01719 Testing Authorized by: Colubris Networks 420 Armand-Frappier Suite 200 QC, H7V 4B4 Canada Prepared by: Date: Nicholas Abbondante Reviewed by: Date: Michael F. Murphy This report is for the exclusive use of ITS’s Client and is provided pursuant to the agreement between ITS and its Client. ITS’s responsibility and liability are limited to the terms and conditions of the agreement. ITS assumes no liability to any party, other than to the client in accordance with the agreement, for any loss, expense, or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the ITS name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by ITS. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an ITS certification program. Intertek Testing Services Report Number: 3051978 2 of 35 TABLE OF CONTENTS 1.0 INTRODUCTION ......................................................................................................................... 3 1.1 S COPE............................................................................................................................................ 3 1.2 E XECUTIVE SUMMARY................................................................................................................... 3 1.3 J OB DESCRIPTION........................................................................................................................... 4 1.3.1 Client Information ............................................................................................................... 4 1.3.2 Equipment under test (EUT)................................................................................................4 1.3.3 Test plan reference............................................................................................................... 4 1.4 B RIEF DESCRIPTION OF EUT AND RECEIVED CONDITION.............................................................. 5 1.5 S YSTEM TEST CONFIGURATION..................................................................................................... 6 1.6 S YSTEM BLOCK DIAGRAM............................................................................................................. 7 1.7 EUT OPERATION AND EXERCISE................................................................................................... 8 1.8 J USTIFICATIONS............................................................................................................................. 8 1.9 M ODIFICATIONS REQUIRED FOR COMPLIANCE.............................................................................. 8 2.0 TEST ENVIRONMENT ............................................................................................................... 9 2.1 T EST FACILITY...............................................................................................................................9 2.2 T EST EQUIPMENT........................................................................................................................... 10 2.3 F IELD STRENGTH CALCULATION................................................................................................... 11 2.4 M EASUREMENT UNCERTAINTY...................................................................................................... 12 3.0 ELECTROMAGNETIC RADIATION DISTURBANCE ......................................................... 13 3.1 T EST LIMITS................................................................................................................................... 13 3.2 T EST PROCEDURE.......................................................................................................................... 14 3.3 T EST RESULTS...............................................................................................................................14 3.4 T EST CONFIGURATION PHOTOGRAPH............................................................................................ 14 4.0 AC MAINS LINE-CONDUCTED DISTURBANCE ................................................................. 17 4.1 T EST LIMITS................................................................................................................................... 17 4.2 T EST PROCEDURE.......................................................................................................................... 18 4.3 T EST RESULTS...............................................................................................................................18 4.4 T EST CONFIGURATION PHOTOGRAPHS........................................................................................... 18 5.0 LABELING AND INSTRUCTION MANUAL REQUIREMENTS ......................................... 32 5.1 FCC PART 15, SUBPART B ............................................................................................................. 32 5.1.1 Labeling Requirements ........................................................................................................ 32 5.1.2 Instruction Manual Requirements........................................................................................ 32 5.2 ETSI EN 301 489-1 ....................................................................................................................... 34 5.2.1 Labeling Require…

Text truncated - open the document above for the full version.

REPORT:E0865-1 FCC ID:RTP-550-10016-3 IC: 4891A-0100163 Page 1 of 26 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No E0865-1 Client Colubris Networks Phone 781-547-0378 Fax 781-684-0009 Models CN3300 FRN 0010292464 FCC ID RTP-550-10016-3 IC 4891A-0100163 Equipment Type Low Power Communication Device Transmitter Equipment Code DTS/NII Standards 47CFR15.247, 15E, RSS-210 Issue 5 Results As detailed within this report Prepared by Mairaj Hussain – Test Engineer Authorized by Michael Buchholz – EMC Manager Issue Date Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this REPORT:E0865-1 FCC ID:RTP-550-10016-3 IC: 4891A-0100163 Page 2 of 26 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Summary ...........................................................................................................3 Test Methodology..............................................................................................3 Modifications required for compliance ...........................................................5 EUT Configuration.............................................................................................6 Statement of Conformity....................................................................................7 Test Data and Plots (5.15-5.25GHz UNI band) .................................................8 Section 15.31(e) ............................................................................................8 26dB Bandwidth.............................................................................................9 15.407(a) Peak Output Power .....................................................................10 15.407(a)(6) Peak Excursion .......................................................................11 15.407(a) Peak Power Spectral Density ......................................................12 15.407…

Text truncated - open the document above for the full version.
