RTP-MRLBB1003S802.11a/b/g/n Access Point

In The E-MSM430, E-MSM460, and E-MSM466 are Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11n/a/b/g products. The Wi-Fi CERTIFIED Logo is a certificatio n mark of the Wi-Fi Alliance. E-MSM430, E-MSM4 60, and E-MSM466 802.11n Access Points Quickstart This Quickstart shows you how to install and get started using the E-MSM 430, E-MSM460, and E-MSM466 Dual Radio 802.11n Access P oints, hereafter referred to as the AP except for where spec ific model referenc es are made. (See Products list on page 8 for part numbers.) Please visit www.hp.com/networking/support for the latest document ation including the MSM3xx / MSM4xx Acce ss Points Management and Configuration Guide and the MSM7xx Controllers Managemen t and Configuration Guide . Hardware overview ➀ ➁ ➅ ➇ ➈ ➆ ➆ ➆ ➆ ➃ ➄ ➃ ➂ Front view 1: Status Lights (Left to right) Po wer, Ethernet, Radio1, Radio 2 2: Cable lock hole3: Retention screw hole Back view4: Antenna connectors (E-MSM466 only),  Radio 1 right, Radio 2 left 5: Reset button6: Cable channel7: AP Bracket tab slot8: Console port9: Ethernet port E-MSM430-460-466-QS-Nov10-5998-0615- v55.fm Page 1 Friday, October 15, 2010 12:49 PM HP E-MSM430, E-MSM4 60, E-MSM466 Dual Radio 802. 11n Access Points Quickstart 2 Important information to read before installing Package contentsThe AP, AP Bracket, Padlock Bracket, two sets of AP Bracket T-bar clips with screws, two mounting screws with wall an chors, retention screw (4-40x1/4”), Adapter Bracket, and documentation. Ports • Ethernet port: Auto-sensing 10/100/1000 BaseT Ethernet port with RJ-45 connector. The port supports Power over Ethernet (PoE) 802.3af. • Console port: Standard console (serial) port with RJ-45 connector. See Console Ports in the MSM3xx / MSM4xx Access Points Management and Configuration Guide. Note that there is no need to use the Console port for initial configuration. The CLI Reference Guide is available online. Warning: Never connect the Console port to an Ethernet switch or PoE power source. This may damage the AP. Connect it only to other serial ports using an RJ-45 to Serial Port adapter. Radios and antennasEach AP features two radios, providing 802.11n/a on Radio 1 and 802.11n/a/b/g on Radio 2. For maximum performance, the E-MSM460 and E-MSM466 both support 3x3 MIMO three-spatial-stream 802.11n. The E-MSM430 only supports 2x3 MIMO two-spatial-stream 802.11n.The E-MSM430 and the E-MSM460 each contain two 3-element, dual-band, MIMO antennas. The E-MSM466 includes no integrated antennas. It provides three antenna connectors for each radio, color-coded red, green, and blue. When connecting the antenna cables, be sure to respect the color-coding. See E-MSM466 available antennas on page 8. Reset buttonThe Reset button is accessible via a hole on the bottom of the AP, labeled as 5 on page 1. Insert a paper clip into the Reset button hole. Press and quickly release the button to reset the AP. To reset the AP to factory defaults, press the button until the status lights blink three times, then release.Important information to read before installingWarning: PROFESSIONAL INSTALLATION REQUIRED. For indoor installation only. Prior to installing or using the AP, consult with a professional installer trained in RF installation and knowledgeable in local regulations including building and wiring codes, safety, channel, power, indoor/outdoor restrictions, and license requirements for the intended country. It is the responsibility of the end user to ensure that installation and use comply with local safety and radio regulations. Surge protection and grounding: When connecting antennas installed outdoors to the E-MSM466, make sure that proper lightning surge protection and grounding precautions are taken according to local electrical code. Failure to do so may result in personal injury, fire, equipment damage, or a voided warranty. The HP hardware warranty provides no protection against damage caused by static discharge or a lightning strike.Cabling : You must use the appropriate cables, and where applicable, surge protection, for your given region. Ca t 5e (or better) cabling is required. Plenum installation: The AP can be installed in a plenum. The AP is suitable for use in environmental air space in accordance with Section 300-22(C) of the National Electrical Code, and Sections 2-128, 12-010(3) and 12-100 of the Canadian Electrical Code, Part 1, CSA C22.1. It should be installed in a similar orientation as in a ceiling installation. However, it is left to a qualified installer to determine how to install/secure the AP in a plenum in an appropriate and safe manner. Plenum-rated cables and attachment hardware must be used.Country of use : In some regions, you are prompted to select the country of use during setup. After the country has been set, the AP will automatically limit the available wireless channels, ensuring compliant operation in the selected country. Entering the incorrect country may result in illegal operation and may cause harmful interference to other systems.Safety: Take note of the following safety information during installation. • If your network covers an area served by more than one power distribution system, make sure all safety grounds are securely interconnected. • Network cables may occasionally be subject to hazardous transient voltages (caused by lightning or disturbances in the electrical power grid). • Handle exposed metal components of the network with caution. • The AP is powered-on when connected to a PoE power source. • The AP and all interconnected equipment must be installed indoors within the same building (except for outdoor antennas), including all PoE-powered network connections, as described by Environment A of the IEEE 802.3af standard. See also Other regulatory information on page 8. Powering the AP The AP can be powered by: • A 10/100 or 10/100/1000 PoE-enabled switch. Various PoE-enabled switches are available from HP. • An HP 1-Port Power Injector (J9407A). E-MSM430-460-466-QS-Nov10-5998-0…

Text truncated - open the document above for the full version.

Hewlett-Packard Company 200 Forest Street Mailstop MRO1-2/M18 Marlborough , MA 01752-3085] www.hp.com Letter of Authorization Company:Hewlett-Packard Co Address:200 Forest Street, Marlborough, MA, 01752 Product Name: E-MSM460, E-MSM430 Model Number: MRLBB-1001 We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. This shall include the following: -Testing -Approval applications and procedures -Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: John CzyzewiczDate: October 15, 2010 Title: Senior Regulatory Engineer

Hewlett-Packard Company 200 Forest Street Mailstop MRO1-2/M18 Marlborough , MA 01752-3085] www.hp.com Letter of Authorization Company:Hewlett-Packard Co Address:200 Forest Street, Marlborough, MA, 01752 Product Name: E-MSM466 Model Number: MRLBB-1002 We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. This shall include the following: -Testing -Approval applications and procedures -Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: John CzyzewiczDate: October 15, 2010 Title: Senior Regulatory Engineer

Hewlett-Packard Company 200 Forest Street Mailstop MRO1-2/M18 Marlborough , MA 01752-3085] www.hp.com Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 11/9/2010 Request for Confidentiality Company name: Hewlett-Packard Co FCC ID: RTP- MRLBB1003S FCC Part 15.247 Certification Gentlemen, In accordance with 0.459 of CFR 47,Hewlett-Packard Co hereby requests confidentiality of all Block Diagrams, Circuit Diagrams, and Parts Lists attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Hewlett-Packard Co considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Hewlett- Packard Co considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, John Czyzewicz Senior Regulatory Engineer Hewlett-Packard Co 200 Forest Street Marlborough, MA, 01752

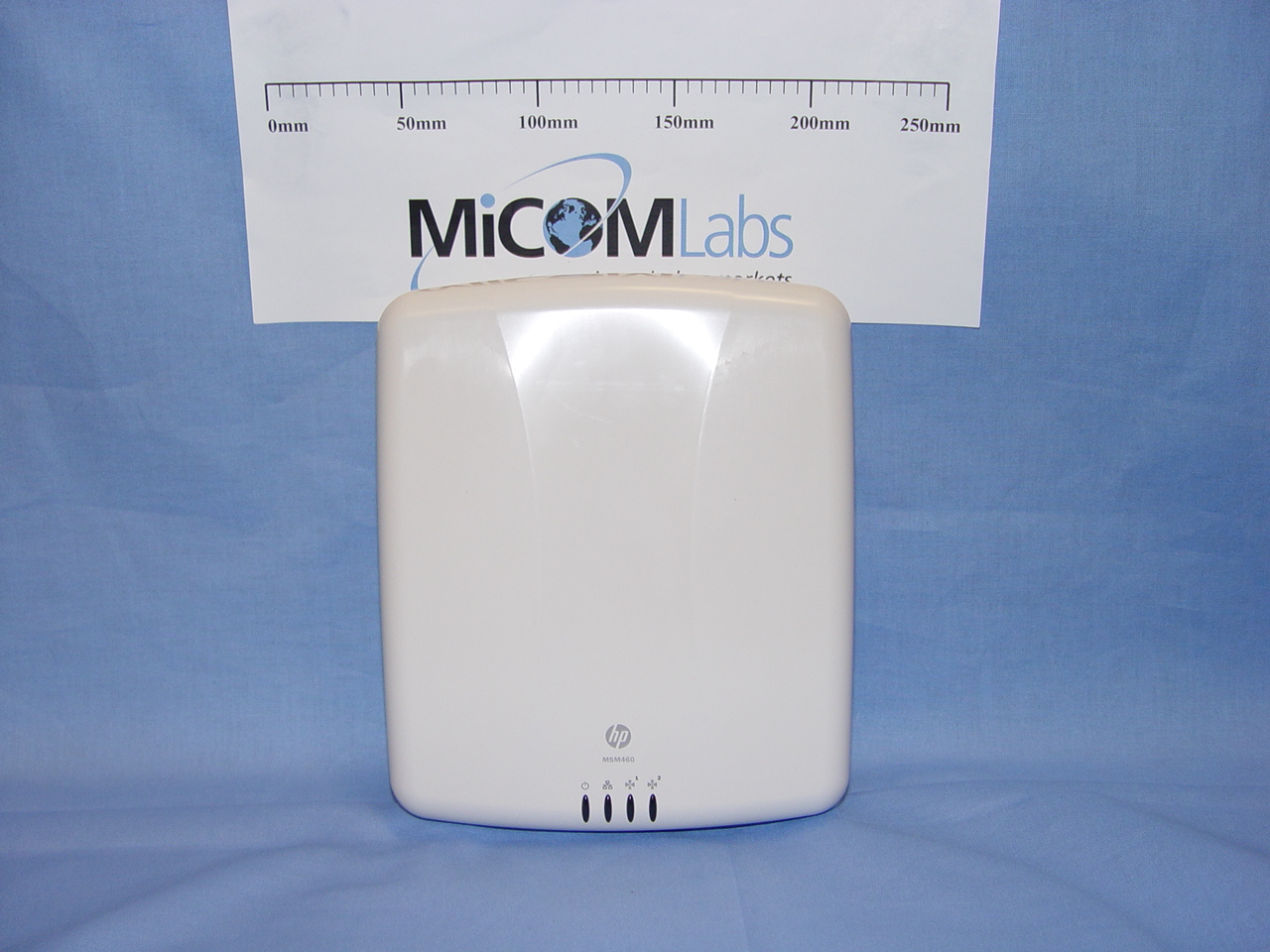

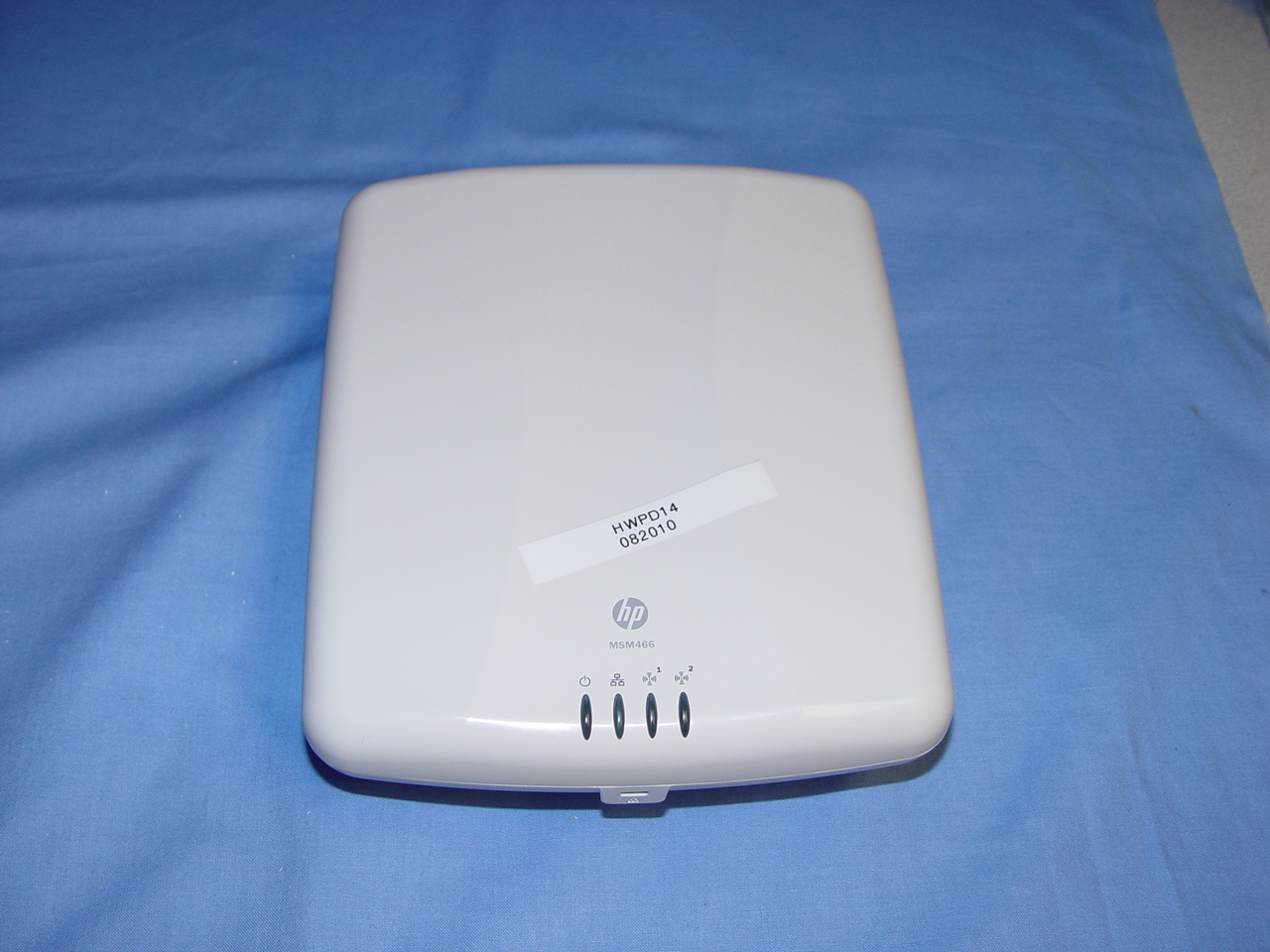

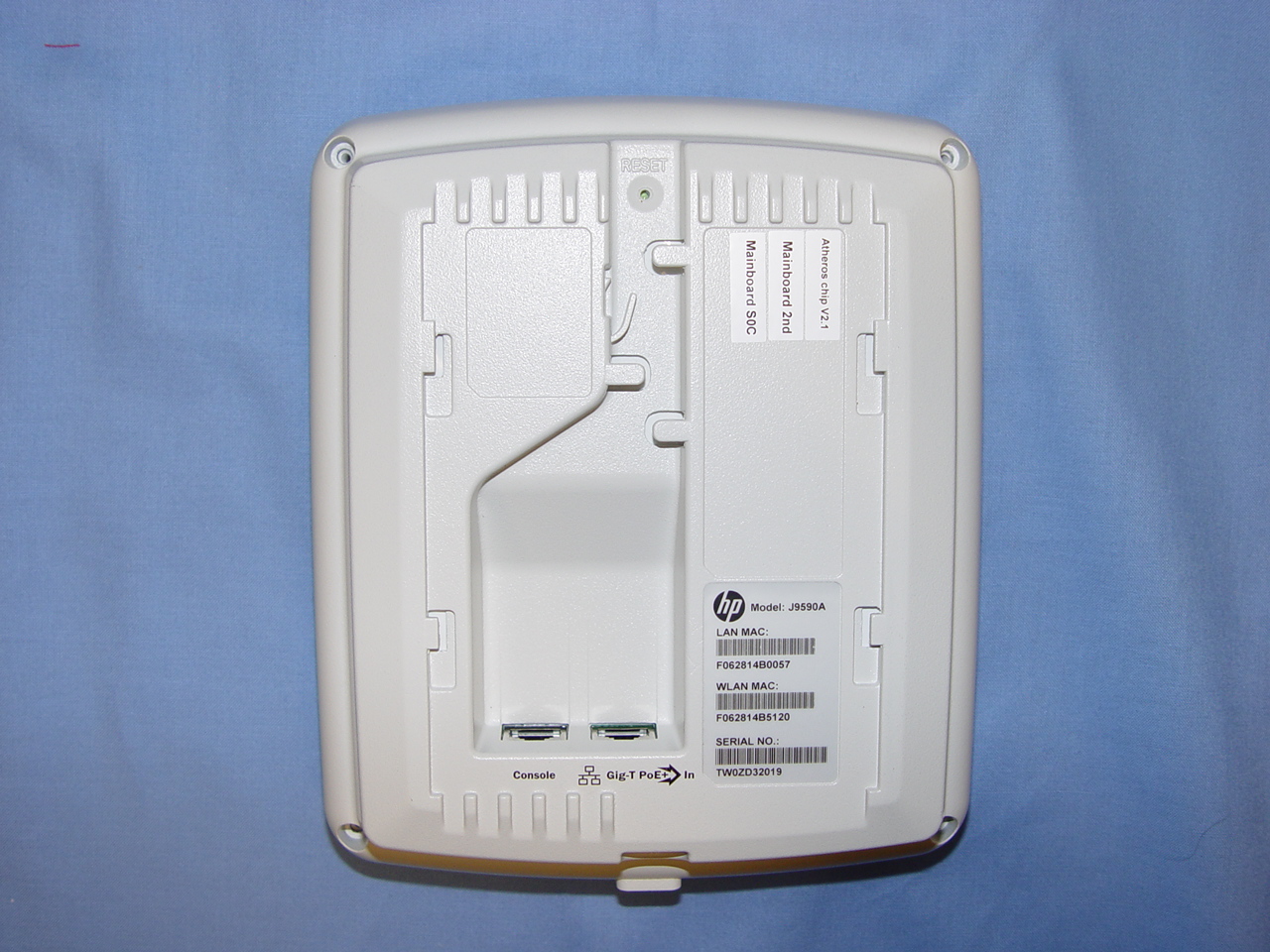

the wireless lab 6 December 2010 External Photographs Hewlett-Packard Co MRLBB-1001, MRLBB-1002 Front View MRLBB-1001 MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Back view Page 2 of 4 the wireless lab Front View MRLBB-1002 Page 3 of 4 the wireless lab Side View MRLBB-1002 Page 4 of 4

Regulatory Label Placement

the wireless lab 6 December 2010 Internal Photographs Hewlett-Packard Co MRLBB-1001, MRLBB-1002 Main Assy with RF shield MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab Main Assy with RF shield removed Page 2 of 3 the wireless lab Main Assy back Page 3 of 3

Page 7

60RNAA0P.G03 5184-6684 A03 11/30/2010 RNAA-H1 Antenna spec Note: The antenna performance test was conducted with system PCBA and housing X Y Z A1A0 A2 B0 B1 B2 ItemSpecification HP Product Number5184-6684 WNC Part Number60RNAA0P.G03 VSWR max2.0:1 PolarizationLinear Impedance (Ohms)50 Front to back ratio (dB) N/A Dimensions in. (cm) 6.18 x 6.18 (15.7 x 15.7) Height in. (cm)0.39 (1) Mounting StyleCeiling mount RF ConnectorU.FL Storage Temperature (min/max) -40°to +65°C Operating Temperature (min/max) -30°to +55°C Frequency (MHz)Maximum Peak Gain (dBi)Minimum Efficiency (%) 2400-25005.41dBi51% 4900-59007.02dBi55% Cable Diameter: 1.37 mm Cable Length: A0:200 mm A1:210 mm A2:110 mm B0:180 mm B1:210 mm B2:135 mm Ant A0 Ant A0 Ant A0 Ant A0 Ant A1 Ant A1 Ant A1 Ant A1 Ant A2 Ant A2 Ant A2 Ant A2 Ant B0 Ant B0 Ant B0 Ant B0 Ant B1 Ant B1 Ant B1 Ant B1 Ant B2 Ant B2 Ant B2 Ant B2

HP Warranty Information Dual-Band Narrow Beam Width 3x3 MIMO Sector Antenna J9169A Description The ProCurve J9169A is a dual-band, narrow beam width directional sector antenna for use in 802.11n MIMO applications. Enclosed in a compact, low-profile radome, the antenna is mounted to a rugged articulating mount. The mount can be affixed to a mast or anchored directly to a vertical surface. Each of the three MIMO antenna elements are connected to the WLAN Access Point via low loss, plenum-rated, coax pigtails. The radiation patterns are uniform and symmetrical, providing high- level signal density into defined coverage zones. This antenna will greatly enhance the performance of 802.11n systems. The dual-band frequency coverage means that a single type of antenna can be deployed with any MIMO radio in the 2.4-2.5 GHz and 5.1-5.9 GHz bands. Safety Specifications J9169A Frequency (MHz): 2400 - 2500 & 5150 - 5875 Gain dBi ( w/34” cable): 8.0 dBi @ 2450 MHz 10.7 dBi @ 5500 MHz Maximum VSWR: 2.0 : 1 3 dB Beamwidth – Azimuth: 75°@ 2.45 GHz /55°@ 5.5 GHz Polarization : Linear, 2 Vertical, 1 Horizontal Maximum Input Power: 1 Watt Cable Length in.(mm): 34” (860) Plenum rated Mechanical Size in. (mm): 10.2”x 10.2”x 1.3” (259.1 x 259.1 x 33.5) Weight: 1.8 kg A ntenna C onne ction: Reverse SMA (3x) Radome: Polycarbonate Mount Style: Articulating for Mast / Wall See the warranty notice included with this product. A copy of the specific warranty terms applicable to your ProCurve products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer. Support Hewlett-Packard offers support 24 hours a day, seven days a week through the use of a number of automated electronic services. You can get up-to-date support information from the ProCurve Web site: www.procurve.com. Additionally, your HP-authorized network reseller can provide you with assistance, both with services that they offer and with services offered by HP ProCurve. Part Number: 5992-5001 *5992-5001* The ProCurve J9169A and all associated equipment should be installed in accordance with applicable local and national electric code guidelines to ensure safe operation. Before connecting your external antenna to a ProCurve Wireless Access Point, please read the instructions in your access point manuals. Be sure that the access point's power levels are set to meet the regulatory requirements in your area. For antenna RF power setting limits by country/region, visit www.procurve.com/manuals. Important Notice: Please read all instructions carefully before attempting to install and use this product. Printed in USA October 2008 3 dB Beamwidth – Elevation: 70°@ 2.45 GHz /60°@ 5.5 GHz © Copyright 2008, Hewlett-Packard Company LP The information contained herein is subject to change without notice. Installation In order to ensure optimized field coverage (dependant on final antenna orientation), please note the color coded port identification : Blue= Vertically Polarized Red= Vertically Polarized Green= Horizontally Polarized The J9169A is shipped with a heavy duty articulating mount* that allows mounting to a mast, or optionally, to a vertical surface utilizing wall anchors/molys. HP ProCurve Networking J9169A * See mounting bracket kit for instructions.(HP 5070-6360) Lightning Arrester (Optional) In external applications, it is recommended that you also install three lightning arresters (HP J8996A or equivalent), one for each port of the antenna. Lightning arresters are not included with the antenna and must be purchased separately. For best results, install the lightning arrester in close proximity to a low-resistance ground at a point where the coaxial cable enters the building (see Photo 1). In most cases, one 8-foot rod driven into moist soil, or multiple rods bonded together, will provide adequate grounding (see National Electrical Code guidelines). Be sure to install the lightning arrester in an accessible location that permits periodic inspection and replacement (as needed). Provide drip loops in cables to prevent water from entering the building (see Photo 2). Antenna Location For best results, mount the J9169A facing towards the center of the coverage area. A line-of-sight path between the antenna and active floor works best. Avoid mounting next to a column or vertical support that could create a shadow zone and reduce coverage to only one portion of the room. To connect the Lightning Arrester to ground, use a very short and direct run of #10 solid copper wire (or equivalent). For exterior installations, use weatherproof coax connectors with a suitable mastic or rubberized tape to prevent water incursion (see Photo 1). Lightning Arrester (continued) Photo 1 Photo 2 Sealant Tape or Rubberized Protectant # 10 Ground Lead Blue Green Red Drip Loops Ground Connection HP ProCurve Networking J9169A J9169A Narrow Sector Radiation Plots (2.45 GHz) 0 350 340 330 320 310 300 290 280 270 260 250 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 -30-20-10 dB 0 350 340 330 320 310 300 290 280 270 260 250 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 -30-20-10 dB Port 2 E Plane 2.45 GHz Port 2 H Plane 2.45 GHz Port 1 E Plane 2.45 GHz 0 350 340 330 320 310 300 290 280 270 260 250 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 -30-20-10 dB 0 350 340 330 320 310 300 290 280 270 260 250 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 -30-20-10 dB Port 1 H Plane 2.45 GHz Port 3 E Plane 2.45 GHz 0 350 340 330 320 310 300 290 280 270 260 250 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 -30-20-10 dB Port 3 H Plane 2.45 GHz 0 350 340 330 320 310 300 290 280 270 260 250 240 230 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 -30-20-10 dB Port 1 Port 2 Port 3 1 1 2 2 3 3 HP ProCurve Networking J9169A Port 3 E Pl…

Text truncated - open the document above for the full version.

HP Warranty Information Dual-Band Point-to-Point 3x3 MIMO Directional Antenna J9170A Description The ProCurve J9170A is a dual-band, point-to-point directional panel antenna for use in 802.11n MIMO applications. Enclosed in a compact, low-profile radome, the antenna is mounted to a rugged articulating mount. The mount can be affixed to a mast or anchored directly to a vertical surface. Each of the three MIMO antenna elements are connected to the WLAN Access Point via low loss, plenum-rated, coax pigtails. The radiation patterns are uniform and symmetrical, providing high- level signal density into defined coverage zones. This antenna will greatly enhance the performance of 802.11n systems. The dual-band frequency coverage means that a single type of antenna can be deployed with any MIMO radio in the 2.4-2.5 GHz and 5.1-5.9 GHz bands. Safety Specifications J9170A Frequency (MHz): 2400 - 2500 & 5125 - 5875 Gain dBi ( w/34” cable): 10.9 dBi @ 2450 MHz 13.5 dBi @ 5500 MHz Maximum VSWR: 2.0 : 1 3 dB Beamwidth – Azimuth: 45°@ 2.4 GHz /20°@ 5.0 GHz Polarization : Linear, 2 Vertical, 1 Horizontal Maximum Input Power: 10 Watt Cable Length in.(mm): 34” (860) Plenum rated Mechanical Size in. (mm): 16.2”x 14.7”x 1.4” (411.4 x 373.3 x 35.8) Weight: 1.1 kg A ntenna C onne ction: Reverse SMA (3x) Radome: ASA Mount Style: Articulating for Mast / Wall See the warranty notice included with this product. A copy of the specific warranty terms applicable to your ProCurve products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer. Support Hewlett-Packard offers support 24 hours a day, seven days a week through the use of a number of automated electronic services. You can get up-to-date support information from the ProCurve Web site: www.procurve.com. Additionally, your HP-authorized network reseller can provide you with assistance, both with services that they offer and with services offered by HP ProCurve. Part Number: 5992-5002 *5992-5002* The ProCurve J9170A and all associated equipment should be installed in accordance with applicable local and national electric code guidelines to ensure safe operation. Before connecting your external antenna to a ProCurve Wireless Access Point, please read the instructions in your access point manuals. Be sure that the access point's power levels are set to meet the regulatory requirements in your area. For antenna RF power setting limits by country/region, visit www.procurve.com/manuals. Important Notice: Please read all instructions carefully before attempting to install and use this product. Printed in USA October 2008 3 dB Beamwidth – Elevation: 45°@ 2.4 GHz /20°@ 5.0 GHz © Copyright 2008, Hewlett-Packard Company LP The information contained herein is subject to change without notice. Installation In order to ensure optimized field coverage (dependant on final antenna orientation), please note the color coded port identification : Blue= Vertically Polarized Red= Vertically Polarized Green= Horizontally Polarized The J9170A is shipped with a heavy duty articulating mount* that allows mounting to a mast, or optionally, to a vertical surface utilizing wall anchors/molys. HP ProCurve Networking J9170A * See mounting bracket kit for instructions.(HP 5070-6360) Lightning Arrester (Optional) In external applications, it is recommended that you also install three lightning arresters (HP J8996A or equivalent), one for each port of the antenna. Lightning arresters are not included with the antenna and must be purchased separately. For best results, install the lightning arrester in close proximity to a low-resistance ground at a point where the coaxial cable enters the building (see Photo 1). In most cases, one 8-foot rod driven into moist soil, or multiple rods bonded together, will provide adequate grounding (see National Electrical Code guidelines). Be sure to install the lightning arrester in an accessible location that permits periodic inspection and replacement (as needed). Provide drip loops in cables to prevent water from entering the building (see Photo 2). Antenna Location For best results, mount the J9170A facing towards the center of the coverage area. A line-of-sight path between the antenna and active floor works best. Avoid mounting next to a column or vertical support that could create a shadow zone and reduce coverage to only one portion of the room. To connect the Lightning Arrester to ground, use a very short and direct run of #10 solid copper wire (or equivalent). For exterior installations, use weatherproof coax connectors with a suitable mastic or rubberized tape to prevent water incursion (see Photo 1). Lightning Arrester (continued) Photo 1 Photo 2 Sealant Tape or Rubberized Protectant # 10 Ground Lead Blue Green Red Drip Loops Ground Connection HP ProCurve Networking J9170A J9170A Point-to-Point Radiation Plots (2.45 GHz) Port 1 Port 2 Port 3 HP ProCurve Networking J9170A J9170A Point-to-Point Radiation Plots (5.5 GHz)

SPECIFICATIONS ANTENNA LOCATION HP WARRANTY INFORMATION J9171A Description The ProCurve J9171A is a dual band 3-element omni-directional antenna for use in 802.11n MIMO applications. Enclosed in a compact, low-profile radome, the antenna can be mounted to a variety of drop ceiling grids using the integrated spring clips. Each of the three MIMO antenna elements is connected to the WLAN Access Point via a low loss, plenum-rated, coax pigtail. The radiation patterns are uniform and symmetrical, providing high levels signal density into defined coverage zones. This antenna will greatly enhance the performance of 802.11n systems. The dual band frequency coverage means that a single type of antenna can be deployed with any MIMO radio in the 2.4-2.5 GHz and 4.9-5.9 GHz bands. Product Number J9171A For best results, mount the J9171A at ceiling level near the center of the coverage area. A line-of-sight path between the antenna and active floor works best. Avoid mounting next to a column or vertical support that could create a shadow zone and reduce coverage to only one portion of the room. Frequency MHz: 2400 - 2500 & 4900 - 5990 Gain dBi ( w/33” cable): 3.0 + 0.5 dBi @ 2.4-2.5 GHz 4.0 + 1.0 dBi @ 4.9-5.99 GHz Maximum VSWR: 2.0:1 Radome: White ASA Mount Style: Ceiling Grid / Suspended Tile 3 dB Beamwidth – Elevation: 3 dB Beamwidth – Azimuth: Omnidirectional Polarization : Vertical Linear Maximum Input Power: 2 Watts Cable Length in.(mm): 33” (838.2) Plenum rated Mechanical Size in. (mm): 12.14”x .87”x 3.6” (308.3 x 22 x 92) Weight: 0.39 kg Antenna Connection: Reverse SMA (3x) 60° Safety See the warranty notice included with this product. A copy of the specific warranty terms applicable to your ProCurve products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer. Support Hewlett-Packard offers support 24 hours a day, seven days a week through the use of a number of automated electronic services. You can get up-to-date support information from the ProCurve Web site: www.procurve.com. Additionally, your HP-authorized network reseller can provide you with assistance, both with services that they offer and with services offered by HP ProCurve. Part Number: 5992-5003 *5992-5003* Printed in USA October 2008 © Copyright 2008, Hewlett-Packard Company LP The information contained herein is subject to change without notice. The ProCurve J9171A and all associated equipment should be installed in accordance with applicable local and national electric code guidelines to ensure safe operation. Before connecting your external antenna to a ProCurve Wireless Access Point, please read the instructions in your access point manuals. Be sure that the access point's power levels are set to meet the regulatory requirements in your area. For antenna RF power setting limits by country/region, visit www.procurve.com/manuals. Important Notice: Please read all instructions carefully before attempting to install and use this product. Dual-Band 3 Element MIMO Omni Directional Antenna INSTALLATION Suspended-ceiling mounting clips are provided on the rear panel of the antenna package. Make three small slots in the tile to pass the feed lines through, then install the antenna on the tile-support rail, as shown in Figure-1. For installations using recessed-edge tiles, use the supplied plastic recessed tile adapter clips. Snap clips into the ceiling-tile grid then mount the antenna to the clips, as illustrated in Figure-2. For 9/16” rectangular profile grid, install the supplied clips in the same manner. Figure 1 Ceiling grid I-beam Figure 2 Recessed tile grid clip 999///111666”” Rectangular profile clip HP ProCurve Networking J9171A J9171A Omni Antenna Radiation Plots E Plane 5.47 GHz 345 0 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 345 -30-20-10 dB H Plane 5.47 GHz 345 0 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 345 -30-20-10 dB H Plane 2.5 GHz E Plane 2.5 GHz 345 0 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 345 -30-20-10 dB 345 0 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 345 -30-20-10 dB J9171A Omni Antenna Radiation Plots

HP 2.0 dBi Dual-Band 6-Element MIMO Omni Directional Antenna (J9659A) Guide SAFETY The HP J9659A and all associated equipment should be installed in accordance with all applicable local and national electrical code guidelines to ensure safe operation. Before connecting an external antenna to an HP Wireless Access Point, be sure that the access point radio power levels are set in accordance with local regulatory requirements. For information on setting radio power levels, see Transmit power control in the MSM3xx/4xx Access Points Management and Configuration Guide. For mandatory antenna power settings by country/region, look for Antenna Power-Level Setting Guide (for MSM products) at www.hp.com/networking/support. Please read all instructions carefully before attempting to install and use this product. Grounding: Proper system grounding is essential. SPECIFICATIONS WARRANTY AND SUPPORT INFORMATION See the warranty and support information included with this product. For the latest information, go to www.hp.com/networking/support. DESCRIPTION The HP J9659A is an indoor ceiling grid-mounted omnidirectional array especially designed for use with dual-radio 802.11n access points. Six independent vertically polarized radiators provide null-free omnidirectional coverage for meeting rooms, offices, departmental areas, or other enclosed spaces. ANTENNA LOCATION For best results, mount the HP J9659A at ceiling level near the center of the coverage area. A line-of-sight path between the antenna and active floor locations works best. Avoid mounting next to a column or vertical support that could create a shadow zone and reduce coverage to a portion of the room. ItemSpecification Frequency, MHz)2.4-2.5 GHz & 5.15-5.85 GHz Gain with 33” cable (dBi)2.0 dBi VSWR Maximum2:1 3 dB Beamwidth – AzimuthOmnidirectional 3 dB Beamwidth – Elevation75°: 2.4-2.5/45°: 5.15-5.85 PolarizationLinear 6 Vertical Maximum Input Power5 Watts Cable Length in.(mm)33” (838.2 mm) Plenum rated Mechanical Size in. (mm)8.6” x 1.7” (219 x 44 mm) Weight1.5 lb. (0.7 kg) Antenna ConnectionRP-SMA (6x) Radome EnclosureASA Mount StyleCeiling Grid/Suspended Tile Water/Dust Seal RatingIP67 © Copyright 2010, Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Printed in November 2010 Document Part Number: 5998-0931 *5998-0931* 2HP 2.0 dBi Dual-Band 6-Element MIMO Omni Directional Antenna (J9659A) Guide INSTALLATION A threaded post on the back of the antenna and a supplied mounting nut are the primary mounting method when access is available to both sides of the mounting surface, such as a suspended ceiling tile. Mark the desired mounting location on the tile and cut a 40mm (1.57”) hole. Feed the cables through the hole and secure the Antenna with the mounting nut. The included rubber locking gasket should only be used with the mounting nut when mounting to a hard surface. If access is limited to the back of the mounting surface, there are two mounting holes that can be used with #8 screws and expanding anchors (not supplied). J9659A Omni Antenna Radiation Plots J9659A Omni Antenna Radiation Plots Figure 1 2.45 GHz replace with high-quality plots for 2.45, 5.47, and 5.72 GHz. These are temporary low-quality placeholder images. Expect to 5.47 GHz 5.725 GHz Legend

Report No.: FD990716C01 1 Report Format Version 3.0.2 Reference No.: FCC DoC TEST REPORT REPORT NO. : FD990716C01 MODEL NO. : MRLBB-1001, MRLBB-1002 RECEIVED : July 16, 2010 TESTED : Aug. 31 to Oct. 14, 2010 ISSUED : Oct. 15, 2010 APPLICANT : Wistron NeWeb Corp. ADDRESS : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung…
