RTP-MRLBB1303WLAN 802.11a/n/ac mini-PCIe Module

In The HP 560 is a Wi-Fi Allian ce authorized Wi-Fi CERTIFIED 802.11ac product. The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. HP 560 Wireless 802.11ac Access Point Quickstart This Quickstart shows you how to install and get started using the HP 560 Dual Radi o 802.11ac Access Point, hereafter referred to as the AP. The latest HP documentation is av ailable at www.hp.com/support/manuals. Important: Operating this AP in requires t hese minimum software versions: HP MSM7xx,V5.5.2; HP 20G Unified Wired-WLAN Module in an HP 7500 , CMW520-R6708 or in an HP 10500 CMW520-R1208; HP 8 30, CMW520-B3308P18; HP WX 5002/4, CMW520-R2308P18-EI. Hardware overview ➀ ➁ ➅ ➇➈ ➆ ➆ ➆ ➆ ➃ ➄ ➃ ➂ Front view 1: Status LEDs (left to right) Power/Sy stem OK, Ethernet, Radio 1, Radio 2 2: Cable lock hole3: Retention screw hole Back view1: Reset button2: Cable channel3: AP Bracket tab slot4: Console port5: Ethernet port Model NumbersHP 560: J9846A (WW), J9845A (AM), J9847A (JP), J9848A (IL) HP 560 Wireless 802.11ac Access Point Quickstart 2 I mportant information to read before installing Package contentsThe AP, AP Bracket, Padlock Bracket, two sets of AP Bracket T-bar clips with screws, two mounting screws with wall an chors, retention screw (4-40x1/4”), Adapter Bracket, and documentation. Ports • Ethernet port: Auto-sensing 10/100/1000 BaseT Ethernet port with RJ-45 connector. The port supports PoE (Power over Ethernet) 802.3af and 802.3at. • Console port: Standard console (serial) port with RJ-45 connector. See Console Ports in the HP 5xx Access Point Configuration Guide , available online . There is no need to use the Console port for initial configuration. Caution: Never connect the Console port to an Ethernet switch or PoE power source. This can damage the AP. Connect it only to other serial ports using an RJ-45 to Serial Port adapter. Radios and antennasThe AP features two radios: A 5 GHz 802.11n/a/ac on Radio 1 and a 2.4/5 GHz 802.11n/a/b/g on Radio 2. For maximum performance, the AP supports 3x3 MIMO three-stream 802.11n and contains two 3-element, dual-band, MIMO antennas. Reset buttonThe Reset button is accessible via a hole on the bottom of the AP. To reset the AP, insert a paper clip into the Reset button hole, and press and quickly release the button. To reset the AP to factory defaults, press and hold the button until the status LEDs blink three times, and then release.Important information to read before installingWarning: Professional installation is required. For indoor installation only. Before installing or using the AP, consult with a professional installer trained in RF installation and knowledgeable in local regulations including building and wiring codes, safety, channel, power, indoor/outdoor restrictions, and license requirements for the intended country. The end user is responsible for ensuring that installation and use comply with local safety and radio regulations.Cabling : You must use supported Cat 5e (or better) cables, and where applicable, surge protection, for your region. Plenum installation: The AP can be installed in a plenum. The AP is suitable for use in environmental air space in accordance with Section 300-22(C) of the National Electrical Code, and Sections 2-128, 12-010(3) and 12-100 of the Canadian Electrical Code, Part 1, CSA C22.1. It should be installed in a similar orientation as in a ceiling installation. However, a qualified installer can determine how to install/secure the AP in a plenum in an appropriate and safe manner. Plenum-rated cables and attachment hardware must be used.Country of use : In some regions, you are prompted to select the country of use during setup. After the country has been set, the AP automatically limits the available wireless channels, ensuring compliant operation in the selected country. Entering the incorrect country can result in illegal operation and can cause harmful interference to other systems.Safety: Consider the following safety information during installation: • If your network covers an area served by more than one power distribution system, ensure that all safety grounds are securely interconnected. • Network cables can occasionally be subject to hazardous transient voltages (caused by lightning or disturbances in the electrical power grid). • Handle exposed metal components of the network with caution. • The AP is powered on when connected to a PoE power source. • The AP and all interconnected equipment must be installed indoors within the same building (except for outdoor antennas), including all PoE-powered network connections, as described by Environment A of the IEEE 802.3af standard. Powering the AP The AP can be powered by: • A 10/100 or 10/100/1000 PoE-enabled switch. Various PoE-enabled switches are available from HP. • An HP 1-Port Power Injector (J9407B). Caution: If the AP will be powered by a user-supplied PoE power injector, use only a gigabit-compatible power injector. Although 10/100 PoE-enabled switches are compatible, PoE injectors designed for 10/100 networks only are not compatible with the AP. HP 560 Wireless 802.11ac Access Point Quickstart 3 Installation InstallationThe AP can be mounted on a wall, a wall-mounted electrical box, or a suspended ceiling. The AP Bracket is mounted first and then the AP is attached to the bracket. The AP Bracket is two-sided: The AP is installed on the side with the UP arrow. The other side with the T-bar clip screw holes faces the wall or T-bar.Mounting directly on a wall 1. Hold the AP bracket with the UP arrow pointing up against the wall where you want to install it. Mark the location of the screw holes (5) and the cutout area (6). 2. Drill two holes for the wall anchors, typically 4.7 mm (3/16 inch) in diameter. 3. If necessary, drill a hole for the Ethernet cable in the marked cutout area of the AP Bracket. Alternatively, you can feed the Ethernet cable from above and through the AP cable channel. 4. Insert the anchors and tap them flush with the…

Text truncated - open the document above for the full version.

Hewlett-Packard Company 153 Taylor Street Littleton, MA 01460-1407 www.hp.com FCC UNII Device 5600-5650MHz Band Non-Transmission Restrictions Declaration Date: November 4, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: MRLBB-1303 FCC IDENTIFIER: RTP-MRLBB1303 Regarding restrictions for operation in the 5600 - 5650 MHz band, as described in FCC KDB notice 443999 D01 Approval of DFS UNII Devices v01 "Interim Plans to Approve UNII Devices Operating in the 5470 - 5725 MHz Band with Radar Detection and DFS Capabilities", We declare that the device will not transmit on channels which overlap the 5600 - 5650 MHz band. John Czyzewicz Principal Regulatory Engineer Hewlett-Packard Company

Hewlett-Packard Company 153 Taylor Street Littleton, MA 01460-1407 www.hp.com FCC UNII Device DFS Operation Declaration Date: November 1, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product: 802.11a/n/ac Radio Module Model Number: MRLBB-1303 Regarding restrictions for operation in the 5470 - 57250 MHz band; We declare that the device meets all requirements for operation in the 5470 - 5725 MHz band as specified in FCC KDB notice 443999 D01 Approval of DFS UNII Devices v01 "Interim Plans to Approve UNII Devices Operating in the 5470 - 5725 MHz Band with Radar Detection and DFS Capabilities". List of attachments and supporting documentation: FCC UNII Device DFS Operation Declaration [this document] FCC DFS 5600 - 5650 MHz Band Non-Transmission Declaration FCC DFS Uniform Spreading Declaration FCC Software Configuration Control Declaration This product has no outdoor transmission in the 5470 - 5725 MHz band . John Czyzewicz Date: November 1, 2013 Principal Regulatory Engineer

Hewlett-Packard Company 153 Taylor Street Littleton, MA 01460-1407 www.hp.com FCC DFS Uniform Spreading Declaration Date: November 1, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product: 802.11a/n/ac Radio Module Model Number: MRLBB-1303 Regarding Uniform Spreading requirements for DFS operation identified in FCC 06-96 in ET Docket 03-122; "Uniform Channel Spreading: The spreading of U-NII device Operating Channels over the 5250-5350 MHz and/or 5470-5725 MHz bands to avoid dense clusters of devices operating on the same Channel." We declare the device provides on aggregate a Uniform Spreading of the Operating Channels across the entire band. This applies to the 5250-5350 MHz and/or 5470-5725 MHz bands. John Czyzewicz Date: November 1, 2013 Principal Regulatory Engineer

PLEASE PLACE YOUR COMPANY LETTER HEAD HERE 10/31/2013 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Hewlett Packard Company FCC ID: RTP-MRLBB1303 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 <Company name> hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Exhibit Type File Name Description Operational Description MRLBB-1303 functionaldescription.pdf Functional Description Schematics MRLBB-1303 schematics.pdf Radio Schematics Block Diagram MRLBB-1303 block diargram.pdf Radio Block diagram BOM MRLBB-1303 bill of materials.pdf Radio Bill of Materials Note: Any exhibit NOT granted Confidential status is viewable on the FCC website as soon as the Grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Hewlett Packard Company considers proprietary, confidential, and a custom design not otherwise available to the general public. State why the information is a “trade secret;” Since the design is a basis from which future products will evolve, Hewlett Packard Company considers that this information would be of significant benefit to its competitors and that disclosure would give competitors an unfair advantage in the marketplace. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. Sincerely, Name: John Czyzewicz Company: Hewlett Packard Company Title: Principal Regulatory Engineer Date: 10-31-13

Hewlett-Packard Company 153 Taylor Street Littleton, MA 01460-1407 www.hp.com Letter of Authorization Hewlett-Packard Company 153 Taylor Street Littleton, MA 01460-1407 Product Name: 802.11a/n/ac Radio Module Model Number: MRLBB-1303 We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Testing • Approval applications (includes complete product documentation package, including Confidential information) and procedures • Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. John Czyzewicz Date: October 31, 2013 Principal Regulatory Engineer

Hewlett-Packard Company 153 Taylor Street Littleton, MA 01460-1407 www.hp.com Part 15.212 Single-Modular Transmitter Certification Request Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: Hewlett-Packard Company FCC ID: RTP-MRLBB1303 Gentlemen, In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Certification Guide v01r04’, Hewlett-Packard Company has been examined against the following requirements. Essential Elements of 15.212(a)(1) Yes No The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly X The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal X The module must contain power supply regulation on the module X The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) X The module must demonstrate compliance in a stand-alone configuration. * Tested on and will only operate on a HP proprietary product. X The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labeling requirements) X The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee X The module must comply with RF exposure requirements X Hewlett-Packard is requesting a LMA because we will not allow the general public to use this FCC grant. We will use this FCC ID only in our own products where we can control the host requirements. John Czyzewicz Date: November 1, 2013 Principal Regulatory Engineer

Hewlett-Packard Company 153 Taylor Street Littleton, MA 01460-1407 www.hp.com 1/28/2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Hewlett Packard Company FCC ID: RTP-MRLBB1303 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459, Hewlett Packard Company hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Exhibit Type File Name Description Operational Description MRLBB-1303 functionaldescription.pdf Functional Description Schematics MRLBB-1303 schematics.pdf Radio Schematics Block Diagram MRLBB-1303 block diargram.pdf Radio Block diagram BOM MRLBB-1303 bill of materials.pdf Radio Bill of Materials Note: Any exhibit NOT granted Confidential status is viewable on the FCC website as soon as the Grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Hewlett Packard Company considers proprietary, confidential, and a custom design not otherwise available to the general public. State why the information is a “trade secret;” Since the design is a basis from which future products will evolve, Hewlett Packard Company considers that this information would be of significant benefit to its competitors and that disclosure would give competitors an unfair advantage in the marketplace. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. Sincerely, Name: John Czyzewicz Company: Hewlett Packard Company Title: Principal Regulatory Engineer Date: 1-28-2014

Hewlett-Packard Company 153 Taylor Street Littleton, MA 01460-1407 www.hp.com 1/28/2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Hewlett Packard Company FCC ID: RTP-MRLBB1303 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459, Hewlett Packard Company hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Exhibit Type File Name Description Operational Description MRLBB-1303 functionaldescription.pdf Functional Description Schematics MRLBB-1303 schematics.pdf Radio Schematics Block Diagram MRLBB-1303 block diargram.pdf Radio Block diagram BOM MRLBB-1303 bill of materials.pdf Radio Bill of Materials Note: Any exhibit NOT granted Confidential status is viewable on the FCC website as soon as the Grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Hewlett Packard Company considers proprietary, confidential, and a custom design not otherwise available to the general public. State why the information is a “trade secret;” Since the design is a basis from which future products will evolve, Hewlett Packard Company considers that this information would be of significant benefit to its competitors and that disclosure would give competitors an unfair advantage in the marketplace. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. Sincerely, Name: John Czyzewicz Company: Hewlett Packard Company Title: Principal Regulatory Engineer Date: 1-28-2014

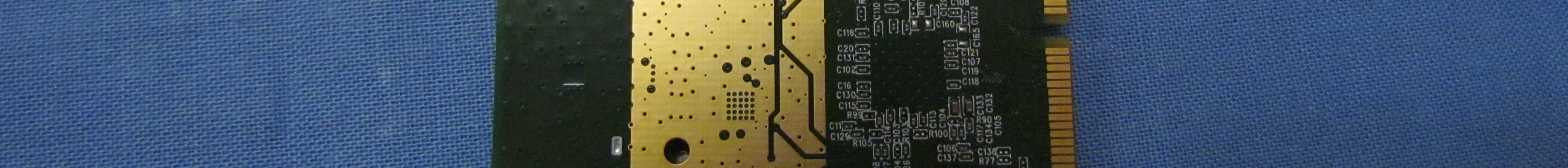

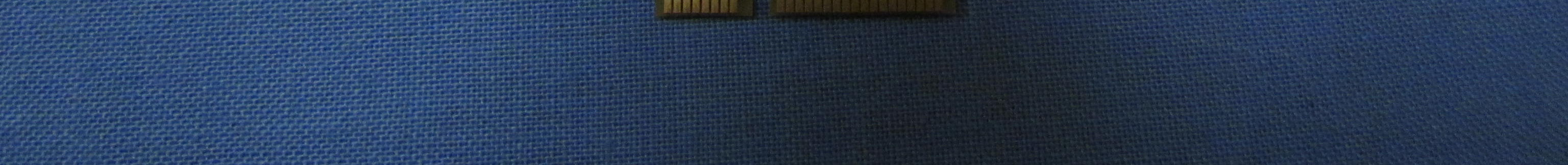

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 2 October 2013 Hewlett Packard Co External Photographs MRLBB-1303 Module Front Page 2 of 3 the wireless lab Module back Page 3 of 3 the wireless lab

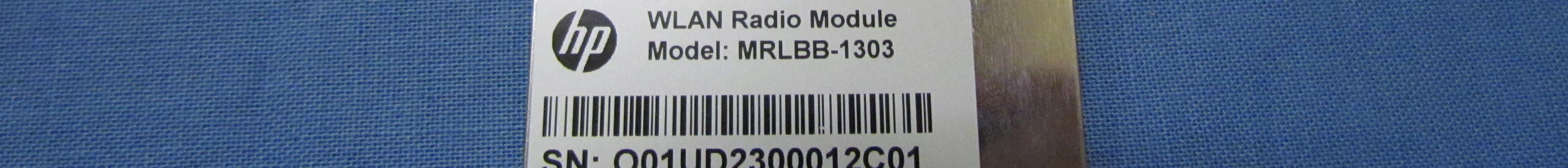

FCC ID: RTP-MRLBB1303 IC: 4891A-MRLBB1303 MRLBB-1303 XX HP P/N 5188-9661

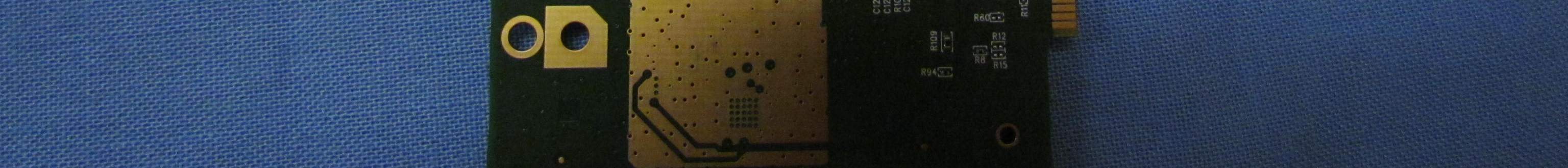

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 31 October 2013 Hewlett Packard Co Internal Photographs MRLBB-1303 Module Front shield removed Page 2 of 2 the wireless lab Module back

HWPD41 Maximum Permissible Exposure FCC, Part 15 §1.1310 Industry Canada RSS-Gen §5.6 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 The calculations in the table below use highest gain antennas for the client EUT. Where the antenna gain exceeds 6dBi the transmitter power is reduced to meet the EIRP requirements (if required). These calculations represent worst case in terms of the exposure levels. Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 5725 - 5850 7.79 6.0 25.00 316.3 12.3 20 5150 - 5250 7.4 5.5 15.52 35.64 4.0 20 5250 – 5350 7.4 5.5 22.58 181.1 8.9 20 5470 - 5725 7.81 6.0 22.13 163.3 8.9 20 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §5.6 Category I and Category II equipment shall comply with the applicable requirements of RSS-102. Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty ±1.33 dB

COVER PAGE Test of Hewlett Packard MRLBB-1303 Wireless Module To: FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: HPWD41-U3 Rev A TITLE PAGE TEST REPORT FROM Test of Hewlett Packard MRLBB-1303 Wireless Module to To FCC 47 CFR Part 15.247 & IC RSS-210 Test Report Serial No.: HPWD41-U3 Rev A Note: this report contains data with regard to the 5725-5850 MHz operational mode of the Hewlett Packard MRLBB-1303 Wireless Module. Test data for the 5,150 - 5,350 and 5,470–5,725 MHz is reported in MiCOM Labs test report HPWD41-U6 This report supersedes: NONE Applicant: Hewlett Packard 8000 Foothills Blvd Roseville, 95947 California USA Product Function: Wireless LAN Access Point Copy No: pdf Issue Date: 10th September 2013 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (92 5) 462-0306 TEST CERTIFICATE #2381.01 www.micomlabs.com This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: To: Hewlett Packard MRLBB-1303 Wireless Module FCC 47 CFR Part 15.247 & IC RSS-210 Serial #: Issue Date: Page: 3 of 205 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. HPWD41-U 3 Rev A 10th September 2013 This page has been left intentionally blank Title: To: Serial #: Issue Date: Page: 4 of 205 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Hewlett Packard MRLBB-1303 Wireless Module FCC 47 CF R Part 15.247 & IC RSS-210 HPWD41-U3 Rev A 10th September 2013 TABLE OF CONTENTS ACCREDITATION, LISTINGS & RECOGNITION ............................................................ 5 TESTING ACCREDITATION ............................................................................................ 5 RECOGNITION ................................................................................................................. 6 PRODUCT CERTIFICATION ............................................................................................ 7 TEST RESULT CERTIFICATE .......................................................................................... 9 1. REFERENCES AND MEASUREMENT UNCERTAINTY ........................................ 10 1.1. Normative References ............................................................................................. 10 1.2. Test and Uncertainty Procedures ............................................................................ 11 2. PRODUCT DETAILS AND TEST CONFIGURATIONS .......................................... 12 2.1. Technical Details ..................................................................................................... 12 2.2. Scope of Test Program ............................................................................................ 13 2.3. Equipment Model(s) and Serial Number(s) ............................................................. 16 2.4. Antenna Details ....................................................................................................... 16 2.5. Cabling and I/O Ports .............................................................................................. 16 2.6. Test Configurations.................................................................................................. 17 2.7. Equipment Modifications.......................................................................................... 18 2.8. Deviations from the Test Standard .......................................................................... 18 3. TEST EQUIPMENT CONFIGURATION(S) .............................................................. 19 3.1. Conducted RF Emission Test Set-up ...................................................................... 19 3.2. Radiated Spurious Emission Test Set-up > 1 GHz.................................................. 20 3.3. Digital Emissions Test Set-up (0.03 – 1 GHz) ......................................................... 21 3.4. ac Wireline Emission Test Set-up ............................................................................ 22 4. TEST SUMMARY ...................................................................................................... 23 5. TEST RESULTS ........................................................................................................ 25 5.1. Device Characteristics ............................................................................................. 25 5.1.1. Conducted Testing ...................................................................................25 5.1.2. Radiated Emission Testing ......................................................................54 5.1.3. AC Wireline Conducted Emissions (150 kHz – 30 MHz)..........................71 6. PHOTOGRAPHS....................................................................................................... 74 6.1. Conducted Test Setup ............................................................................................. 74 6.2. Test Setup - Digital Emissions <1 GHz.................................................................... 75 6.3. ac Wireline Test Setup >1 GHz ............................................................................... 76 7. TEST EQUIPMENT ................................................................................................... 77 APPENDIX ........................................................................................................................78 A. SUPPORTING …

Text truncated - open the document above for the full version.

COVER PAGE Test of Hewlett Packard MRLBB-1303 Wireless Module To: FCC 47 CFR Part 15.407 & IC RSS-210 Test Report Serial No.: HPWD41-U6 Rev B TITLE PAGE TEST REPORT FROM Test of Hewlett Packard MRLBB-1303 Wireless Module to To FCC 47 CFR Part 15.407 & IC RSS-210 Test Report Serial No.: HPWD41-U6 Rev B Note: this report contains data with regard to the 5,150 - 5,250, 5,250 - 5,350 and 5,470 - 5,7250MHz frequency bands for Hewlett Packard, MRLBB-1303 Wireless Access module. 5.8 GHz test data is reported in MiCOM Labs test report HPWD41-U3 This report supersedes None Applicant: Hewlett Packard 8000 Foothills Blvd Roseville, 95947 California USA Product Function:WLAN 802.11a/n/ac Module Copy No: pdf Issue Date: 16th October 2013 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, S uite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com TEST CERTIFICATE #2381.01 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: Hewlett Packard MRLBB-1303 Wireless Module To: Serial #: Issue Date: Page: 3 of 407 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com FCC 47 CFR Part 15.407 & IC RSS-210 HPWD41-U 6 Rev B 16th October 2013 This page has been left intentionally blank Title: To: Serial #: Issue Date: Page: 4 of 407 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Hewlett Packard MRLBB-1303 Wireless Module FCC 47 CF R Part 15.407 & IC RSS-210 HPWD41-U6 Rev B 16th October 2013 TABLE OF CONTENTS ACCREDITATION, LISTINGS & RECOGNITION ............................................................. 5 TESTING ACCREDITATION ..............................................................................................5 RECOGNITION ...................................................................................................................6 PRODUCT CERTIFICATION ..............................................................................................7 1. TEST RESULT CERTIFICATE.................................................................................... 9 2. REFERENCES AND MEASUREMENT UNCERTAINTY ........................................ 10 2.1. Normative References..............................................................................................10 2.2. Test and Uncertainty Procedures.............................................................................11 3. PRODUCT DETAILS AND TEST CONFIGURATIONS ........................................... 12 3.1. Technical Details ......................................................................................................12 3.2. Scope of Test Program ............................................................................................13 3.3. Equipment Model(s) and Serial Number(s) ..............................................................16 3.4. Antenna Details ........................................................................................................16 3.5. Cabling and I/O Ports ...............................................................................................16 3.6. Test Configurations ..................................................................................................17 3.7. Equipment Modifications ..........................................................................................19 3.8. Deviations from the Test Standard...........................................................................19 3.9. Subcontracted Testing or Third Party Data ..............................................................19 4. TESTING EQUIPMENT CONFIGURATION(S…

Text truncated - open the document above for the full version.
