RTP-550-10016-6Wireless LAN Access Device

1 of 542-10-0200-07 WAP-200Quickstart This quickstart guide shows you how to start up and test the WAP-200 intelligent wireless access point. For detailed configuration and operating information, download the WAP-200 Administrator’s Guide from the Colubris Networks web site at www.colubris.com (select Support and then Product Registration) . IMPORTANT NOTE ABOUT WIRELESS SECURITY: For easy access to the management interface through a wireless connection, the WAP-200 ships with all wireless security options disabled. Colubris strongly recommends that once the unit is installed you enable a wireless security option in order to properly safeguard the wireless network from intruders. For more information see the WAP-200 Administrator's Guide. Hardware overview Package contents • WAP-200 unit • Two 2.4 GHz (2 dBi) / 5 GHz (2 dBi) dual-mode omnidirectional antennas • Power adapter and power cord • Mounting bracket • Spring clip—if needed, insert into one of the screw holes in the mounting bracket as shown to provide a tighter fit Antennas The WAP-200 has a single radio with two antennas. It can create a single wireless cell. The antenna connectors are reverse-polarity SMA male jacks. This means antennas or cable connectors must be SMA female connectors with reverse polarity. Antennas can be either directly attached or attached via a coax cable. Colubris recommends attaching to the MAIN connector when using coax. Reset button • Press and release the button quickly to restart the WAP-200. • To reset to factory default settings, press and hold the reset button until the status lights begin to flash, then release. Important: Resetting the WAP-200 deletes all your configuration settings, resets the Administrator username and password to ‘admin’, and sets the IP address of Port 1 via DHCP. If a DHCP server is not found connected to Port 1, the address 192.168.1.1 is assigned to Port 1 and the wireless port. Installation Important: Installation must be performed by a professional installer familiar with local regulations governing wireless devices. Important: Shielded Ethernet cables must be used for all connections. Note: Do not connect the Ethernet port directly to a metropolitan area network (MAN) or wide area network (WAN). When mounting the WAP-200 on a wall, or ceiling ensure that • The surface you attach the WAP-200 to and the fasteners you use are able to support at least 5.1 kg (11.25 pounds) • Cable pull (accidental or otherwise) does not make the unit exceed the 5.1 kg (11.25 pound) limit Note: Only indoor operation on channels 36 to 48—5.15 to 5.25 GHz— is allowed. Reset buttonPower light Wireless light Ethernet light Power connector 802.3af 5 volts Reset Port 1 10101 Serial port Antenna connector Antenna connector FrontRear MAIN AUX 2 of 542-10-0200-07 Plenum installations Plenum rated cables and attachment hardware must be used if the WAP-200 is installed in a plenum. Since the optional WAP-200 power adapter is not rated for plenum installations, only the WAP-200 and appropriate cabling can be located in the plenum. Note: PoE injectors available separately from Colubris Networks cannot be installed inside the plenum. Configuration To configure the WAP-200 you use the built-in Web-based Management Tool. Access this tool by establishing a Web browser connection to the WAP-200. You must use a JavaScript-enabled Web browser—for example, Netscape 7.1 or higher, or Microsoft Internet Explorer 6.0 or higher with all applicable updates. 1Connect your computer a.Use a cross-over cable (not supplied) to connect the LAN port on your computer to port 1 on the WAP-200. b.Configure your computer with the static IP address 192.168.1.2. 2Power-on the WAP-200 Connect the power supply (sold separately) or use PoE (802.3af) to power-up the WAP-200. The WAP-200 is fully operational when the power light stops flashing. 3Start the management tool a.Start your Web browser and specify the following address and press enter: HTTPS://192.168.1.1. b.You are prompted to accept a Colubris Networks security certificate. Do so to continue. c.The WAP-200 login page opens. Log in with username admin and password admin. d.If this is the first time you are logging in, you are prompted to change the default administrator password. Specify a new password and click Save. e.If you are using the WAP-200 outside of the United States, set the country that the WAP-200 is operating in on the Management > Country page. 4Configure the wireless network By default the WAP-200 is configured to • Automatically select the best operating channel (frequency) • Create a wireless network named Colubris Networks There is no need to change these settings for most installations. 5Configure the WAP-200 a.Open the Virtual AP > Profiles page and select the Colubris Networks profile. • If the WAP-200 will be installed as a stand-alone device and not connected to an access controller, clear the Wireless security filters checkbox. • If the WAP-200 will be connected to a Colubris Networks access controller, under General, select the Use Colubris access controller checkbox. b.By default the WAP-200 operates as a DHCP client to obtain its IP address. In this configuration the WAP-200’s serial number can be used to manage the device. If static IP addressing is preferred, configure it on the Network > Ports page by selecting the Static option and then clicking Configure. The WAP-200 is now ready for operation For additional configuration and operating information, see the WAP-200 Administrator’s Guide. 3 of 542-10-0200-07 Regulatory information The WAP-200 complies with the following radio frequency and safety standards. Canada—Industry Canada (IC) This device complies with RSS 210 of Industry Canada. Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR 210 d’Industrie Canada. USA—Federal Communications Commission (FCC) The WAP-200 complies with Part 15 of FCC Rules. Operation of the WAP-200 in a system is subject to the following …

Text truncated - open the document above for the full version.

Please clarify the differences between WAP-200 and WCB-200. The WCB is a cheaper feature limited version of the WAP (less software functionality). Schematic diagram supplied is for CN200. Please confirm that it fully represents the new models. I confirm the schematic for the CN200 is identical to the WAP-200 and WCB-200. All circuitry for these products is identical. Deviations in power levels of (CN200 with FCC ID: RTP-550-10016-4) and WAP-200 are the result of a modified calibration profile in the Atheros radio chip. Please clarify how the grantee will ensure the 12dBm power level setting on CH161 We have reconfigured our transmit power control (TPC) to limit output power to 12 dBm on channel 161. Please specify the label material. Regarding labels, our labels are provide on a UL Recognized labeling system to ensure permanence of marking. They are a polyester material with a pressure sensitive adhesive. Actual markings are applied through a thermal transfer printer. Please clarify how the device complies with 15.407(c). The WAP-200 and WCB-200 cease data transmission in the absence of data or in the case of a fault in the equipment.

Specifications subject to change without notice. 3425 N.44 th Street, LINCOLN, NE 68504 USA SALES PHONE: 800.228.4563 PHONE: 402.467.4491 • FAX: 402.467.4528 www.centurion.com • [email protected] Copyright  2004 Centurion Wireless Technologies, Inc. All Rights Reserved Specifications: ƒ Covers 2.4 to 2.5 GHz for 802.11b, and 4.9 to 6 GHz for 802.11a and all US, European, and Japanese WLAN applications ƒ Omni-directional patterns at all frequencies with increased gain in upper bands for optimal coverage Frequency 2.4 – 2.5 GHz 4.9 – 5.875 GHz Gain 2.5 dBi (2.45 GHz) 3.6 dBi (4.9 GHz) 3.0 dBi (5.25 GHz) 3.4 dBi (5.875 GHz) Polarization Vertical, Omnidirectional Nominal Impedance 50 ohms VSWR 2:1 max across all bands Size 95.9 mm (180°) or 75.4 mm (90°) x 9.3 mm diameter Cable and Connector: Model # Part # Connector WTS2450-RPSMA MAF94051 RP-SMA WTS RPSMA - a – 9/15/04 WTS - WLAN Tri-band Small Diameter Model Number: WTS2450-RPSMA External Antenna – Connector Mount Azimuth 2.45 GHz Azimuth 5.25 GHz Azimuth 5.75 GHz 75.4 mm CH2S22 SWR1 /REF 1 START 2 000 . 000 000 MHzSTOP 6 000 . 000 000 MHz Cor PRm 2 Aug 2004 14:09:19 1 2 3 4 4: 1. 82265 875 . 000 000 MHz VSWR

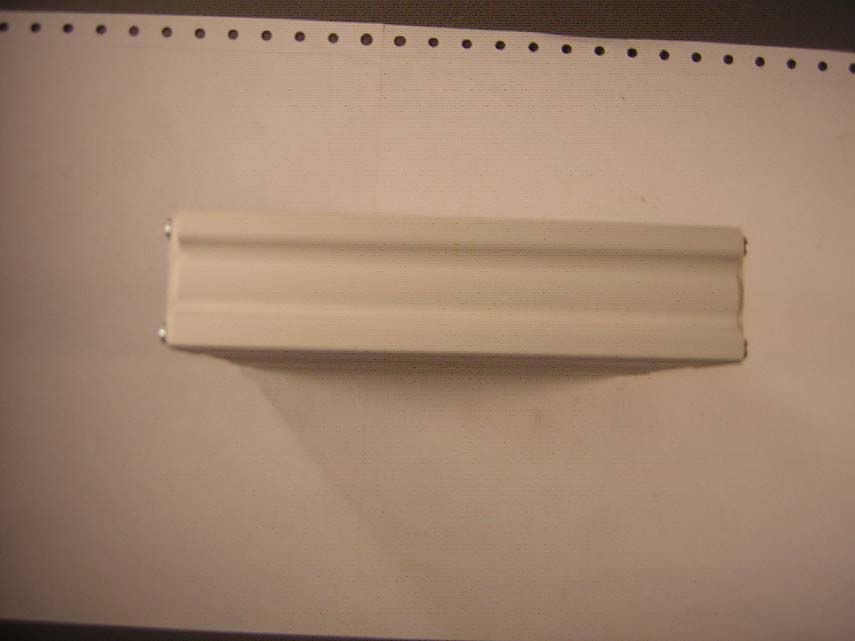

FCC ID: RTP-550-10016-6 Company: Colubris Networks FCC ID: RTP-550-10016-6 Company: Colubris Networks FCC ID: RTP-550-10016-6 Company: Colubris Networks

FCC ID: RTP-550-10016-6 Company: Colubris Networks Under RF Shield

FCC ID: RTP-550-10016-6

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal: 19.30 (dBm) Worst case antenna gain Maximum peak output power at the antenna terminal: 85.11380382 (mW) used at 5GHz channel Antenna gain(typical): 2.5 (dBi) Worst case power used from Maximum antenna gain: 1.77827941 (numeric) FCC ID: RTP-550-10016-6 Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power densit y at prediction frequenc y : 0.030111 ( mW/cm^2 ) Maximum allowable antenna gain: 17.71269855 (dBi) 2 4 R PG S π =

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data and opinions which are not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No EF0640-2 Client Colubris Networks 200 West Street Waltham, MA 02451 Phone 781-547-0378 Fax 781-684-0009 FRN 0010292464 Models WAP-200 and WCB-200 FCC ID RTP-550-10016-6 IC 4891A-0100166 Equipment Type Low Power Communication Device Transmitter Equipment Code DTS and NII Application Type New Certification Rule Part FCC 15.247, 15E, RSS 210 issue 6 Emission Designator 16M5G1D & 53M0G1D Results As detailed within this report Prepared by Mairaj Hussain – Test Engineer Authorized by Michael Buchholz – EMC Manager Issue Date 1/27/06 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this REPORT:EF0640-2 FCC ID:RTP-550-10016-6 Page 2 of 55 _____________________________________________________________ Summary...........................................................................................................3 Test Methodology..............................................................................................4 Modifications Required for Compliance.............................................................4 EUT Configuration.............................................................................................5 Compliance Statement......................................................................................7 Test Data and Plots...........................................................................................9 Section 15.31(e)............................................................................................9 15.247(b)(3).................................................................................................10 15.247(e) Power Spectral Density...............................................................13 15.247(d).....................................................................................................15 15.407(a)(1) Peak Output Power 5.15 – 5.25GHz band..............................21 Power Spectral Density 5.15 – 5.25GHz band.............................................22 15.407(a)(6) Peak Excursion.......................................................................23 Band Edge...............................................................................................27 Spurious Emissions..................................................................................27 15.407(a)(3) 5.725 – 5.825GHz band..........................................................28 IC Peak Excursion and PPSD Data.............................................................34 15.407(g).....................................................................................................36 Bandwidth....................................................................................................37 6dB BW for 15.247(a)(2)..........................................................................37 26dB BW for 5GHz band..........................................................................41 AC Line Conducted Emission Measurements..............................................45 Antenna Gain Check....................................................................................46 Test Equipment Used......................................................................................47 Terms And Conditions.....................................................................................51 A2LA Accreditation..........................................................................................53 Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 REPORT:EF0640-2 FCC ID:RTP-550-10016-6 Page 3 of 55 _____________________________________________________________ Summary This report is an application for certification of a transmitter operating under 47 CFR 15.247 of the FCC rules provided for operation of Digital Transmissions Systems and 15.407 Unlicensed National Information Infrastructure Devices operating in the frequency bands of 5.15-5.25GHz and 5.725 – 5.825 GHz. The product covered by this report is WAP-200 which is a wireless LAN access device. WAP-200 is similar to CN200 with FCC ID: RTP-550-10016-4, please see the attached letter describing the similarities between two radios. Please note that this report also covers the WCB-200. The WCB-200 has the same hardware operation as the WAP-200 but fewer software features. The product was tested using the methods outlined in FCC public notice DA 02- 2138, released August 30, 2002 and ANSI C63.4 (2003). Product intends to use the following antenna: Antenna Gain (dBi) Frequency of Operation 2.5 @ 2.45GHz 2.4 – 2.5GHz WTS WLAN Tri-Band antenna MN: WTS2450-RPSMA Connector type: RP-SMA 3.4 @ 5.875 GHz 4.9 - 5.875 GHz Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 REPORT:EF0640-2 FCC ID:RTP-550-10016-6 Page 4 of 55 _____________________________________________________________ Test Methodology Frequency range investigated: 150KHz – 40GHz Measurement Distance: Frequency (MHz) Distance (m) Comments 0.15 – 30MHz - AC line Conducted 30MHz – 26.5GHz 3 Fundamental & Spurious, Conducted 30MHz – 40GHz 3 Spurious Radiated The EUT was maximized around three orthogonal axes. EUT antennas were maximized within there range of motion. Product was tested on a non conductive table 80cm above the ground plane. Receiving antenna was placed at a distance of 3m from the product. Radio output power was set to maximum level unless otherwise stated. The product was powered by a support AC/DC power supply. Voltage variations were performed …

Text truncated - open the document above for the full version.

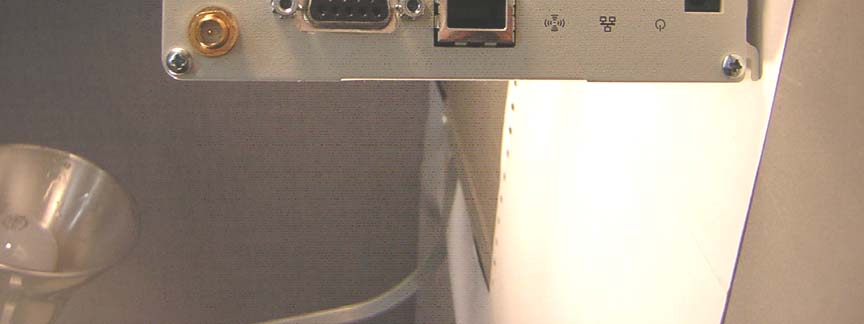

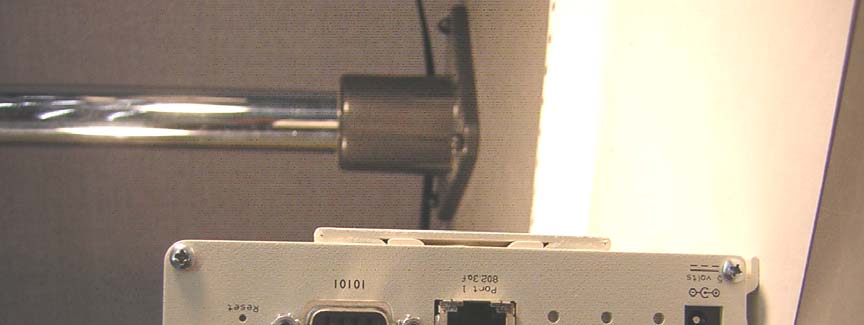

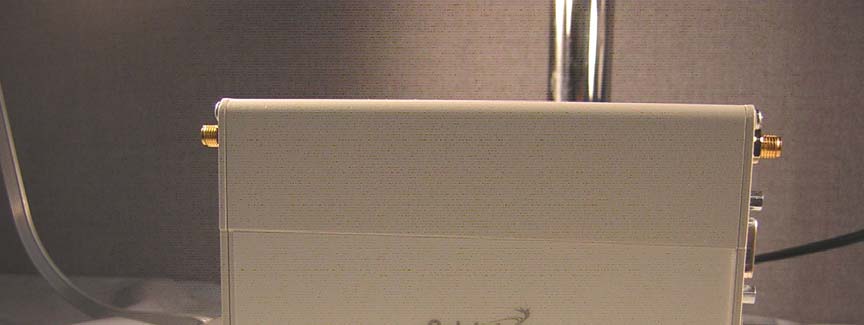

FCC ID: RTP-550-10016-6 Radiated emissions Radiated emissions FCC ID: RTP-550-10016-6 Radiated emissions Conducted emissions at the antenna port FCC ID: RTP-550-10016-6 Voltage variation/Frequency stability AC mains conducted emissions FCC ID: RTP-550-10016-6 AC mains conducted emissions
