RTP550-10016-7WLAN atbtg mini-PCI module

VT Miltope A company of Vision Technologies Systems M365-491 Operator’s Manual Cabin Access Point (CAP) Part Numbers 901164-1 901164-2 901164-3 October 2005 Revised March 2006 VT Miltope A company of Vision Technologies Systems 3800 Richardson Road South Hope Hull, AL 36043 Tel: 334-284-8665 Fax: 334-613-6302 http://www.miltope.com M365-491 Operator’s Manual Cabin Access Point (CAP) Part Numbers 901164-1 901164-2 901164-3 M365-491 Operator’s Manual Table of Contents i March/2006 TABLE OF CONTENTS Chapter/Paragraph Page LIST OF FIGURES.............................................................................................................iv LIST OF TABLES...............................................................................................................iv 1 GENERAL INFORMATION...........................................................................................1-1 1-1 Introduction ..................................................................................................1-1 1-2 Typographic Conventions ............................................................................1-1 1-2.1 Keyboard Entries and Software Commands ................................................1-1 1-2.2 Variables ......................................................................................................1-2 1-2.3 Screen Display .............................................................................................1-2 1-3 Terminology.................................................................................................1-2 1-4 Equipment Description ................................................................................1-2 1-5 Building a Wireless Local Area Network (WLAN).....................................1-3 1-5.1 Connecting to a Wired Local Area Network (LAN)....................................1-4 1-5.2 Connecting to a Wired Server ......................................................................1-4 1-5.3 Instant Infrastructure ....................................................................................1-5 1-5.4 Building a Multi-Cell Wireless Network .....................................................1-5 1-6 Building a Wireless Link .............................................................................1-5 1-7 Security ........................................................................................................1-6 1-8 Specifications ...............................................................................................1-7 1-9 Approved Antennas .....................................................................................1-9 1-10 Available Software and Manuals .................................................................1-12 1-11 Tools and Test Equipment Required............................................................1-13 2 EQUIPMENT SETUP.......................................................................................................2-1 2-1 Introduction ..................................................................................................2-1 2-2 Unpacking and Inspection............................................................................2-1 2-3 Initial Setup ..................................................................................................2-1 2-4 Configuration ...............................................................................................2-1 3 INSTALLATION...............................................................................................................3-1 3-1 Introduction ..................................................................................................3-1 3-2 Mounting......................................................................................................3-1 3-2.1 CAP Unit......................................................................................................3-1 3-2.2 Indoor Cabin Antenna ..................................................................................3-1 3-2.3 Outdoor Antenna..........................................................................................3-1 3-3 Connecting the CAP ....................................................................................3-11 3-3.1 Input Power Requirements...........................................................................3-11 Operator’s Manual M365-491 ii Table of Contents March/2006 TABLE OF CONTENTS (Cont’d.) Chapter/Paragraph Page 3-3.2 10/100BaseT Ethernet Local Area Network (LAN) Ports ...........................3-13 3-3.3 RF (Antenna) Output ...................................................................................3-14 3-3.4 Discrete Inputs .............................................................................................3-14 3-3.5 Discrete Outputs...........................................................................................3-15 3-3.6 Reset Input ...................................................................................................3-15 3-4 Configuring Wireless Client Stations (CWLU Configuration)....................3-15 3-5 Configuring the Ground-Based Network (TWLU Configuration) ..............3-15 4 OPERATION.....................................................................................................................4-1 4-1 Introduction ..................................................................................................4-1 4-2 Indicators......................................................................................................4-1 4-3 Operating Instructions..................................................................................4-1 4-4 Power Up .....................................................................................................4-1 4-5 Checking the Status of Your CAP ...............................................................4-1 5 OPERATOR MAINTENANCE............................................…

Text truncated - open the document above for the full version.

200 West Street phone: +1 781-684-0001 Waltham, MA 02451 fax: +1 781-684-0009 USA CM9-C1 Installation MODULAR USAGE This device is intended only for installation into the Miltope Cabin Access Point (CAP) under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users. 2) The transmitter module may not be co-located with any other transmitter or antenna 3) The final product containing this device must be labeled in a visible manner with the following; “ Contains FCC ID RTP550-10016-7” 4) The end product user manual must contain the following information in a prominent location; “Important Note: To comply with FCC RF exposure requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. 5) This radio module is approved for use only in the Miltope CAP (Cabin Access Point) which is deployed only in aircraft and is professionally installed per FAA regulations. 200 West Street phone: +1 781-684-0001 Waltham, MA 02451 fax: +1 781-684-0009 USA Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 200 West Street phone: +1 781-684-0001 Waltham, MA 02451 fax: +1 781-684-0009 USA CM9-C1 IMPORTANT OPERATION INFORMATION This device has been designed to operate with the antennas listed below, and having a maximum gain of 4.85 dBi@ 2.4 GHz, 5.0 dBi @ 5.25GHz and 4.0 dBi @ 5.875GHz. Antennas not included in this list or having a gain greater than those listed are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Operation in the band 5.15-5.25GHz is restricted to indoor use only. Approved antennas The table below lists the antennas approved for use with the model CM9- C1: Manufacturer Part # 2.4 GHz Gain 5.3 GHz Gain 5.7 GHz Gain Location Miltope 901167-2 2.6 dBi 1.2 dBi 1.2 dBi Indoor Miltope 901563-2 4.85 dBi 5.0 dBi 4.0 dBi Outdoor Miltope 901167-1 3.5 dBi 3.5 dBi 3.5 dBi Indoor Miltope 901058-1 5.0 dBi N/A N/A Outdoor Gore GSC10-82701-XX -30 dBi -30 dBi -30 dBi Indoor

200 West Street phone: +1 781-684-0001 Waltham, MA 02451 fax: +1 781-684-0009 USA 8 May 2006 FCC ID: RTP550-10016-7 Model: CM9-C1 Dear Sir, We would like to declare that our product: 802.11a+b+g mini-PCI transmitter module, Model: CM9-C1, FCC ID: RTP550-10016-7 meets the requirements as a limited modular device which was indicated in FCC Public DA 00-1407, and to have your authorization as a limited modular approval. The statement is listed below: 1 “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded. 2 “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5213.(Please see the schematic file) 3 “The modular transmitter must have its own power supply regulation.” The modulator of the transmitter needs 2.5 V DC power supply for RF transmitting level. The mini-PCI interface provides 3.3V DC power supply, so there is a 3.3/2.5 DC regulator on the module, and the part number of this regulator is LTC3406ES5 VR1. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” The EUT uses standard antenna connectors. It is only used in the Miltope CAP which is professionally installed in aircraft. 5. “The modular transmitter must be tested in a stand-alone configuration”. The EUT was originally tested standalone to meet all radio requirements. It was then tested in a representative host to add the various additional external antennas applied for in this filing. Testing of the various antennas for spurious and bandedge emissions is independent of the chassis the module is install in. 6. “The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.” The label exhibit shows the labeling of the module. In the OEM installation manual, there are labels and the instructions on how to label the end product. 200 West Street phone: +1 781-684-0001 Waltham, MA 02451 fax: +1 781-684-0009 USA 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirement.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with the applicable RF exposure requirements. RF Exposure is addressed in the MPE test report.

Curtis-Straus LLC 527 Great Road Littleton, Massachusetts 01460 Tel: 978.486.8880 Fax: 978.486.8828 Web: www.curtis-straus.com Worldwide Regulatory Approvals Experts ® 5/8/06 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB 527 Great Rd Littleton, MA 02702 Gentlemen: The purpose of the attached materials is for a new limited modular equipment authorization for the Colubris Networks CM9-C1 (FCC ID RTP550-10016-7). The CM9-C1 is only to be used in the Miltope CAP which is installed in aircraft by professional installers. It is a low power communications device transmitter that operates in the ranges 2.4GHz and 5GHz bands. The CM9-C1 is a modified version of the CM9 which was originally granted authorization (modular) under FCC ID: NKRCM9. The CM9-C1 differs in the following ways: 1) The addition of a band pass filter prior to the 5GHz power amplifier. 2) The addition of the following antennas: Antenna Gain (dBi) Frequency of Operation Miltope p/n: 901167-2 2.6dBi@ 2.45GHz, 1.2dBi@ 5.25GHz, 1.2dBi@ 5.8GHz 2.39 – 2.49GHz 4.9 – 5.9GHz Miltope p/n: 901563-2 4.75dBi@ 2.45GHz, 4.85dBi@ 2.50GHz, 5.0dBi@ 4.8GHz, 5.0dBi@ 5.25GHz, 4.0dBi@ 5.875GHz 1.9GHz – 2.5GHz 4.8GHz – 5.875GHz Miltope p/n: 901058-1 5.0dBi@ 2.35GHz 2.2-2.5GHz Miltope p/n: 901167-1 3.5dBi@ 2.45GHz, 2.5dBi@ 5.0GHz 3.5dBi@ 5.25GHz, 3.5dBi@ 5.8GHz 2.39 – 2.49GHz 4.9 – 5.9GHz Gore GSC10-82701-XX (XX signifies antenna length) 1.9GHz – 2.5GHz 4.8GHz – 5.875GHz Curtis-Straus LLC 527 Great Road Littleton, Massachusetts 01460 Tel: 978.486.8880 Fax: 978.486.8828 Web: www.curtis-straus.com It was determined from the manufacturer’s datasheets that the addition of the filter on the 5GHz RF line should only lower the emissions in the band reject range and has no effect on the 5GHz output due to the filter being ahead of the power amplifier feed back leveling (see F0918 Filter Spec.pdf for details). Spurious emissions were re-measured. The original application exhibits (FCC ID: NKRCM9) is included to provide test data for the remainder of the tests not affected by the addition of the antennas and band pass filter. Sincerely, Josh LeBlanc EMC Engineer

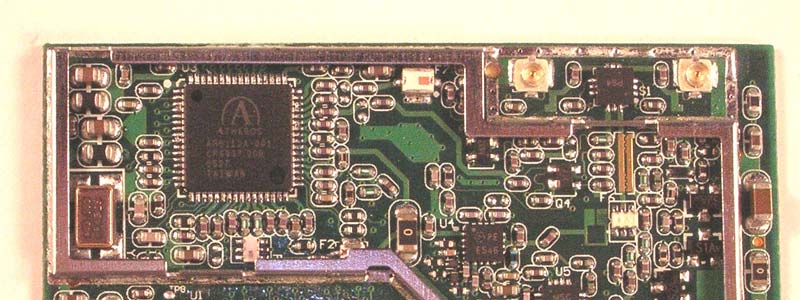

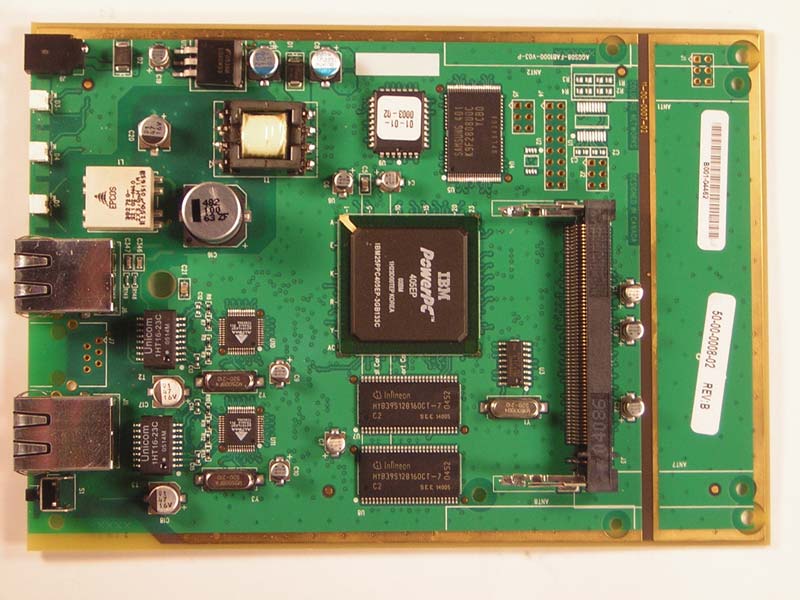

Company: Colubris Networks WO: EF0918 FCC ID:RTP550-10016-7 IC ID: 4891A-0100167 Top view of CM9-C1 installed on host board Top view of host board Company: Colubris Networks WO: EF0918 FCC ID:RTP550-10016-7 IC ID: 4891A-0100167 Top view of CM9-C1 with RF shielding installed Top view of CM9-C1 with RF shielding removed Company: Colubris Networks WO: EF0918 FCC ID:RTP550-10016-7 IC ID: 4891A-0100167 Bottom view of CM9-C1

The labels are thermally printed polyester film with a permanent polyester pressure sensitive adhesive.

Company: Colubris Networks WO: EF0918 FCC ID:RTP550-10016-7 IC ID: 4891A-0100167 Top view of CM9-C1 installed on host board Top view of host board Company: Colubris Networks WO: EF0918 FCC ID:RTP550-10016-7 IC ID: 4891A-0100167 Top view of CM9-C1 with RF shielding installed Top view of CM9-C1 with RF shielding removed Company: Colubris Networks WO: EF0918 FCC ID:RTP550-10016-7 IC ID: 4891A-0100167 Bottom view of CM9-C1

ACX Advanced Ceramic X BF 2012 Series Multilayer Chip Band-Pass Filters Features ™Ultra small SMD type with low loss at pass- band and high attenuation at stop-band. Applications ™0.8 ~ 6 GHz wireless communication systems, including DECT/PACS/PHS/GSM/DCS phones, WLAN card, Bluetooth modules, Hyper-LAN, etc. Specifications Part Number Frequency Range (MHz) Insertion Loss @ BW (dB) VSWR @ BW Attenuation I (dB) Attenuation II (dB) Attenuation II (dB) BF2012- B5R5DAB_ 5150~5875 2.5 max. 2.2 max. 30 min.@ 500~ 4000MHz 20 min.@ 4600MHz 15 min.@ 10300~ 11800MHz Q’ty/Reel (pcs) : 4,000 Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 500mW max. Part Number h BF 2012 - B 5R5 DAB ‡ /LF dc i efg c Type BF : Band-Pass Filter d Dimensions ( L × W ) 2.0 × 1.2 mm e Material Code B f Frequency Range 5R5=5512MHz g Specification Code DAB h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration e c d f No. Terminal Name No. Terminal Name c GND e GND d OUT f IN ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm c L a d c T W b Mark L W T a b c d Dimensions 2.0 ± 0.15 1.25 ± 0.10 0.95± 0.10 1.3± 0.15 0.3 ± 0.15 0.25 ± 0.15 0.35± 0.15 1.00 0.35 1.00 0.80 1.40 1.30 Through-hole (φ 0.35) Solder Resist Land * Line width should be designed to match 50 Ω characteristic impedance, depending on PCB material and thickness. Measuring Diagram Network Analyzer GND I/O GND (50Ω) (50Ω) Port 2 Port 1 I/O ACX Advanced Ceramic X Electrical Characteristics (T=25 o C) 024681012 -60 -50 -40 -30 -20 -10 0 freq, GHz d B ( S _21) d B ( S _11) d B ( S _22) Notes ™The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw

© AIRBUS DEUTSCHLAND GmbH, 2005. All rights reserved. Confidential and proprietary document. This document and all information contained herein is the sole property of AIRBUS DEUTSCHLAND GmbH. No intellectual property rights are granted by the delivery of this document or the disclosure of its content. This document shall not be reproduced or disclosed to a third party without the express written consent of AIRBUS DEUTSCHLAND GmbH. This document and its content shall not be used for any purpose other than that for which it is supplied. EA01922E/1-08/03 Technical Details Leaky Line Prototype 6 from GORE TO COPY FROM jörg pump LOCATION / DEPARTMENT hamburg / BCEYA3 DATE 31 March 2005 PHONE +49 40 74 37 36 04 FAX +49 40 74 37 37 82 E-MAIL [email protected] REFERENCE Insertion Loss of this Leaky Line Antenna Prototype (6): 13,8 dB/60m @2.4GHz © AIRBUS DEUTSCHLAND GmbH, 2005. All rights reserved. Confidential and proprietary document. This document and all information contained herein is the sole property of AIRBUS DEUTSCHLAND GmbH. No intellectual property rights are granted by the delivery of this document or the disclosure of its content. This document shall not be reproduced or disclosed to a third party without the express written consent of AIRBUS DEUTSCHLAND GmbH. This document and its content shall not be used for any purpose other than that for which it is supplied. FROM jörg pump DATE 31 March 2005 REFERENCE PAGE 2 EA01922E/2-08/03 Two steps for installation length in A380: 1. CWLU installation in section 15: max length of Leaky Line Antenna up to 30m 2. CWLU installation in upper e-bay: max length of Leaky Line Antenna up to 55m

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:20.04(dBm)Worst case antenna gain Maximum peak output power at the antenna terminal:100.9950294(mW)used at 5GHz channel Antenna gain(typical):5(dBi)Worst case power used from Maximum antenna gain:3.16227766(numeric)FCC ID: NKRCM9 Prediction distance:20(cm) Prediction frequency:5805(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power densit y at prediction frequency:0.063538(mW/cm^2) Maximum allowable antenna gain:16.96969855(dBi) 2 4R PG S π =

REPORT:EF0918-1 FCC ID: RTP550-10016-7 IC ID: 4891A-0100167 Page 1 of 26 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No EF0918-1 Client Colubris Networks 200 West Street Waltham, MA 02451 Phone 781-547-0378 Fax 781-684-0009 FRN 0010292464 Models CM9-C1 FCC ID RTP550-10016-7 IC ID 4891A-0100167 Equipment Type Low Power Communication Device Transmitter Equipment Code DTS and NII Application Type New Authorization – Limited Modular Approval Rule Part FCC 15.247, & 15E, and RSS-210 Emissions Designator 2.4GHz band --12M6F1D 5.8GHz band -- 29M9F1D Results As detailed within this report Prepared by Josh LeBlanc – Test Engineer Authorized by Michael Buchholz – EMC Manager Issue Date 5/8/06 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this REPORT:EF0918-1 FCC ID: RTP550-10016-7 IC ID: 4891A-0100167 Page 2 of 26 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Summary ...........................................................................................................3 Statement of Conformity....................................................................................4 Test Methodology..............................................................................................6 EUT Configuration.............................................................................................7 Test Data and Plots...........................................................................................8 Test Descriptions.............................................................................................15 Radiated Emissions Testing Overview ........................................................15 Line Conducted Emissions Overview ..........................................................19 Test Equipment Used......................................................................................21 Terms And Conditions .....................................................................................22 A2LA Accreditation..........................................................................................24 REPORT:EF0918-1 FCC ID: RTP550-10016-7 IC ID: 4891A-0100167 Page 3 of 26 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Summary This report is an application for limited modular certification of a transmitter operating under 47 CFR 15.247 and 15.407 and RSS-210 provided for operation of digital transmission systems and U-NII transmitters. The product covered by this report is the CM9-C1 modular radio. The product was tested using the methods outlined in ANSI C63.4 (2003). The manufacturer intends to use the following antennas with the product. Antenna Gain (dBi) Frequency of Operation Miltope p/n: 901167-2 2.6dBi@ 2.45GHz, 1.2dBi@ 5.25GHz, 1.2dBi@ 5.8GHz 2.39 – 2.49GHz 4.9 – 5.9GHz Miltope p/n: 901563-2 4.75dBi@ 2.45GHz, 4.85dBi@ 2.50GHz, 5.0dBi@ 4.8GHz, 5.0dBi@ 5.25GHz, 4.0dBi@ 5.875GHz 1.9GHz – 2.5GHz 4.8GHz – 5.875GHz Miltope p/n: 901058-1 5.0dBi@ 2.35GHz 2.2-2.5GHz Miltope p/n: 901167-1 3.5dBi@ 2.45GHz, 2.5dBi@ 5.0GHz 3.5dBi@ 5.25GHz, 3.5dBi@ 5.8GHz 2.39 – 2.49GHz 4.9 – 5.9GHz Gore GSC10-82701- XX (XX signifies antenna length) 1.9GHz – 2.5GHz 4.8GHz – 5.875GHz All antennas are less than have less than 6dBi of gain making a drop in the conducted output power limits unnecessary. The CM9-C1 is essentially the same radio as the CM9 (previously certified under FCC ID: NKRCM9). The CM9-C1 has an additional filter added on the 5GHz RF line prior to the power amplifier. The filter was added to meet FAA requirements. This report contains data covering radiated spurious emissions in the pass band of each antenna. Conducted spurious emissions at the antenna port were tested during 5GHz operation for 15.247. It was determined from the manufacturer’s datasheets that the addition of the filter on the 5GHz RF line should only lower the emissions in the band reject range and has no effect on the 5GHz output due to the filter being ahead of the power amplifier feed back leveling (see F0918 Filter Spec.pdf for details). New conducted power readings for 2.4GHz operation are unnecessary due to no changes in the 2.4GHz RF path. The original application exhibits (FCC ID: NKRCM9) will be used to provide test data for the remainder of the tests not affected by the addition of the antennas and band pass filter. Antenna Channels Allowed Indoor or Outdoor Operation Miltope p/n: 901058-1 All channels Outdoor Miltope p/n: 901563-2 All channels Outdoor Miltope p/n: 901167-2 All channels Indoor Miltope p/n: 901167-1 All channels Indoor GORE Leaky Line antenna All channels Indoor REPORT:EF0918-1 FCC ID: RTP550-10016-7 IC ID: 4891A-0100167 Page 4 of 26 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Note: Spurious emissions were not tested with the leaky line antennas since they provide a significant loss (-30dBi) in output and cannot practically be tested on a test site (antennas are 20-50m long). Statement of Conformity The CM9-C1 has been found to conform to the following parts of the 47 CFR, RSS-210, and RSS-GEN as detailed below: RSS-GEN RSS-210 47 CFR Part # Comments 5.3 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 5.2 15.19 The label is shown in the label exhibit. 7.1.5 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.31(e) The voltage was varied to ±15% of the rated voltage. (see note 1) 7.1.4 15.203 The device is professiona…

Text truncated - open the document above for the full version.

Company: Colubris Networks WO: F0918 FCC ID: RTP550-10016-7 IC ID: 4891A-0100167 Radiated Emissions – Miltope antenna PN: 901167-1 Radiated Emissions – Miltope antenna PN: 901167-2 Company: Colubris Networks WO: F0918 FCC ID: RTP550-10016-7 IC ID: 4891A-0100167 Radiated Emissions – Miltope antenna PN: 901058-1 Company: Colubris Networks WO: F0918 FCC ID: RTP550-10016-7 IC ID: 4891A-0100167 Radiated Emissions – Miltope antenna PN: 901563-2
