RU8HI-407BTBluetooth GPS Receiver

1 Helen Zhao Subject: FW: FW: HAICOM Electronics Corp., FCC ID: RU8HI-407BT, Assessment NO.: AN06T5953, Notice#1 Exhibit-D-ID Label_rev.pdf Exhibit-C-Test_Rep ort_rev.pdf Dear Helen, Pls find the revised Label and test report for your reference. If you have any problem, pls advise us ASAP. Best Reagdrs, Iris Lin -----Original Message----- Sent: Friday, July 14, 2006 8:40 PM Subject: HAICOM Electronics Corp., FCC ID: RU8HI-407BT, Assessment NO.: AN06T5953, Notice#1 Question #1: The block diagram and user manual indicate the EUT is equipped with MINI 1394 connector, which can be connected to PC. Please confirm if the EUT can be powered by PC. If it is the case, please perform power line conducted emission test when the device is powered by PC. Question #2: Since EUT can be connected to a PC, this device is qualified to be PC peripheral. If the digital portion is authorized through DoC, please add FCC DoC logo on the FCC ID label. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Model : HI-407BT RU8HI THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID : RU8HI-407BT 45mm 30mm

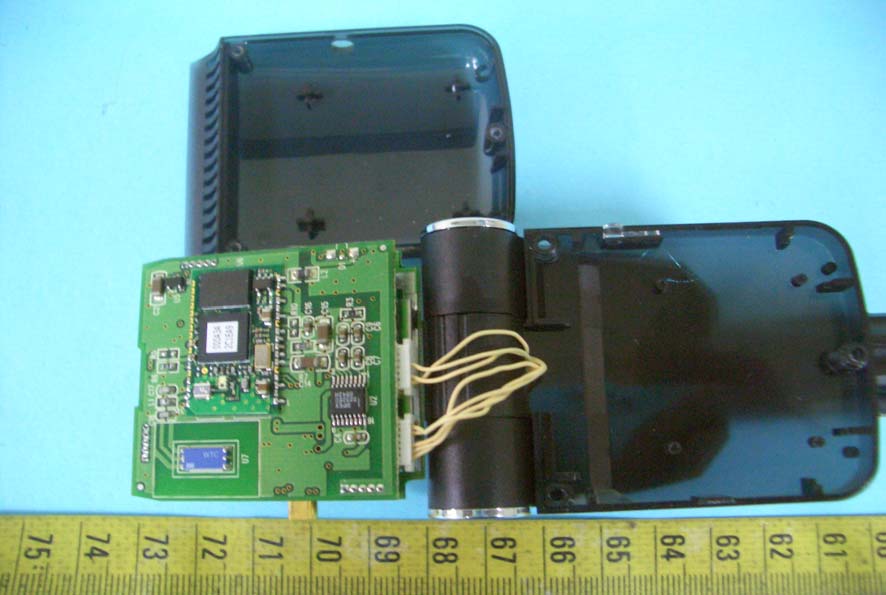

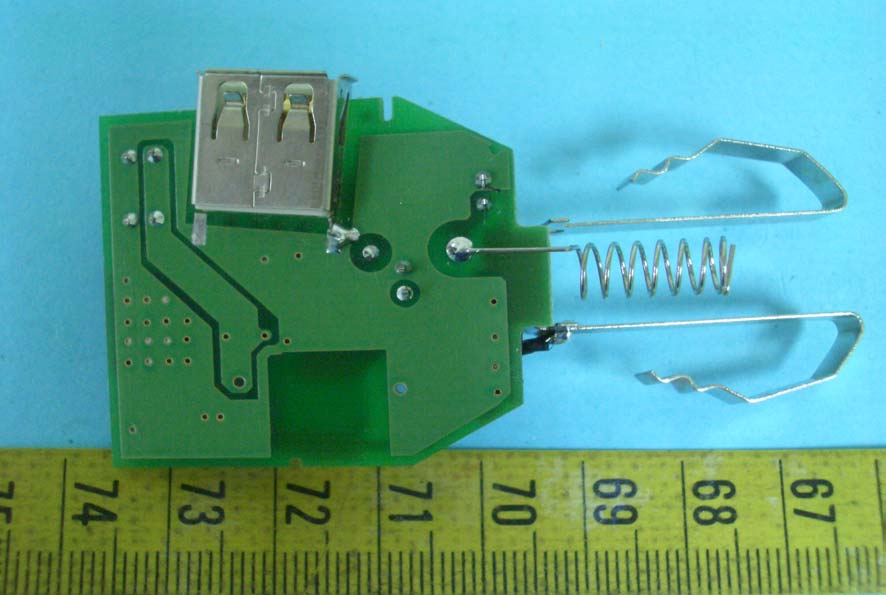

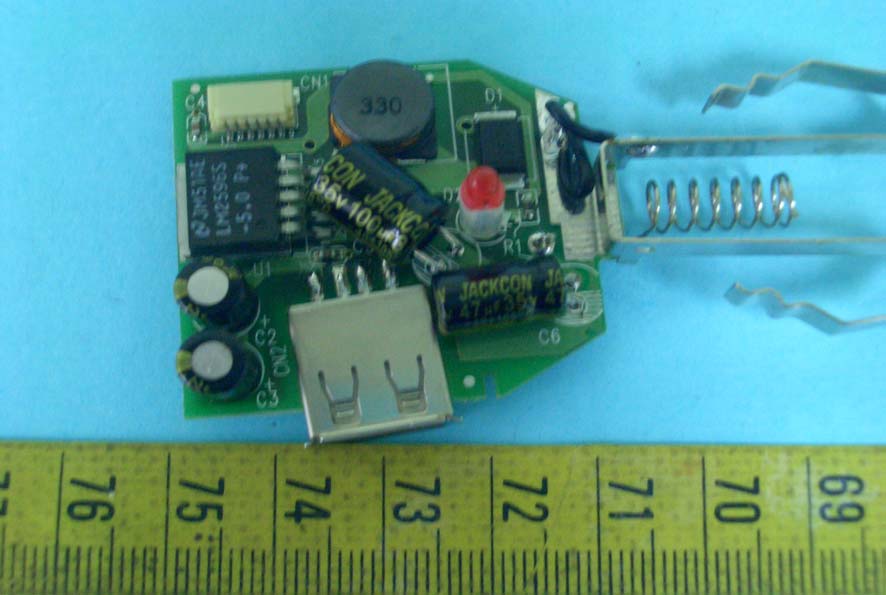

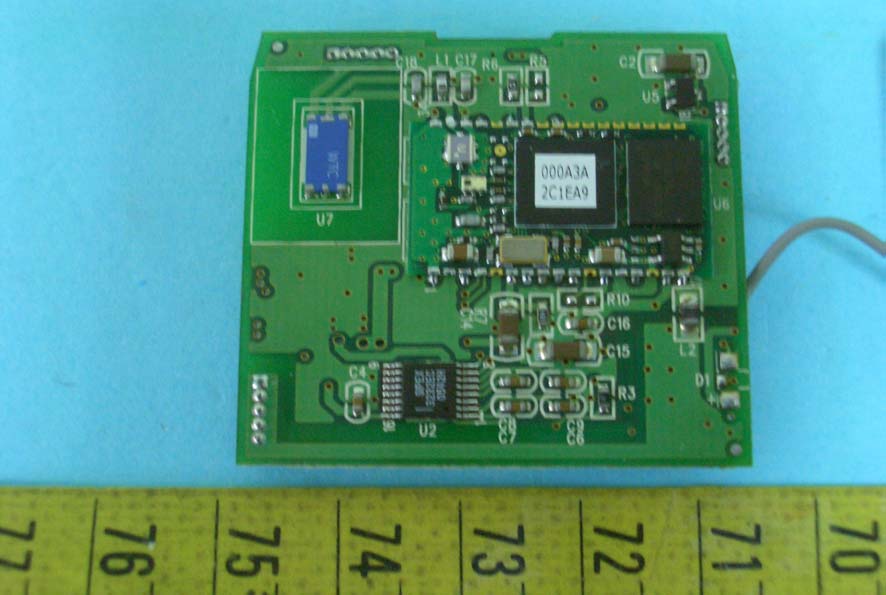

ETC Report No. : 06-05-RBF-078-04 FCC ID.: RU8HI-407BT Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No. : 06-05-RBF-078-04 FCC ID.: RU8HI-407BT Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : 06-05-RBF-078-04 FCC ID.: RU8HI-407BT Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : 06-05-RBF-078-04 FCC ID.: RU8HI-407BT Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth GPS receiver Model : HI-407BT FCC ID : RU8HI-407BT for APPLICANT : HAICOM Electronics Corp. ADDRESS : 3F-11,130, Jian-Kang Rd., Chung Ho, Taipei Hsien, Taiwan R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5 , DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWA, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 06-05-RBF-078-04 ETC Report No. : 06-05-RBF-078-04 FCC ID.: RU8HI-407BT Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : HAICOM Electronics Corp. 3F-11,130, Jian-Kang Rd., Chung Ho, Taipei Hsien, Taiwan R.O.C. Manufacture : HAICOM Electronics Corp. 3F-11,130, Jian-Kang Rd., Chung Ho, Taipei Hsien, Taiwan R.O.C. Description of Device : a) Type of EUT : Bluetooth GPS receiver b) Trade Name : HAICOM c) Model No. : HI-407BT d) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2005) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Jul. 10, 2006 Test Engineer : ( Kevin Lee ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 06-05-RBF-078-04 FCC ID.: RU8HI-407BT Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION........................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device.................................................................................................................1 1.3 Test Methodology...........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE........................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation.........................................................................................................5 2.4 Labeling Requirement......................................................................................................................6 2.5 User Information.............................................................................................................................6 3 SYSTEM TEST CONFIGURATION............................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System..............................................................................................................7 4 RADIATED EMISSION MEASUREMENT...............................................................................8 4.1 Applicable Standard........................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument....................................................................................................................10 4.4 Radiated Emission Data.................................................................................................................11 4.4.1 Tx Portion................................................................................................................................11 4.4.2 Radiated Emissions in Restricted Bands.....................................................................................14 4.4.3 Other Emissions.......................................................................................................................15 4.5 Field Strength Calculation..............................................................................................................15 4.6 Photos of Radiation Measuring Setup............................................................................................16 5 CONDUCTED EMISSION MEASUREMENT.........................................................................17 5.1 Standard Applicable......................................................................................................................17 5.2 Measurement Procedure...............................................................................................................17 5.3 Conducted Emission Data.............................................................................................................18 5.4 Result Data Calculation.................................................................................................................20 5.5 Conducted Measurement Equipment.............................................................................................20 5.6 Photos of Conduction Measuring Setup.........................................................................................21 6 ANTENNA REQUIREMENT.............…

Text truncated - open the document above for the full version.

ETC Report No. : 06-05-RBF-078-04 FCC ID.: RU8HI-407BT Rev. No 2.1 Photos of Radiation Measuring Setup ETC Report No. : 06-05-RBF-078-04 FCC ID.: RU8HI-407BT Sheet 21 of 38 Sheets Rev. No 2.1 5.6 Photos of Conduction Measuring Setup ETC Report No. : 06-05-RBF-078-04 FCC ID.: RU8HI-407BT Rev. No 2.1 Figure 4 : Measurement configuration. EUT Spectrum Analyzer
