HI-601VT GPS/GSM Real-Time Tracker USER MANUAL 1 HI-601VT GPS/GSM Tracker INTRODUCTIONS: With HI-601VT GPS/GSM tracker, one can track, remote control, tapping any object globally in real time by using any regular SIM card (with one phone number), any regular phone (home phone, mobile phone, smart phone, etc.) and any local mapping software or Google Earth. No any special software needed. Because HI-601VT is small in size and main unit come with the big capacity rechargeable battery, it is also very suitable for personal tracking. On the HI-601VT, one can press the “panic button” and HI-601VT will instantly dial back to the preset telephone numbers (can set three numbers in different priority). With the optional car kit accessories, car control cables, micro- phone, moving sensor, one can remotely control certain functions: Car control cable sets: To stop the car oil and electricity from any phone. Micro-phone sets: to hear the voice from HI-601VT side. Vibration sensor: HI-601VT will automatically dial back when the moving occur. 1 1 HI-601VT HOW HI-601VT works: Unlike most GPS/GSM tracker using the GPRS communication in SMS message in none-real time mode and require control station (require monthly fee) or Internet access, HI-601VT no need any control center and special software. Since it is point to point solution, it is also no need to check the object from the Internet. wherever one can make the phone call, one can track the object and see the moving from any mapping software in real time. 2 2

Just like you call someone and he tells you where the object is and shows you where he is on the mapping software. HI-601VT provide non-stop and continue real time tracking without time limitation. Just like you talk to someone over the phone as long as you can. 3 3 HI-601VT Step by Step operation explanations: 1. Switch power on HI-601VT main unit. 2. The GPS receiver module in HI-601VT start receive GPS satellite signal (The GPS LED blinking means the GPS is in 3D fixed and the data is valid) 3. The GSM module starts sending the GPS data via GSM network back to the host side (The GSM LED blinking means the GSM network stand by and stay on means the GSM connected with some host) 4. Dial the Telephone number from the host side to the HI- 601VT main unit. 4 4 5. Switch on HI-601VT decoder (Switch on the middle for data out via wired connection and to the most right side for wireless Bluetooth connection) 6. Connect the voice jack cable to the voice outlet from the phone. 7. The HI-601VT A/D decoder start to decoding the Analog GPS voice message into real-time GPS digital NMEA message. 8. On the decoder unit, connect the PS/II output cable or set up Bluetooh connection to the display unit (such as smart phone, PDA, laptopPC, desktopPC, etc.) 9. Using any standard NMEA mapping software, select the com port, start GPS (just like using normal GPS receiver) 5 5 HI-601VT Alarm release Connector for data control output and power in GPS status LED GSM status LED Power status LED SOS panic button Mini1394 connector for GPS data output and power in GPS MMCX external antenna plug Power ON/OFF HI-601VTmain unit overview 6 6

Open battery cabinet cover Insert SIM card Put battery in Close battery cabinet cover 3 4 1 5 2 Getting Start 7 7 HI-601VT GSM LED indicator Power LED indicator GPS LED indicator HI-601VT set contains two main units: 1. HI-601VT unit installed on the “client side”: in your car, someones' back pack, etc. 2. Decoder unit carried with the “host side” Inside HI-601VT contain five main parts: 1) SiRF StarIII high sensitive GPS receiver module, 2) Tri-band GSM module, 3) System control circuit section, 4) Power management section, 5) Rechargeable battery Decoder unit contain three parts: 1) A/D converter circuit section, 2) Bluetooth module, 3) Two 3A batteries Status GSM Stand-by Searching network or no SIM card Network connected Status Battery low External powered (Power full) External powered - charging Status Searching GPS GPS 3D fixed LED Off 3 sec. and on 75 micro Sec. On 600 micro sec. and off 600 micro sec. Stay on LED (Color) Red Green Orange LED Stay on Blinking 8 8 Inside HI-601VT, the GPS module receive satellite signal and transfer the data into standard NMEA protocol data. Then, the GSM module transmit the data in analog voice message via regular communication network (just like calling and talk from one phone to another phone). As soon as these two devices communicated, HI-601VT will keep transmitting the “voice” to the user side. By connecting the voice phone jack cable from the users' phone to the decoder unit (the purpose of the decoder unit is to transfer the analog voice message into the digital NMEA standard sentences), the wireless Bluetooth module inside will start sending the NMEA message to the display devices, such as, PDA, laptopPC, desktopPC, etc. after the Bluetooth connection was set up. Track with different occasions: 1. With Smartphone: If user has the smartphone (PDA with Bluetooth feature and phone function), by connecting the decoder from the voice jack, one can communicate to the HI-601VT with the smartphone and perform the tracking on the same smartphone. 2. With PDA and mobile or home phone: The phone set up communication to HI-601VT. Connect the voice jack cable between the phone speaker phone jack and the decoder. The decoder sends the NMEA sentence back to the PDA via the Bluetooth connection. 3. With laptopPC and mobile or home phone: The phone set up communication to HI-601VT. Connect the cable between the phone speaker phone jack and the decoder. The decoder sends the NMEA sentence back to the laptopPC via the Bluetooth connection or by the cable sets. 9 9 HI-601VT 1. Decoder with smart (PDA) phone: 1. The smart (PDA) phone calling or communicate with the HI-601VT 2. Voice message to the decoder 3. Voice message was transferred into standard digital NMEA protocol data 4. The NMEA data was transmitted back to the smart (PDA) phone via Bluetooth ® connection wirelessly HOW to USE Option#1 1 2 3 4 10 10

1. Decoder with smart (PDA) phone: 1. The smart (PDA) phone calling or communicate with the HI-601VT 2. Voice message to the decoder 3. Voice message was transferred into standard digital NMEA protocol data 4. The NMEA data was transmitted back to the smart (PDA) phone via PDA cable HOW to USE Option#2 1 3 2 4 PD A cable 11 11 HI-601VT HOW to USE Option#3 1. Decoder with smart (PDA) phone and laptopPC (or desktopPC): 1. The smart (PDA) phone calling or communicate with the HI-601VT 2. Voice message to the decoder 3. Voice message was transferred into standard digital NMEA protocol data 4. The NMEA data was transmitted to the laptopPC via USB cable 1 3 2 4 USB port from LaptopPC 12 12 HOW to USE Option#4 1. Decoder with mobile phone and laptopPC (or desktopPC): 1. The mobile phone calling or communicate with the HI-601VT 2. Voice message to the decoder 3. Voice message was transferred into standard digital NMEA protocol data 4. The NMEA data was transmitted to the laptopPC via USB cable 1 3 2 4 Mobile Phone 13 13 HI-601VT HOW to USE Option#5 1. Decoder with mobile phone and laptopPC (or desktopPC): 1. The mobile phone calling or communicate with the HI-601VT 2. Voice message to the decoder 3. Voice message was transferred into standard digital NMEA protocol data 4. The GPS NMEA data was transmitted to the laptopPC via Bluetooth ® wirelessly 1 2 3 4 Bluetooth ® dongle 14 14

4. With smartphone or mobile phone and track with SMS in none-real time bases (without decoder): The phone set up communication to HI-601VT. Press “71” and hang up the phone. In few seconds, the phone will receive a short message indicating the HI-601VT current coordinates. Then, go to Google Earth or any mapping software (in none navigation mode) and key in the coordinates. The map will point out the exact location. (1) Dial the number to HI-601VT (2) After connection, press “71”. then, hang up. In few seconds, your mobile will receive a SMS message reqarding to the current location coordinate. (1) (2) 15 15 HI-601VT Key in the coordinates into the Google Earth or any mapping software for the location Key in latitude and longitude data received from SMS 16 16 Use HI-601VT unit as a regular GPS receiver: By connecting different kinds of optional accessory cables from the side of HI-601VT mini1394 connector, the HI-601VT can also be all kind regular GPS receivers. For instance, HI-601VT can connect a HI-403BT cube and the combination can be a regular Bluetooth GPS receiver for car navigation. Or, connect an optional USB cable to become a USB GPS receiver for laptopPC navigation. Use HI-601VT as a regular Bluetooth GPS receiver (with HI-403BT box and cigarette lighter) 17 17 HI-601VT HI-601VT as a regular wired GPS mouse: By connection different optional connecting cables, HI-601VT can be all kinds of independent wired GPS receiver solutions. 18 18

ACCESSORIES: Standard Accessories: 1. HI-601VT unit 2. Decoder unit 3. Voice jack/PSII to mini-1394 Y cable 4. Mini-1394 to USB power cable 5. AC power adaptor with USB plug 6. Cigarette lighter adaptor with USB plug 7. 1600 mAh Li-on rechargeable battery 8. Carrying pouch 9. Mini CD 10.User manual 1 6 8 10 7 2 3 4 5 9 19 19 HI-601VT Optional Accessories: 1. Car control kits main unit 2. Car control cable sets 3. Micro-phone cable set 4. Vibration sensor cable set 5. HI-601VT to car kit cable 6. HI-403BTcube 7. Mini-1394 to PS/II (male) cable D C 1 2 V ~ 2 4 V DC 12V~24V (Cigarette Lighter) To Vibration Sensor 1 2 3 4 5 6 7 8 9 10 11 12 GND Vin 12~24V Burglar trigger Remote Relay 2 Remote Relay 2 1 2 3 4 6 5 7 Vibration sensor reset help sw panic button — — > > x — > > Power LEDTo HI-601VT Tapping MIC To 403BT 20 20 Operation Easy Manual No pass code required mode Press “5” to enter the emergency status Press “8” to activate the bugging under none encryption mode saving mode activated) Press “ * ” to stop sending voice message back and hear “du du” responding Press “ 0 0 0 0 ” (per-setted) and hear a long “du” verifying the pass code confirmed. Change the pass code by pressing “ 0 1234 1234 ” (example) pass code correct: a long “du” and pass code incorrect: du 4 times “du du du du” Set the first set dial-back telephone number: “ 1 0912 345678*” Setup correct: a long “du” and incorrect: du 4 times “du du du du” (anti-thief alarm) Set the second set dial-back telephone number: “ 2 0912 345678* “ Setup correct: a long “du” and incorrect: du 4 times “du du du du” (anti-thief alarm) Set the third set dial-back telephone number: “ 3 0912 345678* ” Setup correct: a long “du” and incorrect: du 4 times “du du du du” (anti-thief alarm) Remove first set dial-back telephone number: “ 1 * ” Remove correct: a long “du” and incorrect: du 4 times “du du du du” Remove second set dial-back telephone number: “ 2 * ” Remove correct: a long “du” and incorrect: du 4 times “du du du du” Remove third set dial-back telephone number: “ 3 * ” Remove correct: a long “du” and incorrect: du 4 times “du du du du” SOS dial-back: 4, 5, 6 three sets Press “ # ” to stop sending voice message back and hear “du du” responding Press “ 0 0 0 0 ” (per-setted) and hear a long “ du” verifying the pass code confirmed. Change the PIN code by pressing “ 0 5678 5678 ” (example) PIN code correct: a long “du” and Cancel PIN code by pressing “ 0 # ” and a long “du” confirm it is correct Press “ 1 ” for temporary disable tracking encryption mode under tracking encryption mode. 21 21 HI-601VT Send back data 50 times (around 3 minites ) when the set up correct. Short message send back to the preset dial-back number by pressing “ 21 ” “ 22 ” “ 23 ” Connection hanged up when set up correctly. Press “ 2# ” to disable short message function Press “ 2* ” to enable short message function (pre-setted) Set up correct: a long “du” and incorrect: du 4 times “du du du du” Press “ 40 ” to immediately cut off oil and electricity Set up correct: a long “du” and incorrect: du 4 times “du du du du” Press “ 51 ” to disable moving sensor function (pre-setted) Press “ 52 ” to enable moving sensor function Set up correct: a long “du” and incorrect: du 4 times “du du du du” (Anti-thief mode can also works normally) Press “ 54 ” to bugging without the pass code mode (pre-setted) Press “ 55 ” to bugging with pass code required mode Set up correct: a long “du” and incorrect: du 4 times “ du du du du” Press “ 57 ” to tracking with no encryption required (pre-setted) Press “ 58 ” to tracking with encryption mode (under encryption mode, the voice message is steady tune and unable to decode it) Set up correct: a long “du” and incorrect: du 4 times “du du du du” Press “ 53 ” for moving sensor trigger and instant dial back (pre-setted) Press “ 56 ” for moving sensor trigger and delay dial back Set up correct: a long “du” and incorrect: du 4 times “du du du du” Press “ 6* ” for GPS location dial back on certain times Connection hanged up when set up correctly. Press “ 6# ” for GPS location speed mode than 20 km Connection hanged up when set up correctly. 22 22

Press “ 62 ” for automatically enable dial back when GPS location speed mode than 20 km under moving sensor activated mode. Press “ 61 ” for manually enable dial back when GPS location speed mode than 20 km under moving sensor activated mode (pre-setted) PS: (under the activate moving sensor trigger mode 52) Dial back testing, press “ 71 ” dial back the 1, 2, 3 sets numbers. Press “ 8 ” for in car bugging Under none encryption protection mode, press “ 8 ” directly without press the pass code. Press “ 9 ” from leaving mode back to tracking mode or not pressing any keys in 10 seconds to enable from leaving mode back to tracking mode. After anti-thief dial back mode, take the call and dial “ * * * ” to disable the dial back NOTE: Please press at 2 seconds intervals in each button SMS Example: SMS Short message ALARM = Anti-thief trigger dial back SENSOR = moving sensor trigger dial back SOS = ask for help dial back *V, N, 23” 51' 15.6, E, 120” 38' 09.6, 020. 3, 359. 9* V = GPS last location A = GPS current location N, 23” 51' 15.6 = North 23” 51' 15.6 E, 120” 38' 09.6 = East 120” 38' 09.6 020.3 = Speed (sea mile) 359.9 = Direction 23 23 HI-601VT Dimension: 84mm60mm 60mm 29.5mm 24 24 GPS Receiver Specifications Chipset Protocol Baud Rate Max. Update Rate Datum Channel Frequency Hot Start Warm Start Cold Start Reacquisition Tike Position Accuracy Macimum Altitude Maximum velocity Voltage Power consumption Antenna Type External Antenna Connector Dimension LED Indicator SiRF Star III NMEA0183 GGA, GSA, GSV, RMC, GLL 4800, N, 8, 1 1 Hz WGS84 20 channel L1, 1575.42MHz 8 sec. Aver age 38 sec. Aver age 48 sec. Aver age 100 ms 15m 2D RMS, S A off 18,000m 515m/s DC 3.3V+-10% 90mA continuous mode Built-in active antenna MMCX (Optional) 84 (L) x 60 (W) x 29.5 (H)mm 3D P ositioning (blinking) or Searching GPS (on) 25 25 HI-601VT GSM module features Feature Power saving Charging Frequency bands GSM Class Transmit power GPRS Connectivity Temperature range Temperature control and auto switch-off DATA GPRS: CSD: WAP: SMS MMS Implementation Minimizes power consumption in SLEEP mode to 3mA Supports charging control for Li-lon battery • MC55 Tri-band: EGSM 900, GSM 1800, GSM 1900 • Compliant to GSM Phase 2/2+ Small MS • Class 4 (2W) at EGSM900 and GSM850 • Class 1 (1W) at GSM1800 and GSM1900 • GPRS multi-slot class 10 • GPRS mobile station class B • Normal operation: -20∞C to +55∞C • Restricted operation:-25∞C to -20∞C & +55∞C to +70∞C • Constant temperature control prevents damage to MC55/56 when the specified temperature is exceeded. When an emergency call is in progress the automatic temperature shutdown functionality is deactivated. • GPRS data downlink transfer: max. 85.6 kbps • GPRS data uplink transfer: max. 42.8 kbps • Coding scheme: CS-1, CS-2, CS-3 and CS-4 • Supports the two protocols PAP (Password Authentication Protocol) and CHAP (Challenge Handshake Authentication Protocol) commonly used for PPP connections. • Support of Packet Switched Broadcast Control Channel (PBCCH) allows you to benefit from enhanced GPRS performance when offered by the network operators. • CSD transmission rates: 2.4, 4.8, 9.6, 14.4 kbps, non-transparent, V.110 • Unstructured Supplementary services Data (USSD) support • WAP compliant • MT, MO, CB, Text and PDU mode • SMS storage: SIM card plus 25 SMS locations in the mobile equipment • Transmission of SMS alternatively over CSD or GPRS. Preferred mode can be user-defined. MMS compliant 26 26

Feature SIM interface Audio interfaces Audio features Two serial interfaces: ASC0,ASC1 SIM Application Toolkit Ringing tones Real time clock Timer function Support of TTY/CTM Firmware upgrade Implementation • Supported SIM card: 3V • External SIM card reader has to be connected via interface connector Two analog audio interfaces, one digital audio interface(DAI) Speech code modes: • Half Rate (ETS 06.20) • Full Rate (ETS 06.10) • Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80) • Adaptive Multi Rate (AMR) Handsfree operation • Echo cancellation • Noise reduction • 2.65V level, bi-directional bus for AT commands and data • ASC0 - full- featured 8-wire serial interface. Supports RTS0/CTS0 hardware handshake and software XON/XOFF flow control. Multiplex ability according to GSM 07.10 Multiplexer Protocol. • ASC1 - 4-wire serial interface. Supports RTS1/CTS1 hardware handshake and software XON/XOFF flow control. • Baud rate: 300bps... 230kbps on ASC0 and ASC1 • Autobauding (on ASC0 only) detects 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bps SIM Application Toolkit Supports SAT class3, GSM 11.14 Release 98, support of letter class ”c” Offers a choice of 7 different ringing tones / melodies, easily selectable with AT command Implemented Programmable via AT command To benefit from TTY communication via GSM, CTM equipment can be connected to one of the three audio interfaces. Firmware upgradable over serial interface and SIM interface 27 27 HI-601VT HI-601VT Decoder How to Use: A. Connect the inclusive phone jack/PSII to mini1394 Y cable to the decoder: Mini1394 connector to the side of the decoder, phone jack to the phone jack outlet) B. As soon as turn on the power switch, the red LED light start blinking once per second. The updated coordinates will be sent out from “mini-1394 output” and “Bluetooth output” each second. PS. The data format is 4800, 8, N, 1 and computer will take the RS232 data from COM 1, COM2 or other com port. C. Start mapping software and activate the GPS signal receiving. The most update location (or the last location) will be shown on the mapping software. D. The orange LED light (GPS in 3D fixed) followed by the red light meaning the data is valid and is the real time location coordinate. The status also means that the car or the person should be in outdoor and the GPS receiver able to gets and lock more than 4 satellites. If the yellow light not lighted meaning the GPS data is not the real time coordinate (could be the old location coordinate) The status also means that the car or the person should be indoor and the GPS receiver unable to gets and lock more than 4 satellites. 28 28 Decoder LED indicator Symbol LED Color Orange Bluetooth Red Green Stay on GPS data valid (3D fixed) Bluetooth Connected Decoding (4 seconds interval) Receiving data Blinking GPS data not valid Bluetooth no connected 29 29 HI-601VT

910805 1 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; 910805 2 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Paul Lin / Manager Haicom Electronics Corp. 3F-11, No. 130, Jian-Kang Rd., Chung Ho, Taipei Hsien, Taiwan R.O.C.

910805 3 Federal Communications Commission FCC ID: RU8HI-601VT Product Name: GPS/GSM Tracking Device Model Name: HI-601VT , HI-601 Trade Name: HAICOM Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: Paul Lin (Signature) (Printed) Title : Manager Applicant : Haicom Electronics Corp. Address : 3F-11, No. 130, Jian-Kang Rd., Chung Ho, Taipei Hsien, Taiwan R.O.C. Tel : +886-2-3234-9610 Fax: +886-2-8221-1522 Date : Jun. 13, 2007

1 Chris Harvey From: Iris Lin [[email protected]] Sent: Thursday, August 02, 2007 11:47 PM To: [email protected] Cc: R00/劉尚昇 Subject: Fw: Fw: HAICOM Electronics Corp., FCC ID: RU8HI-601VT, Assessment NO.: AN07T6998, Notice#1 Attachments: Exhibit-G-Schematics_rev.pdf; Exhibit-L-Antenna_Spec..pdf; Exhibit-M-Acknowledgement Letter.pdf; Exhibit-A-Block_Diagram_rev.pdf; Exhibit-C-Test_Report_revised.pdf Exhibit-G-Schematic s_rev.pdf (... Exhibit-L-Antenna_ Spec..pdf (1... Exhibit-M-Acknowle dgement Lett... Exhibit-A-Block_Dia gram_rev.pd... Exhibit-C-Test_Rep ort_revised.... Dear Chris, Please refer to the following answers for your questions. 1. Please refer to the updated schematics for the bluetooth module as attachment. 2. Please refer to the attached antenna specification. 3. Please refer to the attached acknowledgement letter that includes the applican't declaration for the Bluetooth Core. 4. This device contains only Bluetooth transmitter. Please refer to the updated block diagram as attachment. 5. Due to the manual is too big to send by a mail. I will send you by the other mail. 6. Please refer to the updated report as attachment. ELECTRONICS TESTING CENTER, TAIWAN IRIS LIN (林慧君) TEL: 886-2-26023052 ext.10 FAX: 886-2-26010910 > ----- Original Message ----- > From: <[email protected]> > To: <[email protected]> > Cc: <[email protected]> > Sent: Thursday, July 12, 2007 1:49 AM > Subject: HAICOM Electronics Corp., FCC ID: RU8HI-601VT, Assessment NO.: > AN07T6998, Notice#1 > > > > Dear SS Liou, > > > > You are listed as the Technical Contact for the above referenced TCB > application. The following item(s) need(s) to be resolved before the review > can be continued: > > > > 1. The schematic diagram submitted includes a place (U4) for the Bluetooth > Module, but the schematics did not include the Bluetooth Module circuitry. > Please revise the schematics to include the Bluetooth RF circuit. > > > > 2. Please provide the antenna specifications for the Bluetooth > > antenna > (should include peak gain). > > > > 3. Please note that the Users Manual indicated that this device is a > Bluetooth device. Please provide Bluetooth CORE compliance evidence > (declaration) that shows compliance with FCC 15.247 FHSS requirements. > > 2 > > 4. The Block Diagram shows that this device contains a GSM Module. > > Does > this device use a GSM Module? Is this device used in conjunction with > a GSM > Module? If yes, is the GSM module located within 20cm of the > Bluetooth transmitter? Please respond and submit updated exhibits as > needed. If the > Block Diagram represents both the Decoder Unit (this EUT) and the Main Unit > (different device), please update the Block Diagram to include only > information about this EUT, or clearly label each portion of the Block > Diagram. > > > > 5. The Users Manual submitted is not completely legible and the > > diagrams > and pictures in the manual are hard to see. Please update the Users Manual > exhibit with a more legible one. > > > > 6. The test setup photos (separate exhibit and in the report) show a > computer and another device connected to the EUT during testing. > Please include a table in the report of the EUT configuration which > includes all cables and other devices connected during test as > required by ANSI C63.4:2003. > > > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please > note that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be > directed to > the e-mail address listed below the name of the sender. > > > > Best regards, > > > > Chris Harvey > > [email protected] > > > > >

Jul. 30, 2007 Federal Communications Commission FCC ID: RU8HI-601VT Product Name: GPS/GSM Tracking Device Model Name: HI-601VT, HI-601 Dear Sir, In signing this document I acknowledge that the Bluetooth module of the of certified product comply with Bluetooth CORE specifications and hence comply with FCC 15.247 FHSS requirements. Date: Jul. 30, 2007 By: Paul Lin Signature Printed Title: President On behalf of : Haicom Electronics Corp. Telephone: +886-2-3234-9610

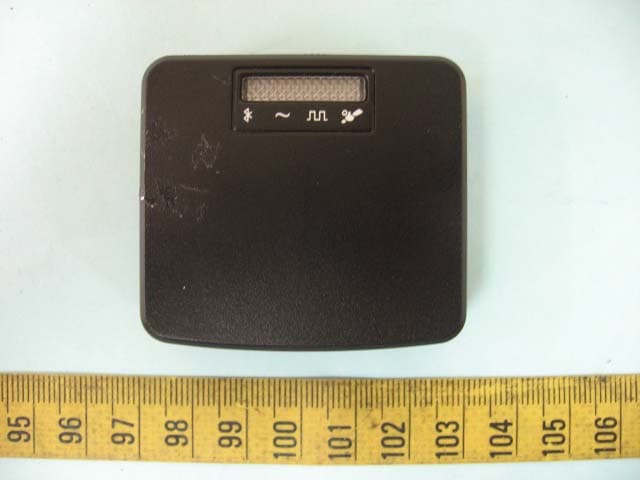

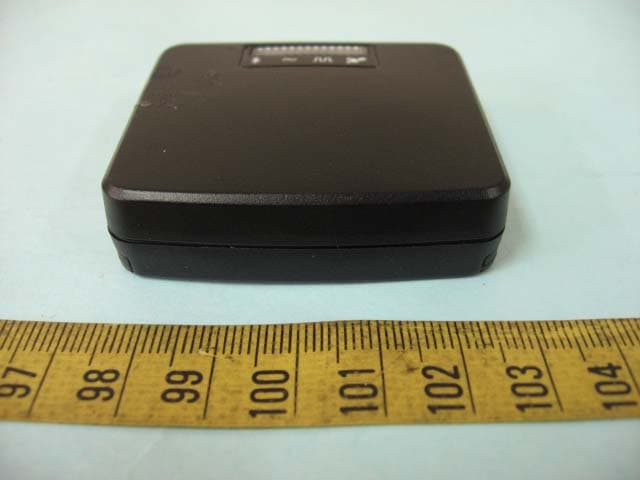

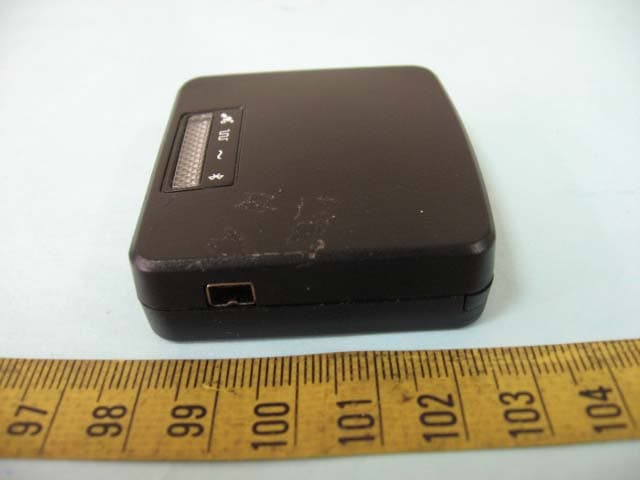

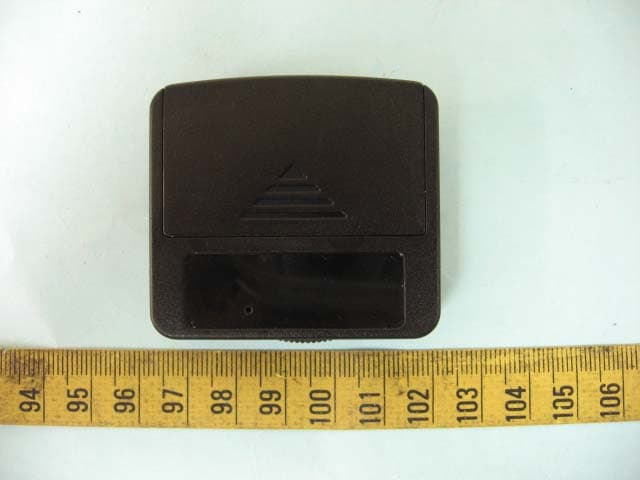

ETC Report No. : 07-05-RBF-129-01 Sheet 1 of 5 Sheets FCC ID.: RU8HI-601VT Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Side View of EUT ETC Report No. : 07-05-RBF-129-01 Sheet 2 of 5 Sheets FCC ID.: RU8HI-601VT Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. Front View of EUT 4. Side View of EUT ETC Report No. : 07-05-RBF-129-01 Sheet 3 of 5 Sheets FCC ID.: RU8HI-601VT Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 5. Rear View of EUT 6. Bottom View of EUT

Model : HI-601VT , HI-601 FCC ID : RU8HI-601VT 38.3 mm 12.8mm

ETC Report No. : 07-05-RBF-129-01 Sheet 4 of 5 Sheets FCC ID.: RU8HI-601VT Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT ETC Report No. : 07-05-RBF-129-01 Sheet 5 of 5 Sheets FCC ID.: RU8HI-601VT Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 8. Component View of PCB 9. Solder View of PCB

Walsin Technology Corporation Page 1 of 10 ASC_RFANT3216090A0T_V03 Mar. 2005 MULTILAYER CERAMIC ANTENNA RFANT Series 2.4 GHz ISM Band Working Frequency



*Contents in this sheet are subject to change without prior notice. Walsin Technology Corporation Page 2 of 10 ASC_RFANT3216090A0T_V03 Mar. 2005 REVISION HISTORY Rev P/N Description Date V01 RFANT3216090A0T First Version 2004-12-10 V02 RFANT3216090A0T 1.Change “LAND PATTERN” suggestion: Pad connected to Ground dimension “Wg” from 0.70 ± 0.10 mm to 0.60 ± 0.10 mm Pad connected to 50 Ө Transmission Line dimension “Lh” from 0.20 ± 0.10 mm to 0.30± 0.10 mm 2005-02-25 V03 RFANT3216090A0T Delete Original Approval Sheet "P8~P12" of RFANT3216090A0T. Please refer to Application Note of RFANT3216090A0T for identical information. 2005-03-30 Walsin Technology Corporation Page 3 of 10 ASC_RFANT3216090A0T_V03 Mar. 2005 FEATURES
 Surface Mounted Devices with a small dimension of 3.2 x 1.6 x 0.9 mm 3 meet future miniaturization trend.
Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product.
High Stability in Temperature / Humidity Change APPLICATIONS
Bluetooth
Wireless LAN
ISM band 2.4GHz wireless applications DESCRIPTION Walsin Technology Corporation develops a new ceramic embedded antenna specified for 2.4 GHz ISM Band application, as shown in below “CONSTRUCTION”. Both of Wireless LAN IEEE 802.11b/g and Bluetooth TM typically located on this unlicensed frequency …
