RU8HI406BBluetooth GPS receiver

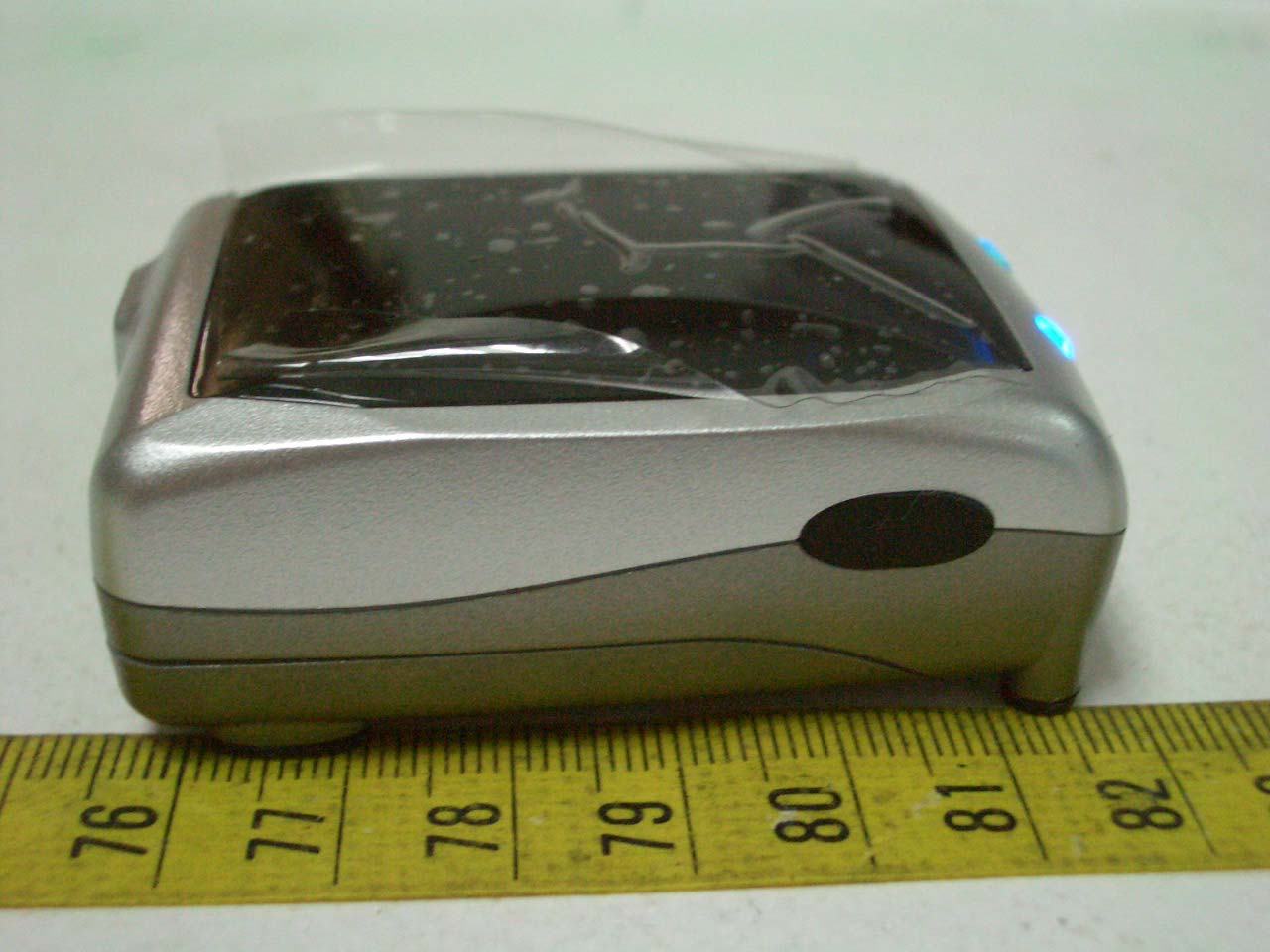

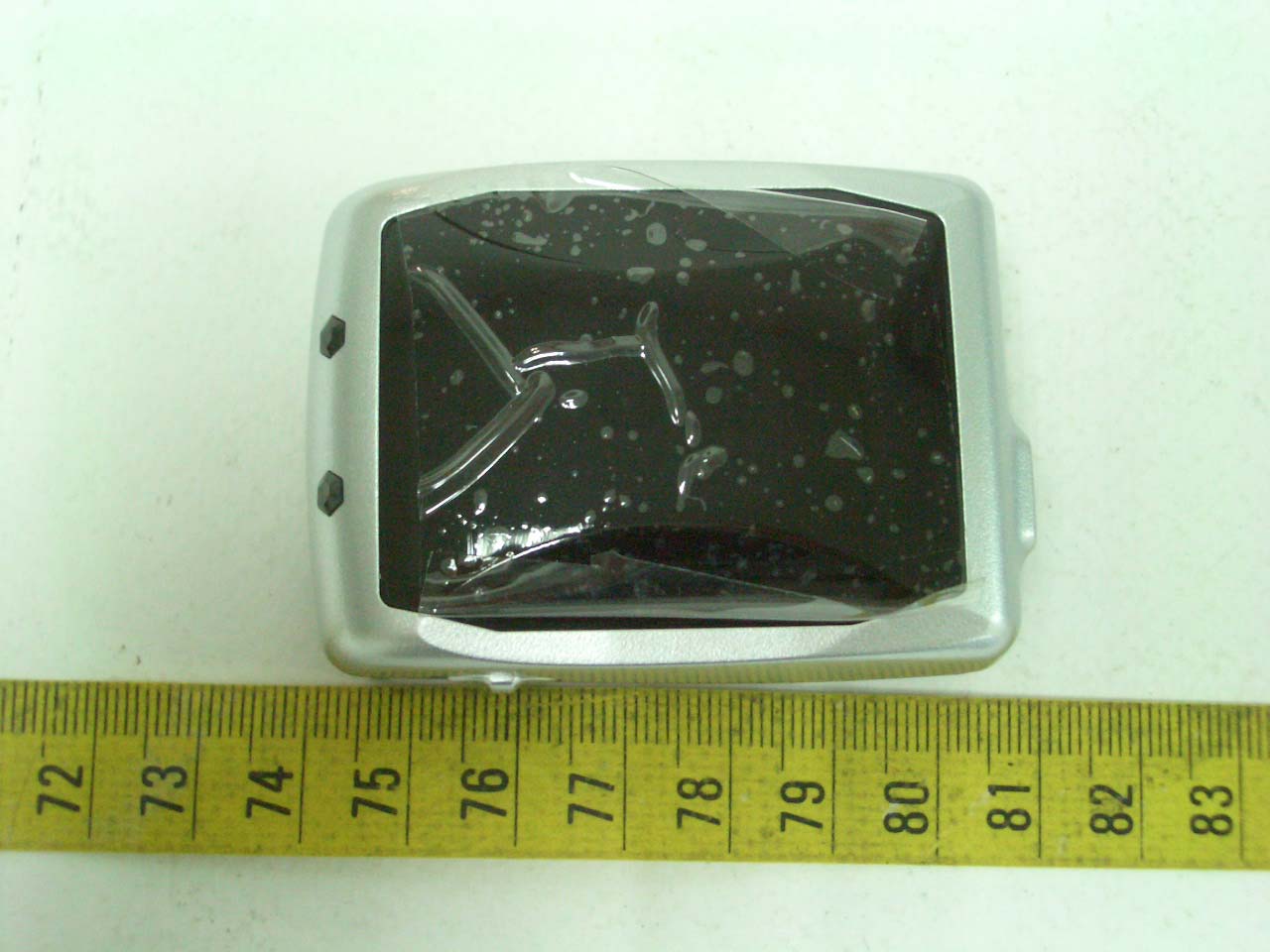

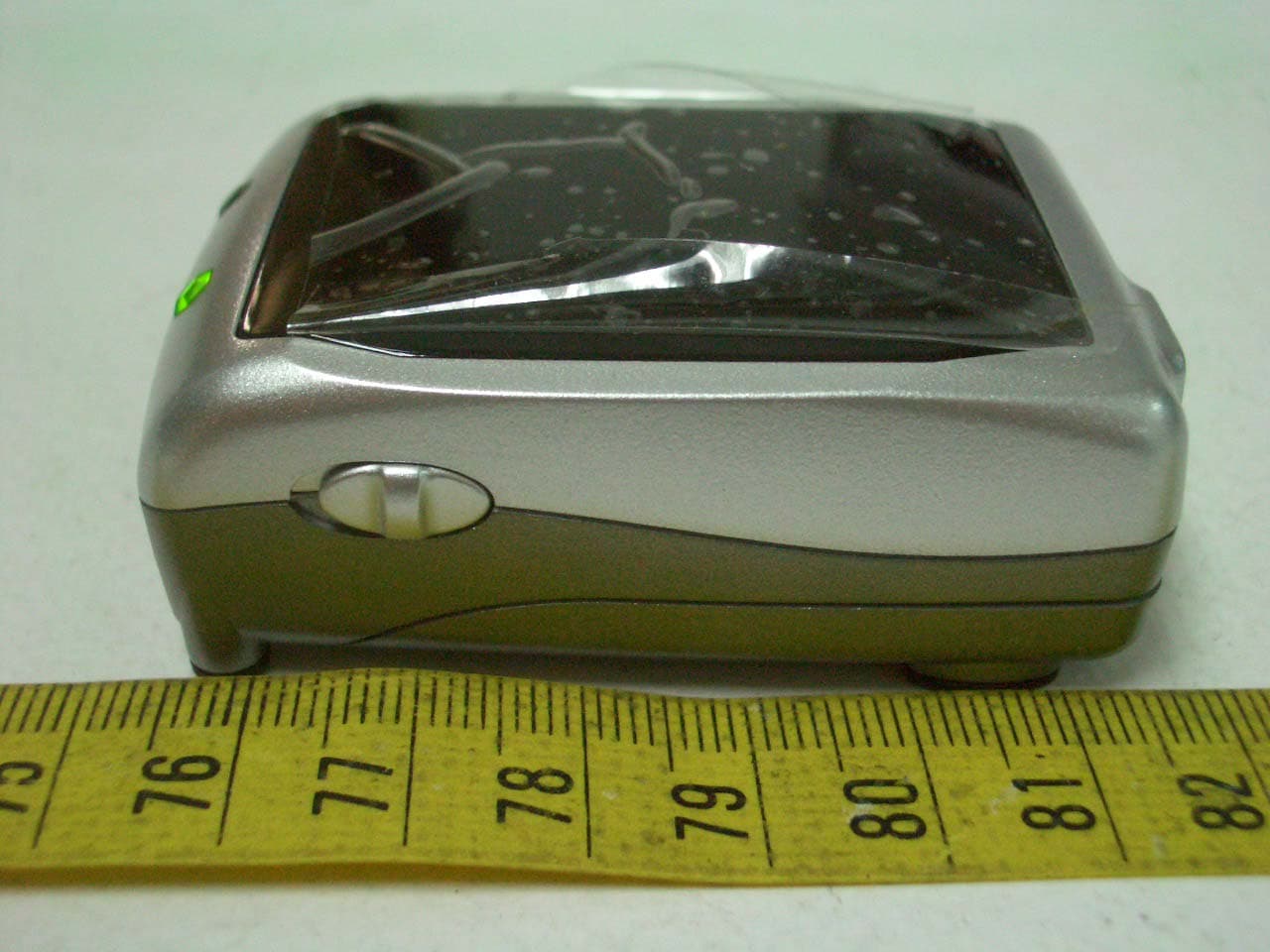

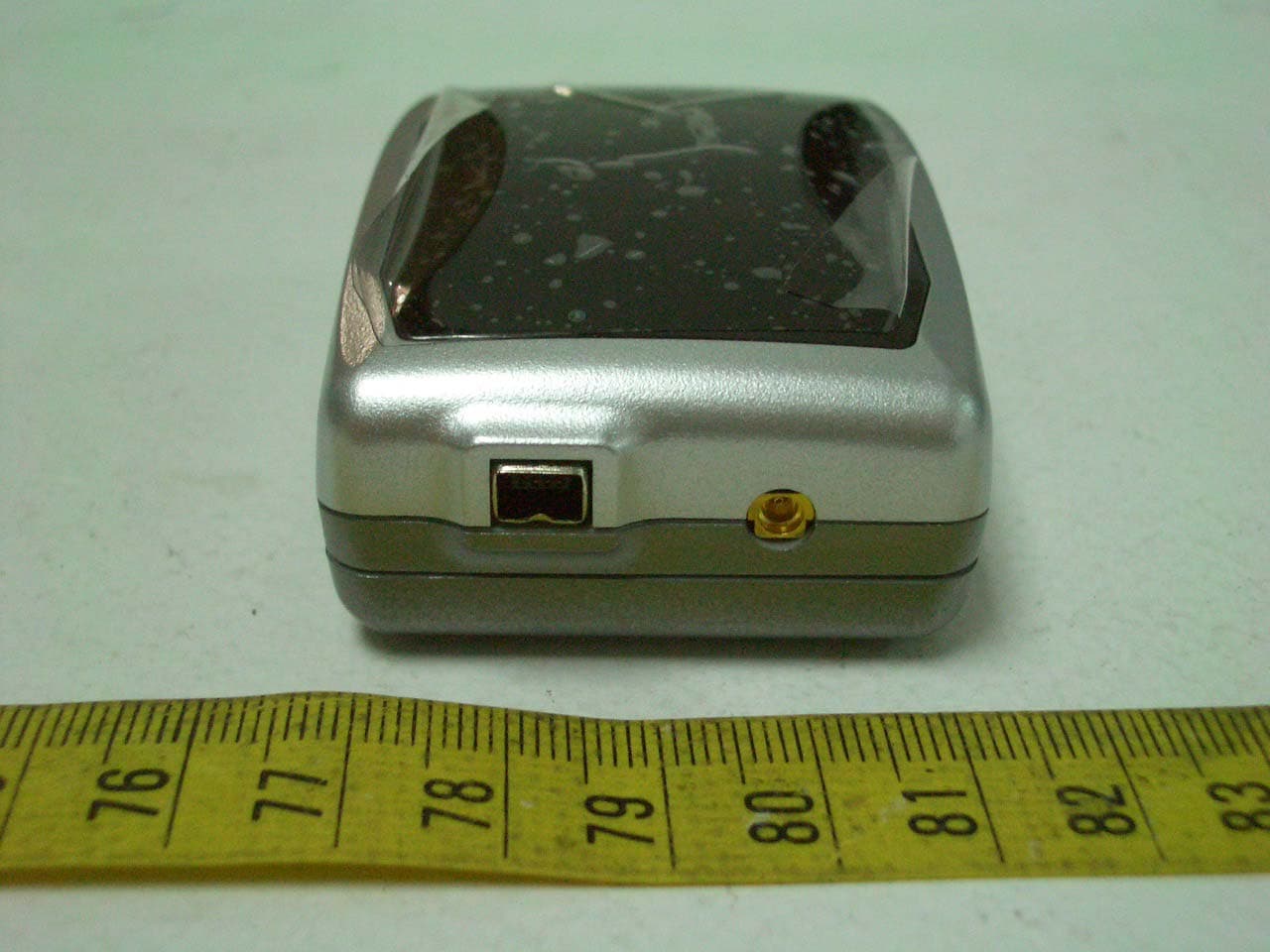

HI-406BT Bluetooth GPS receiver 1 Table of Contents 1.1 Overview 1.2 Main Features 2.1 Setting up: Bluetooth GPS receiver 3. Dimensions 4. Packaging 4.1 Standard Packaging 4.2 Optional Packaging 5. System Specifications 6. Get Connected; Installation Guide 6.1 Laptop PC Installations 6.2 PDA Installations ........................................... 3 ..................................... 4 ........ 5 .......................................... 11 .............................. 12 ............................... 15 ............................. 19 ........................ 22 ................................. 25 2 1.1 Overview Introduction HI-406BT is a GPS (Global Positioning System) receiver in wireless Bluetoothinterface with build- in active antenna and extra digital compass functions. With HI-406BT, your mobile devices, such as, Smartphone, PocketPC, laptopPC, tabletPC, etc. can receive GPS data wirelessly and perform the GPS applications, such as, car navigation, personal navigation, route planning, tracking, etc. Equipped with the most powerful and ultra high sensitive SiRF StarIII chip set, HI-406BT can get the 3D fix in very short time and under poor reception environment, such as in the middle of the car, next to the tall building, in your backpack, or pocket. 3 1.2 Main Features: • 20 Channels "All-In-View" Tracking • Position accuracy of 10 meters 2D RMS • Cold/Warm/Hot Start Time: 42/38/1 Seconds (Signal Strength > 30 dB-HZ) • Reacquisition Time: 0.1 seconds • Support Standard NMEA-0183 at 19200 bps baud rate (Defined by customer 4800 up to 57600) • Support Power Saving Mode • Compatible with Bluetoothdevices with Serial Port Profile (SPP) • Superior Sensitivity for Urban Canyon and Foliage Environment • Ultra small, sleek, and lightweight design easily fits in your hand • Li-polymer battery lasts for more than 8 hours of use in connection 4 2.1 Setting up: BluetoothGPS receiver STEP 1: Open the battery cap and put the battery (406-BTT) into the battery compartment. Push down and pull out 5 STEP 2 Connect the AC charger to home electronics outlet or connect the inclusive DC charger to the car cigarette lighter. As soon as they connected, the solid amber light on the right side in front of HI-406BT will turned on (stay on) meaning the battery charging. DC charger to car cigarette lighter (DC 12V~24V) MMCX external antenna plug Mini-1394 female connector for power in and GPS signal out AC charger to home electronic outlet 6 STEP 3 As soon as the battery fully charged, the amber light will turned off, then, unplug the charger. Indicator for battery low (Red) andBluetooth status (Blue) Indicator for power charging and GPS status 7 STEP 4 There is switch on side of HI-406BT. The switch on the right side is for BluetoothGPS receiver. As soon as turn on the switch on the side, the GPS receiver will start to function and search the satellites. Meanwhile, the LED indicator on the right side in front of HI-406BT will turned green (stay on - the GPS receiver not get 3D fixed yet) Please make sure place the HI-406BT outdoor open space so that it can get the proper satellite signal. After HI-406BT gets enough satellite data (lock more than 4 satellites), HI-406BT is in 3D fixed and the green light start blinking. 8 LED indicator color Status Amber LED off Green (blinking) Green (Stay on) HI-406BT battery charging HI-406BT battery fully charged GPS in 3D fixed GPS searching more satellite and not in 3D fixed yet Blue (blinking) Blue (stay on) Red Bluetoothsearching host device Bluetoothpaired and connected HI-406BT battery low BluetoothGPS Switch 9 STEP 5: As soon as turn on the switch on the right side, the Bluetoothwill also start to function and searching. The blue light on the left side in front of HI-406BT will turned on (Blinking) meaning the Bluetoothis searching the host device and not get paired yet. Please consult the Bluetoothstep by step connection guide from this manual on section. The pin code is " 0000 " when asked the pin code. After theBluetoothpaired and connected, the blue light will stay on. STEP 6: Open the mapping software from your mobile device, select the corresponding COM port and start GPS. STEP 7: Enjoy the state of the art wireless GPS navigation. 10 3. Dimensions Unit: mm 46.40 64.80 24.00 Top View Front View Button View Side View Back View 11 4. Packaging 4.1 Standard Packaging: Model Name 1Bluetooth GPS receiver 2Rechargeable Li-Polymer 3.7V 1000 mAh battery 3Mini1394 to USB cable 4Cigarette lighter adaptor with USB female plug 5Carrying pouch 6HI-406BT user manual 7Mini CD 1 model# HI-406BT 406-BBT 401-USB USB-DCC BAG-002 MAU-406 CDR-01 12 2 3 4 13 5 7 6 14 4.2 Optional Packaging: Model Name 1. MMCX external antenna 2. mini-1394 to PS/II connecting cable 3. AC power adaptor with USB female plug model# ANT-MMC PS2-1394 USB-ACC PS2-1394 ANT-MMC USB-ACC 15 Under blocking area, the external antenna can extend the signal reception from HI-406BT MMCX antenna 16 By connecting to different optional connecting cables, HI-406BT can be a wired PS/II GPS receiver and used with all kinds of mobile devices. PS2-1394 17 HI-406BT as a GPS mouse By counecting different optional counecting cables, HI-406BT can be all kinds of wired GPS receiver solutions. 18 5. System Specifications Main Features GPS General Chipset Channel Frequency TTFF (Open Sky) Hot Start Warm Start Cold Start Acquisition Sensitivity Hot Warm Cold Tracking Sensitivity Position Accuracy Dynamic Conditions Altitude(Maximum) Velocity(Maximum) Acceleration(Maximum) SiRF Star III Supports 20-channel L1 (1575.42MHz), CA code 8 sec. 38 sec. 42 sec. 17dBHz 23dBHz 30dBHz -159dBm 10m, 2D RMS 18,000m (60,000ft) 515m/sec(1,000knots) <4g 19 Bluetooth General Frequency Modulation Method Max. Data rate Transmission Power (Maximum) Hoping Receiving Signal Range Receiver IF Frequency Baseband Crystal OSC Compliant 2400MHz to 2483.5MHz GFSK, 1Mbps, 0.5BT Gaussian Asynchronous: 723.2kbps/57.6kbps Synchronous: 433.9kbps/433.9…
