RUMCL2Door Bell Signaller

Page 1 of 4 FCC ID: RUMCL2 User Manual for models CL2, CS-CL2& BT-CL2 The device compliance with Part 15 of the rules. Operation is subject to following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Page 2 of 4 FCC ID: RUMCL2 Page 3 of 4 FCC ID: RUMCL2 Page 4 of 4 FCC ID: RUMCL2

Page 1 of 1 FCC ID: RUMCL2 Block diagram of CL2, CS-CL2 & BT-CL2 Key pad Encode (PT2262) 433.92 MHz Transmitter (X1) Integral Transmission antenna RF band pass filter (SAW filter) Modulator (Q1) Incorporated into SAW com ponent shown on PCB

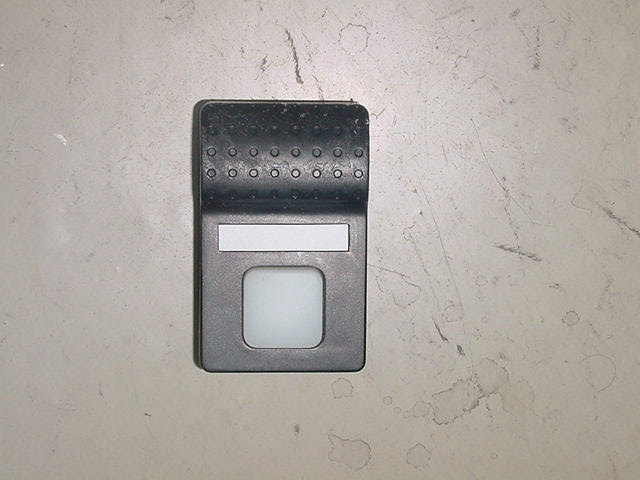

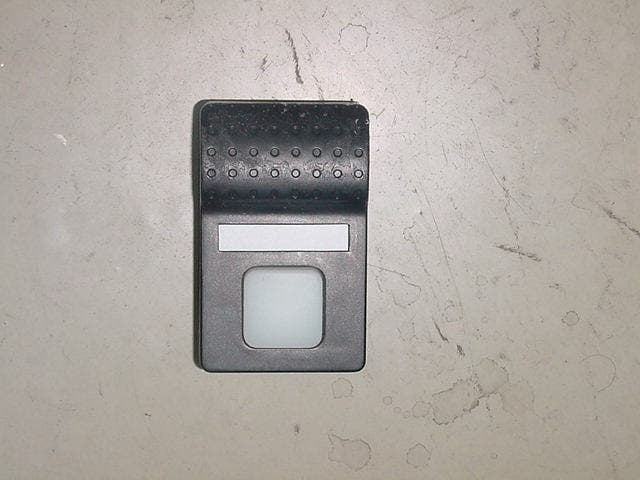

Page 1 of 1 FCC ID: RUMCL2 External Photos for Models CL2, CS-CL2 & BT-CL2

Page 1 of 1 FCC ID: RUMCL2 ID Labels for models CL2, CS-CL2&BT-CL2 Label Location FCC ID: RUMCL2 Trade mark Due to the size of transmitter, warning sentence according to FCC part 15 is located in user manual., page 1 FCC ID size : 1:1

Page 1 of 2 FCC ID: RUMCL2 Internal Photos of Model CL2, CS-CL2&BT-CL2 Page 2 of 2 FCC ID: RUMCL2

Page 1 of 1 FCC ID:RUMCL2 Technical Description CL2, CS-CL2 & BT-CL2 are 433.92MHz pulsed RF transmitter remote control. The remote control’s internal MCUs receive information from the keypad and convert the keystrokes into a pulse code (by chip PT 2262). The pulse code is then sent to the SAW component which incorporate 433.92MHz RF transmitter (X1), RF band pass filter(SAW filter),then send signal to modulation module (transistor Q1) , and transmit through the integral antenna.

Page 1 of 1 FCC ID : RUMCL2 A0 Vcc A1 Dout A2 OSC1 A3 OSC2 A4 TE A5 A11/D0 A6/D5 A10/D1 A7/D4 A9/D2 Vss A8/D3 IC1 PT2262 123456789 18171 6 151413121110 LED D2 IN4148*2 R5, 10k R6, 1M2 Vcc R1 10k R2 10k R3 10k R4 10k STOP BAT 12V/23A R7, 240 R9, 51k C3,4p SAW filte r X1 433.92MHz C2,4p C1,3p Vcc ANT. R8, 47 Q1 28C3356 LL,0.47 μ H L1,2p Schematic diagram of CL2, CS-CL2 & BT-CL2

Report no: JSH0312294-002A Page 1 of 16 FCC ID: RUMCL2 EMC TEST REPORT for FCC part 15 CERTIFICATION No. JSH0312294-002A Summary The equipment comply with the requirements according to the following standard(s): 47CFR Part 15:2003: RADIO FREQUENCY DEVICES ANSI C63.4 : 2001 : American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz. Description The appliances were tested by and found compliance with relevant requirements described in FCC Part 15: 2003: RADIO FREQUENCY DEVICES. Test results are contained in this test report and Intertek Testing Services ETL SEMKO Shanghai Limited is assumed full responsibility for the accuracy and completeness of these measurements. The test report applies to tested samples only and shall not be reproduced in part without written approval of Intertek Testing Services ETL SEMKO Shanghai Limited. Date of Test: June 26-28, 2004 Date of Issue: June 28, 2004 Prepared by: Report Reviewed by: Tino Pan (Projector Engineer) Steve Li (EMC Manager) Report no: JSH0312294-002A Page 2 of 16 FCC ID: RUMCL2 Description of Test Facility Name of Firm : QuieTek (Shanghai) Corporation Site Location : 716 Yishan Road, Shanghai, 200233, P.R. China Name of contact : Mr. Hall (first name) Wang (last name) Phone : 86-21-64700066 ext. 201 Fax : 86-21-64514252 E-mail address : [email protected] FCC Registration number: 142171 Report no: JSH0312294-002A Page 3 of 16 FCC ID: RUMCL2 CONTENTS Summary ........................................................................................................................................ 1 Description..................................................................................................................................... 1 Description of Test Facility ........................................................................................................... 2 1. Applicant Information .............................................................................................................. 4 2.Information of Equipment Under Test (EUT) ......................................................................... 4 2.1 Identification of the EUT ................................................................................................... 4 2.2 Additional information about the EUT ............................................................................ 5 2.3 Peripheral equipment ......................................................................................................... 5 3. Conducted Powerline Measurement ........................................................................................ 6 4. Radiated emission measurement .............................................................................................. 6 4.1 Radiated emission limit ...................................................................................................... 6 4.2 Instruments list .................................................................................................................... 6 4.3 Test setup ............................................................................................................................. 7 4.4 Test configuration ............................................................................................................... 7 4.5 Test procedure ..................................................................................................................... 7 4.6 Test Results ...................................................................................................................... 8 4.7 Measurement Uncertainty ............................................................................................... 12 5. The bandwidth of the emission............................................................................................... 13 5.1 the limit of the bandwidth of the emission ..................................................................... 13 5.2 Instruments list .................................................................................................................. 13 5.3 Test setup ........................................................................................................................... 13 5.4 Test configuration ............................................................................................................. 14 5.5 Test procedure ................................................................................................................... 14 5.6 Test Results .................................................................................................................... 14 5.7 Measurement Uncertainty ............................................................................................... 14 6. Sample field strength calculation ........................................................................................... 15 Report no: JSH0312294-002A Page 4 of 16 FCC ID: RUMCL2 1. Applicant Information Applicant: Geemarc Telecom International Ltd. 19F Mass Mutual Tower 38 Gloucester Road Wanchai Hong Kong Name of contact: Ms. Chen Qingruan Telephone: 86 592 6036442 Telefax: 86 592 6037860 Manufacturer: Xiamen Xinglian Electronics Co., Ltd. 6-7 F No.2 Bldg 2nd Stage Tian An Industrial District, Xiamen, Fujian, P.R.C 2.Information of Equipment Under Test (EUT) 2.1 Identification of the EUT Equipment: ClearSounds Phone/Dooorbell Signaler Type of EUT: ; Production … Pre-product … Pro-type Type/model: CL2, CS-CL2, BT-CL2 Serial number: 0312294-001 ~ 0312294-003 Date of sample receipt 2004-6-6 Date of test 2004-6-26~2004-6-27 Sample tested serial number 0312294-001 EUT operation mode EUT has only “ transmission” mode (Door Bell Mode) Test condition during the whole test, 1 new d.c. battery was used Rating: DC 12V Transmitter Operation frequency : 433.92MHz Trademark: Model Number Trademark CL2 …

Text truncated - open the document above for the full version.

Page 1 of 18 FCC ID: RUMCL2 The waveforms of models CL2, CS-CL2&BT-CL2 Radiated Emission waveform below 1GHz X axe (Vertical) MEASUREMENT RESULT: "R40627IT010V_fin QP" 6/27/2004 14:42 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 433.987679 73.32 VERTICAL 14.26 3.71 80.80 7.48 867.975357 53.56 VERTICAL 20.23 5.33 60.80 7.24 Page 2 of 18 FCC ID: RUMCL2 X axe (Horizontal) MEASUREMENT RESULT: "R40627IT010H_fin QP" 6/27/2004 15:35 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 433.987679 73.57 HORIZONTAL 14.26 3.71 80.80 7.23 867.975357 55.09 HORIZONTAL 20.23 5.33 60.80 5.71 Page 3 of 18 FCC ID: RUMCL2 Y axe (Horizontal) MEASUREMENT RESULT: "R40627IT011H_fin QP" 6/27/2004 16:16 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 433.987679 73.35 HORIZONTAL 14.26 3.71 80.80 7.45 867.759357 55.71 HORIZONTAL 20.23 5.33 60.80 5.09 Page 4 of 18 FCC ID: RUMCL2 Y axe (Vertical) MEASUREMENT RESULT: "R40627IT011V_fin QP" 6/27/2004 17:02 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 433.987679 74.91 VERTICAL 14.26 3.71 80.80 5.89 867.755357 55.91 VERTICAL 20.23 5.33 60.80 4.89 Page 5 of 18 FCC ID: RUMCL2 Z axe (Horizontal) MEASUREMENT RESULT: "R40627IT012H_fin QP" 6/27/2004 17:51 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 434.028567 71.67 HORIZONTAL 14.26 3.71 80.80 9.13 867.675593 52.05 HORIZONTAL 20.23 5.33 60.80 8.75 Page 6 of 18 FCC ID: RUMCL2 Z axe (Vertical) MEASUREMENT RESULT: "R40627IT012V_fin QP" 6/27/2004 19:50 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 434.028657 73.35 VERTICAL 14.26 3.71 80.80 7.45 867.675593 51.18 VERTICAL 20.23 5.33 60.80 9.62 Page 7 of 18 FCC ID: RUMCL2 Radiated Emission waveform above 1GHz X axe (Horizontal) MEASUREMENT RESULT: "R40627IT013H_fin QP" 6/27/2004 20:23 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.598245 51.43 HORIZONTAL 23.30 4.30 60.80 9.37 -9.16 1737.473952 48.15 HORIZONTAL 24.50 5.00 60.80 12.65 -9.16 1937.876091 55.04 HORIZONTAL 26.90 5.20 60.80 5.76 -9.16 2170.340177 53.74 HORIZONTAL 28.20 5.60 60.80 7.06 -9.16 2370.741375 44.27 HORIZONTAL 29.60 5.80 60.80 16.53 -9.16 3877.755195 53.04 HORIZONTAL 31.90 7.60 54.00 0.96 -9.16 Page 8 of 18 FCC ID: RUMCL2 X axe (Vertical) MEASUREMENT RESULT: "R40627IT013V_fin QP" 6/27/2004 21:19 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.592819 56.16 VERTICAL 23.30 4.30 60.80 4.64 -9.16 1737.474950 51.72 VERTICAL 24.50 5.00 60.80 9.08 -9.16 2170.339816 56.98 VERTICAL 26.90 5.60 60.80 3.82 -9.16 2603.213564 51.45 VERTICAL 28.20 5.80 60.80 9.35 -9.16 3476.953908 52.22 VERTICAL 30.70 7.10 60.80 8.58 -9.16 3909.779194 51.95 VERTICAL 31.90 7.60 54.00 2.05 -9.16 Page 9 of 18 FCC ID: RUMCL2 Y axe (Horizontal) MEASUREMENT RESULT: "R40627IT014H_fin QP" 6/27/2004 22:07 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.594863 56.93 HORIZONTAL 23.30 4.30 60.80 3.87 -9.16 1737.474950 46.91 HORIZONTAL 24.50 5.00 60.80 13.89 -9.16 2170.340681 54.33 HORIZONTAL 26.90 5.60 60.80 6.47 -9.16 2603.206413 48.85 HORIZONTAL 28.20 5.80 60.80 11.95 -9.16 3476.953908 43.21 HORIZONTAL 30.70 7.10 60.80 17.59 -9.16 3909.807588 48.50 HORIZONTAL 31.90 7.60 54.00 5.50 -9.16 Page 10 of 18 FCC ID: RUMCL2 Y axe (Vertical) MEASUREMENT RESULT: "R40627IT014V_fin QP" 6/27/2004 22:40 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.593177 57.24 VERTICAL 23.30 4.30 60.80 3.56 -9.16 1737.474905 47.93 VERTICAL 24.50 5.00 60.80 12.87 -9.16 2170.340681 54.16 VERTICAL 26.90 5.60 60.80 6.64 -9.16 2603.206444 47.70 VERTICAL 28.20 5.80 60.80 13.10 -9.16 3476.953899 50.21 VERTICAL 30.70 7.10 60.80 10.59 -9.16 3909.819577 51.58 VERTICAL 31.90 7.60 54.00 2.42 -9.16 Page 11 of 18 FCC ID: RUMCL2 Z axe (Horizontal) MEASUREMENT RESULT: "R40627IT015H_fin QP" 6/27/2004 23:19 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.593177 50.05 HORIZONTAL 23.30 4.30 60.80 10.75 -9.16 1737.474905 40.22 HORIZONTAL 24.50 5.00 60.80 20.58 -9.16 2170.340681 46.69 HORIZONTAL 26.90 5.60 60.80 14.11 -9.16 2603.206444 43.80 HORIZONTAL 28.20 5.80 60.80 17.00 -9.16 3476.953899 44.27 HORIZONTAL 30.70 7.10 60.80 16.53 -9.16 3909.819577 48.15 HORIZONTAL 31.90 7.60 54.00 5.85 -9.16 Page 12 of 18 FCC ID: RUMCL2 Z axe (Vertical) MEASUREMENT RESULT: "R40627IT015H_fin QP" 6/28/2004 00:08 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.593186 57.24 VERTICAL 23.30 4.30 60.80 3.56 -9.16 1737.474950 41.95 VERTICAL 24.50 5.00 60.80 18.85 -9.16 2170.340681 51.16 VERTICAL 26.90 5.60 60.80 9.64 -9.16 2603.206413 38.70 VERTICAL 28.20 5.80 60.80 22.10 -9.16 3476.953908 37.21 VERTICAL 30.70 7.10 60.80 23.59 -9.16 3909.819639 41.09 VERTICAL 31.90 7.60 54.00 12.91 -9.16 Page 13 of 18 FCC ID: RUMCL2 Waveform of Bandwidth Page 14 of 18 FCC ID: RUMCL2 Waveform of pulse train Page 15 of 18 FCC ID: RUMCL2 360μs120μs Page 16 of 18 FCC ID: RUMCL2 Page 17 of 18 FCC ID: RUMCL2 Page 18 of 18 FCC ID: RUMCL2 -

Page 1 of 18 FCC ID: RUMCL2 The waveforms of models CL2, CS-CL2&BT-CL2 Radiated Emission waveform below 1GHz X axe (Vertical) MEASUREMENT RESULT: "R40627IT010V_fin QP" 6/27/2004 14:42 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 433.987679 73.32 VERTICAL 14.26 3.71 80.80 7.48 867.975357 53.56 VERTICAL 20.23 5.33 60.80 7.24 Page 2 of 18 FCC ID: RUMCL2 X axe (Horizontal) MEASUREMENT RESULT: "R40627IT010H_fin QP" 6/27/2004 15:35 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 433.987679 73.57 HORIZONTAL 14.26 3.71 80.80 7.23 867.975357 55.09 HORIZONTAL 20.23 5.33 60.80 5.71 Page 3 of 18 FCC ID: RUMCL2 Y axe (Horizontal) MEASUREMENT RESULT: "R40627IT011H_fin QP" 6/27/2004 16:16 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 433.987679 73.35 HORIZONTAL 14.26 3.71 80.80 7.45 867.759357 55.71 HORIZONTAL 20.23 5.33 60.80 5.09 Page 4 of 18 FCC ID: RUMCL2 Y axe (Vertical) MEASUREMENT RESULT: "R40627IT011V_fin QP" 6/27/2004 17:02 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 433.987679 74.91 VERTICAL 14.26 3.71 80.80 5.89 867.755357 55.91 VERTICAL 20.23 5.33 60.80 4.89 Page 5 of 18 FCC ID: RUMCL2 Z axe (Horizontal) MEASUREMENT RESULT: "R40627IT012H_fin QP" 6/27/2004 17:51 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 434.028567 71.67 HORIZONTAL 14.26 3.71 80.80 9.13 867.675593 52.05 HORIZONTAL 20.23 5.33 60.80 8.75 Page 6 of 18 FCC ID: RUMCL2 Z axe (Vertical) MEASUREMENT RESULT: "R40627IT012V_fin QP" 6/27/2004 19:50 Frequency Level Polarisation Attenna Factor Cable Loss Limit Margin MHz dBμV/m dB/m dB dBμV/m dB 434.028657 73.35 VERTICAL 14.26 3.71 80.80 7.45 867.675593 51.18 VERTICAL 20.23 5.33 60.80 9.62 Page 7 of 18 FCC ID: RUMCL2 Radiated Emission waveform above 1GHz X axe (Horizontal) MEASUREMENT RESULT: "R40627IT013H_fin QP" 6/27/2004 20:23 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.598245 51.43 HORIZONTAL 23.30 4.30 60.80 9.37 -9.16 1737.473952 48.15 HORIZONTAL 24.50 5.00 60.80 12.65 -9.16 1937.876091 55.04 HORIZONTAL 26.90 5.20 60.80 5.76 -9.16 2170.340177 53.74 HORIZONTAL 28.20 5.60 60.80 7.06 -9.16 2370.741375 44.27 HORIZONTAL 29.60 5.80 60.80 16.53 -9.16 3877.755195 53.04 HORIZONTAL 31.90 7.60 54.00 0.96 -9.16 Page 8 of 18 FCC ID: RUMCL2 X axe (Vertical) MEASUREMENT RESULT: "R40627IT013V_fin QP" 6/27/2004 21:19 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.592819 56.16 VERTICAL 23.30 4.30 60.80 4.64 -9.16 1737.474950 51.72 VERTICAL 24.50 5.00 60.80 9.08 -9.16 2170.339816 56.98 VERTICAL 26.90 5.60 60.80 3.82 -9.16 2603.213564 51.45 VERTICAL 28.20 5.80 60.80 9.35 -9.16 3476.953908 52.22 VERTICAL 30.70 7.10 60.80 8.58 -9.16 3909.779194 51.95 VERTICAL 31.90 7.60 54.00 2.05 -9.16 Page 9 of 18 FCC ID: RUMCL2 Y axe (Horizontal) MEASUREMENT RESULT: "R40627IT014H_fin QP" 6/27/2004 22:07 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.594863 56.93 HORIZONTAL 23.30 4.30 60.80 3.87 -9.16 1737.474950 46.91 HORIZONTAL 24.50 5.00 60.80 13.89 -9.16 2170.340681 54.33 HORIZONTAL 26.90 5.60 60.80 6.47 -9.16 2603.206413 48.85 HORIZONTAL 28.20 5.80 60.80 11.95 -9.16 3476.953908 43.21 HORIZONTAL 30.70 7.10 60.80 17.59 -9.16 3909.807588 48.50 HORIZONTAL 31.90 7.60 54.00 5.50 -9.16 Page 10 of 18 FCC ID: RUMCL2 Y axe (Vertical) MEASUREMENT RESULT: "R40627IT014V_fin QP" 6/27/2004 22:40 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.593177 57.24 VERTICAL 23.30 4.30 60.80 3.56 -9.16 1737.474905 47.93 VERTICAL 24.50 5.00 60.80 12.87 -9.16 2170.340681 54.16 VERTICAL 26.90 5.60 60.80 6.64 -9.16 2603.206444 47.70 VERTICAL 28.20 5.80 60.80 13.10 -9.16 3476.953899 50.21 VERTICAL 30.70 7.10 60.80 10.59 -9.16 3909.819577 51.58 VERTICAL 31.90 7.60 54.00 2.42 -9.16 Page 11 of 18 FCC ID: RUMCL2 Z axe (Horizontal) MEASUREMENT RESULT: "R40627IT015H_fin QP" 6/27/2004 23:19 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.593177 50.05 HORIZONTAL 23.30 4.30 60.80 10.75 -9.16 1737.474905 40.22 HORIZONTAL 24.50 5.00 60.80 20.58 -9.16 2170.340681 46.69 HORIZONTAL 26.90 5.60 60.80 14.11 -9.16 2603.206444 43.80 HORIZONTAL 28.20 5.80 60.80 17.00 -9.16 3476.953899 44.27 HORIZONTAL 30.70 7.10 60.80 16.53 -9.16 3909.819577 48.15 HORIZONTAL 31.90 7.60 54.00 5.85 -9.16 Page 12 of 18 FCC ID: RUMCL2 Z axe (Vertical) MEASUREMENT RESULT: "R40627IT015H_fin QP" 6/28/2004 00:08 Frequency Level Polarisation Antenna Factor Cable loss Limit Margin average factor MHz dBμV/m dB/m dB dBμV/m dB dB 1296.593186 57.24 VERTICAL 23.30 4.30 60.80 3.56 -9.16 1737.474950 41.95 VERTICAL 24.50 5.00 60.80 18.85 -9.16 2170.340681 51.16 VERTICAL 26.90 5.60 60.80 9.64 -9.16 2603.206413 38.70 VERTICAL 28.20 5.80 60.80 22.10 -9.16 3476.953908 37.21 VERTICAL 30.70 7.10 60.80 23.59 -9.16 3909.819639 41.09 VERTICAL 31.90 7.60 54.00 12.91 -9.16 Page 13 of 18 FCC ID: RUMCL2 Waveform of Bandwidth Page 14 of 18 FCC ID: RUMCL2 Waveform of pulse train Page 15 of 18 FCC ID: RUMCL2 360μs120μs Page 16 of 18 FCC ID: RUMCL2 Page 17 of 18 FCC ID: RUMCL2 Page 18 of 18 FCC ID: RUMCL2 -

Page 1 of 6 FCC ID: RUMCL2 Test-Setups of Model CL2, CS-CL2&BT-CL2 Test-setup of below 1GHz X axe Page 2 of 6 FCC ID: RUMCL2 Y axe Page 3 of 6 FCC ID: RUMCL2 Z axe Page 4 of 6 FCC ID: RUMCL2 Test-setup of above 1GHz X axe Page 5 of 6 FCC ID: RUMCL2 Y axe Page 6 of 6 FCC ID: RUMCL2 Z axe
