RUMCSA50900 MHz Cordless Phone

USER'SMANUAL CS-A50 1 BeforefirstUse Accessories PleasereadIMPORTANTSAFETYINSTRUCTIONSonpages 25~26beforeuse. Takeoutfrombox:cordlesshandset,beltclipandbaseunit,in additioneachcartoncontainsthefollowingaccessories: Congratulation forbuyingourhighqualityproduct. Itisnecessarytoreadthroughthemanualcarefully tofindoutallfeaturesandhowtooperatethis cordlessphone. ACAdaptor(One) Telephonelinecord(One) Battery(Three) User'sManual(One) USER'SMANUAL CL-3151 2 Callsaretransmittedbetweenthebaseunitandthehandsetusing wirelessradiowaves.Tofindoutmaxdistanceandlimitofnoise freeoperation,youhavetofollowtheserules: Keepawayfromelectrical appliances,suchasaTV, PCoranothercordless phone. BatteryCharge OperatingDistance/Noise Topowerthehandset,installthebatteryandchargeitfor about24hoursbeforeinitialuse. InaHIGHandCENTRAL locationstayawayfrom obstructionssuchaswalls. 29 Note: ThisdevicecomplieswithFCCPart15regulation.Operationis subjecttothefollowingtwoconditions:(1)thisdevicemaynot causeharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycause undesiredoperation. Notice: Ifyourhomehasspeciallywiredalarmequipmentconnectedto telephoneline,ensuretheinstallationofthis[equipmentID] doesnotdisableyouralarmequipment.Ifyouhavequestions aboutwhatwilldisablealarmequipment,consultyourtelephone companyoraqualifiedinstaller. HITECGroupInt'l,Inc. 8160S.MadisonAve.BurrRidge,IL60527USA TelNo.:800.288.8303FaxNo.:888.654.9219 ContactPerson:Ms.MicheleAhlman ThebuyingLocationofshaker/headset: Thisequipmentishearingaidcompatible. 3 Features 1.FSKstandardCallerID 2.Storesup72callingnumberswiththedateandtime, 4.Storesupto60numbersinphonebook 3.Linetransferbetweenhandsets 4.Outofarea/Private/Repeat/Error 5.Deletessingleorallrecords 6.LCDdisplaycallinganddiallingnumber 7.Autoscanchannel 8.24digitspre-entersdialdigitwitheditfunction 9.Pageonbaseunittolookforthehandseteasily 10.Memorydialfunction 11.Compandercircuitfornoisereduction 12.LCDdisplayindicates:operationmode,dialdigits, realtimeandmemorydialdigits 13.Lastnumberredial 14.Multi-handsetcompatibility,upto3handsets 15.Ringervolumeselection(on/off)onhandset 16.Receivingvolumeandtoneadjustmentonhandset 17.Areacodefilterfunction 18.LCDcontrastselection 19.Ringervolumeselectiononbase 20.Flashandvibrationfunctiononhandset 21.LCDbacklight 28 equipment,operationsorproceduresthatcouldaffectthe operationoftheequipment.Ifthishappens,thetelephone companywillprovideadvancenoticeinorderforyoutomake necessarymodificationstomaintainuninterruptedservice. 7.Pleasefollowinstructionsforrepairingifany(e.g.battery replacementsection);otherwisedonotalternateorrepairanyparts ofdeviceexceptspecified. 8.Connectiontopartylineserviceissubjecttostatetariffs.Contact thestatepublicutilitycommission,publicservicecommissionor corporationcommissionforinformation. 9.Shouldyouexperiencetroublewiththisequipment,please contact CompanyName:HallTelecommunications Address:5477R.R.#5,Hwy#6NorthGuelph,Ontario,CanadaN1H 6J2. TelNo.:59-822-5420FaxNo.:519-822-5462 Contactperson:Mr.DonBeam HITECGroupInt'l,Inc. 8160S.MadisonAve.BurrRidge,IL60527USA TelNo.:800.288.8303FaxNo.:888.654.9219 ContactPerson:Ms.MicheleAhlman Iftheequipmentiscausingharmtothetelephonenetwork,the telephonecompanymayrequestthatyoudisconnectthe equipmentuntiltheproblemisresolved. "ThisproductmeetstheapplicableIndustryCanadatechnical specification." Caution: Anychangesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser'sauthorityto operatetheequipment. GeemarcUSServiceCenterName: TheCanadianServiceCenteris: 4 BaseUnit LocationofControls ChargeIndicator InUse Indicator Pagebutton ChargePins Adaptorsocket Telephone linejack Ringervolume switch(HI/MI /LO/OFF) Shakersocket 27 CustomerInformation 1.ThisequipmentcomplieswithPart68oftheFCCrulesandthe requirementsadoptedbytheACTA.Onbottomofthisequipment isalabelthatcontains,amongotherinformation,aproduct identifierintheformatUS:AAAEQ##TXX.Ifrequested,this numbermustbeprovidedtothetelephonecompany. 2.AnapplicablecertificationjacksUniversalServiceOrder Code(USOC)fortheequipmentisprovided(i,e.,RJ11C)inthe packagingwitheachpieceofapprovedterminalequipment. 3.Aplugandjackusedtoconnectthisequipmenttothepremise wiringandtelephonenetworkmustcomplywiththeapplicable FCCPart68rulesandrequirementsadoptedbytheACTA.A complianttelephonecordandmodularplugisprovidedwiththis product.Itisdesignedtobeconnecttoacompatiblemodular jackthatisalsocompliant.Seeinstallationinstructionsfor details. 4.TheRENisusedtodeterminethenumberofdevicesthatmay beconnectedtotelephoneline.ExcessiveRENsonatelephone linemyresultinthedevicesnotringinresponsetoanincoming call.Inmostbutnotallareas,thesumofRENsshouldnotexceed five(5.0).Tobecertainofthenumberofdevicesthatmaybe connectedtoaline,asdeterminedbythetotalRENs,contactthe localtelephonecompany.[ForproductsapprovedafterJuly 23,2001,theRENforthisproductispartoftheproductidentifier thathastheformatUS:AAAEQ##TXX.Thedigitsrepresentedby## aretheRENwithoutadecimalpoint(e.g.,03isaRENof0.3).For earlierproducts,theRENisseparatelyshownonthelabel.] 5.Ifthisequipmentcausesharmtothetelephonenetwork,the telephonecompanywillnotifyyouinadvancethattemporary discontinuanceofservicemayberequired.Butifadvancenotice isn'tpractical,thetelephonecompanywillnotifythecustomeras soonaspossible.Alsoyouwillbeadvisedofyourrighttofilea complaintwiththeFCCifyoubelieveitisnecessary. 6.Thetelephonecompanymaymakechangesinitsfacilities, 5 Handset EDIT TRANS R MEMO CH CODE 1 2 3 4 7 5 8 0 6 9 Rbutton MEMObutton LCD button button button button EDITTRANSbutton CHCODEbutton Microphone Chargepins LEDindicator 26 9. 10. 11. Donotoverloadwalloutletsandextensioncordsasthiswillresultin theriskoffireorelectricshock. Neverintroduceobjectsintothisunitthroughtheslotsasthismay riskinfireorelectricshockhazard.Neverspillanyliquidontheunit. Toreducetheriskofelectricshock,donotdisassemblethisunit, insteadtakeittoaqualifiedservicestationforchecking.Openingor removingcovers…

Text truncated - open the document above for the full version.

Geemarc Telecom International Ltd 1902 Mass Mutual Tower 38 Gloucester Road Wanchai Hong Kong Tel: +44 01707 372372 Fax: +44 01707 372529 E mail:andrew @geemarc.com APPENDIX B Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: Geemarc Telecom International Ltd FCC ID: RUMCSA50 To whom it may concern, Request is hereby submitted by Geemarc Telecom International Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Geemarc Telecom International Ltd has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, MR. MARCEL GROSSMAN/DIRECTOR Geemarc Telecom International Ltd

Geemarc Telecom International Ltd 1902 Mass Mutual Tower 38 Gloucester Road Wanchai Hong Kong Tel: +44 01707 372372 Fax: +44 01707 372529 E mail:andrew @geemarc.com APPENDIX A Lettery of Agency "I, an officer of Geemarc Telecom International Ltd do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By MARCEL GROSSMAN Signature Printed Title DIRECTOR

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 29, 2005 RE: Geemarc Telecom International FCC ID: RUMCSA50 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The Internal Photographs are incomplete. Top and bottom of all circuit boards and all radio modules must be presented. Please supplement your existing internal photograph with additional circuit board views for both the Handset and Base. 2.) Rule 15.214(c) reads: ‘The label... shall also contain the following statement: “Privacy of communications may not be ensured when using this phone.”’ Please indicate where this statement shall be found. 3.) Rule 15.214(d) requires the use of security codes to protect against unintentional access to the switched public telephone network. Several methods are described in this section to meet compliance. Kindly revise your Operational Description to describe the methodology used as a solution for this requirement. This statement is required under section 15.214(d)(3). FYI: This required document can be held Confidential, if desired. 4.) Although not specified in the Rules, an Occupied Bandwidth for both the Handset and the Base would be useful. This is to insure that all emissions will indeed lie within the band 902- 928 MHz. 5.) FYI: Are any other spurious emissions data available for the band above 1GHz? If so, could you kindly add to the table of emissions you have already created in Section 3.5 of the Test Report? In general, it is the preference of this Reviewer to see at least 6 frequencies in addition to the fundamental emission frequencies. Please provide if available. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

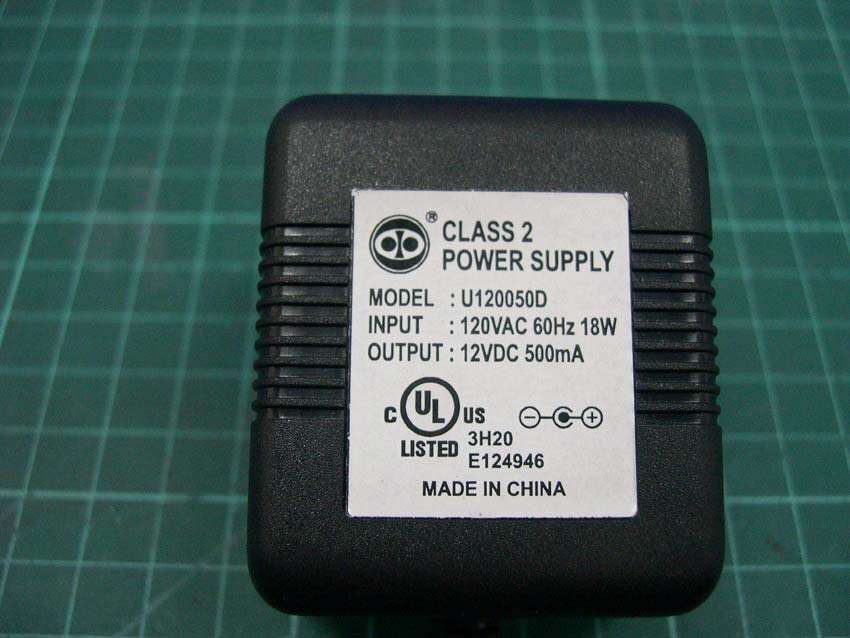

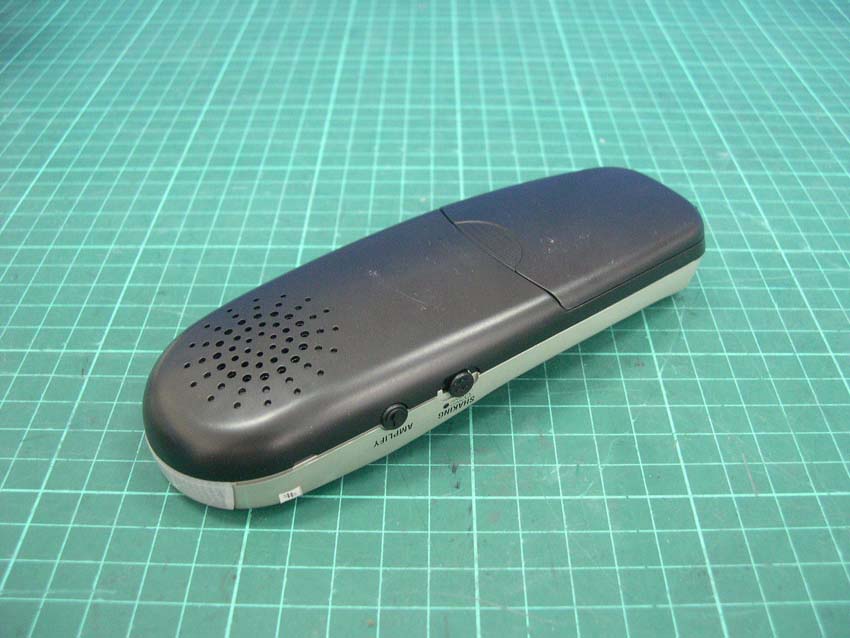

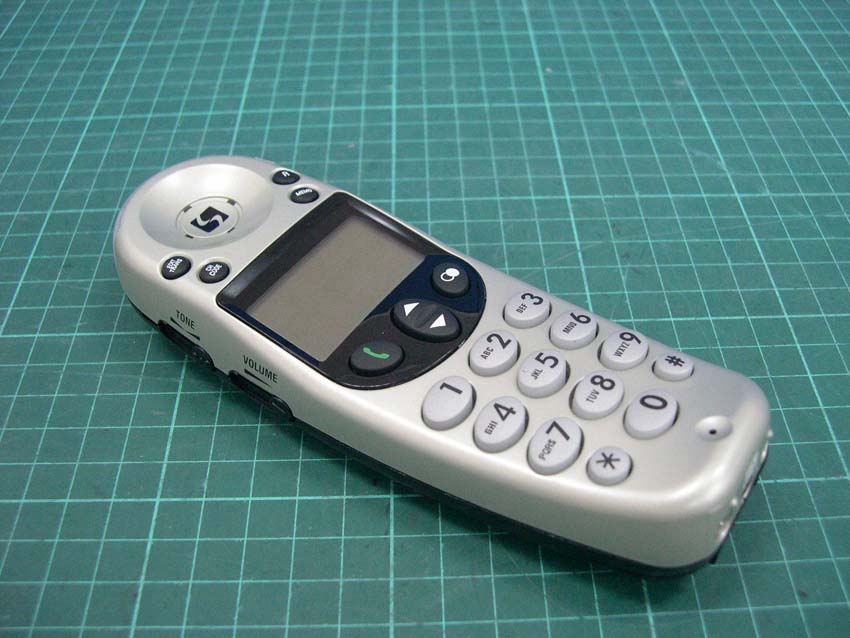

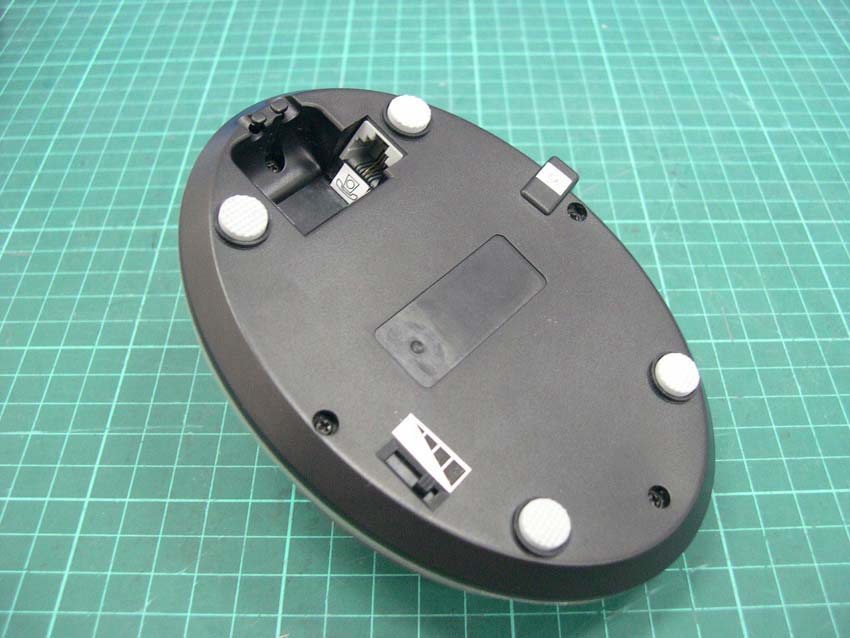

Photo 1: External photo of EUT (Base) CS-A50-2 Photo 2: External photo of EUT (Base) CS-A50-2 Photo 3: External photo of EUT (Handset) CS-A50-2 Photo 4: External photo of EUT (Handset) CS-A50-2 Photo 5: External photo of EUT (Charger) CS-A50-2 Photo 6: External photo of Adapter Photo 7: External photo of Adapter

(Base) FCC ID Location 41.5mm 27mm (Handset) FCC ID Location 35mm 12mm (Charger) FCC ID Location 41.5mm 15.5mm

Photo 1: Internal photo of EUT (Base) CS-A50-2 Photo 2: Internal photo of EUT (Base) CS-A50-2 Photo 3: Internal photo of EUT (Base) CS-A50-2 Photo 4: Internal photo of EUT (Base) CS-A50-2 Photo 5: Internal photo of EUT (Base) CS-A50-2 Photo 6: Internal photo of EUT (Base) CS-A50-2 Photo 7: Internal photo of EUT (Base) Antenna CS-A50-2 Photo 8: Internal photo of EUT (Handset) CS-A50-2 Photo 9: Internal photo of EUT (Handset) CS-A50-2 Photo 10: Internal photo of EUT (Handset) CS-A50-2 Photo 11: Internal photo of EUT (Handset) FR Module CS-A50-2 Photo 12: Internal photo of EUT (Handset) Antenna CS-A50-2 Photo 13: Internal photo of EUT (Handset) Battery CS-A50-2 Photo 14: Internal photo of EUT (Charger) CS-A50-2 Photo 15: Internal photo of EUT (Charger) CS-A50-2

FCC ID. : RUMCSA50 Report No.: EME-050813 Page 1 of 23 EMC TEST REPORT Report No. : EME-050813 Model No. : CS-A50-2, CS-A50, CS-A50E Issued Date : Oct. 5, 2005 Applicant : Geemarc Telecom International Ltd. 1902 Mass Mutual Tower 38 Gloucester Road, Wan Chai Hong Kong Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 23 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Jerry Liu Project Engineer Reviewed By Kevin Chen FCC ID. : RUMCSA50 Report No.: EME-050813 Page 2 of 23 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT........................................................................................ 4 1.2 Additional information about the EUT ................................................................... 4 1.3 Antenna description ................................................................................................ 5 1.4 Peripherals equipment ............................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard ........................................................................................................... 6 2.2 Operation mode ...................................................................................................... 6 2.3 Test equipment........................................................................................................ 7 3. Radiated emission test FCC 15.249 (C) ....................................................................... 8 3.1 Operating environment ........................................................................................... 8 3.2 Test setup & procedure ........................................................................................... 8 3.3 Emission limit......................................................................................................... 9 3.3.1 Fundamental and harmonics emission limits....................................................... 9 3.3.2 General radiated emission limits ....................................................................... 10 3.4 Radiated spurious emission test data .....................................................................11 3.4.1 Measurement results: frequencies equal to or less than 1 GHz ..........................11 3.5 Measurement results: frequency above 1GHz...................................................... 13 4 Radiated emission on the band edge FCC 15.249(C).................................................. 15 5. Conducted emission test FCC 15.207 ........................................................................ 18 5.1 Operating environment ......................................................................................... 18 5.2 Test setup & procedure ......................................................................................... 18 5.3 Emission limit....................................................................................................... 19 5.4 Uncertainty of Conducted Emission..................................................................... 19 5.5 Power Line Conducted Emission test data ........................................................... 20 FCC ID. : RUMCSA50 Report No.: EME-050813 Page 3 of 23 Summary of Tests CT1 cordless phone - Model: CS-A50-2, CS-A50, CS-A50E FCC ID: RUMCSA50 Test Reference Results Power Line Conducted Emission test 15.207 Complies Radiated Emission test 15.249(c), 15.209 Complies FCC ID. : RUMCSA50 Report No.: EME-050813 Page 4 of 23 1. General information 1.1 Identification of the EUT Applicant : Geemarc Telecom International Ltd. Product : CT1 cordless phone Model No. : CS-A50-2 FCC ID. : RUMCSA50 Frequency Range (Base) : 902.800MHz ~ 904.750MHz Frequency Range (Handset) : 925.300MHz ~ 927.250MHz Channel Number : 40 channels Frequency of Each Channel (Base) : 902.800MHz + 50k MHz k=0~39 Frequency of Each Channel (Handset) : 925.300MHz + 50k MHz k=0~39 Type of Modulation : FM Power Supply (Base) : 120Vac, 60Hz with adapter (U120050D) Power Supply (Handset) : 1.2Vdc Battery × 3 Power Cord : N/A Sample Received : RJ-11 unshielded cable 10meter × 1 Sample Received : Aug. 15, 2005 Test Date(s) : Aug. 15, 2005 ~ Oct. 5, 2005 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is a CT1 cordless phone; it consists of handset unit, base unit and charger. The models listed below are identical to model CS-A50-2 (EUT); the details please refer to the following table: Trade Name Model Number Difference (to collocate) Clearsound CS-A50 1 Handset + 1 Base Clearsound CS-A50E 1 Handset + 1 Charger Clearsound CS-A50-2 2 Handset + 1 Base + 1Charger For more detail features, please refer to User's manual as file name “Installation guide.pdf” FCC ID. : RUMCSA50 Report No.: EME-050813 Page 5 of 23 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : 1.5dBi max Antenna Type : Integtral antenna Connector Type : N/A 1.4 Peripherals equipment Peripherals Manufacturer Product No. Serial No. FCC ID Exchange Board Teltone 250-00193-07 94948 FCC DoC Approved FCC ID. : RUMCSA50 Report No.: EME-050813 Page 6 of 23 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.249 for no…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up photo Test Mode: Handset + Base CS-A50-2 Photo 2: Conducted Emission Test Set-up photo Test Mode: Handset + Base CS-A50-2 Photo 3: Conducted Emission Test Set-up photo Test Mode: Handset + Charger CS-A50-2 Photo 4: Conducted Emission Test Set-up photo Test Mode: Handset + Charger CS-A50-2

Photo 1: Radiated Emission Test Set-up photo (Base) CS-A50-2 Photo 2: Radiated Emission Test Set-up photo (Base) CS-A50-2 Photo 3: Radiated Emission Test Set-up photo (Handset) CS-A50-2 Photo 4: Radiated Emission Test Set-up photo (Handset) CS-A50-2 Photo 5: Radiated Emission Test Set-up photo (Handset) CS-A50-2
