RVZHYR830UHF Reader

User manual HYR830 Winnix Technologies Co., Limited RFID Reader Product Introduction z HYR830 adopts Impinj R2000 module, maximum power output is 30dBm. z 4 RP TNC ports, with an 7dBi circular polarized antenna, reading distance can reach 10 meters. z Reading speed is 400 tags/sec. z 8 LED lights, real-time display working status. z Many external ports, Including network interface, RS232、GPIO_IN*4、 GPIO_OUT*4、RS485、wiegand、CAN、USB, can meet different client’s requirement. z Excellent read and write performance, it is suitable for complicated environment application, for example logistics, clothing, asset management etc. The application of the reader z Transportation management: road and railway transportation management and container transportation management and so on. z motor vehicles management: use it to police station and transport department supervise and manage the motor vehicles z Road and bridge charge: as the product is able to read the tag data quickly in long distance, ,road rate and bridge can be charged without stopping. Vehicles. z Customs management: the management for goods to pass and transit the customs and vehicles. z Logistics and warehouse Management: Goods flow, warehouse management, and the flowing management of mail, parcel, luggage. z Parking management: in order to make management and charge automation. z Doors control management: including vehicles and people to pass in and out management. z Craft work manufacture flow: supervise parts in the whole manufacture flow. The Main Function z More inventory modes: There are single inventory and multi inventory. Single inventory for simple application, and multi inventory for complicated environment, like warehouse management, logistic management. z Filter function: user can only read or write the tag that they need, like EPC、TID、 USR filter. z Many management setting: manage the antenna working time, power setting RFID Reader z User can read and write the tag, and also kill and lock the tag. Technical Specifications S/N Item Parameters Unit Remark 1 Operating voltage 12 V 2 Maximum Current 800 mA 3 Standby current ≤100 mA 4 Frequency range 840-960 MHz Standard:902-928MHz,custo mized optional 5 Default operating frequency Frequency hopping MHz Frequency interval 250KHz 6 Channel bandwidth 250 KHz 7 Frequency hopping speed ≤2 s 8 Maximum power output 30 dBm 9 Step interval 1 dB 5~30dBm adjustable by software 10 Label protocol EPC C1G2 /ISO18000-6C 11 Radio-frequen cy power rising time ≤500 μs 12 Radio-frequency power dropping time ≤500 μs 13 Adjacent channel power leaking ratio ≤-40 dB ±1CH ≤-60 dB ±2CH 14 Frequency stabilizing ratio ±10 ppm -25°C～+40°C ±20 ppm -40°C～+60°C 15 Maximum reading range 10 m 7dBi Antenna 16 Multi-Label >400/s Appearance and structure z Size(L*W*H)：190×145×30mm z Weight：300g RFID Reader Picture1 Front view RFID Reader External Interface RFID Reader DB15 Interface definition S/N Item Technical data Unit Remark Pin Signal name Signal direction Function/compatibility description 1 GPIO2 Output Optical isolation 2 GPIO3 Output Optical isolation 3 GPIO8 Input Optical isolation 4 GPIO6 Input Optical isolation 5 WIEGAND1 Output WIEGAND 6 485A Bidirection RS485 7 GPIO1 Output Optical isolation 8 GPIO4 Output Optical isolation 9 GPIO5 Input Optical isolation 10 WIEGAND0 Output WIEGAND port 11 485B Bidirection RS485 12 GPIO7 Output Optical isolation 13 CANH Bidirection CAN port 14 CANL Bidirection CAN port 15 GND Environment requirement S/N Item Parameters Unit Remark 1 Wo r k i n g temperature -20～+70 °C 2 Storage temperature -40～+85 °C 3 Relative humidity 5%～95% RH Non-Conden sing RFID Reader Demo User Guide The Demo software user manual is used for HYM730/HYM740/HYM750 serial modules and HYR810/HYR820/HYR830 series readers; Support Chinese and English language; Support RJ45 connecting. Adopt TCP long connection method, slave computer as TCP server, host computer demo software as the TCP client side. (Notice: RJ45 connecting only for HYR830 reader) Support RS232 connecting, baud rate 115200, 1 bit for start, 1 bit for stop, 8 bits for data. 1. Language Two optional languages are supported: Simply Chinese English Open the DEMO software, as picture 1, click red marked area, could choose language. Picture 1 Opening interface 2. Connection Demo software support two optional connecting, Ethernet and RS232 serial connections. 2.1 Ether Default IP set IP add IP address Connectio at the drop For exam 2.2 RS232 c Demo softw will see belo RS232 conn have to do picture. rnet connect P address of t dress of PC at s of PC could ons are displa p-down box o mple, connect t connection ware could au ow. nection is wi is to choose tion setting the reader is 1 t same range, d be passed at ayed with diff of port. to 192.168.1. Picture 2 utomatically Picture 3 A th a prefix o correct COM 192.168.1.10 such as 192. t Ping operati fferent prefix. .10, type ‘NE 2 Ethernet po display usab Automatic ide of ‘COM’, w M number, a . If connectin 168.1.100. B ion. If connectin g ET192.168.1. ort connection ble COM por entify serial p which user do and then it sh ng in Ethernet efore connec g with RJ45, 10’ as below n rts, click dro port on’t need to i hould be con RFID Re t (RJ45), plea cting, make su type ‘NET’+ picture. op-down box, input. What nnected, as b ader ase ure +’IP’ , you users below RFID Reader Picture 4 RS232 port connection 3. Single inventory operation Single inventory operation is in ‘singe ask’ and ‘single answer’ method of reading. Each inventory will result an acknowledgement frame. In each single inventory, only one tag’s EPC data could be gotten. Single inventory mode supports to inventory tag function at any length EPC code. At workspace area, it could display EPC code, Inventory times, RSSI for each tag, as below picture. RFID Reader Picture 5 Single inventory mode 4. Multiple inventory operation Below picture is for multiple inventory mode. Inventory times are non-limited. At information area, it will disp…

Text truncated - open the document above for the full version.

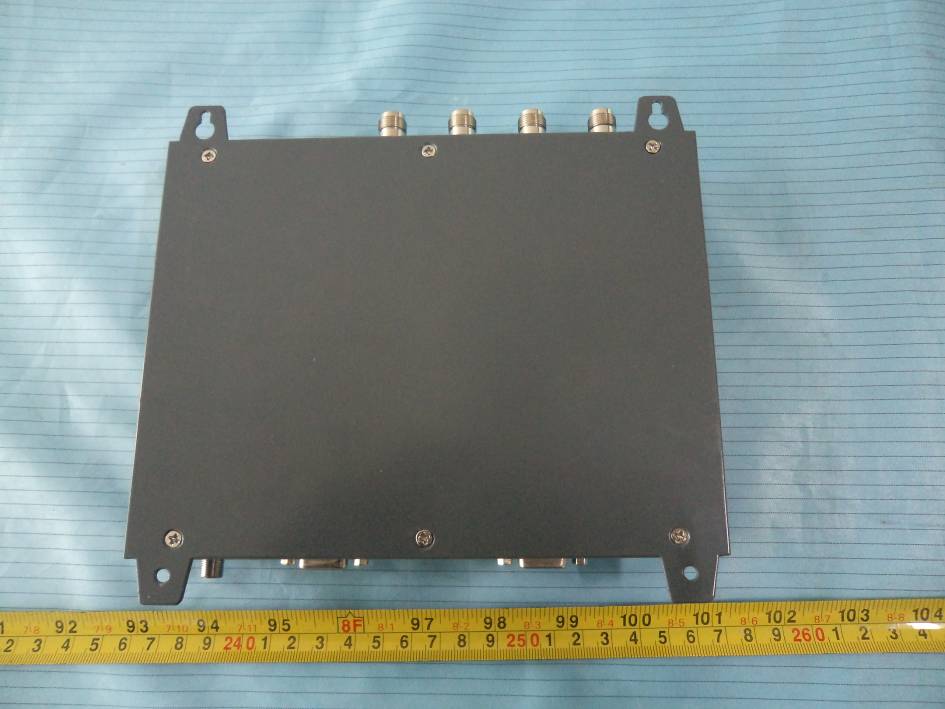

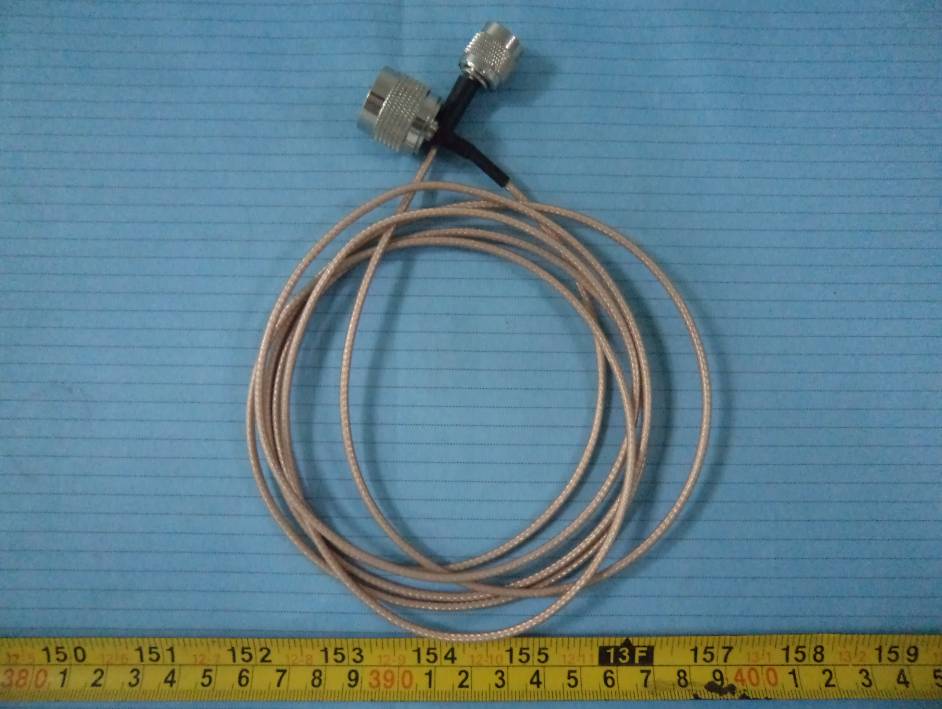

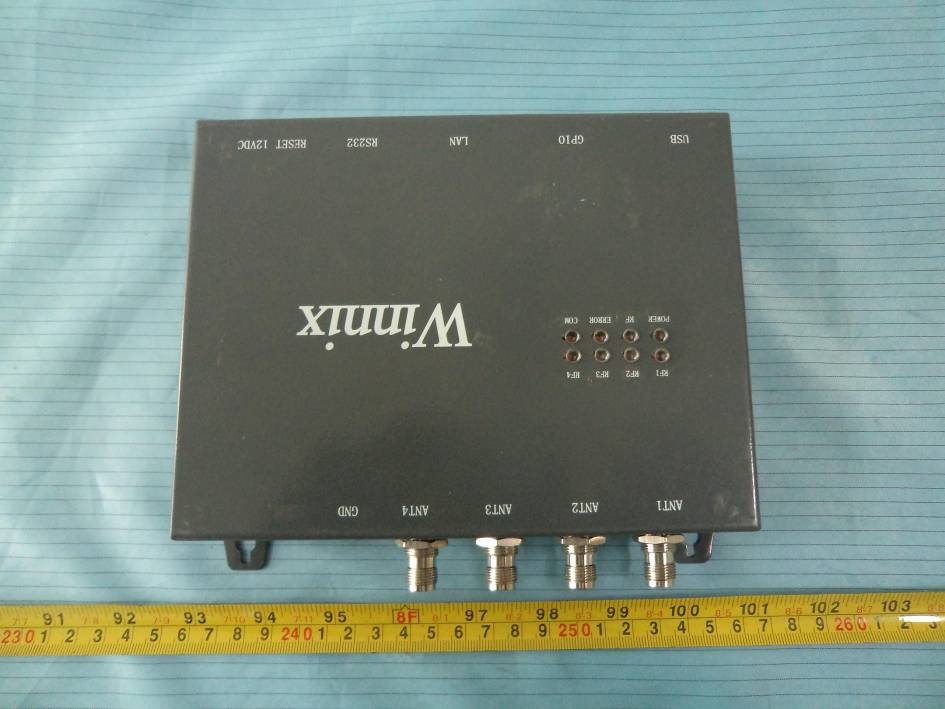

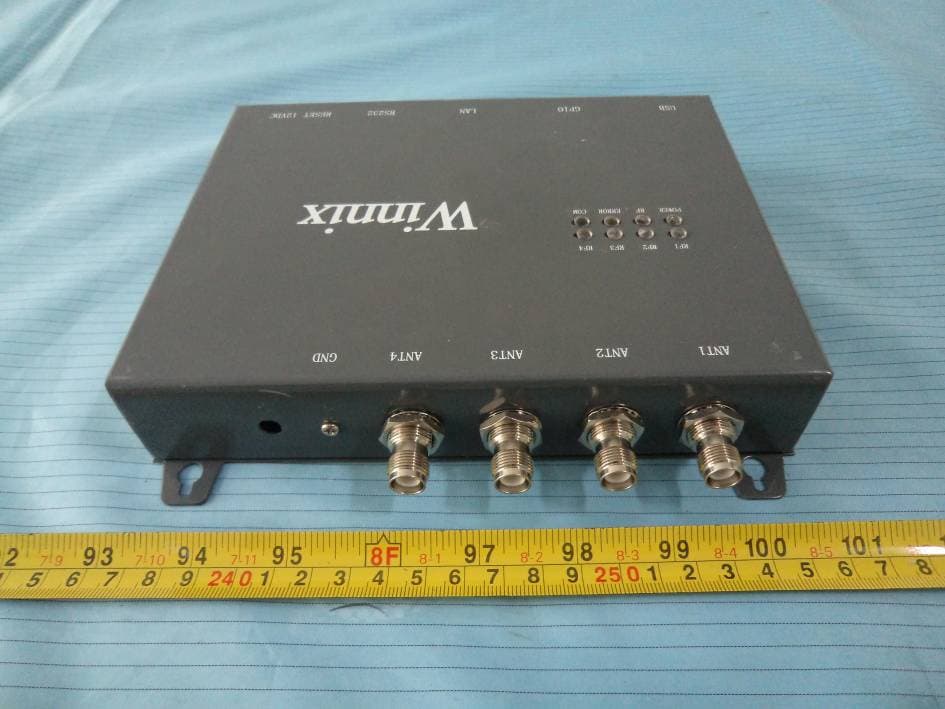

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View EUT – Antenna Front View EUT – Antenna Rear View EUT – Antenna Side View EUT – Antenna Cable View EUT – Adapter Label View

FCC ID LABELING AND LOCATION

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View EUT – RF Module Top View EUT – RF Module Bottom View EUT – RF Module Cover off View EUT – RF Module Board Top View EUT – RF Module Board Bottom View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130808005-00 FCC Part15.247 Page 9 of 27 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Calculated Data: Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 902.75 7 5.012 28.70 741.31 25 0.473 0.602 914.75 7 5.012 28.93 781.63 25 0.499 0.610 927.25 7 5.012 28.61 726.11 25 0.464 0.618 Result: Compliance

Printer friendly version TCB GRANT OF EQUIPMENT AUTHORIZATION TCB Certification Issued Under the Authority of the Federal Communications Commission By: EMCCert Dr. Rasek GmbH Stoernhofer Berg 15 91364 Unterleinleiter, Germany Date of Grant: 05/10/2013 Application Dated: 05/10/2013 Winnix Technologies Co., Limited 4/F R2-B Building,Hi-tech Park,NanShan District, Shenzhen, Guangdong, China Attention: Victorica Lee , GM NOT TRANSFERABLE EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. FCC IDENTIFIER: RVZHYM750 Name of Grantee: Winnix Technologies Co., Limited Equipment Class: Part 15 Spread Spectrum Transmitter Notes:UHF RFID Reader Module Modular Type:Limited Single Modular Grant Notes FCC Rule Parts Frequency Range (MHZ) Output Watts Frequency Tolerance Emission Designator 15C902.75-927.250.78 Power output listed is peak conducted. Limited single modular approval due to professional installation requirements as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC accepted multi- transmitter procedures. OEM integrators must be provided with antenna installation instructions. End-users and installers must be provided with transmitter operating conditions for satisfying RF exposure compliance.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions – Front View Conducted Emissions – Side View Radiated Emissions – Front View (Below 1 GHz) Radiated Emissions – Rear View (Below 1 GHz) Radiated Emissions – Front View (Above 1 GHz) Radiated Emissions – Rear View (Above 1 GHz)
