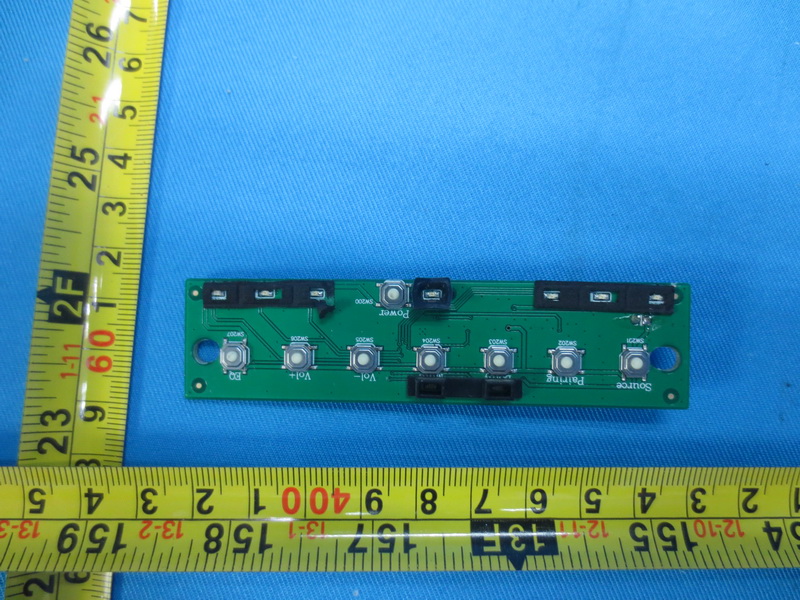

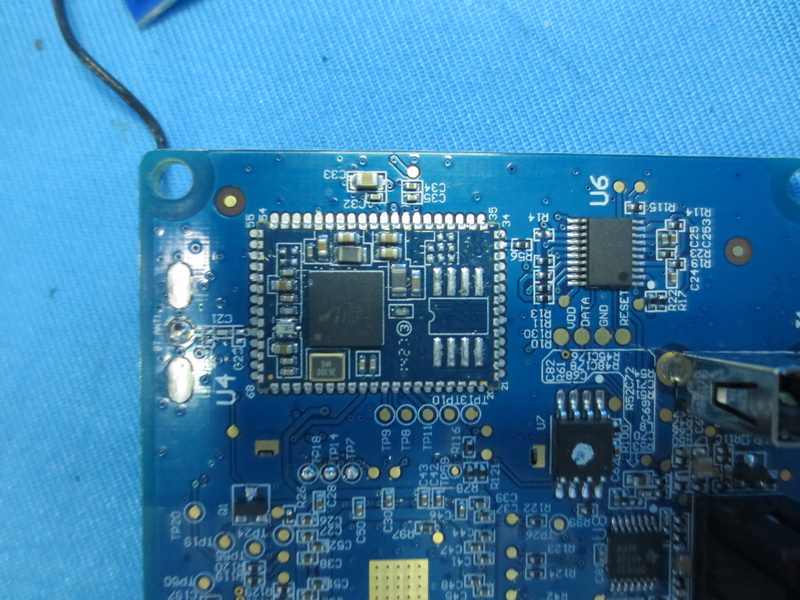

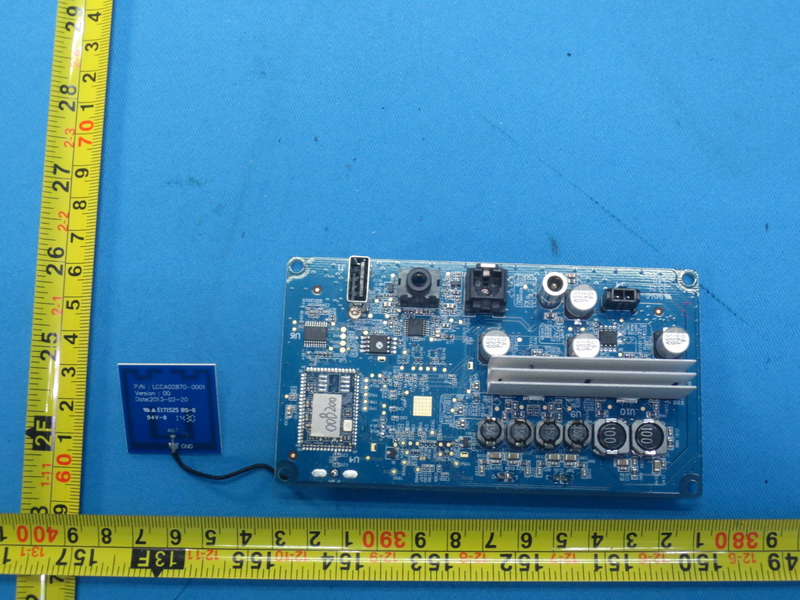

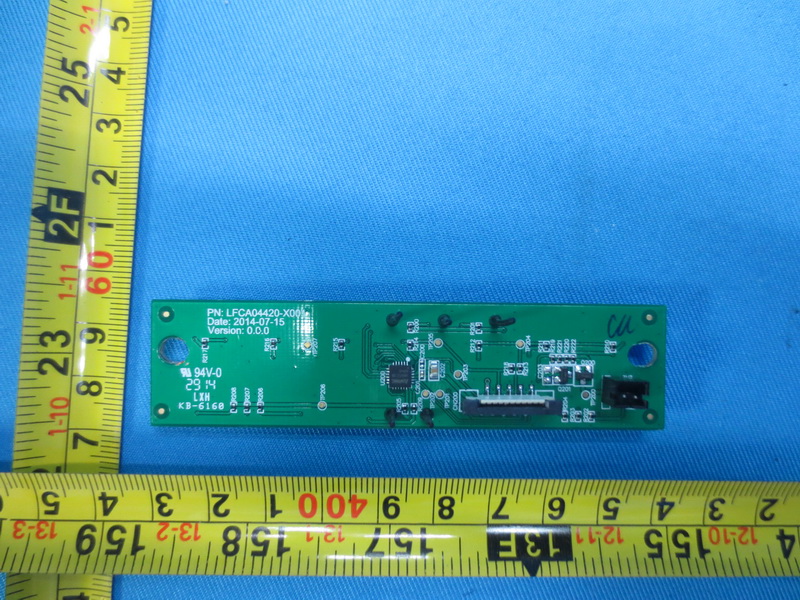

RWO-RC30012601Gaming & Music Sound Bar

0 | For gamers by gamers™ The Razer 5.1 Channel Surround Sound Bar easily fits under any desktop monitor or living room console setup. Versatile enough to be repositioned constantly in any situation, this sound bar features cutting-edge Dolby® technology, superior sound drivers, and a dedicated subwoofer, projecting rich sounds that recreate epic in-game battle scenes or just streaming your favorite tunes from your smartphone. 1 | razer™ TABLE OF CONTENTS 1. PACKAGE CONTENTS / HARDWARE REQUIREMENTS ......................................... 2 2. REGISTRATION / TECHNICAL SUPPORT ............................................................... 3 3. TECHNICAL SPECIFICATIONS ............................................................................... 4 4. DEVICE LAYOUT .................................................................................................. 5 5. USING YOUR RAZER LEVIATHAN ......................................................................... 8 6. SAFETY AND MAINTENANCE ............................................................................ 13 7. LEGALESE ......................................................................................................... 14 2 | For gamers by gamers™ 1. PACKAGE CONTENTS / HARDWARE REQUIREMENTS PACKAGE CONTENTS • Razer Leviathan • Power adapter with interchangeable plugs • Subwoofer • Optical cable • 3.5mm analog audio cable • Quick start guide • Important product information guide HARDWARE REQUIREMENTS For Gaming / Movies • PC or console devices with 3.5mm audio jack or an optical port For Mobile • Mobile devices with a 3.5mm audio jack or Bluetooth® / NFC connectivity 3 | razer™ 2. REGISTRATION / TECHNICAL SUPPORT REGISTRATION Sign up now for a Razer Synapse account to get real-time information on your product’s warranty status. To learn more about Razer Synapse and all its features, visit www.razerzone.com/synapse. If you are already a Razer Synapse user, register your product by clicking on your email address at the Razer Synapse application and select Warranty Status from the dropdown list. To register your product online, visit www.razerzone.com/registration. Please note that you will not be able to view your warranty status if you register via the website. TECHNICAL SUPPORT What you’ll get: • 1 year limited manufacturer’s warranty. • Free online technical support at www.razersupport.com. 4 | For gamers by gamers™ 3. TECHNICAL SPECIFICATIONS Sound bar • Total power output: 30W (15W x 2RMS) • Full range drivers: 2 x 2.5” / 63.5mm • Tweeter drivers: 2 x 0.74” / 19 mm • Impedance: 8Ω • Frequency response rate: 180Hz – 20KHz • Approximate weight: 4.4lbs / 2Kg Subwoofer • Type: Passive • Total power output: 30W RMS • Full range drivers: 5.25” / 133mm • Impedance: 4Ω • Frequency response rate: 20Hz – 180Hz • Approximate weight: 6.6lbs / 3Kg 5 | razer™ 4. DEVICE LAYOUT A. Top panel (Buttons & LEDs) B. Ambient green LED C. Mounting keyholes D. Input panel E. Subwoofer with attached cable F. Optical cable G. 3.5mm to 3.5mm cable H. Power adapter 6 | For gamers by gamers™ Top Panel a. Power button Turns the speaker on/off b. Input indicator LED Indicates the current input audio source. • OPT: Optical • AUX: Analog • : Bluetooth c. Equalizer indicator LED Indicates the currently selected preset equalizer setting. • : Game • : Music • : Movies d. Input selector Toggles between the 3 types of input e. Bluetooth Pairing button Activates Bluetooth f. Dolby® processing toggle Activates Dolby processing for optical audio inputs g. Mute/unmute button Mutes / unmutes the speaker h. Volume down Decreases the overall audio volume i. Volume up Increases the overall audio volume j. Equalizer preset selector Toggles between the 3 preset equalizer settings 7 | razer™ Input Panel k. Subwoofer output l. Main power input m. Optical input n. Analog 3.5mm input SUB OUT 8 | For gamers by gamers™ 5. USING YOUR RAZER LEVIATHAN SETTING UP AND POSITIONING YOUR SPEAKERS [Diagram 1: Attaching the correct power adapter plug] [Diagram 2: Positioning the speakers: Subwoofer on counter top / wall mounted + subwoofer on the floor] For optimal performance, please ensure that the subwoofer is placed on the floor regardless of the positioning of your speaker. [Diagram 3: Connection] POWERING ON / OFF SUB OUT 9 | razer™ CONNECTING TO AN AUDIO SOURCE Note: When connected to devices with inbuilt speaker systems, audio may continue to be played via the inbuilt speaker. In such cases, manually switch your device’s audio output to the Razer Leviathan. Connecting via the optical cable [Diagram: Toggle input to Optical] Connecting via the analog cable [Diagram: Toggle input to AUX] SUB OUT SUB OUT 10 | For gamers by gamers™ Connecting via NFC Simply activate NFC on your device and tap it on the speaker to pair. The input source will automatically switch to the paired device. [Diagram: NFC device tapped onto speaker] Connecting via Bluetooth® If you are using the speaker’s Bluetooth input for the first time, or if you are attempting to connect a new device to the speaker via Bluetooth, you will need to activate pairing mode. 1. Press and hold the Bluetooth button for 3 seconds or more to enter pairing mode. The Bluetooth LED will start to blink slowly. 2. Enable Bluetooth on your device and search for new Bluetooth devices. 3. Select “Razer Leviathan” from the list of devices found. 4. Wait for pairing to complete. The Bluetooth indicator on your speaker top panel will change to a static lighting once successfully connected. 11 | razer™ Understanding the Bluetooth modes The speaker’s Bluetooth module operates in 3 modes - Pairing mode, Connecting mode, and Connectable mode. An audio feedback is played through the speaker whenever there is a status change in the Bluetooth connection. Pairing Mode Connecting Mode Connectable Mode Connected Mode Pairing with new devices Connecting to the last paired device Ready to connect to 1 of 4 last paired devices. Turn on Bluetooth …

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Razer Inc. Address: 2035 Corte Del Nogal, Suite 101 City: Carlsbad State: California 92011 Country: United States Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company Name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product Description: Gaming & Music Sound Bar Type Designation: RC30-012601 Trademark: RAZER FCC ID : RWO-RC30012601 on our behalf. Date: 2014-9-4 City: Carlsbad Name: Johnsen Tia Function: Senior Engineer Signature: ...............................

Model: RC30-012601 FCC ID: RWO-RC30012601 IC: 8092D-RC30012601 Date: 01092014 Above: Product Rear View Above: Product Label Location

Project No.: 1408C100 Page 6 of 16 Project No.: 1408C100 Page 7 of 16 Project No.: 1408C100 Page 8 of 16 Project No.: 1408C100 Page 9 of 16 Project No.: 1408C100 Page 10 of 16 Project No.: 1408C100 Page 11 of 16 Project No.: 1408C100 Page 12 of 16 Project No.: 1408C100 Page 13 of 16 Project No.: 1408C100 Page 14 of 16 Project No.: 1408C100 Page 15 of 16 Project No.: 1408C100 Page 16 of 16

FCC RF EXPOSURE REPORT FCC ID: RWO-RC30012601 Equipment : Gaming & Music Sound Bar Model : RC30-012601 Applicant : Razer Inc. Address : 2035 Corte Del Nogal, Suite 101, Carlsbad CA 92011. USA. According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna Ant. Manufacturer Model NameAntenna TypeConnector Gain(dBi) 1 N/A N/A Bilut-in PCB N/A 3.14 GENERAL CONCULUSION: Maximum measured transmitter power: OutputPower (dBm) Output Power (mW) Limit (mW) 3.55 2.3 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 2.3mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FICP-1-1408C100 Page 1 of 108 FCC&IC Radio Test Report FCC ID: RWO-RC30012601 IC: 8092D-RC30012601 This report concerns (check one): Original Grant Class II Change Project No. : 1408C100 Equipment : Gaming & Music Sound Bar Model Name : RC30-012601 Applicant : Razer Inc. Address : 2035 Corte Del Nogal, Suite 101, Carlsbad CA 92011. USA. Date of Receipt : Aug. 26, 2014 Date of Test : Aug. 26, 2014~ Sep. 04, 2014 Issued Date : Sep. 05, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FICP-1-1408C100 Page 2 of 108 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FICP-1-1408C100 Page 3 of 108 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 19 4.2.5 EUT OPERATING CONDITIONS 20 4.2.6 EUT TEST CONDITIONS 20 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 21 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 21 5 . NUMBER OF HOPPING CHANNEL 22 5.1 APPLIED PROCEDURES 22 5.1.1 TEST PROCEDURE 22 5.1.2 DEVIATION FROM STANDARD 22 5.1.3 TEST SETUP 22 5.1.4 EUT OPERATION CONDITIONS 22 5.1.5 EUT TEST CONDITIONS 22 5.1.6 TEST RESULTS 22 Report No.: BTL-FICP-1-1408C100 Page 4 of 108 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 23 6.1 APPLIED PROCEDURES / LIMIT 23 6.1.1 TEST PROCEDURE 23 6.1.2 DEVIATION FROM STANDARD 23 6.1.3 TEST SETUP 23 6.1.4 EUT OPERATION CONDITIONS 24 6.1.5 EUT TEST CONDITIONS 24 6.1.6 TEST RESULTS 24 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 25 7.1 APPLIED PROCEDURES / LIMIT 25 7.1.1 TEST PROCEDURE 25 7.1.2 DEVIATION FROM STANDARD 25 7.1.3 TEST SETUP 25 7.1.4 EUT TEST CONDITIONS 25 7.1.5 TEST RESULTS 25 8 . BANDWIDTH TEST 26 8.1 APPLIED PROCEDURES 26 8.1.1 TEST PROCEDURE 26 8.1.2 DEVIATION FROM STANDARD 26 8.1.3 TEST SETUP 26 8.1.4 EUT OPERATION CONDITIONS 26 8.1.5 EUT TEST CONDITIONS 26 8.1.6 TEST RESULTS 26 9 . PEAK OUTPUT POWER TEST 27 9.1 APPLIED PROCEDURES / LIMIT 27 9.1.1 TEST PROCEDURE 27 9.1.2 DEVIATION FROM STANDARD 27 9.1.3 TEST SETUP 27 9.1.4 EUT OPERATION CONDITIONS 27 9.1.5 EUT TEST CONDITIONS 27 9.1.6 TEST RESULTS 27 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 28 10.1 APPLIED PROCEDURES / LIMIT 28 10.1.1 TEST PROCEDURE 28 10.1.2 DEVIATION FROM STANDARD 28 10.1.3 TEST SETUP 28 10.1.4 EUT OPERATION CONDITIONS 28 10.1.5 EUT TEST CONDITIONS 28 10.1.6 TEST RESULTS 28 11 . MEASUREMENT INSTRUMENTS LIST 29 Report No.: BTL-FICP-1-1408C100 Page 5 of 108 Table of Contents Page 12 . EUT TEST PHOTO 31 ATTACHMENT A - CONDUCTED EMISSION 35 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 38 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 40 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 47 ATTACHMENT E - NUMBER OF HOPPING CHANNEL 72 ATTACHMENT F - AVERAGE TIME OF OCCUPANCY 74 ATTACHMENT G - HOPPING CHANNEL SEPARATION MEASUREMENT 87 ATTACHMENT H - BANDWIDTH 92 ATTACHMENT I - PEAK OUTPUT POWER 97 ATTACHMENT J - ANTENNA CONDUCTED SPURIOUS EMISSION 102 Report No.: BTL-FICP-1-1408C100 Page 6 of 108 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FICP-1-1408C100 Original Issue. Sep. 05, 2014 Report No.: BTL-FICP-1-1408C100 Page 7 of 108 1. CERTIFICATION Equipment : Gaming & Music Sound Bar Brand Name : RAZER Model Name : RC30-012601 Applicant Razer Inc. Manufacturer : Razer Inc. Address : 2035 Corte Del Nogal, Suite 101, Carlsbad CA 92011. USA. Date of Test : Aug. 26, 2014~ Sep. 04, 2014 Test Sample : ENGINEERING SAMPLE Standard(s ) : FCC Part15, Subpart C : 2013 (15.247) / ANSI C63.4 : 2009 / FCC Public Notice DA 00-705, March 30, 2000. Canada RSS-210: 2010 RSS-GEN Issue 3, Dec 2010 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc..…

Text truncated - open the document above for the full version.

Report No.: BTL-FICP-1-1408C100 Page 31 of 108 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FICP-1-1408C100 Page 32 of 108 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FICP-1-1408C100 Page 33 of 108 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FICP-1-1408C100 Page 34 of 108 Radiated Measurement Photos Above 1000MHz
