RWO-RC30030702Mechanical Keyboard

Date: 18 June 2020 Product Manual for Gaming Keyboard Gaming Keyboard Model: RC30-030702 USB Dongle: DGRFG6 . A big part of producing top-quality work comes from the quality of your office equipment—so why settle for anything less? Take your productivity to the next level with a wireless keyboard that offers a superior typing experience, engineered for the optimal balance of performance and comfort. The Gaming keyboard is built to keep up with the rigors of demanding office work and is well-suited to deliver consistent, reliable performance over long periods of intense use. FOR GAMERS. BY GAMERS. ™ 1 CONTENTS 1. WHAT’S INSIDE / WHAT’S NEEDED ...................................................................................................... 2. LET’S GET YOU COVERED ................................................................................................................... 3. TECHNICAL SPECIFICATIONS .............................................................................................................. 4. SETTING UP YOUR KEYBOARD ........................................................................................................... 5. USING YOUR Gaming Keybaord ............................................................................................................ 6. CONFIGURING YOUR Gaming Keybaord .............................................................................................. 7. SAFETY AND MAINTENANCE .............................................................................................................. 2 8. LEGALESE ............................................................................................................................................. 2 FOR GAMERS. BY GAMERS. ™ 2 1. WHAT’S INSIDE / WHAT’S NEEDED WHAT’S INSIDE  Gaming Keyboard model: RC30-030702, USB Dongle Model: DGRFG6 A. Volume control keys B. Media keys C. Backlight control keys D. Sleep mode key E. Reset button F. Type C charging-only port G. Mode switch (2.4 / OFF / BT ) H. Power indicator I. LED indicators* J. Magnetic USB dongle compartment K. Kickstand *Limited functionality on selected devices.  USB wireless dongle  Type C to Type A cable  Important Product Information Guide WHAT’S NEEDED Product Requirements  PC with a free USB port or Bluetooth 4.0 connectivity Razer Synapse Requirements  Windows® 7 64-bit (or higher)  Internet connection for software installation FOR GAMERS. BY GAMERS. ™ 3 FOR GAMERS. BY GAMERS. ™ 1 2. LET’S GET YOU COVERED You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com Got a question? Ask the Razer Support Team at support.razer.com Your product’s serial number can be found here. FOR GAMERS. BY GAMERS. ™ 2 3. TECHNICAL SPECIFICATIONS FEATURES  Razer™ Orange Mechanical Switch with 80 million keystroke lifespan  Full-sized keyboard with soft-touch coating  Wireless connection via Bluetooth® and 2.4GHz  Detachable USB-C braided fiber cable  Multi-host connection for up to 4 devices  Fully programmable keys with macro recording  Backlit keys (white LED)  10-key rollover  Battery Life: Up to ~7 hours on Bluetooth® and 2.4GHz with back-lighting on, or up to ~84 hours without back-lighting on Bluetooth® and ~78 hours on 2.4GHz  Metal top cover  Razer Synapse 3 enabled APPROXIMATE SIZE & WEIGHT  Length: 441 mm / 17.4 in  Width: 133 mm / 5.2 in  Height: 39.8 mm / 1.6 in  Weight: 906 g / 2.0 lbs FOR GAMERS. BY GAMERS. ™ 3 4. SETTING UP YOUR KEYBOARD 1. Connect your keyboard to a powered USB port using the Type C to Type A cable to charge your keyboard. The power indicator will turn solid green when the keyboard is fully charged. For best results, fully charge your keyboard before using it for the first time. It takes approximately 2 hours to fully charge your keyboard. You may continue using the keyboard while plugged in. When your keyboard is not charging, the power indicator will only briefly display its battery status. Mode Charged Low Critical* 2.4 / BT OFF *Critical status indicates that the keyboard’s battery is less than 3%. This lighting sequence will repeat until the battery is drained or the keyboard is being charged. FOR GAMERS. BY GAMERS. ™ 4 2. Set the mode switch to your preferred mode. 2.4 GHz mode 1. Set the mode switch to 2.4. 2. Detach the USB wireless dongle from the dongle compartment and connect it to your computer. BT mode 1. Set the mode switch to BT. FOR GAMERS. BY GAMERS. ™ 5 2. Up to 3 Bluetooth devices can be paired and registered to your keyboard (one for each profile). To activate the pairing mode of your preferred profile, press and hold its corresponding shortcut for 5 seconds. The LED indicators will then display which Profile has been activated. 3. Enable Bluetooth on your device and select Gaming Keybaord from the list of devices found. The device will pair with your keyboard and the connection will be registered on the active profile. Pressing the fn key will display which profile is active on the LED indicators. Moreover, when pairing new devices with your keyboard, it is recommended that you register the new device on a different profile so you may still use the other profiles to reconnect with previous devices. Learn more about Bluetooth profiles 4. Use the Razer Synapse* app to change your keyboard’s lighting effect and even customize other features available on your keyboard. *Install Razer Synapse when prompted or download the installer from razer.com/synapse. Shortcut Profile Status fn + 1 Profile 1 fn + 2 Profile 2 fn + 3 Profile 3 FOR GAMERS. BY GAMERS. ™ 6 5. USING YOUR RAZER GAMING KEYBAORD Pressing the fn key in combination with the function keys will activate their secondary features on your PC. Function Keys Features Description The audio volume controls allow you to mute ( ), decrease ( ) and increase () the audio output. The media keys allo…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Razer Inc. Address: 9 Pasteur, Suite 100 City: Irvine State: CA92618 Country: United States Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Mechanical Keyboard Type designation: RC30-030702 Trademark: RAZER FCC ID : RWO-RC30030702 on our behalf. Date: 2020-06-16 City: CA92618 Name: Johnsen Tia Function: Senior Director, Regulatory and Compliance Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Razer Inc. Address: 9 Pasteur, Suite 100 City: CA92618, Country: USA To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: RWO-RC30030702 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: This document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor unfair advantage in the market. Planned Release Date STC: 180 days from date of grant (notes 2, 3, 4, 5) Date: 2020-06-16 Name and signature of applicant: Johnson Tia Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

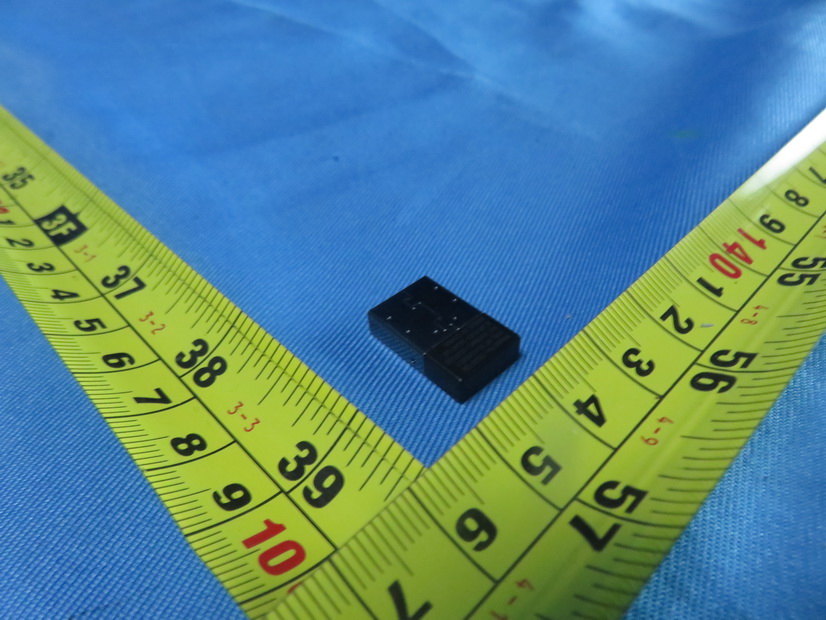

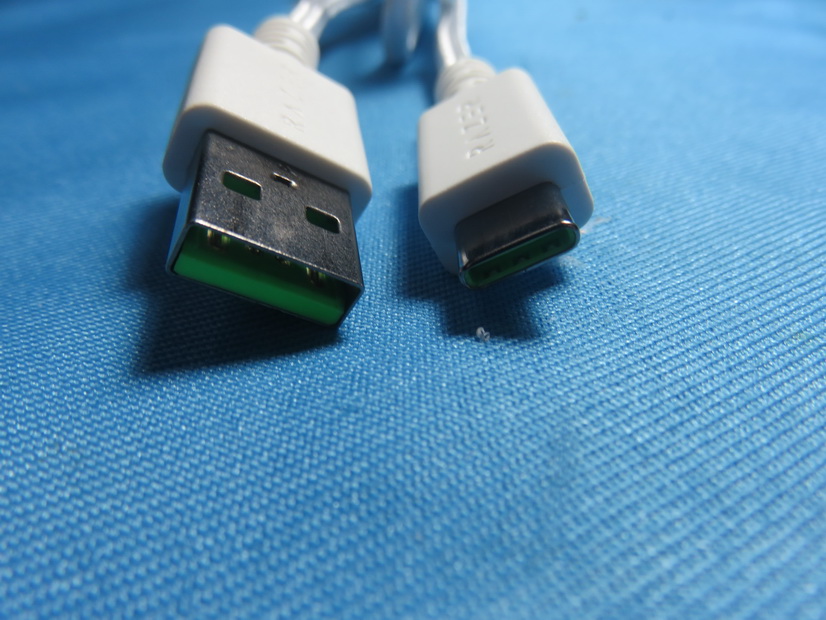

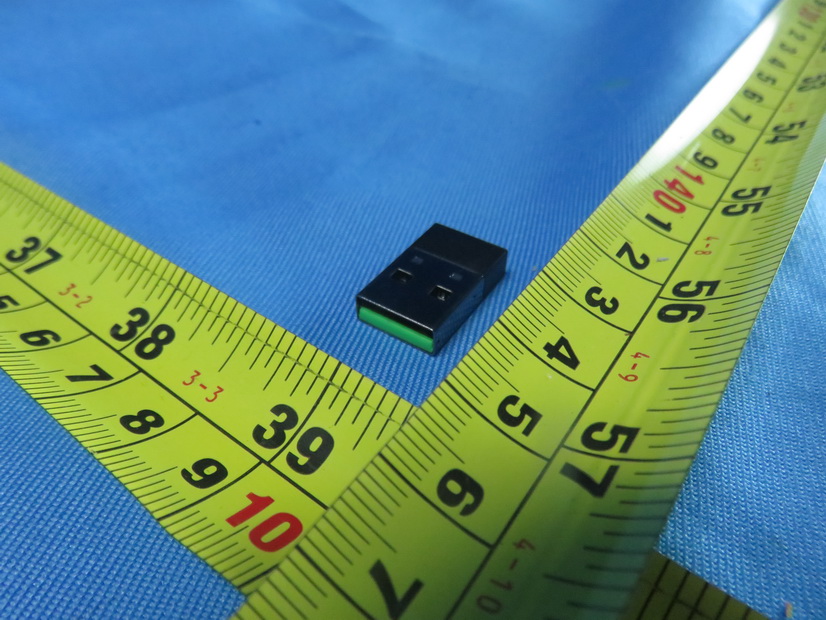

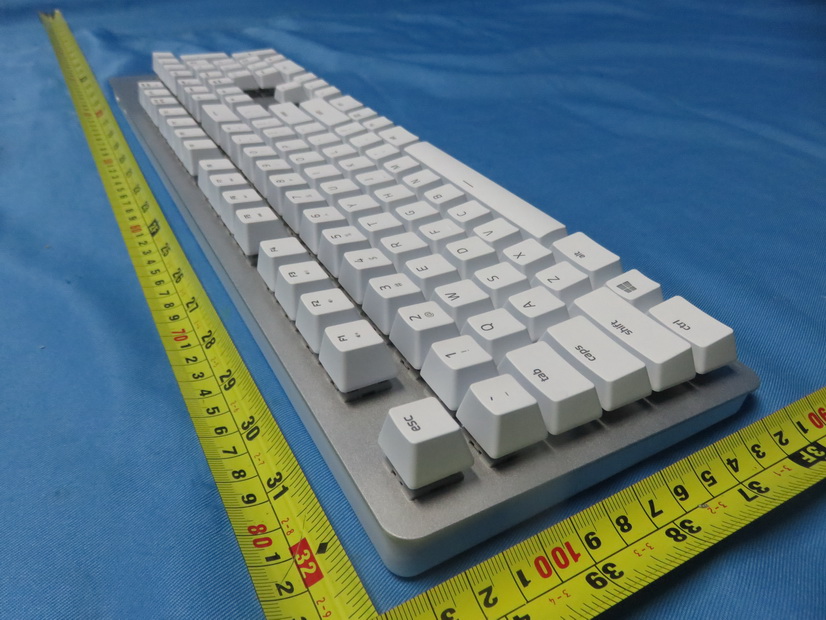

Report No.: 1907C135C Page 2 of 13 Black Report No.: 1907C135C Page 3 of 13 Report No.: 1907C135C Page 9 of 13 Report No.: 1907C135C Page 10 of 13 White Report No.: 1907C135C Page 11 of 13 Report No.: 1907C135C Page 12 of 13 Report No.: 1907C135C Page 13 of 13

Report No.: 1907C135C Page 4 of 13 Antenna Report No.: 1907C135C Page 5 of 13 Report No.: 1907C135C Page 6 of 13 Report No.: 1907C135C Page 7 of 13 Report No.: 1907C135C Page 8 of 13

Report No.: BTL-FCCP-3-1907C135 Page 1 of 7 FCC RF EXPOSURE REPORT FCC ID: RWO-RC30030702 Project No. : 1907C135 Equipment : Mechanical Keyboard Brand Name : RAZER Test Model : RC30-030702 Series Model : N/A Applicant : Razer Inc. Address : 9 Pasteur, Suite 100, Irvine, CA92618, USA Manufacturer : Razer (Asia-Pacific) Pte.,Ltd. Address : 514 Chai Chee Lane, #07-01-06,Singapore 469029 Factory : RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO., LTD Address : East Wing, 3rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China Date of Receipt : Jul. 25, 2019 Date of Test : Jul. 29, 2019 ~ Sep. 29, 2019 Issued Date : Apr. 17, 2020 Report Version : R01 Test Sample : Engineering Sample No.: DG190726119 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & KDB447498 D01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Welly Zhou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-1907C135 Page 2 of 7 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Oct. 12, 2019 R01 Changed the product name, the address of applicant. Apr. 17, 2020 Report No.: BTL-FCCP-3-1907C135 Page 3 of 7 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF EUT Equipment Mechanical Keyboard Brand Name RAZER Te s t Model RC30-030702 Series Model N/A Model Difference(s) The system’s model name is RZ03-0307XXXX-XXXX (X: Can be 0-9, A-Z), and the system is contain a Mechanical Keyboard (Model name: RC30-030702) and USB Dongle (Model name: DGRFG6). Hardware Version Ver:1.6 Software Version Ver:1.0.0.2 Power Source 1# Supplied from USB port. 2# Supplied from battery. Power Rating 1# DC 5V, 1200mA 2# DC 3.7V, 1100mAh Product Description for LE Operation Frequency 2402 MHz ~ 2480 MHz Modulation Technology GFSK Bit Rate f Transmitter 1Mbps / 2Mbps Max. Output Power 1Mbps: 1.36 dBm (0.0014 W) 2Mbps: 1.36 dBm (0.0014 W) Product Description for 2.4G SRD Operation Frequency 2403 MHz ~ 2479 MHz Modulation Technology GFSK Bit Rate of Transmitter 2 Mbps Max. Output Power 1.77 dBm (0.0015 W) Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the user's manual. Report No.: BTL-FCCP-3-1907C135 Page 4 of 7 2. Channel List: For LE: Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 20 2442 01 2404 21 2444 02 2406 22 2446 03 2408 23 2448 04 2410 24 2450 05 2412 25 2452 06 2414 26 2454 07 2416 27 2456 08 2418 28 2458 09 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 Report No.: BTL-FCCP-3-1907C135 Page 5 of 7 For 2.4G SRD: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 2403 27 2429 53 2455 02 2404 28 2430 54 2456 03 2405 29 2431 55 2457 04 2406 30 2432 56 2458 05 2407 31 2433 57 2459 06 2408 32 2434 58 2460 07 2409 33 2435 59 2461 08 2410 34 2436 60 2462 09 2411 35 2437 61 2463 10 2412 36 2438 62 2464 11 2413 37 2439 63 2465 12 2414 38 2440 64 2466 13 2415 39 2441 65 2467 14 2416 40 2442 66 2468 15 2417 41 2443 67 2469 16 2418 42 2444 68 2470 17 2419 43 2445 69 2471 18 2420 44 2446 70 2472 19 2421 45 2447 71 2473 20 2422 46 2448 72 2474 21 2423 47 2449 73 2475 22 2424 48 2450 74 2476 23 2425 49 2451 75 2477 24 2426 50 2452 76 2478 25 2427 51 2453 77 2479 26 2428 52 2454 3. Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Internal N/A 3.24 Report No.: BTL-FCCP-3-1907C135 Page 6 of 7 2. GENERAL CONCULUSION: According to FCC KDB447498 D01, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Appendix A - SAR Test Exclusion Thresholds for 100 MHz - 6 GHz and < 50 mm MHz 5 10 15 20 25 30 35 40 45 50 mm 150 39 77 116 155 194 232 271 310 349 387 SAR Test Exclusion Thresholds (mW) 300 27 55 82 110 137 164 192 219 246 274 450 22 45 67 89 112 134 157 179 201 224 835 16 33 49 66 82 98 115 131 148 164 900 16 32 47 63 79 95 111 126 142 158 1500 12 24 37 49 61 73 86 98 110 122 1900 11 22 33 44 54 65 76 87 98 109 2450 10 19 29 38 48 57 67 77 86 96 3600 8 16 24 32 40 47 55 63 71 79 5200 7 13 20 26 33 39 46 53 59 66 5400 6 13 19 26 32 39 45 52 58 65 5800 6 12 19 25 31 37 44 50 56 62 Report No.: BTL-FCCP-3-1907C135 Page 7 of 7 Maximum measured transmitter power: For LE: Max. Output Power (dBm) Max. Output Power (mW) Limit (mW) 1.36 1.368 10 For 2.4G SRD: Max. Output Power (dBm) Max. Output Power (mW) Limit (mW) 1.77 1.503 10 The maximum measured output peak power of this EUT is 1.503mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold. End of Test Report
