Tech Specs for WModule Specifications Value Manufacturer Name 製造商名稱 Razer Inc. Manufacturing country (Full Address) 製造國(完整地址) 9 Pasteur, Suite 100, Irvine, CA92618, USA Product Name 品名 WModule Model Name 型號名稱 RC30-042602 Chipset 晶片組 nRF52833 (QIAA) Use (Specify: PMR, Amateur, Small Boats or other) Pl explain in detail the functionality 使用 2.4GHz and BLE Module Frequency/Frequency Range/BT/Lower power/Wifi 頻率/頻率範圍/BT/低功率/Wifi 2.4G/BLE - 2402MHz to 2480MHz RF Power output (EIRP) 射頻功率輸出(EIRP) BLE: 1Mbps 6.09dBm BLE: 2Mbps 6.07dBm 2.4GHz: 2Mbps 6.08dBm Modulation 調製 GFSK Channel Spacing: 頻道間距: BLE:2MHz 2.4GHz:1MHz Brand of Antenna 天線品 INPAQ, RFPCA281316IMAB301 Antenna Type (Stubby Dipole): 天線類型 PCB Antenna PCB天線 Antenna Height 天線高度 on PCB Antenna Gain 天線增益 2.74dBi(max.) Product Picture 產品圖片 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Radiation Exposure Statement: The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device, for example, USB dongle like transmitters is forbidden. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: RWO-RC30042602 or Contains FCC ID: RWO-RC30042602”. The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. When the module is installed inside another device, the user manual of this device must contain below warning statements: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Canada Statement This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Caution Exposure: The final end product must be labelled in a visible area with the following: The Industry Canada certification label of a module shall be clearly visible at all times when installed in the host device, otherwise the host device must be labelled to display the Industry Canada certification number of the module, preceded by the words “Contains transmitter module”, or the word “Contains”, or similar wording expressing the same meaning, as follows: Contains transmitter module IC: 8092D- RC30042602 The module must be installed in WModule. The end user manual shall include all required regulatory information/warning as show in this manual. RF Specification RC30-042602 Module contains an integrated balun which provides a single-ended RF TX / RX IPEX connector. The transmitter has been optimized to deliver power in to a 50Ω load. And then, the RC30-042602 RF Spec base on N52833 Datasheet。 Bluetooth Transmitter Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.
RF_160, Issue 02 Declaration of Authorization We Name: Razer Inc. Address: 9 Pasteur, Suite 100 City: Irvine State: California Country: United States Declare that: Name Representative of agent: Ms. Mandy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: WModule Type designation: RC30-042602 Trademark: RAZER FCC ID : RWO-RC30042602 on our behalf. Date: 2022-01-12 City: Irvine Name: Johnsen Tia Function: Senior Director Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.
RF_734_02 04 April 16 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: RWO-RC30042602 Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. YES, Please refer to External Photos. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. YES, U1 N52833 is used for the function. 3. The modular transmitter must have its own power supply regulation. NO 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). YES, it is PCB antenna. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, the module is tested in a stand-alone configuration as the test photos show. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). YES, please refer to the exhibition label sample for this module. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these ins tructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. YES, please refer to the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. YES, RF exposure statement is attached in the user manual. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): Johnsen Tia Date: 2022-01-12 Signature: ___________________________
FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Razer Inc. Address : 9 Pasteur, Suite 100 City: Irvine California Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: RWO-RC30042602 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: This document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor unfair advantage in the market. Planned Release Date STC: 180 days from date of grant (notes 2, 3, 4, 5) Date: 2022-01-12 Name and signature of applicant: Johnsen Tia Senior Director Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1

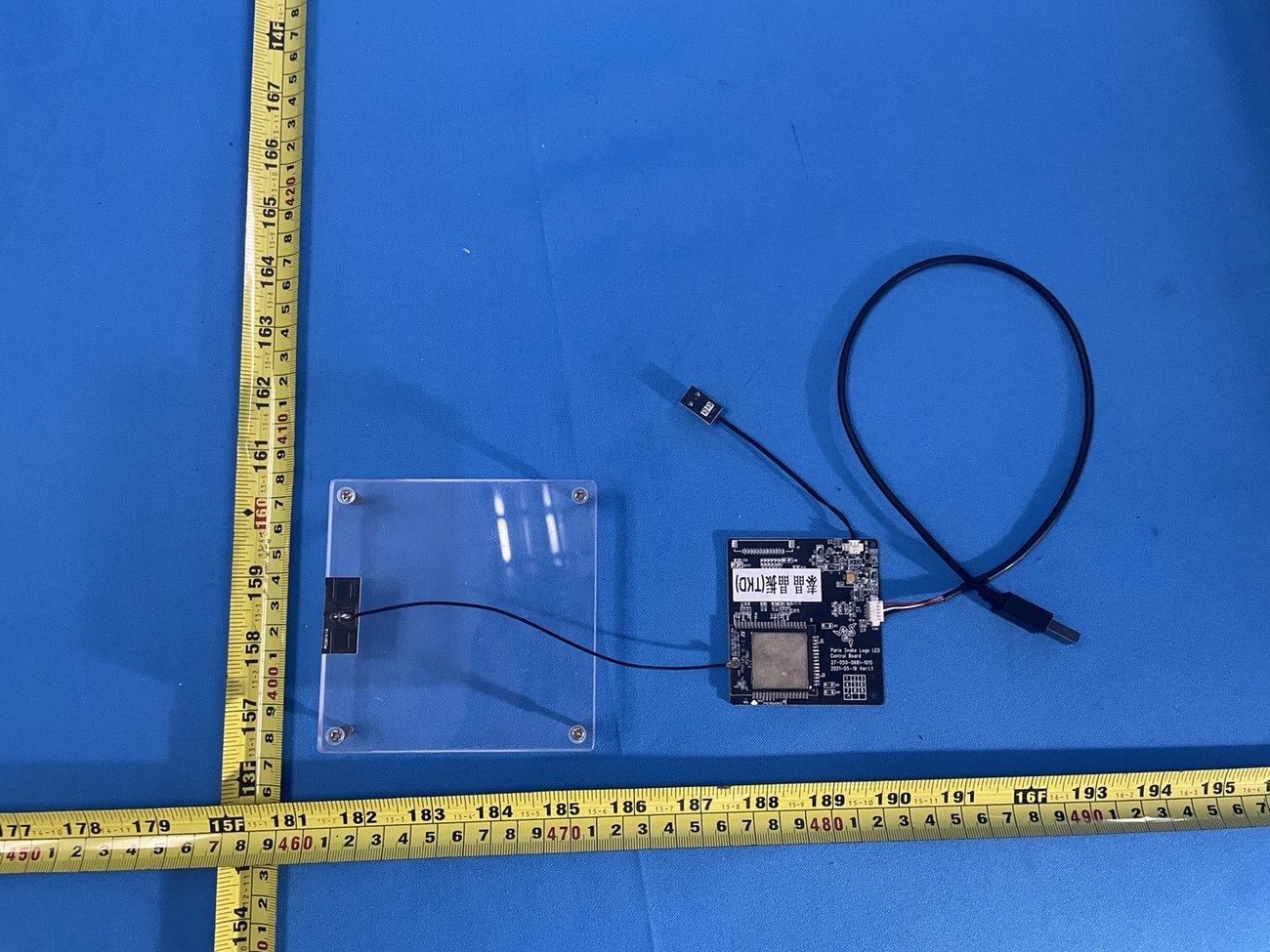

Report No.: 2107C041 Page 2 of 5 Report No.: 2107C041 Page 3 of 5 Antenna
Report No.: 2107C041 Page 4 of 5 Report No.: 2107C041 Page 5 of 5
Report No.: BTL-FCC SAR-1-2107C041 Page 1 of 26 FCC SAR Test Report FCC ID: RWO-RC30042602 Project No. : 2107C041 Equipment : WModule Brand Name : RAZER Test Model : RC30-042602 Series Model : N/A Date of Receipt : Aug. 04, 2021 Date of Test : Aug. 06, 2021 Issued Date : Jan. 13, 2022 Report Version : R01 Test Sample : Engineering Sample No.: DG2021071392 Standard(s) : Please refer to page 2. Applicant : Razer Inc. Address : 9 Pasteur, Suite 100, Irvine, CA92618, USA Manufacturer : Razer (Asia-Pacific) Pte.,Ltd. Address : 1 one-north Crescent, #02-01 Singapore 138538 Factory : RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO., LTD Address : East Wing, 3 rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Justin Huang Approved by : Herbort Liu Add: No. 3 Jinshagang 1 st Rd. Shixia, Dalang Town, Dongguan City, Guangdong, People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCC SAR-1-2107C041 Page 2 of 26 Standard(s) : ANSI Std C95.1-1992 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz. (IEEE Std C95.1-1991) IEEE Std 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB447498 D01 General RF Exposure Guidance v06 KDB248227 D01 802.11 W i-Fi SAR v02r02 KDB865664 D01 SAR measurement 100 MHz to 6 GHz v01r04 KDB865664 D02 SAR Reporting v01r02 KDB690783 D01 SAR Listings on Grants v01r03 Report No.: BTL-FCC SAR-1-2107C041 Page 3 of 26 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL’s reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority’s logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCC SAR-1-2107C041 Page 4 of 26 Table of Contents Page REPORT ISSUED HISTORY 6 1 . GENERAL INFORMATION 7 1.1 STATEMENT OF COMPLIANCE 7 1.2 LABORATORY ENVIRONMENT 7 1.3 GENERAL DESCRIPTION OF EUT 7 1.4 MAIN TEST INSTRUMENTS 8 2 . RF EMISSIONS MEASUREMENT 9 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . SAR MEASUREMENTS SYSTEM CONFIGURATION 10 3.1 SAR MEASUREMENT SET-UP 10 3.1.1 TEST SETUP LAYOUT 10 3.2 DASY5 E-FIELD PROBE SYSTEM 11 3.2.1 EX3DV4 PROBE SPECIFICATION 11 3.2.2 E-FIELD PROBE CALIBRATION 12 3.2.3 OTHER TEST EQUIPMENT 13 3.2.4 SCANNING PROCEDURE 14 3.2.5 SPATIAL PEAK SAR EVALUATION 15 3.2.6 DATA STORAGE AND EVALUATION 16 3.2.7 DATA EVALUATION BY SEMCAD 17 4 . SYSTEM VERIFICATION PROCEDURE 19 4.1 TISSUE VERIFICATION 19 4.2 SYSTEM CHECK 20 4.3 SYSTEM CHECK PROCEDURE 20 5 . SAR MEASUREMENT VARIABILITY AND UNCERTAINTY 21 5.1 SAR MEASUREMENT VARIABILITY 21 5.2 SAR TEST AND APPROVAL CONSIDERATIONS 21 6 . TEST RESULT 22 6.1 CONDUCTED POWER RESULTS 22 6.1.1 CONDUCTED POWER MEASUREMENTS OF BT 22 6.2 SAR TEST RESULTS 23 6.2.1 SAR MEASUREMENT RESULT 23 6.3 MULTIPLE TRANSMITTER EVALUATION 24 APPENDIX 25 Report No.: BTL-FCC SAR-1-2107C041 Page 5 of 26 Table of Contents Page 1. TEST LAYOUT 25 Appendix A. SAR Plots of System Verification Appendix B. SAR Plots of SAR Measurement Appendix C. Calibration Certificate Appendix D. Photographs of the Test Set-Up Report No.: BTL-FCC SAR-1-2107C041 Page 6 of 26 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Aug. 17, 2021 R01 1. Updated the manufacturer information. 2. Modified the modulation information. Jan. 13, 2022 Report No.: BTL-FCC SAR-1-2107C041 Page 7 of 26 1. GENERAL INFORMATION 1.1 STATEMENT OF COMPLIANCE Mode Highest Reported Body SAR-1g (W/kg) BLE 0.082 2.4G SRD 0.068 Note: The device is in compliance with Specific Absorption Rate (SAR) for general population uncontrolled exposure limits according to the FCC rule §2.1093, the ANSI C95.1:1992/IEEE C95.1:1991, the NCRP Report Number 86 for uncontrolled environment, and had been tested in accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 1.2 LABORATORY ENVIRONMENT Temperature Min. = 18ºC, Max. = 25ºC Relative humidity Min. = 30%, Max. = 70% Ground system resistance < 0.…
Text truncated - open the document above for the full version.
Report No.: BTL-FCC SAR-1-2107C041_Appendix A. Page 1 of 1 Test Laboratory: BTL.Inc Date: 2021/8/6 System Check_H2450_0806 DUT: Dipole 2450 MHz D2450V2;SN:919; Communication System: UID 0, CW (0); Frequency: 2450 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2450 MHz; σ = 1.784 S/m; ε r = 39.674; ρ = 1000 kg/m 3 Ambient Temperature:23.2 °C; Liquid Temperature:22.5 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(7.56, 7.56, 7.56) @ 2450 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Right v5.0; Type: QD000P40CC; Serial: TP:1469 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 14.1 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 114.7 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 27.6 W/kg SAR(1 g) = 13 W/kg; SAR(10 g) = 5.9 W/kg Maximum value of SAR (measured) = 22.2 W/kg
Report No.: BTL-FCC SAR-1-2107C041_Appendix B. Page 1 of 2 Test Laboratory: BTL.Inc Date: 2021/8/6 W02_BLE_CH39_Rear Face_0cm DUT: Module; Communication System: UID 0, BT (0); Frequency: 2480 MHz; Duty Cycle: 1:1 Medium parameters used: f = 2480 MHz; σ = 1.821 S/m; εr = 39.571; ρ = 1000 kg/m 3 Ambient Temperature:23.2 °C; Liquid Temperature:22.5 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(7.56, 7.56, 7.56) @ 2480 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Right v5.0; Type: QD000P40CC; Serial: TP:1469 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (5x6x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.361 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.401 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.247 W/kg; SAR(10 g) = 0.070 W/kg Maximum value of SAR (measured) = 0.594 W/kg Report No.: BTL-FCC SAR-1-2107C041_Appendix B. Page 2 of 2 Test Laboratory: BTL.Inc Date: 2021/8/6 W11_SRD_CH78_Rear Face_0cm DUT: Module; Communication System: UID 0, BT (0); Frequency: 2480 MHz; Duty Cycle: 1:1 Medium parameters used: f = 2480 MHz; σ = 1.821 S/m; ε r = 39.571; ρ = 1000 kg/m 3 Ambient Temperature:23.2 °C; Liquid Temperature:22.5 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(7.56, 7.56, 7.56) @ 2480 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Right v5.0; Type: QD000P40CC; Serial: TP:1469 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (5x6x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.311 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.779 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.880 W/kg SAR(1 g) = 0.198 W/kg; SAR(10 g) = 0.058 W/kg Maximum value of SAR (measured) = 0.488 W/kg
rn Co laboration with ,,~'\"1 11 / 1 ~,, ~ rhfi!~l w ~"'~~'.-Tl:!!ilii'\""J ~~~ m~~i.\ . fj~~CNAS&~t f/LTTL Add: No.52 HuaYuanBei Road, Haidian District, Beijing, 100191, Chi ~/..~~~ ~ CALIBRATION Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 ''l,,f,ln\'~'' ~ CNAS L0570 E-mail: [email protected] http://www.chinattl.cn Client BTL Inc. Certificate No: Z21-60224 CALIBRATION CERTIFICATE Object D2450V2-SN: 919 Calibration Procedure(s) FF-Z11 .. 003-01 Calibration Procedures for dipole validation kits Calibration date: May 28,2021 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements (SI). The measurements and 1 the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted humidity<70%. laboratory facility: environment temperature (22±3)°C and Calibration Equipment used (M&TE critical fqr calibration) Primary Standards ID# Cal Date (Calibrated by, Certificate No.) Scheduled Calibration Power Meter NRP2 106277 23-Sep-20 (CTTL, No.J20X08336) Sep~21 Power sensor NRP8S 104291 3-Sep-20 (CTTL, No.J20X08336) Sep-21 Reference Probe EX3DV4 SN 3846 26-Apr-21 (CTTL-SPEAG,No.Z21-60084) Apr-22 DAE4 SN 777 . 08-Jan-21 (CTTL-SPEAG, No.Z21-60003) Jan-22 Secondary Standards ID# Cal Date (Calibrated by, Certificate No.) Scheduled Cplibration Signal Generator E4438C MY49071430 01-Feb-21 (CTTL, No.J21X00593) Jan-22 NetworkAnalyzer E5071 C MY46110673 14-Jan-21 (CTTL, No.J21X00232) Jan-22 Name Function Signature Calibrated by: Zhao Jing SAR Test Engineer .~D Reviewed by: Lin Hao SAR Test Engineer ~~- Approved by: Qi Dianyuan SAR Project Leader ~ Issued: June 2, 2021 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: Z21-60224 Page 1 of6 e a . CAU · ON lABORATORY Add: No.52 HuaYuanBei Road, Haidian b istrict, Beijing, 100191, China Tel: +86-1 0-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://Www.chinattl.cn Glossary: l tissue simulating liquid TSL ConvF N/A sensitivity in TSL I NORMx,y,z not applicable or not measured ! l Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques", June 2013 b) IEC 62209-1, "Measurement pro·cedure for assessment of specific absorption rate of human exposure to radio frequency fiel; s from hand-h~ld and body-mounted wireless communication devices-Part 1: evice used next to the ear (Frequency range of 300M Hz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to me sure the Specific Absorption Rate (SAR) For wireless communication devices used in lose proximity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measuremen1 Requirements for 100 MHz to 6 GHz Additional Documentation: ··' e) DASY4/5 System Handbook 1· Methods Applied and Interpretation of Parameters: • Measurement Conditions: Furtt~er details are available from the Validation Report at the end of the certificate. All figures sta ed in t~e certificate are valid at the frequency indicated. • Antenna Parameters with TSL': The dipole is mounted with the spacer to position its feed point exactly below the center.rnarkinQ~ of the flat phantom section, with the arms oriented parallel to the body axis. • Feed Point Impedance andRe urn Loss: These parameters are measured with the dipole positioned under the liquid fille< phantom. The impedance stated is transformed from the measurement at the SMA conn~ctor t~ the feed point. The Return Loss ensures low · reflected power. No uncertaint~ requir~d. . • Electrical Delay: One-way dela V between the SMA connector and the antenna feed point. No uncertainty required. 1 • SAR measured: SAR measure~ at the stated antenna input power. • SAR normalized: SAR as me~s ured, rnormalized to an input power of 1 W at the antenna • SAR for nominal TSL param te rs: Th~ measUired TSL parameters are used to calculate the connector. 1 , nominal SAR result. 1 • I The reported uncertainty of n easurfment is stated as the standard uncertainty of Measurement multiplied by t1E coverage fattor k=2, which for a normal distribution Corresponds to a coverage prc~>bability pf approximately 95%. Certificate No: Z21-60224 P~ge 2 of6 '.'~~~ Measurement Conditions DASY sy_stem configuration, as far as lilO g1ven on page . 1 DASY Version , DASY52l ~ V52.10.4 Extrapolation Advanced Extra~olation Phantom Triple Flat Phantom 5.1 C Distance Dipole Center -TSL 10 mm with Spacer Zoom Scan Resolution dx, dy, dz = 5 mm Frequency : .. ':#: 2450 MHz ± 1 MHz Head TSL parameters ~f:-ti : The following parameters and calculations were ClPPiied. Tempe ature Permittivity Conductivity Nominal Head TSL parameters 'j j Measured Head TSL parameters 1 Head TSL temperature change during test , SAR result with Head TSL 1 22.0 c 39.2 i (22.0 ± 0 2) oc 38.8 ±6% <1.0 c SAR averaged over 1 cm 3 (1 g) of :H~ad TSL Condition 2~0 mW input power SAR measured 1 I , I SAR for nominal Head TSL parameters normalized to 1 W I SAR averaged over 10 cm 3 (1 0 g) of Head TSL Condition SAR measured I SAR for nominal Head TSL parameters I Certificate No: Z21-60224 i 1 tl I• I 250 mW input power normalized to 1 W Page 3 of6 1.80 mho/m 1.81 mho/m ± 6% 13.1 W/kg 52.1 W/kg ± 18.8% (lc=2) 5.95 W/kg 23.7 W/kg ± 18.7% (lc=2) In Co laboration with -TTL e a CAUBRA110N LABORATORY' Add: No.52 HuaYuanBei Road, Haidian District, B~ijing, 100191, China Tel: +86-1 0-62304633-2079 Fax: +86-1 0-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Appendix (Additional assessments outside the scope of CNAS L0570) Antenna Parameters with Head TSL I Impedance, transformed to feed point Return Loss . i General Antenna Parameters and Design l I Electrical Delay (one direction…
Text truncated - open the document above for the full version.
Report No.: BTL-FCCP-2-2107C041 Page 1 of 55 FCC Radio Test Report FCC ID: RWO-RC30042602 Project No. : 2107C041 Equipment : WModule Brand Name : RAZER Test Model : RC30-042602 Series Model : N/A Applicant : Razer Inc. Address : 9 Pasteur, Suite 100, Irvine, CA92618, USA Manufacturer : Razer (Asia-Pacific) Pte.,Ltd. Address : 1 one-north Crescent, #02-01 Singapore 138538 Factory : RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO., LTD Address : East Wing, 3rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China Date of Receipt : Jul. 08, 2021 Date of Test : Jul. 13, 2021 ~ Aug. 07, 2021 Issued Date : Jan. 04, 2022 Report Version : R01 Test Sample : Sample No.: DG2021071394 for conducted, DG2021071392 for radiated. Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance V05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Vincent Tan Approved by : Ethan Ma Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town, Dongguan City, Guangdong, People’s Republic of China Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2107C041 Page 2 of 55 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential proper…
Text truncated - open the document above for the full version.
