RWO-RZ010373Wireless Mouse

14 TH NOV 2020 . USER MANUAL FOR WIRELESS MOUSE [MODEL #: RZ01-0373] IMPORTANT PRODUCT INFORMATION GUIDEASAS 4 th Nov 2020 FOR GAMERS. BY GAMERS. ™ 1 WHAT’S INSIDE / WHAT’S NEEDED WHAT’S INSIDE  Wireless Mouse [Model #: RZ01-0373] A. Left mouse button B. Right mouse button C. Scroll wheel D. DPI cycle button E. Status indicator F. Mouse button 5 G. Mouse button 4 H. Ultraslick mouse feet I. Optical sensor J. Slider switch  Bluetooth mode  Power off mode  Razer™ HyperSpeed Wireless (2.4 Ghz) mode  1 x AA battery  Important Product Information Guide The DPI stages are as follows: 400, 800, 1600 (default), 3200 and 6400. The DPI stages can be customized using Razer Synapse. FOR GAMERS. BY GAMERS. ™ 2 WHAT’S NEEDED PRODUCT REQUIREMENTS  Windows® OS  USB-A port  1 x 1.5V AA battery*  Bluetooth 5.1 connectivity RAZER SYNAPSE REQUIREMENTS  Windows® 7 64-bit (or higher)  Internet connection for software installation *Also compatible with a AAA battery (not included). FOR GAMERS. BY GAMERS. ™ 3 LET’S GET YOU COVERED You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com Got a question? Ask the Razer Support Team at support.razer.com Your product’s serial number can be found here. FOR GAMERS. BY GAMERS. ™ 4 GETTING STARTED INSERTING THE BATTERY 1. Remove the top cover of the mouse and insert the AA battery as indicated in the battery compartment. Caution: The included AA battery is non-rechargeable. You may also use a AAA battery (not included) if preferred. Dispose batteries in accordance with your local environmental laws. For your safety, use only alkaline batteries and do not mix old batteries with new ones. 2. Reattach the top cover onto the mouse and make sure that it is tightly secured. FOR GAMERS. BY GAMERS. ™ 5 CONNECTING YOUR MOUSE A. VIA RAZER™ HYPERSPEED WIRELESS (2.4 GHZ) MODE 1. Remove the top cover of the mouse and take out the wireless USB dongle. 2. Close the top cover and insert the wireless USB dongle into the USB port of your PC. 3. Push the slider switch to Razer™ HyperSpeed Wireless (2.4 GHz) mode. When connected, the status indicator will briefly turn static green. FOR GAMERS. BY GAMERS. ™ 6 Your RZ01-0373 is now ready for use in wireless mode. B. VIA BLUETOOTH MODE 1. Push the slider switch to Bluetooth mode ( ). 2. Press and hold the two side buttons and the DPI cycle button simultaneously for three seconds to activate pairing mode. The status indicator will blink twice in repeated intervals to show that the device is in pairing mode. 3. Activate Bluetooth on your device and select “RZ01-0373” from the list of devices found. Pairing FOR GAMERS. BY GAMERS. ™ 7 4. Wait until the mouse pairs with your device. When paired, the status indicator will briefly turn static blue. Once paired, your RZ01-0373 will automatically reconnect to your device whenever in Bluetooth mode and within range. Keep the pairing devices within close proximity of each other for faster and more stable connection. Congratulations, your RZ01-0373 is now ready to use in Bluetooth mode. Pairing Paired FOR GAMERS. BY GAMERS. ™ 8 LOW BATTERY NOTIFICATION The status indicator will blink red twice in repeated intervals to indicate that the battery level of the inserted battery is less than 5%*. This lighting sequence will repeat until the battery is fully drained. Once you receive this notification, it’s time to replace the battery. The indicator percentage can be customized through Razer Synapse. PERSONALIZING YOUR MOUSE WITH RAZER SYNAPSE Change your mouse’s DPI to match your playstyle with a press of the DPI cycle button or fine-tune your own sensitivity setting using the Razer Synapse app. Install Razer Synapse when prompted or download the installer from razer.com/synapse FOR GAMERS. BY GAMERS. ™ 9 SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your RZ01-0373, we suggest that you adopt the following guidelines: Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for support. Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads. Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level. COMFORT Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your RZ01-0373.  Position your keyboard and monitor directly in front of you with your mouse next to it. Place your elbows next to your side, not too far away and your keyboard within easy reach.  Adjust the height of your chair and table so that the keyboard and mouse are at or below elbow-height. FOR GAMERS. BY GAMERS. ™ 10  Keep your feet well supported, posture straight and your shoulders relaxed.  During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend or twist your hands for long periods.  Do not rest your wrists on hard surfaces for long periods. Use a wrist rest to support your wrist while gaming.  Customize the keys on your keyboard to suit your style of gaming in order to minimize repetitive or awkward motions while gaming.  Do not sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck and legs. If you should experience any physical discomfort while usin…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Razer Inc. Address: 9 Pasteur, Suite 100 City: Irvine State: California Country: United States Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Wireless Mouse Type designation: RZ01-0373, RZ01-0373XXXX-XXXX (X can be 0-9 or A-Z) Trademark: RAZER FCC ID : RWO-RZ010373 on our behalf. Date: 2021-04-15 City: Irvine Name: Johnsen Tia Function: Senior Director Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Supplier’s Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: U.S. Responsible Party: Razer Inc., 9 Pasteur, Suite 100, Irvine, California 92618 United States Razer Inc., 9 Pasteur, Suite 100, Irvine, California 92618 United States Contact Person: Tel.: 760 579 0180 Fax: 760 579 0182 Email: [email protected] Internet: https://www.razer.com Model: RZ01-0373, RZ01-0373XXXX-XXXX (X can be 0-9 or A-Z) Classification: FCC Part 15B We hereby declare that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC rule part(s) 15B and the most accurate measurement standards. We confirm that the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commission’s requirements. Date: 2021-04-15 ----------------------------------- Johnsen Tia / Senior Director, Regulatory & Compliance [email protected] RAZER INC. 9 Pasteur, Suite 100, Irvine, California 92618 United States

Model Declaration Letter We, the undersigning company Company Name: Razer Inc. Address: 9 Pasteur, Suite 100 Irvine Irvine California United States Hereby confirm that the following products: Product description: Wireless Mouse Type designation: RZ01-0373, RZ01-0373XXXX-XXXX (X can be 0-9 or A-Z) Trademark: RAZER That All versions of the Model RZ01-0373, RZ01-0373XXXX-XXXX (X can be 0-9 or A-Z) are electrically equal except the following difference: It is the same as the basic model and X is used to define which country it is for under the same family series. Date: 2021-04-15 Name: Johnsen Tia Telephone: 760 579 0180 E-mail: [email protected] Signature:

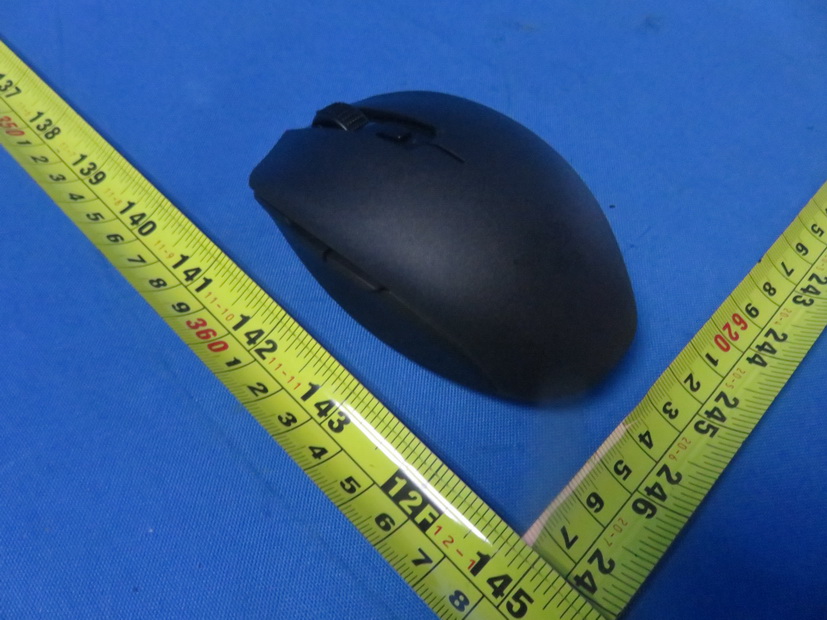

Project No.: 2011C051 Page 1 of 8 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2011C051 Page 2 of 8 Project No.: 2011C051 Page 3 of 8

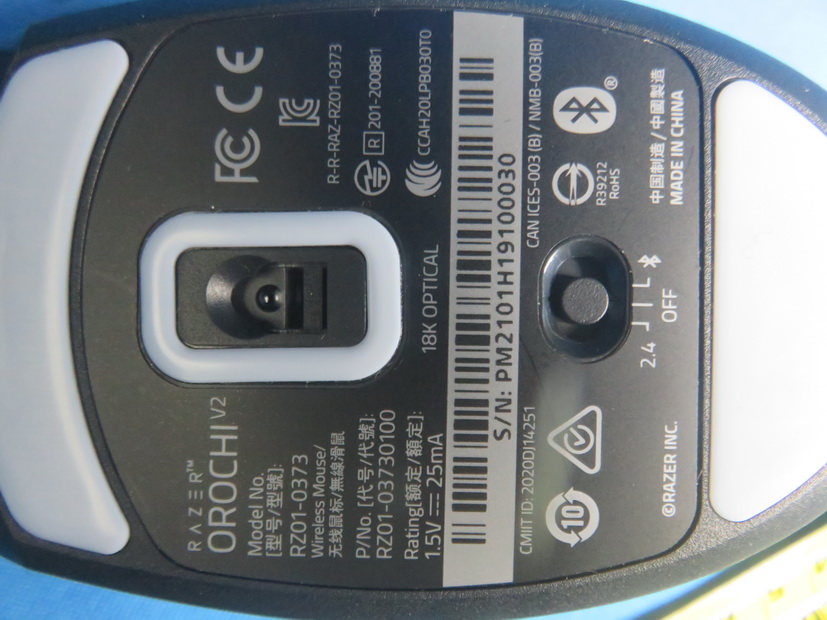

Product Label Information Wireless Mouse [Model #: RZ01-0373] Page 1 of 1 16 th Sept 2020 Label Location (Bottom of Product) Product Label (Label Size: 48.2 x 38.2 mm)

Project No.: 2011C051 Page 5 of 8 Project No.: 2011C051 Page 6 of 8 ANT Project No.: 2011C051 Page 7 of 8 Project No.: 2011C051 Page 8 of 8

Report No.: BTL-FCCP-3-2011C051 Page 1 of 6 FCC RF EXPOSURE REPORT FCC ID: RWO-RZ010373 Project No. : 2011C051 Equipment : Wireless Mouse Brand Name : RAZER Test Model : RZ01-0373 Series Model : RZ01-0373XXXX-XXXX (X can be 0-9 or A-Z) Applicant : Razer Inc. Address : 9 Pasteur, Suite 100, Irvine, CA92618, USA Manufacturer : Razer (Asia-Pacific) Pte.,Ltd. Address : 514 Chai Chee Lane, #07-01-06,Singapore 469029 Factory : RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO., LTD Address : East Wing, 3rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China Date of Receipt : Nov. 09, 2020 Date of Test : Nov. 11, 2020 ~ Nov. 30, 2020 Issued Date : Dec. 07, 2020 Report Version : R00 Test Sample : Sample No.: DG2020111044 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & KDB447498 D01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Welly Zhou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2011C051 Page 2 of 6 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Dec. 07, 2020 Report No.: BTL-FCCP-3-2011C051 Page 3 of 6 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF EUT Equipment Wireless Mouse Brand Name RAZER Test Model RZ01-0373 Series Model RZ01-0373XXXX-XXXX (X can be 0-9 or A-Z) Model Difference(s) It is the same as the basic model and X is used to define which country it is for under the same family series. Power Source Supplied from battery. Power Rating 1.5V25mA Product Description for LE Operation Frequency 2402 MHz ~ 2480 MHz Modulation Technology GFSK Bit Rate of Transmitter 1Mbps, 2 Mbps Max. Peak Output Power 4.29 dBm (0.0027 W) For 1Mbps 4.33 dBm (0.0027 W) For 2Mbps Max. Average Output Power 4.18 dBm (0.0026 W) For 1Mbps 4.10 dBm (0.0026 W) For 2Mbps Product Description for 2.4G SRD Operation Frequency 2402 MHz ~ 2480 MHz Modulation Technology GFSK Bit Rate of Transmitter 2 Mbps Max. Peak Output Power 4.16 dBm (0.0026 W) Max. Average Output Power 4.09 dBm (0.0026 W) Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the user's manual. Report No.: BTL-FCCP-3-2011C051 Page 4 of 6 2. Channel List: For LE: Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 20 2442 01 2404 21 2444 02 2406 22 2446 03 2408 23 2448 04 2410 24 2450 05 2412 25 2452 06 2414 26 2454 07 2416 27 2456 08 2418 28 2458 09 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 For 2.4G SRD: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 Report No.: BTL-FCCP-3-2011C051 Page 5 of 6 3. Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 YAGEO ANT5320LL24R2400A Chip N/A 1.58 2. GENERAL CONCULUSION According to FCC KDB447498 D01, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Appendix A - SAR Test Exclusion Thresholds for 100 MHz - 6 GHz and < 50 mm MHz 5 10 15 20 25 30 35 40 45 50 mm 150 39 77 116 155 194 232 271 310 349 387 SAR Test Exclusion Thresholds (mW) 300 27 55 82 110 137 164 192 219 246 274 450 22 45 67 89 112 134 157 179 201 224 835 16 33 49 66 82 98 115 131 148 164 900 16 32 47 63 79 95 111 126 142 158 1500 12 24 37 49 61 73 86 98 110 122 1900 11 22 33 44 54 65 76 87 98 109 2450 10 19 29 38 48 57 67 77 86 96 3600 8 16 24 32 40 47 55 63 71 79 5200 7 13 20 26 33 39 46 53 59 66 5400 6 13 19 26 32 39 45 52 58 65 5800 6 12 19 25 31 37 44 50 56 62 Report No.: BTL-FCCP-3-2011C051 Page 6 of 6 3. TEST RESULTS Tune up tolerance (dBm) LE 2.4G SRD ≤ 4.50 ≤ 4.50 For LE: Max. Output Power (dBm) Max. Output Power (mW) Limit (mW) 4.50 2.82 10 For 2.4G SRD: Max. Output Power (dBm) Max. Output Power (mW) Limit (mW) 4.50 2.82 10 Note: (1) Output power including tune up tolerance. (2) The maximum measured output peak power of this EUT is 2.82 mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold. End of Test Report

Report No.: BTL-FCCP-2-2011C051 Page 1 of 49 FCC Radio Test Report FCC ID: RWO-RZ010373 This report concerns: Original Grant Project No. : 2011C051 Equipment : Wireless Mouse Brand Name : RAZER Test Model : RZ01-0373 Series Model : RZ01-0373XXXX-XXXX (X can be 0-9 or A-Z) Applicant : Razer Inc. Address : 9 Pasteur, Suite 100, Irvine, CA92618, USA Manufacturer : Razer (Asia-Pacific) Pte.,Ltd. Address : 514 Chai Chee Lane, #07-01-06,Singapore 469029 Factory : RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO., LTD Address : East Wing, 3rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China Date of Receipt : Nov. 09, 2020 Date of Test : Nov. 11, 2020 ~ Nov. 30, 2020 Issued Date : Dec. 07, 2020 Report Version : R00 Test Sample : Sample No.: DG2020111044 for conducted, DG2020111045 for radiated. Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance V05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Welly Zhou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2011C051 Page 2 of 49 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2011C051 Page 3 of 49 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 PARAMETERS OF TEST SOFTWARE 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 SUPPORT UNITS 11 3 . RADIATED EMISSION TEST 12 3.1 LIMIT 12 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 EUT OPERATING CONDITIONS 15 3.6 TEST RESULT - 9 KHZ TO 30 MHZ 15 3.7 TEST RESULT - 30 MHZ TO 1000 MHZ 15 3.8 TEST RESULT - ABOVE 1000 MHZ 15 4 . BANDWIDTH TEST 16 4.1 LIMIT 16 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM STANDARD 16 4.4 TEST SETUP 16 4.5 EUT OPERATION CONDITIONS 16 4.6 TEST RESULTS 16 5 . MAXIMUM OUTPUT POWER 17 5.1 LIMIT 17 5.2 TEST PROCEDURE 17 5.3 DEVIATION FROM STANDARD 17 5.4 TEST SETUP 17 5.5 EUT OPERATION CONDITIONS 17 Report No.: BTL-FCCP-2-2011C051 Page 4 of 49 Table of Contents Page 5.6 TEST RESULTS 17 6 . CONDUCTED SPURIOUS EMISSION 18 6.1 LIMIT 18 6.2 TEST PROCEDURE 18 6.3 DEVIATION FROM STANDARD 18 6.4 TEST SETUP 18 6.5 EUT OPERATION CONDITIONS 18 6.6 TEST RESULTS 18 7 . POWER SPECTRAL DENSITY TEST 19 7.1 LIMIT 19 7.2 TEST PROCEDURE 19 7.3 DEVIATION FROM STANDARD 19 7.4 TEST SETUP 19 7.5 EUT OPERATION CONDITIONS 19 7.6 TEST RESULTS 19 8 . MEASUREMENT INSTRUMENTS LIST 20 APPENDIX A - RADIATED EMISSION - 9 KHZ TO 30 MHZ 21 APPENDIX B - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 26 APPENDIX C - RADIATED EMISSION - ABOVE 1000 MHZ 29 APPENDIX D - BANDWIDTH 42 APPENDIX E - MAXIMUM OUTPUT POWER 44 APPENDIX F - CONDUCTED SPURIOUS EMISSION 46 APPENDIX G - POWER SPECTRAL DENSITY 48 Report No.: BTL-FCCP-2-2011C051 Page 5 of 49 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Dec. 07, 2020 Report No.: BTL-FCCP-2-2011C051 Page 6 of 49 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions ------ N/A ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX A APPENDIX B APPENDIX C PASS ------ 15.247(a)(2) Bandwidth APPENDIX D PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX E PASS ------ 15.247(d) Conducted Spurious Emission APPENDIX F PASS ------ 15.247(e) Power Spectral Density APPENDIX G PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: BTL-FCCP-2-2011C051…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2011C051 Page 1 of 64 FCC Radio Test Report FCC ID: RWO-RZ010373 This report concerns: Original Grant Project No. : 2011C051 Equipment : Wireless Mouse Brand Name : RAZER Test Model : RZ01-0373 Series Model : RZ01-0373XXXX-XXXX (X can be 0-9 or A-Z) Applicant : Razer Inc. Address : 9 Pasteur, Suite 100, Irvine, CA92618, USA Manufacturer : Razer (Asia-Pacific) Pte.,Ltd. Address : 514 Chai Chee Lane, #07-01-06,Singapore 469029 Factory : RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO., LTD Address : East Wing, 3rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China Date of Receipt : Nov. 09, 2020 Date of Test : Nov. 11, 2020 ~ Nov. 30, 2020 Issued Date : Dec. 07, 2020 Report Version : R00 Test Sample : Sample No.: DG2020111044 for conducted, DG2020111045 for radiated. Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Welly Zhou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2011C051 Page 2 of 64 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2011C051 Page 3 of 64 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 PARAMETERS OF TEST SOFTWARE 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 SUPPORT UNITS 11 3 . RADIATED EMISSION TEST 12 3.1 LIMIT 12 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 EUT OPERATING CONDITIONS 15 3.6 TEST RESULT - 9 KHZ TO 30 MHZ 15 3.7 TEST RESULT - 30 MHZ TO 1000 MHZ 15 3.8 TEST RESULT - ABOVE 1000 MHZ 15 4 . BANDWIDTH TEST 16 4.1 LIMIT 16 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM STANDARD 16 4.4 TEST SETUP 16 4.5 EUT OPERATION CONDITIONS 16 4.6 TEST RESULTS 16 5 . MAXIMUM OUTPUT POWER 17 5.1 LIMIT 17 5.2 TEST PROCEDURE 17 5.3 DEVIATION FROM STANDARD 17 5.4 TEST SETUP 17 Report No.: BTL-FCCP-1-2011C051 Page 4 of 64 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 17 5.6 TEST RESULTS 17 6 . CONDUCTED SPURIOUS EMISSION 18 6.1 LIMIT 18 6.2 TEST PROCEDURE 18 6.3 DEVIATION FROM STANDARD 18 6.4 TEST SETUP 18 6.5 EUT OPERATION CONDITIONS 18 6.6 TEST RESULTS 18 7 . POWER SPECTRAL DENSITY TEST 19 7.1 LIMIT 19 7.2 TEST PROCEDURE 19 7.3 DEVIATION FROM STANDARD 19 7.4 TEST SETUP 19 7.5 EUT OPERATION CONDITIONS 19 7.6 TEST RESULTS 19 8 . MEASUREMENT INSTRUMENTS LIST 20 APPENDIX A - RADIATED EMISSION - 9 KHZ TO 30 MHZ 21 APPENDIX B - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 26 APPENDIX C - RADIATED EMISSION - ABOVE 1000 MHZ 29 APPENDIX D - BANDWIDTH 54 APPENDIX E - MAXIMUM OUTPUT POWER 57 APPENDIX F - CONDUCTED SPURIOUS EMISSION 60 APPENDIX G - POWER SPECTRAL DENSITY 63 Report No.: BTL-FCCP-1-2011C051 Page 5 of 64 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Dec. 07, 2020 Report No.: BTL-FCCP-1-2011C051 Page 6 of 64 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions ------ N/A ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX A APPENDIX B APPENDIX C PASS ------ 15.247(a)(2) Bandwidth APPENDIX D PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX E PASS ------ 15.247(d) Conducted Spurious Emission APPENDIX F PASS ------ 15.247(e) Power Spectral Density APPENDIX G PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: BTL-FCCP-1-2011C051…

Text truncated - open the document above for the full version.

Report No.: 2011C051 Page 1 of 4 EUT TEST PHOTO Report No.: 2011C051 Page 2 of 4 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: 2011C051 Page 3 of 4 Radiated Emissions Test Photos 30 MHz to 1000 MHz Report No.: 2011C051 Page 4 of 4 Radiated Emissions Test Photos Above 1 GHz
