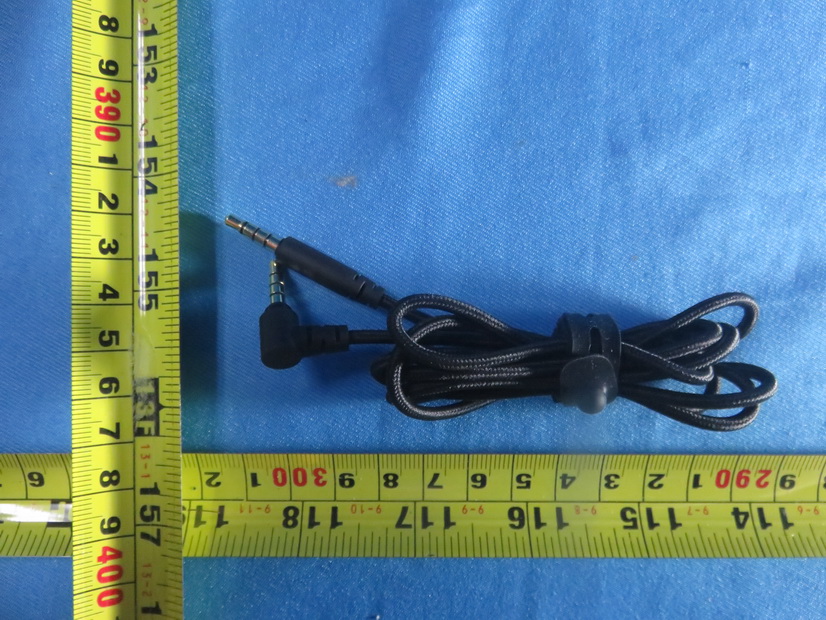

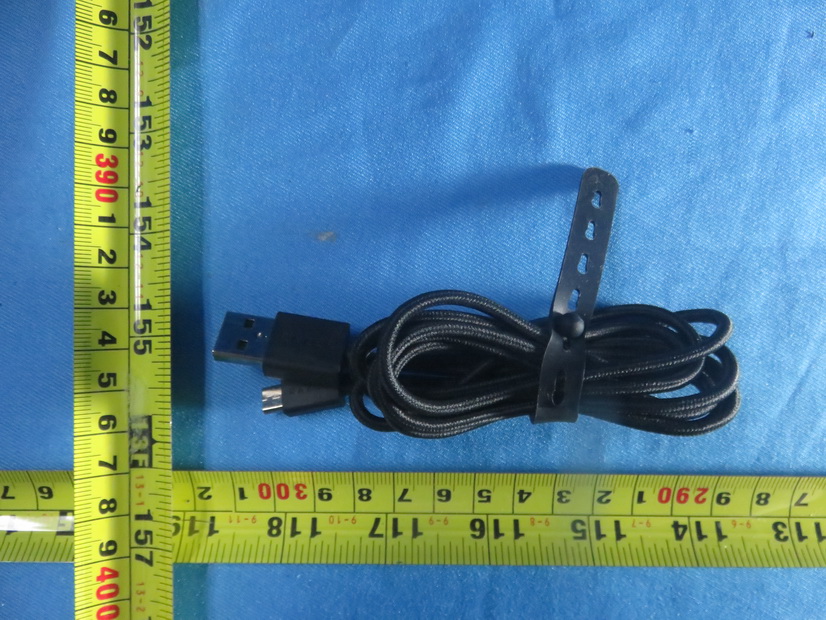

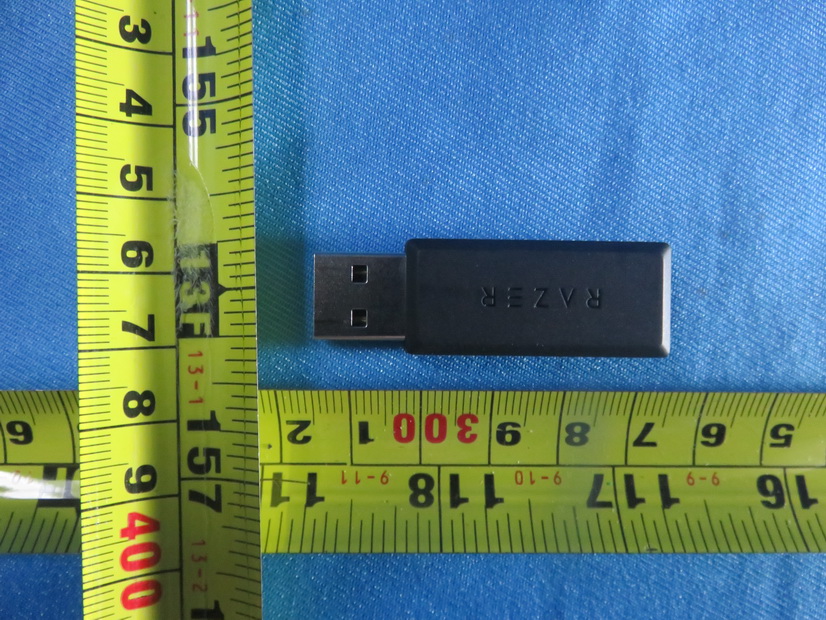

Dat: 06 May 2020 Product Manual for Gaming Headset Model: RZ04-0322 . WHAT’S INSIDE / WHAT’S NEEDED WHAT’S INSIDE  Gaming Headset (Model: RZ04-0322) djustable padded headband ltra-soft breathable memory foam ear cushions olume knob .5 mm audio + mic jack harging port tatus indicator ic mute button H. Power button  Removable Razer TM HyperClear Supercardioid Mic FOR GAMERS. BY GAMERS. ™ 1  USB wireless transceiver  Charging cable  3.5 mm combo cable  Important Product Information Guide WHAT’S NEEDED PRODUCT REQUIREMENTS  PC with a free USB port  Devices with 3.5 mm combo jack* RAZER SYNAPSE REQUIREMENTS  Windows® 7 64-bit (or higher)  Internet connection for software installation *Compatible with PC / Mac / Switch / PS4 / Xbox One (Xbox One Stereo Adapter may be required, purchased separately). FOR GAMERS. BY GAMERS. ™ 1 LET’S GET YOU COVERED You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com Got a question? Ask the Razer Support Team at support.razer.com Your product’s serial number can be found h FOR GAMERS. BY GAMERS. ™ 1 GETTING STARTED CHARGING YOUR HEADSET Connect your Razer BlackShark V2 Pro to a powered USB port using the charging cable. For best results, please fully charge your headset before using it for the first time. A depleted unit will fully charge in about 3 hours. STATUS INDICATOR BEHAVIORS When plugged in When unplugged Indicator Battery Status Blinking green Charging FOR GAMERS. BY GAMERS. ™ 2 Static green Fully charged CONNECTING YOUR HEADSET A. TO YOUR PC VIA USB PORT 1. Plug the USB wireless transceiver to your PC. 2. Press and hold the power button until the status indicator is lit, or until you hear a tone. Indicator Sound Battery Status Static green None Fully charged Slow blinking red Warning tone Low (30%) Rapid blinking red Warning tone Critical(10%) FOR GAMERS. BY GAMERS. ™ 3 3. Wait until the status indicator briefly becomes static blue indicating that the headset is now connected to the USB wireless transceiver. Indicator Status Blinking blue Pairing Static blue Connected 4. On your PC, right-click on the sound icon on the system tray, and then select Sounds. 5. On the Playback and Recording tabs, set Razer BlackShark V2 Pro as the Default Device. FOR GAMERS. BY GAMERS. ™ 4 Your headset is now ready to use. B. TO OTHER DEVICES VIA USB PORT Plug the USB wireless transceiver to your device and make sure your Razer BlackShark V2 Pro is the default input and output audio device. C. TO DEVICES VIA 3.5MM COMBO PORT If your device has a 3.5mm audio + mic combined jack, simply plug the 3.5mm combo cable from your headset to your device’s audio jack. FOR GAMERS. BY GAMERS. ™ 5 POWER BUTTON FUNCTIONS Power ON/OFF Power on or off your headset by holding the power button for at least 3 seconds or until you hear 2 short beeps. Play / Pause a track While powered on, press the power button to play or pause the current track. Next track Previous track While powered on, double press the power button to go to the next track. While powered off, triple press the power button to go to the previous track. ADJUSTING THE VOLUME Rotate the volume knob as shown to increase or decrease the volume. FOR GAMERS. BY GAMERS. ™ 6 USING THE RAZER TM HYPERCLEAR SUPERCARDIOID MIC Plug the Razer TM HyperClear Supercardioid Mic to the headphone and bend until it is parallel to your mouth. Make sure the mic diaphragm is in front and the air vent is facing away from your mouth. MUTING / UNMUTING THE MICROPHONE Press the mic mute button to mute or unmute the microphone. FOR GAMERS. BY GAMERS. ™ 1 EXTENDING YOUR HEADSET’S LIFESPAN We recommend stretching the headset gently apart before placing them over your head to minimize headband stress. However, please avoid overstretching the headset beyond its technical limits. ACTIVATE THX SPATIAL AUDIO Unleash the full potential of your Razer BlackShark V2 Pro by enabling 360° positional audio for a natural and lifelike experience through Razer Synapse. FOR GAMERS. BY GAMERS. ™ 2 Find out more about your new headset at support.razer.com. SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer BlackShark V2 Pro, we suggest that you adopt the following guidelines: FOR GAMERS. BY GAMERS. ™ 3 Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance. Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads. Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level. The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the device when engaging in any activities that requires active awareness of your surroundings. Listening to excessively loud volumes over extended periods of time can damage your hearing. Furthermore, legislation of certain countries permits a maximum sound level of 86db to affect your hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing. MAINTENANCE AND USE The Razer BlackShark V2 Pro requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents. FOR GAMERS. BY GAMERS. ™ 4 LEGALESE COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION ©2020 Razer Inc. All righ…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Razer Inc. Address: 9 Pasteur, Suite 100 City: Irvine State: CA92618 Country: USA Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Gaming Headset Type designation: RZ04-0322 Trademark: RAZER FCC ID : RWO-RZ040322 on our behalf. Date: 2020-09-07 City: Irvine Name: Johnsen Tia Function: Senior Director, Regulatory & Compliance Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Razer Inc. Address: 9 Pasteur, Suite 100 City: CA92618, Country: USA To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: RWO-RZ040322 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: This document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor unfair advantage in the market. Planned Release Date STC: 180 days from date of grant (notes 2, 3, 4, 5) Date: 2020-09-07 Name and signature of applicant: Johnsen Tia Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Model Declaration Letter We, the undersigning company Company Name: Razer Inc. Address: 9 Pasteur, Suite 100, Irvine, CA92618, USA. Hereby confirm that the following products: Product description: Gaming Headset Type designation: RZ04-0322, RZ04-0322XXXX-XXXX ( X can be 0~9, A~Z) Trademark: RAZER That All versions of the Model RZ04-0322 and RZ04-0322XXXX-XXXX are electrically equal except the following difference: 1. X can be 0~9, A~Z 2. It is the same as the basic model and X is used to define which country it is for under the same family series. Date: 2020-09-07 Name: Johnsen Tia Telephone: 65 6571 6828 E-mail: [email protected] Signature:
