RWO-RZ050157BLUETOOTH SPEAKER

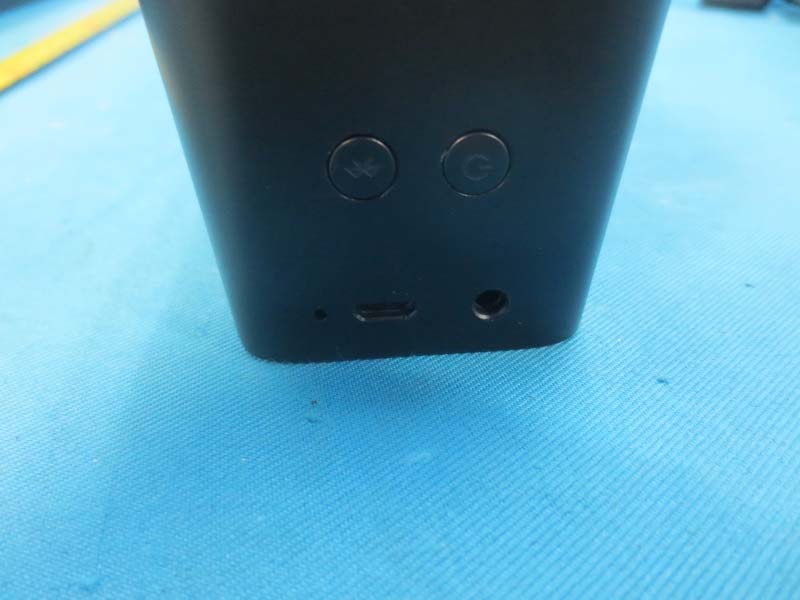

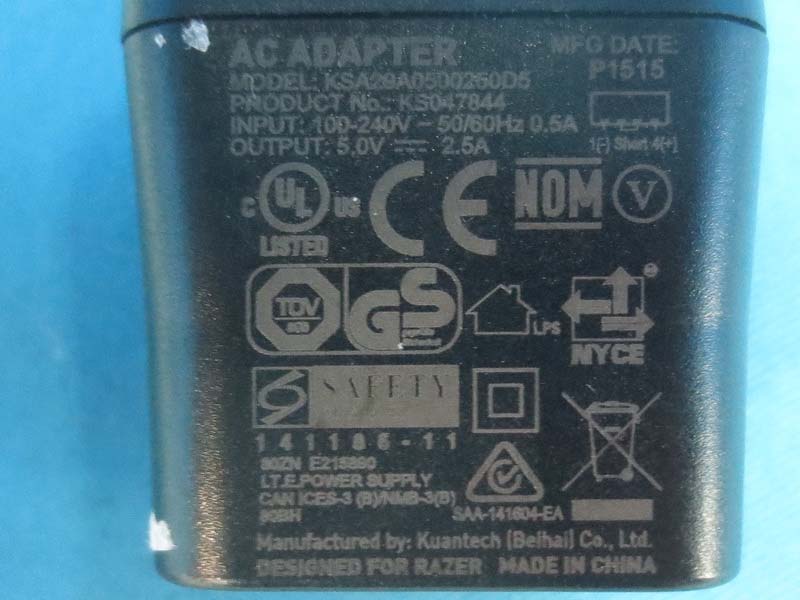

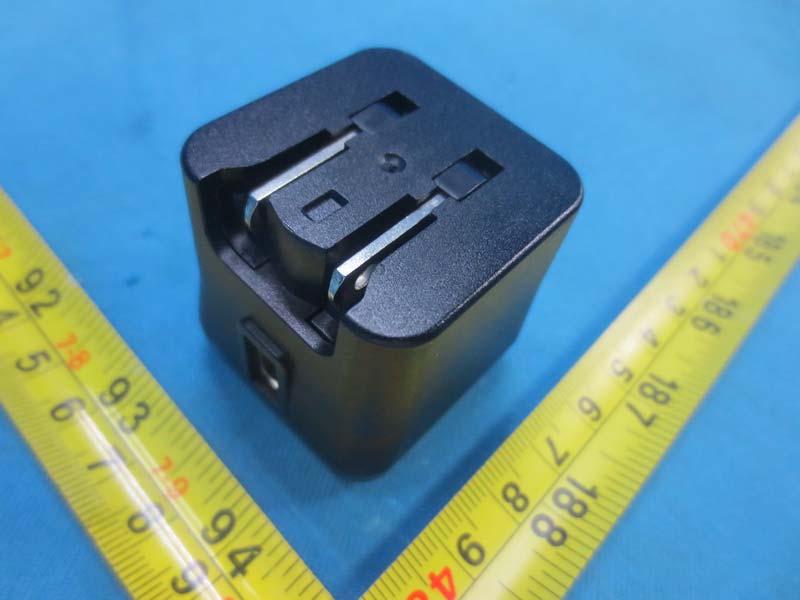

User Manual (Model:RZ05-0157) 0 | For gamer s by gamer s™ PACKAGE CONTENTS • GAMING & MUSIC SPEAKER (Model: RZ05-0157) • Micro-USB to USB cable (for charging) • 3.5 mm analog audio cable • Carrying case • Power adapter with interchangeable plugs • Quick Start Guide • Important Product Information Guide HARDWARE & SYSTEM REQUIREMENTS Hardware Requirements • Devices with Bluetooth connectivity or a 3.5 mm analog audio port System Requirements For use with the Razer Leviathan Mini mobile app • iOS 8 or newer / Android 4.3 or newer 1 | r a z e r ™ REGISTRATION / TECHNICAL SUPPORT REGISTRATION Visit www.razerzone.com/razer-id to sign up for a Razer ID now to get a wide range of Razer benefits. For example, get real-time information on your product’s warranty status via Razer Synapse. To learn more about Razer Synapse and all its features, visit www.razerzone.com/synapse. If you already have a Razer ID, register your product by clicking on your email address within the Razer Synapse application and select Warranty Status from the dropdown list. To register your product online, visit www.razerzone.com/registration. Please note that you will not be able to view your warranty status if you register via the website. TECHNICAL SUPPORT What you’ll get: • 1 year limited manufacturer’s warranty. • Free online technical support at www.razersupport.com. 2 | For gamer s by gamer s™ DEVICE LAYOUT A. Microphone B. Volume down C. Play/Talk button D. Volume up E. NFC connectivity zone F. Power button / Battery indicator LED G. Bluetooth mode button H. 3.5 mm analog audio port I. Micro-USB port J. Factory reset button L. Micro-USB to USB charging cable M. 3.5 mm to 3.5 mm cable N. Carrying case O. Power adapter with interchangeable plugs* *Use the appropriate adapter plug for your region 3 | r a z e r ™ USING YOUR RAZER LEVIATHAN MINI POWERING ON / OFF [PLACEHOLDER: Diagram showing short press and green LED on power button.] To power on/off your speaker, press and hold the power button until the audio feedback is heard. CHARGING YOUR SPEAKERS [PLACEHOLDER: Diagram showing 1, attaching the appropriate power plug, 2, speakers connected to a power source (Power plug)] 1. Select the appropriate power plug for your region and attach it to the power adapter. 2. Connect your speaker to an appropriate power source. For best results, please charge the battery fully before using your Razer Leviathan Mini for the first time. A depleted battery will fully charge in about 5 hours. Battery Indicator (Power button) LED Audio feedback Status Green N.A. Battery is fully charged and speaker is on. Off N.A. Battery is charged and speaker is off. Orange N.A. Battery low Blinking in red Single beep Battery is critically low. Breathing in red N.A. Battery is charging. 4 | For gamer s by gamer s™ CONNECTING TO AN AUDIO SOURCE Note: When connected to devices with inbuilt speaker systems, audio may continue to be played via the inbuilt speaker. In such cases, please switch your device’s audio output to the Razer Leviathan Mini manually. Connecting via NFC Simply activate NFC on your device and tap it on the speaker’s NFC connectivity region to pair. The input source will automatically switch to the paired device. [DIAGRAM] Connecting via Bluetooth® If you are using the speaker’s Bluetooth input for the first time, or if you are attempting to connect a new device to the speaker via Bluetooth, you will need to activate pairing mode. 1. Press and hold the Bluetooth button for 3 seconds or more to enter pairing mode. The Bluetooth LED will start to blink slowly. [DIAGRAM] 2. Enable Bluetooth on your device and search for new Bluetooth devices. 3. Select “Razer Leviathan Mini” from the list of devices found. 4. Wait for pairing to complete. The Bluetooth indicator will change to a solid light once successfully connected. 5 | r a z e r ™ Understanding the Bluetooth modes The speaker’s Bluetooth module operates in the following modes: Pairing Mode Connecting Mode Connected Mode Pairing with new devices Connecting to the last paired device When a device is connected to the speaker via Bluetooth Discoverable? Any Bluetooth enabled device Only the last paired device No How to activate? Press and hold the Bluetooth button for >3 sec Press the Bluetooth button once Automatically activated when a device is successfully paired Timeout 15 min 10 sec Never Automatically changes to? Speaker turns off after timeout Pairing mode after timeout Connecting mode when the paired device is disconnected (out of range) LED indication Blinks slowly Blinks fast Solid Audio feedback Yes No Yes Connecting via the analog cable Connect your device to the Razer Leviathan Mini’s 3.5 mm audio port using a 3.5 mm analog cable. When connected, AUX input takes priority over devices paired via Bluetooth. [PLACEHOLDER DIAGRAM] 6 | For gamer s by gamer s™ CONTROLLING YOUR RAZER LEVIATHAN MINI You can use the buttons on the speaker to manually control various functions including audio playback and call features. You can also link 2 Razer Leviathan Mini speakers together using the Play/Talk button. Note: You can also use the Razer Leviathan Mini Mobile App to control your speaker remotely. Please refer to USING THE RAZER LEVIATHAN MINI MOBILE APPLICATION for more information. Playing Music You can use the following button presses to control music playback from the connected audio source. Button Action Effect Single press / Press and hold Decrease the speaker’s playback volume. While audio is being played through the speaker, each press comes with an audio beep feedback, indicating the current volume level. Single press / Press and hold Increase the speaker’s playback volume. While audio is being played through the speaker, each press comes with an audio beep feedback, indicating the current volume level. Two beeps will be played when the volume is increased to the maximum level. Single press Play / pause music playback from the currently connected audio source. Double press Pl…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Razer Inc. Address: 9 Pasteur, Suite 100 Irvine City: Irvine State: California 92618 Country: United States Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: BLUETOOTH SPEAKER Type designation: RZ05-0157 Trademark: RAZER on our behalf. Date: 2015-09-23 City: Irvine Name: Johnsen Tia Function: Senior Engineer Signature: ...............................

Project No.: 1508C248 Page 2 of 20 Project No.: 1508C248 Page 3 of 20 Project No.: 1508C248 Page 18 of 20 Project No.: 1508C248 Page 19 of 20 Project No.: 1508C248 Page 20 of 20

ZϬρͲϬϭρϳ &ͬ/         This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Project No.: 1508C248 Page 4 of 20 Project No.: 1508C248 Page 5 of 20 Project No.: 1508C248 Page 6 of 20 Project No.: 1508C248 Page 7 of 20 Project No.: 1508C248 Page 8 of 20 Project No.: 1508C248 Page 9 of 20 Project No.: 1508C248 Page 10 of 20 Project No.: 1508C248 Page 11 of 20 Project No.: 1508C248 Page 12 of 20 Project No.: 1508C248 Page 13 of 20 Project No.: 1508C248 Page 14 of 20 Project No.: 1508C248 Page 15 of 20 Project No.: 1508C248 Page 16 of 20 Project No.: 1508C248 Page 17 of 20

FCC RF EXPOSURE REPORT FCC ID: RWO-RZ050157 Project No. : 1508C248 Equipment : BLUETOOTH SPEAKER Model : RZ05-0157 Applicant : Razer Inc. Address : 9 Pasteur, Suite 100 Irvine, California 92618, United States According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain(dBi) 1 N/A Leviathan Mini Printed N/A 1.62 GENERAL CONCULUSION: Maximum measured transmitter power: Output Power (dBm) Output Power (mW) Limit (mW) 2.54 1.8 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 1.8mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold.

Report No.: BTL-FCCP-1-1508C248 Page 1 of 77 FCC Radio Test Report FCC ID: RWO-RZ050157 This report concerns (check one): Original Grant Class I Change Class II Change Project No. : 1508C248 Equipment : BLUETOOTH SPEAKER Model Name : RZ05-0157 Applicant : Razer Inc. Address : 9 Pasteur, Suite 100 Irvine, California 92618, United States Date of Receipt : Aug. 27, 2015 Date of Test : Aug. 27, 2015 ~ Sep. 06, 2015 Issued Date : Sep. 07, 2015 Tested by : BTL Inc. Testing Engineer : (Shawn Xiao) Technical Manager : (David Mao) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1508C248 Page 2 of 77 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1508C248 Page 3 of 77 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . NUMBER OF HOPPING CHANNEL 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FCCP-1-1508C248 Page 4 of 77 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 23 6.1.5 EUT TEST CONDITIONS 23 6.1.6 TEST RESULTS 23 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 24 7.1 APPLIED PROCEDURES / LIMIT 24 7.1.1 TEST PROCEDURE 24 7.1.2 DEVIATION FROM STANDARD 24 7.1.3 TEST SETUP 24 7.1.4 EUT TEST CONDITIONS 24 7.1.5 TEST RESULTS 24 8 . BANDWIDTH TEST 25 8.1 APPLIED PROCEDURES 25 8.1.1 TEST PROCEDURE 25 8.1.2 DEVIATION FROM STANDARD 25 8.1.3 TEST SETUP 25 8.1.4 EUT OPERATION CONDITIONS 25 8.1.5 EUT TEST CONDITIONS 25 8.1.6 TEST RESULTS 25 9 . PEAK OUTPUT POWER TEST 26 9.1 APPLIED PROCEDURES / LIMIT 26 9.1.1 TEST PROCEDURE 26 9.1.2 DEVIATION FROM STANDARD 26 9.1.3 TEST SETUP 26 9.1.4 EUT OPERATION CONDITIONS 26 9.1.5 EUT TEST CONDITIONS 26 9.1.6 TEST RESULTS 26 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 27 10.1 APPLIED PROCEDURES / LIMIT 27 10.1.1 TEST PROCEDURE 27 10.1.2 DEVIATION FROM STANDARD 27 10.1.3 TEST SETUP 27 10.1.4 EUT OPERATION CONDITIONS 27 10.1.5 EUT TEST CONDITIONS 27 10.1.6 TEST RESULTS 27 11 . MEASUREMENT INSTRUMENTS LIST 28 Report No.: BTL-FCCP-1-1508C248 Page 5 of 77 Table of Contents Page ATTACHMENT A - CONDUCTED EMISSION 30 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 33 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 35 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 42 ATTACHMENT E - NUMBER OF HOPPING CHANNEL 55 ATTACHMENT F - AVERAGE TIME OF OCCUPANCY 57 ATTACHMENT G - HOPPING CHANNEL SEPARATION MEASUREMENT 64 ATTACHMENT H - BANDWIDTH 67 ATTACHMENT I - PEAK OUTPUT POWER 70 ATTACHMENT J - ANTENNA CONDUCTED SPURIOUS EMISSION 73 Report No.: BTL-FCCP-1-1508C248 Page 6 of 77 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1508C248 Original Issue. Sep. 07, 2015 Report No.: BTL-FCCP-1-1508C248 Page 7 of 77 1. CERTIFICATION Equipment : BLUETOOTH SPEAKER Brand Name : RAZER Model Name : RZ05-0157 Applicant : Razer Inc. Manufacturer : Razer (Asia-Pacific) Pte.,Ltd. Address : 514 Chai Chee Lane #07-01 ~ 06 Singapore 469029. Factory : RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO. Address : East Wing, 3rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China Date o f Te s t : Aug. 27, 2015 ~ Sep. 06, 2015 Te s t Sample : Engineering Sample Standard(s) : FCC Part15, Subpart C : 2014 (15.247)/ ANSI C63.10-2013 The above equipme…

Text truncated - open the document above for the full version.

Project No.: 1508C248 Page 1 of 4 Conducted Measurement Photos Project No.: 1508C248 Page 2 of 4 Radiated Measurement Photos 9KHz to 30MHz Project No.: 1508C248 Page 3 of 4 Radiated Measurement Photos 30MHz to 1000MHz Project No.: 1508C248 Page 4 of 4 Radiated Measurement Photos Above 1000MHz
