RWO-RZ120111Bluetooth Music Headphones

0 | For gamers by gamers™ 1. PACKAGE CONTENTS / HARDWARE REQUIREMENTS / REGISTRATION PACKAGE CONTENTS • Razer Bluetooth Music Headphones(M/N: RZ12-0111) • Micro-USB to USB charging cable • Quick Start Guide HARDWARE REQUIREMENTS Audio Usage • Devices with Bluetooth® connectivity For Charging • Devices with USB ports for charging REGISTRATION Please visit www.razerzone.com/registration for online product registration. What you’ll get: • 1 year limited manufacturer’s warranty. • Free online technical support at www.razersupport.com. 1 | razer™ 2. KEY FEATURES A. Adjustable Padded Headband B. Power / Pairing Button C. Micro-USB connector for charging D. Playback control button E. Micro-USB to USB charging cable 2 | For gamers by gamers™ 3. TECHNICAL SPECIFICATIONS • Bluetooth® v4.0 with aptX Technology • Drivers: 40 mm Neodymium Magnets • Frequency Response: 20Hz – 20kHz • Impedance: 32 Ω • Sensitivity: 91dB ± 3dB • Max Input: 50mW • Operating distance: 10m • Up to 20hrs of playtime • Charging time: 2.5hrs • Charging cable: Micro-USB to USB charging cable • Approximate Weight: 197 g 3 | razer™ 4. USING YOUR HEADPHONES Power On/Off Power on: Press and hold the power for 3 seconds until the LED flashes blue. You should hear a voice message “Hello”. Power off: Press and hold the power button for 3 seconds until the LED flashes red twice. You should hear a voice message “Goodbye”. Pairing your headphones to a Bluetooth® device 1. Press and hold the power button for 3 seconds. The LED should be flashing blue and red alternatively. This indicates that the headphone is now in pairing mode. 2. Activate Bluetooth® on your device and search for new Bluetooth® devices. 3. Select “BT Headphone” from the list of Bluetooth® devices found. 4. Wait for the pairing to complete. Your headphone LED will flash blue 5 times and a voice message “Your device is connected” will be played. Note: The pairing attempt will be stopped if no connection can be established after 2 minutes. A voice message “Goodbye” will be played indicating the connection failure. 4 | For gamers by gamers™ Playback controls The following audio playback controls can be accessed directly on the earcups. Play/Pause Volume up/down Changing tracks LED Indicators Battery: Charging – Solid Red Fully charged – LED off Battery low – 2 red flashes every 3 seconds In use: Pairing mode: Flashing blue and red alternatively Successful connection: 5 blue flashes Power on: 1 blue flash Power off: 2 red flashes Playing audio: 2 red/blue flashes every 3 seconds Standby: 1 blue flash every 5 seconds 5 | razer™ 5. SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Bluetooth® Headphones, we suggest that you adopt the following guidelines: 1. Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to www.razersupport.com for support. Do not attempt to service or fix the device yourself at any time. 2. Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads. 3. Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and switch off the device in order to let the temperature stabilize within the optimal temperature range. 4. The Bluetooth® Headphones isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the Bluetooth® Headphones when engaging in any activity that requires active awareness of your surroundings. 5. Listening to excessively loud volumes over extended periods of time can damage your hearing. Furthermore, legislation of certain countries permits a maximum sound level of 86db to affect your hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing. MAINTENANCE AND USE The Bluetooth® Headphones requires minimum maintenance to keep it in optimum condition. Once a month we recommend you clean the device using a soft cloth or cotton swab with a bit of warm water to prevent dirt buildup. Do not use soap or harsh cleaning agents. 6 | For gamers by gamers™ 6. LEGALESE COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION ©2013 Razer Inc. All Rights Reserved. Razer, the Razer Triple-Headed Snake logo, the Razer distressed word logo and other trademarks contained herein are trademarks or registered trademarks of Razer Inc. and/or its affiliated or associated companies, registered in the United States and/or other countries. Razer Inc. (“Razer”) may have copyright, trademarks, trade secrets, patents, patent applications, or other intellectual property rights (whether registered or unregistered) concerning the product in this Quick Start Guide. Furnishing of this Quick Start Guide does not give you a license to any such copyright, trademark, patent or other intellectual property right. The Bluetooth® Headphones (the “Product”) may differ from pictures whether on packaging or otherwise. Razer assumes no responsibility for such differences or for any errors that may appear. Information contained herein is subject to change without notice. LIMITED PRODUCT WARRANTY For the latest and current terms of the Limited Product Warranty, please visit www.razerzone.com/warranty. LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product. COSTS OF PROCUREMENT For the avoidance of doubt, in no event will Razer be liable for any costs of p…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality FCC ID: RWO-RZ120111 Dear FCC TCB: 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Schematic Block diagram Operational description Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials: Internal Photos, User’s Manual ,Test Set-up Photos, External Photos, Planned Release Date STC: 180 days from date of grant Justification: This document contains detailed system and equipment description is considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor unfair advantage in the market. Signature: ________________________ Johnsen Tia(Senior Regulatory Engineer) Razer Inc. E-mail: [email protected] 2013/10/7

Declaration of Authorization W e Company Name: Razer Inc. Address: 2035 Corte Del Nogal, Suite 101. Carlsbad California 92011. United States Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s),including signing all applicant forms: Product description: Bluetooth Music Headphones Type designation: RZ12-0111 Brand: RAZER on our behalf. Signature: ________________________ Johnsen Tia , Razer Inc. Tel: +65 6571 6828 F ax: +65 6505 2199 E -mail: [email protected] 2013/10/7

Neutron Engineering Inc. Project No.: 1308C237 Page 2 of 10 Neutron Engineering Inc. Project No.: 1308C237 Page 3 of 10 Neutron Engineering Inc. Project No.: 1308C237 Page 4 of 10

FCC ID : RWO-RZ120111 IC : 8092D-RZ120111 Label Information Ear Cup

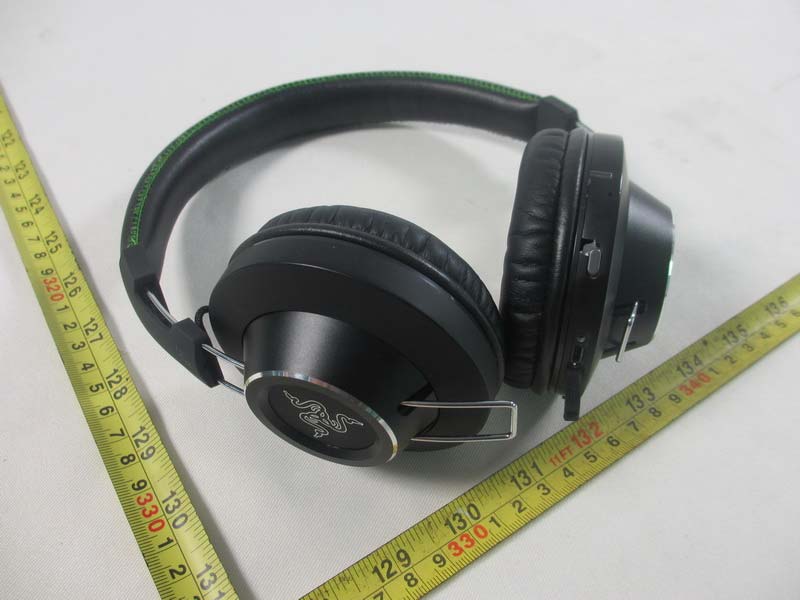

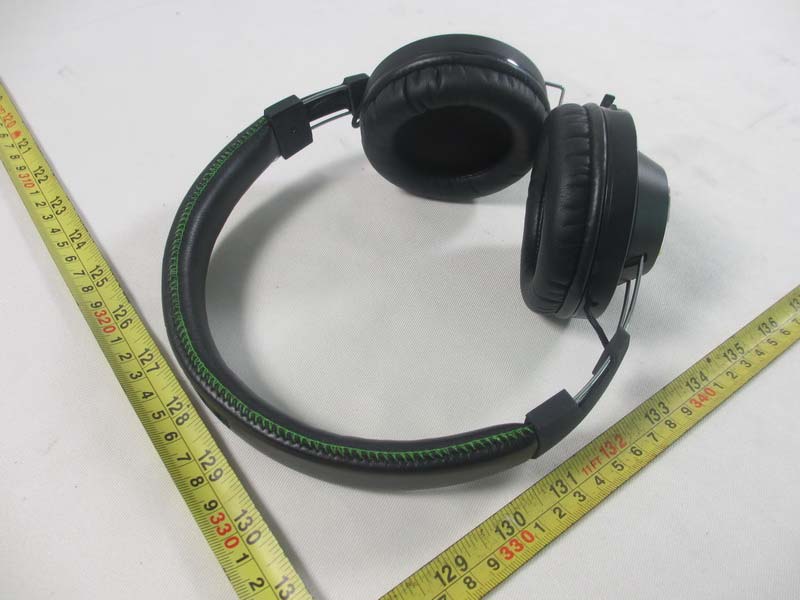

Neutron Engineering Inc. Project No.: 1308C237 Page 1 of 11 ATTACHMENT PHOTOGRAPHS OF EUT Neutron Engineering Inc. Project No.: 1308C237 Page 2 of 11 Neutron Engineering Inc. Project No.: 1308C237 Page 3 of 11 Neutron Engineering Inc. Project No.: 1308C237 Page 4 of 11 Neutron Engineering Inc. Project No.: 1308C237 Page 5 of 11 Neutron Engineering Inc. Project No.: 1308C237 Page 6 of 11 Neutron Engineering Inc. Project No.: 1308C237 Page 7 of 11 Neutron Engineering Inc. Project No.: 1308C237 Page 8 of 11 Neutron Engineering Inc. Project No.: 1308C237 Page 9 of 11 Neutron Engineering Inc. Project No.: 1308C237 Page 10 of 11 Neutron Engineering Inc. Project No.: 1308C237 Page 11 of 11

Neutron Engineering Inc. Report No.: NEI-FICP-1-1308C237 Page 1 of 99 FCC&IC Radio Test Report FCC ID: RWO-RZ120111 IC: 8092D-RZ120111 This report concerns (check one): Original Grant Class II Change Issued Date : Sep. 25, 2013 Project No. : 1308C237 Equipment : Bluetooth Music Headphones Model Name : RZ12-0111 Applicant for FCC : Razer Inc. Applicant for IC : Razer INC. Address : 2035 Corte Del Nogal, Suite 101. Carlsbad California 92011. USA Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Aug. 30, 2013 Date of Test: Aug. 30, 2013~Sep. 24, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1308C237 Page 2 of 99 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1308C237 Page 3 of 99 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FICP-1-1308C237 Original Issue. Sep. 25, 2013 Neutron Engineering Inc. Report No.: NEI-FICP-1-1308C237 Page 4 of 99 Table of Contents Page REPORT ISSUED HISTORY 3 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 20 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BELOW 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . NUMBER OF HOPPING CHANNEL 55 5.1 APPLIED PROCEDURES / LIMIT 55 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 55 5.1.2 TEST PROCEDURE 55 5.1.3 DEVIATION FROM STANDARD 55 5.1.4 TEST SETUP 55 5.1.5 EUT OPERATION CONDITIONS 55 5.1.6 TEST RESULTS 56 Neutron Engineering Inc. Report No.: NEI-FICP-1-1308C237 Page 5 of 99 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 58 6.1 APPLIED PROCEDURES / LIMIT 58 6.1.1 MEASUREMENT INSTRUMENTS LIST 58 6.1.2 TEST PROCEDURE 58 6.1.3 DEVIATION FROM STANDARD 58 6.1.4 TEST SETUP 59 6.1.5 EUT OPERATION CONDITIONS 59 6.1.6 TEST RESULTS 60 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 72 7.1 APPLIED PROCEDURES / LIMIT 72 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 72 7.1.2 TEST PROCEDURE 72 7.1.3 DEVIATION FROM STANDARD 72 7.1.4 TEST SETUP 72 7.1.5 EUT OPERATION CONDITIONS 72 7.1.6 TEST RESULTS 73 8 . BANDWIDTH TEST 77 8.1 APPLIED PROCEDURES / LIMIT 77 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 77 8.1.2 TEST PROCEDURE 77 8.1.3 DEVIATION FROM STANDARD 77 8.1.4 TEST SETUP 77 8.1.5 EUT OPERATION CONDITIONS 77 8.1.6 TEST RESULTS 78 9 . PEAK OUTPUT POWER TEST 82 9.1 APPLIED PROCEDURES / LIMIT 82 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 82 9.1.2 TEST PROCEDURE 82 9.1.3 DEVIATION FROM STANDARD 82 9.1.4 TEST SETUP 82 9.1.5 EUT OPERATION CONDITIONS 82 9.1.6 TEST RESULTS 83 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 87 10.1 APPLIED PROCEDURES / LIMIT 87 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 87 10.1.2 TEST PROCEDURE 87 10.1.3 DEVIATION FROM STANDARD 87 10.1.4 TEST SETUP 87 10.1.5 EUT OPERATION CONDITIONS 87 10.1.6 TEST RESULTS 88 Neutron Engineering Inc. Report No.: NEI-FICP-1-1308C237 Page 6 of 99 1. CERTIFICATION Equipment : Bluetooth Music Headphones Brand Name : RAZER Model Name : RZ12-0111 Applicant for FCC : Razer Inc. Applicant for IC : Razer INC. Manufacturer : Razer (Asia-Pacific) Pte Ltd Address : 514 Chai Chee Lane #07-01 ~ 06 Singapore 469029 Factory RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO., LTD Address East Wing, 3rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China Date of Test : Aug. 30, 2013~Sep. 24, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) :2012 / ANSI C63.4-2009 FCC Public Notice DA 00-705, March 30, 2000. Canada RSS-210:2010 RSS-GEN Issue 3, Dec …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1308C237 Page 1 of 4 1. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FICP-1-1308C237 Page 2 of 4 Radiated Measurement Photos 9KHz ~ 30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1308C237 Page 3 of 4 Radiated Measurement Photos 30MHz ~ 1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1308C237 Page 4 of 4 Radiated Measurement Photos Above 1000MHz
