RWO-RZ150118Wireless SmartBand

PACKAGE CONTENTS • Razer Nabu • Important Product Information Guide • Micro-USB Charging Cable SYSTEM REQUIREMENTS • iPhone 5 / 5S /5C with iOS 7 (or higher) • Android 4.1 (or higher) with Bluetooth 4.0 REGISTRATION Sign up now for a Synapse account to get real-time information on your product’s warranty status. To learn more about Synapse and all its features, visit www.razerzone.com/synapse. If you are already a Synapse user, register your product by clicking on your email address at the Synapse application and select Warranty Status from the dropdown list. To register your product online, visit www.razerzone.com/registration. Please note that you will not be able to view your warranty status if you register via the website. TECHNICAL SUPPORT What you’ll get: • 1 year limited manufacturer’s warranty. • Free online technical support at www.razersupport.com. CHARGING THE NABU 1. Unlock the clasp by separating the two ends of the wristband. 2. Plug in the Nabu to the micro USB cable. 3. Plug the USB cable to your PC or to a USB charger. Reminder: Please remove the Nabu from your wrist before charging it. The approximate time to fully charge the Nabu is 90 minutes. CHANGING THE CLASP 1. Twist the clasp 90 degrees and then pull it from the wristband. 2. Insert the small clasp into the wristband then twist it 90 degrees. USING THE RAZER NABU 1. Insert your wrist into the wristband from the side as shown here. 2. Lock the clasp and make sure both ends of the wristband are aligned. 3. Press the power button for at least 2 seconds. 4. Download the Razer Nabu Utility App for iOS or Android and follow the onscreen instructions. For more information, please refer to the Online Master Guide at www.razersupport.com. SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Nabu, we suggest that you adopt the following guidelines: 1. Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to www.razersupport.com for support. Do not attempt to service or fix the device yourself at any time. 2. Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads. 3. Do not expose the Razer Nabu to liquids, moisture, or humidity while charging. Exposing the Razer Nabu to these conditions may result in electric shock. 4. Do not tamper or abuse the Razer Nabu; including but not limited to dropping, crushing, excessive bending, puncturing, shredding, microwaving, incinerating, or inserting foreign objects into the Razer Nabu. 5. Do not use abrasive cleaners and/or harsh cleaning agents to clean the Razer Nabu. 6. Do not expose the Razer Nabu to extremely high or low temperatures such as leaving the Razer Nabu in direct sunlight or in snowy weather for extended periods of time. 7. Do not expose the Razer Nabu to open flames such as stoves, candles, or fireplaces. 8. Charge the battery in accordance with the recommended charging time and do not wear the Razer Nabu while it is charging. 9. Dispose the product according to your local environmental laws and guidelines. BATTERY The Razer Nabu contains an internal, lithium-ion polymer rechargeable battery. In general, the life expectancy of this battery depends upon use. If the battery does not charge after several attempts, it may be non-operational and you may need to contact customer support. Do not attempt to replace the Razer Nabu’s battery yourself. COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION © 2014 Razer Inc. All rights reserved. Razer, For Gamers By Gamers, and the triple-headed snake logo are trademarks or registered trademarks of Razer Inc. and/or affiliated companies in the United States or other countries. All other trademarks are the property of their respective owners. Actual product may differ from pictures. Information is correct at time of printing. iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. Android is a trademark of Google Inc. Razer Inc. (“Razer”) may have copyright, trademarks, trade secrets, patents, patent applications, or other intellectual property rights (whether registered or unregistered) concerning the product in this guide. Furnishing of this guide does not give you a license to any such copyright, trademark, patent or other intellectual property right. The Razer Nabu (the “Product”) may differ from pictures whether on packaging or otherwise. Razer assumes no responsibility for such differences or for any errors that may appear. Information contained herein is subject to change without notice. LIMITED PRODUCT WARRANTY For the latest and current terms of the Limited Product Warranty, please visit www.razerzone.com/warranty. LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product. COSTS OF PROCUREMENT For the avoidance of doubt, in no event will Razer be liable for any costs of procurement unless it has been advised of the possibility of such damages, and in no case shall Razer be liable for any costs of procurement liability exceeding the retail purchase price of the Product. GENERAL These terms shall be governed by and construed under the laws of the jurisdiction in which the Product was purchased. If any term herein is held to be invalid or unenforceable, then such term (in so far as it is invalid or unenforceable) shall be given no effect and deemed to be excluded without invalidating any of the remaining terms. Razer reserves the right to amend any term at any time without notice. FCC DECLARATION OF CONFORMANCE This equipment has been tested and found to comply with the limits for a Clas…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Cerpass Technology Corp. Tel:886-3-3226-888 Fax:886-3-3226-881 Date: May 21, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD To whom it may concern, The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding Wireless SmartBandfor theRazer Inc.,model: RZ15-0118. Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Cerpass Technology Corp. (Cerpass), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Cerpass for assistance. _________________________ Delia Feng / Specialist Cerpass Technology Corporation TEL: +886-3-3226-888 # 1506 FAX: +886-3-3226-881 E-mail: [email protected]

Razer Inc. 2035 Corte Del Nogal Suite 101 Carlsbad California 92011 United States Declaration of Authorization We Name: Razer Inc. Address: 2035 Corte Del Nogal, Suite 101, Carlsbad California 92011 Country: United States Declare that: Name Representative of agent:Delia Feng Agent Company name:Cerpass Technology Corporation Address:2F-11, No. 3, Yuan Qu St. (Nankang Software Park) City:Taipei, 115 CountryTaiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Wireless SmartBand Type designation:RZ15-0118 Trademark:Razer on our behalf. Date:May 19, 2014 City:Carlsbad Name:Johnsen Tia Function:Senior Regulatory & Compliance Engineer Signature:

Date: May 22, 2014 Subject: DoC Declaration To Whom it may concern, We, as the grantee of this project FCC ID: RWO-RZ150118, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name and Model Name of the specified radio equipment: Razer / RZ15-0118, FCC ID: RWO-RZ150118 Product Name: Wireless SmartBand Regards, Signature____________________ Name/Title: Johnsen Tia / Senior Regulatory & Compliance Engineer Email: [email protected] Company Name: Razer Inc.

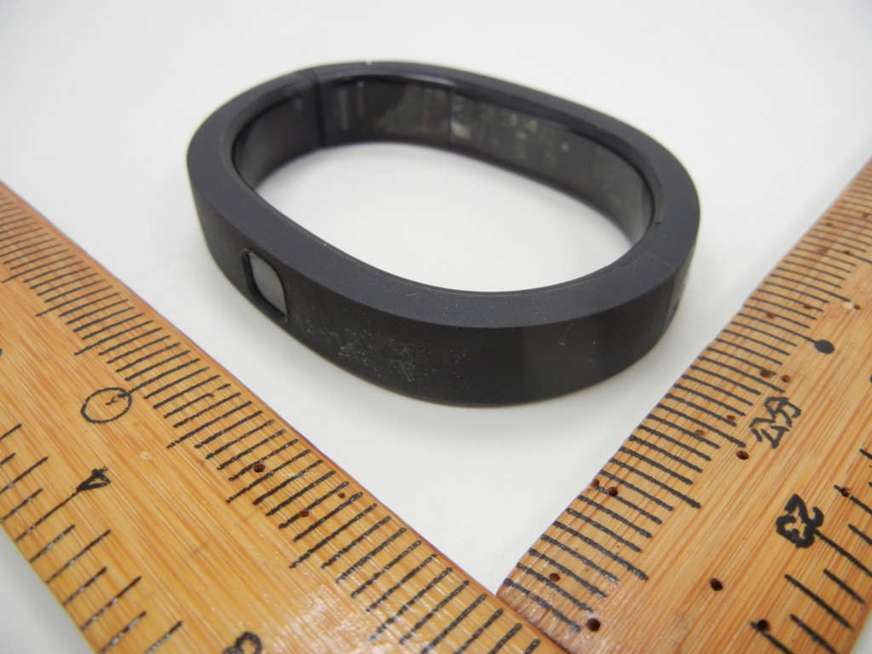

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1402176 Cerpass Technology Corp.Issued Date:May 21, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:B1 of B2 FCC ID:RWO-RZ150118 Appendix B. External Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFQ1402176 Cerpass Technology Corp.Issued Date:May 21, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:B2 of B2 FCC ID:RWO-RZ150118

RZ15-0118 Product Label and Location

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1402176 Cerpass Technology Corp.Issued Date:May 21, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:C1 of C4 FCC ID:RWO-RZ150118 Appendix C. Internal Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFQ1402176 Cerpass Technology Corp.Issued Date:May 21, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:C2 of C4 FCC ID:RWO-RZ150118 CERPASS TECHNOLOGY CORP. Report No.: TEFQ1402176 Cerpass Technology Corp.Issued Date:May 21, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:C3 of C4 FCC ID:RWO-RZ150118 CERPASS TECHNOLOGY CORP. Report No.: TEFQ1402176 Cerpass Technology Corp.Issued Date:May 21, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:C4 of C4 FCC ID:RWO-RZ150118

CERPASS TECHNOLOGY CORP. Report No.: 1402176 Cerpass Technology Corp. Issued date:May 21, 2014 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No.:1 of 1 FCC ID.:RWO-RZ150118 Radio Frequency Exposure EUT INFORMATION EUTWireless SmartBand Frequency band (Operating) Bluetooth: 2.402GHz ~ 2.480 GHz Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output powerGFSK:-8.41dBm (0.144mW) Antenna gain (Max)2.2 dBi TEST RESULT According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance,mm)] ·[√ f(GHz)] ≤ 3.0 The max. average power of channel, including tune-up tolerance(mW) is 1.5 mW @ 2402MHz (With Tune-up tolerance), The min. test separation distance (mm) is 5 mm, So, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)]·[√ f(GHz)] =1.5/5 x√2.402=0.3x1.5498=0.465 < 3.0 (With Tune-up tolerance). Therefore, standalone SAR measurements are not required for both head and body.

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1402176 Cerpass Technology Corp.Issued Date:May 21, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:1 of 32 FCC ID.:RWO-RZ150118 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant:Razer Inc. Address: 2035 Corte Del Nogal, Suite 101, Carlsbad California 92011 Equipment:Wireless SmartBand Model No.:RZ15-0118 FCC ID:RWO-RZ150118 Trade Name:Razer The test result refers exclusively to the test presented test model / sample., Without written approval ofCerpass Technology Corp.,the test report shall not be reproduced except in full. The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFQ1402176 Cerpass Technology Corp.Issued Date:May 21, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:2 of 32 FCC ID.:RWO-RZ150118 Contents 1.Report of Measurements and Examinations ....................................................................................6 1.1List of Measurements and Examinations ...................................................................................6 2.Test Configuration of Equipment under Test ...................................................................................7 2.1Feature of Equipment under Test...............................................................................................7 2.2Carrier Frequency of Channels ..................................................................................................7 2.3Test Mode and Test Software.....................................................................................................7 2.4General Information of Test........................................................................................................8 2.5Measurement Uncertainty ..........................................................................................................8 3.Antenna Requirements.......................................................................................................................9 3.1Standard Applicable ...................................................................................................................9 3.2Antenna Construction and Directional Gain...............................................................................9 4.Test of Conducted Emission............................................................................................................10 4.1Test Limit ..................................................................................................................................10 4.2Test Procedures .......................................................................................................................10 4.3Test Result and Data ................................................................................................................10 5.Test of Radiated Emission ............................................................................................................... 11 5.1Test Limit .................................................................................................................................. 11 5.2Test Procedures ....................................................................................................................... 11 5.3Typical Test Setup ....................................................................................................................12 5.4Measurement Equipment .........................................................................................................12 5.5Test Result and Data (9kHz ~ 30MHz).....................................................................................12 5.6Test Result and Data (30MHz ~ 1GHz)....................................................................................13 5.7Test Result and Data (1GHz ~ 25GHz)....................................................................................15 6.6dB Bandwidth Measurement Data .................................................................................................21 6.1Test Limit ..................................................................................................................................21 6.2Test Procedures .......................................................................................................................21 6.3Test Setup Layout ....................................................................................................................21 6.4Measurement Equipment .........................................................................................................21 6.5Test Result and Data ................................................................................................................21 7.Maximum Peak and Average Output Power ...................................................................................24 7.1Test Limit ..................................................................................................................................24 7.2Test Procedures .......................................................................................................................24 7.3Test Setup Layout ....................................................................................................................24 7.4Measurement Equipment .........................................................................................................24 7.5Test Result and Data ................................................................................................................24 8.Power Spectral Density ....................................................................................................................25 8.1Test Limit ............…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1402176 Cerpass Technology Corp.Issued Date:May 21, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A1 of A2 FCC ID:RWO-RZ150118 Appendix A. Test Setup Photograph Radiated Emission (30MHz ~ 1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFQ1402176 Cerpass Technology Corp.Issued Date:May 21, 2014 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A2 of A2 FCC ID:RWO-RZ150118 Radiated Emission (1GHz ~ 25GHz) Front View Rear View
