RWO-RZ150124Wireless Smartband

0 | For gamers. by gamers™ TABLE OF CONTENTS 1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS ...................................... 1 2. REGISTRATION / TECHNICAL SUPPORT ..................................................... 2 3. USING YOUR RAZER NABU ....................................................................... 3 4. CONFIGURING THE UTILITY APP FOR NABU.............................................. 9 5. SAFETY AND MAINTENANCE .................................................................. 15 6. LEGALESE ............................................................................................... 17 1 | razer™ 1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS PACKAGE CONTENTS • Razer Nabu(RZ15-0124) • Important product information guide • Micro-USB charging cable • 2 Interchangeable clasps SYSTEM REQUIREMENTS • iPhone 5 / 5S /5C with iOS 7 (or higher) • Android 4.3 (or higher) device with Bluetooth Low Energy (BT 4.0 or higher) capability 2 | For gamers. by gamers™ 2. REGISTRATION / TECHNICAL SUPPORT REGISTRATION Sign up now for a Razer ID account to get real-time information on your product’s warranty status. To learn more about Razer ID and all its features, visit www.razerzone.com/razer-id. If you are already a Synapse user, register your product by clicking on your email address at the Synapse application and select Warranty Status from the dropdown list. To register your product online, visit www.razerzone.com/registration. Please note that you will not be able to view your warranty status if you register via the website. Your product’s serial number can be found here TECHNICAL SUPPORT What you’ll get: • 1 year limited manufacturer’s warranty. • Free online technical support at www.razersupport.com. 3 | razer™ 3. USING YOUR RAZER NABU CHARGING THE NABU 1. Unlock the clasp by separating the two ends of the wristband. 2. Insert the micro USB connector to the Razer Nabu and insert the USB connector to a PC or a USB charger. Reminder: Please remove the Razer Nabu from your wrist before charging it. The approximate time to fully charge the Razer Nabu is 90 minutes. Do not leave the Razer Nabu charging overnight. 4 | For gamers. by gamers™ CHANGING THE CLASP 1. Twist the clasp 90 degrees and then gently pull it away from the wristband. 2. Insert the small clasp into the wristband then twist it 90 degrees. 5 | razer™ WEARING THE RAZER NABU 1. Unlock the clasp and slide your wristband from the side as shown here. WARNING: Do not overstretch the wristband beyond its physical limits. Doing so may void your warranty. 6 | For gamers. by gamers™ 2. Lock the clasp and make sure both ends of the wristband are aligned. 3. Press the power button for at least 1 second and release it once you feel a vibration. 4. Download the Nabu Utility app on iOS or Android and follow the onscreen instructions. 7 | razer™ SMARTBAND MODES While the Razer Nabu is turned ON, it can be set to different modes depending on how long the power button is pressed. Do Not Disturb Mode This mode will disable incoming notifications and band vibration. To activate this mode, press and hold the power button for at least 3 seconds and release it once you see the bar is on the icon. Deactivating Do Not Disturb Mode will resume incoming notifications and band vibration. Sleep Mode This mode will disable notifications, disable band vibration, and start sleep tracking. To activate this mode, press and hold the power button for at least 5 seconds and release it once you see the bar is on the icon. Deactivating Sleep Mode will resume incoming notifications, band vibration, and end sleep tracking. 8 | For gamers. by gamers™ Power Off Setting the smartband to this mode will turn it off. To activate this mode, press and hold the power button for at least 7 seconds and release it once you see the bar is on the icon. Reset Setting the smartband to this mode will revert it back to its default factory settings. To activate this mode, press and hold the power button for at least 9 seconds and release it once you see the bar is on the icon. A second button press is required to confirm the reset. 9 | razer™ 4. CONFIGURING YOUR NABU VIA THE UTILITY APP Disclaimer: The features listed here require you to log in to Razer Synapse 2.0. These features are also subject to change based on the current software version and your Operating System. WELCOME SCREEN The welcome screen highlights some of the features you will find on the Razer Nabu. Once you are ready to setup your account, tap “I’M DONE. LET’S GET STARTED”. 10 | For gamers. by gamers™ LOGIN SCREEN To sign up for a Razer ID account, you will need to provide an email or a mobile number, a password, and you will also need to verify the password. Once you have filled out the necessary fields, tap “SIGN UP” to continue. If you already have a Razer ID account, tap “LOGIN” and input your email and password. You may also log in using your WeChat account. 11 | razer™ PAIRING SCREEN The pairing screen will guide you in pairing the Razer Nabu with your smartphone. Simply follow the onscreen instructions until you have successfully paired the Razer Nabu and your smartphone then tap “PERSONALIZE”. 12 | For gamers. by gamers™ PERSONALIZE SCREEN The personalize screen allows the Razer Nabu to become associated with you. The personalize screen also allows you to setup your user profile to be used by fitness apps that support the Razer Nabu. 13 | razer™ DEVICE AND DETAILS SCREEN The device screen allows you to view all Razer Nabu smartbands associated with your account. You may also associate a new Razer Nabu on this screen. If you tap to a specific smartband, you will be able to see the details screen where you can find information such as connection status and firmware version. There are also some available options on the details screen that you may find useful such as “Sync Now” which allows you to instantly send your user data to the cloud, “Update Firmware” to get the latest upgrades for your smartband, and …

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Razer Inc. Address: 2035 Corte Del Nogal, Suite 101 City: Carlsbad State: California 92011 Country: United States Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product Description: Wireless Smartband Type Designation: RZ15-0124 Trademark: RAZER FCC ID : RWO-RZ150124 on our behalf. Date: 2014-10-16 City: Carlsbad Name: Johnsen Tia (Senior Regulatory Engineer ) Signature: ...............................

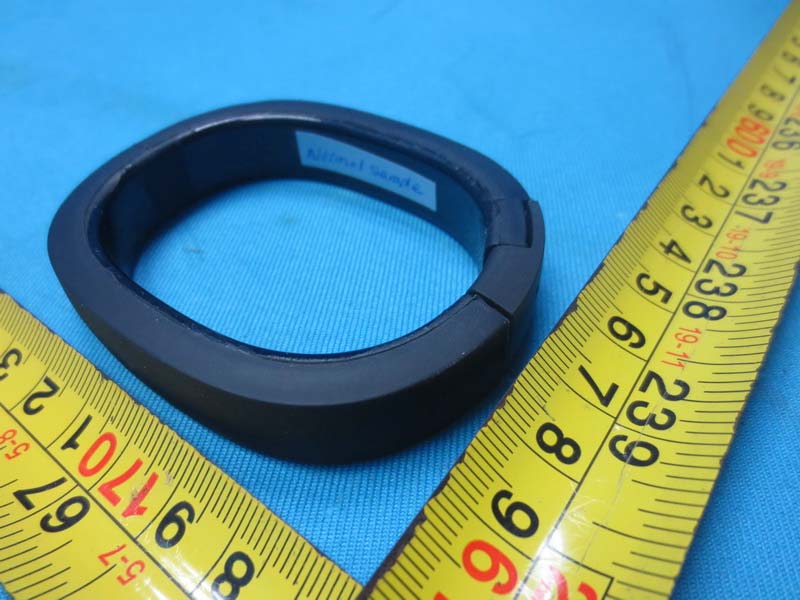

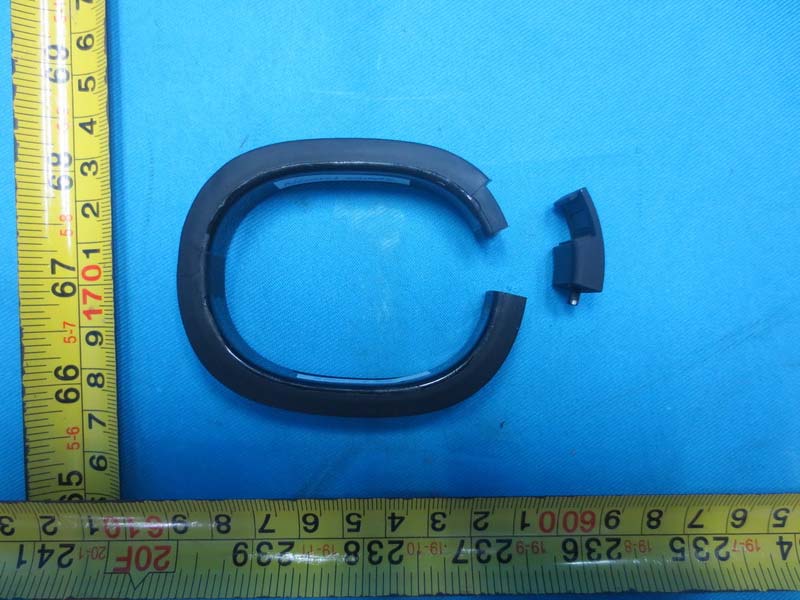

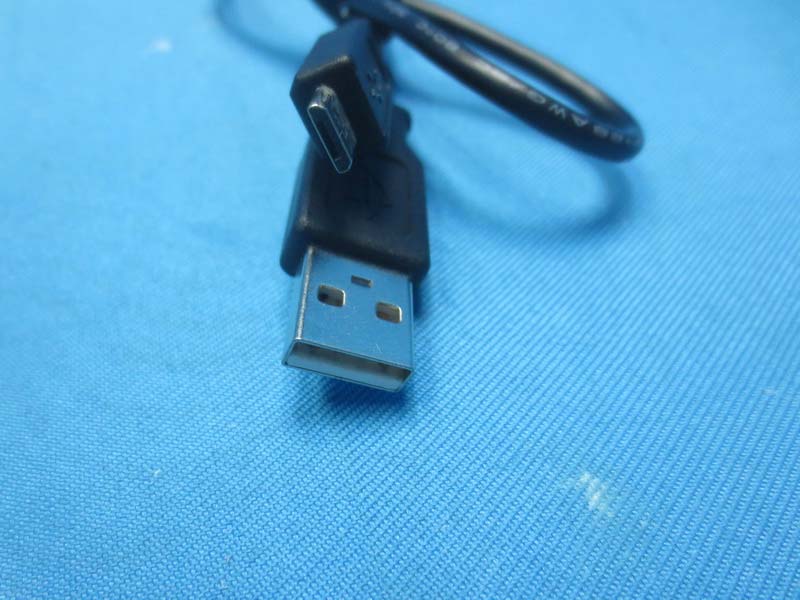

Project No.: 1408C201 Page 2 of 8 Project No.: 1408C201 Page 3 of 8 Project No.: 1408C201 Page 4 of 8

RZ15-0124- Product Label and Location 14102014 Product label 22mm by 9mm FCC ID: RWO-RZ150124 IC: 8092D-RZ150124 Razer Wireless SmartBand

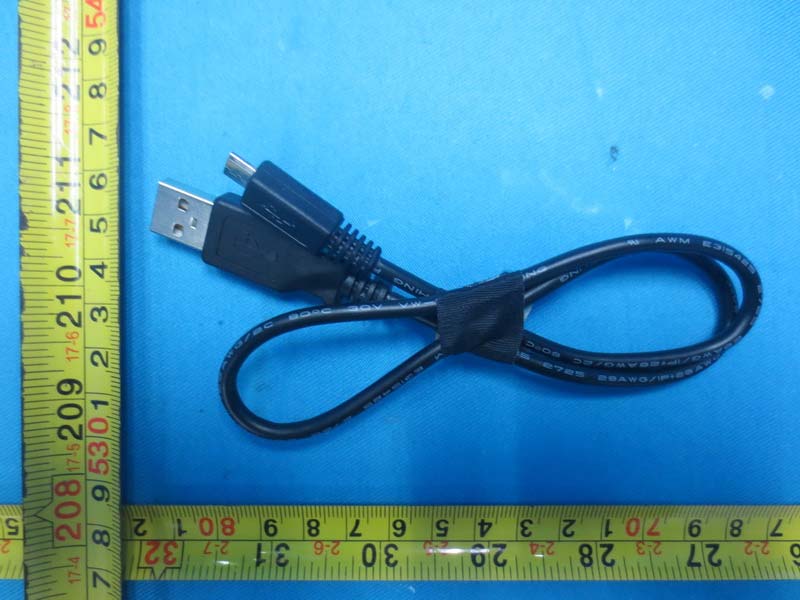

Project No.: 1408C201 Page 5 of 8 Project No.: 1408C201 Page 6 of 8 Project No.: 1408C201 Page 7 of 8 Project No.: 1408C201 Page 8 of 8

FCC RF EXPOSURE REPORT FCC ID: RWO-RZ150124 Equipment : Wireless Smartband Model : RZ15-0124 Applicant : Razer Inc. Address : 2035 Corte Del Nogal, Suite 101, Carlsbad CA 92011. USA. According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna Ant. Manufacturer Model NameAntenna TypeConnector Gain(dBi) 1 N/A N/A Printed N/A 2.20 GENERAL CONCULUSION: Maximum measured transmitter power: OutputPower (dBm) Output Power (mW) Limit (mW) -0.67 0.9 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 0.8mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FCCP-1-1408C201 Page 1 of 61 FCC Radio Test Report FCC ID:RWO-RZ150124 This report concerns (check one): Original Grant Class II Change Project No. : 1408C201 Equipment : Wireless Smartband Model Name : RZ15-0124 Applicant : Razer Inc. Address : 2035 Corte Del Nogal, Suite 101. Carlsbad California 92011. USA Date of Receipt : Aug. 28, 2014 Date of Test : Aug. 28, 2014~Oct. 14, 2014 Issued Date : Oct. 15, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1408C201 Page 2 of 61 Declaration BTL represents to the client that testing is done in accordance with s tandard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidentia l property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1408C201 Page 3 of 61 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 TEST PROCEDURE 13 4.1.3 DEVIATION FROM TEST STANDARD 13 4.1.4 TEST SETUP 14 4.1.5 EUT OPERATING CONDITIONS 14 4.1.6 EUT TEST CONDITIONS 14 4.1.7 TEST RESULTS 14 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1 RADIATED EMISSION LIMITS 15 4.2.2 TEST PROCEDURE 16 4.2.3 DEVIATION FROM TEST STANDARD 16 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 18 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES / LIMIT 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 6 . MAXIMUM OUTPUT POWER TEST 21 6.1 APPLIED PROCEDURES / LIMIT 21 Report No.: BTL-FCCP-1-1408C201 Page 4 of 61 Table of Contents Page 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT OPERATION CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 ATTACHMENT A - CONDUCTED EMISSION 26 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 29 ATTACHMENT C - RADIATED EMISSION BETWEEN 30MHZ AND 1000MHZ) 31 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 38 ATTACHMENT E - BANDWIDTH 51 ATTACHMENT F - MAXIMUM OUTPUT POWER TEST 54 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 55 ATTACHMENT H - POWER SPECTRAL DENSITY TEST 59 Report No.: BTL-FCCP-1-1408C201 Page 5 of 61 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1408C201 Original Issue. Oct. 15, 2014 Report No.: BTL-FCCP-1-1408C201 Page 6 of 61 1. CERTIFICATION Equipment : Wireless Smartband Brand Name : RAZER Model Name : RZ15-0124 Applicant : Razer Inc. Manufacturer : Razer (Asia-Pacific) Pte Ltd Address : 514 Chai Chee Lane #07-01 ~ 06 Singapore 469029 Factory : RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO., LTD Address : East Wing, 3rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China Date of Test : Aug. 28, 2014~Oct. 14, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C :2013 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1408C201) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1408C201 Page 7 of 61 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna co…

Text truncated - open the document above for the full version.

Project No.: 1408C201 Page 1 of 4 EUT TEST PHOTO Conducted Measurement Photos Project No.: 1408C201 Page 2 of 4 Radiated Measurement Photos 9KHz to 30MHz Project No.: 1408C201 Page 3 of 4 Radiated Measurement Photos 30M to 1000MHz Project No.: 1408C201 Page 4 of 4 Radiated Measurement Photos Above 1000MHz
