RWO-RZ150152Wireless SmartBand

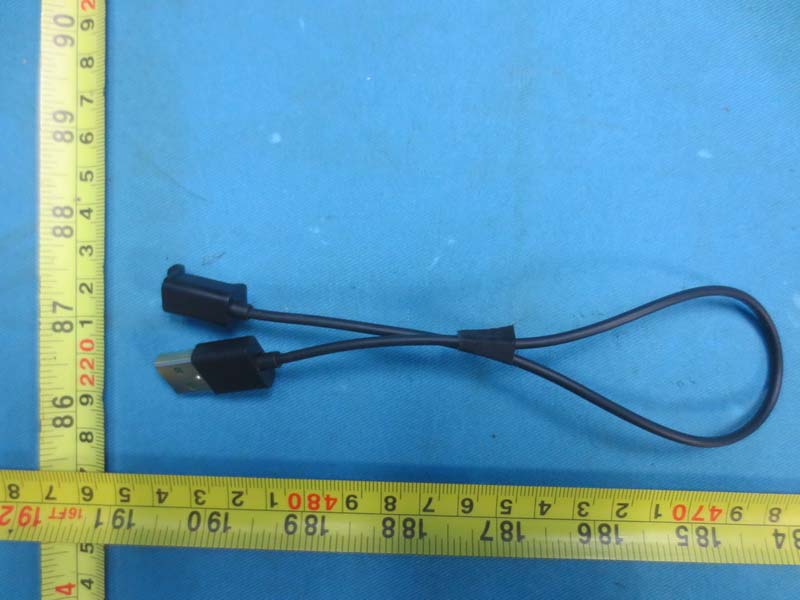

0 | For gamer s. by gamer s ™ User Manual (Model: RZ15-0152) 1 | r azer ™ PACKAGE CONTENTS / SYSTEM REQUIREMENTS PACKAGE CONTENTS • Razer Nabu • Important product information guide • Charging cable • 2 Interchangeable clasps SYSTEM REQUIREMENTS • iPhone 5 / 5S /5C / 6 / 6 Plus with iOS 7 (or higher) • Android 4.3 (or higher) device with Bluetooth Low Energy (BT 4.0 or higher) capability 2 | For gamer s. by gamer s ™ USING YOUR RAZER NABU CHARGING THE NABU 1. Unlock the clasp by separating the two ends of the wristband. 2. Connect the charging cable from the Razer Nabu to a PC or a USB charger. [PLACEHOLDER IMAGE] Reminder: Please remove the Razer Nabu from your wrist before charging it. The approximate time to fully charge the Razer Nabu is 90 minutes. 3 | r azer ™ CHANGING THE CLASP 1. Twist the clasp 90 degrees and then gently pull it away from the wristband. 2. Insert the small clasp into the wristband then twist it 90 degrees. 4 | For gamer s. by gamer s ™ WEARING THE RAZER NABU 1. Unlock the clasp and slide your wristband from the side as shown here. WARNING: Do not overstretch the wristband beyond its physical limits. Doing so may void your warranty. 5 | r azer ™ 2. Lock the clasp and make sure both ends of the wristband are aligned. [PLACEHOLDER IMAGE] 3. Press the power button for at least 3 seconds and release it once you feel a vibration. [PLACEHOLDER IMAGE] 4. Download the [Nabu Utility App] on iOS or Android and follow the onscreen instructions. [PLACEHOLDER IMAGE] 6 | For gamer s. by gamer s ™ REGISTRATION / TECHNICAL SUPPORT REGISTRATION Sign up now for a Razer ID account to get real-time information on your product’s warranty status. To learn more about Razer ID and all its features, visit www.razerzone.com/razer-id. If you are already a Synapse user, register your product by clicking on your email address at the Synapse application and select Warranty Status from the dropdown list. To register your product online, visit www.razerzone.com/registration. Please note that you will not be able to view your warranty status if you register via the website. Your product’s serial number can be found here [PLACEHOLDER IMAGE] TECHNICAL SUPPORT What you’ll get: • 1 year limited manufacturer’s warranty. • Free online technical support at www.razersupport.com. 7 | r azer ™ 5. SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Nabu, we suggest that you adopt the following guidelines: 1. Should you have trouble operating the device properly, unplug and/or remove the device and contact the Razer hotline; or go to www.razersupport.com for assistance. Do not attempt to fix the device yourself. 2. Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads. 3. Charge the Razer Nabu in accordance with the recommended charging time and do not leave the battery charging overnight. Do not wear the Razer Nabu while it is charging. 4. Do not expose the Razer Nabu to liquids while charging. Exposing the Razer Nabu to these conditions may result in an electric shock. 5. The Razer Nabu is splash and dust resistant in compliance with the IP54 standard. Do not submerge the Razer Nabu in liquids and it should not be worn while swimming, bathing, or inside a sauna. 6. Do not tamper or abuse the Razer Nabu; including but not limited to dropping, crushing, excessive bending, puncturing, shredding, microwaving, incinerating, or inserting foreign objects into the Razer Nabu. 7. Do not use abrasive cleaners and/or harsh cleaning agents to clean the Razer Nabu. 8. Do not expose the Razer Nabu to extremely high or low temperatures such as leaving the Razer Nabu in direct sunlight or in snowy weather for extended periods of time. 8 | For gamer s. by gamer s ™ 9. Do not expose the Razer Nabu to open flames such as stoves, candles, or fireplaces. 10. Do not expose the inner band to organic solvents such as alcohol, acetone, and detergent. 11. Dispose the product in accordance with your local environmental laws and guidelines. BATTERY The Razer Nabu contains an internal, lithium-ion polymer rechargeable battery. In general, the life expectancy of this battery depends upon use. Prolonged charging may decrease battery life over time.If the battery does not charge after several attempts, it may be non-operational and you may need to contact customer support. Do not attempt to replace the Razer Nabu’s battery yourself. TRACKING The accuracy of our sensors and associated calculations (i.e. distance traveled and calories burned) will vary with use. IMPORTANT NOTICE FOR USE IN HEALTHCARE ENVIRONMENTS This Razer device is not intended for scientific or medical use but is designed to provide meaningful data to help users reach their health and fitness goals. This Razer device is not a medical device and is not listed under UL or IEC 60601 (or equivalent). This device should be kept at a certain distance to avoid harmful effects to patients or medical equipment. AVIATION USAGE RESTRICTIONS Certain restrictions apply to this device while on-board an aircraft. Razer encourages you to understand these restrictions to ensure the flight’s safety and security. Contact your airline to determine if Personal Electronic Devices (PEDs) can be used during the flight. Your Razer device utilizes Bluetooth Low Energy, which is considered safe by most airlines 9 | r azer ™ 6. LEGALESE COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION Copyright ©2015 Razer Inc. and affiliated companies. All Rights Reserved. Razer and other trademarks contained herein are the property of Razer Inc. and affiliated companies, registered in the United States or other countries.All other trademarks are the property of their respective owners. Actual product may differ from pictures. Information is correct at time of printing. iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. Apple, the Apple l…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Razer Inc. Address: 9 Pasteur, Suite 100 Irvine City: Irvine State: California 92618 Country: United States Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Wireless SmartBand Type designation: RZ15-0152 Trademark: RAZER on our behalf. Date: 2015-07-02 City: Irvine, USA Name: Johnsen Tia Function: Senior Engineer Signature: ...............................

Project No.: 1505C054 Page 2 of 8 Project No.: 1505C054 Page 8 of 8

ZϭρͲϬϭρϮ &/     ŽƚƚŽŵsŝĞǁŽĨhd    WƌŽĚƵĐƚ>ĂďĞů

FCC RF EXPOSURE REPORT FCC ID: RWO-RZ150152 Equipment : Wireless SmartBand Model : RZ15-0152 Applicant : Razer Inc. Address : 9 Pasteur, Suite 100 Irvine, California 92618, United States According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain(dBi) 1 TDK ANT016008LCS2442MA2 Chip N/A 2.50 GENERAL CONCULUSION: Maximum measured transmitter power: OutputPower (dBm) Output Power (mW) Limit (mW) -0.18 0.96 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 0.96mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold.

Conducted Measurement Photos Radiated Measurement Photos 9KHz to 30MHz Radiated Measurement Photos 30M to 1000MHz Radiated Measurement Photos Above 1000MHz
