RWO-RZ400363Smart Glasses

10AAA2210 TH SEPT 2020 . USER MANUAL FOR SMART GLASSES [MODEL #: RZ40-0363] IMPORTANT PRODUCT INFORMATION GUIDE 10 th Sept 2020 FOR GAMERS. BY GAMERS. ™ 1 WHAT’S INSIDE / WHAT’S NEEDED WHAT’S INSIDE  Smart Glasses [Model #: RZ40-0363] A. Touch input areas B. Charging ports C. Status indicators D. Omnidirectional microphones  Glasses case  Charging cable  Cleaning cloth  Important Product Information Guide Frame styles may vary per model. FOR GAMERS. BY GAMERS. ™ 2 WHAT’S NEEDED PRODUCT REQUIREMENTS  Devices with Bluetooth audio capability RAZER ANZU APP REQUIREMENTS  iOS 12 / Android 8.1 Oreo (or higher) device with Bluetooth connectivity  Internet connection for app installation FOR GAMERS. BY GAMERS. ™ 3 LET’S GET YOU COVERED You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com Got a question? Ask the Razer Support Team at support.razer.com Your product ’s serial number can be found here. FOR GAMERS. BY GAMERS. ™ 4 GETTING STARTED CHARGING YOUR RZ40-0363 For first time use, attach the charging cable’s pin connectors to the charging ports found at the bottom of each temple and connect the charging cable to a USB port. For best results, please fully charge your glasses before using it for the first time. A depleted device will fully charge in about 1.5 hours. While charging, RZ40-0363 will continuously show its battery level on both indicators, as shown here: Charging Fully charged FOR GAMERS. BY GAMERS. ™ 5 PAIRING TO A MOBILE DEVICE Open both temples to power on and activate pairing mode. An audio prompt will notify you that your glasses are searching for compatible Bluetooth devices and its status indicators will rapidly blink in blue. Follow your device’s instructions to pair it with your RZ40-0363. Once paired, its status indicators will briefly change to static blue. Once the glasses have been paired, it will automatically try to connect to that paired mobile device every time the glasses are powered on. Your glasses can only connect to one mobile device at a time but will recall pairing for up to 6 devices. FOR GAMERS. BY GAMERS. ™ 6 USING YOUR SMART GLASSES RZ40-0363 APP Advanced customization just got a whole lot easier for your RZ40-0363. With its mobile app, learn and customize the needed gestures, select from predefined EQs, enable or disable Gaming Mode and much more —anytime, anywhere. Download the mobile app on your mobile device. Launch the app and follow the onscreen instructions. POWER ON/OFF To power off the glasses, close both temples. Opening both temples will power it on. An audio prompt will help notify you that your RZ40-0363 is powered on or off. AUTO SHUTOFF If the glasses are on standby or left idle for a few minutes, you will hear an audio prompt and then the glasses will power off. To wake, simply close and open both temples again. GAMING MODE While connected, triple tap then hold the last tap for at least 2 seconds on any of the touch input areas to activate Gaming Mode. Once enabled, your glasses will function at a lower latency; giving you real-time audio feedback while gaming. Repeat the same gesture to disable Gaming Mode. RZ40-0363 APP FOR GAMERS. BY GAMERS. ™ 7 PAIRING OPTIONS Activating Pairing Mode If you want to pair the glasses to a different device, tap and hold any of the touch input areas for 2 seconds to activate pairing mode. An audio prompt will notify you that your glasses are searching for compatible Bluetooth devices. Simply follow the new device’s instructions to pair it with your RZ40-0363. Removing a Paired Device Use this option if you want to remove a paired device including all custom gestures. While in pairing mode, triple tap then hold the last tap for at least 2 seconds on any of the touch input areas to remove a paired device and its settings. An audio prompt will notify you that your glasses have removed a device and are searching again for compatible Bluetooth devices. Simply follow the new device’s instructions to pair it with your RZ40-0363. LOW BATTERY While unplugged, the status indicators will slowly blink in blue to indicate that the glasses need recharging. This sequence will repeat until the battery is drained or the glasses are being charged. FOR GAMERS. BY GAMERS. ™ 8 TOUCH INPUT QUICK REFERENCE The following functions can be accessed from any of the touch input areas and are only available when the glasses are paired to a mobile device. ACTION EFFECT AUDIO PROMPT Tap Answer call Tone End call Tone Play/pause media Tone Tap and hold for 2 seconds Reject incoming call Tone Activate virtual assistant Tone Tap and hold for 4 seconds Activate pairing mode Voice Double tap Accept incoming call or switch calls Tone Skip to the next track when playing media Tone Triple tap Return to the previous track when playing media Tone Triple tap then hold the last tap for 2 seconds Enable/disable Gaming Mode when on standby or playing media None When in pairing mode, this will remove a paired device, its app settings, and re- activate pairing mode Voice Find out more about your brand-new smart glasses at support.razer.com. FOR GAMERS. BY GAMERS. ™ 9 SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your RZ40-0363, we suggest that you adopt the following guidelines: Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance. Do not take apart the device and do not attempt to operate it under abnormal current loads. Doing so will void your warranty. Handle the glasses with care. Do not bend or expose the temples to undue pressure. Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch o…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We N ame: Razer Inc. Address: 9 Pasteur, Suite 100 City: Irvine State: California Country: United States D eclare that: N ame Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China i s authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): P roduct description: Smart Glasses Type designation: RZ40-0363 , RZ40-0363XXXX-XXXX(X can be 0-9 or A-Z) Trademark: RAZER FCC ID : RWO-RZ400363 on our behalf. D ate: 2021-02-24 Ci ty : Irvine N ame: Johnsen Tia Func tion: Senior Engineer Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Razer Inc. Address : 9 Pasteur, Suite 100 City: Irvine California Country: United States T o: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR T he Netherlands Su bject: Request for confidentiality FCC ID: RWO-RZ400363 R eference number: ###### Dear FCC TCB, 1 . L ong-Term Confidentiality P ursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure A bove materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2 . Sh ort-Term Confidentiality (STC ) P ursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: This document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor unfair advantage in the market. P lanned Release Date STC: 180 days from date of grant (notes 2, 3, 4, 5) D ate: 2021-02-24 Name and signature of applicant: Johnsen Tia Senior Engineer Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) S hort-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) F CC must be informed when marketing begins earlier. 4) R elease takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) R equest for extension or for release must be received by Telefication at least 7 days before date of actual marketing or befor e ex piration of the STC period FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1

Supplier’s Declaration of Conformity This device complies with P art 15 of the F CC Rule s. Operation is s ubject to the following two c onditions: (1) This device may not cause harmful interference, and (2) This device must accept any interferen ce received, including interference that may cause undesired operation. Manufacturer: U. S. Responsible Party: Razer Inc., 9 Pasteur, Suite 100, Irvine, California 92618 United States Razer Inc., 9 Pasteur, Suite 100, Irvine, California 92618 United States Contact Person: Tel.: 760 579 0180 Fax: 760 579 0182 Emai l: [email protected] Internet: https://www.razer.com Model: RZ40-0363, RZ40-0363XXXX-XXXX(X can be 0-9 or A-Z) Classification: FCC Part 15B We hereby declare that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC rule part(s) 15B and the most accurat e measurement s tandards. We confirm that the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commission’s requirements. Date: 2021-02-24 --- -------- ------------------------ Johnsen Tia / Director, Regulato ry & Complian ce jo hnsen.ti [email protected] RAZER INC. 9 Pasteur, Suite 100, Irvine, California 92618 United States

Model Declaration Letter We, the undersigning company C ompany Name: Razer Inc. Address: 9 Pasteur, Suite 100 Irvine Irvine California United States Hereby confirm that the following products: P roduct description: Smart Glasses Type designation: RZ40-0363, RZ40-0363XXXX-XXXX(X can be 0-9 or A-Z) Trademark: RAZER T hat All versions of the Model RZ40-0363, RZ40-0363XXXX-XXXX(X can be 0-9 or A-Z) are electrically equal except the following difference: It is the same as the basic model and X is used to define which country it is for under the same family series. D ate: 2021-02-24 Name: Johnsen Tia Telephone: 760 579 0180 E- mail: [email protected] Signature:

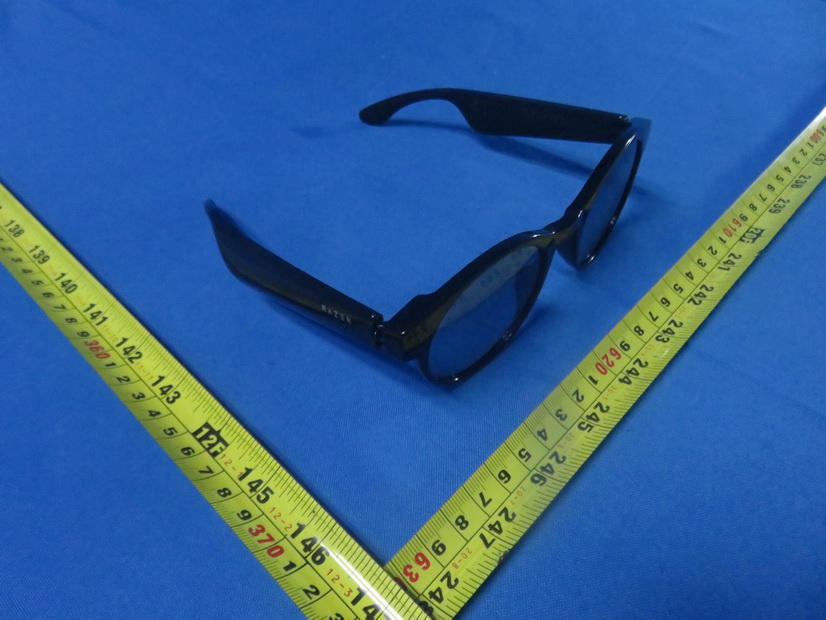

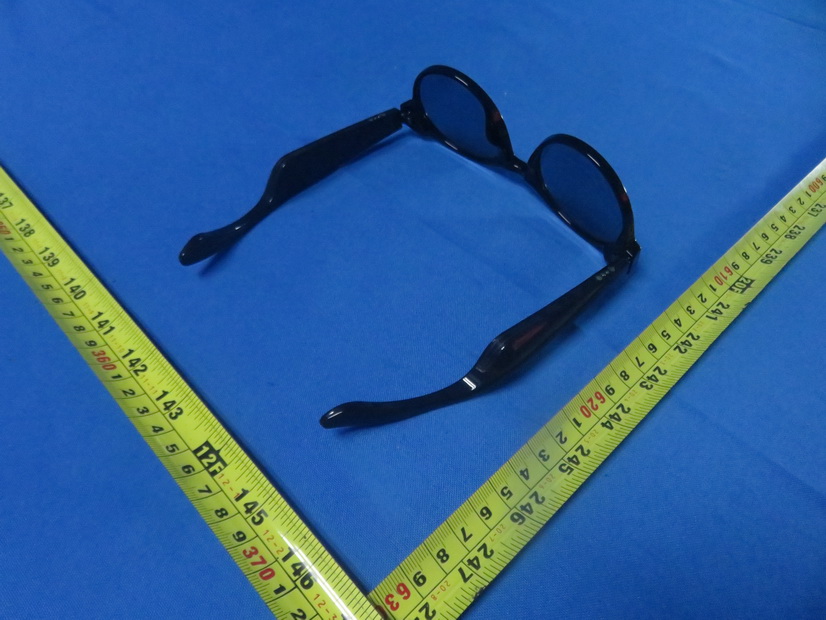

Report No.: 2009C220 Page 1 of 11 ATTACHMENT PHOTOGRAPHS OF EUT Report No.: 2009C220 Page 2 of 11 Report No.: 2009C220 Page 3 of 11 Report No.: 2009C220 Page 4 of 11

Product Label Information SMART GLASSES [Model #: RZ40-0363] Page 1 of 1 16 th Sept 2020 RIGHT TEMPLATE (INNER) LEFT TEMPLATE (INNER)

Report No.: 2009C220 Page 5 of 11 Report No.: 2009C220 Page 6 of 11 Report No.: 2009C220 Page 7 of 11 Report No.: 2009C220 Page 8 of 11 Report No.: 2009C220 Page 9 of 11 Report No.: 2009C220 Page 10 of 11 Report No.: 2009C220 Page 11 of 11 Ant. R Ant. L

Report No.: BTL-FCCP-3-2009C220 Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: RWO-RZ400363 Project No. : 2009C220 Equipment : Smart Glasses Brand Name : RAZER Test Model : RZ40-0363 Series Model : RZ40-0363XXXX-XXXX (X can be 0-9 or A-Z) Applicant : Razer Inc. Address : 9 Pasteur, Suite 100, Irvine, CA92618, USA Manufacturer : Razer (Asia-Pacific) Pte.,Ltd. Address : 514 Chai Chee Lane, #07-01-06,Singapore 469029 Factory : RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO., LTD Address : East Wing, 3rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China Date of Receipt : Sep. 22, 2020 Date of Test : Sep. 22, 2020 ~ Oct. 22, 2020 Issued Date : Oct. 28, 2020 Report Version : R00 Test Sample : Sample No.: DG2020092326 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & KDB447498 D01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Welly Zhou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2009C220 Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Oct. 28, 2020 Report No.: BTL-FCCP-3-2009C220 Page 3 of 4 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. GENERAL CONCULUSION According to FCC KDB447498 D01, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Appendix A - SAR Test Exclusion Thresholds for 100 MHz - 6 GHz and < 50 mm MHz 5 10 15 20 25 30 35 40 45 50 mm 150 39 77 116 155 194 232 271 310 349 387 SAR Test Exclusion Thresholds (mW) 300 27 55 82 110 137 164 192 219 246 274 450 22 45 67 89 112 134 157 179 201 224 835 16 33 49 66 82 98 115 131 148 164 900 16 32 47 63 79 95 111 126 142 158 1500 12 24 37 49 61 73 86 98 110 122 1900 11 22 33 44 54 65 76 87 98 109 2450 10 19 29 38 48 57 67 77 86 96 3600 8 16 24 32 40 47 55 63 71 79 5200 7 13 20 26 33 39 46 53 59 66 5400 6 13 19 26 32 39 45 52 58 65 5800 6 12 19 25 31 37 44 50 56 62 Report No.: BTL-FCCP-3-2009C220 Page 4 of 4 3. TABLE FOR FILED ANTENNA Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 N/A 1Y-JEJXX-146 FPC N/A 0.68 Left 1 N/A 2Y-JEJXX-146 FPC N/A 2.48 Right 4. TEST RESULTS For BT: Max. Output Power (dBm) Max. Output Power (mW) Limit (mW) 8.00 6.310 10 For LE: Max. Output Power (dBm) Max. Output Power (mW) Limit (mW) 6.50 4.467 10 Note: (1) Output power including tune up tolerance. (2) The maximum measured output peak power of this EUT is 5.559 mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold. End of Test Report

Report No.: BTL-FCCP-1-2009C220 Page 1 of 82 FCC Radio Test Report FCC ID: RWO-RZ400363 This report concerns: Original Grant Project No. : 2009C220 Equipment : Smart Glasses Brand Name : RAZER Test Model : RZ40-0363 Series Model : RZ40-0363XXXX-XXXX (X can be 0-9 or A-Z) Applicant : Razer Inc. Address : 9 Pasteur, Suite 100, Irvine, CA92618, USA Manufacturer : Razer (Asia-Pacific) Pte.,Ltd. Address : 514 Chai Chee Lane, #07-01-06,Singapore 469029 Factory : RAZER TECHNOLOGY AND DEVELOPMENT (SHENZHEN) CO., LTD Address : East Wing, 3rd Floor, Block 2, Phase 1 of Vision Shenzhen Business Park Keji South Road, Hi-Tech Industrial Park, Shenzhen 518057, China Date of Receipt : Sep. 22, 2020 Date of Test : Sep. 22, 2020 ~ Oct. 22, 2020 Issued Date : Oct. 28, 2020 Report Version : R00 Test Sample : Sample No.: DG2020092326 for conducted, DG20201012524 for radiated. Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Welly Zhou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2009C220 Page 2 of 82 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2009C220 Page 3 of 82 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.5 SUPPORT UNITS 13 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 14 3.1 LIMIT 14 3.2 TEST PROCEDURE 14 3.3 DEVIATION FROM TEST STANDARD 14 3.4 TEST SETUP 15 3.5 EUT OPERATING CONDITIONS 15 3.6 TEST RESULTS 15 4 . RADIATED EMISSION TEST 16 4.1 LIMIT 16 4.2 TEST PROCEDURE 17 4.3 DEVIATION FROM TEST STANDARD 17 4.4 TEST SETUP 18 4.5 EUT OPERATING CONDITIONS 19 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 19 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 19 4.8 TEST RESULTS - ABOVE 1000 MHZ 19 5 . NUMBER OF HOPPING FREQUENCY 20 5.1 LIMIT 20 5.2 TEST PROCEDURE 20 5.3 DEVIATION FROM STANDARD 20 5.4 TEST SETUP 20 5.5 EUT OPERATION CONDITIONS 20 Report No.: BTL-FCCP-1-2009C220 Page 4 of 82 Table of Contents Page 5.6 TEST RESULTS 20 6 . AVERAGE TIME OF OCCUPANCY 21 6.1 LIMIT 21 6.2 TEST PROCEDURE 21 6.3 DEVIATION FROM STANDARD 21 6.4 TEST SETUP 21 6.5 EUT OPERATION CONDITIONS 21 6.6 TEST RESULTS 21 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 22 7.1 LIMIT 22 7.2 TEST PROCEDURE 22 7.3 DEVIATION FROM STANDARD 22 7.4 TEST SETUP 22 7.5 EUT OPERATION CONDITIONS 22 7.6 TEST RESULTS 22 8 . BANDWIDTH TEST 23 8.1 LIMIT 23 8.2 TEST PROCEDURE 23 8.3 DEVIATION FROM STANDARD 23 8.4 TEST SETUP 23 8.5 EUT OPERATION CONDITIONS 23 8.6 TEST RESULTS 23 9 . MAXIMUM OUTPUT POWER 24 9.1 LIMIT 24 9.2 TEST PROCEDURE 24 9.3 DEVIATION FROM STANDARD 24 9.4 TEST SETUP 24 9.5 EUT OPERATION CONDITIONS 24 9.6 TEST RESULTS 24 10 . CONDUCTED SPURIOUS EMISSION 25 10.1 LIMIT 25 10.2 TEST PROCEDURE 25 10.3 DEVIATION FROM STANDARD 25 10.4 TEST SETUP 25 Report No.: BTL-FCCP-1-2009C220 Page 5 of 82 Table of Contents Page 10.5 EUT OPERATION CONDITIONS 25 10.6 TEST RESULTS 25 11 . MEASUREMENT INSTRUMENTS LIST 26 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 28 APPENDIX B - RADIATED EMISSION - 9 KHZ-30 MHZ 31 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 36 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 39 APPENDIX E - NUMBER OF HOPPING FREQUENCY 64 APPENDIX F - AVERAGE TIME OF OCCUPANCY 66 APPENDIX G - HOPPING CHANNEL SEPARATION MEASUREMENT 71 APPENDIX H - BANDWIDTH 73 APPENDIX I - MAXIMUM OUTPUT POWER 75 APPENDIX J - CONDUCTED SPURIOUS EMISSION 78 Report No.: BTL-FCCP-1-2009C220 Page 6 of 82 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Oct. 28, 2020 Report No.: BTL-FCCP-1-2009C220 Page 7 of 82 1. SUMMARY OF TEST RESULTS Test procedures …
