RXUMX-V30GSM/GPRS Handset

1 TABLE OF CONTENTSWELCOME ...............................4ABOUT THIS USER GUIDE .......5CHAPTER 1 BEFORE USING YOUR PHONE Package Includes .......................8Handset Description...................9Main Display .............................10 Icons..............................................10 Function keys............................11Use of sim card .........................12Navigation key .........................13Using the battery .....................14 Installing The Battery ..................14Removing The Battery.................14 Charging The Battery ...............15Power Connection ....................15Charging Status ........................15Removing The Charger ...........16Important Battery Information17 CHAPTER 2 BASIC OPERATION Turning The Phone On and Off20 Turning The Phone On ................20Turning The Phone Off ...............20 Installing SIM Card...................21Basic Functions .........................23 Making a Call ...............................23Receiving Calls .............................24International Call, Call to an Extension,Emergency Call ............................25 Entering Letters and Numbers 26 Key features .................................29 CHAPTER 3 Menu Messages...................................32 SMS ...............................................32MMS..............................................41CB..................................................49 mx-v30(0621) 2004.6.21 9:41 AM Page 1 2 3 TABLE OF CONTENTS TABLE OF CONTENTS MOB. Internet ...........................52 WA P ..............................................52 PUSH .............................................63 Organizer...................................64 Calendar .......................................64Tasks .............................................68Alarm ............................................69Calculator .....................................70 GAMES.......................................71 Mini golf.......................................71Mirror in action............................72Parking war ..................................73 MyPhone ...................................74 Audio ............................................74Wallpaper.....................................77Greeting .......................................78Caller groups ................................80LCD & LED ....................................82Folder Manager ...........................83 Settings .....................................84 Time & Date .................................84Language......................................86Data ..............................................87 Security .........................................88Network........................................91Call Settings .................................93Reset Setting ................................98 CHAPTER 4 PHONEBOOK Look Up ......................................101New.............................................102PB Settings .................................104Voice Mail no .............................107 CHAPTER 5 MISCELLANEOUS Menu Summary .........................110Cellular Phone in Brief ..............115Abbreviations and Acronyms....116Questions and Answers .............119Technical Data ...........................122 CHAPTER 6 SAFETY Safety Information for Wireless Handheld Phone .................................124Cell Phone Care..........................126Driving Safety ............................128Electronic Devices ......................129Other Safety Guidelines ............131Cautions......................................132Warning......................................133FCC RF Exposure.........................134 DECLARATION OF CONFORMITY Declaration of Conformity .......136 mx-v30(0621) 2004.6.21 9:41 AM Page 2 4 5 WELCOME ABOUT THIS USER GUIDE Thank you for choosing a cellular phone from Maxon Telecom, Korea’s second-largestIT company and a manufacturer with more than two decades of experience in the elec-tronic communication industry.Y our new communication device represents the cutting edge technology of the 21st century, featuring 64k brilliant color display, enhanced messaging service (EMS), polyphonic ring tones and stunning games along with extensive Organizer andPhonebook properties.Uplink to the Mobile Internet facilitated with WAP 2.0 and GPRS data connection.The phone size has always been a Maxon focus point, and the MX-V30 have very mod-est exterior dimensions and will fit into any shirt pocket or purse.40 different ring signals, SMS alert signals, and wallpapers along with renamed profiles and caller groups facilitates a high degree of personalization.Y ou have acquired a phone and a communications companion that will enable you to stay tuned wherever you go. This user guide is written only for the MX-V30 cellular handsets.The contents of the user guide follow the same order as the phone menu system goes.Please note that some optional functions may not be shared by all models.Inquiries regarding the user guide or phone handling can be addressed to: Maxon Technical [email protected] mx-v30(0621) 2004.6.21 9:41 AM Page 4 6MEMO 7 CHAPTER 1 Before using your mobile •Package contents •Handset description •Main display •Function keys •Use of your SIM card •Navigation key •Using the battery •Charging the battery •Important battery information mx-v30(0621) 2004.6.21 9:41 AM Page 6 8 9 PACKAGE INCLUDES HANDSET DESCRIPTION Thank you for purchasing this product. Please check the product contents to see if you have all the available items as below. Handset Charger Hands Free Kit Data Cable (Optional) Standard Battery Handstrap User guide Display Function key Key PadMicrophone Side Key Antenna Sub LCD Searching. 12:36 4 Jan. [Sat] Displays a icon and a statuswhen you have a call or amessage or when you selectBell/ Vibration/ Mute.256OLED makes the screenturn off. Earphone jack mx-v30(0621) 2004.6.21 9:41 AM Page 8 10 11 MAIN DISPLAY FUNCTION KEY…

Text truncated - open the document above for the full version.

60 61 MOB.INTERNET Security1.Move the Cursor & Select a “Security”. Input Security related information. B rowser Options 1.Press ,,, , to select “Browser Options”. To set up Browser function related Options. Certificates : To view Certificate necessary to setup Connection. Contracts : To view Contracts necessary to setup Connection. Enable CSS : To set up using CSS or not (On/Off). Enable Refresh : To set up Refresh function (On/Off). Enable Narrow Rend : To set up Narrow Rend function (On/Off). Show Images : To select/setup printing Images function (Never/Ask/Always). Play Sound : To select/setup Sound function (Never/Ask/Always). Load Object With MIME : To select/setup Object Load function (Never/Ask/Always). History size : Number of link you visited before. MOB.INTERNET R ename Profile 1.Press ,,, , to select “Rename Profile”. To change the name of selected/setup Profile. C ache 1.Press ,,, , to select “Cache”. To select whether load Internet page or not from Cache. C ookies 1.Press ,,, , to select “Cookie”. Cache mode : To set up Cache mode (On/Off). Clear cache : To clear contents of Cache. Enable Cookies : To select which Cookie may remain. Clear Cookies : To clear Cookies saved in the browser. mx-v30(0621) 2004.6.21 9:41 AM Page 60 62 63 MOB.INTERNET P ush Settings 1.Press ,,, , to select “Push Settings”. C lear Recent Pages 1.Press ,,, , to select “Clear Recent Pages”. To delete URL List on History. Push SL Settings : WA P Push Service Setup Function. -Never: Set the selected Push message cannot be loaded through the browser. -If On Same Host: Permit if currently visited page is the same host with it.-Always: Always permitted. Push Security : Security related setup function of WAP Push Service. -Never Accept: Do not accept any push message.-Accept authentication: Accept if certified host.-Accept Non Wap: Accept push message from currently visited host.-Accept Always: Accept all available messages. MOB.INTERNET OFFLINE P AGES 1.Press ,,, to select “Offline Pages”. Change current accessing site into Offline. 2.Select Save Page Offline.3.Enter Title for Save Page Offline.4.Press to save it. PUSH 1.Press ,, to select “Push”. Press to select one of the following options. Delete allSort : Sort by date / s s ort by type / Sort by sender mx-v30(0621) 2004.6.21 9:41 AM Page 62 64 65 ORGANIZER The Organizer is a practical tool that will help you to keep track of your appointments and alertyou of meetings, celebrations, events etc. DA Y VIEW 1.Press ,,, to select “Day View”. 2.Use and to select a schedule and press to view it. CALENDAR To set and view appointments.1.Press ,, to select “Calendar”. In Day view, you can check appointments for the day. Y ou can scroll through the entries and use [ ] to view an appointment. Press [ ] to add an appointment and edit or delete it. Press to select “Option”. Month : To move to ‘Month v v iew’. New : To add an appointment. You are to select one of the following categories. (Meeting/ Birthday / Memo) Delete : To delete a selected appointment.View : To display a selected appointment. ORGANIZER MONTH VIEW1.Press ,,, to select “Month View”. 2.Use to select a date and press to view appointments on the particular date. 3.Select an appointment and press to do the following options. - A calendar is displayed with appointments. the date with an appointment is shown in green color, while a selected date is in violet. - The wallpaper for calendar changes as a new season is selected. Press to select “Option”. Day view : To move to ‘Day view’New : To add a new appointment. Press to select “Option”. New : To add an appointment. You are to select one of the following categories. (Meeting/ Birthday / Memo). Delete : To delete a selected appointmentView : To display a selected appointment. mx-v30(0621) 2004.6.21 9:41 AM Page 64 66 67 ORGANIZER NEW1.Press ,,, to select “New”. In ‘New’ you can enter a new appointment. Define it as a Meeting, Birthday or a Memo.Select one and enter the relevant information in the text editor. Use [ ] to scroll through the entry fields:  .Subject To enter a title for an appointment.  .Start and End date,  .Start and End time. To set a date and a time to start or end an appointment  .Reminder time To set a reminder to give you an alert to appointment. ORGANIZER DELETE1.Press ,,, to select “Delete”. 2.Select one of the following items and press . 3.Press to confirm it. 1. All : Delete all appointments.2. Week Old : Delete the appointments that is a week old.3. Month Old : Delete the appointments that is a month old. mx-v30(0621) 2004.6.21 9:41 AM Page 66 68 69 ORGANIZERNEW1.Press to select “Options”. 2.Select a “New” item and press to create a new task. 3.Move to each field to enter data. T ASKS To put down things to remember.1.Press ,, to select “TASKS”. The Tasks list is an electronic notepad that will help you to remember things to do.The list is accessed in the Organizer folder. If no tasks are entered in the list, the screen will display “No entries” . 1. Subject : Enter a title for a task.2. Due Date : Enter a due date for a task.3. Reminder : Mark it up and you are prompted to enter its date and time.4. Reminder Date5. Reminder TimeIf one or more tasks are entered, you can choose among the following options: Delete all, Delete, New Y ou can enter up to 10 different tasks, each with a maximum 20 characters, and set an alarm to remind you. ORGANIZERTIME1.Press ,,, to select “Time”. 2.Enter a time.SOUND1.Press ,,, to select “Sound”. ALARM ON1.Press ,,, to select “Alarm on”. 2.To mark up ‘Alarm on’ to enable the alarm. ALARM 1.Press ,, to select “Alarm”. Sound - Alarm1~5. mx-v30(0621) 2004.6.21 9:41 AM Page 68 70 71 ORGANIZER Enter a figure and press a +, -, *, / as a assigned in navigation keys.Enter another figure, then press . The result will be show on the bottom line.E xample Enter 200. Use to moved to a ‘+’ and press select it. Enter 25 then press . The result 225 will be show in bottom line.If you want to continue the calculat…

Text truncated - open the document above for the full version.

1 Agent Authorization Letter Maxon Telecom co., ltd DATE : 21-June-2004 BABT 34 Molesey Road Walton on Thames Surrey KT12 4RQ Dear Sir or Madam: We, Maxon Telecom, 4F Sindo Venture Town Bldg., 705-18, Yeuksam-dong, Kangnam- gu, Seoul, Korea, hereby authorize TÜV Product Service Limited, Segensworth Road, Fareham, Hampshire, United Kingdom, PO15 5RH, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on 20-June-2005 Sincerely, Y. H. Jung Telephone Number : +82-2-2008-1659 Fax Number :+82-2-2008-1739

1 Confidentiality Request Letter Maxon Telecom Co., ltd BABT 34 Molesey Road Walton on Thames Surrey KT12 4RQ Re: Request of Confidentiality – RXUMX-V30 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Technical Description, Bill of Materials, Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Y. H. Jung Telephone Number : +82-2-2008-1659 Fax Number :+82-2-2008-1739

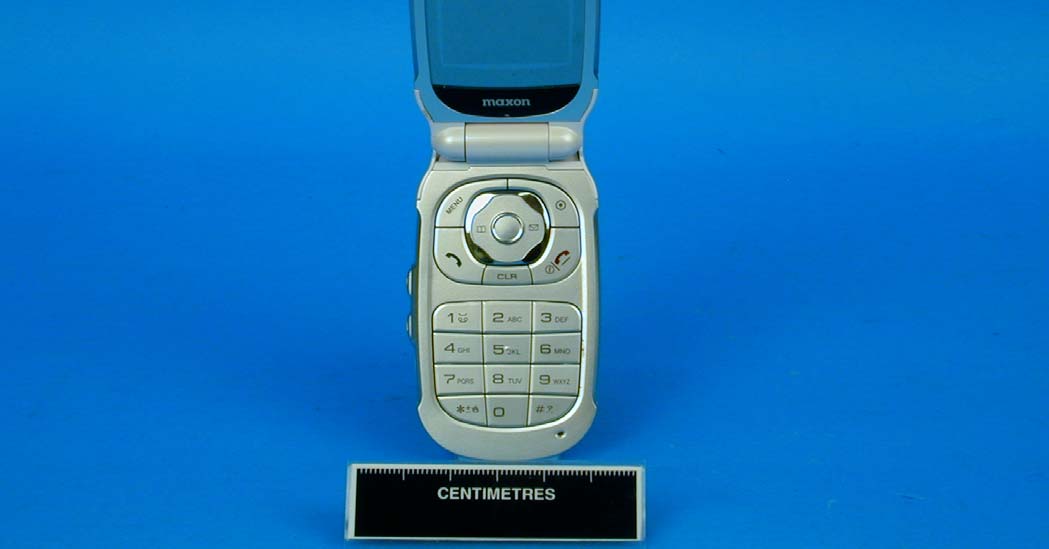

FCC ID: RXUMX-V30 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 1 of 4 EXTERNAL PHOTOGRAPHS OF EQUIPMENT FOR MAXON MX-V30 HAND SET Front View FCC ID: RXUMX-V30 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 2 of 4 PHOTOGRAPHS OF EQUIPMENT Rear View FCC ID: RXUMX-V30 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 3 of 4 PHOTOGRAPHS OF EQUIPMENT Front View - Open FCC ID: RXUMX-V30 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 4 of 4 PHOTOGRAPHS OF EQUIPMENT Rear View – Battery Removed

FCC ID: RXUMX-V30 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 1 of 4 INTERNAL PHOTOGRAPHS OF EQUIPMENT FOR MAXON MX-V30 HAND SET Top View FCC ID: RXUMX-V30 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 2 of 4 PHOTOGRAPHS OF EQUIPMENT Top View (Open) FCC ID: RXUMX-V30 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 3 of 4 PHOTOGRAPHS OF EQUIPMENT Bottom View FCC ID: RXUMX-V30 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 4 of 4 PHOTOGRAPHS OF EQUIPMENT TX RX Identified

REPORT ON Specific Absorption Rate Testing of the Maxon Telecom Co. Ltd MX-V30 Tri-Band E-GSM 900; DCS1800 & PCS1900 Mobile Handset Report Number: WS612478 – 002 issue 1.00June 2004 TUV Product Service Ltd. Segensworth Road, Titchfield Fareham, Hampshire, United Kingdom, PO15 5RH Tel: +44(0)1329 443300, Fax: +44(0)1329 443331 www.tuvps.co.uk Report Number WS612478 – 002 issue 1.00Page 1 of 52 REPORT ON:Specific Absorption Rate Testing of the Maxon Telecom Co. Ltd MX-V30 Tri-Band E-GSM 900; DCS1800 & PCS1900 Mobile Handset Report No: WS612478 – 002 issue 1.00 FCC ID:RXUMX-V30 PREPARED FOR:Maxon Telecom Co. Ltd 12F Sewon Venture Town Bldg. 705-18, Yeuksam-dong Kangnam-gu Seoul, 135-080 Korea ATTESTATION:The wireless portable device described within this report has been shown to be capable of compliance for localised specific absorption rate (SAR) for General Population/Uncontrolled Exposure Limits as defined in the FCC standard Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01) of 1.6 W/kg. The measurements shown in this report were made in accordance with the procedures specified in OET Bulletin 65 (Edition 97-01) and IEEE1 528-2003. All reported testing was carried out on a sample of equipment to demonstrate compliance with the above standards. The sample tested was found to comply with the requirements in the applied rules. K Hall SAR Test Engineer APPROVED BY: M J Hardy UKAS Signatory DATED:23 rd June 2004 DISTRIBUTION:Maxon Telecom Co. LtdCopy No: 1 BABT Copy No.: 2 Copy No.: Note: The test results reported herein relate only to the item tested as identified above and on the Status Page. FCC ID: RXUMX-V30 Report Number WS612478 – 002 issue 1.00Page 2 of 52 CONTENTS EXECUTIVE SUMMARY3 1.1Status4 1.2Summary5 1.3Test Result Summary6 TEST DETAILS8 2.1Test Equipment9 2.2Test Software9 2.3Dielectric Properties of Simulant Liquids10 2.4Test Conditions11 2.5Measurement Uncertainty12 2.6SAR Measuring System13 Probe and Amplifier Specification Probe Calibration SAR Measurement Procedure 2.7OET 65(c) and IEEE 1528-2003 Test Positions31 SAM phantom head position Flat phantom position 2.8SAR Distributions (Area Scans – 2D)33 2.9Test Positional Photographs45 2.10Record Photographs47 2.11Copyright Details52 FCC ID: RXUMX-V30 Report Number WS612478 – 002 issue 1.00Page 3 of 52 EXECUTIVE SUMMARY Specific Absorption Rate Testing of the Maxon Telecom Co. Ltd MX-V30 Tri-Band E-GSM 900; DCS1800 & PCS1900 Mobile Handset PROJECT MANAGER: R. Thompson FCC ID: RXUMX-V30 Report Number WS612478 – 002 issue 1.00Page 4 of 52 1.1STATUS MANUFACTURING DESCRIPTIONTri-Band Mobile Handset STATUS OF TESTSpecific Absorption Rate Testing APPLICANTMaxon Telecom Co Ltd GSM POWER CLASSClass 4 (E-GSM 900) Class 1 (DCS 1800; PCS1900) GPRS CLASSClass B MULTISLOT CLASSMutlislot Class 10 (2up/4dn/sum5) MANUFACTURERMaxon Telecom Co Ltd TYPE OR MODEL NUMBERMaxon MX-V30 HARDWARE VERSIONBaseband section MM-C11 V2.3.1 Transceiver section MM-C11 V2.3.1 Key PCB V2.3.1 SOFTWARE VERSION761.09.001.bif SERIAL NUMBERIMEI 004433.06.077878.65 BATTERY MANUFACTURERSANYO Electric Co., Ltd TYPE OR MODEL NUMBERBT-780 (Li-ion 700mAh) TEST SPECIFICATIONS: US Federal Government, Code of Federal Regulations, Title 47 Telecommunication, Chapter I Federal Communications Commission, part 2, section 1093. Federal Communications Commission (FCC) OET Bulletin 65c, Edition 01-01, Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields – Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions REFERENCES: IEEE 1528 –2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques BABT REGISTRATION NUMBER:WS612478. RECEIPT OF TEST SAMPLES:23 rd April 2004. START OF TEST:29 th April 2004. FINISH OF TEST:30 th April 2004. FCC ID: RXUMX-V30 Report Number WS612478 – 002 issue 1.00Page 5 of 52 1.2SUMMARY The Maxon MX-V30 handset supplied for Specific Absorption Rate (SAR) testing is a Tri-band Class 4 E-GSM 900MHz; Class 1 DCS 1800MHz and PCS 1900MHz device. It is designed to operate both within the primary and the extended GSM 900 bands. The MX-V30 offers GPRS Class B multislot class 10 connectivity. The testing was performed with batteries supplied by Maxon and manufactured by SANYO Electric Co., Ltd. The battery was fully charged before each measurement and there were no external connections. SAR testing was performed on the PCS 1900MHz band only. For head SAR assessment, testing was performed with the device in GSM mode only using a Specific Anthropomorphic Mannequin (SAM) phantom as specified in the standard IEEE 1528- 2003. The phantom was filled with different simulant liquid appropriate to the frequency band. The dielectric properties were measured and found to be in accordance with the requirements for the dielectric properties specified in OET65(c) & IEEE 1528-2003. SAR testing was performed at both the left and right ear of the phantom at both handset positions stated in the specification. Testing was performed at the middle frequency of each band and at the top and the bottom frequencies for the position giving maximum SAR. The sequence used accorded with the block diagram of tests given in IEEE 1528-2003. Testing was performed at the maximum power for the PCS 1900 band only. This was achieved using a GSM test set, which controlled the handset at power level 0. The Maxon MX-V30 had an integral antenna so that the requirement for testing with antenna extended and retracted was not applicable. For body SAR assessment, testing was performed with the device in GPRS mode only using two transmit timeslots each slot set to 30 dBm. The device was placed at distance of 1.0 cm from the side of the flat phantom. Flat Phantom dimensions 220mmx200mmx150mm and with a sidewall thickness of 2.0mm. The phantom was f…

Text truncated - open the document above for the full version.

TÜV Product Service Ltd Segensworth Road Fareham, Hampshire PO15 5RH United Kingdom Telephone: +44 (0)1329 443300 Ref: Maxon MX-V30 Date: 25th August 2004: Direct Dial: +44 (0)1329 443479 Fax: +44 (0)1329 443500 E-mail: [email protected] Website: www.tuvps.co.uk BABT Claremont House 34 Molesey Road Walton on Thames Surrey, KT12 4RQ United Kingdom Dear Hilton A client supplied hands free earphone was used, part No HC-MYO-MAX001, as supplied by I-Sound Electronics Co Ltd Figure 34 in the report does show a headset plug connected to the top of the DUT, (visible in the photo which could be missed by quick inspection, however at 500% zoom the image is clear). The cable was then brought round to the front of the test unit as shown. The unit can only be operated using the headset when closed in this way, typical of body SAR testing Regarding figures 30 to 33, head SAR testing is done with flip open, this is the ‘normal position of use’ for routine SAR evaluation, (Supplement C edition 01-01 to OET bulletin 65 edition 97-01, page 41-43). Operating a mobile phone while closed can only be done, (as experienced so far), by use of an earpiece/headset with switch, which would imply use of said earpiece thus negating requirement for phone to be at the head position. This will be investigated with the customer for future work considering customer requirements and future technical developments. Body SAR was tested with the flip closed as the device would normally be in a holster or cradle. An earpiece/headset would enable operation, in the ‘normal mode of use’ for routine SAR evaluation (Supplement C edition 01-01 to OET bulletin 65 edition 97-01, page 41-43). This detail will be monitored in case of future technical development Figures 26 to 29 report incorrect modulation due to a typographical error. This test unit was successfully tested and showed compliance. The value of 25% (as two time slots were used in the GPRS mode), is the correct value. Yours faithfully Kevin HallM J Hardy SAR Test engineerDeputy Wireless Group Leader

REPORT ON FCC CFR 47: Parts 15 and 24 Testing in support of an Application for Grant of Equipment Authorisation of a Maxon Telecom Co. Ltd. MX-V30 Tri-Band Mobile Handset COMMERCIAL-IN-CONFIDENCE FCC ID: RXUMX-V30 Report No OR612478/01 Issue 2 July 2004 COMMERCIAL-IN-CONFIDENCE TÜV Product Service Ltd, Segensworth Road, Fareham, Hampshire, PO15 5RH, United Kingdom Tel: +44 (0)1329 443300 Website: www.tuvps.co.uk Report No OR612478/01 Issue 2Page 1 of 123 REPORT ONFCC CFR 47: Parts 15 and 24 Testing in support of an Application for Grant of Equipment Authorisation of a Maxon Telecom Co. Ltd. MX-V30 Tri-Band Mobile Handset FCC ID: RXUMX-V30 Report No OR612478/01 Issue 2 July 2004 PREPARED FORMaxon Telecom Co. Ltd. 10F Sewon Venture Town Bldg. 705-18, Yeuksam-dong Kangnam-gu Seoul, 135-080 Korea PREPARED BY R Small Telecoms Engineer APPROVED BY K AdsettsM Jenkins UKAS EMC SignatoryUKAS Radio Signatory DATED 28 th July 2004 DISTRIBUTIONMaxon Telecom Co. Ltd. Copy 1 BABTCopy 2 Copy No 1 ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 15 and 24. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineers; R SmallS Hartley FCC ID: RXUMX-V30 Report No OR612478/01 Issue 2Page 2 of 123 COMMERCIAL-IN-CONFIDENCE CONTENTS SectionPage No 1REPORT SUMMARY 1.1Status..................................................................................................................................4 1.2Introduction .........................................................................................................................5 1.3Brief Summary of Results...................................................................................................5 1.4Opinions and Interpretations ..............................................................................................6 1.5Product information............................................................................................................7 1.6Test Conditions (Configuration)..........................................................................................7 1.7Deviations from the Standard .............................................................................................7 1.8Modification Record............................................................................................................7 2TEST DETAILS 2.1Maximum Peak Output Power (Conducted).......................................................................9 2.2Maximum Peak Output Power (Radiated)..........................................................................11 2.3 Modulation Characteristics .................................................................................................13 2.4 Occupied Bandwidth ..........................................................................................................17 2.5 Spurious Emissions At Antenna Terminals (+/- 1MHz)......................................................20 2.6 Radiated Emissions............................................................................................................54 2.7 Conducted Emissions On Power Lines..............................................................................61 2.8 Conducted Spurious Emissions.........................................................................................65 2.9 Frequency Stability Under Temperature Variation ............................................................. 108 2.10 Frequency Stability Under Voltage Variation ..................................................................... 110 3TEST EQUIPMENT USED 3.1Table of Test Equipment Used........................................................................................... 113 3.2Measurement Uncertainty .................................................................................................. 114 4EUT PHOTOGRAPHS 4.1List of EUT Photographs .................................................................................................... .. 116 5ACCREDITATION, DISCLAIMERS AND COPYRIGHT 5.1Accreditation, Disclaimers and Copyright.....................................................................................121 APPENDICES ATitchfield FCC Site Compliance Letter .................................................................................. 123 FCC ID: RXUMX-V30 Report No OR612478/01 Issue 2Page 3 of 123 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC CFR 47: Part 15 and 24 Testing in support of an Application for Grant of Equipment Authorisation of a Maxon Telecom Co. Ltd. MX-V30 Tri-Band Mobile Handset FCC ID: RXUMX-V30 Report No OR612478/01 Issue 2Page 4 of 123 COMMERCIAL-IN-CONFIDENCE 1.1STATUS EQUIPMENT UNDER TESTMX-V30 Tri-Band Mobile Handset OBJECTIVETo undertake measurements to determine the Equipment Under Test's (EUT's) compliance with the specification. NAME AND ADDRESS OF CLIENTMaxon Telecom Co. Ltd. TYPE NUMBERMX-V30 SERIAL NUMBER352902-00-000069-6 HARDWARE VERSIONV2.3.1 SOFTWARE VERSION000.00.000 TEST SPECIFICATION / ISSUE / DATE FCC CFR 47: Part 15, Subparts B and C, August 2002, and Part 24, Subpart E, January 2001 NUMBER OF ITEMS TESTEDOne SECURITY CLASSIFICATION OF EUT Commercial In Confidence DISPOSALHeld pending disposal REFERENCE NUMBERNot Applicable DATENot Applicable ORDER NUMBERTCMD0440124 DATE26th April 2004 START OF TEST26th April 2004 FINISH OF TEST30th April 2004 RELATED DOCUMENTSANSI C63.4 2001. Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. FCC Public Notice document (DA 00-705 released 30 March 2000) FCC ID: RXUMX-V30 Report No OR612478/01 Issue 2Page 5 of 123 COMMERCIAL-IN-CONFIDENCE 1.2INTRODUCTION The information contained within this report is intended to show…
