1 SP-6402 Synthesized Scanning Radio FCC RF EXPOSURE COMPLIANCE REQUIREMENTS FOR OCCUPATIONAL USE ONLY The Federal Communications Commission (FCC), with its action in General Docket 93-62, November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Topaz3 / Legacy subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below the Occupational Safety and Health Act (OSHA) and Federal Communications Commission limits. DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is restricted to occupational use, work related operations only where radio operator must have the knowledge to control the user’s exposure conditions for satisfying the higher exposure limit allowed for occupational use. When transmitting, hold the radio in a vertical position with its microphone 1 inches (2.5 cm) away from your mouth. The radio is transmitting when the red LED on the front of the radio is illuminated. You can cause the radio to transmit by pressing the PTT bar on the radio. These are required operating configurations for meeting FCC RF exposure compliance.Failure to observe these restrictions mean violation. Operating Instructions About Your SP-6402 Radio Maxon's SP-6402 radio feature up to 13 groups and up to 16 channel operation per group for a total channel capacity of 208 channels of superior performance and reliability. Operation and functions for Maxon's SP-6402 radios are described in this manual. We urge you to thoroughly read this manual before operating the radio. Application of some of the functions described in this manual is determined by the system you use. Your Maxon Dealer will program your radio so that you have the greatest number of functions possible relative to your needs. Should you have questions regarding the operation of the radio please consult your Maxon Dealer. 2 SP-6402 Specification MODEL: SP- 6402 MODEL CODE: EQUIPMENT TYPE: Handportable PERFORMANCE SPECIFICATIONS: TIA/EIA-603 BAND: UHF2(440~470Mhz) CHANNEL SPACINGS: 12.5KHz, 25KHz PROGRAMMBLE RF OUTPUT POWER: 5 / 1 WATT MODULATION TYPE: F3E AUDIO POWER: 500mW ( EXT WITH 16 OHM) 1W ( INT WITH 4 OHM) INTERMEDIATE FREQUENCY: 45.1MHz 455KHz CHANNELS: 208 Channel FREQUENCY SOURCE: SYNTHESIZER POWER SUPPLY: Li-ION 7.5 VDC NOMINAL EXTREME +/- 10% VDC EXTREME Table of Contents Safety Information.................................................................. Unpacking Information.......................................................... SP-6402 Radio Features.................................................... Description of Radio Components......................................... Antenna Installation............................................................... Installing and Removing the Battery Pack............................... Attaching and Removing the Belt Clip.................................... Battery Charging and Care..................................................... SP-6402 Operation................................................. Power On-Volume.................................................. Channel Select Transmit.................................................................. Receive................................................................... Power Off.............................................................. Status Indicators and Audible Alert Tones............................. Scan Modes......................................................................... Normal Channel Scan............................................ Priority Channel Scan............................................. Other Scanning Features....................................................... Look Back.............................................................. Scan Channel Delete.............................................. 3 CTCSS/DCS/DTMF Scanning........................................ Normal Scan TX..................................................... Priority Scan TX..................................................... Priority Only TX..................................................... Receive Only Scan................................................. Scan List Edit ........................................................................ Licensing and Service Information........................................ Recycling/Disposal of Batteries............................................ Software Copyrights............................................................. Maintenance........................................................................ Warranty Statement................................................................. 1 Safety Information The Federal Communications Commission (FCC), with its action in General Docket 79-144, March 13, 1985, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated equipment. Maxon subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure far below the Occupational Safety and Health Act and Federal Communications Commission limits. WARNING - DO NOT hold the radio in such a manner that the antenna is next to, or touching, exposed parts of the body, especially the face or eyes, while transmitting. WARNING -DO NOT allow children to operate transmitter - equipped radio equipment. CAUTION -DO NOT operate the radio near unshielded electrical blasting caps or in an explosive atmosphere unless it is a type especially designed and qualified for such use. CAUTION - DO NOT press and hold the transmit switch (P-T-T) when not actually wishing to transmi…

Text truncated - open the document above for the full version.

MAXON CIC CO.,LTD. Chongho Bldg, #7-61, Yangjae-dong, Seocho-Ku, Seoul, 137-130, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. MAXON CIC CO.,LTD. would like the following documents regarding this submission for FCC ID: RXUSP6402 to be kept confidential. 1. Document 1) Schematics 2) Block Diagram 3) Tune up procedure and Parts list 4) Operational Description 2. Repeat above format for each item requested. The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Hyun Koo, Kang ------------------------------------- Hyun Koo, Kang Senior Manager R&D Center / TWR H/W MAXON CIC CO., LTD.

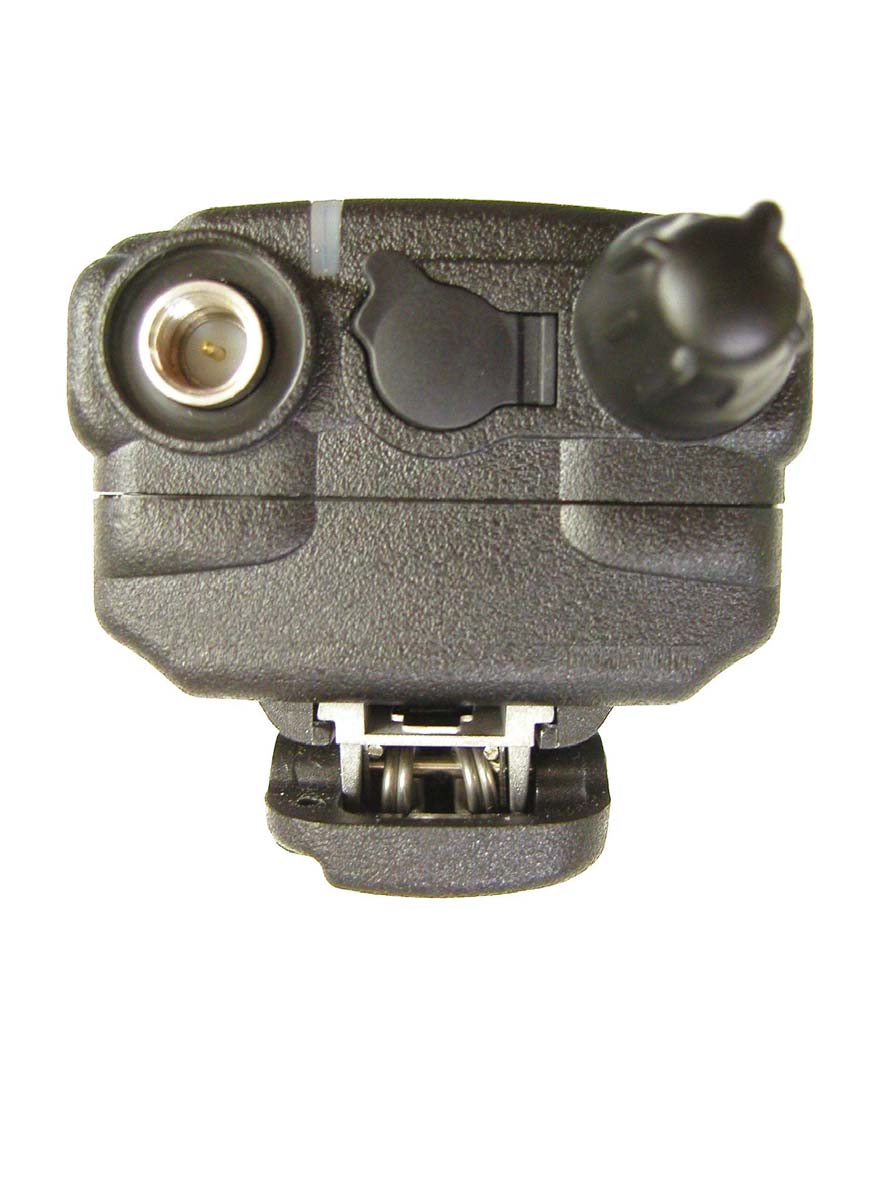

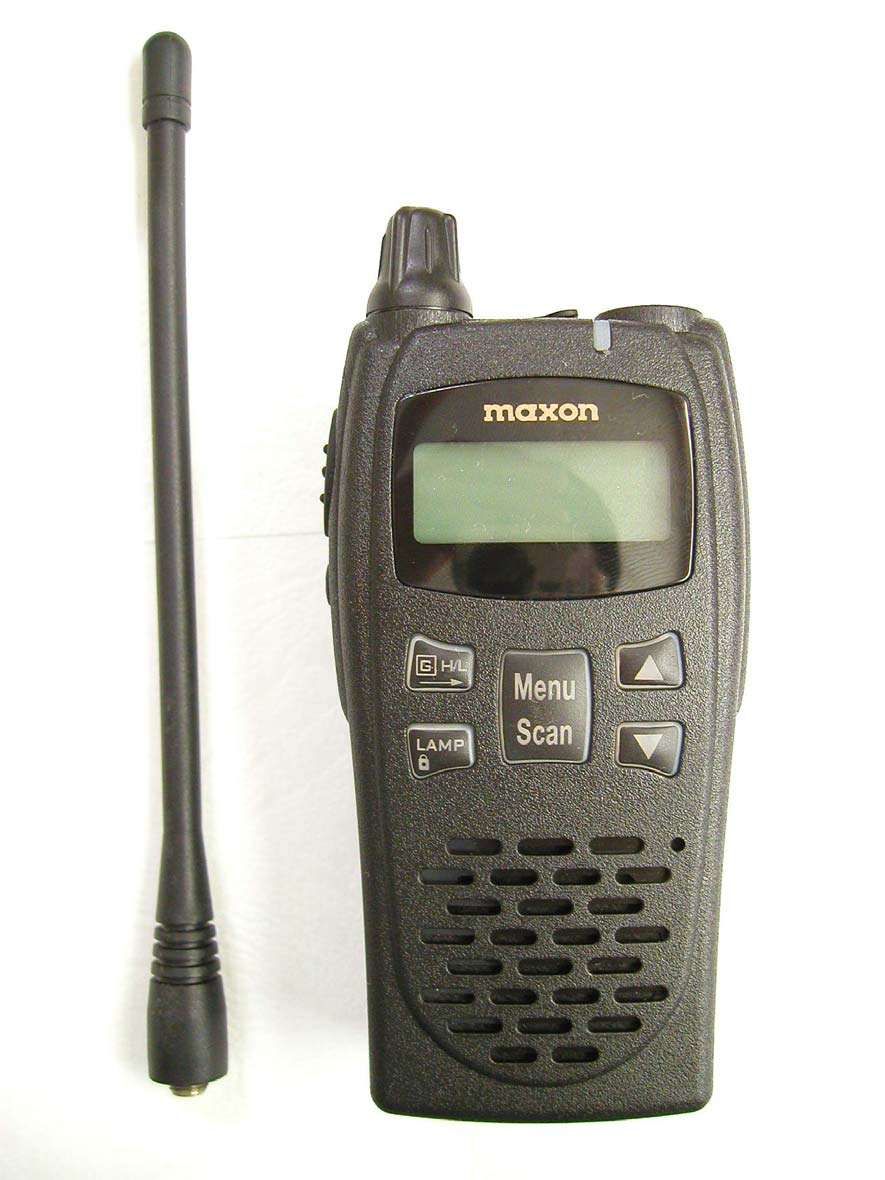

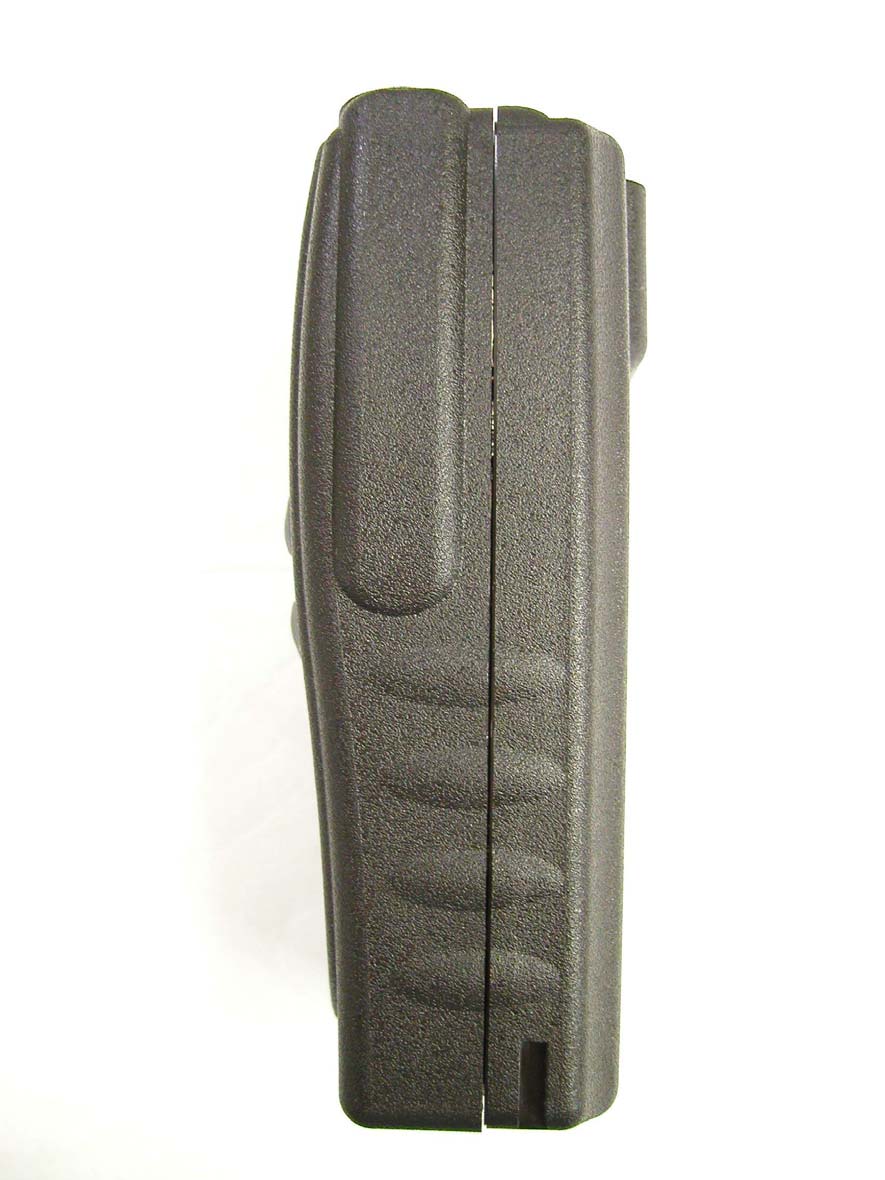

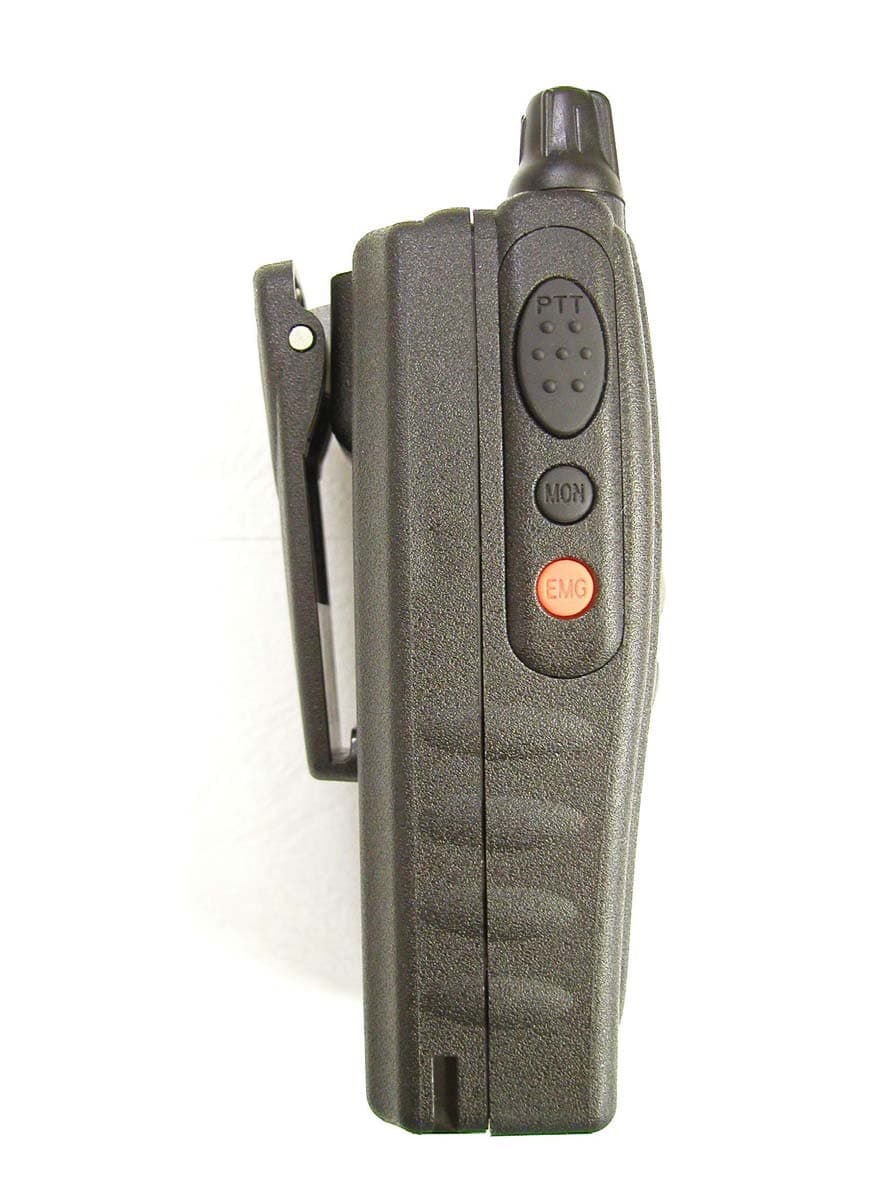

BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 Appendix 3. External Photos Front BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 Back BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 Right BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 Left BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 Top BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 Bottom

BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC Corp. LMR(UHF), SP 6402 Appendix 2. FCC ID Label & Location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The following FCC Warning statement will be described in the user manual. FCC Warning Label Location The label shown above shall be permanently affixed at a conspicuous location(cabinet out side) on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) MAXON CIC Corp. LMR(UHF Two Way Radio) Model : SP 6402 FCC ID : RXUSP6402 IC:153B-SP6402 FCC & IC LABEL Caution Device must be restricted to occupation use to safety FCC RF exposure. See Instruction manual for s pecific operating requirement. Caution

BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 Appendix 4. Internal Photos Cabinet Inside BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 RF Top 1 BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 RF Top 2 BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 RF Top 3 BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 RF Bottom 1 BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 DIG BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 DIG Top BWS TECH Inc. FCC Part 90 Certification Report No: BWS-05-RF-0027 Date of Test : OCTOBER 11, 2005 MAXON CIC CO LTD LMR(UHF), SP 6402 DIG Bottom

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: Portable FM UHF PTT Radio Transceiver Device Classification: TNF Licensed Non-Broadcast Station Transmitter Held to Face(TNF) Model(s): SP 6402 Tx Frequency: 440 MHz – 470 MHz Max. SAR Measurement(s): 4.02 mW/g(1g) Face SAR / 4.04 mW/g(1g) Body SAR Conducted Power: 5W (37dBm) Modulation type: FM (UHF) Application Type: Certification Trade Name(s): MAXON CIC FCC Rule Part(s): FCC 47 CFR 2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure: FCC OET Bulletin 65 Supplement C [July 2001] Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC ID : APPLICANT : RXUSP6402 MAXON TELECOM CO., LTD. Report No.: HCT-SAR05-1102 FCC ID: RXUSP6402 DATE: November 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 7.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 8.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 9.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 10.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 11.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 12.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 13.1 CONCLUSION ------------------------------------------------------------------------------------------------ 14.1 REFERENCES -------------------------------------------------------------------------------------------- APPENDIX A – SAR TEST PLOTS APPENDIX B – TEST SETUP PHOTOGRAPHS APPENDIX C – EUT PROFILE PHOTOGRAPHS APPENDIX D – DIPOLE VALIDATION PLOTS APPENDIX E – PROBE CALIBRATION DATA APPENDIX F – DIPOLE CALIBRATION DATA 3 4 5 6-7 8 9 10 11 12 13 14 15-16 17 18 Report No.: HCT-SAR05-1102 FCC ID: RXUSP6402 DATE: November 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency(RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • FCC ID: RXUSP6402 • EUT Type: Portable FM UHF PTT Radio Transceiver • Trade Name: MAXON CIC • Model(s): SP 6402 • Tx Frequency: 440 MHz – 470 MHz • Application Type: Certification • Classification: TNF Licensed Non-Broadcast Station Transmitter Held to Face(TNF) • Modulation(s): FM (UHF) • Max SAR Measurement: 4.02 mW/g(1g) GMRS Face SAR ; 4.04 mW/g(1g) GMRS Body SAR • Conducted Power: 5.00W (37.00dBm) GMRS ; Figure 1. SAR System • Power Supply: Li-ION 7.5 VDC NOMINAL EXTREME +/- 10% VDC EXTREME • Place of Test(s): Hyundai C- TECH. EMC Lab. • Date(s) of Tests: November 2, 2005 • Report No.: HCT-SAR05-1102 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62 Company Name: Address: Report No.: HCT-SAR05-1102 FCC ID: RXUSP6402 DATE: November 3, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radio frequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814…
