RYD-J185BBluetooth Karaoke Party Machine

Bluetooth Karaoke Party Machine User’s Guide for Model No. JB185B For the most up-to-date version of this User’s Guide, go to www.gpx.com JB185-IB-Lab.indd 17/10/2015 3:48:47 PM 2 Important Safety Instructions Important Safety Instructions • Read these Instructions. • Keep these Instructions. • Heed all Warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches. Warning: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. ATTENTION RISQUE D' ÉLECTROCUTION NE PAS OUVRIR CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The exclamation point within an equilateral tri- angle is intended to alert the user to the presence of important operating and maintenance (servic- ing) instructions in the literature accompanying the appliance. This symbol indicates that this product incorpo- rates double insulation between hazardous mains voltage and user accessible parts. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous volt- age” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. JB185-IB-Lab.indd 27/10/2015 3:48:48 PM Customer Support: 1-888-999-42153 FCC Warnings Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Additional Warnings and Precautions • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. • WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing. AVIS: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité. • CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure. • WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining. • WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause. • CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 JETOP INDUSTRIAL LIMITED 2015-08-10 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We,JETOP INDUSTRIAL LIMITED hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Bluetooth Karaoke Party Machine Model Number: JB185B, J182B FCC ID: RYD-J185B Sincerely, Cathie Lian/Manager E-mail: [email protected] Phone: 00852-25153978 Fax: 00852-25583209 Address Unit 11,2/F., Sing Win Factory Building, 15-17 Shing Yip Street, Kwun Tong, Kowloon, Hong Kong

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 JETOP INDUSTRIAL LIMITED 2015-08-10 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: RYD-J185B We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Cathie Lian/Manager E-mail: [email protected] Phone: 00852-25153978 Fax: 00852-25583209 Address Unit 11,2/F., Sing Win Factory Building, 15-17 Shing Yip Street, Kwun Tong, Kowloon, Hong Kong

JETOP INDUSTRIAL LIMITED Family models declaration letter. 2015-08-10 We JETOP INDUSTRIAL LIMITED Of Unit 11,2/F., Sing Win Factory Building, 15-17 Shing Yip Street, Kwun Tong, Kowloon, Hong Kong Product: Bluetooth Karaoke Party Machine FCC ID: RYD-J185B Model Name: JB185B, J182B All models are identical in circuitry and electrical, mechanical and physical construction; the only differences are the appearance color and model no. for trading purpose. Thanks Sincerely, Signature Cathie Lian/Manager E-mail: [email protected] Phone: 00852-25153978 Fax: 00852-25583209 Address Unit 11,2/F., Sing Win Factory Building, 15-17 Shing Yip Street, Kwun Tong, Kowloon, Hong Kong

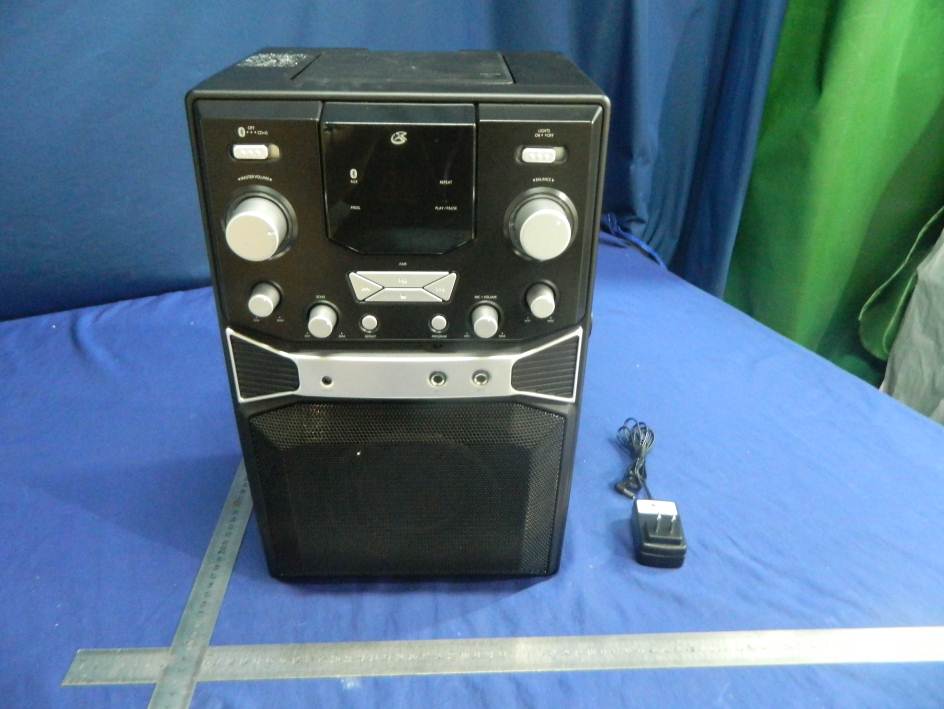

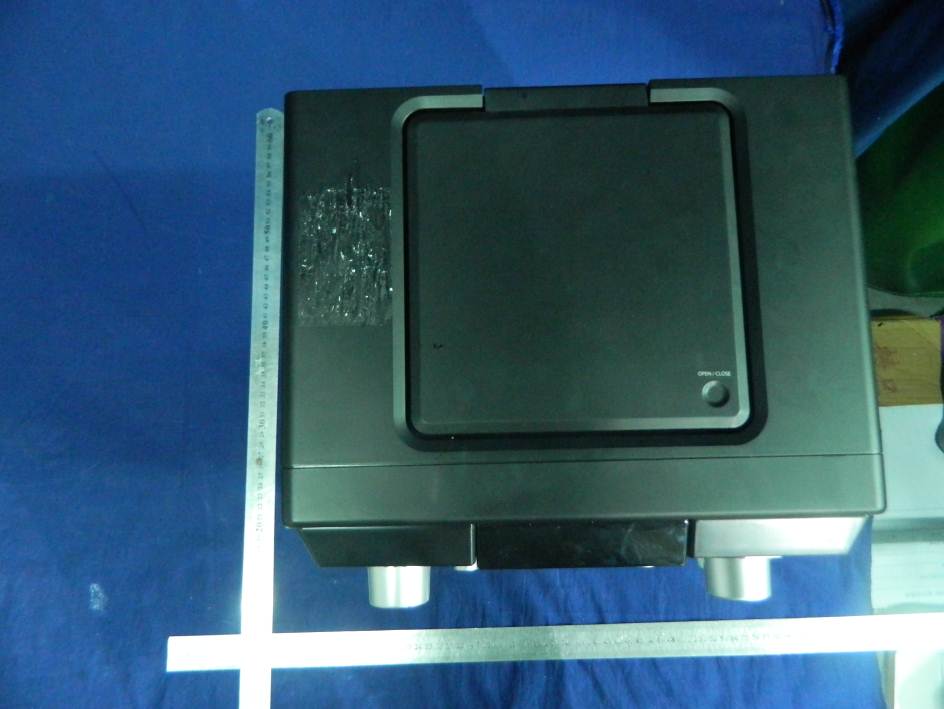

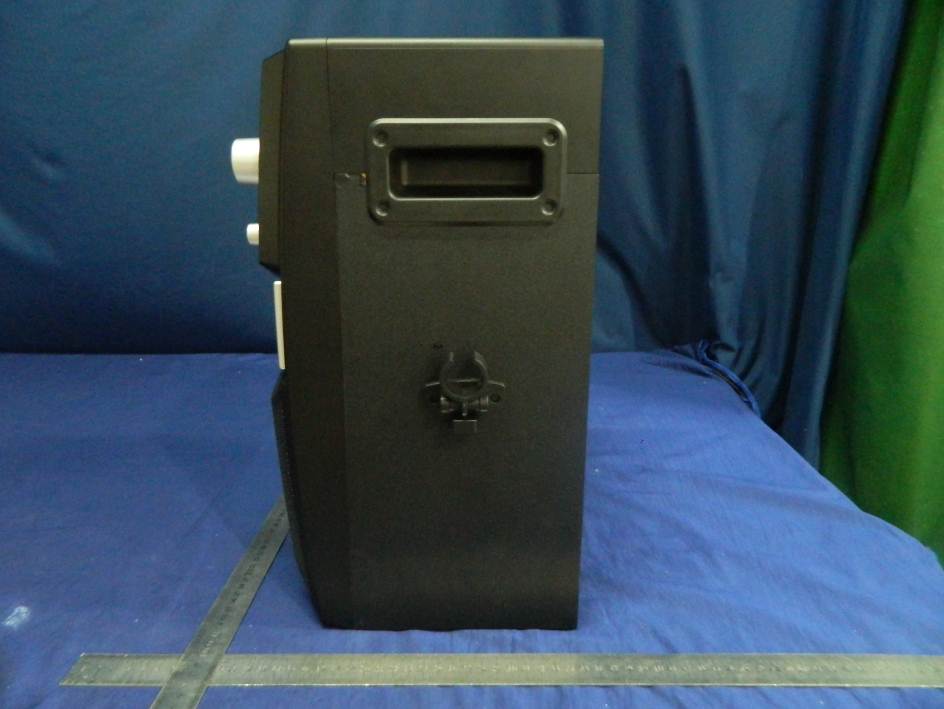

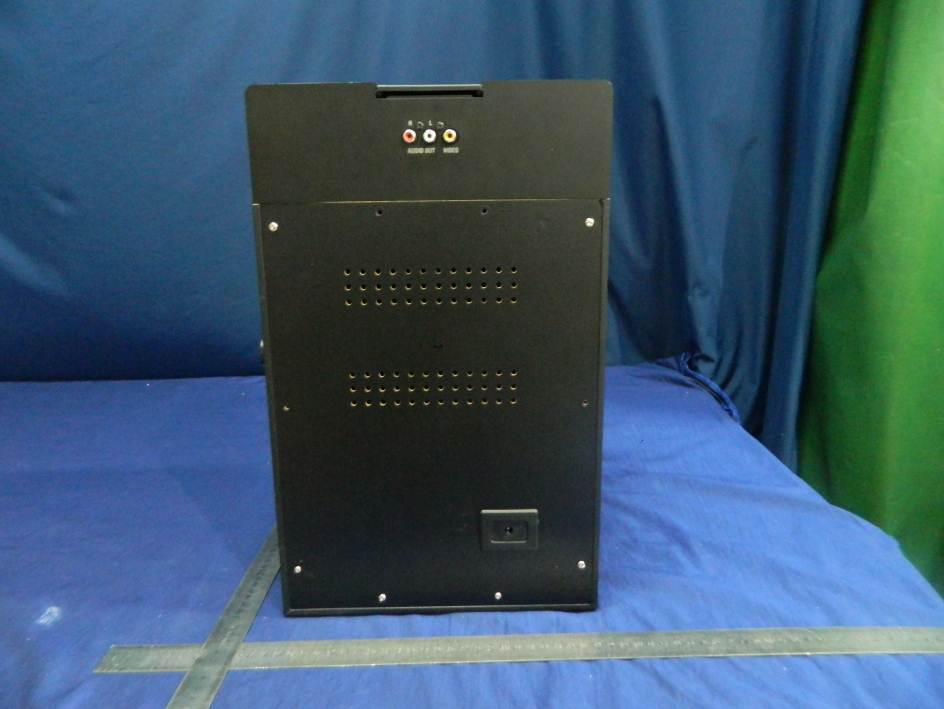

PHOTOGRAPHS OF EUT (EXTERNAL PHOTO)

Label Location

MODEL: JB185B FACTORY: JETOP ITEM: Rating Label and Class 1 Label DATE: Jun 16, 2015 VIDEOAUDIO OUT RL Serial No. (12 Digit) Serial No./Manufactured Code Label Manufactured Code MANUFACTURED: XXXXXXXXX XXXX oooooooooo AA DC IN ATTENTION RISQUE D’ ÉLECTROCUTION NE PAS OUVRIR Bluetooth Karaoke Party Machine THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND DHHS STANDARDS 21 CFR SUBCHAPTER J. AT DATE OF MANUFACTURE. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID : RYD-J185B MODEL : JB185B GPX, a brand of Digital Products International 2116 CARR STREET, ST. LOUIS, MO 63106 USAMADE IN CHINA FID: JT POWER SOURCE: DC7V 1.5A EXTERNAL JB185B Rating Label Size: 93x 102mm Color : White Wording in Black Background Date: Jun, 2015 Rating Label Position CLASS 1 LABEL IN ENGLISH/FRENCH/GERMAN/SPANISH SIZE: 39mm x 25mm PRINTED IN BLACK ON YELLOW BACKGROUND Date: 25Jul2014 CLASS 1 Label Position ATTENTION RISQUE D’ ÉLECTROCUTION NE PAS OUVRIR Bluetooth Karaoke Party Machine THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND DHHS STANDARDS 21 CFR SUBCHAPTER J. AT DATE OF MANUFACTURE. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID : RYD-J185B MODEL : JB185B GPX, a brand of Digital Products International 2116 CARR STREET, ST. LOUIS, MO 63106 USAMADE IN CHINA FID: JT POWER SOURCE: DC7V 1.5A EXTERNAL

Antenna Module

FCC ID: RYD-J185B Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: BT DSS: Transmit Frequency (GHz) Mode Measured Power (dBm) Tune-up power (dBm) Max tune-upResult 1-g SAR power(dBm)calculation 2.402 GFSK -6.378 -6±1 -5 0.0980 3 2.441 GFSK -6.274 -6±1 -5 0.0988 3 2.48 GFSK -6.941 -6±1 -5 0.0996 3 2.402 π/4-DQPSK -7.932 -8±1 -7 0.0618 3 2.441 π/4-DQPSK -7.856 -8±1 -7 0.0623 3 2.48 π/4-DQPSK -8.533 -8±1 -7 0.0628 3 2.402 8DPSK -7.898 -8±1 -7 0.0618 3 2.441 8DPSK -7.790 -8±1 -7 0.0623 3 2.48 8DPSK -8.488 -8±1 -7 0.0628 3 Conclusion: For the max result : 0.0618≤ 3.0 for 1-g SAR extremity SAR, No SAR is required. Signature: Date: 2015-08-10 NAME AND TITLE (Please print or type): David Lee/Manager COMPANY (Please print or type): Shenzhen EMTEK Co.,Ltd./Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China

TRF No.:FCC 15.247/A Page 1 of 66 Report No.: ES150709100E Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For Bluetooth Karaoke Party Machine Model No.: JB185B, J182B FCC ID: RYD-J185B Trademark: GPX, JT REPORT NO.: ES150709100E ISSUE DATE: August 10, 2015 Prepared for JETOP INDUSTRIAL LIMITED Unit 11,2/F., Sing Win Factory Building, 15-17 Shing Yip Street, Kwun Tong, Kowloon, Hong Kong Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 66 Report No.: ES150709100E Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION .......................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................................ 4 3 SUMMARY OF TEST RESULT ............................................................................................................................. 6 4 TEST METHODOLOGY ........................................................................................................................................ 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED ..................................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS ................................................................................................................. 9 5.1 FACILITIES ................................................................................................................................................. 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .............................................................................. 9 6 TEST SYSTEM UNCERTAINTY ......................................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................................. 11 7.1 RADIO FREQUENCY TEST SETUP 1 ..................................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2 ..................................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................................. 13 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ................................................................. 13 7.5 SUPPORT EQUIPMENT ........................................................................................................................... 13 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ..................................................................................... 14 8.1 STA N D A R D APPLICABLE .............................................................................................................................. 14 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ........................................................................... 14 8.3 EQUAL HOPPING FREQUENCY USE .............................................................................................................. 15 8.4 FREQUENCY HOPPING SYSTEM .................................................................................................................... 15 9 TEST REQUIREMENTS ...................................................................................................................................... 16 9.1 20DB BANDWIDTH ................................................................................................................................. 16 9.2 CARRIER FREQUENCY SEPARATION .................................................................................................. 22 9.3 NUMBER OF HOPPING FREQUENCIES ............................................................................................... 28 9.4 AV E R A G E TIME OF OCCUPANCY (DWELL TIME) ............................................................................. 30 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................ 33 9.6 CONDUCTED SUPRIOUS EMISSION .................................................................................................... 39 9.7 RADIATED SPURIOUS EMISSION ......................................................................................................... 46 9.8 CONDUCTED EMISSION TEST .............................................................................................................. 61 9.9 ANTENNA APPLICATION ....................................................................................................................... 66 TRF No.:FCC 15.247/A Page 3 of 66 Report No.: ES150709100E Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: JETOP INDUSTRIAL LIMITED Unit 11,2/F., Sing Win Factory Building, 15-17 Shing Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: JETOP INDUSTRIAL LIMITED Unit 11,2/F., Sing Win Factory Building, 15-17 Shing Yip Street, Kwun Tong, Kowloon, Hong Kong Product Description: Bluetooth Karaoke Party Machine Model Number: JB185B, J182B (Note: These models are identical in circuitry and electrical, mechanical and physical construction; the only differences are the silk-screen, color and model no. for trading purpose. We prepare JB185B for test. and the worst result recorded in the report.) File Number: ES150709100E Date of Test: July 09, 2015 to August 10, 2…

Text truncated - open the document above for the full version.

TRF No.:FCC 15.247/A Page 46 of 66 Report No.: ES150709100E Ver.1.0 Access to the World 9.7 RADIATED SPURIOUS EMISSION 9.7.1 Applicable Standard According to FCC Part 15.247(d) and 15.209 and DA 00-705 9.7.2 Conformance Limit According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). According to FCC Part15.205, Restricted bands MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 10.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475-156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2690-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3600-4400 (2) 13.36-13.41 According to FCC Part15.205, the level of any transmitter spurious emission in Restricted bands shall not exceed the level of the emission specified in the following table Restricted Frequency(MHz) Field Strength ( μV/m) Field Strength (dBμV/m) Measurement Distance 0.009~0.490 2400/F(KHz) 20 log (uV/m) 300 0.490~1.705 2400/F(KHz) 20 log (uV/m) 30 1.705~30.0 30 29.5 30 30-88 100 40 3 88-216 150 43.5 3 216-960 200 46 3 Above 960 500 54 3 Remark :1. Emission level in dBuV/m=20 log (uV/m) 2. Measurement was performed at an antenna to the closed point of EUT distance of meters. 3. Distance extrapolation factor =40log(Specific distance/ test distance)( dB); Limit line=Specific limits(dBuV) + distance extrapolation factor. for the frequency ranges below 30 MHz, a narrower RBW is used for these ranges but the measured value should add a RBW correction factor (RBWCF) where RBWCF [dB] =10*lg(100 [kHz]/narrower RBW [kHz]). , the narrower RBW is 1 kHz and RBWCF is 20 dB for the frequency 9 kHz to 150 kHz, and the narrower RBW is 10 kHz and RBWCF is 10 dB for the frequency 150 kHz to 30 MHz. TRF No.:FCC 15.247/A Page 47 of 66 Report No.: ES150709100E Ver.1.0 Access to the World 9.7.3 Test Configuration Test according to clause 7.2 radio frequency test setup 2 9.7.4 Test Procedure This test is required for any spurious emission that falls in a Restricted Band, as defined in Section 15.205. It must be performed with the highest gain of each type of antenna proposed for use with the EUT. Use the following spectrum analyzer settings: For Above 1GHz: The EUT was placed on a turn table which is 1.5m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 1 MHz VBW  RBW for peak measurement VBW = 10Hz for Average measurement Sweep = auto Detector function = peak Trace = max hold For Below 1GHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 100 kHz VBW  RBW Sweep = auto Detector function = peak Trace = max hold Follow the guidelines in ANSI C63.10-2013 with respect to maximizing the emission by rotating the EUT, measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the measurement antenna height and polarization, etc. A pre-amp and a high pass filter are required for this test, in order to provide the measuring system with sufficient sensitivity. Allow the trace to stabilize. The peak reading of the emission, after being corrected by the antenna factor, cable loss, pre-amp gain, etc., is the peak field strength, which must comply with the limit specified in Section 15.35(b). Submit this data. Now set the VBW to 10 Hz, while maintaining all of the other instrument settings. This peak level, once corrected, must comply with the limit specified in Section 15.209. If the dwell time per channel of the hopping signal is less than 100 ms, then the reading obtained with the 10 Hz VBW may be further adjusted by a “duty cycle correction factor”, derived from 20log(dwell time/100 ms), in an effort to demonstrate compliance with the 15.209 limit. Submit this data. Repeat above procedures until all frequency measured was complete. 9.7.5 Test Results  Spurious Emission below 30MHz (9KHz to 30MHz) Temperature: 24°C Test Date: July 15, 2015 Humidity: 53 % Test By: KING KONG Test mode: TX Mode Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV -- -- -- -- -- -- -- -- Note: the amplitude of spurious emission that is attenuated by more than 20dB below the permissible limit has no need to be reported. Distance extrapolation factor =40log(Specific distance/ test distance)( dB); Limit line=Specific limits(dBuV) + distance extrapolation factor TRF No.:FCC 15.247/A Page 48 of 66 Report No.: ES150709100E Ver.1.0 Access to the World  Spurious Emission below 1GHz (30MHz to 1GHz) Bluetooth (GFSK, pi/4-DQPSK, 8DPSK) mode have been tested, and the worst result was report as below: TRF No.:FCC 15.247/A Page 49 of 66 Report No.: ES150709100E Ver.1.0 Access to the World TRF No.:FCC 15.247/A Page 50 of 66 Report No.: ES150709100E Ver.1.0 Access to the World TRF No.:FCC 15.247/A Page 51 of 66 Report No.: ES150709100E Ver.1.0 Access to the World TRF No.:FCC 15.247/A Page 52 of 66 Report No.: ES150709100E Ver.1.0 Access to the World TRF No.:FCC 15.247/A Page 53 of 66 Report No.: ES150709100E Ver.1.0 Access to the World TRF No.:FCC 15.247/A Page 54 of 66 Report No.: ES150709100E Ver.1.0 Access to the World  Spurious Emission Above 1GHz (1GHz to 25GHz) Bluetooth v2.0 /v2.1/v3…

Text truncated - open the document above for the full version.

Conducted Measurement Photo Radiated Emission Test
