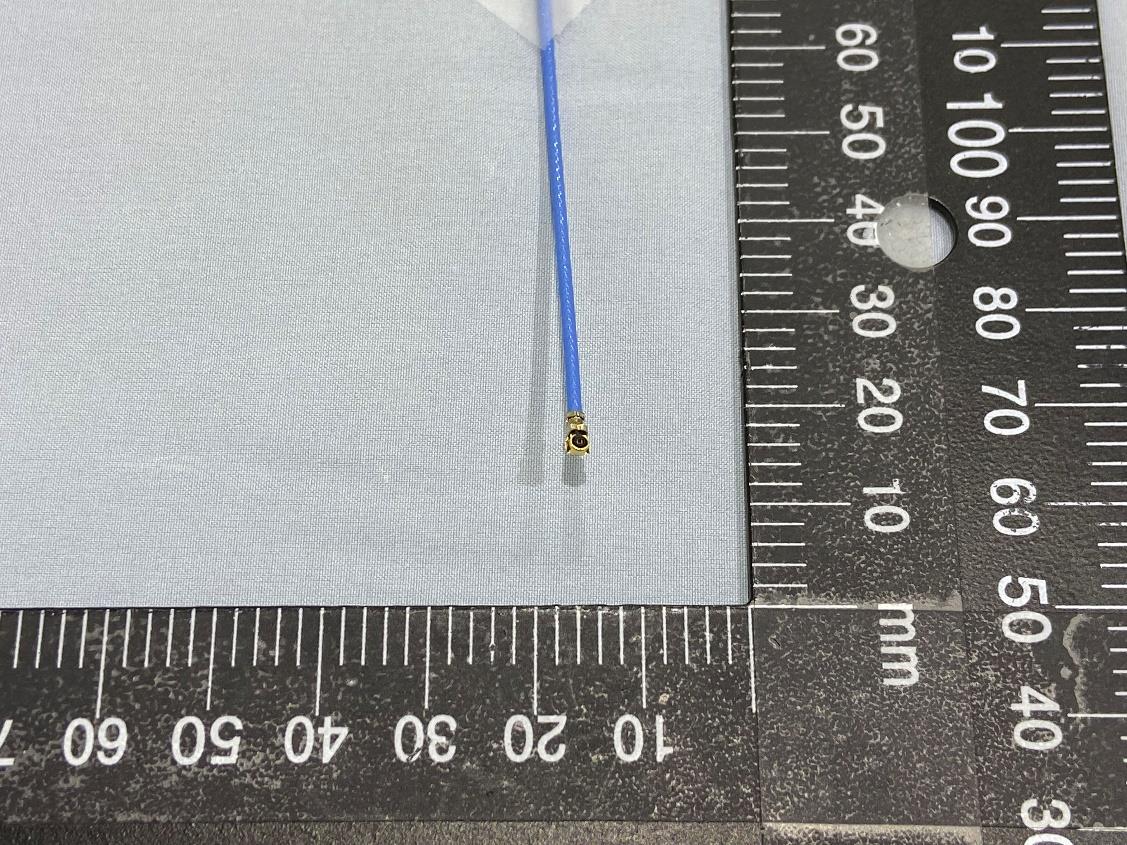

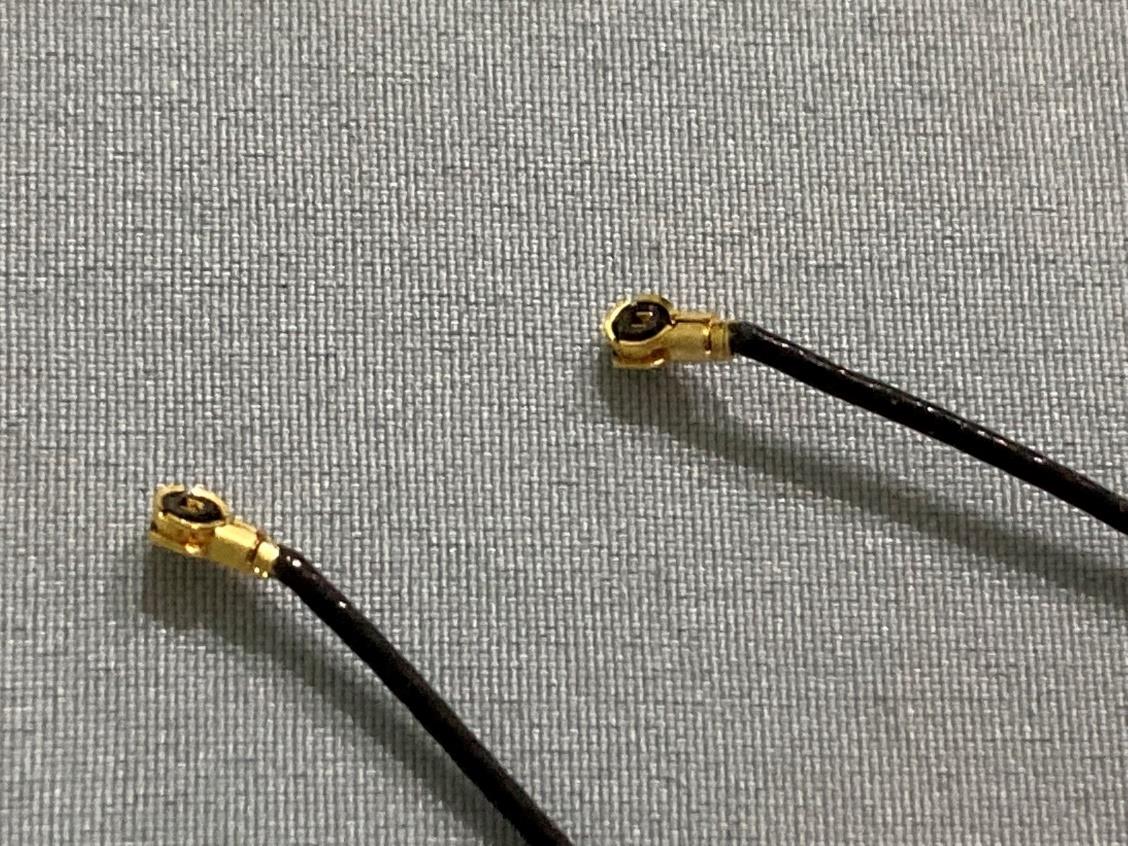

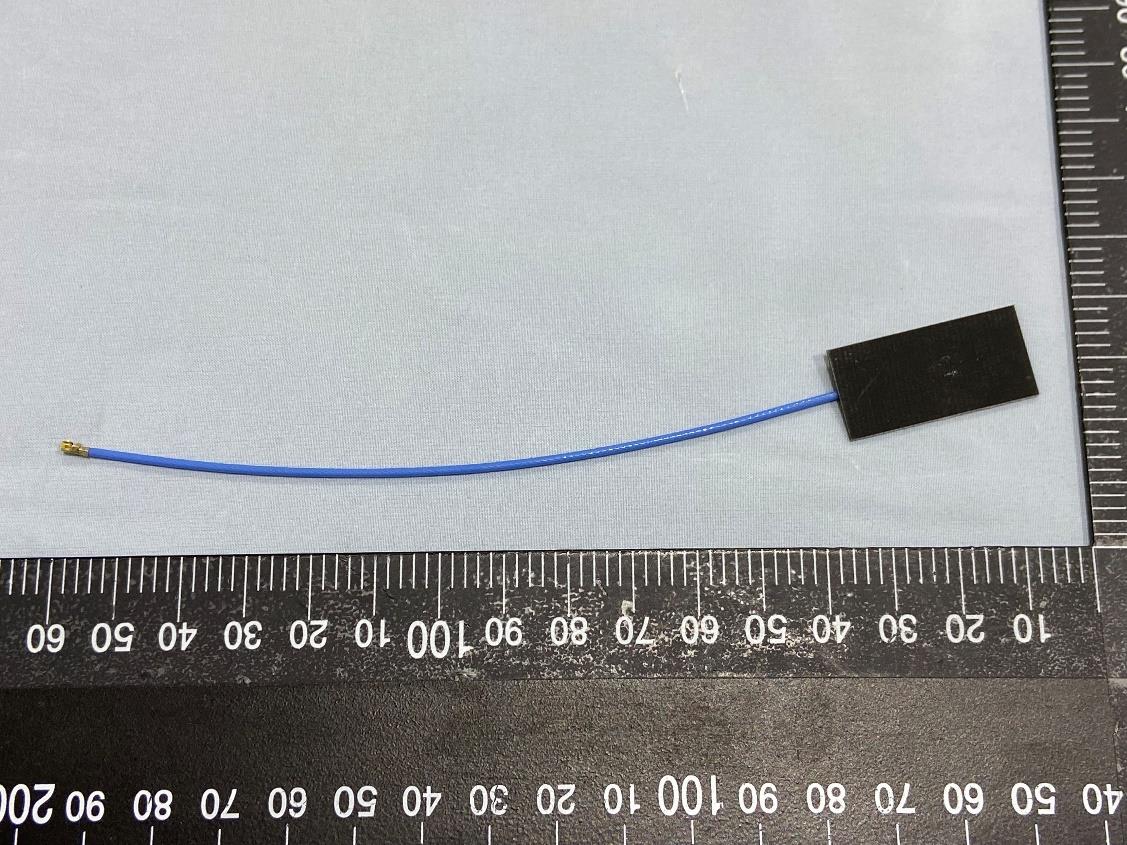

RYK-AP6275SDSRIEEE 802.11ax/ac/a/b/g/n 2x2 WiFi with Bluetooth5.2 M.2 LGA Type 1216 Module

Datasheet AP6275SDSR User Manual AP6275SDSR IEEE 802.11ax/ac/a/b/g/n 2x2 WiFi with Bluetooth5.2 M.2 LGA Type 1216 Module 3 AP6275SDSR Datasheet All Rights Reserved. SparkLAN may make changes to specification and descriptions at any time without prior notice. www.sparklan.com / [email protected] / +886 2 2659-1880 1. Introduction 1.1 Product Overview AP6275SDSR is an 802.11ax (WiFi 6) SiP Module, 802.11ax allow Increased capacity, faster speed, better coverage connections, improve the battery life of IoT sensors, and extend the range of Wi-Fi signals. By implementing the new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT), and spatial reuse, the AP6275SDSR module enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the router and in dense environments. The Wi-Fi and Bluetooth 5.2 functionalities module with seamless roaming capabilities and advanced security. The 802.11 ax sip module can support Multi-User MIMO (MU-MIMO) technology to increase channel capacity when simultaneously servicing multiple devices using the same frequency chunks. Furthermore the included SDIO interface for Wi-Fi, UART/ PCM interface for Bluetooth. 1.2 Product Features 1.2.1 WLAN  Dual-stream spatial multiplexing up to 1200 Mbps data rate  20, 40, 80 MHz channels with optional SGI (1024 QAM modulation)  TX and RX low-density parity check (LDPC) support for improved range and power efficiency  Supports 2 antennas with two for shared BT and WLAN port - Supports standard SDIO v3.0, compatible with SDIO v2.0 HOST interfaces  Client MU-MIMO 1.2.2 Bluetooth  BT host digital interface: - HCI UART (up to 4 Mbps) - PCM for audio data  Complies with Bluetooth Core Specification Version 5.2 with provisions for supporting future specifications. With Bluetooth Class 1 or Class 2 transmitter operation  Supports extended synchronous connections (eSCO), for enhanced voice quality by allowing for retransmission of dropped packets 4 AP6275SDSR Datasheet All Rights Reserved. SparkLAN may make changes to specification and descriptions at any time without prior notice. www.sparklan.com / [email protected] / +886 2 2659-1880 2. Specification 2.1 General Specification Standards IEEE 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.2 Module(2T2R) Bluetooth : V5.2, V5.0, V4.2, V4.1, V4.0 LE, V3.0+HS, V2.1+EDR Chipset Broadcom Operating Frequency 2.400 GHz ~ 2.4835 GHz (2.4GHz ISM Band) 5.150 GHz ~5.850GHz (5GHz UNII Band) Bluetooth: 2.402 GHz ~ 2.480 GHz Modulation WiFi: 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11gn: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11an: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) 802.11ax: OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) BT: Header: GFSK Payload 2M: π/4-DQPSK Payload 3M: 8-DPSK WiFi Interface Support SDIO 3.0 / 2.0. BT Interface UART / PCM Form Factor M.2 1216 Module Antenna 2 x MHF4 connector Dimension L x W x H: 12mm(± 0.1mm) x 16mm(± 0.1mm) x 1.65mm(Max.) Operating temperature -40°C to 85°C Storage temperature -40°C to 125°C Humidity(Non-Condensing) 10%~ 95% (Operating) Weight 0.56g Driver Support Linux, Android Note: The optimal RF performance specified in the data sheet, however, is guaranteed only -10 °C to +55 °C and 3.2V < VBAT < 3.6V without derating performance. 12 AP6275SDSR Datasheet All Rights Reserved. SparkLAN may make changes to specification and descriptions at any time without prior notice. www.sparklan.com / [email protected] / +886 2 2659-1880 4. Host Interface Timing Diagram 4.1 Power-up Sequence Timing Diagram The module has signals that allow the host to control power consumption by enabling or disabling the Bluetooth, WLAN and internal regulator blocks. These signals are described below. Additionally, diagrams are provided to indicate proper sequencing of the signals for carious operating states. The timing value indicated are minimum required values: longer delays are also acceptable.  WL_REG_ON: This signal is used by the PMU to power up the WLAN section. It is also OR-gated with the BT_REG_ON input to control the internal regulators. When this pin is high, the regulators are enabled and the WLAN section is out of reset. When this pin is low, the WLAN section is in reset. If BT_REG_ON and WL_REG_ON are both low, the regulators are disabled.  BT_REG_ON: This signal is used by the PMU to decide whether or not to power down the internal regulators. If BT_REG_ON and WL_REG_ON are low, the regulators will be disabled.  It suggests customers connect WL_REG_ON and BT_REG_ON to GPIOs for control, otherwise unexpected errors may occur when boot-up the device.  In the figure, The VDDIO power supply has been included in the module. When VBAT is power-up, VDDIO will rise to high level after 15 ms.  The module main chip has an internal power-on reset (POR) circuit. The device will be held in reset for a maximum of 110 ms after VDDC and VDDIO have both passed the POR threshold. Wait at least 150 ms after VDDC and VDDIO are available before initiating PCIe accesses. WLAN=ON, Bluetooth=ON 13 AP6275SDSR Datasheet All Rights Reserved. SparkLAN may make changes to specification and descriptions at any time without prior notice. www.sparklan.com / [email protected] / +886 2 2659-1880 WLAN=OFF, Bluetooth=OFF WLAN=ON, Bluetooth=OFF WLAN=OFF, Bluetooth=ON 14 AP6275SDSR Datasheet All Rights Reserved. SparkLAN may make changes to specification and descriptions at any time without prior notice. www.sparklan.com / [email protected] / +886 2 2659-1880 4.2 SDIO Interface Description The module WLAN section provides support for SDIO version 3.0 at 1.8V signaling, including the new UHS-1 mode: DS : Default speed (DS) up to 25MHz, including 1- and 4-bit modes.  SDR12 : SDR up to 25 MHz  SDR25 : SDR up to 50MHz  SDR50 : SDR up to 100MHz  SDR104 : SDR up to 208MHz …
