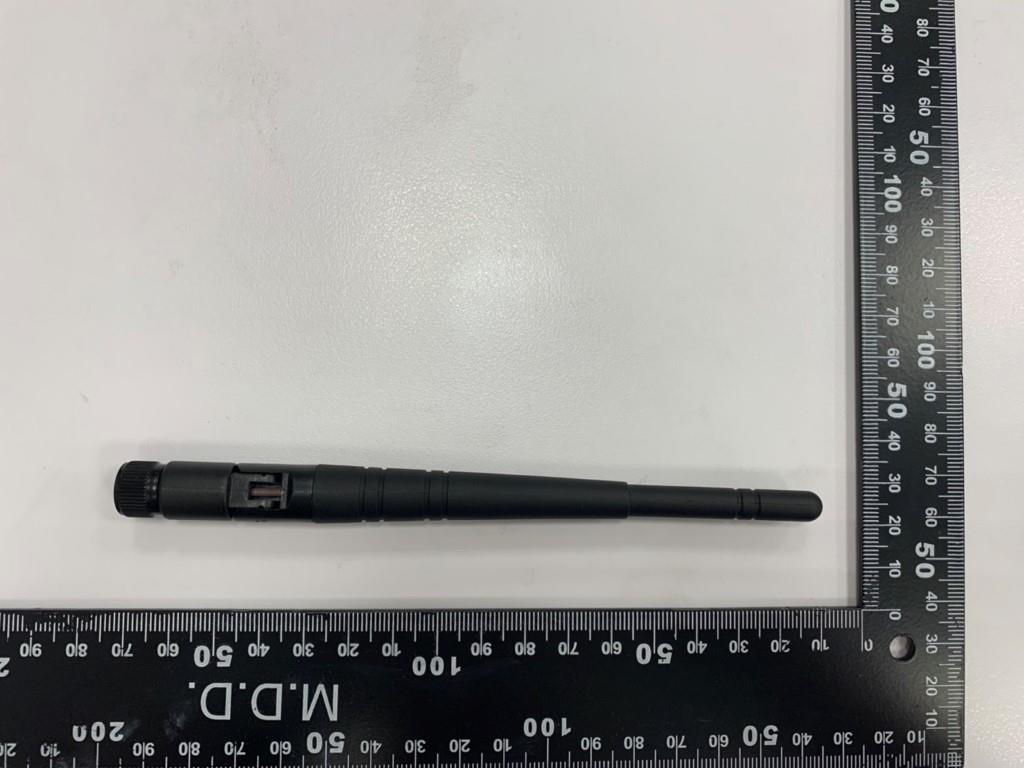

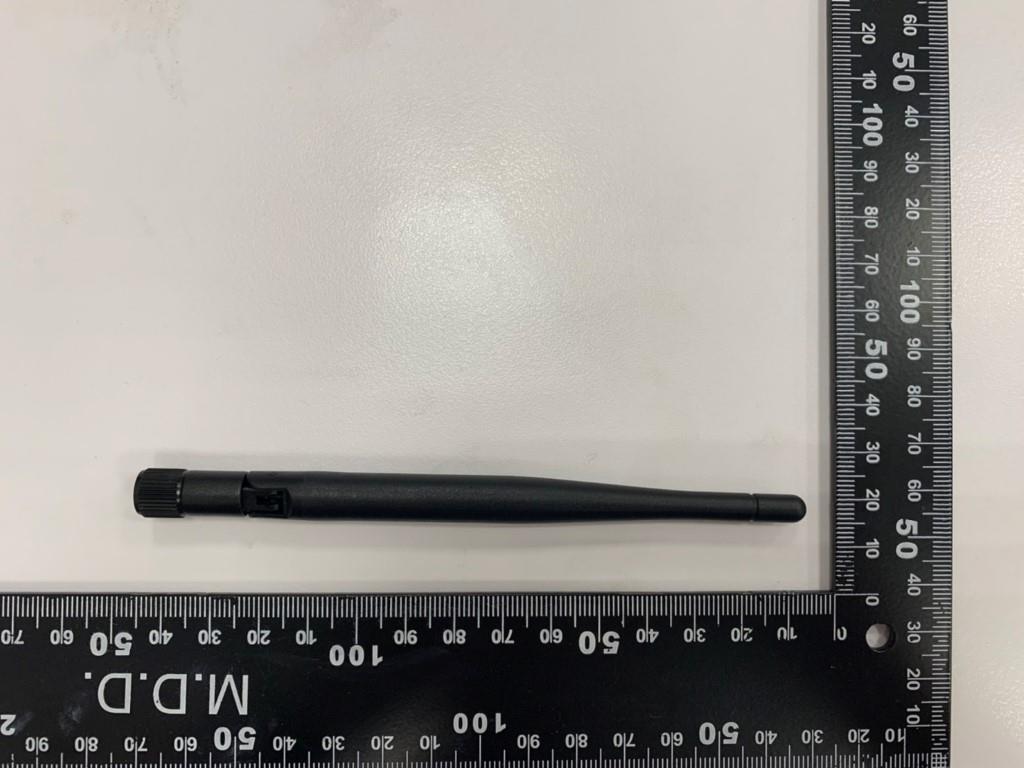

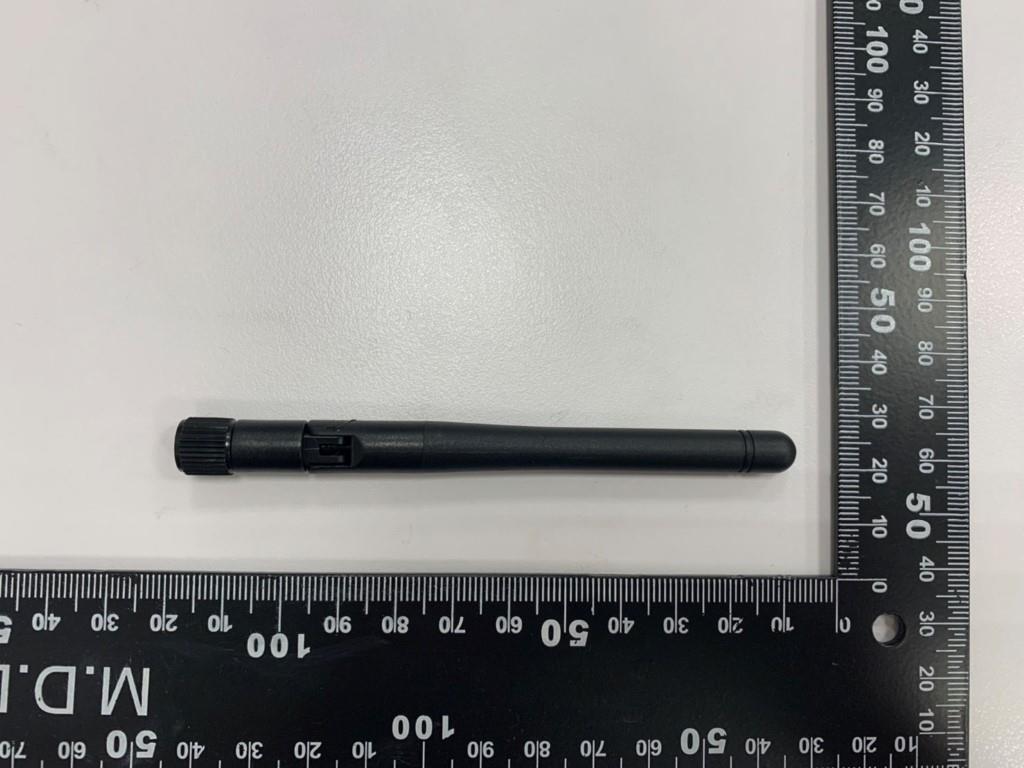

RYK-WPEB265AXIBTIEEE 802.11ax/ac/a/b/g/n 2x2 WiFi with Bluetooth5.0 Combo Module

Wireless Module SparkLAN WPEB-265AXI(BT) [B33] & AP12275_PB33 WPEB-265AXI(BT) [B18] & AP12275_PB18 WPEB-265AXI(BT) [R33] & AP12275_PR33 WPEB-265AXI(BT) [R18] & AP12275_PR18 HW User manual Version 0.0 Revision History Date Revision Content Revised By Version 2020/12/30 Initial released Wayne 0.0 Wireless Module Contents Revision History ............................................................................................................... 0 1. WPEB-265AXI(BT) [XXX] Series Hardware User Manual Introduction ................... 2 1.1. Module Block Diagram ..................................................................................... 2 1.2. External Reference Circuit ............................................................................... 3 2. PCB Layout Guide ...................................................................................................... 5 2.1. PCI-e Layout Guide .......................................................................................... 5 2.2 USB Layout Guide ............................................................................................ 5 List of Figures Figure1. WPEB-265AXI(BT) [XXX] Series PCI-e Half-Mini Card Block Diagram .......... 2 Figure2. External Reference Circuit .............................................................................. 3 Figure3. PCI-e Interface Connection Diagram .............................................................. 4 Figure4. UART and USB Interface Connection Diagram .............................................. 4 Wireless Module 1. WPEB-265AXI(BT) [XXX] Series Hardware User Manual Introduction This document provides customers with considerations for the hardware design of WPEB-265AXI(BT) [XXX] series. It includes hardware block diagram, reference design, PCB layout, and PCB stack up, which will be explained in detail below. 1.1. Module Block Diagram Figure1. WPEB-265AXI(BT) [XXX] Series PCI-e Half-Mini Card Block Diagram In Figure 1, The WPEB-265AXI(BT) [XXX] series PCI-e Half-Mini Card is a dual-band Wi-Fi 2x2 IEEE 802.11ax module with integrated Bluetooth 5.0. The WLAN host interface is PCI-e v3.0 compliant and runs at Gen2 speeds. The Bluetooth host interface is a USB interface and it also supports UART interface. The WPEB-265AXI(BT) [XXX] is powered by the VDD (3.0V to 3.6V) supplies. All other voltages are provided by internal regulators. &AP12275_ P B 33 AmpakSparkLAN USB(PB33/B18) UART(PR33/PR18) PCIe VDD Antenna2 Antenna1 AP12275_P Series PCI-e Half-Mini Card BT Wi-Fi HOST GPIOs VDD: Typ. 3.3V (3.0V~3.6V)/1.25A WPEB-265AXI(BT) [ B 33 ] GPIOs Voltage Level 18: Typ. 1.8V (1.62V~1.98V) 33: Typ. 3.3V (3.0V~3.6V) B: Bluetooth USB Interface R: Bluetooth UART Interface P: Wi-Fi PCI-e Interface Wireless Module 1.2. External Reference Circuit Figure2. External Reference Circuit The recommended schematic configuration for all of the interfaces and GPIOs are shown as figure 2. The connection block diagram of the PCI-e interface is shown in figure 3. However, the connection block diagram of UART and USB int erfaces is shown in figure 4. *Note: T he Bluetooth host interface only supports one of UART or USB for each kind of product. C30 NP C32 NP C31 NP C33 NP C35 NP C34 NP WL_REG_ON C123100pF C124100pF Turn on the Wi-Fi function at default. VIO R3410K R350R C1210.1uF HOST_PCIE_CLKREQn PCIE_CLKREQn R1150R C1220.1uF R1160R BT_REG_ON Turn on the BT function at default. BT_U AR T_R TS_NHOST_UART_CTS_N BT_U AR T_C TS_N BT_UART_RXDH OST_U AR T_TXD BT_U AR T_TXDHOST_UART_RXD WLAN Connected to HOST I/O HOST_UART_RTS_N R81 NP/10K BT HOST_PCIE_RDN HOST_PCIE_RDP HOST_PCIE_TDN HOST_PCIE_TDP PCIE_RDP HOST_PCIE_REFCLKP PCIE_REFCLKP PCIE_RDN VIO PCIE_PRRST_L PCIE_REFCLKN R82 NC/10K PCIE_TDP PCIE_TDN HOST_PCIE_REFCLKN VIO Voltage Level [B33], [R33] : Typ.3.3V (3.0V~3.6V) [B18], [R18] : Typ.1.8V (1.62V~1.98V) HOST_USB_D+USB_D+ HOST_USB_D-USB_D- UART Interface [R33], [R18] USB Interface [B33], [B18] Wireless Module Figure3. PCI-e Interface Connection Diagram Figure4. UART and USB Interface Connection Diagram PCIE_REFCLKP PCIe_RDN PCIe_RDP PCIe_TDN PCIe_TDP PCIE_TDN PCIE_TDP PCIE_RDN PCIE_RDP HOST PCIe interface conection diagram PCIE_REFCLKNPCIE_REFCLKN PCIE_REFCLKP WPEB-265AXI(BT) [XXX] UART_CTS_N UART & PCM interface conection diagram UART_RXD UART_TXD UART_RTS_N UART_CTS_N UART_RTS_N UART_TXD UART_RXD WPEB-265AXI(BT) [XXX]HOST USB_D+ USB_D- USB_D+ USB_D- Wireless Module 2. PCB Layout Guide 2.1. PCI-e Layout Guide 1. The PCI-e differential pair signals impedance target is 100±20% ohms impedance. 2. Do not place probe or test points on any high-speed differential signal. 3. Do not route high-speed traces under or near crystals, oscillators, clock signal generators, switching power regulators, mounting holes, magnetic devices, or ICs that use or duplicate clock signals. 4. The traces routing don't be 90° angle. 5. For PCI-e add-in card, any layer under edge finger area should be removed. Including ground and power layers. 6. Ensure that high-speed differential signals are routed at least 1.5 W (calculated trace-width × 1.5) away from voids in the reference plane. This rule does not apply where SMD pads on high-speed differential signals are voided. 7. Maximize differential pair-to-pair spacing when possible. 2.2 USB Layout Guide 1. DP/DM traces should always be matched lengths and must be no more than 4 inches in length; otherwise, the eye opening may be degraded. 2. Route DP/DM traces close together for noise rejection on differential signals, parallel to each other and within two mils in length of each other (start the measurement at the chip package boundary, not to the balls or pins). 3. A high-speed USB connection is made through a shielded, twisted pair cable with a differential characteristic impedance of 90 Ω ±15%. In layout, the impedance of DP and DM should each be 45 Ω ± 10%. 4. DP/DM traces should not have any extra components to maintain signal integrity. For example, traces cannot …
