RYK-WNFB266AXIBTIEEE 802.11ax/ac/a/b/g/n 2x2 WiFi with Bluetooth5.0 Combo Module

Wireless Module SparkLAN WNFB-266AXI(BT) & AP12275_M2 HW User manual Version 0.1 Revision History Date Revision Content Revised By Version 2020/11/26 Initial released Ares 0.0 2021/01/04 Updated picture of device. Ares 0.1 Wireless Module Contents Revision History ............................................................................................................... 0 1. WNFB-266AXI(BT) & AP12275_M2 Evaluation Board Introduction ........................ 1 1-1. Interface Highlights ........................................................................................ 1 List of Figures Figure1. Top view of WNFB-266AXI(BT) & AP12275_M2 EVB .................................................... 1 1 Wireless Module 1. WNFB-266AXI(BT) & AP12275_M2 Evaluation Board Introduction The WNFB-266AXI(BT) & AP12275_M2 evaluation board (EVB) is shown in Figure 1. This specifically provides customers as a test application for WNFB-266AXI(BT) & AP12275_M2 products. It provides communication interface conversion, functional I/O voltage level switching, and external power supply test points. There are controller pins on evaluation board which describes as below. Figure1. Top view of WNFB-266AXI(BT) & AP12275_M2 EVB 1-1 . Interface Highlights 1. J2: 5V DC adaptor input connector 2. J10: PCI-e Half Mini Card Connector (Female) and Latch. 3. J3: UART interface connects with USB port. 4. J4: SDIO Card Connector. 2 Wireless Module Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. RF exposure statements This Transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body or nearby persons. CFR 47 FCC PART 15 SUBPART C (15.247) and SUBPART E (15.407) has been investigated. It is applicable to the modular transmitter. The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. This radio transmitter RYK-WNFB266AXIBT has been approved by Federal Communications Commission to operate with the antenna types listed below, with the 3 Wireless Module maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Unique antenna connector (RP-SMA) must be used on the Part 15 authorized transmitters used in the host product. Antenna Type Antenna Model Maximum Gain (dBi) Remark 2.4 GHz 5GHz Dipole AD-103AG 2.02 dBi 2.03 dBi Dipole AD-302N 3.14 dBi 2.73 dBi Dipole AD-303N 3.14 dBi 3.24 dBi Length of Antenna cable:150mm Connector type of Antenna cable: I-PEX/MHF4 to RP-SMA(F) If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: RYK-WNFB266AXIBT” Or “Contains FCC ID: RYK-WNFB266AXIBT” The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. 4 Wireless Module Industry Canada statement: This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. Caution: 1) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; 2) For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit…

Text truncated - open the document above for the full version.

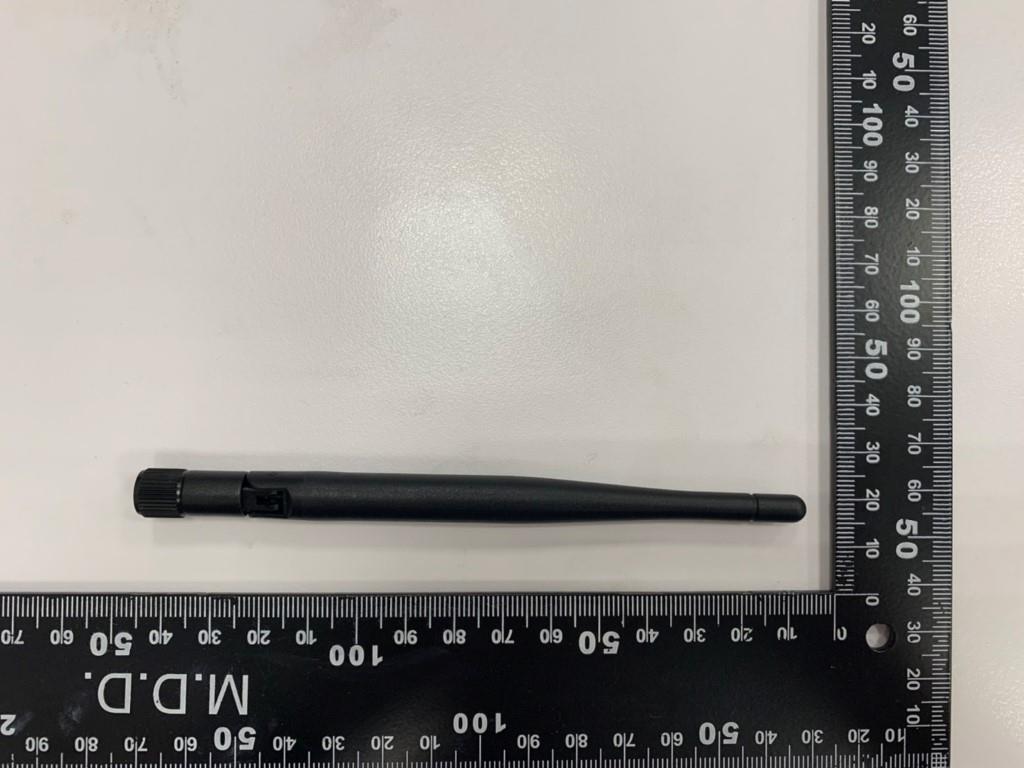

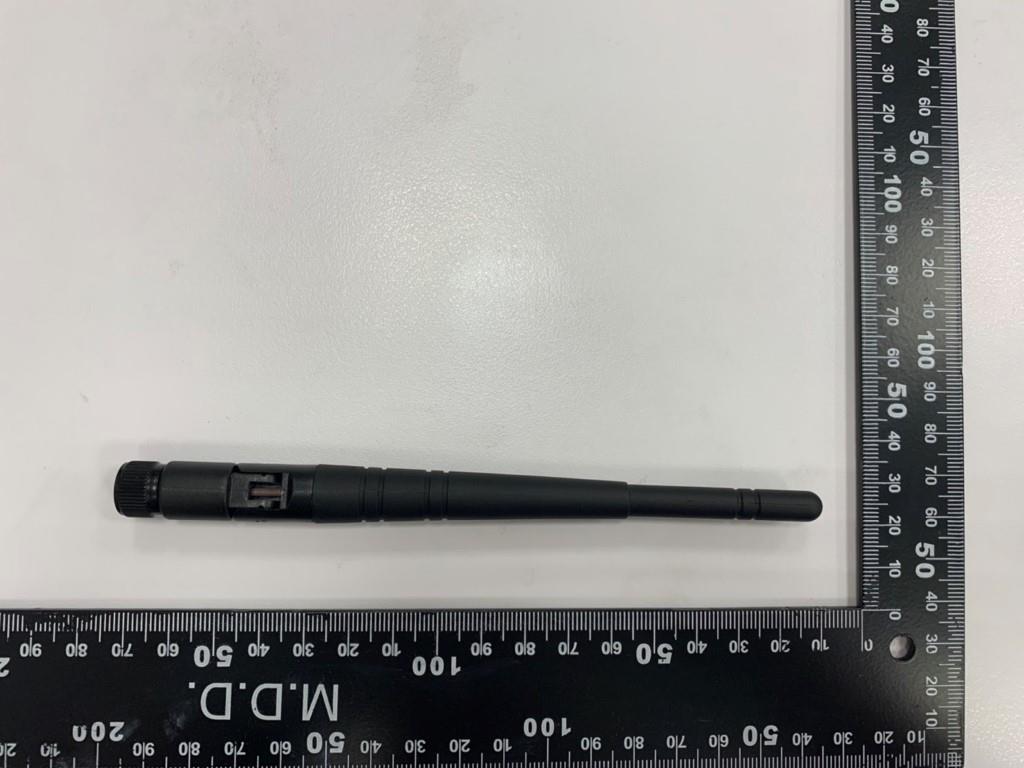

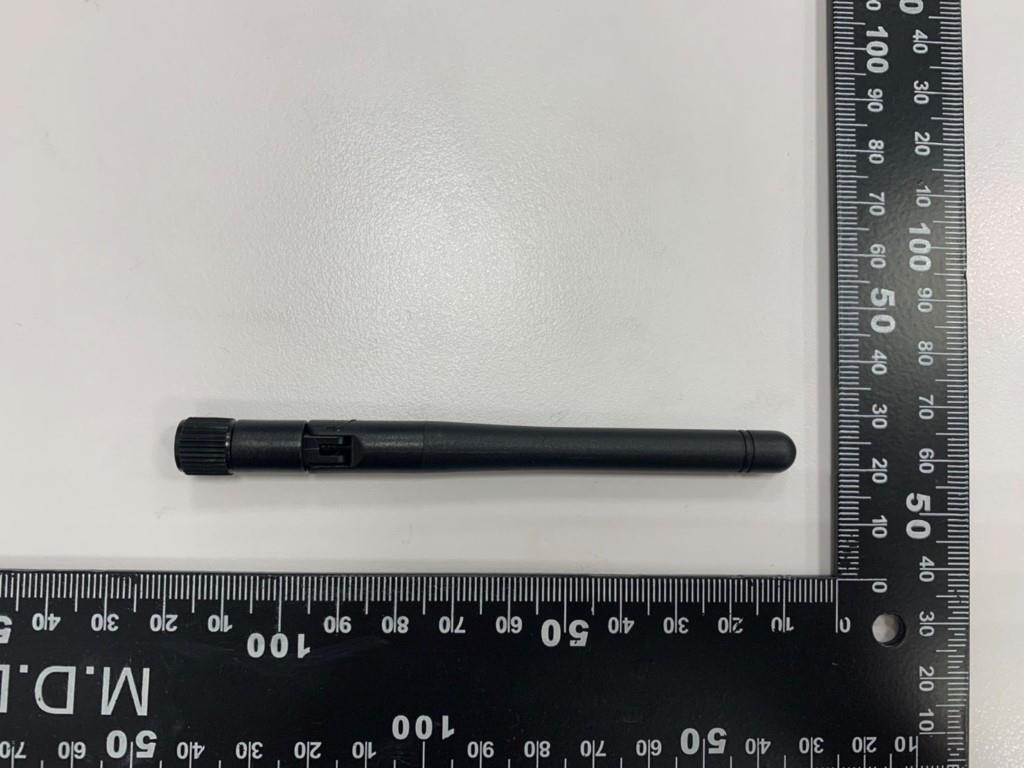

Test report No. : 4789558396-EP Page : 1 of 8 Issued date : Mar. 16, 2021 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Product Photos External Photos Test report No. : 4789558396-EP Page : 2 of 8 Issued date : Mar. 16, 2021 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Antenna Model Name : AD-103AG Test report No. : 4789558396-EP Page : 3 of 8 Issued date : Mar. 16, 2021 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Model Name : AD-302N Test report No. : 4789558396-EP Page : 4 of 8 Issued date : Mar. 16, 2021 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Model Name : AD-303N

Model Name FCC ID IC ID MIC ID WNFB-266AXI(BT) RYK-WNFB266AXIBT 6158A-NFB266AXIBT 020-200126 AP12275_M2 Label location Model Label location WNFB-266AXI(BT), AP12275_M2 WNFB-265AXI(BT)_Product Label AP12275_M2P_Product Label

Test report No. : 4789558396-EP Page : 5 of 8 Issued date : Mar. 16, 2021 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Internal Photos Test report No. : 4789558396-EP Page : 6 of 8 Issued date : Mar. 16, 2021 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Test report No. : 4789558396-EP Page : 7 of 8 Issued date : Mar. 16, 2021 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Test report No. : 4789558396-EP Page : 8 of 8 Issued date : Mar. 16, 2021 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948

Test report No. : 4789558396-US-R5-V0 Page : 1 of 12 Issued date : Mar. 18, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 3.0 Maximum Permissible Exposure Report Product : IEEE 802.11ax/ac/a/b/g/n 2x2 WiFi with Bluetooth5.0 Combo Module Model Name : WNFB-266AXI(BT) Series Model : AP12275_M2 FCC ID : RYK-WNFB266AXIBT Test Regulation : 47 CFR FCC Part 2.1091 Received Date : Jul. 22, 2020 Issued Date : Mar. 18, 2021 Applicant : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Test report No. : 4789558396-US-R5-V0 Page : 2 of 12 Issued date : Mar. 18, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 3.0 REVISION HISTORY Original Test Report No.: 4789558396-US-R5-V0 Rev. Test report No. Date Page revised Contents Original 4789558396-US-R5-V0 Mar. 18, 2021 - Initial issue Test report No. : 4789558396-US-R5-V0 Page : 3 of 12 Issued date : Mar. 18, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 3.0 Table of Contents 1. Attestation of Test Results ......................................................................................... 4 2. Test Methodology and Reference Procedures ......................................................... 5 3. Facilities and Accreditation ...................................................................................... 5 4. Equipment Under Test ............................................................................................. 6 4.1. Description of EUT .............................................................................................. 6 4.2. Description of Available Antennas ...................................................................... 9 5. Requirement ............................................................................................................. 10 6. Radio Frequency Radiation Exposure Evaluation ............................................... 11 Test report No. : 4789558396-US-R5-V0 Page : 4 of 12 Issued date : Mar. 18, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 3.0 1. Attestation of Test Results APPLICANT: SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) MANUFACTURER SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) EUT DESCRIPTION: IEEE 802.11ax/ac/a/b/g/n 2x2 WiFi with Bluetooth5.0 Combo Module MODEL: WNFB-266AXI(BT) SERIES MODEL: AP12275_M2 SAMPLE STAGE: Identical Prototype APPLICABLE STANDARDS STANDARD Test Results 47 CFR FCC PART 2.1091 PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Underwriters Laboratories Taiwan Co., Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Underwriters Laboratories Taiwan Co., Ltd. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Prepared By: Approved and Authorized By: Sally Lu Date : Mar. 18, 2021 Waternil Guan Date : Mar. 18, 2021 Project Handler Engineer Test report No. : 4789558396-US-R5-V0 Page : 5 of 12 Issued date : Mar. 18, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 3.0 2. Test Methodology and Reference Procedures The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. Facilities and Accreditation Test Location Underwriters Laboratories Taiwan Co., Ltd. Address Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Accreditation Certificate Underwriters Laboratories Taiwan Co., Ltd. is accredited by TAF, Laboratory Code 3398. …

Text truncated - open the document above for the full version.

Test report No. : 4789558396-US-R2-V0 Page : 1 of 30 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0886 / 4.0 DFS TEST REPORT Product : IEEE 802.11ax/ac/a/b/g/n 2x2 WiFi with Bluetooth5.0 Combo Module Model Name : WNFB-266AXI(BT) Series Model : AP12275_M2 FCC ID : RYK-WNFB266AXIBT Test Regulation : FCC 47 CFR Part 15 Subpart E (Section 15.407) Received Date : Jul. 22, 2020 Test Date : Feb. 1, 2021 ~ Feb. 24, 2021 Issued Date : Mar. 16, 2021 Applicant : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. Test report No. : 4789558396-US-R2-V0 Page : 2 of 30 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0886 / 4.0 REVISION HISTORY Original Test Report No.: 4789558396-US-R2-V0 Rev. Test report No. Date Page revised Contents Original 4789558396-US-R2-V0 Mar. 16, 2021 - Initial issue Test report No. : 4789558396-US-R2-V0 Page : 3 of 30 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0886 / 4.0 Table of Contents 1. Attestation of Test Results........................................................................................ 4 2. Test Methodology and Reference Procedures ........................................................ 5 3. Facilities and Accreditation ..................................................................................... 5 4. Equipment under Test .............................................................................................. 6 4.1 Description of EUT ............................................................................................. 6 4.2 EUT Software and Firmware Version ................................................................ 8 4.3 Support Equipment ............................................................................................. 8 4.4 Description of Available Antennas ..................................................................... 9 4.5 EUT Maximum Conducted Power.................................................................... 10 4.6 EUT Maximum E.I.R.P. Power ........................................................................ 12 4.7 Test Condition ................................................................................................... 13 5. Test Equipment ....................................................................................................... 14 6. Test Result ............................................................................................................... 15 6.1 Transmit Power Control (TPC) ......................................................................... 15 6.2 Dynamic Frequency Selection (DFS) ............................................................... 16 6.2.1 Applicability of DFS Requirements ...................................................................................... 16 6.2.2 DFS Detection Thresholds and Response Requirement ....................................................... 17 6.2.3 Radar Test Waveforms .......................................................................................................... 18 6.2.4 Channel Loading / Data Streaming ...................................................................................... 20 6.2.5 Test Setup .............................................................................................................................. 22 6.2.6 Test Result ............................................................................................................................ 23 Test report No. : 4789558396-US-R2-V0 Page : 4 of 30 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0886 / 4.0 1. Attestation of Test Results APPLICANT: SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) MANUFACTURER SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) EUT DESCRIPTION: IEEE 802.11ax/ac/a/b/g/n 2x2 WiFi with Bluetooth5.0 Combo Module MODEL: WNFB-266AXI(BT) SERIES MODEL: AP12275_M2 SAMPLE STAGE: Identical Prototype DATE of TESTED: Feb. 1, 2021 ~ Feb. 24, 2021 APPLICABLE STANDARDS STANDARD Test Results FCC 47 CFR PART 15 Subpart E (Section 15.407) PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test r…

Text truncated - open the document above for the full version.

Test report No. : 4789558396-US-R1-V0 Page : 1 of 393 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0878 / 5.0 RADIO TEST REPORT The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Product : IEEE 802.11ax/ac/a/b/g/n 2x2 WiFi with Bluetooth5.0 Combo Module Model Name : WNFB-266AXI(BT) Series Model : AP12275_M2 FCC ID : RYK-WNFB266AXIBT Test Regulation : FCC 47 CFR Part 15 Subpart E (Section 15.407) Received Date : Jul. 22, 2020 Test Date : Feb. 1, 2021 ~ Feb. 24, 2021 Issued Date : Mar. 16, 2021 Applicant : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Test report No. : 4789558396-US-R1-V0 Page : 2 of 393 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0878 / 5.0 REVISION HISTORY Original Test Report No.: 4789558396-US-R1-V0 Rev. Test report No. Date Page revised Contents Original 4789558396-US-R1-V0 Mar. 16, 2021 - Initial issue Test report No. : 4789558396-US-R1-V0 Page : 3 of 393 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0878 / 5.0 Table of Contents 1. Attestation of Test Results .............................................................................................4 2. Summary of Test Results ...............................................................................................5 3. Test Methodology and Reference Procedures .............................................................6 4. Facilities and Accreditation ...........................................................................................6 5. Measurement Uncertainty .............................................................................................7 6. Equipment under Test ...................................................................................................8 6.1. Description of EUT .............................................................................................. 8 6.2. Channel List ....................................................................................................... 11 6.3. Test Condition .................................................................................................... 13 6.4. Description of Available Antennas .................................................................... 13 6.5. Test Mode Applicability and Tested Channel Detail ......................................... 14 6.6. Duty cycle .......................................................................................................... 17 7. Test Equipment ............................................................................................................ 23 8. Description of Test Setup ............................................................................................ 25 9. Test Results ................................................................................................................... 26 9.1. 6dB Bandwidth .................................................................................................. 26 9.2. 26dB Bandwidth ................................................................................................ 40 9.3. Occupied Bandwidth .......................................................................................... 58 9.4. Conducted Output Power ................................................................................... 80 9.5. Power Spectral Density ...................................................................................... 96 9.6. Frequency Stability .......................................................................................... 128 9.7. Radiated Spurious Emission ............................................................................ 130 9.8. AC Power Line Conducted Emission .............................................................. 269 Appendix I Radiated Band Edge and OOBE Measurement ....................................... 279 Appendix II Radiated Spurious Emission Measurement ............................................. 345 Test report No. : 4789558396-US-R1-V0 Page : 4 of 393 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0878 / 5.0 1. Attestation of Test Results APPLICANT: SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) MANUFACTURER SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) EUT DESCRIPTION: IEEE 802.11ax/ac/a/b/g/n 2x2 WiFi with Bluetooth5.0 Combo Module MODEL: WNFB-266AXI(BT) SERIES MODEL: AP12275_M2 SAMPLE STAGE: Identical Prototype DATE of TESTED: Feb. 1, 2021 ~ Feb. 24, 2021 A…

Text truncated - open the document above for the full version.

Test report No. : 4789558396-US-R1-V0 Page : 70 of 393 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0878 / 5.0 Beamforming mode OFDM 802.11ax (HE20) Channel Frequency (MHz) Occupied Bandwidth (MHz) Chain 0 Chain 1 36 5180 18.90 18.94 44 5220 19.14 19.02 48 5240 19.14 18.98 52 5260 18.98 18.94 60 5300 19.02 18.94 64 5320 19.06 19.10 100 5500 19.02 18.94 116 5580 19.18 18.98 140 5700 18.94 18.94 144 5720 18.94 18.94 149 5745 18.98 19.02 157 5785 19.02 18.86 165 5825 18.94 19.02 802.11ax (HE40) Channel Frequency (MHz) Occupied Bandwidth (MHz) Chain 0 Chain 1 38 5190 37.72 37.64 46 5230 37.64 37.64 54 5270 37.64 37.72 62 5310 37.72 37.64 102 5510 37.64 37.64 110 5550 37.64 37.64 134 5670 37.64 37.64 142 5710 37.64 37.64 151 5755 37.64 37.72 159 5795 37.56 37.64 Test report No. : 4789558396-US-R1-V0 Page : 71 of 393 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0878 / 5.0 802.11ax (HE80) Channel Frequency (MHz) Occupied Bandwidth (MHz) Chain 0 Chain 1 42 5210 77.52 77.20 58 5290 77.20 77.20 106 5530 77.36 77.04 122 5610 77.20 77.20 138 5690 77.52 77.20 155 5775 77.20 77.52 Test report No. : 4789558396-US-R1-V0 Page : 72 of 393 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0878 / 5.0 OFDMA 802.11ax (HE20) Channel Frequency (MHz) Occupied Bandwidth (MHz) Chain 0 Chain 1 36 5180 19.14 19.06 44 5220 19.14 19.14 48 5240 19.18 19.30 52 5260 19.10 19.14 60 5300 19.18 19.10 64 5320 19.26 19.22 100 5500 19.30 19.18 116 5580 19.18 19.06 140 5700 19.22 19.22 144 5720 19.14 19.14 149 5745 19.22 19.26 157 5785 19.18 19.06 165 5825 19.26 19.10 802.11ax (HE40) Channel Frequency (MHz) Occupied Bandwidth (MHz) Chain 0 Chain 1 38 5190 37.64 37.64 46 5230 37.64 37.64 54 5270 37.64 37.64 62 5310 37.72 37.64 102 5510 37.72 37.64 110 5550 37.72 37.64 134 5670 37.64 37.64 142 5710 37.64 37.72 151 5755 37.64 37.64 159 5795 37.64 37.64 Test report No. : 4789558396-US-R1-V0 Page : 73 of 393 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0878 / 5.0 802.11ax (HE80) Channel Frequency (MHz) Occupied Bandwidth (MHz) Chain 0 Chain 1 42 5210 77.52 77.36 58 5290 77.20 77.20 106 5530 77.20 77.36 122 5610 77.20 77.36 138 5690 77.36 77.20 155 5775 77.20 77.52 Test report No. : 4789558396-US-R1-V0 Page : 74 of 393 Issued date : Mar. 16, 2021 FCC ID : RYK-WNFB266AXIBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0878 …
