RYK-WPEQ268AXBTWi-Fi 6E BT Half Min PCIe Module

Wireless Module WPEQ-268AXI(BT) WPEQ-268AX(BT) Manual SPEC Standards IEEE 802.11ax/ac/a/b/g/n (2T2R) Bluetooth V5.2, V5.1, V5.0, V4.2, V4.1, V4.0LE, V3.0, V2.1+EDR Chipset Qualcomm Atheros WCN6856 Data Rate 802.11b: 11Mbps 802.11a/g: 54Mbps 802.11n: MCS0~15 802.11ac: MCS0~9 802.11ax: HE0~11 Bluetooth: 1 Mbps, 2Mbps and Up to 3Mbps Operating Frequency IEEE 802.11ax/ac/a/b/g/n ISM Band, 2.412GHz~2.484GHz, 5.150GHz~5.850GHz ,5.925~7.125GHz *Subject to local regulations Interface WLAN: PCIe Bluetooth: USB Form Factor Half Mini PCI-e Antenna 2 x IPEX MHF1 connectors (Ant 1 for WLAN/BT, Ant 2 for WLAN) Modulation Wi-Fi: 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) 802.11ax: OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) BT: Header: GFSK Wireless Module Payload 2M: π/4-DQPSK Payload 3M: 8-DPSK Operating Voltage DC 3.3V Operating Temperature Range WPEQ-268AXI(BT) :-40°~+75°C (Operating) WPEQ-268AX(BT) :-10°~+65°C (Operating) Storage Temperature Range -45°C~90°C Humidity (Non-Condensing) 5%~90% (Operating) 5%~90% (Storing) Dimension L x W x H (in mm) 29.85mmx 26.65mmx 2.5mm Weight (g) 3.2g Security 64/128-bits WEP, WPA, WPA2, WPA3, 802.1x Wireless Module Block Diagram Wireless Module Installation  Connect the Module to the PCIe slot of the computer.  Install Wi-Fi driver driver.  After the Wi-Fi Driver is installed , click the Network icon on the Windows, then search the network , and connect the Wireless Network you want. Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. RF exposure statements This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body or nearby persons. CFR 47 FCC PART 15 SUBPART C (15.247) and SUBPART E (15.407) has been investigated. It is applicable to the modular transmitter. The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Wireless Module This radio transmitter RYK-WPEQ268AXBT has been approved by Federal Communications Commission to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Unique antenna connector must be used on the Part 15 authorized transmitters used in the host product. Antenna Type Brand Antenna Model Maximum Gain (dBi) Remark 2.4 GHz 5GHz 6GHz Dipole SparkLAN AD-506AX 2.65 dBi 4.81 dBi 4.98 dBi Length of Antenna cable:550mm Connector type of Antenna cable: I-PEX Dipole SparkLAN AD-501AX 3.7 dBi 5 dBi 5 dBi Length of Antenna cable:150mm Connector type of Antenna cable: I-PEX to RP-SMA Dipole SparkLAN AD-312N 2.65 dBi 4.86 dBi N/A Length of Antenna cable:550mm Connector type of Antenna cable: I-PEX Dipole SparkLAN AD-509AX 3.7 dBi 5 dBi 5 dBi Length of Antenna cable:150mm Connector type of Antenna cable: I-PEX Dipole SparkLAN AD-103AG 2.02 dBi 2.03 dBi N/A Length of Antenna cable:150mm Connector type of Antenna cable: I-PEX to RP-SMA Dipole SparkLAN AD-302N 3.14 dBi 2.87 dBi N/A Length of Antenna cable:150mm Connector type of Antenna cable: I-PEX to RP-SMA Dipole SparkLAN AD-303N 3.14 dBi 3.45dBi N/A Length of Antenna cable:150mm Connector type of Antenna cable: I-PEX to RP-SMA Dipole SparkLAN AD-315N 3 dBi 5 dBi N/A Length of Antenna cable:150mm Connector type of Antenna cable: I-PEX Dipole SparkLAN AD-507AX 2.67 dBi 4.87 dBi 4.94 dBi Length of Antenna cable:150mm Connector type of Antenna cable: I-PEX Dipole SparkLAN AD-508AX 2.67 dBi 4.87 dBi 4.94 dBi Length of Antenna cable:250mm Connector type of Antenna cable: I-PEX If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: RYK-WPEQ268AXBT” Or “Contains FCC ID:RYK-WPEQ268AXBT” The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that Wireless Module apply to the host not covered by the modular transmitter grant of certification…

Text truncated - open the document above for the full version.

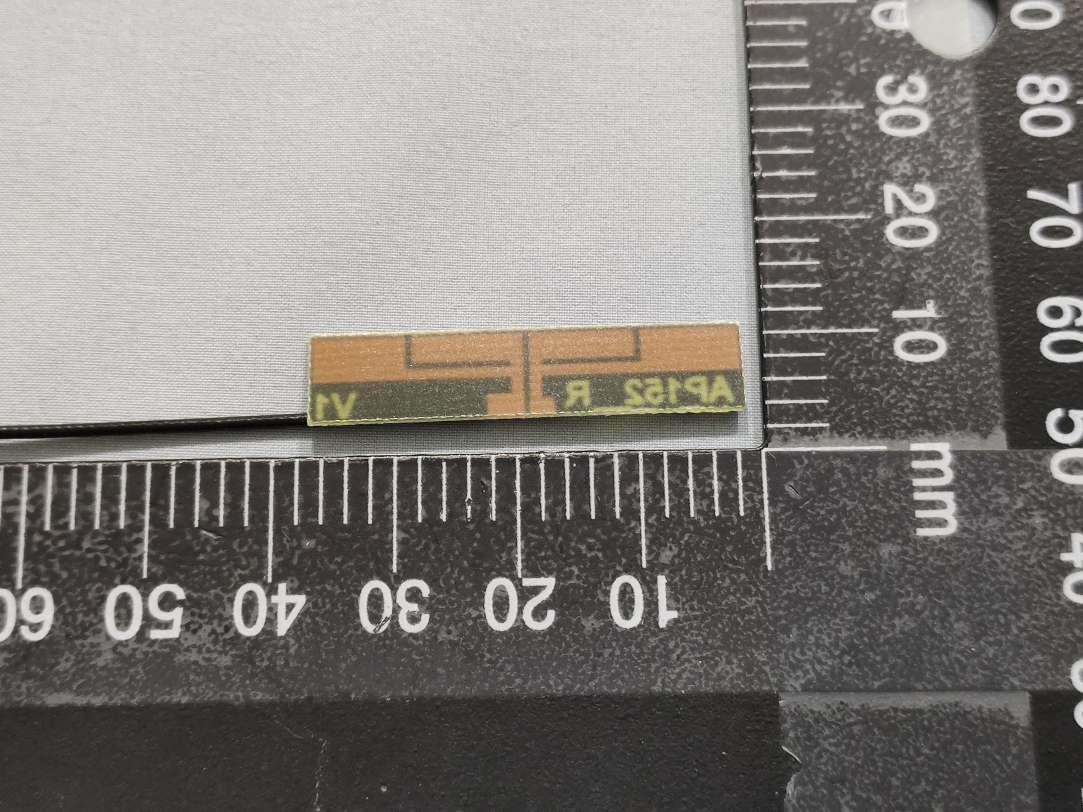

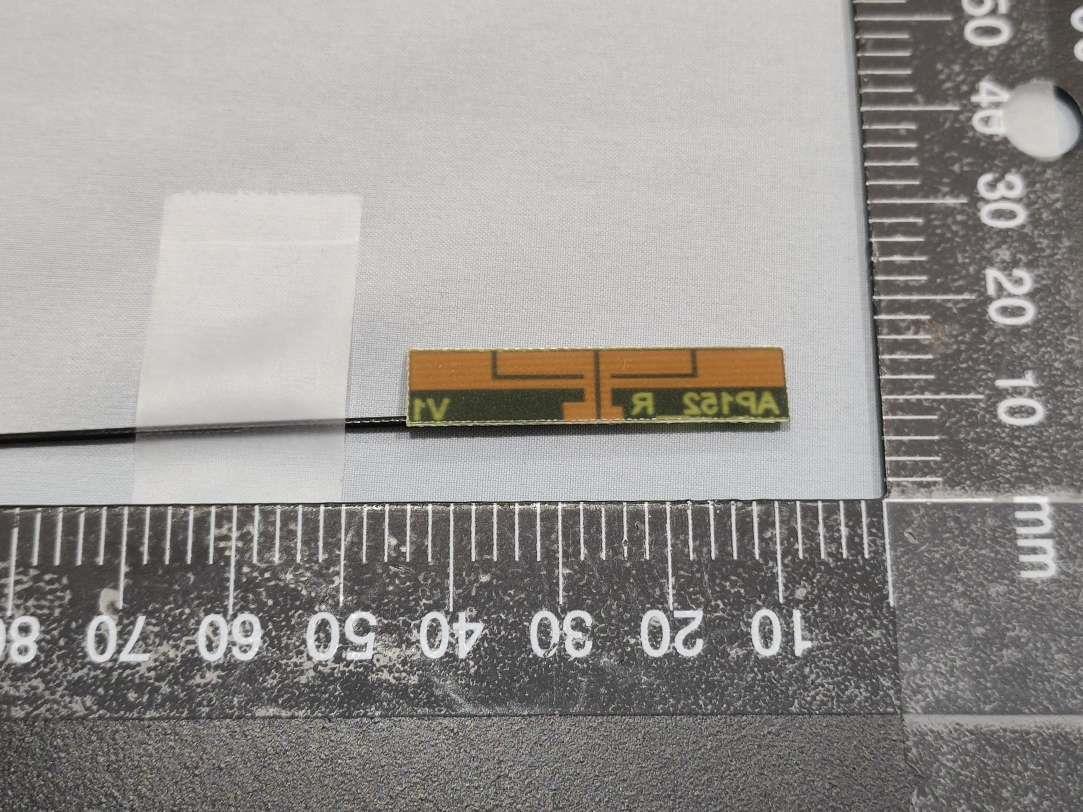

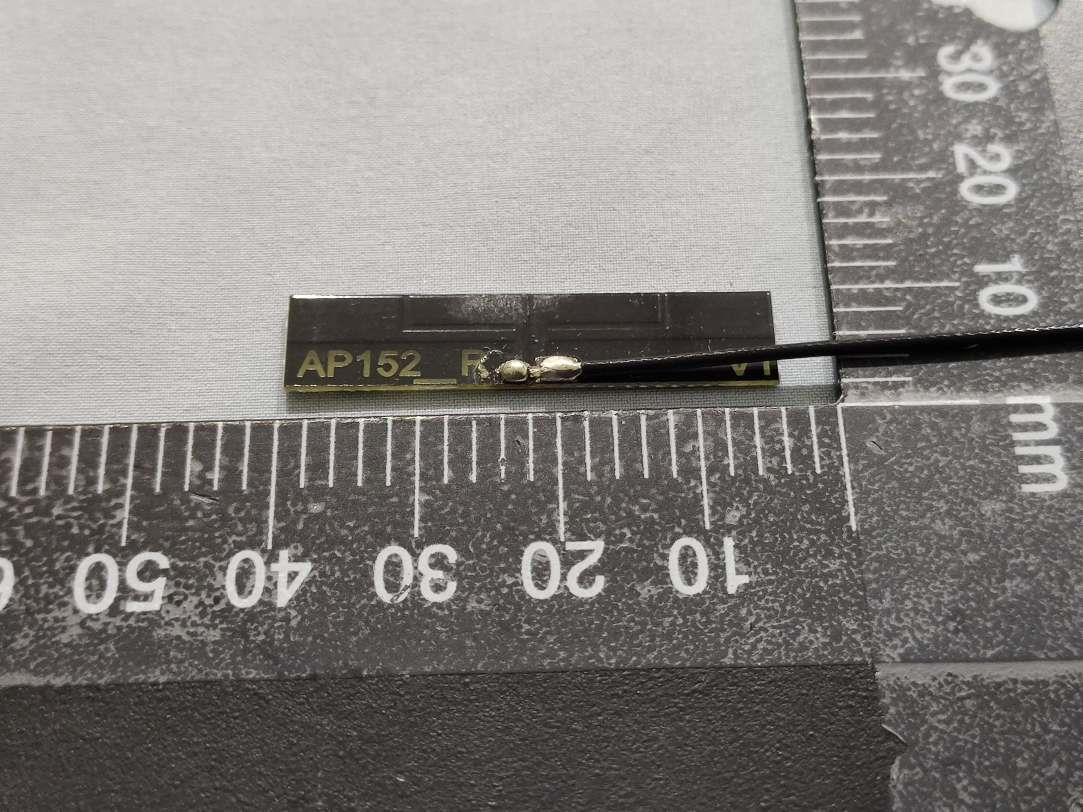

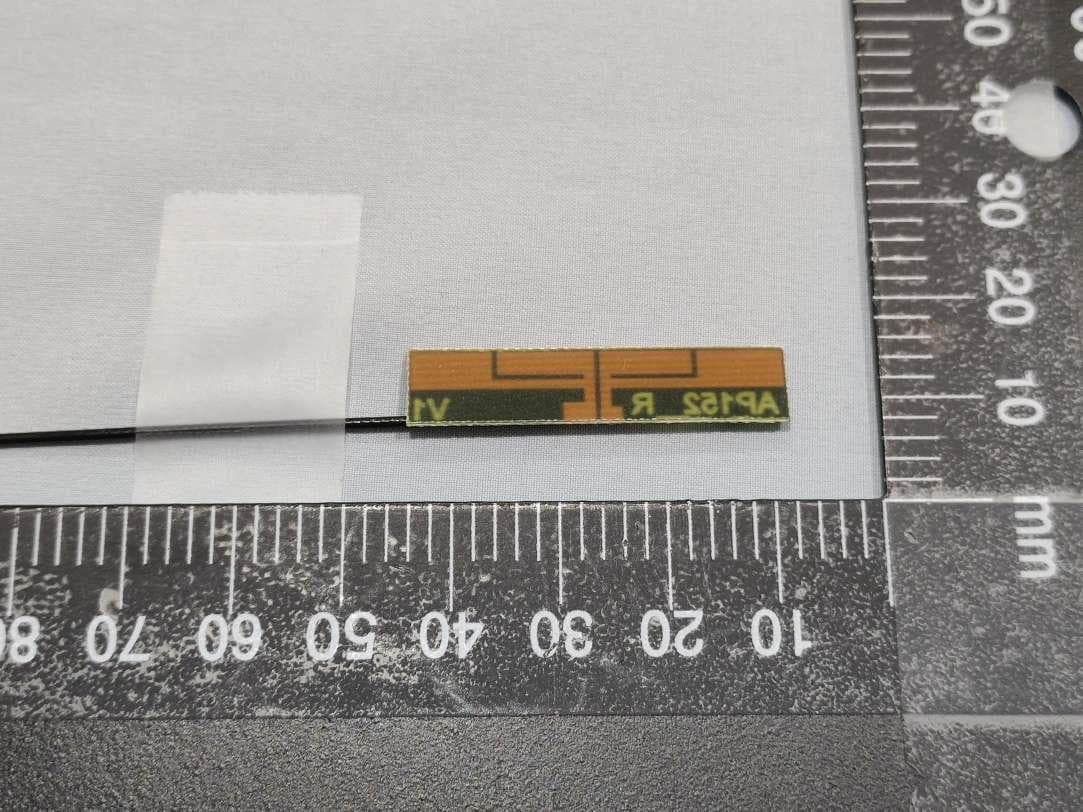

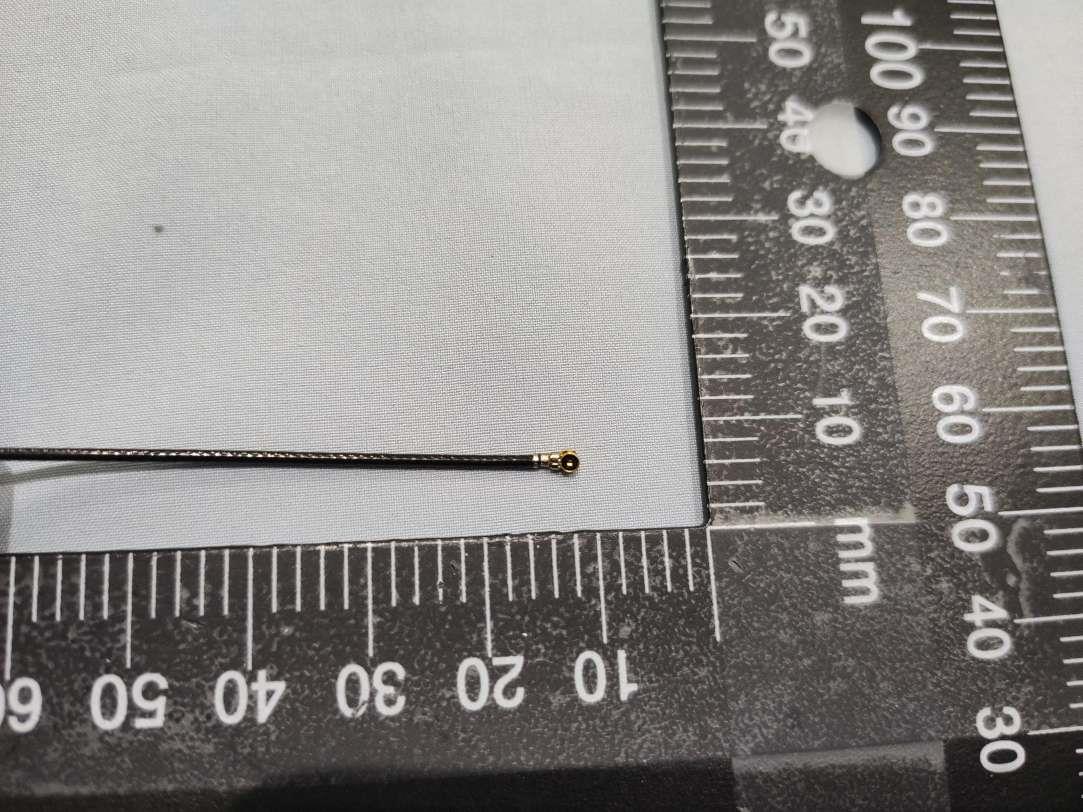

Test report No. : 4790371368-EP Page : 1 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Product Photos External Photos Outview: WPEQ-268AXI(BT) Pic 1 Outview: WPEQ-268AXI(BT) Pic 2 Test report No. : 4790371368-EP Page : 2 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Outview: WPEQ-268AX(BT) Pic 1 Outview: WPEQ-268AX(BT) Pic 2 Test report No. : 4790371368-EP Page : 3 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: I-PEX Cable Pic 1 Accessory: I-PEX Cable Pic 2 Accessory: I-PEX Cable Pic 3 Test report No. : 4790371368-EP Page : 4 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: I-PEX Cable Pic 4 Accessory: AD-506AX Pic 1 Test report No. : 4790371368-EP Page : 5 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-506AX Pic 2 Test report No. : 4790371368-EP Page : 6 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-506AX Pic 3 Accessory: AD-506AX Pic 4 Test report No. : 4790371368-EP Page : 7 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-506AX Pic 5 Test report No. : 4790371368-EP Page : 8 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-312N Pic 1 Accessory: AD-312N Pic 2 Test report No. : 4790371368-EP Page : 9 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-312N Pic 3 Accessory: AD-312N Pic 4 Test report No. : 4790371368-EP Page : 10 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-312N Pic 5 Test report No. : 4790371368-EP Page : 11 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-501AX Pic 1 Accessory: AD-501AX Pic 2 Test report No. : 4790371368-EP Page : 12 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-501AX Pic 3 Test report No. : 4790371368-EP Page : 13 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-509AX Pic 1 Accessory: AD-509AX Pic 2 Test report No. : 4790371368-EP Page : 14 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-509AX Pic 3 Accessory: AD-509AX Pic 4 Test report No. : 4790371368-EP Page : 15 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-509AX Pic 5 Test report No. : 4790371368-EP Page : 16 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-103AG Pic 1 Accessory: AD-103AG Pic 2 Test report No. : 4790371368-EP Page : 17 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-302N Pic 1 Accessory: AD-302N Pic 2 Test report No. : 4790371368-EP Page : 18 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: AD-303N Pic 1 Accessory: AD-303N Pic 2 Test report No. : 4790371368-EP Page : 19 of 29 I…

Text truncated - open the document above for the full version.

Test report No. : 4790371368-EP Page : 28 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Internal Photos WPEQ-268AXI(BT) Pic 1 WPEQ-268AXI(BT) Pic 2 Test report No. : 4790371368-EP Page : 29 of 29 Issued date : Nov. 8, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 WPEQ-268AXI(BT) Pic 3

Test report No. : 4790371368-US-R6-V0 Page : 1 of 14 Issued date : 2022/11/8 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 Maximum Permissible Exposure Report Product : Wi-Fi 6E BT Half Min PCIe Module Model Name : WPEQ-268AXI(BT) Series Model : WPEQ-268AX(BT) FCC ID : RYK-WPEQ268AXBT Test Regulation : 47 CFR FCC Part 2.1091 Received Date : 2022/4/18 Test Date : 2022/4/29 ~ 2022/6/13 Issued Date : 2022/11/8 Applicant : SparkLAN Communications, Inc. 5F, No. 199, Ruihu St., Neihu Dist., Taipei City 114067, Taiwan Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Test report No. : 4790371368-US-R6-V0 Page : 2 of 14 Issued date : 2022/11/8 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 REVISION HISTORY Original Test Report No.: 4790371368-US-R6-V0 Rev. Test report No. Date Page revised Contents Original 4790371368-US-R6-V0 2022/11/8 - Initial issue Test report No. : 4790371368-US-R6-V0 Page : 3 of 14 Issued date : 2022/11/8 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 Table of Contents 1. Attestation of Test Results ......................................................................................... 4 2. Test Methodology and Reference Procedures ......................................................... 5 3. Facilities and Accreditation ...................................................................................... 5 4. Equipment Under Test .............................................................................................. 6 4.1. Description of EUT .............................................................................................. 6 4.2. Description of Available Antennas .................................................................... 10 5. Requirement ............................................................................................................. 10 6. Radio Frequency Radiation Exposure Evaluation ............................................... 12 Test report No. : 4790371368-US-R6-V0 Page : 4 of 14 Issued date : 2022/11/8 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 1. Attestation of Test Results APPLICANT: SparkLAN Communications, Inc. 5F, No. 199, Ruihu St., Neihu Dist., Taipei City 114067, Taiwan MANUFACTURER: SparkLAN Communications, Inc. 5F, No. 199, Ruihu St., Neihu Dist., Taipei City 114067, Taiwan EUT DESCRIPTION: Wi-Fi 6E BT Half Min PCIe Module BRAND: SparkLAN MODEL: WPEQ-268AXI(BT) SERIES MODEL: WPEQ-268AX(BT) SAMPLE STAGE: Engineering Verification Test sample APPLICABLE STANDARDS STANDARD Test Results 47 CFR FCC PART 2.1091 PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Underwriters Laboratories Taiwan Co., Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Underwriters Laboratories Taiwan Co., Ltd. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Prepared By: Approved and Authorized By: Cindy Hsin Date : 2022/11/8 Kent Liu Date : 2022/11/8 Project Handler Senior Laboratory Engineer Test report No. : 4790371368-US-R6-V0 Page : 5 of 14 Issued date : 2022/11/8 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 2. Test Methodology and Reference Procedures The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and KDB 447498 D04 Interim General RF Exposure Guidance v01. 3. Facilities and Accreditation Test Location Underwriters Laboratories Taiwan Co., Ltd. Address Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Accreditation Certificate Underwriters Laboratories Taiwan Co., Ltd. is accredited by TAF, Laboratory Code 3398. Test report No. : 4790371…

Text truncated - open the document above for the full version.

Test report No. : 4790317368-US-R7-V0 Page : 1 of 41 Issued date : Nov. 9, 2022 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 CO-LOCATION RADIO TEST REPORT Product : Wi-Fi 6E BT Half Min PCIe Module Model Name : WPEQ-268AXI(BT) Series Model : WPEQ-268AX(BT) FCC ID : RYK-WPEQ268AXBT Test Regulation : FCC 47 CFR PART 15 Subpart C (Section 15.247) FCC 47 CFR PART 15 Subpart E (Section 15.407) Received Date : 2022/4/18 Test Date : 2022/4/29 ~ 2022/5/24 Issued Date : 2022/11/9 Applicant : SparkLAN Communications, Inc. 5F, No. 199, Ruihu St., Neihu Dist., Taipei City 114067, Taiwan Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Test report No. : 4790317368-US-R7-V0 Page : 2 of 41 Issued date : Nov. 9, 2022 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 REVISION HISTORY Original Test Report No.: 4790317368-US-R7-V0 Rev. Test report No. Date Page revised Contents Original 4790317368-US-R7-V0 2022/11/9 - Initial issue Test report No. : 4790317368-US-R7-V0 Page : 3 of 41 Issued date : Nov. 9, 2022 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 Table of Contents 1. Attestation of Test Results .............................................................................................4 2. Summary of Test Results ...............................................................................................5 3. Test Methodology and Reference Procedures .............................................................6 4. Facilities and Accreditation ...........................................................................................6 5. Measurement Uncertainty .............................................................................................7 6. Equipment under Test ...................................................................................................8 6.1. Description of EUT .............................................................................................. 8 6.2. Test Condition .................................................................................................... 12 6.3. Description of Available Antennas .................................................................... 13 6.4. Test Mode Applicability and Tested Channel Detail ......................................... 13 7. Test Equipment ............................................................................................................ 15 8. Description of Test Setup ............................................................................................ 17 9. Test Results ................................................................................................................... 18 9.1. Radiated Spurious Emission .............................................................................. 18 9.2. AC Power Line Conducted Emission ................................................................ 32 Test report No. : 4790317368-US-R7-V0 Page : 4 of 41 Issued date : Nov. 9, 2022 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 1. Attestation of Test Results APPLICANT: SparkLAN Communications, Inc. 5F, No. 199, Ruihu St., Neihu Dist., Taipei City 114067, Taiwan MANUFACTURER: SparkLAN Communications, Inc. 5F, No. 199, Ruihu St., Neihu Dist., Taipei City 114067, Taiwan EUT DESCRIPTION: Wi-Fi 6E BT Half Min PCIe Module BRAND: SparkLAN MODEL: WPEQ-268AXI(BT) SERIES MODEL: WPEQ-268AX(BT) SAMPLE STAGE: Engineering Verification Test sample DATE of TESTED: 2022/4/29 ~ 2022/5/24 APPLICABLE STANDARDS STANDARD Test Results FCC 47 CFR PART 15 Subpart C (Section 15.247) PASS FCC 47 CFR PART 15 Subpart E (Section 15.407) PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Underwriters Laboratories Taiwan Co., Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Underwriters Laboratories Taiwan Co., Ltd. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any ag…

Text truncated - open the document above for the full version.

Test report No. : 4790371368-US-R5-V0 Page : 1 of 55 Issued date : 2022/11/9 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 RADIO TEST REPORT Product : Wi-Fi 6E BT Half Min PCIe Module Model Name : WPEQ-268AXI(BT) Series Model : WPEQ-268AX(BT) FCC ID : RYK-WPEQ268AXBT Test Regulation : FCC 47 CFR Part 15 Subpart C (Section 15.247) Received Date : 2022/4/18 Test Date : 2022/4/29 ~ 2022/6/13 Issued Date : 2022/11/9 Applicant : SparkLAN Communications, Inc. 5F, No. 199, Ruihu St., Neihu Dist., Taipei City 114067, Taiwan Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Test report No. : 4790371368-US-R5-V0 Page : 2 of 55 Issued date : 2022/11/9 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 REVISION HISTORY Original Test Report No.: 4790371368-US-R5-V0 Rev. Test report No. Date Page revised Contents Original 4790371368-US-R5-V0 2022/11/9 - Initial issue Test report No. : 4790371368-US-R5-V0 Page : 3 of 55 Issued date : 2022/11/9 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 Table of Contents 1. Attestation of Test Results .............................................................................................4 2. Summary of Test Results ...............................................................................................5 3. Test Methodology and Reference Procedures.............................................................6 4. Facilities and Accreditation ...........................................................................................6 5. Measurement Uncertainty .............................................................................................7 6. Equipment under Test ...................................................................................................8 6.1. Description of EUT .............................................................................................. 8 6.2. Channel List ....................................................................................................... 10 6.3. Test Condition .................................................................................................... 11 6.4. Description of Available Antennas .................................................................... 12 6.5. Test Mode Applicability and Tested Channel Detail ......................................... 13 6.6. Duty cycle .......................................................................................................... 14 7. Test Equipment ............................................................................................................ 15 8. Description of Test Setup ............................................................................................ 17 9. Test Results ................................................................................................................... 18 9.1. 6dB Bandwidth .................................................................................................. 18 9.2. Conducted Output Power ................................................................................... 21 9.3. Power Spectral Density ...................................................................................... 23 9.4. Conducted Out of Band Emission ...................................................................... 26 9.5. Radiated Spurious Emission .............................................................................. 33 9.6. AC Power Line Conducted Emission ................................................................ 52 Test report No. : 4790371368-US-R5-V0 Page : 4 of 55 Issued date : 2022/11/9 FCC ID : RYK-WPEQ268AXBT Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 1. Attestation of Test Results APPLICANT: SparkLAN Communications, Inc. 5F, No. 199, Ruihu St., Neihu Dist., Taipei City 114067, Taiwan MANUFACTURER: SparkLAN Communications, Inc. 5F, No. 199, Ruihu St., Neihu Dist., Taipei City 114067, Taiwan EUT DESCRIPTION: Wi-Fi 6E BT Half Min PCIe Module BRAND: SparkLAN MODEL: WPEQ-268AXI(BT) SERIES MODEL: WPEQ-268AX(BT) SAMPLE STAGE: Engineering V…

Text truncated - open the document above for the full version.
