RYU-XW604B10IEEE802.11b/g/n 1T1R USB Module

XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 1 of 9 Product Specification XW604B10 IEEE802.11b/g/n 1T1R USB Module Version: 1.0 Date: Nov, 26, 2009 XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 2 of 9 Release History DATE REVDescription of Change 2009/11/26 1.0Initial release XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 3 of 9 XW604B10 IEEE802.11b/g/n 1T1R USB Module 1Introduction XB604B10 is an integrated the Ralink RT3070 single-chip 2.4GHz IEEE802.11b/g/n 1T1R MAC/Baseband/Radio with USB2.0 interface. XW604B10 fully complies with IEEE802.11n and IEEE802.11b/g feature rich wireless connectivity at high standards, delivers reliable, cost-effective, throughput from an extended distance. 2Features Interoperable with IEEE802.11b/g/n WLAN. Reverse direction grant data flow and frame aggregation. Support 65 Mbps for 20MHz and 150Mbps for 40MHz channel operations. Wireless multimedia enhancements quality of service support (QoS). Legacy and high throughput modes. Multiple BSSID support. WEP 64/128, WPA, WPA2, TKIP, and AES hardware encryption. USB 2.0 compliant. Cisco CCX support. Low power with advanced power management. Support for Bluetooth coexistence. Operating systems – Windows XP 32/64, 2000, Vista 32/64, Linux, Macintosh. 3Module Photo XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 4 of 9 4Block Diagram 40MHz Ralink RT3070 PA SPDT US B/+5.0 V Antenna Connector 10 pin Header SST12LP07A 5General Specifications Module Name XW604B10, Wi-Fi Module Product Specification WLAN Standard IEEE 802.11b/g/n, 1T1R Host interface USB2.0 compatible Major Chipset Ralink RT3070 PID 7030Product ID. Ralink defined VID 8F14Vendor ID. Ralink defined RID 0101Revision ID. Ralink defined XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 5 of 9 Dimensions MinimumTypicalMaximumUnit Length65mm Width20mm Height TBDmm Weight TBDg Antenna Connector Single antenna Operating Condition MinimumTypicalMaximumUnit Voltage DC3.153.33.45V Temperature -1070°C Storage temperature -2070°C Humidity Non-Operating 580% Electrical Specification Frequency Range 2400 – 2472MHz Modulation BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, and CCK Output power MinimumTypicalMaximumUnit 802.11b Mode 11MHz15.51718dBm 802.11g Mode 54MHz12.51415dBm 802.11n Mode HT20-MCS711.51314dBm 802.11n Mode HT40-MCS711.51314dBm Receiver Sensitivity MinimumTypicalMaximumUnit 802.11b Mode 11Mbps -83 dBm 802.11g Mode 54Mbps -65 dBm 802.11n Mode HT20 MCS7-64 dBm 802.11n Mode HT40 MCS7 -61 dBm Data Rate MinimumTypicalMaximumUnit 802.11b CCK Mode 11, 5.5, 2, 1 Mbps 802.11g OFDM Mode 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n HT20 Mode 800ns GI 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps 802.11n HT20 Mode 400ns GI 72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 Mbps XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 6 of 9 802.11n HT40 Mode 800ns GI 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps 802.11n HT40 Mode 400ns GI 150, 135, 120, 90, 60, 45, 30, 15 Mbps Operation Range Open Space TBD Indoor TBD Security WEP, TKIP, and AES hardware encryption Operating System Compatibility Windows XP 32/64 Windows Vista 32/64 Windows 7 32/64 6Absolute Maximum Rating Maximum I/O supply voltage +3.6 V Maximum RF input level (reference to 50Ohm)+10dBm XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 7 of 9 7Power Consumption Current (3.3V) ItemDescription (mA) Continue TX B mode 1Mbps 232 Continue TX B mode 11Mbps 233 Continue TX G mode 6Mbps 239 Continue TX G mode 54Mbps 209 Continue TX N mode HT20 MCS0 240 Continue TX N mode HT20 MCS7 208 Continue TX N modeHT40 MCS0 248 Continue TX N modeHT40 MCS7 220 Continue RX B mode 1Mbps 138 Continue RX B mode 11Mbps 138 Continue RX G mode 6Mbps 138 Continue RX G mode 54Mbps 138 Continue RX N mode HT20 MCS0 138 Continue RX N mode HT20 MCS7 138 Continue RX N modeHT40 MCS0 161 Continue RX N modeHT40 MCS7 161 IdleAssociated withAPN/A IdleUnassociated withAPN/A Radio off Hotkey turn off WiFi radio N/A Driver disable Disable DUT on device Mgmt 53 XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 8 of 9 8Mechanical Dimensions The I-PEX connecter is on the bottom side of the PCB. Pin Definition Type Radio 1 VBUS P USB +5V power supply. 2 GND P Ground. 3 UDM IO USB data minus 4 GND P Ground. 5 UDP IO USB data plus 6 GND P Ground. 7 GND P Ground. 8 GND P Ground. 9 NC No connect. 10 ACT O LED indicator. XW604B10 IEEE802.11b/g/n 1T1R USB Module Page 9 of 9 9 Connector Pin-out Definitions If the label of the module wouldn’t be visible after integration in a device, the label of the device must include “contains FCC ID: RYU-XW604B10 “

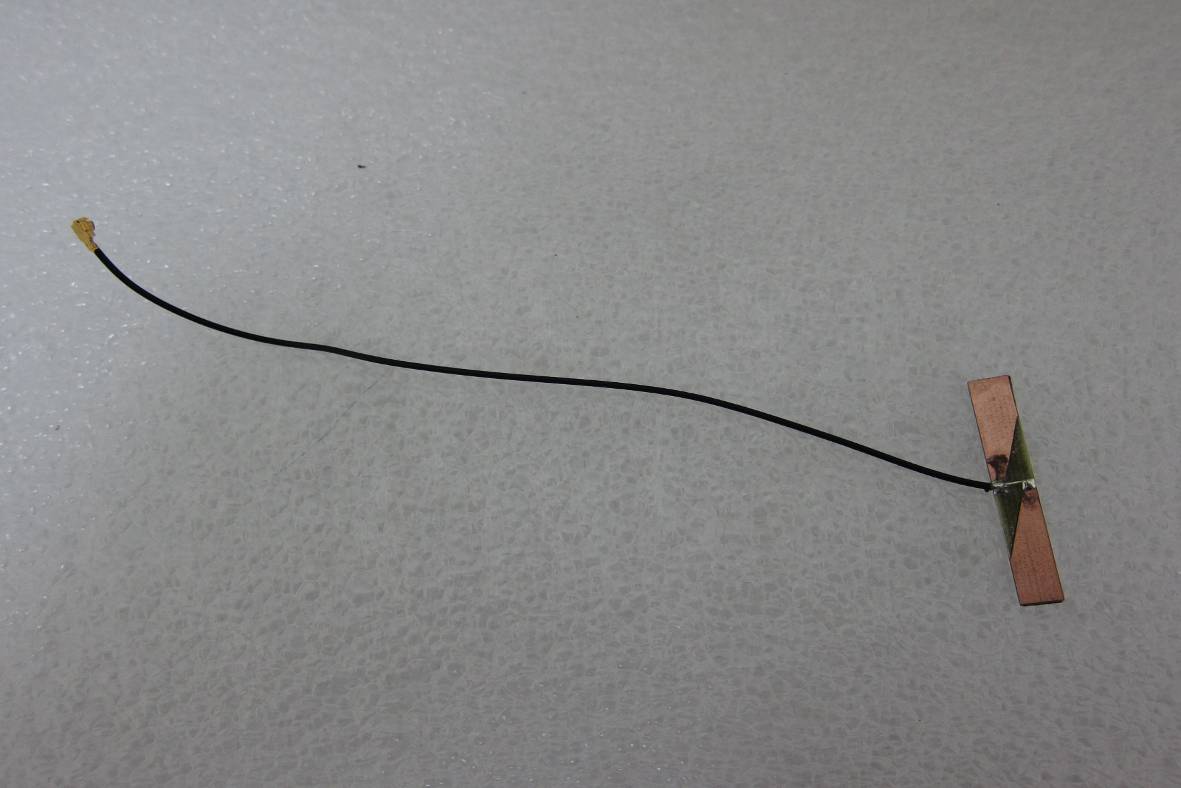

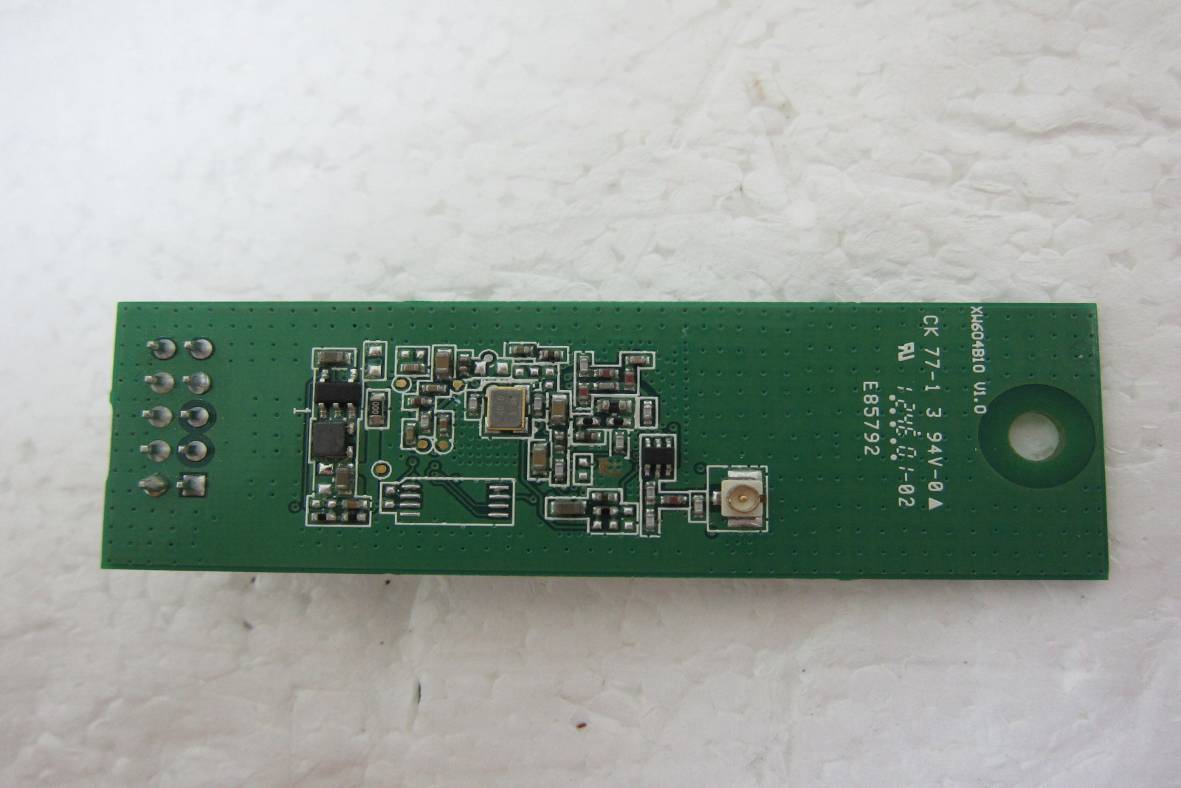

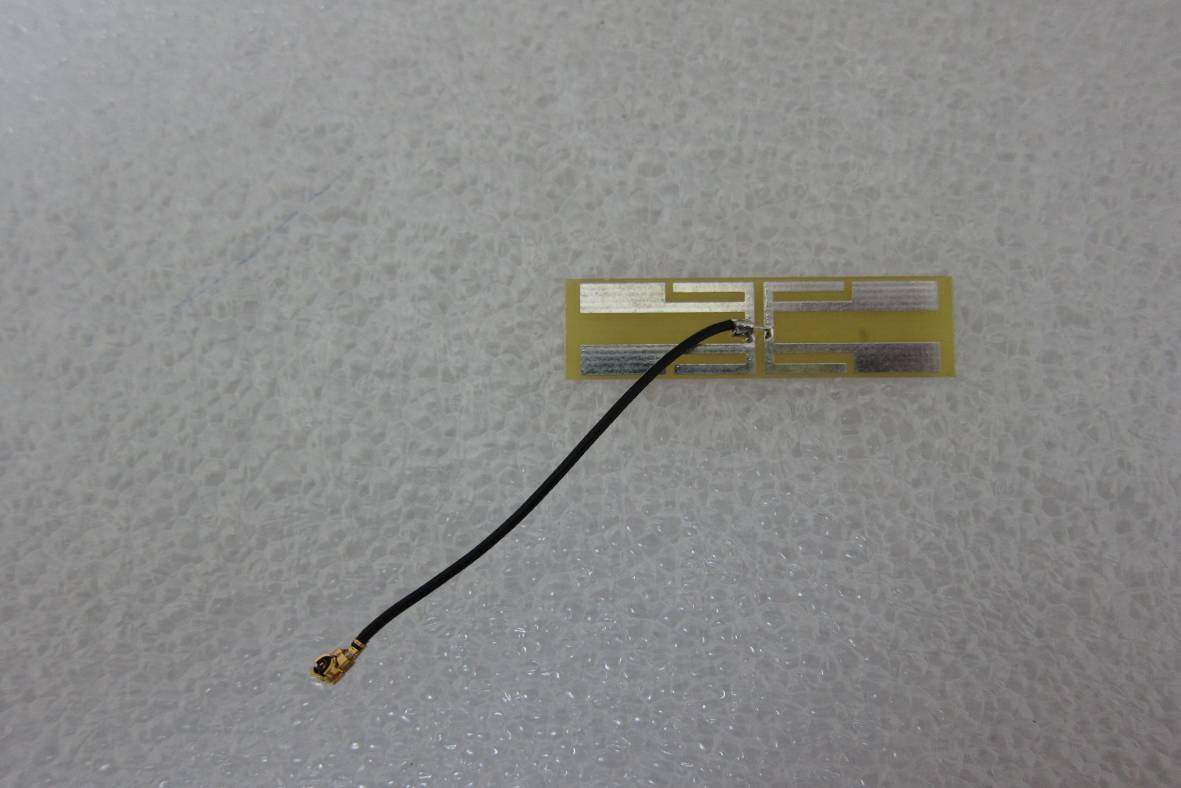

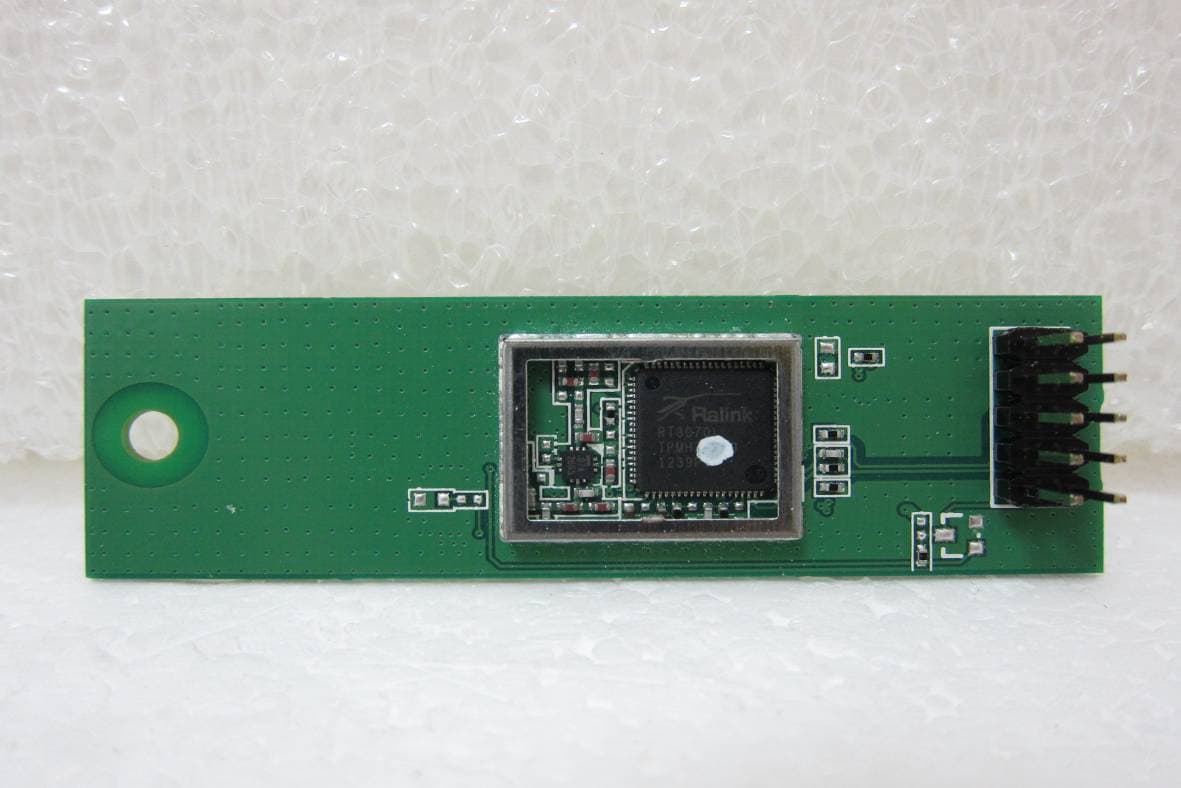

FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC APPENDIX 2 PHOTOGRAPHS OF EUT FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC EUT – 1 EUT – 2 FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC EUT – 3 EUT – 4 FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC EUT – 5 (Antenna model: GRF1168) EUT – 6 (Antenna model: GRF1231)

FCC ID LABEL FORMAT AND LOCATION Applicant: XAVi Technologies Corporation FCC ID: RYU-XW604B10

FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC APPENDIX 2 PHOTOGRAPHS OF EUT FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC EUT – 1 EUT – 2 FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC EUT – 3 EUT – 4 FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC EUT – 5 (Antenna model: GRF1168) EUT – 6 (Antenna model: GRF1231)

FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC 12 Maximum Permissible Exposure (MPE) 12.1 Standard Applicable According to 1.1307(b)(1), systems operating under the provisions of this section shall be op- erated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to 1.1310 and 2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC 12.2 Maximum Permissible Exposure (MPE) Evaluation Peak Reading Power Output Power Output Power (dBm)(dBm)(W) 241216.07016.070.040 243715.45015.450.035 246215.08015.080.032 802.11b Power Table Frequency (MHz) Cable Loss MPE Prediction (802.11b) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4R 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 16.07 (dBm) Maximum peak output power at antenna input terminal: 40.45758917 (mW) Duty cycle: 100 (%) Maximum Pav : 40.45758917 (mW) An tenn a gain (typical): 3. 7 (dBi) Maximum antenna gain: 2.344228815 ( numer ic) Pr ed ic t io n di sta n ce : 20 (cm) Pred ictio n f req uency: 24 12 (MHz) MPE limit f or uncon tr olled exposu re at prediction 1 (mW/cm2) Pow er d ensi ty at pr ed icat io n freq uen cy at 20 ( cm) 0. 01 88 77 8 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.018 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2412MHz. FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC Peak Reading Power Output Power Output Power (dBm)(dBm)(W) 2412 22.32 022.320.171 2437 22.53 022.530.179 2462 22.28 022.280.169 802.11g Power Table Frequency (MHz) Cable Loss MPE Prediction (802.11g) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4R 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 22.53 (dBm) Maximum peak output power at antenna input terminal: 179.0605854 (mW) Duty cycle: 100 (%) Maximum Pav : 179.0605854 (mW) An tenn a gain (typical): 3. 7 (dBi) Maximum antenna gain: 2.344228815 ( numer ic) Pr ed ic t io n di sta n ce : 20 (cm) Pred ictio n f req uency: 24 37 (MHz) MPE limit f or uncon tr olled exposu re at prediction 1 (mW/cm2) Pow er d ensi ty at pr ed icat io n freq uen cy at 20 ( cm) 0. 08 35 50 8 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.083 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2437. FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC Peak Reading Power Output Power Output Power (dBm)(dBm)(W) 2412 23.54 023.540.226 2437 23.77 023.770.238 2462 23.54 023.540.226 802.11n_20M Power Table Frequency (MHz) Cable Loss MPE Prediction (802.11n_20M) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4R 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.77 (dBm) Maximum peak output power at antenna input terminal: 238.2319469 (mW) Duty cycle: 100 (%) Maximum Pav : 238.2319469 (mW) An tenn a gain (typical): 3. 7 (dBi) Maximum antenna gain: 2.344228815 ( numer ic) Pr ed ic t io n di sta n ce : 20 (cm) Pred ictio n f req uency: 24 37 (MHz) MPE limit f or uncon tr olled exposu re at prediction 1 (mW/cm2) Pow er d ensi ty at pr ed icat io n freq uen cy at 20 ( cm) 0. 11 11 60 5 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.11 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2437. FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC Peak Reading Power Output Power Output Power (dBm)(dBm)(W) 2422 23.15 023.150.207 2437 23.28 023.280.213 2452 23.12 023.120.205 802.11n_40M Power Table Frequency (MHz) Cable Loss MPE Prediction (802.11n_40M) Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4R 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.28 (dBm) Maximum peak output power at antenna input terminal: 212.8139046 (mW) Duty cycle: 100 (%) Maximum Pav : 212.8139046 (mW) An tenn a gain (typical): 3. 7 (dBi) Maximum antenna gain: 2.344228815 ( numer ic) Pr ed ic t io n di sta n ce : 20 (cm) Pred ictio n f req uency: 24 37 (MHz) MPE limit f or uncon tr olled exposu re at prediction 1 (mW/cm2) Pow er d ensi ty at pr ed icat io n freq uen cy at 20 ( cm) 0. 09 93 00 3 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.099 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2437.

Page: 1 of 101 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Full Modular Approval Product : IEEE802.11b/g/n 1T1R USB Module Brand: N/A Model: XW604B10 Model Difference: N/A FCC ID: RYU-XW604B10 FCC Rule Part: §15.247, Cat: DTS Applicant: XAVi Technologies Corporation Address: 3F-1, No.27, Puding Rd., Hsinchu City 300, Taiwan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-13LR047FC Issue Date : 2013/04/29 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 92- FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC VERIFICATION OF COMPLIANCE Applicant: XAVi Technologies Corporation Product Description: IEEE802.11b/g/n 1T1R USB Module Brand Name: N/A Model No.: XW604B10 Model Difference: N/A FCC ID: RYU-XW604B10 Date of test: 2013/01/19 ~ 2013/05/03 Date of EUT Received: 2013/01/29 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2013/05/03 Dion Chang / Engineer Prepared By: Date: 2013/05/03 Gigi Yeh / Specialist Approved By: Date: 2013/05/03 Vincent Su / Technical Manager -3 of 92- FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC Version Version No. Date Description 00 2013/05/03 Initial creation of document -4 of 92- FCC ID:RYU-XW604B10 International Standards Laboratory Report Number: ISL-13LR047FC Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ....................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 SUMMARY OF TEST RESULTS .......................................................................................... 10 4 DESCRIPTION OF TEST MODES ....................................................................................... 10 5 CONDUCTED EMISSION TEST........................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 PEAK /AVERAGE UTPUT POWER MEASUREMENT .................................................... 15 6.1 Standard Applicable: .................................................................................................................... 15 6.2 Measurement Equipment Used: ................................................................................................... 16 6.3 Test Set-up: .................................................................................................................................. 16 6.4 Measurement Procedure: ............................................................................................................. 16 6.5 Measurement Result: ................................................................................................................... 17 7 6dB Bandwidth(EBW) ..............................…
