RYUXW201MWireless Mini PCI

Hardware Specification for XW201M RF Module Block Diagram: Processor : Atheros AR2414 single chip integrated with the MAC/baseband/radio Memory : I/O Interface : Feature : „Wi-fi Wireless Access Point „ IEEE802.11b/g „ 2.4G Dipole Antenna „ Rx Sensitivity Antenna Interface :1x2.4G Dipole Antenna. minpci Serial EEPROM:32K „Transmit Power Test NameData Rate DUT Measured 11g RX Sensitivity 6Mbps-88 RX Sensitivity 36Mbps-73 RX Sensitivity 48Mbps-70 RX Sensitivity 54Mbps-68 11b RX Sensitivity 1Mbps-90 RX Sensitivity 2Mbps-87 RX Sensitivity 5.5Mbps-86 RX Sensitivity 11Mbps-85 Test NameData RateDUT Measured 11g Transmit power 6Mbps17 (+1.5/-1.5) dBm Transmit power 36Mbps16 (+1.5/-1.5) dBm Transmit power 48Mbps15 (+1.5/-1.5) dBm Transmit power 54Mbps14 (+1.5/-1.5) dBm 11b Transmit power 1Mbps17 (+1.5/-1.5) dBm Transmit power 2Mbps17 (+1.5/-1.5) dBm Transmit power 5.5Mbps17 (+1.5/-1.5) dBm Transmit power 11Mbps 17 (+1.5/-1.5) dBm Antenna solder here Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment.ʳIf the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: RYUXW201M ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

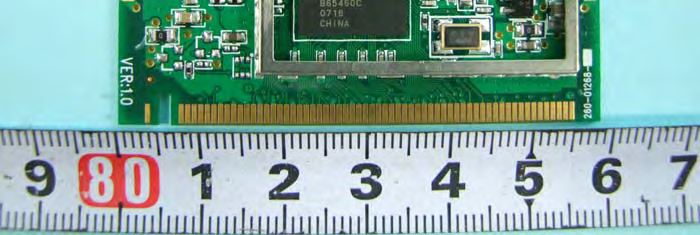

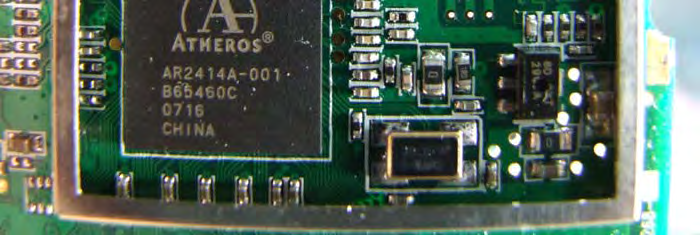

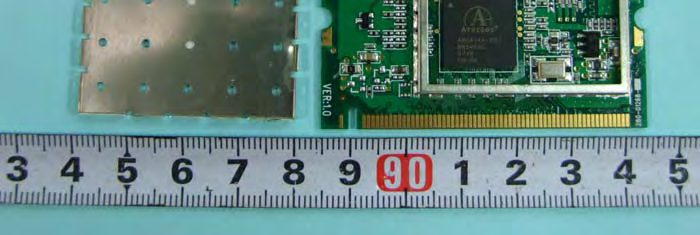

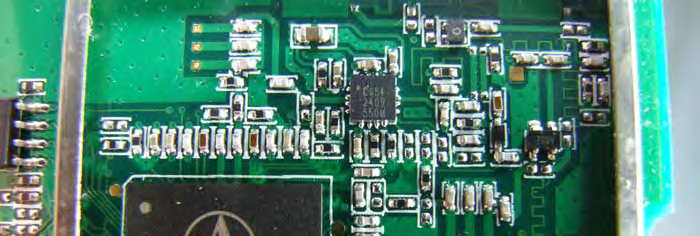

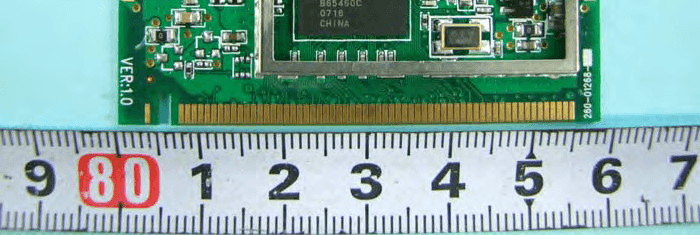

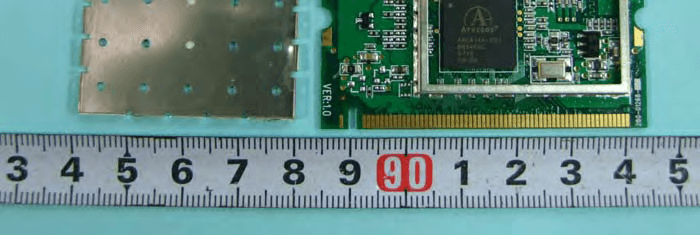

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2008 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2008 FAX : 886-2-2696-2255

Date: Date: Date: Xavi P/N: Product: XAVi Technologies Corporation Version: Issued by: File Name: File Description: Approval Signature: Product Mgmt.: Attachment: XW201M Safety label-P2 Model name, XW201M Serial Number Bar Code: Standard Code 39(Follow the S/N at that time.) Part Number, AXXXXXXXXXXX Software & hardware version, S.V.: X.XX H.V.:X.XX Manufacture date, mmm yyyy, ex: Dec 2001 (Annex-B) Product Serial Number, XXXXXXXXX Material: Poly easter sliver 35*15mm/1R Neutral XW201M Font Setting: Model name: S/N Bar Code: S/N, P/N, Ver, Date, Factory ID: CAUTION: FCC REG. NO:, REN AC & JACK: Arial, W()=12, H()=30, P()=0 Code 39(Standard), R( /)=2:5, H=50, P=1 Arial, W=17, H=30, P=0 Arial, W=10, H=17, P=0 Arial, W=9, H=15, P=0   This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (2)This device must accept any interference received, including interference that may cause undesired operation This device may not cause harmful interference (1) FCC ID: RYUXW201M XW201M Trade Name:XAVi Model Name:

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2008 FAX : 886-2-2696-2255 Label Location

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2008 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C5 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 03, 2008 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR7D1101 Page No. : A1 of A3 FCC ID : RYUXW201M Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR7D1101 Page No. : A2 of A3 FCC ID : RYUXW201M 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR7D1101 Page No. : A3 of A3 FCC ID : RYUXW201M 1.3. Calculated Result and Limit Antenna Type : Dipole Max Conducted Power for IEEE 802.11b/g : 18.93dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.5 1.7783 18.9300 78.1628 0.027666 1 Complies

FCC TEST REPORT Report No.: FR7D1101 SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : Wireless Mini PCI Model No. : XW201MYYY (Y=0-9, a-z, A-Z, blank, “-” or “+”) Brand Name : XAVi Filing Type : New Application Applicant : XAVi Technologies Corporation 9F, No. 129, Hsing Te Rd., Sanchung City, Taipei Hsien 241, Taiwan, R.O.C. FCC ID : RYUXW201M Manufacturer : XAVi Technologies Corporation 9F, No. 129, Hsing Te Rd., Sanchung City, Taipei Hsien 241, Taiwan, R.O.C. Received Date : Dec. 10, 2007 Final Test Date : Jan. 02, 2008 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ILAC MRA FCC TEST REPORT Report No.: FR7D1101 SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jan. 03, 2008 FAX : 886-2-2696-2255 FCC ID : RYUXW201M Table of Contents 1. SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2. GENERAL INFORMATION..................................................................................................................................... 3 2.1. Product Details ........................................................................................................................................................................................ 3 2.2. Table for Filed Antenna ........................................................................................................................................................................... 3 2.3. Table for Carrier Frequencies ................................................................................................................................................................. 3 2.4. Table for Test Modes .............................................................................................................................................................................. 4 2.5. Table for Testing Locations ..................................................................................................................................................................... 4 2.6. Table for Supporting Units....................................................................................................................................................................... 4 2.7. EUT Operation during Test ..................................................................................................................................................................... 4 2.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 5 2.9. Test Configurations ................................................................................................................................................................................. 5 3. TEST RESULT ........................................................................................................................................................ 7 3.1. AC Power Line Conducted Emissions Measurement.............................................................................................................................. 7 3.2. Maximum Peak Output Power Measurement........................................................................................................................................ 11 3.3. Power Spectral Density Measurement .................................................................................................................................................. 13 3.4. 6dB Spectrum Bandwidth Measurement............................................................................................................................................... 18 3.5. Radiated Emissions Measurement........................................................................................................................................................ 23 3.6. Band Edge Emissions Measurement .................................................................................................................................................... 41 3.7. Antenna Requirements.......................................................................................................................................................................... 46 4. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 47 5. TEST LOCATION.................................................................................................................................................. 48 6. TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 49 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS ........................................................................................................................ B1 ~ B7 APPENDIX C. PHOTOGRAPHS OF EUT ....................................................................................................... C1 ~ C5 FCC TEST REPORT Report …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR7D1101 Page No. : B1 of B7 FCC ID : RYUXW201M Appendix B. Test Photos FCC TEST REPORT Report No.: FR7D1101 Page No. : B2 of B7 FCC ID : RYUXW201M 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR7D1101 Page No. : B3 of B7 FCC ID : RYUXW201M SIDE VIEW FCC TEST REPORT Report No.: FR7D1101 Page No. : B4 of B7 FCC ID : RYUXW201M 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR7D1101 Page No. : B5 of B7 FCC ID : RYUXW201M For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR7D1101 Page No. : B6 of B7 FCC ID : RYUXW201M For radiated emissions above 1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR7D1101 Page No. : B7 of B7 FCC ID : RYUXW201M Test Fixture FRONT VIEW REAR VIEW
