RYUX5668ADSL2+Router

User Manual X5668 Version: 1.0 X5669WUP3 User’s Manual Version 1.0 i XAVi Technologies Corporation Tel: +886-2-2995-7953 Fax: +886-2-29957954 9F, No. 129, Hsing Te Road, Sanchung City, Taipei County 241, Taiwan Copyright © 2005, XAVi Technologies Corporation Information in this manual is subject to change without notice. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying or scanning, for any purpose, without the written permission of XAVi Technologies Corporation. XAVi Technologies Corporation provides this documentation without warranty of any kind, implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. X5669WUP3 User’s Manual Version 1.0 ii This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The authority to operate this equipment is conditioned by the requirement that no modifications will be made to the equipment unless XAVi expressly approves the changes or modifications. X5669WUP3 User’s Manual Version 1.0 i T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s CHAPTER 1................................................................................................ 1 Getting Started ........................................................................................... 1 I. OVERVIEW ................................................................................. 1 II. FEATURES ................................................................................... 2 III. PACKAGING ............................................................................... 3 IV. SAFETY GUIDELINES .............................................................. 4 V. APPEARANCE ............................................................................ 5 VI. HARDWARE INSTALLATION ................................................. 7 VII. MANAGEMENT ......................................................................... 8 VIII. DEFAULT VALUES ................................................................... 9 IX. SOFTWARE UPGRADE.......................................................... 10 CHAPTER 2...............................................................................................11 Web Management Interface ......................................................................11 I. OVERVIEW.................................................................................... 11 II. PREPARATION................................................................................ 11 1. LOGIN........................................................................................... 12 2. QUICK SETUP................................................................................ 13 3. DEVICE INFO................................................................................. 14 X5669WUP3 User’s Manual Version 1.0 ii 4. ADVANCED SETUP......................................................................... 19 4.1 WAN............................................................................................ 19 4.1.1 BRIDGE CONFIGURATION .........................................................22 4.1.2 PPPoE CONFIGURATION .............................................................25 4.1.3 MAC Encapsulation Routing (MER)...............................................27 4.2 LAN ............................................................................................ 29 4.3 NAT............................................................................................. 30 4.3.1 Virtual Servers .................................................................................30 4.3.2 Port Triggering.................................................................................32 4.3.3 DMZ Host........................................................................................34 4.4 Security ....................................................................................... 34 4.5 Routing........................................................................................ 35 4.5.1 Default Gateway ..............................................................................35 4.5.2 Static Route.......................................................…

Text truncated - open the document above for the full version.

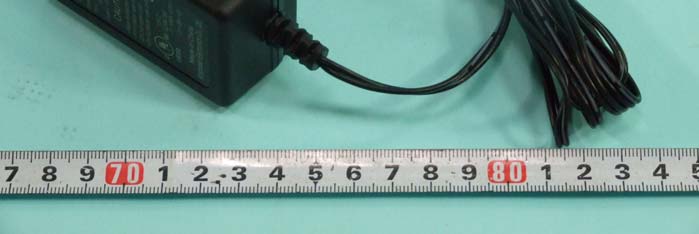

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255

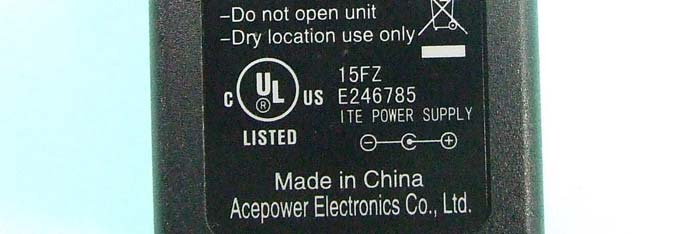

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255 Label location

, China 12Vdc/1A X5668 RJ11C 0.1B XAVDL01BX5668FCC ID:RYUX5668

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 02, 2008 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR7D0308 Page No. : A1 of A3 FCC ID : RYUX5668 Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR7D0308 Page No. : A2 of A3 FCC ID : RYUX5668 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR7D0308 Page No. : A3 of A3 FCC ID : RYUX5668 1.3. Calculated Result and Limit Antenna Type : Dipole Max Conducted Power for IEEE 802.11b/g : 22.81dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 22.8100 190.9853 0.060249 1 Complies

FCC TEST REPORT Report No.: FR7D0308 SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : ADSL2+Router Model No. : X5668-yyy (y=0-9, a-z, A-Z, blank or +), X-220B Brand Name : XAVI, ForceCom Filing Type : New Application Applicant : XAVi Technologies Corporation 9F, No. 129, Hsing Te Rd., Sanchung City, Taipei Hsien 241, Taiwan, R.O.C. FCC ID : RYUX5668 Manufacturer : XAVi Technologies Corporation 9F, No. 129, Hsing Te Rd., Sanchung City, Taipei Hsien 241, Taiwan, R.O.C. Received Date : Dec. 11, 2007 Final Test Date : Dec. 26, 2007 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ILAC MRA FCC TEST REPORT Report No.: FR7D0308 SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jan. 02, 2008 FAX : 886-2-2696-2255 FCC ID : RYUX5668 Table of Contents 1. SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2. GENERAL INFORMATION..................................................................................................................................... 3 2.1. Product Details ........................................................................................................................................................................................ 3 2.2. Accessories ............................................................................................................................................................................................. 3 2.3. Table for Filed Antenna ........................................................................................................................................................................... 3 2.4. Table for Carrier Frequencies ................................................................................................................................................................. 3 2.5. Table for Test Modes .............................................................................................................................................................................. 4 2.6. Table for Testing Locations ..................................................................................................................................................................... 4 2.7. Table for Supporting Units....................................................................................................................................................................... 4 2.8. EUT Operation during Test ..................................................................................................................................................................... 5 2.9. Table for Parameters of Test Software Setting ....................................................................................................................................... 5 2.10. Test Configurations ................................................................................................................................................................................. 6 3. TEST RESULT ........................................................................................................................................................ 8 3.1. AC Power Line Conducted Emissions Measurement.............................................................................................................................. 8 3.2. Maximum Peak Output Power Measurement........................................................................................................................................ 12 3.3. Power Spectral Density Measurement .................................................................................................................................................. 14 3.4. 6dB Spectrum Bandwidth Measurement............................................................................................................................................... 19 3.5. Radiated Emissions Measurement........................................................................................................................................................ 24 3.6. Band Edge Emissions Measurement .................................................................................................................................................... 42 3.7. Antenna Requirements.......................................................................................................................................................................... 47 4. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 48 5. TEST LOCATION.................................................................................................................................................. 49 6. TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 50 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS .................................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR7D0308 Page No. : B1 of B6 FCC ID : RYUX5668 Appendix B. Test Photos FCC TEST REPORT Report No.: FR7D0308 Page No. : B2 of B6 FCC ID : RYUX5668 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR7D0308 Page No. : B3 of B6 FCC ID : RYUX5668 SIDE VIEW FCC TEST REPORT Report No.: FR7D0308 Page No. : B4 of B6 FCC ID : RYUX5668 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR7D0308 Page No. : B5 of B6 FCC ID : RYUX5668 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR7D0308 Page No. : B6 of B6 FCC ID : RYUX5668 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
