RYU101MYWireless Mini PCI 11g Card

2 XAVi Technologies Corporation Tel: +886-2-2995-7953 Fax: +886-2-29957954 9F, No. 129, Hsing Te Road, Sanchung City, Taipei County 241, Taiwan Copyright © 2005, XAVi Technologies Corporation Information in this manual is subject to change without notice. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying or scanning, for any purpose, without the written permission of XAVi Technologies Corporation. XAVi Technologies Corporation provides this documentation without warranty of any kind, implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. 3 CERTIFICATION NOTICE Federal Communications Commission Compliance Notices To ensure continued compliance, use only shielded interface cables when connecting to the computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with 15 of the FCC Rules. Operation is subject to the following two Federal Communication Commission (FCC) Statement: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The manufacture is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 4 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. 5 Table of Contents CERTIFICATION NOTICE ............................................. 3 Federal Communications Commission Compliance Notices.....3 Federal Communication Commission (FCC) Statement:............3 INFORMATION TO USER ............................................. 6 Introduction............................................................................................6 Package Contents................................................................................6 System Requirements.........................................................................6 How to Install XW101M: ............................................... 7 Phase I -Install XW101M Driver.....................................................7 Phase II -Install XW101M Hardware Winzard..............................9 Troubleshooting ......................................................... 12 6 INFORMATION TO USER Introduction Congratulations on purchasing this 802.11g WLAN Adapter. The XW101M Adapter 54 Mbps data rate provides an equivalent Ethernet speed to access corporate networks or the Internet in a wireless environment. And also provides easy plug & play Installation program on any computer with interface. When installed, the XW101M Adapter is able to communicate with any 802.11g-compliant product, allowing you to work anywhere in the coverage area, enjoying its convenience and mobility. Package Contents The shipment should contain the following items. Please check each item below and ensure that all items listed in below are included in the shipment. If any of the listed items are damaged or missing, please notify your local dealer. XWAVE Series: XW101M WLAN Adapter should contain:  802.11g WLAN Adapter  CD-ROM (containing Drivers and Manual) System Requirements Windows ME/ 2000/ XP If any item is missing, please contact your product provider. 7 How to Install XW1…

Text truncated - open the document above for the full version.

9F, No.129, Hsing Te Rd., Sangchung City, Taipei County, 241 Taiwan R.O.C.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 FAX: 886-3-327-0973 SPORTON International Inc. 6 Issued Date : 13th Apr., 2005 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 13th Apr., 2005 FCC ID: RYU101MY Dear Reviewer, We, Sporton International Inc., are authorized by XAVI Technologies Corporation to have their state-of-the-art Wireless Mini PCI approved under limited module approval authorization. The application of this module is specified to Mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip ISL3686A/B ZIF. 3. The requirement of power supply regulation: The part number of the power regulator is ISL6414. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report . 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Regards, Sporton International Inc. e-mail: [email protected] Tel: 886-3-3273456 Fax: 886-940470338

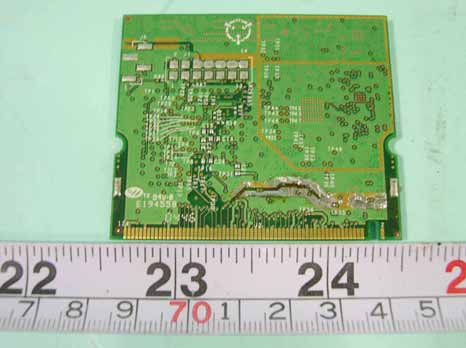

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Apr,12,2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Apr,12,2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Apr,12,2005 FAX : 886-2-2696-2255

Description of Operation EUT is a Wireless Mini PCI card with 11 channels. This device provided 1/2/5.5/11/6/9/12/18/24/36/48/54 Mbps of transmitting speed. The device of RF carrier is DQPSK,DBPSK,CCK and OFDM. The device adapts direct sequence spread spectrum modulation. The antenna is Dipole Antenna. This Wireless Mini PCI card is an IEEE 802.11b/g Wireless LAN module. It allows your notebook to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplex-ing (OFDM) radio transmission, the Wireless Mini PCI card transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm and the new industrial-strength WPA (Wi-Fi Protected AccessTM) security is used. In addition, its standard compliance ensures that it can communicate with any 802.11b/g network.

FCC ID: RYU101MY Issued on Apr. 11, 2005 Report No.: FR512007 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Mobile PRODUCT NAME : Wireless Mini PCI FCC ID. : RYU101MY FILING TYPE : Certification BRAND NAME : XAVi, Xentrix MODEL NAME : XW101MY (Y=0~9, A~Z or blank) APPLICANT : XAVi Technologies Corporation 9F, No. 129, Hsing Te Rd., Sangchung City, Taipei Hsien, 241 Taiwan, R.O.C. MANUFACTURER : same as applicant ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA and any agency of U.S. government. The test equipment used to perform the test is calibrated and traceable to NML/ROC or NIST/USA. 1190 ILAC MRA FCC ID: RYU101MY Issued on Apr. 11, 2005 Report No.: FR512007 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date : Apr. 11, 2005 FAX : 886-2-2696-2255: Table of Contents HISTORY OF THIS TEST REPORT..................................................................................................................... II CERTIFICATE OF COMPLIANCE ...................................................................................................................... III 1. GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST .......................................................................... 1 1.1. Applicant ......................................................................................................................................................................................... 1 1.2. Manufacturer ................................................................................................................................................................................... 1 1.3. Basic Description of Equipment under Test.................................................................................................................................... 1 1.4. Features of Equipment under Test ................................................................................................................................................. 1 1.5. Antenna Description........................................................................................................................................................................ 1 1.6. Table for Carrier Frequencies ......................................................................................................................................................... 2 2. TEST CONFIGURATION OF THE EQUIPMENT UNDER TEST .................................................................... 3 2.1. Connection Diagram of Test System .............................................................................................................................................. 3 2.2. The Test Mode Description............................................................................................................................................................. 3 2.3. Description of Test Supporting Units .............................................................................................................................................. 3 3. GENERAL INFORMATION OF TEST.............................................................................................................. 4 3.1. Test Facility ..................................................................................................................................................................................... 4 3.2. Standards for Methods of Measurement......................................................................................................................................... 4 3.3. DoC Statement ............................................................................................................................................................................... 4 3.4. Frequency Range Investigated ....................................................................................................................................................... 4 3.5. Test Distance .................................................................................................................................................................................. 4 3.6. Test Software .................................................................................................................................................................................. 4 4. LIST OF MEASUREMENTS............................................................................................................................. 5 4.1. Summary of the Test Results.......................................................................................................................................................... 5 5. TEST RESULT.................................................................................................................................................. 6 5.1. Test of 6dB Spectrum Bandwidth ................................................................................................................................................... 6 5.2. Test of Maximum Peak Conducted Output Power........................................................................................................................ 12 5.3. Test of Peak Power Spectral Density ........................................................................................................................................... 13 5.4. Test of Band Edges Emission...................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: RYU101MY Issued on Apr. 11, 2005 Report No.: FR512007 SPORTON International Inc. Page No. : 31 of 49 TEL : 886-2-2696-2468 Issued Date : Apr. 11, 2005 FAX : 886-2-2696-2255 5.5.8. Photographs of Conducted Emission Test Configuration FRONT VIEW REAR VIEW FCC ID: RYU101MY Issued on Apr. 11, 2005 Report No.: FR512007 SPORTON International Inc. Page No. : 42 of 49 TEL : 886-2-2696-2468 Issued Date : Apr. 11, 2005 FAX : 886-2-2696-2255 5.6.11. Photographs of Radiated Emission Test Configuration FRONT VIEW REAR VIEW
