RYYEYSGJNWireless Module

17-August-2015 Ver.0.09 TAIYO YUDEN TAIYO YUDEN 1/8 EYSGJN Bluetooth ® 4.2 Low Energy Module EYSGJN Data Sheet The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TAIYO YUDEN CO., LTD. is under license. In case you adopt this module and design some appliance, Please ask for the latest specifications from the local sales office. 17-August-2015 Ver.0.09 TAIYO YUDEN TAIYO YUDEN 2/8 EYSGJN Control name General Items Scope This specification (“Specification”) applies to the hybrid IC “EYSGJN Series”, a Bluetooth ® 4.2 Low Energy module (“Product”) manufactured by TAIYO YUDEN Co., Ltd. (“TAIYO YUDEN”) 1. Part number: EYSGJN 2. Function: Radio frequency module. Bluetooth ® standard Ver. 4.2 Low Energy conformity 3. Application: Health & Fitness Equipment, Sensor, Toys 4. Structure: Hybrid IC loaded with silicon monolithic semiconductor Compatible with industrial standard reflow profile for Pb-free solders Can meet with RoHS compliance (Pb, Cd, Hg, Cr +6 , PBB, PBDE) 5. Outline: 11.3x 5.1 x 1.3(MAX) mm (TBD) 28-pin Land Grid Array 6. Marking: Part number, Lot number, Japan ID, FCC ID, IC ID 7. Features: - Small outline by PCB substrate - Low power consumption - Integrated antenna - Integrated system clock - Bluetooth ® 4.2 Low Energy conformity 8. Packaging: Packaging method: Tape & reel + aluminum moisture barrier bag Packaging unit: 2000 *It might be provided as tray at sample stage. 17-August-2015 Ver.0.09 TAIYO YUDEN TAIYO YUDEN 3/8 EYSGJN Control name General Items 9. Note: a. Any question arising from this Specification shall be solved through mutual discussion by the parties hereof. b. This Product is not designed to be radiation durable and should not be used under the circumstance of radiation. c. The operating conditions of this Product are as shown in this Specification. Please note that TAIYO YUDEN shall not be liable for a failure and/or abnormality which is caused by use under the conditions other than the operating conditions hereof. d. The Product mentioned in this Specification is manufactured for use in Health & Fitness Equipment, Sensor and Toys. Before using this Product in any special equipment (such as medical equipment, space equipment, air craft, disaster prevention equipment), where higher safety and reliability are duly required, the applicability and suitability of this Product must be fully evaluated by the customer at its sole risk to ensure correct and safe operation of these special equipments. Also, evaluation of the safety function of this Product even for use in general electronics equipment shall be thoroughly made and when necessary, a protective circuit shall be added during the design stage, all at the customer’s sole risk. e. i) You are requested to fully check and confirm by the start of mass production of this Product that (1) no bug, defect or other failure is included in firmware incorporated in this Product (“Incorporated Software”), (2) no bug defect or other failure arising from installation of this Product in which is contained Incorporated Software into your products is included in Incorporated Software, and that Incorporated Software fully meets your intended use, although TAIYO YUDEN sufficiently inspects or verifies quality of Incorporated Software. ii) Please note that TAIYO YUDEN is not responsible for any failure arising out of bugs or defects in Incorporated Software. f. TAIYO YUDEN warrants only that this Product is in conformity with this Specification for one year after purchase and shall in no event give any other warranty. g. Communication between this Product and others might not be established nor maintained depending on radio environment or operating conditions of this Product and other Bluetooth ® products. h. In order to test for Radio Law certification with a device incorporating this module, the Host Software must be able to put the module into test mode. Please contact TAIYO YUDEN for further details. i. This Product operates in the unlicensed ISM band at 2.4GHz. In case this Product is used around the other wireless devices which operate in same frequency band of this Product, there is a possibility that interference may occur between this Product and such other devices. If such interference occurs, please stop the operation of other devices or relocate this Product before using this Product or do not use this Product around the other wireless devices. j. Please thoroughly evaluate our module with your products before going mass production. k. User Code Modification Notice. User Code for sample modules or part numbers in this Specification are TAIYO YUDEN standard part numbers. When any modification is made to a module to meet requested specifications, the part number will be changed. Please contact TAIYO YUDEN to confirm whether your part number needs to be modified. Please see the following examples for cases when part numbers are modified: - For specific firmware version (our standard item firmware will be upgraded occasionally) - For other relevant cases (specific or different setting, form, sizes, or display etc..) 17-August-2015 Ver.0.09 TAIYO YUDEN TAIYO YUDEN 4/8 EYSGJN Control name General Items l. Alternative components may used to this module. The intended components is used within the warranty written in this document (characteristics, size, operating condition, reliability, public regulation such as radio type approval) and Taiyo Yuden confirmed there are not any problems with the replacement. The traceability of the components is secured each production lot. m. Caution for Export Control This Product may be subject to governmental approvals, consents, licenses, authorizations, declarations, filings, and registrations for export or re-export of the Product, required by Japanese Foreign Exchange and Foreign Trade Law (including related laws and regulations) and/or any other country’s applicable laws or regulations related to export control. If you plan to export or r…

Text truncated - open the document above for the full version.

EYSGJN with EVB Antenna DATA

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: TAIYO YUDEN CO., LTD. Address : 8-1 Sakae-Cho City: Takasaki-Shi, Gunma, 370-8522 Country: JAPAN To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: RYYEYSGJN Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: These documentations include highly confidential information. Planned Release Date STC: 2nd February 2016 (notes 2, 3, 4, 5) Date: 30 th July 2015 Name and signature of applicant: Mitsuo Takagi Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: RYYEYSGJN Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. This module has RF shielding with metal case. Refer to external photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. Using IC, model No. nRF51822, has buffered circuit. 3. The modular transmitter must have its own power supply regulation. Using IC, model No. nRF51822 includes regulator inside of it. Refer to Block diagram. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Yes, this module use pattern antenna. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, this testing is performed by stand- alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Label space of this module is limited. The traceability requirement in quality control under ISO standard is secured by the Lot number, the Model number and customer code marking on each product. The marking can be not removed by our company regulation under product management. So the FCC ID will be shown on user manual. Exterior label instruction to installer of this module is also provided in user manual. -File name: Taiyo Yuden_EYSGJN_ EYAGJN_laser making.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Instruction for operational requirements is provided in user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. This module complies with RF exposure requirements and instruction for users is provided in the user manual. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): Manabu Satomi Date: 30 th July 2015 Signature:

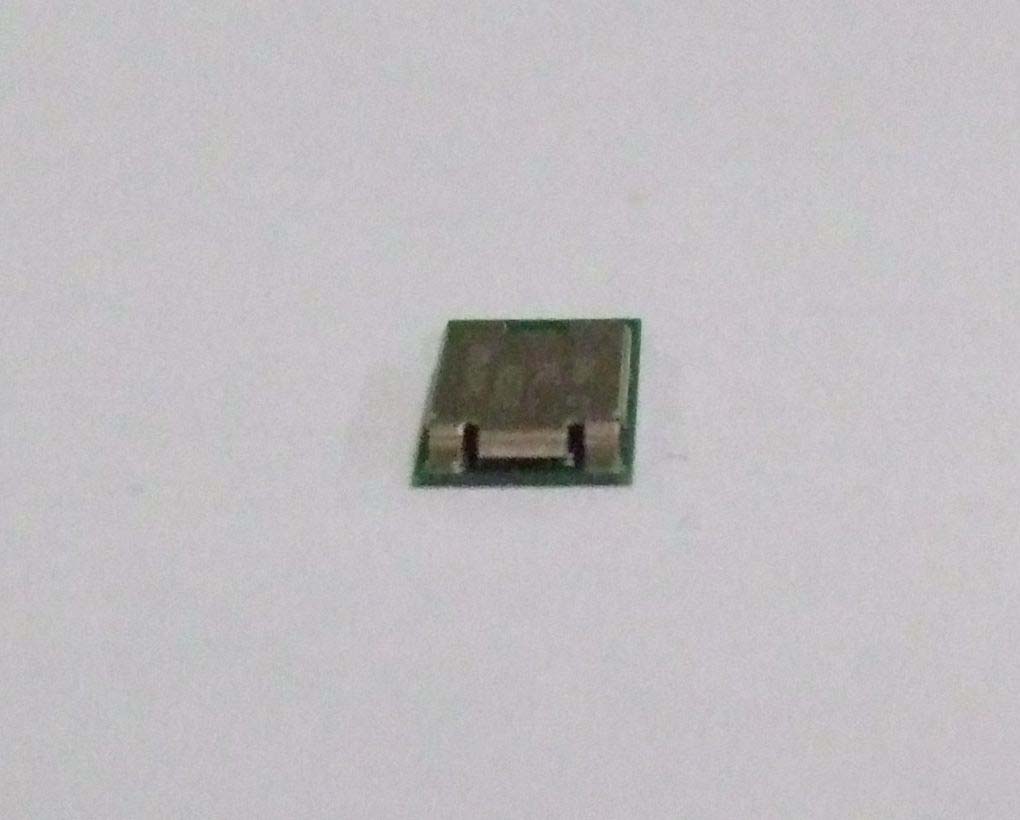

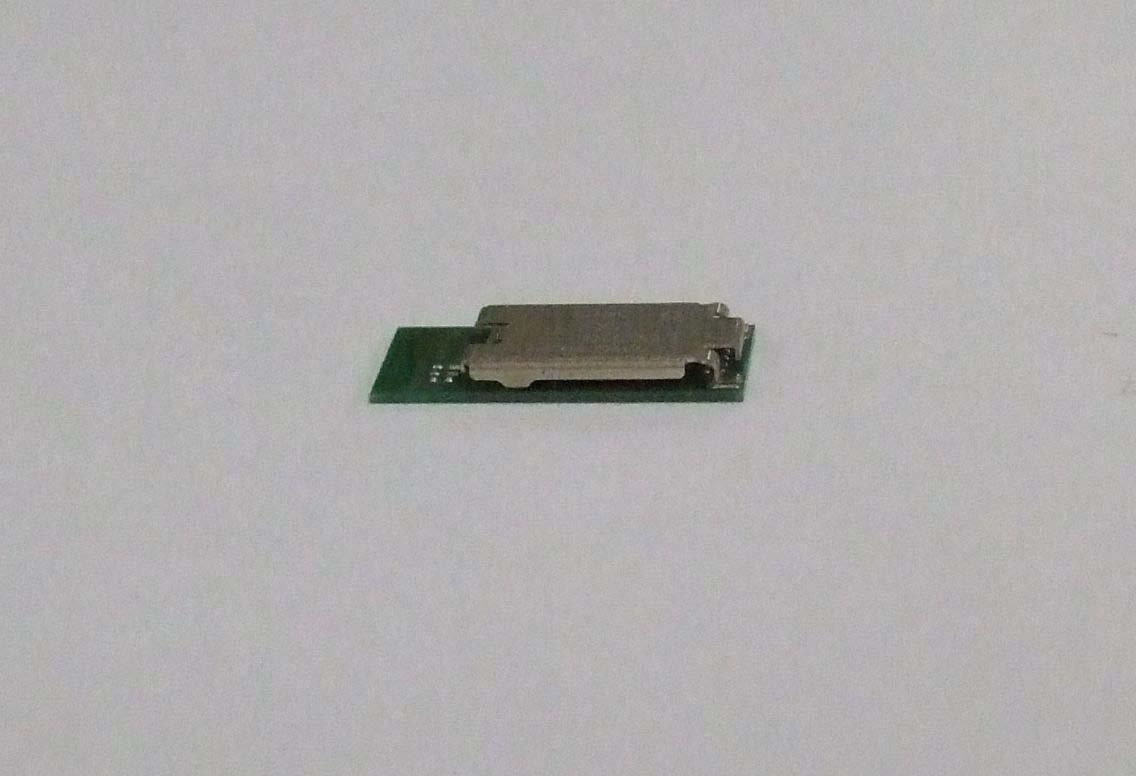

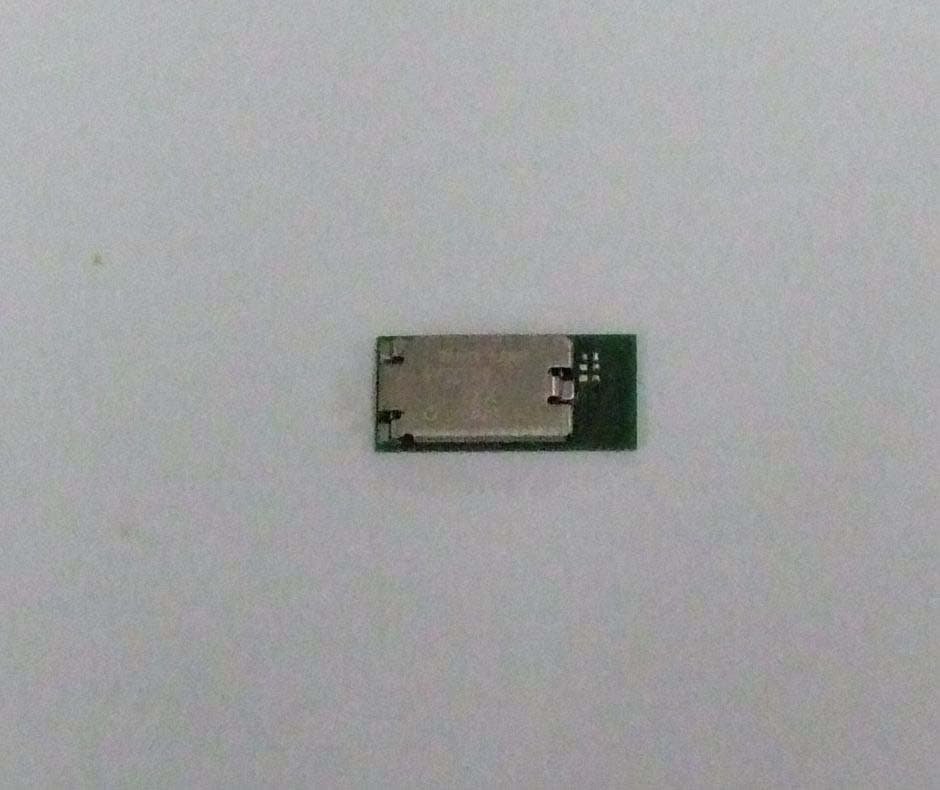

INTEGRATED MODULE & DEVICE BUSINESS DIV. 8-1, Sakae-cho, Takasaki-shi, Gunma, 370-8522, Japan Tel: +81-27-324-2313, Fax: +81-27-324-2314 EYSGJN External Photos INTEGRATED MODULE & DEVICE BUSINESS DIV. 8-1, Sakae-cho, Takasaki-shi, Gunma, 370-8522, Japan Tel: +81-27-324-2313, Fax: +81-27-324-2314 EYSGJN External Photos INTEGRATED MODULE & DEVICE BUSINESS DIV. 8-1, Sakae-cho, Takasaki-shi, Gunma, 370-8522, Japan Tel: +81-27-324-2313, Fax: +81-27-324-2314 EYSGJN External Photos

Ｂ２３ＩＣ 様式－７ 111219 HD-AD- A１４０３８５ Outline Outline･Appearance 外形・外観図 （1／2） Control No. Title APPROVED DESIGNED DRAWNCHECKED 28.Nov.2013 28.Nov.201328.Nov.2013 TOP View The dimension of the land pattern is the same as a foot pattern. Recommended solder paste mask dimensions The metal mask thickness: t=0.1mm Center pad Signal pad 23 – 0.4 x 0.8 mm0.35 x 0.7 (TBD) Pad sizeMetal mask opening Corner pad 4 – 0.55 x 0.8 mm0.45 x 0.75 (TBD) Center pad 1 – 2.8 x 1.5 mm1.1 x 1.2 x 2 (TBD) 1.10.4 1.2 TAIYO YUDEN CO.,LTD.

Dimension of shieldin g case g Unit : mm LASER marking for EYSGJN ( RYYEYSGJN, 4389B-EYSGJN ) TAIYO YUDEN EYSGJN TAIYO YUDEN EYSGJN Cus t o m e r- code F1 LOT NO. Cus o e code F1 LOT NO. Marking of ID numberIt is impossible to put a label on this very small metal shielding case. Therefore the marking of modelIt is impossible to put a label on this very small metal shielding case. Therefore the marking of model number and customer code is written by LASER marker . It needs to consider about alignment accuracy as well. The traceability requirement in quality control under ISO standard is secured by the Lot number, the Model number and customer code marking on each product. The mark ing can be not removed by our company regulation for product management. Putting on this together, marking of ID number on this company regulation for product management. Putting on this together, marking of ID number on this shielding case with 4.4mm width is impossible. Accordingly, the certification ID i ndication is printed on the manual supp lied with the device. FVIN(for IC) is shown on the label. LASER marking for EYAGJN ( RYYEYAGJN, 4389B-EYAGJN ) TAIYO YUDEN EYAGJN TAIYO YUDEN EYAGJN Customer-code F1 LOT NO.LOT NO.

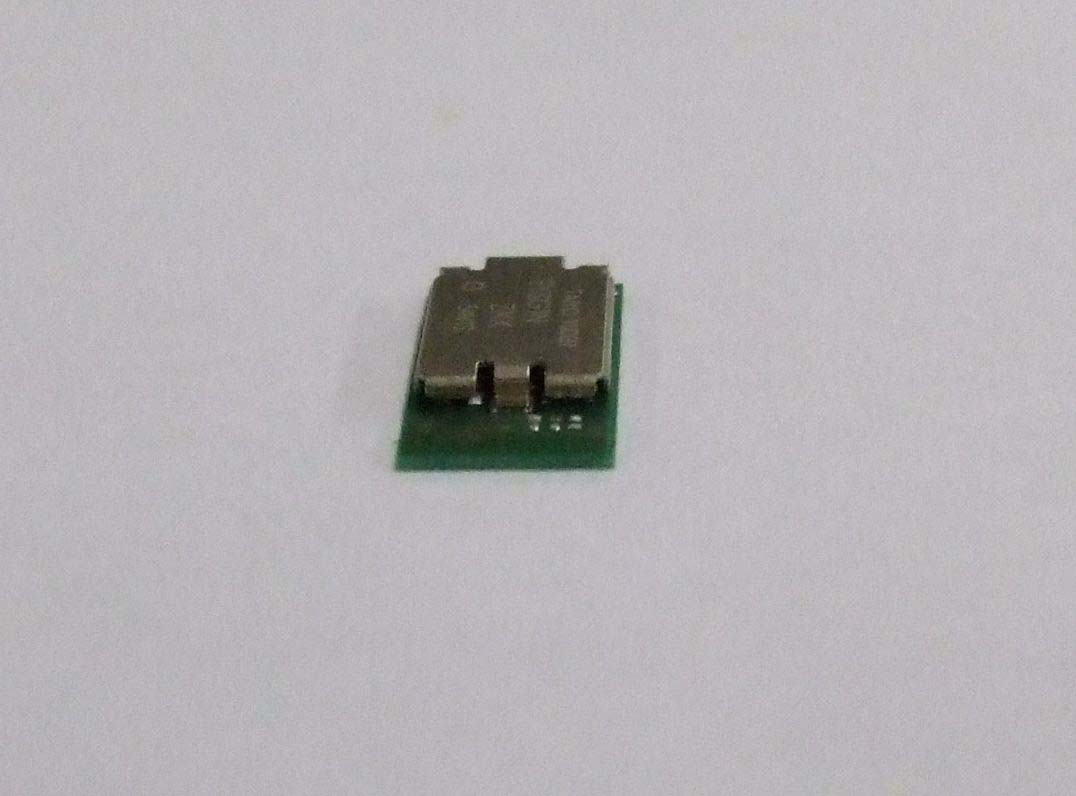

INTEGRATED MODULE & DEVICE BUSINESS DIV. 8-1, Sakae-cho, Takasaki-shi, Gunma, 370-8522, Japan Tel: +81-27-324-2313, Fax: +81-27-324-2314 EYSGJN Internal Photos INTEGRATED MODULE & DEVICE BUSINESS DIV. 8-1, Sakae-cho, Takasaki-shi, Gunma, 370-8522, Japan Tel: +81-27-324-2313, Fax: +81-27-324-2314 EYSGJN Internal Photos INTEGRATED MODULE & DEVICE BUSINESS DIV. 8-1, Sakae-cho, Takasaki-shi, Gunma, 370-8522, Japan Tel: +81-27-324-2313, Fax: +81-27-324-2314 EYSGJN Internal Photos

Report No.: SA150707C20 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA150707C20 FCC ID: RYYEYSGJN Test Model: EYSGJN Received Date: Jul. 07, 2015 Test Date: Jul. 09 ~ Jul. 14, 2015 Issued Date: Jul. 22, 2015 Applicant: TAIYO YUDEN CO., LTD. Address: 8-1, Sakae-cho, Takasaki-shi, Gunma, 370-8522, Japan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. Lab Address: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN (R.O.C.) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA150707C20 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 Evaluation Result .................................................................................................................................. 5 3 SAR Test Exclusion Thresholds .......................................................................................................... 6 4 Conclusion ............................................................................................................................................ 6 Report No.: SA150707C20 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA150707C20 Original release Jul. 22, 2015 Report No.: SA150707C20 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Wireless Module Brand: TAIYO YUDEN Test Model: EYSGJN Sample Status: Engineering sample Applicant: TAIYO YUDEN CO., LTD. Test Date: Jul. 09 ~ Jul. 14, 2015 Standards: FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date:Jul. 22, 2015 Suntee Liu / Specialist Approved by : , Date:Jul. 22, 2015 Ken Liu / Senior Manager Report No.: SA150707C20 Page No. 5 / 6 Report Format Version: 6.1.1 2 Evaluation Result Following FCC KDB 447498 D01 “General SAR test exclusion guidance” The corresponding SAR Exclusion Threshold condition, listed below: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where  f(GHz) is the RF channel transmit frequency in GHz.  Power and distance are rounded to the nearest mW and mm before calculation.  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2) At 100 MHz to 6 GHz and for test separation distances > 50 mm, the SAR test exclusion threshold is determined according to the following: a) [Threshold at 50 mm in step 1) + (test separation distance - 50mm)·( f(MHz)/150)] mW, at 100MHz to 1500 MHz b) [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz 3) At frequencies below 100 MHz, the following may be considered for SAR test exclusion. a) The threshold at the corresponding test separation distance at 100 MHz in step 2) is multiplied by [1 + log(100/f(MHz))] for test separation distances > 50 mm and < 200 mm. b) The threshold determined by the equation in a) for 50 mm and 100 MHz is multiplied by ½ for test separation distances ≤ 50 mm. c) SAR measurement procedures are not established below 100 MHz. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any test results to be acceptable. Report No.: SA150707C20 Page No. 6 / 6 Report Format Version: 6.1.1 3 SAR Test Exclusion Thresholds Maximum measured transmitter power: Max. Power (mW) Min. test separation distance (m…

Text truncated - open the document above for the full version.

Report No.: RF150707C20 Page No. 1 / 31 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150707C20 FCC ID: RYYEYSGJN Test Model: EYSGJN Received Date: Jul. 07, 2015 Test Date: Jul. 09 ~ Aug. 06, 2015 Issued Date: Aug. 07, 2015 Applicant: TAIYO YUDEN CO., LTD. Address: 8-1,Sakae-cho,Takasaki-shi, Gunma, 370-8522, Japan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN (R.O.C.) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150707C20 Page No. 2 / 31 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 7 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 8 3.3 Description of Support Units ............................................................................................................... 9 3.3.1 Configuration of System under Test .................................................................................................... 9 3.4 General Description of Applied Standards .......................................................................................... 9 4 Test Types and Results ....................................................................................................................... 11 4.1 Radiated Emission and Bandedge Measurement .............................................................................. 11 4.1.1 Limits of Radiated Emission and Bandedge Measurement ............................................................... 11 4.1.2 Test Instruments ................................................................................................................................ 12 4.1.3 Test Procedures ................................................................................................................................. 13 4.1.4 Deviation from Test Standard ............................................................................................................ 13 4.1.5 Test Set Up ........................................................................................................................................ 14 4.1.6 EUT Operating Conditions ................................................................................................................. 14 4.1.7 Test Results ....................................................................................................................................... 15 4.2 Conducted Emission Measurement .................................................................................................. 19 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 19 4.2.2 Test Instruments ................................................................................................................................ 19 4.2.3 Test Procedures ................................................................................................................................. 20 4.2.4 Deviation from Test Standard ............................................................................................................ 20 4.2.5 Test Setup ....................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 RADIATED EMISSION TEST (below 1GHz) 4 5 RADIATED EMISSION TEST (above 1GHz)
