RYYEYSNSNBluetooth low energy/ ANT/ 802.15.4 Module

25-Dec.2019 Ver.0.9 EYSNSN TAIYO YUDEN CO., LTD. TAIYO YUDEN CO., LTD. 1/3 User manual (for EYSNSN) Bluetooth low energy/ANT/802.15.4 Module FCC ID: RYYEYSNSN IC Number: 4389B-EYSNSN 25-Dec.2019 Ver.0.9 EYSNSN TAIYO YUDEN CO., LTD. TAIYO YUDEN CO., LTD. 2/3 Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; 1) Japan Regulatory Information a) This Product is a radio system and obtained certification of construction type combined with the specific antenna. b) Please ensure that your product has a label with the following certification mark at easily viewable location. If your product is too small to have the label, please place it in the instruction manual and package of your product. The mark diameter shall be equal or greater than 3mm. In case your product does not have the label with the following certification mark, you or your customer who uses your product may be against the Radio Law and subjected to criminal punishment. TAIYO YUDEN shall not be liable for any loss or damage incurred by you or your customer arising from use of your product which does not have following certification mark. This product has a radio system which was approved as a radio station in a low power data communication system based on the Radio Law. EYSNSN : ＊＊＊-＊＊＊＊＊＊ 2) Canada Regulatory Information a) This device complies with Industry Canada’s applicable licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. b) This product is certified as type of the portable device with Industry Canada Rules. To maintain compliance with RF Exposure requirement,please use within specification of this product. Ce produit est certifié comme type de l'appareil portable avec Industrie Règles de Canada. Pour maintenir l'acquiescement avec exigence Exposition de RF, veuillez utiliser dans spécification de ce produit. - IC: 4389B-EYSNSN 25-Dec.2019 Ver.0.9 EYSNSN TAIYO YUDEN CO., LTD. TAIYO YUDEN CO., LTD. 3/3 c) Please notify certified ID by either one of the following method on your product. -Contains IC : 4389B-EYSNSN Specifiez ID certifiée dans votre produit par une de méthode suivante. -Contains IC : 4389B-EYSNSN 3) FCC Regulatory Information a) This device complies with part 15 of the FCC Rules. -Part 15 Subpart C b) Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. c) Please notify certified ID by either one of the following method on your product. -Contains Transmitter Module FCC ID: RYYEYSNSN -Contains FCC ID: RYYEYSNSN d) Since there is no space which indicates FCC ID on this module, FCC ID is indicated in a manual. If the FCC ID is not visible when the module is installed inside another device, then the module is installed must also display a label referring to the enclosed module. e) CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the use’s authority to operate the equipment. f) The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. g) This product is certified as type of the portable device with FCC Rules. To maintain compliance with RF Exposure requirement, please use within specification of this product. h) The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. i) This module can change the output power depending on the circumstances by the application software which is developed by module installer. Any end user cannot change the output power. The software is developed by Taiyo Yuden, and the output power cannot be changed to higher than granted power. 4) CE Regulatory Information a) When your end product installs this module, it is required to proceed additional certification processes before placing on the market in EU member states to make your products fully comply with relative EU standards. b) TAIYO YUDEN can provide you the test reports of conducted measurement portion for the radio module. You can utilize the test reports for the certification processes of your end product as it requires radio testing.

Confidentiality Request Letter Confidentiality Request regarding application for certification of FCC ID: RYYEYSNSN and IC: 4389B-EYSNSN Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, and IC RSP-100, Section 10, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type (Long Term) Exhibit Type (Short Term) Block Diagram, Schematics, Operational Description Photos Internal Photos External Test setup photos User Manual Time of confidentiality: 180 days The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice we also request temporary confidential treatment of information accompanying this application as outlined above. Sincerely, ＿＿＿＿＿＿＿＿＿＿＿＿＿＿ Hideki Kato Deputy General Manager, Business Planning Department, Integrated Module Business Division Taiyo Yuden Co., Ltd.

Applicant/Grantee TAIYO YUDEN CO., LTD. FCC ID: RYYEYSNSN Section 15.212 Modular Transmitters / Request for Modular Approval X Request for Limited Modular Approval Requirements Device Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements must have the radio frequency circuitry must be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. The module has its own RF shielding.” Shield Can is employed on the board structure, please see exhibition External Photo, the emission measurement was conducted without further shielding added. Y 2 The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. All modulation and data input(s) are buffered.” The EUT has buffered data inputs, it is integrated on the RF chip Y 3 The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. Requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. Output power is controlled by the RF Chip and de-coupled from supply voltage variations. Frequencies are determined by Crystal Y 4 The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The Equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The antenna is part of the module Y 5 The module shall be tested for compliance with the applicable standard in a stand- alone configuration, i.e. the module must not be inside another device during testing. The modular transmitter was tested in a stand-alone configuration via a SPI Interface. Y 6 The module shall comply with the Category I equipment labelling requirements. It is impossible to put a label on this very small shielding part. N 7 The modular transmitter complies with all specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer will provide adequate instructions along with the module to explain any such requirements. A copy of these instructions is included in this application for equipment authorization: Instructions in User Manual Y 8a Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Please refer the Maximum Permissible Exposure Information. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. ＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿ Signature Name/Title: Hideki Kato /Deputy General Manager Company Name: TAIYO YUDEN CO., LTD. Date: Jan. 2020

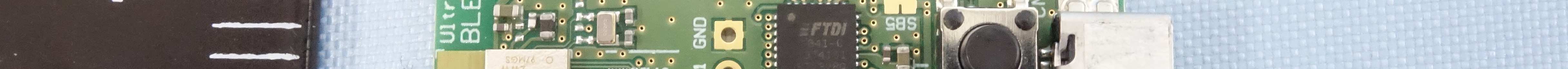

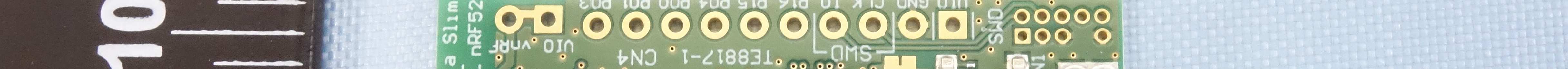

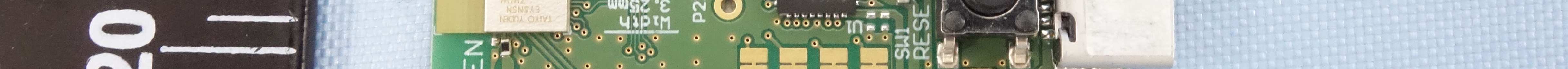

Appendix P Photo Documentation Page 1 of 3 50339907 001 Product: Bluetooth low energy/ ANT/ 802.15.4 Module Type Identification: EYSNSN Module with transfer board: Appendix P Photo Documentation Page 2 of 3 50339907 001 Product: Bluetooth low energy/ ANT/ 802.15.4 Module Type Identification: EYSNSN Modular:

HD-AD- Description of laser Markingunit:mm 1) Model (upper 6 digits): EYSNSN 2) User-Code 3) Manufacturer : TAIYO YUDEN 4) 1pin mark 5) Product Lot number: Four digits (Refer to [Instruction for Lot Number]) It is impossible to put a label on this very small shielding part. Therefore the marking of model number and user code is written by LASER marker. It needs to consider about alignment accuracy as well. The traceability requirement in quality control under ISO standard is secured by the Lot number, the Model number and user code marking on each product. The marking can be not removed by our company regulation for product management. Putting on this together, marking of ID number on this shielding part with 3.25mm width is impossible. It's describe on a user's manual because it isn't possible to indicated " FCC:RYYEYSNSN ". TAIYO YUDEN CO.,LTD. Outline･Appearance Marking of ID number （1／1） Control No.Title APPROVEDDESIGNEDDRAWNCHECKED 5) 1) 3) 2) EYSNSN User-Code TAIYO YUDEN LOT NO. 4)

Produkte Products Prüfbericht - Nr.: Test Report No. 50339907 001 Seite 57 von 63 Page 57 of 63 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 D01 v06 47CFR 1.1310 47CFR 2.1091 ISED RSS-102 issue 5 FCC: Therefore the maximum output power of the transmitter is 2.66mW < 10mW(Distance: 5 mm), hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure. Canada: Maximum conducted peak power: 2.66mW Antenna Gain(Numeric): 0.427 Maximum EIRP available 1.136mW Since maximum output power of the transmitter is 2.66mW(maximum power)<4mW (distance ≤5mm ), hence the EUT is excluded from SAR evaluation according to Table 1 in ISED RSS-102, For limb-worn devices where the 10 gram value applies, the exemption limits for routine evaluation in Table 1 of ISED RSS-102 are multiplied by a factor of 2.5. ---End---

Produkte Pro ducts TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Prüfbericht-Nr.: Test Report No.: 50339907 001 Auftrags-Nr.: Order No.: 238112053 Seite 1 von 63 Page 1 of 63 Kunden-Referenz-Nr.: Client Reference No.: N/A Au ftragsdatum: Order date: 8-Nov-2019 Auftraggeber: Client: TAIYO YUDEN CO., LTD. 43-1, Yawatabara-machi, Takasaki-shi, Gunma, 370-0024, Japan Prüfgegenstand: Test item: Bluetooth low energy/ ANT/ 802.15.4 Module Bezeichnung / Typ-Nr.: Identification / Type No.: EYSNSN Auftrags-Inhalt: Order content: FCC Part 15C / IC RSS-247 Test report Prüfgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247(DTS) IS ED RSS-247 (02-2017) Wareneingangsdatum: Date of receipt: 12-Dec-2019 Prüfmuster-Nr.: Test sample No.: A001041701-006 Prüfzeitraum: Testing period: 3-Jan-2020~03-Feb-2020 Ort der Prüfung: Place of testing: EMC/RF Laboratory Taipei Prüflaboratorium: Testing laboratory: TUV Rheinland Taiwan Ltd. Prüfergebnis*: Test result*: Pass Report date / tested by: 04-Feb-2020 Mars Y.J. Lin/ Project Engineer kontrolliert von / reviewed by: 04-Feb-2020 Ryan W. T. Chen / Project Manager Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht au szugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No. 50339907 001 Seite 2 von 63 Page 2 of 63 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 MAXIMUM CONDUCTED PEAK OUTPUT POWER RESULT: Passed 5.1.3 6DB BANDWIDTH AND 99% BANDWIDTH RESULT: Passed 5.1.4 POWER DENSITY RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 50339907 001 Seite 3 von 63 Page 3 of 63 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 1.2 DECISION RULE OF CONFORMITY.............................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST FACILITY ........................................................................................................ 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 7 2.3 TRACEABILITY ........................................................................................................ 8 2.4 CALIBRATION ......................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 8 3. GENERAL PRODUCT INFORMATION ........................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 9 3.3 INDEPENDENT OPERATION MODES ......................................................................... 11 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 11 3.5 SUBMITTED DOCUMENTS ....................................................................................... 11 4. TEST SET-UP AND OPERATION MODES ................................................................... 12 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 12 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 12 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 13 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 13 4.5 TEST SETUP DIAGRAM .......................................................................................... 13 5. TEST RESULTS ..................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 15 5.1.1 Antenna Requirement ................................................................................................................ 15 5.1.2 Maximum conducted Peak output power ................................................................................... 16 5.1.3 6dB Bandwidth and 99% Bandwidth .......................................................................................... 19 5.1.4 Power Density ..................................................................................…

Text truncated - open the document above for the full version.

Test Report No.50339907 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 50339907AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G (802.15.4) ............................................................................... 2 Spurious Emissions, TX Mode, 1-26.5G(802.15.4) ..................................................................................... 14 Spurious Emissions, TX Mode, 30M-1G(802.15.4)..................................................................................... 20 Spurious Emissions, TX Mode, 9k-30M(802.15.4) ..................................................................................... 22 Spurious Emissions, Mains, 150kHz - 30MHz(802.15.4) ............................................................................ 24 Spurious Emissions, Band Edges, 2.35-2.5G(BLE 1M) .............................................................................. 27 Spurious Emissions, Band Edges, 2.35-2.5G(BLE 2M) .............................................................................. 39 Spurious Emissions, TX Mode, 30M-1G(BLE 2M) .................................................................................... 63 Spurious Emissions, TX Mode, 9k-30M(BLE 2M) ..................................................................................... 65 Spurious Emissions, Mains, 150kHz - 30MHz(BLE) .................................................................................. 67 Spurious Emissions, Band Edges, 2.35-2.5G(ANT 1M) .............................................................................. 70 Spurious Emissions, TX Mode, 1-26.5G(ANT 1M) .................................................................................... 82 Spurious Emissions, TX Mode, 30M-1G(ANT 1M) .................................................................................... 88 Spurious Emissions, TX Mode, 9k-30M(ANT 1M) ..................................................................................... 90 Spurious Emissions, Band Edges, 2.35-2.5G(Nordic Original 2M) ............................................................ 92 Spurious Emissions, TX Mode, 1-26.5G(Nordic Original 2M) ................................................................. 104 Spurious Emissions, Mains, 150kHz - 30MHz(ANT 1M) .......................................................................... 110 2 Spurious Emissions, Band Edges, 2.35-2.5G (802.15.4) 2405MHz_Horizontal 3 4 2405MHz_Vertical 5 6 2440MHz_Horizontal 7 8 2440MHz_Vertical 9 10 2480MHz_Horizontal 11 12 2480MHz_Vertical 13 14 Spurious Emissions, TX Mode, 1-26.5G(802.15.4) 2405MHz 15 2440MHz 16 17 2480MHz 18 19 20 Spurious Emissions, TX Mode, 30M-1G(802.15.4) 21 22 Spurious Emissions, TX Mode, 9k-30M(802.15.4) 23 24 Spurious Emissions, Mains, 150kHz - 30MHz(802.15.4) Mains Spurious Emissions 25 26 27 Spurious Emissions, Band Edges, 2.35-2.5G(BLE 1M) 2402MHz Horizontal 28 29 2402MHz Vertical 30 31 2440MHz Horizontal 32 33 2440MHz Vertical 34 35 2480MHz Horizontal 36 37 2480MHz Vertical 38 39 Spurious Emissions, Band Edges, 2.35-2.5G(BLE 2M) 2402MHz Horizontal 40 41 2402MHz Vertical 42 43 2440MHz Horizontal 44 45 2440MHz Vertical 46 47 2480MHz Horizontal 48 49 2480MHz Vertical 50

Produkte Products Prüfbericht - Nr.: Test Report No. 50339907 001 Seite 58 von 63 Page 58 of 63 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View 1) Produkte Products Prüfbericht - Nr.: Test Report No. 50339907 001 Seite 59 von 63 Page 59 of 63 Photograph 2: Set-up for Spurious Emissions (Front View 2) Photograph 3: Set-up for Spurious Emissions (Back View 1) Produkte Products Prüfbericht - Nr.: Test Report No. 50339907 001 Seite 60 von 63 Page 60 of 63 Photograph 4: Set-up for Spurious Emissions (Back View 2) Photograph 5: Set-up for Spurious Emissions (Back View 3) Produkte Products Prüfbericht - Nr.: Test Report No. 50339907 001 Seite 61 von 63 Page 61 of 63 Photograph 6: Set-up for Spurious Emissions (Back View 4) Produkte Products Prüfbericht - Nr.: Test Report No. 50339907 001 Seite 62 von 63 Page 62 of 63 Photograph 7: Set-up for Mains Conducted testing (Front View) Photograph 8: Set-up for Mains Conducted testing (Back View)
