RYYWYSACVLXYCPU Embedded WLAN Module

2015/10/20 User Manual Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). i) IC Regulatory Information IC規制情報 a) The following statements in rectangle must be described on the user manual of the host device of this module; 本製品を組み込む製品のユーザーマニュアルには、下記枠内事項の 記載をお願いします。 This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps. If you intend usage of this product with any construction closer than the limited distance, please contact Taiyo Yuden. 制限距離以下の構造での本製品の使用される場合には、弊社まで お問合せ願います。 b) The following information must be indicated on the host device of this module; 本製品を組み込む製品には、下記の記載をお願いします。 Contains Transmitter Module IC: 4389B-WYSACVLXY or Contains IC: 4389B-WYSACVLXY ii) FCC Regulatory Information FCC規制情報 a) The following statements in rectangle must be described on the user manual of the host device of this module; 本製品を組み込む製品のユーザーマニュアルには、下記枠内事項の 記載をお願いします。 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. If you intend usage of this product with any construction closer than the limited distance, please contact Taiyo Yuden. 制限距離以下の構造での本製品の使用される場合には、弊社まで お問合せ願います。 b) The following information must be indicated on the host device of this module; 本製品を組み込む製品には、下記の記載をお願いします。 Contains Transmitter Module FCC ID: RYYWYSACVLXY or Contains FCC ID: RYYWYSACVLXY

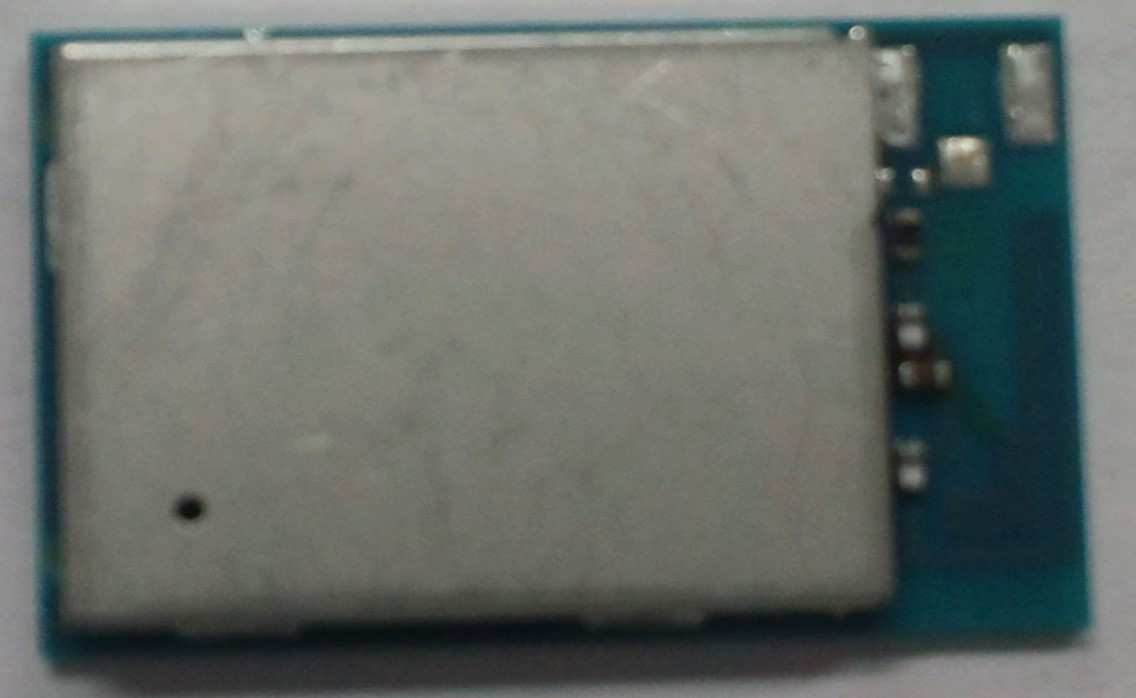

WYSACVLXY External_Photo Outline Dimmension : 21.4 x 14.0 x 2.4max mm 21.4mm 14mm 2.4mmMax

WYSACVLXY Label Confidential Indication Label description 1) Model：WYSACVLXY 2) Manufacture：TAIYO YUDEN CO.,LTD. 3) Japan logo mark：Specified logo mark 4) Japan ID：007-AD0172 5) IC ID：4389B-WYSACVLXY 6)FCC IDRYYWYSACVLXY R 007-AD0172 TAIYO YUDEN IC：4389B-WYSACVLXY FCC ID：RYYWYSACVLXY MODEL：WYSACVLXY XXXX 3mm 1) 2) 3) 4) 5) 6) 7) 12.9mm 16.5mm WYSACVLXY-** 8) 5) IC ID4389B-WYSACVLXY 6) FCC ID：RYYWYSACVLXY 7) Lot number：Four digits 8) Par Number ：WYSACVLXY-** TAIYO YUDEN

WYSACVLXY_Internal_Photo Front （ without Shield Case ） Back Front （ without Shield Case ） Back Front （ with Shield Case ）

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: TAIYO YUDEN CO., LTD. Type of Equipment: CPU Embedded WLAN Module Model No. : WYSACVLXY FCC ID: RYYWYSACVLXY TAIYO YUDEN CO., LTD. declares that Model : WYSACVLXY com plies w ith F C C ra dia tion exposure requirem ent specified in the F C C R ules 2.1091. RF Exposure Calculations: T he following inform ation provides the m inim um separation distance for the highest gain antenna provided with the “W Y SACVLX Y“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. T his calculation is based on the highest E IRP possible from the system , considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure lim it. The Friis form ula used was: S = (P * G ) / (4* π * r 2 ) Where P = 32.36 mW (M aximum average output power) G = 0.51 N um erical A ntenna gain; equal to -2.90 dBi r =20.0 cm For: WYSACVLXYS = 0.00330 mW/cm 2 E ven taking into account the tolerance, this device can be satisfied with the lim its. No. : 10949091S-A RF Exposure / SAR Statement

Test report No. : 10949091S-A Page : 1 of 49 Issued date : November 5, 2015 Revised date : November 11, 2015 FCC ID : RYYWYSACVLXY UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10949091S-A Applicant : TAIYO YUDEN CO., LTD. Type of Equipment : CPU Embedded WLAN Module Model No. : WYSACVLXY FCC ID : RYYWYSACVLXY Test regulation: FCC Part 15 Subpart C: 2015 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) Date of test: Septembe r24 to October18, 2015 Representative test engineer: Kenichi Adachi Engineer Consumer Technology Division Approved by: Toyokazu Imamura Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 10949091S-A Page : 2 of 49 Issued date : November 5, 2015 Revised date : November 11, 2015 FCC ID : RYYWYSACVLXY UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10949091S-A Revision Test report No. Date Page revised Contents - (Original) 10949091S-A November 5, 2015 - - 1 10949091S-A November 11, 201520 Correction of data Test report No. : 10949091S-A Page : 3 of 49 Issued date : November 5, 2015 FCC ID : RYYWYSACVLXY UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ......................................................................................... 4 SECTION 3: Test specification, procedures & results .......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................. 8 SECTION 5: Conducted Emission ........................................................................................................ 10 SECTION 6: Radiated Spurious Emission .......................................................................................... 11 SECTION 7: Antenna Terminal Conducted Tests .............................................................................. 12 APPENDIX 1: Test data ........................................................................................................................ 13 Conducted Emission ......................................................................................................................... 13 6 dB Bandwidth ................................................................................................................................ 14 Maximum Peak Output Power .......................................................................................................... 17 Average Output Power ...................................................................................................................... 20 Radiated Spurious Emission ............................................................................................................. 24 Peak Power Density .......................................................................................................................... 41 99 %Occupied Bandwidth ................................................................................................................ 44 APPENDIX 2: Test instruments ........................................................................................................... 46 APPENDIX 3: Photographs of test setup ............................................................................................. 47 Conducted Emission ......................................................................................................................... 47 Radiated Spurious Emission ............................................................................................................. 48 Precheck of worst case position ........................................................................................................ 49 Test report No. : 10949091S-A Page : 4 of 49 Issued date : November 5, 2015 FCC ID : RYYWYSACVLXY UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : TAIYO YUDEN CO., LTD. Address : 8-1, Sakae-cho, Takasaki-shi, Gunma 370-8522, Japan Telephone Number : +81-27-324-2313 Facsimile Number : +81-27-324-2314 Contact Person : Junich Fukuda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : CPU Embedded WLAN Module Model No. : WYSACVLXY Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.3 V Receipt Date of Sample : September 5, 2015 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model: W…

Text truncated - open the document above for the full version.

Test report No. : 10949091S-A Page : 47 of 49 Issued date : November 5, 2015 FCC ID : RYYWYSACVLXY UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted Emission Test report No. : 10949091S-A Page : 48 of 49 Issued date : November 5, 2015 FCC ID : RYYWYSACVLXY UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated Spurious Emission Front Rear (below 30 MHz) Rear (30 MHz - 1 GHz) Rear (above 1 GHz) Test report No. : 10949091S-A Page : 49 of 49 Issued date : November 5, 2015 FCC ID : RYYWYSACVLXY UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Precheck of worst case position X-axis Y-axis Z-axis End of Report
