S3CHB-20-1900Home Booster

Antenna – Electronic Communication Systems Home Booster H H B B - - 2 2 0 Home Booster 1900 MHz 0 I I N N S S T T A A L L L L A A T T I I O O N N A A N N D D O O P P E E R R A A T T I I O O N N M M A A N N U U A A L L 5700 9004 051 REV. 1.0 Feb, 2005 Proprietary Information The information contained herein is proprietary to Shyam Telecom Limited.Use or disclosure of this document or the information contained herein, for any purpose other than that for which it was furnished is not permitted or it shall not be disclosed or divulged to any third Party without the prior written consent of Shyam Telecom Limited. File Doc. No. Date Version Page HB-20 5700 9004 051 Feb 05 1.0 1/12 SHYAM Telecom Ltd. A-60, Naraina Industrial Area, Phase-I, New Delhi-110028 (INDIA) Tel: +91-11-51411076 Fax: +91-11-51411078 Email: [email protected] Antenna – Electronic Communication Systems Contents PREAMBLE................................................................................................3 About the manual.....................................................................................3 1.0 About the manual...............................................................................4 2.0 Important Safety Information...........................................................4 3.0 Introduction: Booster Theory / Background.................................5 4.0 Description of HB-20 Booster installation Kit...............................6 5.0 System Design and Setup...............................................................7 6.0 Installing the HB-20...........................................................................7 6.1 Pre-installation considerations................................................................7 6.2 Installation Tools.....................................................................................7 6.3 Installation Procedure: Do It Yourself....................................................8 6.4 Power Startup / Alarm Checks / Coverage Testing................................8 6.5 Display Details of HB-20.........................................................................9 Technical Specification: Boosters HB-20..............................................10 Trouble shooting procedure HB-20.......................................................11 File Doc. No. Date Version Page HB-20 5700 9004 051 Feb 05 1.0 2/12 Antenna – Electronic Communication Systems PREAMBLE In cellular systems boosters / repeaters are used, to enhance the coverage of a Base station in a region where, due to topological conditions, poor field strengths disable communication. SHYAM is a leading manufacturer of boosters / repeaters. These boosters / repeaters provide excellent electrical characteristics, are lightweight and easy to install. Any intervention has to be performed by authorized persons only. If you need technical assistance, please contact at the following address: SHYAM Telecom Ltd. A-60, Naraina Industrial Area, Phase-I, New Delhi-110028 (INDIA) Tel: +91-11-51411076 Fax: +91-11-51411078 Email: [email protected] Under consideration of all references given in this manual, the repeater should be taken into service without any complications and should operate trouble free for a long time. However we have country wide after sales support network to assist you if required. Please visit to our web site www.shyamtelecom.com for our country wide after sales support offices. About the manual The “Installation and Operation manual” is intended to be used for SHYAM HB-20 Booster installation. It contains the general guidelines for the field engineers /technicians. Read carefully before starting the installation. File Doc. No. Date Version Page HB-20 5700 9004 051 Feb 05 1.0 3/12 Antenna – Electronic Communication Systems 1.0 About the manual The “Installation and Operation manual” is intended to be used for SHYAM HB-20 booster installation. It contains the general guidelines for the person installing the HB-20 booster. Read carefully before starting the HB-20 booster installation. 2.0 Important Safety Information The HB-20 booster has been designed for maximum safety when installed and operated according to the instructions in this manual. Refer to all safety instructions as per the antenna installation instruction sheets. Do not bypass any of the safety features with the equipment provided, nor operate the system in an inappropriate environment. WARNING! Installation of antennas near power lines is dangerous. For your safety, follow all installation directions and keep safe distance from any high voltage power lines that could result in shock or loss of life. WARNING! This equipment complies with FCC & IC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The signal booster with server antenna must be installed to provide minimum 20 cm separation distance between the server antenna to the body of user or near by person. The donor antenna used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 1.5 meters from all persons during normal operation. Additional wiring required to install the HB-20 system should comply with national or local governing Electrical Codes. Indoor RF coaxial cable installations should comply with local Electrical Code requirements. The HB-20 booster is designed for indoor application. The housing is not waterproof, so please keep it away from water, rain and any chemical liquid. Do discharge the static before you touch the connectors of the booster. Do not open the module inside the booster unless you are authorized. The power supply unit in the HB-20 booster is supplied from the mains (primary AC power) that contains dangerous voltage level which will cause electric shock, Please turn off the mains before you install / uninstall the booster. The primary AC powe…

Text truncated - open the document above for the full version.

From: Michael Heckrotte Sent: Thursday, May 19, 2005 12:15 PM To: '[email protected]'; '[email protected]' Subject: FW: Shyam Telecom Inc., FCC ID: S3CHB-20-1900, Assessment NO.: AN05T4779, Notice#1 -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, May 19, 2005 11:34 AM To: Michael Heckrotte Subject: Shyam Telecom Inc., FCC ID: S3CHB-20-1900, Assessment NO.: AN05T4779, Notice#1 1. Theory of operation describes the duplexer uplink as 1850 to 1990 MHz. This does not match other documentation describing uplink as 1850 to 1910 MHz. Please correct. 2. The theory of operation is not consistent with the block diagram. For example, the Theory specifies 3 bandpass filters while the BD shows 2. Please correct documentation as required for accuracy and consistency. 3. The block diagram reference designators do not match the theory of operation reference designators (such as U1, YF1, etc.). Please correct documentation as required for accuracy and consistency. 4. Please provide the factory tune-up procedure. 5. FCC ID label claims compliance with Parts 2, 15, 22 and 24, however application does not include Part 22 (Note: Part 2 is incorporated in Parts 15 and 24 by reference, therefore explicit mention of Part 2 is not required on the label). Please remove reference to Part 22 from the label. 6. No MPE calculations submitted to justify separation distances in user manual. 7. Rated power in user manual is more than 0.5 dB delta from measured power. Please correct. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

From: [email protected] Sent: Thursday, May 19, 2005 7:47 PM To: Michael Heckrotte Subject: Re: FW: Shyam Telecom Inc., FCC ID: S3CHB-20-1900, Assessment NO.: AN05T4779... In a message dated 5/19/2005 3:12:43 PM Eastern Daylight Time, [email protected] writes: Hi, Mike. Thanks. I'd like to make clear : For Q4: Please see report (page3-6). There is no tune-up needed. For Q6: MPE caculation is in the report. No need to put in the manual, right? For Q7: Could you specify it? The output varies at certain range. Regards, Wei From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, May 19, 2005 11:34 AM To: Michael Heckrotte Subject: Shyam Telecom Inc., FCC ID: S3CHB-20-1900, Assessment NO.: AN05T4779, Notice#1 1. Theory of operation describes the duplexer uplink as 1850 to 1990 MHz. This does not match other documentation describing uplink as 1850 to 1910 MHz. Please correct. 2. The theory of operation is not consistent with the block diagram. For example, the Theory specifies 3 bandpass filters while the BD shows 2. Please correct documentation as required for accuracy and consistency. 3. The block diagram reference designators do not match the theory of operation reference designators (such as U1, YF1, etc.). Please correct documentation as required for accuracy and consistency. 4. Please provide the factory tune-up procedure. 5. FCC ID label claims compliance with Parts 2, 15, 22 and 24, however application does not include Part 22 (Note: Part 2 is incorporated in Parts 15 and 24 by reference, therefore explicit mention of Part 2 is not required on the label). Please remove reference to Part 22 from the label. 6. No MPE calculations submitted to justify separation distances in user manual. 7. Rated power in user manual is more than 0.5 dB delta from measured power. Please correct. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this

From: Michael Heckrotte Sent: Friday, May 20, 2005 9:19 AM To: '[email protected]'; '[email protected]' Subject: RE: FW: Shyam Telecom Inc., FCC ID: S3CHB-20-1900, Assessment NO.: AN05T4779... Wei, Q4 Page 5 of the report states: All necessary adjustments and tuning are performed during manufacture of the product. The request is for the factory adjustment and tuning procedure. Q6: The report as submitted ends on page 125. The TOC shows MPE calculations on page 130. Please also submit pages 126 and 127, and the equipment list, indicated in the TOC as beginning on page 128. The remaining items listed in the TOC of the report have already been submitted as separate documents. Q7: The rated power in the manual should be the maximum rating. The power measured during tests should be the maximum. These should be within 0.5 dB for conducted power measurements. Please also specify the range of power variation during normal operation. Best Regards, Mike -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, May 19, 2005 7:47 PM To: Michael Heckrotte Subject: Re: FW: Shyam Telecom Inc., FCC ID: S3CHB-20-1900, Assessment NO.: AN05T4779... In a message dated 5/19/2005 3:12:43 PM Eastern Daylight Time, [email protected] writes: Hi, Mike. Thanks. I'd like to make clear : For Q4: Please see report (page3-6). There is no tune-up needed. For Q6: MPE caculation is in the report. No need to put in the manual, right? For Q7: Could you specify it? The output varies at certain range. Regards, Wei From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, May 19, 2005 11:34 AM To: Michael Heckrotte Subject: Shyam Telecom Inc., FCC ID: S3CHB-20-1900, Assessment NO.: AN05T4779, Notice#1 1. Theory of operation describes the duplexer uplink as 1850 to 1990 MHz. This does not match other documentation describing uplink as 1850 to 1910 MHz. Please correct. 2. The theory of operation is not consistent with the block diagram. For example, the Theory specifies 3 bandpass filters while the BD shows 2. Please correct documentation as required for accuracy and consistency. 3. The block diagram reference designators do not match the theory of operation reference designators (such as U1, YF1, etc.). Please correct documentation as required for accuracy and consistency. 4. Please provide the factory tune-up procedure. 5. FCC ID label claims compliance with Parts 2, 15, 22 and 24, however application does not include Part 22 (Note: Part 2 is incorporated in Parts 15 and 24 by reference, therefore explicit mention of Part 2 is not required on the label). Please remove reference to Part 22 from the label. 6. No MPE calculations submitted to justify separation distances in user manual. 7. Rated power in user manual is more than 0.5 dB delta from measured power. Please correct. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this

From: [email protected] Sent: Friday, May 20, 2005 1:06 PM To: Michael Heckrotte Subject: Re: FW: Shyam Telecom Inc., FCC ID: S3CHB-20-1900, Assessment NO.: AN05T4779... Hi, Mike. Sorry for the mistake. When I do the PDF convertion, some kind of format changes. Anyway, here is the report according to Q6. For Q7: I am contacting the manufacturer for power level issue. Maybe the measured data need to be reviewed too since the input lelvl & adjustment may be different. Will provide the details later. Regards, Wei

From: [email protected] Sent: Friday, May 20, 2005 1:23 PM To: Michael Heckrotte Subject: Re: FW: Shyam Telecom Inc., FCC ID: S3CHB-20-1900, Assessment NO.: AN05T4779... In a message dated 2005-5-20 14:00:59 Eastern Daylight Time, [email protected] writes: Q7: The rated power in the manual should be the maximum rating. The power measured during tests should be the maximum. These should be within 0.5 dB for conducted power measurements. Please also specify the range of power variation during normal operation. Hi, Mike. I think it'll be covered if manufacturer provide the proper power variation in the manul, right? Thanks, Wei

3 Next Generation Signal Enhancement Shyam Telecom Inc. 18, Ireland Brook Drive, North Brunswick, NJ 08902 USA T 732 261 4077 F 309 216 0539 www.shyamtelecom.com May 3rd, 2005 FCC and IC Confidentiality Request In accordance with 0.459 & 0.457 of CFR 47, please, accept this letter as an official request to have the schematics, block diagram, operational description and the photographs of all portions of the EUT that are contained within the shielded castings of HB-20-1900 treated as confidential. The information contained within is a result of extensive investment and development effort by Shyam Telecom, inc. and its disclosure will compromise Shyam Telecom’s Intellectual Property and competitive edge. We thus ask the FCC and IC NOT to publish the enclosed information including Schematics, Block diagram, operational description and the photographs of all portions of the EUT that are contained within the shielded castings, in order to protect Shyam Telecom Inc.’s Intellectual Property. Sincerely, B. A. Majmudar President, Shyam Telecom Inc.

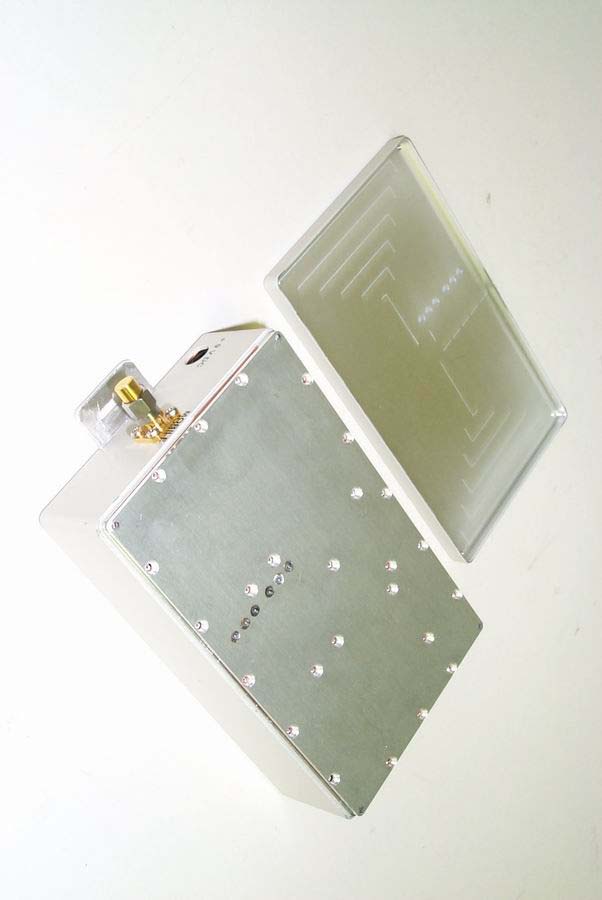

EUT: Dual Band Repeater Model: HB-20-1900 Report Number: 0048-050415-01 Page 137 of 142 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Front View EUT: Dual Band Repeater Model: HB-20-1900 Report Number: 0048-050415-01 Page 138 of 142 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Bottom View EUT: Dual Band Repeater Model: HB-20-1900 Report Number: 0048-050415-01 Page 139 of 142 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Cover Open View

EUT: Dual Band Repeater Model: HB-20-1900 Report Number: 0048-050415-01 Page 129 of 142 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 10. FCC ID Labeling FCC ID Label Location of Label on Lower Side Wall FCC LABEL FCC ID: S3CHB-20-1900 This device complies with Part 2, 15& 24 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. an d (2) this device must accept any interference received, including interference that may cause undesire d

SHYAM TELECOM MANUFACTURING LIMITED HB-20-1900 PRODUCTION TEST PROCEDURE PART CODE: Version. R00 Change Note No. Issue Date Changed By: Kamesh. 5.0 Test Procedure: 5.1 RF Test: 5.2.1 Initial Test Equipment Settings 5.2.1.1 Gain: 5.2.1.2 Regulated DC Power Supply: Set the Regulated DC Power Supply to output +9.0V DC and current of around 5A 5.2.1.3 Spectrum Analyzer: Center Frequency: Frequency of Operation of UUT Span: 500KHz RBW: 1KHz VBW: 100Hz 5.2.1.4 Signal Generator: Center Frequency: Frequency of Operation of UUT Modulation: OFF Power Level: As per requirement (less than –50dBm) 5.2.1.5 Network Analyzer: Center Frequency: Frequency of Operation of UUT Span: 200 MHz Power Level: -50 dBm Scale Reference (at RFL Port) 10dB Scale reference (at TRN Port): 30dB Reference Position (at RFL Port): -30dB Reference position (at TRN port): -10dB Markers: As per our Interest. 5.2.1.2 Noise Figure: Start Frequency: Start frequency of Band under Testing Stop Frequency: End frequency of Band Under Testing Increment: 1 MHz /0.5 MHz Approved By Document Custodian: Doc. No.: Version: R00 Issue Date: SHYAM TELECOM MANUFACTURING LIMITED HB-20-1900 PRODUCTION TEST PROCEDURE PART CODE: Version. R00 Change Note No. Issue Date Changed By: Kamesh. 5.2.2 Test Setup Diagram: 5.2.2.1 With Signal Generator and Spectrum Analyzer: Unit Under Test Signal Generator Regulated DC Power supply Spectrum Anal yzer Cable 5.2.2.2 With Network Analyzer: TRN Po Network Analyzer rt of Cable Regulated DC Power supply RFL port of Network Analyzer Unit Under Test Approved By Document Custodian: Doc. No.: Version: R00 Issue Date: SHYAM TELECOM MANUFACTURING LIMITED HB-20-1900 PRODUCTION TEST PROCEDURE PART CODE: Version. R00 Change Note No. Issue Date Changed By: Kamesh. Approved By Document Custodian: Doc. No.: Version: R00 Issue Date: 5.2.2.3 With Noise Figure Meter: Regulated DC Power supply Unit Under Test Noise figure meter Cable Noise Source 5.2.3 Gain Measurement: (Note: Refer to the Initial test equipment setting before proceeding) 5.2.3.1 Calibrate the equipment and cables used. 5.2.3.2 Set the power Level of the signal generator to less than -50 dBm 5.2.3.3 Switch on the regulated DC Power Supply and the equipment 5.2.3.4 Set the Frequency of the signal Generator to the start frequency of band under test. 5.2.3.5 Set the span, VBW, RBW of the spectrum analyzer to the set frequency in signal generator 5.2.3.6 Connect the UUT as per the test setup diagram shown above 5.2.3.7 Note down the output power level at the Spectrum Analyzer. 5.2.3.8 Increment the signal generator frequency by 5 MHz 5.2.3.9 Repeat steps from iv to vi until the signal generator frequency reaches the end frequency of band under test. 5.2.3.10 Increment the power level of the signal generator by 5dB 5.2.3.11 Repeat the steps iv to Viii until the power level reaches 10dBm. 5.2.3.12 Switch OFF the power supply and the equipment. SHYAM TELECOM MANUFACTURING LIMITED HB-20-1900 PRODUCTION TEST PROCEDURE PART CODE: Version. R00 Change Note No. Issue Date Changed By: Kamesh. Approved By Document Custodian: Doc. No.: Version: R00 Issue Date: 5.2.4Flow Chart For Testing: Start Switch ON the DC Power supply Set the power level of the Signal generator to less than -50 dBm Set the Frequency of the signal generator to start freq. of band. Set span, VBW, RBW of the Spectrum analyzer to the set frequency (as per frequency in signal Generator) Note down the power level at the spectrum anal yzer NO Increment the signal generator frequency by 5 MHz Is signal generator frequency is end freq NO YES Is the power level in the signal generator is 10 dBm YES Increment the power level of the signal generator by 5dB STOP SHYAM TELECOM MANUFACTURING LIMITED HB-20-1900 PRODUCTION TEST PROCEDURE PART CODE: Version. R00 Change Note No. Issue Date Changed By: Kamesh. 5.2.5 Precautions to be taken while Testing: 5.2.5.1 Always check the resistance between supply and ground before powering up any section. (This ensures DC short circuit) 5.2.5.2 Always put attenuating pads at the input and output of testing section. This ensures proper termination. 5.2.5.3 Do not solder any part or line while the system is ON. Approved By Document Custodian: Doc. No.: Version: R00 Issue Date:

Electromagnetic Emission Compliance Test Report Equipment Under Test (EUT) Home Booster HB-20-1900 Applicant Shyam Telecom Inc. In Accordance With FCC Part 24, Subpart E Test by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, New Jersey 08844 Authorized by Wei Li Lab Manager Signature Date May 6, 2005 AC Lab Report Number 0048-050415-01 The test result in this report is supported and covered by the NVLAP accreditation. Lab Code:200101-0 Advanced Com pliance 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 EUT: Home Booster Model: HB-20-1900 Report Number: 0048-050415-01 Page 2 of 2 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Index Section 1. Summary of Test Results....................................................................... 3 Section 2. General Equipment Specification......................................................... 5 Section 3. RF Output Power....................................................................................... 7 Section 4. Occupied Bandwidth.............................................................................. 21 Section 5. Spurious Emissions at Antenna Terminals..................................... 47 Section 6. Field Strength of Spurious................................................................. 109 Section 7. Frequency Stability.............................................................................. 116 Section 8. Out of Band Rejection......................................................................... 118 Section 9. Test Equipment List............................................................................. 128 Section 10. FCC ID Labeling.................................................................................. 129 Section 11. Maximum Permissible Exposure.................................................... 130 Section 12. Setup Photos....................................................................................... 131 Section 13. EUT Photos........................................................................................... 136 EUT: Home Booster Model: HB-20-1900 Report Number: 0048-050415-01 Page 3 of 3 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 1. Summary of Test Results Manufacturer: Shyam Telecom Inc. Model No.: Home Booster HB-20-1900 Sample No.: HBDE040001 General: All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 24, Subpart E. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. “See Summary of Test Data” NVLAP LAB CODE: 200101-0 Advance Compliance Laboratory, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Advance Compliance Laboratory, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. EUT: Home Booster Model: HB-20-1900 Report Number: 0048-050415-01 Page 4 of 4 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Summary of Test Data 22.913(a) 500W ERP N/A* RF Power Output 24.232(a) 100W EIRP Complies Occupied Bandwidth (Voice & SAT) 2.1049(i) Mask N/A Occupies Bandwidth (Wideband Data) 2.1049(i) Mask N/A Occupied Bandwidth (Digital) 2.1049(i) Mask Complies 22.917 -13 dBm N/A Spurious Emissions at Antenna Terminals 24.238 -13 dBm Complies 22.917 -13 dBm N/A Field Strength of Spurious Emissions 24.238 -13 dBm E.I.R.P. Complies 22.355 1.5 ppm N/A* Frequency Stability 24.235 1.5 ppm N/A* * These items are NOT applied to the EUT. The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced Compliance Lab. Doc. No. 0048-01-01. Prob. Dist.Uncertainty(dB) Uncertainty(dB) Uncertainty(dB) 30-1000MHz 1-6.5GHz Conducted Combined Std. Uncertainty u c norm. ±2.36 ±2.99 ±1.83 Wei Li Date: May 6, 2005 Lab Manager Advanced Compliance Lab EUT: Home Booster Model: HB-20-1900 Report Number: 0048-050415-01 Page 5 of 5 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 2. General Equipment Specification Supply Voltage 9VDC Cellular N/A PCS UL/1850-1910MHz; DL/1930-1990MHz Frequency Range Modulation CDMA (F9W) GSM (GXW) NADC (DXW) CDPD (F9W) AMPS (F8W, F1D) Output Impedance 50ohm F1-F1 F1-F2 N/A Frequency Translation Software Duplexer Change Full Band Coverage DC voltages and DC currents per 2.1033(c)(8) The input supply to the transmitter was set at 9 Volts DC. The RF power output was measured with the indicated voltage and current applied into the final RF amplifying device(s). 1900 MHz Digital CDMA/GSM RF Output, DC Current and RF Input Power are all average values. Measured Maximum RF output: 17.1dBm ( 0.051W) Measured DC voltage: 9.12V Measured DC current: 912 mA. Measured Minimum RF output: -39.4dBm Measured DC voltage: 9.10V Measured DC current: 909 mA Tune-up procedure per 2.1033(c) (9) There are no user accessible adjustments or tuning in this portable transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. EUT: Home Booster Model: HB-20-1900 Report Number: 0048-050415-01 Page 6 of 6 Advanced Compliance Laboratory, I…

Text truncated - open the document above for the full version.

EUT: Dual Band Repeater Model: HB-20-1900 Report Number: 0048-050415-01 Page 131 of 142 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 12. Setup Photos RF Output Power EUT: Dual Band Repeater Model: HB-20-1900 Report Number: 0048-050415-01 Page 132 of 142 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Spurious Emissions at Antenna Terminal EUT: Dual Band Repeater Model: HB-20-1900 Report Number: 0048-050415-01 Page 133 of 142 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Occupied Bandwidth EUT: Dual Band Repeater Model: HB-20-1900 Report Number: 0048-050415-01 Page 134 of 142 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Field Strength of Spurious Configuration I: Downlink with Server Antenna Configuration II: Downlink with Mobile Port Terminated EUT: Dual Band Repeater Model: HB-20-1900 Report Number: 0048-050415-01 Page 135 of 142 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Configuration III: Uplink with BTS Port Terminated
