S3CISR-20-1PG-MCIn Door R-20 930MHz One Way Paging Repeater R-20-9

Page All Rights Reserved Shyam Telecom Limited 1/36 Next Generation Signal Enhancement SBR/RF Series O O P P E E R R A A T T I I O O N N A A N N D D I I N N S S T T A A L L L L A A T T I I O O N N M M A A N N U U A A L L Hello, April 2007 Proprietary Information The information contained herein is proprietary to Shyam Telecom Limited. Unauthorized access, copy and replication are prohibited. Use or disclosure of this document or the information contained herein, for any purpose other than that for which it was furnished is not permitted. This document must not be copied in whole or part by any means or it shall not be disclosed or divulged to an y third Party without the prior written consent of Shyam Telecom Limited. R R - - 2 2 0 0 - - 9 9 3 3 0 0 M M H H z z ( ( O O n n e e W W a a y y P P a a g g i i n n g g ) ) (Indoor Coverage) Page All Rights Reserved Shyam Telecom Limited 2/36 Next Generation Signal Enhancement You will feel immense pleasure that you have acquired a world-class RF repeater for augmentation of RF signals for providing quality connectivity to the outside World from your home, office or any other indoor location. This system has been designed to operate on the latest digital mobile communication technology so as to guarantee you enhanced voice clarity each time, every time. It is, as you will soon find yourself, the ultimate in reliability and quality. This has an elegant design and is one of the products from the comprehensive portfolio of in-building & outdoor solutions from SHYAM TELECOM. As you will find that it is light in weight, easy to handle and install at a suitable place of your interest to match the interior. It is associated with different technical features for optimum performance so as to have minimum maintenance. Shyam Telecom today, is World leader for providing Outdoor & In-Building RF coverage solutions not only in India but also at different locations around the World, in the rapidly growing mobile communications market. Operating in an industry that has been witnessing rapid technical changes, Shyam Telecom strives to keep abreast of the latest technology and industry trends through continuous research and development. Our hard work & dedication in this field, has been recognized by the Department of Scientific & Industrial Research (DSIR), Government of India through the best award for R&D in its category. True to the family to which this system belongs, it is uniquely designed to render clear sound and error free data for a long, very long time. We would request you to go through this easy to understand R-20-930 (One way paging) RF Repeater Operation & Installation manual for optimum utilization of this product. Shyam Telecom assures you after sale service of International standard through its Service Network located around the World. Page All Rights Reserved Shyam Telecom Limited 3/36 Next Generation Signal Enhancement Contents 1.0 DISCLAIMER ................................................................................. 4 2.0 About Shyam Telecom................................................................. 4 3.0 WARRANTY................................................................................... 5 4.0 SAFETY REQUIREMENTS ........................................................... 7 5.0 ELECTROSTATIC DISCHARGE (PRECAUTIONS) ..................... 8 6.0 INTRODUCTION ............................................................................ 9 6.1 Objective ........................................................................................................ 9 6.2 Abbreviations ................................................................................................... 9 6.3 Conforming To International Standards ........................................................ 10 6.4 Repeater Systems-Introduction ..................................................................... 10 7.0 R-20-930 (One way paging) Repeater ...................................... 11 7.1 Salient Features............................................................................................. 11 7.2 Typical In-Building Coverage ......................................................................... 11 7.3 Description R-20-930 (One way paging) Repeater ....................................... 14 7.4 Technical Specification: Repeaters R-20-930 ............................................... 15 8.0 INSTALLATION .......................................................................... 16 8.1 ENGINEERING CONSIDERATION .............................................................. 16 8.2 Installation Tools............................................................................................ 17 8.3 Installation Procedure .................................................................................... 18 8.4 Commissioning .............................................................................................. 18 8.5 Configuration & Monitoring Console .............................................................. 20 8.6 LED Display On R-20-930 Unit...................................................................... 29 9.0 Fault Shooting & Maintenance ................................................. 31 9.1 In-building Coverage Problems ..................................................................... 31 9.2 Signal Quality Problems.................................................................................. 31 9.3 Antenna Isolation ............................................................................................ 32 9.4 Trouble shooting ............................................................................................. 33 9.5 Contents Of Delivery....................................................................................... 34 Page All Rights Reserved Shyam Telecom Limited 4/36 Next Generation Signal Enhancement 1.0 DISCLAIMER Every attempt has been made to incorporate complete and up-to-date informatio…

Text truncated - open the document above for the full version.

1 Next Generation Signal Enhancement Shyam Telecom Inc. 18, Ireland Brook Drive, North Brunswick, NJ 08902 USA T 732 261 4077 F 309 216 0539 www.shyamtelecom.com Date: 05/01/2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Advanced Compliance Laboratory, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance Laboratory, Inc. as our agent, we still recognize that we are responsible to: • comply with the relevant provisions of the certification program; • make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; • make claims regarding certification only in respect of the scope for which certification has been granted; • do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; • upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; • use certification only to indicate the products are certified as being in conformity with specified standards; • endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; 2 Next Generation Signal Enhancement Shyam Telecom Inc. 18, Ireland Brook Drive, North Brunswick, NJ 08902 USA T 732 261 4077 F 309 216 0539 www.shyamtelecom.com • ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; • keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; • take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; • document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Printed Name: B. A. Majmudar Title: President Shyam Telecom Inc.

3 Next Generation Signal Enhancement Shyam Telecom Inc. 18, Ireland Brook Drive, North Brunswick, NJ 08902 USA T 732 261 4077 F 309 216 0539 www.shyamtelecom.com May 1, 2007 FCC ID: S3CISR-20-1PG-MC RE: Requirements of FCC 90.219 for Booster I confirm that we are aware of the requirements of 90.219 and our products comply with it. Sincerely, B. A. Majmudar President Shyam Telecom Inc.

3 Next Generation Signal Enhancement Shyam Telecom Inc. 18, Ireland Brook Drive, North Brunswick, NJ 08902 USA T 732 261 4077 F 309 216 0539 www.shyamtelecom.com May 1, 2007 FCC ID: S3CISR-20-1PG-MC FCC and IC Confidentiality Request In accordance with 0.459 & 0.457 of CFR 47, please, accept this letter as an official request to have the schematics, block diagram, operational description, and Part list of R-20-930 treated as confidential. The information contained within is a result of extensive investment and development effort by Shyam Telecom, inc. and its disclosure will compromise Shyam Telecom’s Intellectual Property and competitive edge. We thus ask the FCC and IC NOT to publish the enclosed information including Schematics, Block diagram and operational description in order to protect Shyam Telecom Inc.’s Intellectual Property. Sincerely, B. A. Majmudar President Shyam Telecom Inc.

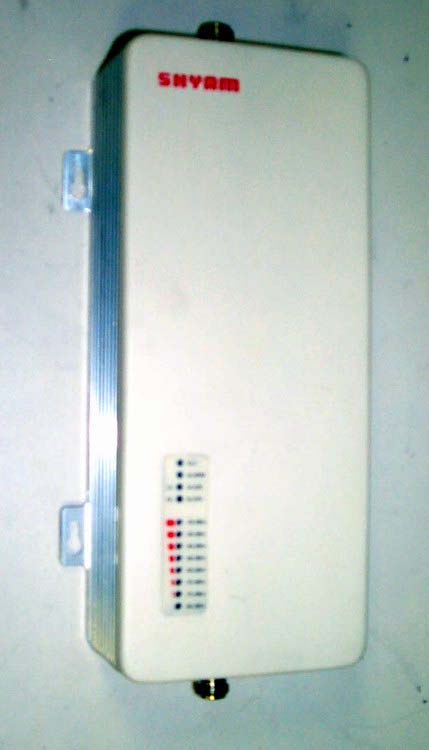

EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 51 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Front View EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 52 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Bottom View

EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 43 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 9. FCC ID Labeling FCC ID Label Location of Label on Lower Side Wall FCC LABEL FCC ID: S3CISR-20-1PG-MC This device complies with Part 2, 90 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation.

EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 53 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Open View EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 54 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 PCB View

EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 44 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 10. Maximum Permissible Exposure MPE estimate is given per 2.1091 of FCC Rules: Calculation Equation: S d GP 20 10 282.0 + ×= Where, P(DL)= 18.61dBm, G=7dBi (Server Antenna) and from §1.1310 Table 1 (B), S = 0.55 mW/cm 2 Plug all three items into the equation, and yields, Power Density MPE Limit (mW/ cm 2 ) Output Power (dBm) Server Antenna Gain (dBi) Donor Antenna Gain (dBi) Server MPE Distance (cm) Donor MPE Distance (cm) 0.55 18.61 7 7.5 NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less.

Electromagnetic Emission Compliance Test Report Equipment Under Test (EUT) In Door R-20-930 One Way Paging Repeater Applicant Shyam Telecom Inc. In Accordance With FCC Part 90, Subpart I Test by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, New Jersey 08844 Authorized by Wei Li Lab Manager Signature Date May 1, 2007 AC Lab Report Number 0048-070420-01 The test result in this report is supported and covered by the NVLAP accreditation. Lab Code:200101-0 Advanced Com pliance 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 2 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Index Section 1. Summary of Test Results....................................................................... 3 Section 2. General Equipment Specification......................................................... 5 Section 3. RF Output Power....................................................................................... 7 Section 4. Occupied Bandwidth................................................................................ 9 Section 5. Spurious Emissions at Antenna Terminals..................................... 17 Section 6. Field Strength of Spurious................................................................... 37 Section 7. Frequency Stability................................................................................ 40 Section 8. Test Equipment List............................................................................... 42 Section 9. FCC ID Labeling....................................................................................... 43 Section 10. Maximum Permissible Exposure...................................................... 44 Section 11. Setup Photos......................................................................................... 45 Section 12. EUT Photos............................................................................................. 50 EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 3 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 1. Summary of Test Results Manufacturer: Shyam Telecom Inc. Model No.: InDoor R-20-930 One Way Paging Repeater Sample No.: R20-1PGAG401 General: All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. “See Summary of Test Data” NVLAP LAB CODE: 200101-0 Advance Compliance Laboratory, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Advance Compliance Laboratory, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 4 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Summary of Test Data RF Power Output 2.1046 90.205(a) 500W ERP 100W EIRP Complies Occupied Bandwidth (Voice & SAT) 2.1049(i) Mask N/A* Occupies Bandwidth (Wideband Data) 2.1049(i) Mask N/A* Occupied Bandwidth (Digital) 2.1049(i) 90.210 Mask Complies Spurious Emissions at Antenna Terminals 2.1051 -20 dBm Complies Field Strength of Spurious Emissions 2.1053 90.210 -20 dBm E.I.R.P. Complies Frequency Stability 2.1055 1.5 ppm N/A* * These items are NOT applied to the EUT. The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced Compliance Lab. Doc. No. 0048-01-01. Prob. Dist.Uncertainty(dB) Uncertainty(dB) Uncertainty(dB) 30-1000MHz 1-6.5GHz Conducted Combined Std. Uncertainty u c norm. ±2.36 ±2.99 ±1.83 Wei Li Date: May 1, 2007 Lab Manager Advanced Compliance Lab EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 5 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 2. General Equipment Specification Supply Voltage 100-240VAC 50/60Hz to 7.5V/5A DC Adaptor Band I DL/929-930MHz Frequency Range Modulation CDMA (F9W) iDEN (GXW) EDGE (G7W) CDPD (F9W) APCO25 (F8W, F1D) Rated Power Output +19dBm DL Tolerance: +1dB & -3dB Output Impedance 50ohm F1-F1 F1-F2 N/A Frequency Translation Software Duplexer Change Full Band Coverage DC voltages and DC currents per 2.1033(c)(8) The input supply to the transmitter was set at 7.5 Volts DC. The RF power output was measured with the indicated voltage and current applied into the final RF amplifying device(s). R-20-930 One Way Paging Repeater RF Output, DC Current and RF Input Power are all average values. Measured Maximum RF output(Rated): 18.61dBm Measured DC voltage: 7.6V Measured DC current: 2.2 A Measured Minimum RF output: -21 dBm Measured DC voltage: 7.6V Measured DC current: 2.1 A Tune-up procedure per 2.1033(c) (9) There are no user accessible adjustments or tuning in this transceiver. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform su…

Text truncated - open the document above for the full version.

EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 45 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 11. Setup Photos RF Output Power EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 46 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Occupied Bandwidth EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 47 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Spurious Emissions at Antenna Terminal EUT: In Door R-20-930 One Way Paging Repeater FCC ID: S3CISR-20-1PG-MC Model: R-20-930 Report Number: 0048-070420-01 Page 48 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Field Strength of Spurious
