S4GEM35XAETRX35x Series Zigbee Modules

Telegesis TG-ETRX35X-PM-010-102 ETRX351 and ETRX357 Product Manual ©2010 Telegesis (UK) Ltd ETRX35x Product Manual ETRX35x ZIGBEE ® MODULES PRODUCT M ANUAL ETRX351 and ETRX357 ©2010 Telegesis (UK) Ltd - 2 - ETRX35x Product Manual Table of Contents 1 INTRODUCTION ................................................................................................................. 5 1.1 Hardware Description ....................................................................................................... 5 2 PRODUCT APPROVALS ................................................................................................... 6 2.1 FCC Approvals ................................................................................................................. 6 2.1.1 FCC Labelling Requirements ........................................................................................... 6 2.2 IC (Industry Canada) Approvals ....................................................................................... 7 2.3 European Certification (ETSI)........................................................................................... 7 2.4 ICASA Approvals ............................................................................................................. 8 2.5 Australia and New Zealand (C-Tick) ................................................................................. 8 2.6 Declarations of Conformity ............................................................................................... 8 2.7 IEEE 802.15.4 .................................................................................................................. 8 2.8 The ZigBee® Protocol ...................................................................................................... 8 3 MODULE PINOUT .............................................................................................................. 9 4 HARDWARE DESCRIPTION ............................................................................................ 11 4.1 Hardware Interface ......................................................................................................... 11 5 FIRMWARE DESCRIPTION ............................................................................................. 12 5.1 Custom Firmware ........................................................................................................... 12 5.2 Software Interface .......................................................................................................... 13 6 ABSOLUTE MAXIMUM RATINGS ................................................................................... 14 6.1 Environmental Characteristics ........................................................................................ 14 6.2 Recommended Operating Conditions............................................................................. 14 7 DC ELECTRICAL CHARACTERISTICS ........................................................................... 15 8 DIGITAL I/O SPECIFICATIONS ....................................................................................... 17 9 A/D CONVERTER CHARACTERISTICS .......................................................................... 18 10 AC ELECTRICAL CHARACTERISTICS ........................................................................... 18 10.1 TX Power Characteristics ............................................................................................... 20 11 PHYSICAL DIMENSIONS ................................................................................................. 22 12 SOLDERING TEMPERATURE PROFILE (FOR REFLOW SOLDERING) ........................ 23 12.1 For Leaded Solder ......................................................................................................... 23 12.2 For Lead-free Solder ...................................................................................................... 23 13 PRODUCT LABEL DRAWING ......................................................................................... 24 14 RECOMMENDED FOOTPRINT ........................................................................................ 25 14.1 Example carrier board .................................................................................................... 26 15 RELIABILITY TESTS ........................................................................................................ 27 16 APPLICATION NOTES ..................................................................................................... 27 ETRX351 and ETRX357 ©2010 Telegesis (UK) Ltd - 3 - ETRX35x Product Manual 16.1 Safety Precautions ......................................................................................................... 27 16.2 Design Engineering Notes .............................................................................................. 27 16.3 Storage Conditions ......................................................................................................... 28 17 PACKAGING .................................................................................................................... 28 17.1 Embossed Tape ............................................................................................................. 28 17.2 Component Orientation .................................................................................................. 29 17.3 Reel Dimensions ............................................................................................................ 29 17.4 Packaging ...................................................................................................................... 29 18 ORDERING INFORMATION ............................................................................................. 30 19 DISCLAIMER .................................................................................................................... 31 20 ROHS DECLARATION ...…

Text truncated - open the document above for the full version.

Telegesis (UK) Limited–Abbey BarnBusiness Centre,Abbey Barn Lane,High Wycombe, Bucks,HP10 9QQ, United Kingdom TEL: +44 (0) 1494 510199FAX: +44 (0) 5603 436999 [email protected] Registered in England and Wales No. 3632064Registered Office: 10 Dashwood Avenue, High Wycombe, Bucks, HP12 3DN DECLARATION 6 May 2010 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK RE:FCC Modular Approval FCC ID:S4GEM35XA Model No: ETRX351, ETRX351HR, ETRX357, ETRX357HR ToWhom It May Concern: Please be advised that the manufacturerdeclaresthat all 4 modules satisfy points 2 & 3in FCC Public Notice document DA 00-1407– 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design. Thank you for your attention to this matter. Yours faithfully, Telegesis (UK) Ltd. Nicholas Gomersall Managing Director

Telegesis (UK) Limited–Abbey BarnBusiness Centre,Abbey Barn Lane,High Wycombe, Bucks,HP10 9QQ, United Kingdom TEL: +44 (0) 1494 510199FAX: +44 (0) 5603 436999 [email protected] Registered in England and Wales No. 3632064Registered Office: 10 Dashwood Avenue, High Wycombe, Bucks, HP12 3DN MODULARAPPROVALREQUEST 6 May 2010 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK RE:FCC Modular Approval FCC ID:S4GEM35XA Model No: ETRX351, ETRX351HR, ETRX357, ETRX357HR ToWhom It May Concern: Please be advised that the manufacturerrequeststhat the above-referenced model beapprovedformodularapproval in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Yours faithfully, Telegesis (UK) Ltd. Nicholas Gomersall Managing Director

Telegesis (UK) Limited–Abbey BarnBusiness Centre,Abbey Barn Lane,High Wycombe, Bucks,HP10 9QQ, United Kingdom TEL: +44 (0) 1494 510199FAX: +44 (0) 5603 436999 [email protected] Registered in England and Wales No. 3632064Registered Office: 10 Dashwood Avenue, High Wycombe, Bucks, HP12 3DN REQUEST FORCONFIDENTIALITY INACCORDANCE WITHFCCRULE0.459 6, May.2010 TRaC Global 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK RE:Certification Application FCC ID:S4GEM35XA To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf ofTelegesis (UK) Ltd. Schematics Parts List Test Setup Photographs–except where required for exhibit Internal Photographs–except where required for exhibit The application contains technical information whichTelegesis (UK) Ltddeems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully Telegesis (UK) Ltd. Nicholas Gomersall

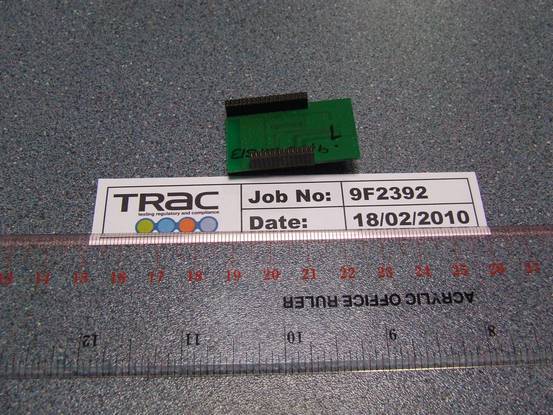

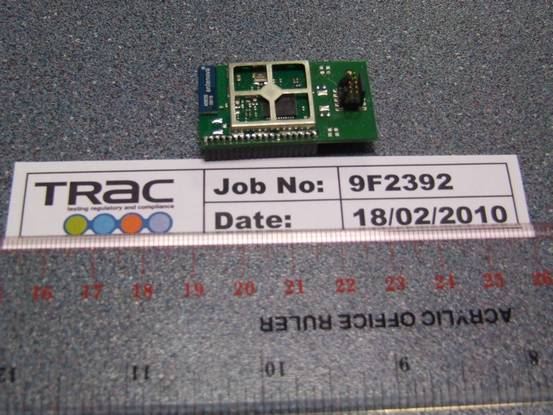

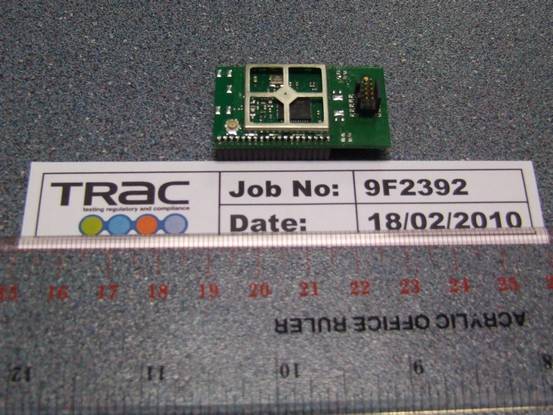

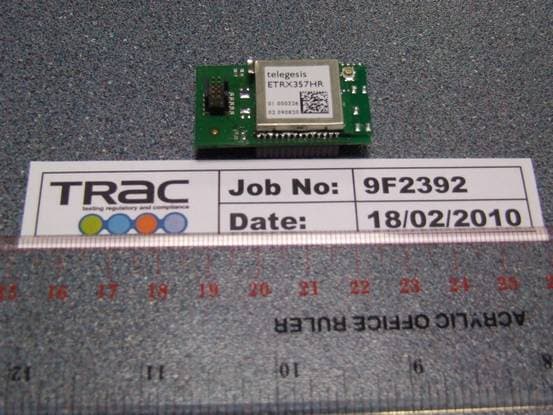

ETRX35x Labelling (non LR types only!) The label dimensions are 14.0mm x 14.0 mm. The label has to withstand heat from a reflow process, chemicals and be non peel off (same material as the ETRX2 Label). The font used should be Gill Sans MT for all text, except for the “telegesis” name, which should be displayed using Gill Sans Light MT. Imprint Description ETRX357HR Module Order code 000001 Indication for the serial number. 090101 Production Date Code in the format YYMMDD, e.g. 060602 01 Indication for batch number 02 Indication for the hardware revision FCC ID: S4GEM35XA FCC ID code for this product 2D-Barcode Information in the Datamatrix 2D-Barcode are the serial number [6 characters], the Part- Order code [12 characters filled with trailing spaces e.g. “ETRX357 “ instead of “ETRX357”], identifier for the batch number [2 characters], the identifier for the hardware release [2 characters] and the production date code in the format Year-Month- Day [6 characters], separated by a semicolon.

Position of the Label on ETRX3 Series Modules The non peel label is attached during production in the position as shown below. The label can withstand reflow soldering.

FCC RF Exposure Calculation for ETRX351/357 modules ETRX351/357 Maximum Power Output=11.9mW Limit = 60/f(GHz) mW (f = 2.405 GHz) =24.9 mW Therefore the devices are excluded from routine exposure evaluation. . K J Anderson Senior Radio Engineer

19.11.2009 10:49:41 E:\Telegesis\Embernet\ETRX35x\Design\ETRX350_1.2.0\ETRX350.sch (Sheet: 2/2)

Total number of pages : 102 TRaC Wireless Test Report:9F2392WUS1 Applicant:Telegesis (UK) Ltd Apparatus:ETRX351, ETRX351HR, ETRX357 and ETRX357HR Radio Modules Specification(s):CFR47 Part 15.247 2008 FCCID: S4GEM35XA Purpose of Test: Certification Authorised by: : Radio Product Manager Issue Date:19 th March 2010 Authorised Copy Number: PDF Radio Test Report: 9F2392WUS1 2 Contents Section 1:Introduction3 1.1General3 1.2Tests Requested By4 1.3Manufacturer4 1.4Apparatus Assessed5 1.5Test Result Summary6 1.6Notes Relating To The Assessment7 1.7Deviations from Test Standards7 Section 2:Measurement Uncertainty8 2.1Application of Measurement Uncertainty8 2.2Measurement Uncertainty Values9 Section 3:Modifications10 3.1Modifications Performed During Assessment10 Appendix A:Formal Emission Test Results11 A16 dB Bandwidth12 A2Transmitter Peak Output Power13 A3Transmitter Power Spectral Density14 A4RF Antenna Conducted Spurious Emissions15 A5Radiated Electric Field Emissions within the Restricted Bands of 15.20519 A6Power Line Conducted Emissions30 A7Antenna Gain33 A8Unintentional Radiated Electric Field Emissions - 15.10934 Appendix B:Supporting Graphical Data43 Appendix C: Additional Test and Sample Details72 Appendix D:Additional Information78 Appendix E:Calculation of the duty cycle correction factor96 Appendix E:Calculation of the duty cycle correction factor96 Appendix F:Photographs and Figures97 Appendix G:MPE Calculation101 Radio Test Report: 9F2392WUS1 3 Section 1:Introduction 1.1General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed at:TRaC Telecoms & Radio[ X ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone:+44 (0) 1482 801801 Fax:+44 (0) 1482 801806 TRaC Telecoms & Radio[ X ] Moss View Nipe Lane Up Holland West Lancashire, WN8 9PY United Kingdom Telephone:+44 (0) 1695 556666 Fax:+44 (0) 1695 577077 Email:[email protected] Web site:http://www.tracglobal.com Testsperformed by:K J Anderson D Winstanley Report author:K J Anderson This report must not be reproduced except in full without prior written permission from TRaC Telecoms & Radio. Radio Test Report: 9F2392WUS1 4 1.2Tests Requested By This testing in thisreport was requested by : Telegesis (UK) Ltd 3 Abbey Barn Business Centre Abbey Barn Lane High Wycombe Bucks HP10 9QQ 1.3Manufacturer Ryder Electronics (Shenzhen) Ltd 139 Da Bao Road, District 33 Bao An, Shenzhen 518133 China Radio Test Report: 9F2392WUS1 5 1.4Apparatus Assessed The following apparatus was assessed between 11/12/09 and 15/12/09: ETRX357 Module ETRX357HR Module The ETRX357is a Zigbee module fitted with an integral (Antenova Rufa 2.4GHz SMD)PCB mount antenna. The ETRX357HR is a Zigbee module fitted with a Hirose U.FL connector for connection to an external antenna. The ETRX357HR can be supplied with either a λ/4 (EAD Ltd BT-Stubby Antenna)or λ/2 (Wellhope WH-2400-U2.5 ) external antenna. All radiated testing was performed using all three antenna types, the conducted tests were performed using an ETRX357HR Module. Datasheets for the three antennas are reproduced in Appendix D of this report The family of products also include an ETRX351 series of modules that have identical RF circuitry to the ETRX357 range but with reduced on-board memory. No testing was performed on these modules. Details of the ETRX351 modules are contained within Appendix D of this report. Radio Test Report: 9F2392WUS1 6 1.5Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test TypeRegulation Measurement standard Result Radiated spurious emissions (Restricted bands) Title 47 of the CFR: Part 15 Subpart C; 15.247 ANSI C63.10Pass Conducted spurious emissions (Non-restricted bands) Title 47 of the CFR: Part 15 Subpart C; 15.247 ANSI C63.10Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart C; 15.207 ANSI C63.10Pass Occupied Bandwidth Title 47 of the CFR : Part 15 Subpart C; 15.247(a)(2) ANSI C63.10Pass Conducted Carrier Power Title 47 of the CFR : Part 15 Subpart C; 15.247(b) ANSI C63.10Pass Power Spectral Density Title 47 of the CFR : Part 15 Subpart C; 15.247(d) ANSI C63.10Pass Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart C; 15.109 ANSI C63.10Pass Digital Modulation Title 47 of the CFR: Part 15 Subpart C; 15.403 -Pass RF Safety Title 47 of the CFR : Part 15 Subpart C; 15.247(b)(5) -Pass Abbreviations used in the above table: Mod: Modification CFR: Code of Federal RegulationsANSI: American National Standards Institution REFE: Radiated Electric Field EmissionsPLCE: Power Line Conducted Emissions Radio Test Report: 9F2392WUS1 7 1.6Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only asses…
