Mobile Communications Inc. 230 Earl Stewart Drive Aurora, Ont. Canada L4G 6V8 Phone:(905)726-3444 Fax:(905)726-4233 Mar 14, 2014 Federal Communications Commission Office of Engineering and Technology 445 12th Street, S.W. Washington, D.C. 20554 Device: Wideband Consumer Wireless Booster FCC ID: S4RBRB81975 Subject: KDB 935210 SIGNAL BOOSTERS CERTIFICATION REQUIREMENTS 3 Consumer Signal Booster Specifics Section: (c) Attestation non-confidential (1) Does not apply to wideband consumer booster (2) NPS and other compliance/safeguard features have been implemented (3) NPS and other compliance/safeguard features are defaulted to be “On” (in operation) (4) NPS and other compliance/safeguard features can not be field reconfigured, disabled or removed (5) Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation (6) Future software upgrade will not cause non-compliance Sincerely Tom Vagenas Director

Mobile Communications Inc. 230 Earl Stewart Drive Aurora, Ont. Canada L4G 6V8 Tel: (905)726-3444 Fax:(905)726-4233 FCC Authorization March 14, 2013 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for the following project: FCC ID: S4RBRB81975 Product Description: Consumer wide-band bi-directional fixed booster To whom it may concern: We Mobile Communications Inc., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely, Tom Vagenas Director ASO QA-FR-170-A

Mobile Communications Inc. 230 Earl Stewart Drive Aurora, Ont. Canada L4G 6V8 Tel: (905)726-3444 Fax:(905)726-4233 FCC Confidential Authorization March 14, 2014 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: S4RBRB81975 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Mobile Communications Inc., hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operational Description • Tune up Procedure As well as short-term confidential treatment of information accompanying this application as outlined below: •Internal/External Photos •User’s Manual • Test setup Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Tom Vagenas, Director ASO QA-FR-172-A

Mobile Communications Inc. 230 Earl Stewart Drive Aurora, Ont. Canada L4G 6V8 Tel: (905)726-3444 Fax:(905)726-4233 DECLARATION OF SIMILARITY March 14, 2014 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089 Phone: 408-732-9162, Fax: 408-732-9164 http://www.baclcorp.com Dear Sir or Madam: We, Mobile Communications Inc., hereby declare that product: Consumer wide-band bi-directional fixed booster, models listed below meet the requirements of the NPS, are electrically identical with identical hardware components and have the same electromagnetic emissions and electromagnetic compatibility characteristics as tested and reported in the S4RBRB81975 conducted and radiated test reports. The model that was tested was the highest gain of all models listed. The models that are declared as similar differ only in reduced conducted gain which is set by software controlled variable attenuators residing on the EUT circuit board. Descriptions of the differences between the tested model and those that are declared similar are as follows: Tested Model: BRBX2-72: maximum gain of 71.6 db 1900Mhz and 64.9 db 800MHz Similar Model: BRBX2-70: maximum gain of 70.0 db 1900Mhz and 64.9 db 800MHz Similar Model: BRBX2-68: maximum gain of 68.0 db 1900Mhz and 64.9 db 800MHz Similar Model: BRBX2-65: maximum gain of 65.0 db 1900Mhz and 64.9 db 800MHz Similar Model: BRBX2-62: maximum gain of 65.0 db 1900Mhz and 62.0 db 800MHz Similar Model: BRBX2-60: maximum gain of 63.0 db 1900Mhz and 60.0 db 800MHz Similar Model: BRBX2-58: maximum gain of 60.0 db 1900Mhz and 58.0 db 800MHz Similar Model: BRBX2-55: maximum gain of 60.0 db 1900Mhz and 55.0 db 800MHz Please contact me should there be need for any additional clarification or information. Sincerely, Tom Vagenas Director ASO BACL-NF0028-A

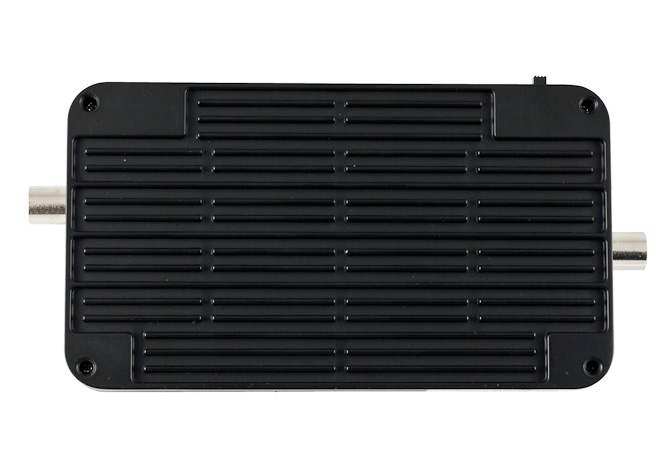

Mobile Communications Inc. FCC ID: S4RBRB81975 BRB81975 External Photographs Report Number: Page 1 of 3FCC Part 20.21 Mobile Communications Inc. FCC ID: S4RBRB81975 Report Number: Page 2 of 3FCC Part 20.21

Mobile Communications Inc. FCC ID: S4RBRB81975 DUT label Warning label Warning Label location: Report Number: Page 1 of 1FCC Part 20.21 This is a CONSUMER device BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 locator information may not be provided or may be inaccurate for calls served by using this device.

Mobile Communications Inc. FCC ID: S4RBRB81975 BRB81975 Internal PCB photographs Report Number: Page 3 of 3FCC Part 20.21

Mobile Communications, Inc. FCC ID: S4RBRB81975 Report Number: R1404071-2224 Page 10 of 28 FCC Part 22H/24E Test Report 4 FCC §1.1310 & §2.1091 - RF Exposure Information 4.1 Applicable Standards According to §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Cellular Band Uplink: Maximum peak output power at antenna input terminal (dBm): 21.98 Maximum peak output power at antenna input terminal (mW): 157.76 Prediction distance (cm): 20 Prediction frequency (MHz): 828 Maximum Antenna Net Gain (dBi): 6.14 Maximum Antenna Net Gain (numeric): 4.11 Power density at predication frequency and distance (mW/cm 2 ): 0.129 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.552 Mobile Communications, Inc. FCC ID: S4RBRB81975 Report Number: R1404071-2224 Page 11 of 28 FCC Part 22H/24E Test Report Downlink: Maximum peak output power at antenna input terminal (dBm): 5.5 Maximum peak output power at antenna input terminal (mW): 3.55 Prediction distance (cm): 20 Prediction frequency (MHz): 884.4 Maximum Antenna Net Gain (dBi): 7.14 Maximum Antenna Net Gain (numeric): 5.18 Power density at predication frequency and distance (mW/cm 2 ): 0.004 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.590 PCS Band Uplink: Maximum peak output power at antenna input terminal (dBm): 23.5 Maximum peak output power at antenna input terminal (mW): 223.87 Prediction distance (cm): 20 Prediction frequency (MHz): 1866.8 Maximum Antenna Net Gain (dBi): 6.14 Maximum Antenna Net Gain (numeric): 4.11 Power density at predication frequency and distance (mW/cm 2 ): 0.183 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Downlink: Maximum peak output power at antenna input terminal (dBm): -0.26 Maximum peak output power at antenna input terminal (mW): 0.942 Prediction distance (cm): 20 Prediction frequency (MHz): 1956.8 Maximum Antenna Net Gain (dBi): 7.14 Maximum Antenna Net Gain (numeric): 5.18 Power density at predication frequency and distance (mW/cm 2 ): 0.001 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 4.3 Test Result The device complies with the MPE requirements by providing a safe separation distance of 20 cm between the antenna, including any radiating structure, and any persons when normally operated based on the maximum inside antenna net gain of 6.14 dBi, and outside antenna net gain of 7.14 dBi. The proposed RF exposure safety information has been included in the User’s Manual.

Mobile Communications Inc. FCC ID: S4RBRB81975 FCC TEST REPORT FCC Rules Part 20.21 For: Mobile Communications, Inc 230 Earl Stewart Dr., Aurora, ON, Canada L4G6V8 FCC ID: S4RBRB81975 Report Type: Original Report Product Type: Consumer wide-band bi-directional fixed booster Test Engineer: Roman Gurvich Report Number: BRB81975 Report Date: March 10, 2014 Prepared By: Roman Gurvich Report Number: BRB81975 Page 1 of 82 FCC Part 20.21 Mobile Communications Inc. FCC ID: S4RBRB81975 Table of Contents 1 GENERAL INFORMATION..................................................................................... 4 1.1 Product Description Equipment Under Test (EUT)............................................ 4 1.2 Mechanical Description ...................................................................................... 4 1.3 Objective ............................................................................................................. 4 1.4 Test Methodology ............................................................................................... 4 1.5 Measurement Uncertainty ................................................................................... 5 1.6 Test Facility ........................................................................................................ 5 1.7 Test Equipment ................................................................................................... 5 2 Summary of Test Results ............................................................................................ 6 2.1 Rules Applied...................................................................................................... 6 2.2 Notes ................................................................................................................... 6 3 Test Report..................................................................................................................7 3.1 Authorized Frequency Band Verification Test ................................................... 7 3.1.1 Authorized frequency band test procedure .................................................... 7 3.1.2 Authorized frequency band test results.......................................................... 8 3.2 Maximum Power Measurement Test ................................................................ 11 3.2.1 Maximum power measurement test procedure ............................................ 11 3.2.2 Maximum power test results ........................................................................ 12 3.3 Maximum Booster Gain Computation.............................................................. 13 3.3.1 Maximum gain calculation procedure ......................................................... 13 3.3.2 Maximum gain test results ........................................................................... 13 3.4 Intermodulation Product Test ........................................................................... 14 3.4.1 Intermodulation product test procedure ....................................................... 14 3.4.2 Intermodulation product test results............................................................. 15 3.5 Out-Of-Band Emissions Test ............................................................................ 18 3.5.1 Out of band emissions test procedure .......................................................... 18 3.5.2 Out of band emissions test results................................................................ 19 3.6 Conducted Spurious Emissions Test................................................................. 36 3.6.1 Conducted spurious emissions test procedure ............................................. 36 3.6.2 Conducted spurious emissions test results ................................................... 37 3.7 Noise Limits Test .............................................................................................. 42 3.7.1 Noise power in the presence of a downlink signal test procedure ............... 42 3.7.2 Test results for noise power in presence of downlink signal ....................... 43 3.7.3 Maximum noise power test procedure ......................................................... 44 3.7.4 Maximum noise power test results .............................................................. 45 3.7.5 Uplink noise power timing test procedure. .................................................. 47 3.7.6 Uplink noise power timing test results......................................................... 47 3.8 Uplink Inactivity Test ....................................................................................... 49 3.8.1 Uplink inactivity test procedure................................................................... 49 3.8.2 Uplink inactivity test results ........................................................................ 50 3.9 Variable Booster Gain Test............................................................................... 53 3.9.1 Variable booster gain test procedure............................................................ 53 Report Number: BRB81975 Page 2 of 82 FCC Part 20.21 3.9.2 Variable booster gain test results ................................................................. 54 Mobile Communications Inc. FCC ID: S4RBRB81975 Report Number: BRB81975 Page 3 of 82 FCC Part 20.21 3.9.3 Variable uplink gain timing test procedure.................................................. 54 3.9.4 Variable uplink gain timing test results ....................................................... 55 3.10 Occupied Bandwidth Test................................................................................. 57 3.10.1 Occupied bandwidth test procedure............................................................. 57 3.10.2 Occupied bandwidth Test Results................................................................ 58 3.11 Oscillation Detection Test................................................................................. 74 3.1…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 22H & 24E TEST AND MEASUREMENT REPORT For Mobile Communications, Inc. 230 Earl Stewart Drive, Aurora, Ontario L4G 6V8, Canada FCC ID: S4RBRB81975 Report Type: Original Report Product Type: Dual Band Bi-Directional Wireless Booster Prepared By: Ning Ma Test Engineer Report Number: R1404071-2224 Report Date: 2014-04-24 Reviewed By: Bo Li Test Engineer Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Mobile Communications, Inc. FCC ID: S4RBRB81975 Report Number: R1404071-2224 Page 2 of 28 FCC Part 22H/24E Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................... 5 1.2 MECHANICAL DESCRIPTION .............................................................................................................................. 5 1.3 OBJECTIVE ......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................................... 5 1.5 TEST METHODOLOGY ........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY .......................................................................................................................... 6 1.7 TEST FACILITY ................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 8 2.1 JUSTIFICATION ................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE ................................................................................................................................ 8 2.3 EQUIPMENT MODIFICATIONS ............................................................................................................................. 8 2.4 EUT INTERNAL CONFIGURATION ...................................................................................................................... 8 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS .............................................................................................. 8 2.6 POWER SUPPLY AND LINE FILTERS .................................................................................................................... 8 2.7 INTERFACE PORTS AND CABLING ...................................................................................................................... 8 3 SUMMARY OF TEST RESULTS ........................................................................................................................ 9 4 FCC §1.1310 & §2.1091 - RF EXPOSURE INFORMATION .......................................................................... 10 4.1 APPLICABLE STANDARDS ................................................................................................................................ 10 4.2 MPE PREDICTION ............................................................................................................................................ 10 4.3 TEST RESULT ................................................................................................................................................... 11 5 FCC §2.1053, §22.917 & §24.238 - RADIATED SPURIOUS EMISSIONS .................................................... 12 5.1 APPLICABLE STANDARD .................................................................................................................................. 12 5.2 TEST PROCEDURE ............................................................................................................................................ 12 5.3 TEST SETUP BLOCK DIAGRAM ......................................................................................................................... 13 5.4 TEST EQUIPMENT LIST AND DETAILS .............................................................................................................. 14 5.5 TEST ENVIRONMENTAL CONDITIONS ............................................................................................................... 14 5.6 TEST RESULTS ................................................................................................................................................. 14 6 EXHIBIT A - FCC ID LABELING REQUIREMENTS .................................................................................. 19 6.1 FCC ID LABEL REQUIREMENTS ....................................................................................................................... 19 6.2 FCC ID LABEL CONTENTS AND LOCATION ..................................................................................................... 20 7 EXHIBIT B - TEST SETUP PHOTOGRAPHS ................................................................................................ 21 7.1 RADIATED EMISSIONS – FRON…

Text truncated - open the document above for the full version.

Mobile Communications, Inc. FCC ID: S4RBRB81975 Report Number: R1404071-2224 Page 21 of 28 FCC Part 22H/24E Test Report 7 Exhibit B - Test Setup Photographs 7.1 Radiated Emissions – Front View 7.2 Radiated Emissions – Above 1 GHz Rear View Mobile Communications, Inc. FCC ID: S4RBRB81975 Report Number: R1404071-2224 Page 22 of 28 FCC Part 22H/24E Test Report 7.3 Radiated Emissions – Below 1 GHz Rear View
