S57-5130653351306533

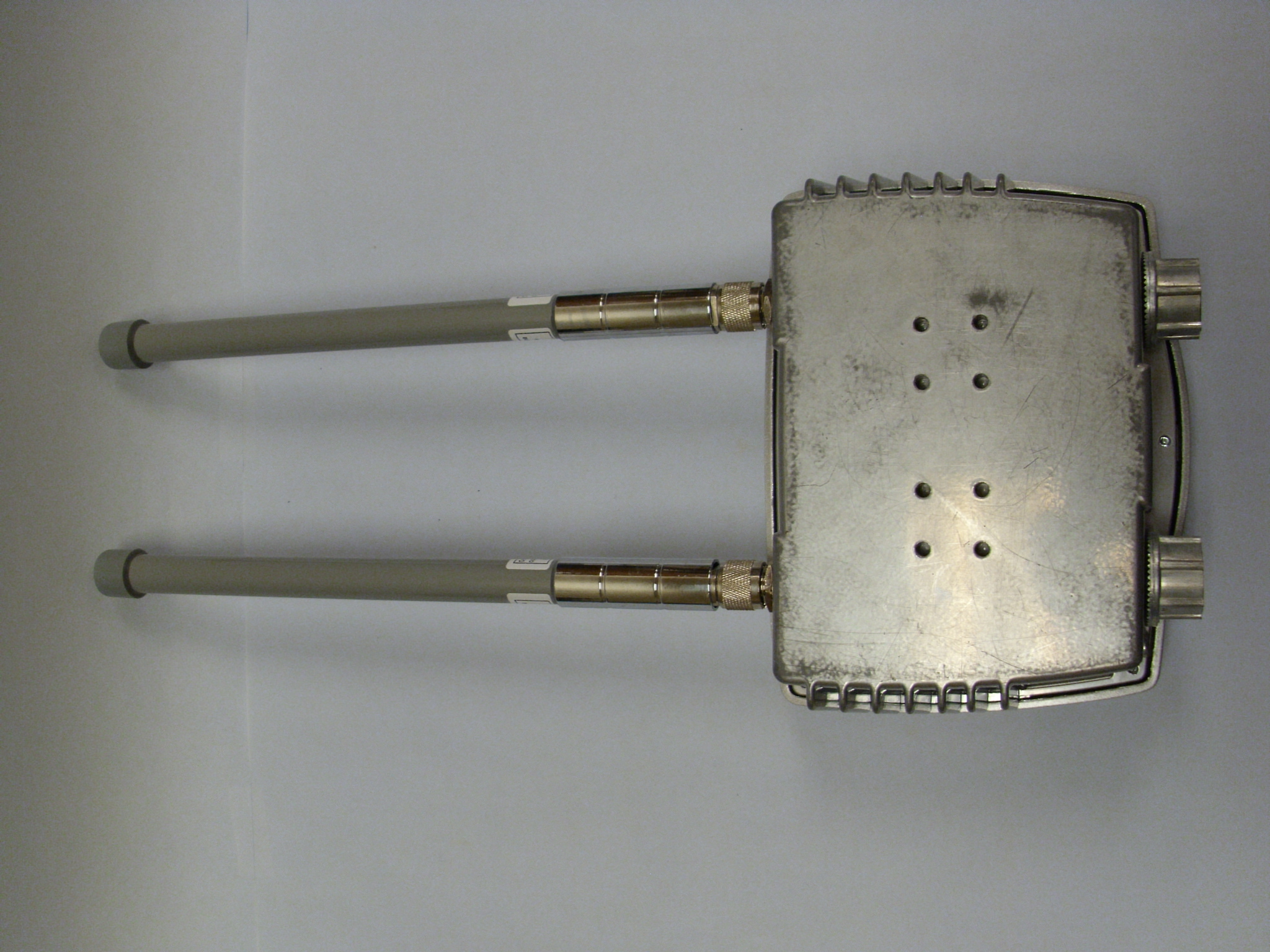

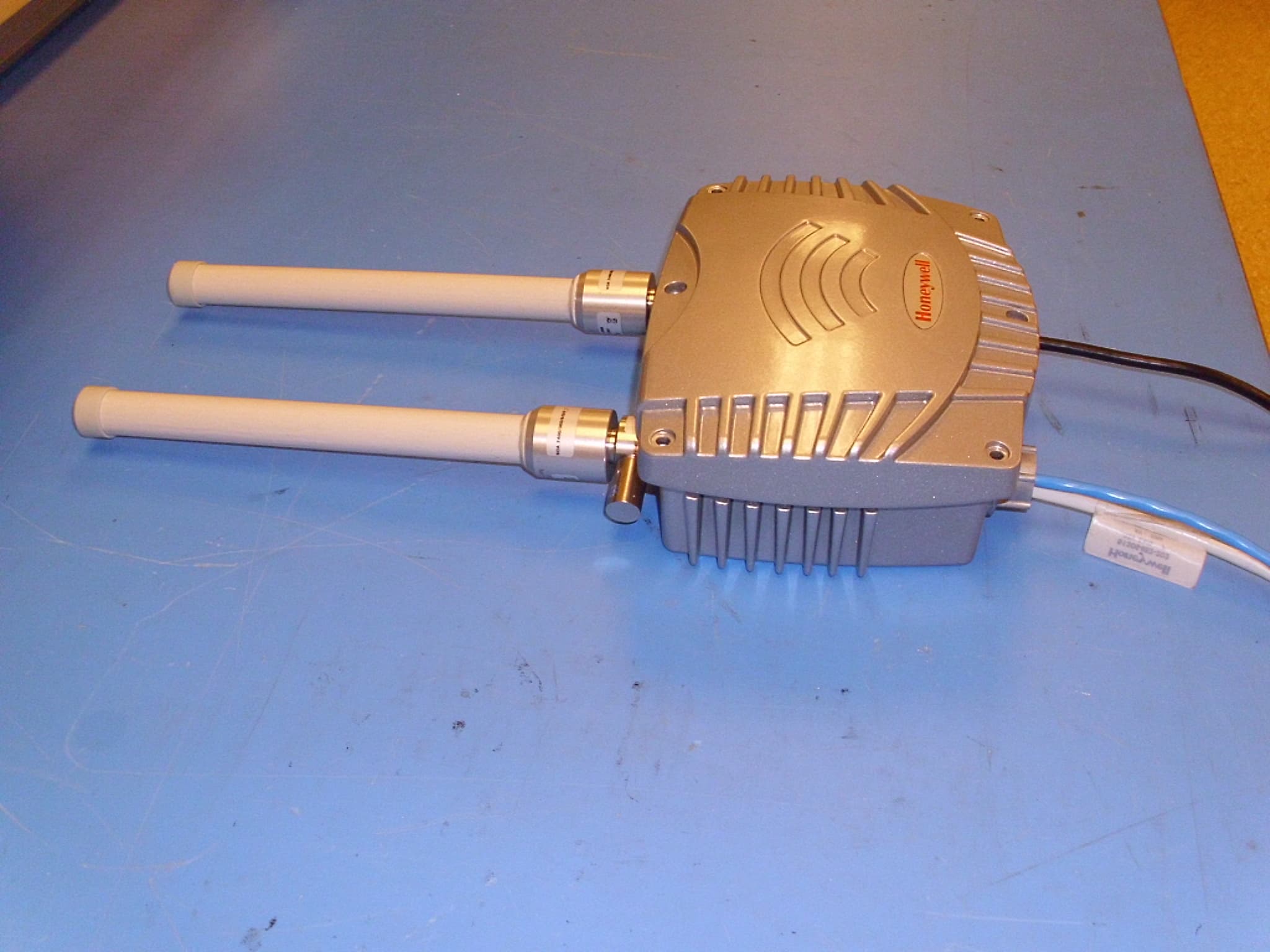

Honeywell Process Solutions 51154689 AT1 REVISIONS FCF: OneWireless Field Device Access Point (FDAP) RF Regulatory Compliance Guide Honeywell FMF: IACD/Ft.W Made by: D.S. Approval Prints to A 51154689 Issue: 2010-11-30 SIZE Sh. No.: 1 of 25 OneWireless Field Device Access Point (FDAP) RF Regulatory Compliance Guide Honeywell Process Solutions Honeywell Process Solutions 51154689 AT1 REVISIONS FCF: OneWireless Field Device Access Point (FDAP) RF Regulatory Compliance Guide Honeywell FMF: IACD/Ft.W Made by: D.S. Approval Prints to A 51154689 Issue: 2010-11-30 SIZE Sh. No.: 2 of 25 Revision Record Revision Date Purpose/Distribution Honeywell Process Solutions 51154689 AT1 REVISIONS FCF: OneWireless Field Device Access Point (FDAP) RF Regulatory Compliance Guide Honeywell FMF: IACD/Ft.W Made by: D.S. Approval Prints to A 51154689 Issue: 2010-11-30 SIZE Sh. No.: 3 of 25 TABLE OF CONTENTS 1 DESIGNATION, SCOPE AND PREFACE ........................................................................................... 6 1.1 DESIGNATION ..................................................................................................................................... 6 1.1.1 Model Numbers and Revisions : .................................................................................................. 6 1.2 SCOPE ............................................................................................................................................... 6 1.3 PREFACE ........................................................................................................................................... 6 1.4 ABBREVIATIONS & DEFINITIONS ........................................................................................................... 7 2 FEDERAL COMMUNICATION COMMISSION (FCC) ........................................................................ 8 2.1 FCC COMPLIANCE STATEMENTS ......................................................................................................... 8 3 INDUSTRY CANADA (IC) .................................................................................................................... 8 3.1 IC COMPLIANCE STATEMENTS ............................................................................................................. 8 4 RF SAFETY STATEMENT: ................................................................................................................. 9 5 FCC AND INDUSTRY CANADA (IC) IDENTIFICATION NUMBERS: .............................................. 10 5.1 FCC IDENTIFICATION NUMBERS: ....................................................................................................... 10 5.2 INDUSTRY CANADA IDENTIFICATION NUMBERS: .................................................................................. 10 6 INTENDED COUNTRY USAGE ........................................................................................................ 11 6.1 NORTH AMERICA ......................................................................................................................... 11 6.2 AUSTRALIA AND NEW ZEALAND ................................................................................................ 11 6.3 EUROPEAN UNION ....................................................................................................................... 11 7 MULTINODE GENERAL DESCRIPTION .......................................................................................... 12 7.1 INTENDED USE ................................................................................................................................. 12 7.2 FDAP DEVICE DIAGRAMS ................................................................................................................. 12 8 PRODUCT SPECIFICATIONS ........................................................................................................... 13 8.1 DIRECT SEQUENCE SPREAD SPECTRUM (DSSS) RADIO, 2.4GHZ ...................................................... 13 8.2 FDAP USER ENVIRONMENT .............................................................................................................. 14 8.3 FDAP POWER SPECIFICATIONS ........................................................................................................ 14 8.4 ANTENNA CABLES............................................................................................................................. 15 9 ANTENNA LIGHTNING ARRESTORS ............................................................................................. 15 9.1 FOR USE WITH INTEGRAL OR REMOTE ANTENNA(S) ............................................................................ 15 9.2 FOR USE WITH REMOTE ANTENNA(S) ................................................................................................. 15 10 APPROVED ANTENNA TYPES/GAINS ........................................................................................... 16 11 EQUIVALENT ISOTROPICALLY RADIATED POWER (EIRP) ........................................................ 17 12 EIRP LIMITS, DSSS 2.4GHZ RADIO ................................................................................................ 18 12.1 FCC, IC, ACMA .............................................................................................................................. 18 Honeywell Process Solutions 51154689 AT1 REVISIONS FCF: OneWireless Field Device Access Point (FDAP) RF Regulatory Compliance Guide Honeywell FMF: IACD/Ft.W Made by: D.S. Approval Prints to A 51154689 Issue: 2010-11-30 SIZE Sh. No.: 4 of 25 12.2 ETSI ................................................................................................................................................ 19 13 SETTING POWER AND COUNTRY CODE: DSSS RADIO ............................................................. 20 14 RF SAFETY, MAXIMUM PERMISSIBLE EXPOSURE (MPE) STATEMENT ................................... 21 15 AGENCY COMPLIANCE .....…

Text truncated - open the document above for the full version.

Honeywell OneWireless OneWireless Field Device Access Point User's Guide R200 October 2010 Release 200 Draft Honeywell Confidential & Proprietary This work contains valuable, confidential and proprietary information. Disclosure, use or reproduction outside of Honeywell International Inc. is prohibited except as authorized in writing. This unpublished work is protected by the laws of the United States and other countries. ii OneWireless Field Device Access Point User's Guide R200 Honeywell Confidential & Proprietary October 2010 Notices and Trademarks Copyright 2010 by Honeywell International Sárl. Release 200 October 2010 While this information is presented in good faith and believed to be accurate, Honeywell disclaims the implied warranties of merchantability and fitness for a particular purpose and makes no express warranties except as may be stated in its written agreement with and for its customers. In no event is Honeywell liable to anyone for any indirect, special or consequential damages. The information and specifications in this document are subject to change without notice. Honeywell, PlantScape, Experion PKS, and TotalPlant are registered trademarks of Honeywell International Inc. Other brand or product names are trademarks of their respective owners. Honeywell Process Solutions 1860 W. Rose Garden Lane Phoenix, AZ 85027 USA 1-800 822-7673 R200 OneWireless Field Device Access Point User's Guide iii October 2010 Honeywell Confidential & Proprietary About This Document This document describes the procedure to configure, install, and operate the Honeywell Field Device Access Point (FDAP). The FDAP is one of the component of Honeywell’s OneWireless network solution for industrial control. Release Information Document Name Document ID Release Number Publication Date Field Device Access Point User's Guide - fdapug 200 October 2010 Document Category References The following list identifies all documents that may be source of reference for material discussed in this publication. Document Title OneWireless R200 Hardware Planning and Installation Guide OneWireless R200 Wireless Device Manager User’s Guide Support and Other Contacts iv OneWireless Field Device Access Point User's Guide R200 Honeywell Confidential & Proprietary October 2010 Support and Other Contacts United States and Canada Contact: Phone: Fascimile: Mail: Honeywell Solution Support Center 1-800-822-7673 Calls are answered by dispatcher between 6:00 am and 4:00 pm Mountain Standard Time. Emergency calls outside normal working hours are received by an answering service and returned within one hour. 1-973-455-5000 Honeywell TAC, MS L17 1860 W. Garden Lane Phoenix, AZ, 85027 USA Europe, Middle East, and Africa (EMEA) Contact: Phone: Fascimile: Mail: Honeywell TAC-EMEA +32-2-728-2345 +32-2-728-2696 TAC-BE02 Hermes Plaza Hermeslaan, 1H B-1831 Diegem, Belgium Pacific Contact: Phone: Fascimile: Mail: Email: Honeywell Global TAC – Pacific 1300-364-822 (toll free within Australia) +61-8-9362-9559 (outside Australia) +61-8-9362-9564 Honeywell Limited Australia 5 Kitchener Way Burswood 6100, Western Australia [email protected] India Contact: Phone: Fascimile: Mail: Email: Honeywell Global TAC – India +91-20- 6603-9400 +91-20- 6603-9800 Honeywell Automation India Ltd 56 and 57, Hadapsar Industrial Estate Hadapsar, Pune –411 013, India [email protected] Support and Other Contacts R200 OneWireless Field Device Access Point User's Guide v October 2010 Honeywell Confidential & Proprietary Korea Contact: Phone: Fascimile: Mail: Email: Honeywell Global TAC – Korea +82-80-782-2255 (toll free within Korea) +82-2-792-9015 Honeywell Co., Ltd 4F, Sangam IT Tower 1590, DMC Sangam-dong, Mapo-gu Seoul, 121-835, Korea [email protected] People’s Republic of China Contact: Phone: Mail: Email: Honeywell Global TAC – China +86- 21-2219-6888 800-820-0237 400-820-0386 Honeywell (China) Co., Ltd 33/F, Tower A, City Center, 100 Zunyi Rd. Shanghai 200051, People’s Republic of China [email protected] Singapore Contact: Phone: Fascimile: Mail: Email: Honeywell Global TAC – South East Asia +65-6580-3500 +65-6580-3501 +65-6445-3033 Honeywell Private Limited Honeywell Building 17, Changi Business Park Central 1 Singapore 486073 [email protected] Taiwan Contact: Phone: Fascimile: Mail: Email: Honeywell Global TAC – Taiwan +886-7-536-2567 +886-7-536-2039 Honeywell Taiwan Ltd. 17F-1, No. 260, Jhongshan 2nd Road. Cianjhen District Kaohsiung, Taiwan, ROC [email protected] Support and Other Contacts vi OneWireless Field Device Access Point User's Guide R200 Honeywell Confidential & Proprietary October 2010 Japan Contact: Phone: Fascimile: Mail: Email: Honeywell Global TAC – Japan +81-3-6730-7160 +81-3-6730-7228 Honeywell Japan Inc. New Pier Takeshiba, South Tower Building, 20th Floor, 1-16-1 Kaigan, Minato-ku, Tokyo 105-0022, Japan [email protected] Elsewhere Call your nearest Honeywell office. World Wide Web Honeywell Solution Support Online: http://www.honeywell.com/ps Training Classes Honeywell Automation College: http://www.automati oncollege.com Symbol Definitions R200 OneWireless Field Device Access Point User's Guide vii October 2010 Honeywell Confidential & Proprietary Symbol Definitions The following table lists the symbols used in this document to denote certain conditions. Symbol Definition ATTENTION: Identifies information that requires special consideration. TIP: Identifies advice or hints for the user, often in terms of performing a task. REFERENCE -EXTERNAL: Identifies an additional source of information outside of the bookset. REFERENCE - INTERNAL: Identifies an additional source of information within the bookset. CAUTION Indicates a situation which, if not avoided, may result in equipment or work (data) on the system being damaged or lost, or may result in the inability to properly operate the process. CAUTION: Indicates a potentially hazardous situation which, if not avoided…

Text truncated - open the document above for the full version.

Northwest EMC TCB Compliance Opinion Rev. 12/08/09 HONE0056 Information about the Applicant Grantee (Company Name) Honeywell International, Inc FCC Contact Person David Shipley Address 1860 W. Rose Garden Lane City, State, Zip Phoenix, AZ 85027 Job Number HONE0056 Model 51306533 FCC ID S57-51306533 Agent Approval Type Original Limited Modular Equipment Class DTS Digital Transmission System Rule Part 15.247 Overview This application is for a limited modular approval of Honeywell's model 51306533 Field Device Access Point to be installed in two host devices, FDAP1 and FDAP2. These devices are professionally installed. Multiple antennas are approved for use with this device. Confidentiality requested for allowed files. Request is properly addressed and referenced. No short term confidentiality requested. A letter listing the applicable modular requirements was submitted. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 1/27/2011

November 5, 2010 Northwest EMC, Inc. 22975 NW Evergreen Parkway, #400 Hillsboro, OR 97124 Attention: Vicki Albertson Dear Sir or Madam: Honeywell Process Solutions is seeking Original Equipment Limited Modular Approval for the HONEYWELL Field Device Access Point (FDAP) 2.4GHZ DSSS Radio. The RF exposure category of the device is mobile. Note the device must be professionally installed. • Host Models: FDAP1 and FDAP2 • Radio module model: 51306533 • FCC ID: S57-51306533 Applicable rules/standards: FCC • Spec: 47 CFR Part 15 Subparts B and C (15.247) • Method: ANSI C63.4: 2003 and KDB Publication No. 558074 Sincerely, David Shipley Principal Engineer Honeywell 1860 W. Rose Garden Lane Phoenix, Arizona 85027

November 5, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification be provided with confidential status. • Schematics • Operational Description • Frequency Block Diagrams Product Identification: • Host Models: FDAP1 and FDAP2 • Radio module model: 51306533 Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, David Shipley Principal Engineer HONEYWELL 1860 W. Rose Garden Lane Phoenix, Arizona 85027

HONEYWELL 1860 W. Rose Garden Lane Phoenix, Arizona 85027 November 5, 2010 Dear Application Examiner: Honeywell Process Solutions is seeking Original Equipment Limited Modular Approval for the HONEYWELL Field Device Access Point (FDAP) 2.4GHZ DSSS RADIO, part number 51306533, FCC ID: S57-51306533. The radio meets the requirements for limited modular approval as detailed in FCC Public Notice DA00-1407. Compliance or non-compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of the module is contained in its own RF shielding. Please see the Internal Photos exhibit. 2. “The modular transmitter must have buffered modulation/data inputs.” The transmitter is buffered. 3. “The modular transmitter must have its own power supply regulation.” The IC contains its own voltage regulation. Please see the Schematics exhibit. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and internal photos exhibit. 5. “The modular transmitter must be tested in a stand-alone configuration.” The EUT was not tested in a stand-alone configuration. The radio was tested while installed in the FDAP device. Therefore, the radio does not comply with the requirements for full modular approval. Thus, Honeywell is seeking limited modular approval. 6. “The modular transmitter must be labeled with its own FCC ID number.” The FDAP device will be labeled with the FCC ID number. Please see the FCC ID label & location exhibit. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. Please see the MPE Estimates provided. Please contact us if you have additional questions. Your attention to this matter is greatly appreciated. Best regards, David Shipley

Revision & Date WOBWOB ISS Draft 12/9/2010 AT1AT2 Add tab for blank 1/6/2011 NOTES:1. MATERIAL: THERMAL TRANSFER PRINTABLE SILVER MATTE METALIZE POLYESTER LABEL STOCK (R EF: BRADY WORLDWIDE, INC P/N B-486) ALL CHARACTERS AND SYMBOLS MUST BE BLACK.2. REF: PRINT WITH BRADY SERIES R4300 RIBBONS.3. ENGINEERING REF: CSA ACCEPTED APPLIED-SURF ACE MATERIALS & TEMPERATURE RANGE – METALS (BARE, PLATED OR ENAMELED STEEL, & ANODIZED OR ENAMELED ALUMINUM): -40 o C TO 125 o C PHENOLICS, MELAMINES: -40 o C TO 100 o C PPS, PC, PE, PP, PB, PA PI, PS, ABS, PVC, GRP, GREP, PET, PBT: -40 o C TO 80 o C 4. HONEYWELL LOGO TO BE 13 PTS HIGH. SUPPLY MANAGEMENT TO SUPPLY ARTWORK DATA. 5. ALL CHARACTERS TO BE HELVETICA NARROW OR EQUIVALENT.6. ALL FIXED CHARACTERS TO BE 6 PTS HIGH, EXCEPT LOGS AND AS NOTED.7. SERVICE TEMPERATURE -40 o F TO 248 o F STORAGE CONDITIO NS: UP TO 2 YEARS WHEN ST ORED IN ORIGINAL PACKAGING AND AT 32 o F TO 80 o F AND 35% TO 60% RH. 8. AGENCY APPROVALS: MATERI AL AND PRINTING PROCESS MUST BE UL RECOGNIZED TO UL969 LABELING AND MARKING STANDARD, AND CSA ACCEPTED TO C22.2 NO. 0.15 – ADHESIVE LABELS STANDARD MATERIAL AND PROCESS OTHER THAN REFERENCED ABOVE MUST BE HONEYWELL APPROVED. 9. SEE DRAWING 51153884 FOR CURRENT REVISION LEVEL.10. SEE DRAWING S-12927-C FO R SERIALIZATION FORMAT. SCALE: NONE USED ON: DRAWNCHECKEDDEV ENGMFG ENG QA ENG MAT ENG TOLERANCE UNLESS NOTED ANGULAR DIM. PROJECTION LINEAR MEASURE mm / INCH FINISH Field Device Access Point Agency Approvals Label SEE NOTES WOB 12/9/10 WOB SHT. 1 OF 1 MASTER FILE TYPE: VISIO COPYRIGHT 2008, HONEYWELL INTERNATIONAL INC. NEITHER THIS DOCUMENT NOR THE INFORMATION CONTAINED HEREIN SHALL BE REPRODUCED, USED OR DISCLOSED TO OTHERS WITHOUT THE WRITTEN AUTHORIZATION OF HONEYWELL. USE, DUPLICATION, OR DISCLOSURE OF THIS DOCUMENT IS SUBJECT TO THE RESTRICTIONS SET FORTH IN A WRITTE N AGREEMENT. NOTHING CONTAINED HEREIN SHALL BE CONSTRUED AS CONFERRING BY IMPLICATION, ESTOPPEL, OR OTHERWISE ANY LICENSE TO ANY PATENT, TRADEMARK, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT OF HONEYWELL OR ANY THIRD PARTY. 1.75" SCALE 1:1 Phoenix, AZ 85029, USA MADE IN USA Model: FDAP2Part No.: 51198665-200Ser. No.:Power:Temp.: Field Device Access Point This device complies with Part 15 of FCC Rules and Regulations. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Cl. I, Div. 2 Grp. ABCD: T4Cl. I, Zone 2, AEx nC IIC; T4 Cl. I, Div. 2 Grp. ABCD: T4Cl. I, Zone 2, AEx nC IIC; T4 18 - 30VDC, 2W Contains FCC ID: S57-51306533 IC: 573I-51306533 Model 51306533 Honeywell II3G Ex nA nL IIC T4 N314 0981 REV IP66/NEMA Type 4X 90-260VAC, 50/60Hz, 2W -40 to +75 o C 201 1.75" 2.5" Phoenix, AZ 85029, USA MADE IN USA Model: FDAP1Part No.: 51198665-100Ser. No.:Power:Temp.: Field Device Access Point This device complies wi th Part 15 of FCC Rules and Regulations. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Cl. I, Div. 1 Grp. CD: T4Cl. I, Zone 2, AEx nC IIB; T4 18 - 30VDC, 2W Honeywell II3G Ex nA nL IIC T4 N314 0981 REV IP66/NEMA Type 4X -40 to +75 o C 101 12/9/10 2.5" Cl. I, Div. 1 Grp. CD: T4Cl. I, Zone 1 AEx nC IIB T4 1.75" 2.5" 100 Contains: Ethernet MAC: 00-40-84-xx-xx-xx Contains FCC ID: S57-51306533 IC: 573I-51306533 Model 51306533 Ethernet MAC: 00-40-84-xx-xx-xx WOB AT3 Add model no. for IC 1/11/2011 Identification Label location (between the antenna ports).

PortableOmni-DirectionalAntenna for2.4GHz HON04-052160 ElectricalSpecification Frequencyrange2400MHz-2500MHz Peakgain5.0dBi Averagegain2.5dBi VSWR2.0:1Max. PolarizationLinear,vertical Powerhandling2W(cw) Impedance 50Ohms Connector N plug Version2 http://www.smartant.comTEL:+886(0)3583-6000FAX:+886(0)3583-7000E-mail:[email protected] AllrightsreservedbySmartAntTelecomCo.,Ltd. P1 Environmental&MechanicalCharacteristics Survivalwindspeed216km/hr Temperature-40 o Cto+70 o C Humidity95%@55 o C RadomecolorBlack RadomematerialABS Weight70gw Dimensions22x183mm 183 22 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -20 -15 -10 -5 0 5 2.40GHz 2.45GHz 2.50GHz -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -20 -15 -10 -5 0 5 2.40GHz 2.45GHz 2.50GHz H-PlaneCo-polaeiztionPattern V-PlaneCo-polarizationPattern HPBW / horizpntal 360 HPBW / vertical 30 o o

HUBER+SUHNER ® DATA SHEET Sencity Antenna: 1324.17.0047 Rev.: R HUBER+SUHNER is certified according to ISO 9001 and ISO 14001 WAIVER! It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general informational purposes only. HUBER+SUHNER AG RF Industrial 9100 Herisau, Switzerland Phone +41 (0)71 353 41 11 Fax +41 (0)71 353 45 90 www.hubersuhner.com HUBER+SUHNER – Excellence in Connectivity Solutions Document: DOC-0000330592 P Issued: 15.06.10 Uncontrolled Copy Page 1/2 SOA-2400/360/6/0/V Description Omni-directional WIFI Antenna 802.11 b/g, Frequency band: 2.4GHz - 2.5GHz WLAN Mounting Accessory included Product Configuration Technical Data Electrical Data Band 1 Frequency (MHz) 2400 - 2500 VSWR 1.8 Gain 6 dBi 3dB beamwidth (h) (°) 360 3dB beamwidth (v) (°) 30 Vertical electrical tilt (°) 0 General Data Nominal impedance 50 Ω Polarisation vertical Connector N, jack (female), bottom Composite power max. 25 W Mechanical Data Dimensions (mm) 250 x 22 x (Height x Width x Depth) Weight 0.3 kg Windload frontal: 3 N, lateral: 3 N at km/h Included mounting Material: Bracket 9091.99.0173 and 2 metal-bands for mast-diameter 25mm - 101mm Environmental Data Environmental conditions outdoor Operation temperature (°C) -40 to 80 Storage temperature (°C) -40 to 80 Transport temperature (°C) -40 to 80 IP rating IP 67 RoHS 2002/95/EC compliant Material Data Radome colour RAL 7035 (light-grey) Radome material Glass Fibre Related Products 9091.99.0173 L-Bracket Related Documents Mounting instruction DOC-0000296554 Painting instruction DOC-0000256180 Security instruction DOC-0000278984 HUBER+SUHNER ® DATA SHEET Sencity Antenna: 1324.17.0047 Rev.: R HUBER+SUHNER is certified according to ISO 9001 and ISO 14001 WAIVER! It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general informational purposes only. HUBER+SUHNER AG RF Industrial 9100 Herisau, Switzerland Phone +41 (0)71 353 41 11 Fax +41 (0)71 353 45 90 www.hubersuhner.com HUBER+SUHNER – Excellence in Connectivity Solutions Document: DOC-0000330592 P Issued: 15.06.10 Uncontrolled Copy Page 2/2 Outline drawing1 DOU-00137600

FCF: Title: 2.4 GHz & 5.8 GHz Omnidirectional Antenna Honeywell FMF: OneWireless Mulitinode HPS/FTWASH Made By: W. Osei-Bonsu Approval DES W. Osei-Bonsu Prints to A 51506534 Issued: B CHKR K44-21 Sh no: 1 OF 2 Honeywell B 51506534 REVISION STATUS REV RECORD OF CHANGE DATE & NAME A ISSUE 04/02/07 W. Osei-Bonsu B ECO P280092 (5/19/2008) W. Osei-Bonsu Multinode Omnidirectional Antenna for 2.4 GHz and 5 GHz Bands 1.0 GENERAL DESCRIPTION THE IS AN OMNIDIRECTIONAL ANTENNA FOR OPERATIO N IN 2.4/5.2/5.6/5.8GHZ FREQUENCY BANDS. THE ANTENNA HAS LINEAR VERTICAL POLARIZATION AND CHARACTERISTIC IMPEDANCE OF 50-OHMS. 2.0 QUALITY ASSURANCE THE SUPPLIER WILL BE REQUIRED TO MAINTA IN A QUALITY SYSTEM AS DESCRIBED IN “CONTRACTOR QUALITY SYSTEM REQUIREMENTS”, DRAWING NUMBER 51191306. 3.0 WORKMANSHIP / GENERAL REQUIREMENTS DEVICES SHALL BE MANUFACTURED AND FINI SHED TO ASSURE NEATNESS, THOROUGHNESS OF PLATING, LEGIBILITY OF MARKING AND FREE OF BURRS, SHARP EDGES, CRACKS AND FISSURES. THERE SHALL BE NO WAX, OIL, GR EASE OR OTHER FOREIGN MATERIAL ON THE DEVICES. 4.0 PACKAGING 4.1 PACKAGE SHALL PROVIDE PROTECTION AG AINST ANY DAMAGE, BREAKAGE, OR LOSS DURING SHIPMENT. 4.2 SHIPPING CARTON MUST BE MARKED WITH HONEYWELL’S DRAWING AND TAB NUMBER. 5.0 PURCHASING HONEYWELL’S CONTROL NUMBER SHALL BE IN THE FOLLOWING FORM: 51506534-TAB FCF: Title: 2.4 GHz & 5.8 GHz Omnidirectional Antenna Honeywell FMF: OneWireless Mulitinode HPS/FTWASH Made By: W. Osei-Bonsu Approval DES W. Osei-Bonsu Prints to A 51506534 Issued: B CHKR K44-21 Sh no: 2 OF 2 Honeywell B 51506534 6.0 ELECTRICAL AND ENVIRONMENTAL SPECIFICATIONS 2.4 GHz Single-Band Antennas Honeywell Controll No. -TAB Peak Gain @ 2.4GHz (dBi) VSWR Power (W) Connector Type Length (mm / in) Temperature Range (°C) Manufacturer & Part Number -100 5.0 dBi 2.0:1 2 W N-Male 183 / 7.2 -40 to +70 SmartAnt HON04-052160 5.0 dBi 1.5: 1 10 W N-Male 355 / 14 -40 to +70 PacWireless OD24M-5 -101 5.0 dBi 2.0:1 2 W N-Male 355 / 14 -40 to +70 SmartAnt SAA04-051000 2.4 GHz & 5 GHz Dual-Band Antennas Honeywell Controll No. -TAB Peak Gain @ 2.4GHz (dBi) Peak Gain @ 5.8GHz (dBi) VSWR Power (W) Connecto r Type Length (mm / in) Temperature Range (°C) Manufacturer & Part Number 3.5 dBi 5.3 dBi 1.5:1 100 W N-Male 360 / 14.2 -40 to +80 Air802 ANOM245XM -200 4.0 dBi 7.0 dBi 2.0:1 2 W N-Male 260 / 10.2 -40 to +70 SmartAnt SAA05-220920 NOTES: FOR VENDOR INFORMATION, REFE R TO THE VENDORS WEBSITES: http://www.smartant.com/ , http://www.air802.com , www.pacificwireless.com

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: [email protected] PHONE: 1-800-343-1455 FAX: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. HyperLink 2.4 GHz 8 dBi Wireless LAN Circular Polarized Flat Patch Antenna Applications and Features Applications: y 2.4 GHz ISM Band y IEEE 802.11b and 802.11g Wireless LAN y Bluetooth® y Public Wireless Hotspot y WiFi Features: y Superior performance y Compact size, 4.5" Square y Durable UV-stable, UL flame rated radome y Low loss solid brass element y DC Short lightning protecting y 12 inch coax lead y Available in right or left hand polarization y Optional mounting brackets available Model: HG2409PCR Description This very compact flat WiFi patch antenna provides 8 dBic gain with very broad coverage. The use of a circular polarized antenna on a fixed AP can be advantageous if the linear polarized remote links are constantly moving. Circular polarized antennas have equal response to either horizontal or vertical polarized antennas. It is suitable for both indoor and outdoor applications in the 2.4GHz ISM band such as IEEE 802.11b and 802.11g, Bluetooth® and for public wireless hotspot applications. Available in left or right circular polarization, this antenna's construction features a sealed internal brass element and an aesthetic UV-stable, UL-flame rated white polymer radome. Can be wall or ceiling mounted, as well as mast-mounted using U-bolts. L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: [email protected] PHONE: 1-800-343-1455 FAX: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. Model: HG2409PCR Specifications Electrical Specifications Frequency 2400-2500 MHz Gain 8 dBic Polarization (HG2409PCL) Left Hand Circular Polarization (HG2409PCR) Right Hand Circular Horizontal Beam Width 65 degrees Vertical Beam Width 65 degrees Impedance 50 Ohm VSWR < 1.5:1 avg. Lightning Protection DC Short Mechanical Specifications Weight 0.4 lbs. (.18 Kg) Dimensions 4.5 x 4.5 x .9 inches 114 x 114 x 23 mm Radome Material UV-inhibited Polymer Flame Rating UL 94HB Operating Temperature -40° C to 85° C (-40° F to 185° F) Mounting Four ¼ in. (6.3 mm) Holes Wind Survival >150 MPH (241 KPH) Antenna Patterns L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845 WWW.L-COM.COM E-MAIL: [email protected] PHONE: 1-800-343-1455 FAX: 1-978-689-9484 © L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks. Model: HG2409PCR Mounting Options Hyperlink's patch antennas offer several unique mounting options. They can be mounted flat against a wall, or to a mast using a pair of 2 inch U-bolts. The antennas also accept most tilt-and-swivel security camera brackets equipped with standard 1/4-20 threads. Description Part Number Small Metal Tilt-and-Swivel Mounting Bracket for indoor wall mounting. Includes wall-mounting hardware. HGX-PMT02 Medium Plastic Tilt-and-Swivel Mounting Bracket for indoor wall mounting. Includes wall-mounting hardware. HGX-PMT03 Large Metal Tilt-and-Swivel Mounting Bracket for indoor and outdoor wall or mast mounting. Includes wall-mounting hardware. Can be mast-mounted using U-Bolt Kit (sold separately). HGX-PMT04 Universal Antenna Mount powder coated galvanized…

Text truncated - open the document above for the full version.
