S5751306799LOW COST ISA 100 RADIO MODULE(51306799-001)

________________________________________________________________________ Low cost RF Module (LCRM) ‐ User Manual Product Manual For RF Module part numbers, Radio Assembly : 51306799‐125 Printed wiring board no : 51306799‐001 2.4GHz, 802.15.4 Module. Copyright 2011 by Honeywell International Inc. Revision 2, May 30 th , 2011 ______________________________________________________________________________________ LCRM User Manual Page 1 of 10 Revision No 2.0 30/05/2011 ________________________________________________________________________ Document Revision History Date Author Description/Changes Revision 22.2.2011 Abhijit Initial 1.0 30.5.2011 Biswas Modified after Review with TUV 2.0 ______________________________________________________________________________________ LCRM User Manual Page 2 of 10 Revision No 2.0 30/05/2011 ________________________________________________________________________ Contents 1.COMPLIANCE STATEMENTS....................................................................................................................... 4 2.DESCRIPTION ............................................................................................................................................ 6 3. FEATURES ................................................................................................................................................ 6 4. ELECTRICAL CHARACTERISTICS.................................................................................................................. 6 5. PIN OUT DIAGRAM................................................................................................................................... 6 6. CONFIGURATION SOFTWARE.................................................................................................................... 7 7. APPROVED ANTENNA TYPES/ GAIN .......................................................................................................... 7 8 SETTING TX POWER......................................................................................................................................................8 9 INSTRUCTIONS TO OEM INSTALLER...........................................................................................................................9 10 LIMITED MODULAR APPROVAL ...........................................................................................................................10 11 AGENCY LABEL INFORMATION..............................................................................................................................10 ______________________________________________________________________________________ LCRM User Manual Page 3 of 10 Revision No 2.0 30/05/2011 ________________________________________________________________________ 1. Compliance Statements: 1.1 FCC Compliance Statements This device complies with Part 15 of the FCC rules. Operation is subject to following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received including interference that may cause undesired operation of this device. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter, except if installed in compliance with FCC Multi Transmitter procedures. To inherit the modular approval, the antennas for this transmitter must be installed to provide a separation distance of 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter To OEM Installer: 1. FCC ID on the final system must be labeled with “Contains FCC ID: S5751306799” Or “Contains transmitter module FCC ID: S5751306799”. 2. In the user manual, final system integrator must ensure that there is no instruction provided in the user manual to install or remove the transmitter module. 3. Transmitter module must be installed used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. The user manual of the final host system must contain the following statements: This device complies with Part 15 of the FCC rules. Operation is subject to following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received including interference that may cause undesired operation of this device. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter, except if installed in compliance with FCC Multi Transmitter procedures. To inherit the modular approval, the antennas for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter Note: The buyer of the module who will incorporate this module into his host must submit the final product to the manufacturer of the module and the MANUFACTURER OF THE MODULE WILL VERIFY that the product is incorporated in host equipment in a way that is represented by the testing as shown in the test report. ______________________________________________________________________________________ LCRM User Manual Page 4 of 10 Revision No 2.0 30/05/2011 ________________________________________________________________________ 1.2 IC Compliance Statements Operation is subject to the following two conditions: (1) This device may not cause interference, and (2)This device must accept any interference, including…

Text truncated - open the document above for the full version.

Page2 of 3 Page3 of 3

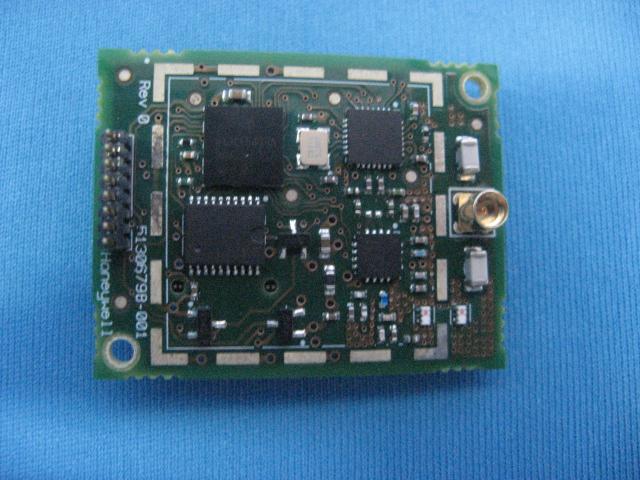

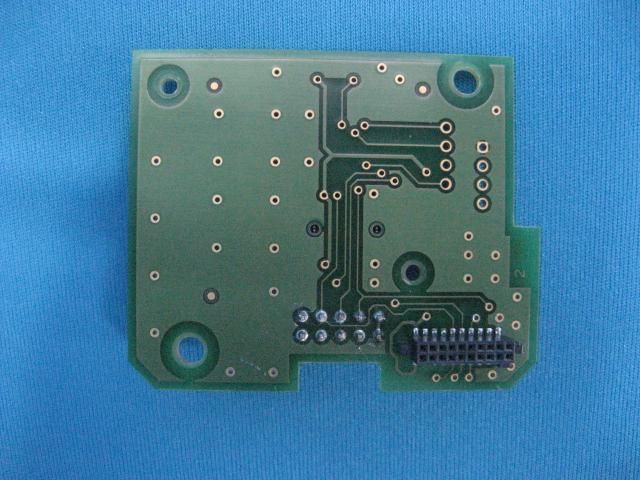

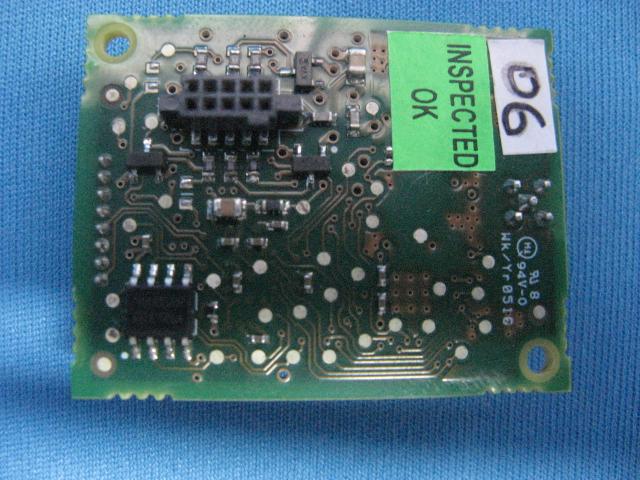

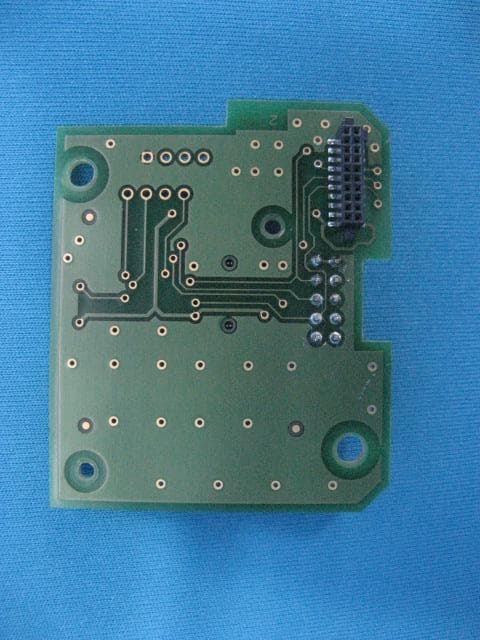

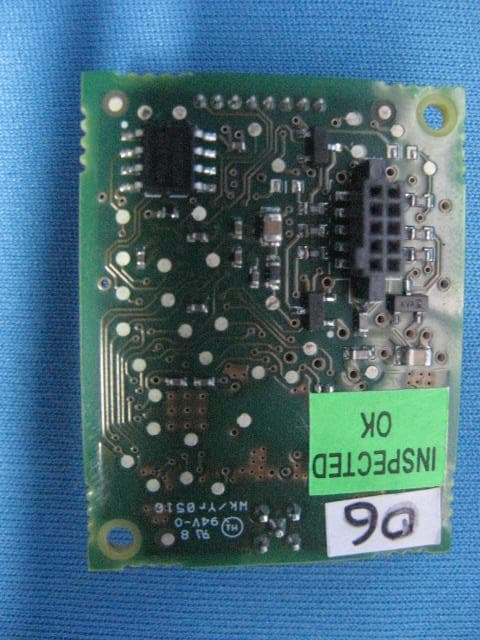

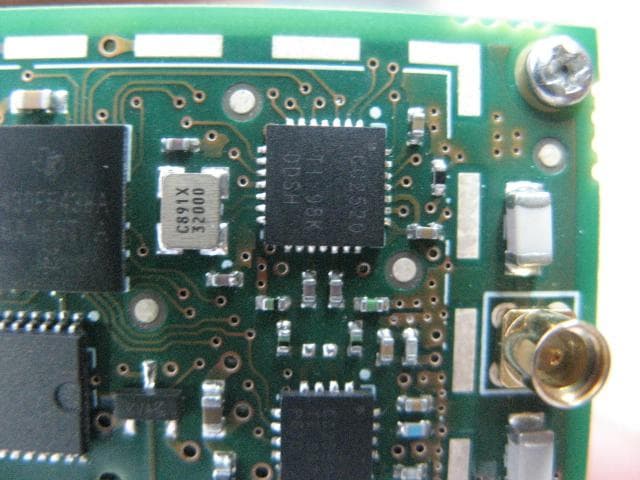

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 1 von 13 Page 1 of 13 EUT Side View EUT Top Layer’s Top View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 2 von 13 Page 2 of 13 EUT Bottom layer’s Bottom View EUT Top Layer’s Bottom View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 3 von 13 Page 3 of 13 EUT Bottom layer’s Top View RF IC www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 4 von 13 Page 4 of 13 Antenna 1 Antenna 1 Dimensional - View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 5 von 13 Page 5 of 13 Antenna 2 Antenna 2 Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 6 von 13 Page 6 of 13 Antenna 3 Antenna 3 Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 7 von 13 Page 7 of 13 Antenna 4 Antenna 4 Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 8 von 13 Page 8 of 13 Antenna 5 Antenna 5 Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 9 von 13 Page 9 of 13 Antenna 6 Antenna 6 Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 10 von 13 Page 10 of 13 Antenna 7 Antenna 7 Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 11 von 13 Page 11 of 13 Antenna 8 Antenna 8 Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 12 von 13 Page 12 of 13 Antenna 9 Antenna 9 Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 13 von 13 Page 13 of 13 Antenna 10 Antenna 10 Dimensional View

1.17” 1.5” New Board Top View Bottom View

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 1 von 3 Page 1 of 3 EUT Top Layer’s Top View EUT Bottom layer’s Bottom View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 2 von 3 Page 2 of 3 EUT Top Layer’s Bottom View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 3 von 3 Page 3 of 3 EUT Bottom layer’s Top View RF IC

Operational Description Product : Low Cost ISA100 Radio Module (51306799-001) FCC ID: S5751306799 Low Cost ISA100 Radio Module is 2.4GHz band 802.15.4 Radio. This module includes 16 Bit Microcontroller which is interfaced to a 802.15.4 compliant Radio Transceiver to provide Wireless communication over 15Channels of 2.4GHz band. The module also includes RF Power Amplifier and RF Low Noise Amplifier to enhance the range of Wireless Communications. The Module can communicate with the target boards through its connector over SPI. It can send out or receive, data - sent by or sent to, the target board through this SPI connection. Protocol specific Modulation/De-Modulation is done Microcontroller and the 802.15.4 packet is taken care by Radio Transceiver on the Module.

www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 1 von 5 Page 1 of 5 RF Exposure Report RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over- prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 2 von 5 Page 2 of 5 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 3 von 5 Page 3 of 5 Test Results Antenna 1 Antenna Gain: 4 dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 1 2405.000 35.390 0.028 1.000 8 2440.000 30.830 0.025 1.000 15 2475.000 28.640 0.023 1.000 Antenna 2 Antenna Gain: 2.1 dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 1 2405.000 35.390 0.015 1.000 8 2440.000 30.830 0.013 1.000 15 2475.000 28.640 0.012 1.000 Antenna 3 Antenna Gain: 2.1 dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 1 2405.000 35.390 0.148 1.000 8 2440.000 30.830 0.129 1.000 15 2475.000 28.640 0.120 1.000 www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 4 von 5 Page 4 of 5 Antenna 4 Antenna Gain: 3 dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 1 2405.000 35.390 0.021 1.000 8 2440.000 30.830 0.018 1.000 15 2475.000 28.640 0.017 1.000 Antenna 5 Antenna Gain: 5.5 dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 1 2405.000 13.520 0.015 1.000 8 2440.000 13.450 0.015 1.000 15 2475.000 11.830 0.013 1.000 Antenna 6 Antenna Gain: -2 dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 1 2405.000 69.340 0.028 1.000 8 2440.000 71.940 0.029 1.000 15 2475.000 53.570 0.021 1.000 www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 5 von 5 Page 5 of 5 Antenna 7 Antenna Gain: 9 dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 1 2405.000 13.520 0.024 1.000 8 2440.000 13.450 0.024 1.000 15 2475.000 11.830 0.021 1.000 Antenna 8 Antenna Gain: 8 dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 1 2405.000 35.390 0.056 1.000 8 2440.000 30.830 0.049 1.000 15 2475.000 28.640 0.046 1.000 Antenna 9 Antenna Gain: 8 dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 1 2405.000 35.390 0.056 1.000 8 2440.000 30.830 0.049 1.000 15 2475.000 28.640 0.046 1.000 Antenna 10 Antenna Gain: 14 dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 1 2405.000 13.520 0.038 1.000 8 2440.000 13.450 0.037 1.000 15 2475.000 11.830 0.033 1.000

Produkte Products TÜV Rheinland LGA Products GmbH  Tillystraße 2  D - 90431 Nürnberg  Tel.: +49 911 655 5225  Fax: +49 911 655 5226 Mail: [email protected]  Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Prüfbericht - Nr.: 02422841 001 Seite 1 von 58 Test Report No.: Page 1 of 58 Auftraggeber: Client: Honeywell Inc Automation and Control Solutions Honeywell International 1985 Douglas Drive North Dock 1 Golden Valley, MN 55422 USA Gegenstand der Prüfung: Test item: Low Cost ISA100 Radio Module (51306799-001) Bezeichnung: Identification: LCRM Serien-Nr.: Serial No. Engineering Sample Wareneingangs-Nr.: Receipt No.: 1403011599 Eingangsdatum: Date of receipt: 09-09-2010 Prüfort: Testing location: Refer Page 4 of 58 for test facilities Prüfgrundlage: Test specification: FCC 15, Subpart C Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test item passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (India) Pvt. Ltd. Alpha Tower, Sigma Soft Tech Park, # 7, Whitefield Main Road, Varthur Kodi, Bangalore – 560066, India geprüft / tested by: kontrolliert / reviewed by: 12-01-2011 Vinay N Engineer 12-01-2011 Varma Kalyan Manager Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges /Other Aspects: FCC ID: S5751306799 Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. www.tuv.com Test Report No.:02422841 001 Date: 12.01.2011 Page 2 of 58 Test Result Summary Clause Test Item Result 15.247(b) (3) Conducted Peak RF Output Power Pass 15.247 (a) (2) 6dB Bandwidth Pass 15.247 (e) Power Spectral Density Pass 15.247 (d) Band-edge Compliance Pass 15.209 Spurious Radiated Emissions Pass www.tuv.com Test Report No.:02422841 001 Date: 12.01.2011 Page 3 of 58 Content List of Test and Measurement Instruments .............................................................. 4 General Product Information ..................................................................................... 5 Product Function and Intended Use ............................................................................................. 5 Ratings and System Details ........................................................................................................... 5 Operation Descriptions .............................................................................................. 6 Test Set-up and Operation Mode ............................................................................... 7 Principle of Configuration Selection ............................................................................................ 7 Test Operation and Test Software ................................................................................................ 7 Special Accessories and Auxiliary Equipment ............................................................................ 7 Countermeasures to achieve EMC Compliance .......................................................................... 7 Table of carrier frequencies........................................................................................................... 7 Antennas Used ............................................................................................................ 8 Test Methodology ....................................................................................................... 9 Radiated Emission Test ................................................................................................................. 9 Test Results ............................................................................................................... 10 Conducted Peak Output Power Section 15.247(b)(3) ......................... 10 6 dB Bandwidth Section 15.247(a)(2) ......................... 17 Power Spectral Density Section 15.247(e) ............................ 28 Band-edge Compliance Section 15.247 (d) ........................... 35 Spurious Radiated Emissions Section 15.209 ................................. 38 Conducted Emission Test on a.c. Power Line Section 15.207 .................................. 57 Appendix 1: Test Setup Photo Appendix 2: EUT External Photo Appendix 3: EUT Internal Photo Appendix 4: Label and Label Location Appendix 5: Block Diagram Appendix 6: Specification of EUT Appendix 7: Schematic Diagrams Appendix 8: Bill of Material Appendix 9: User Manual Appendix 10: Maximum Permissible Exposure Information www.tuv.com Test Report No.:02422841 001 Date: 12.01.2011 Page 4 of 58 List of Test and Measurement Instruments Wipro Technologies, Bangalore Equipment Manufacturer Type S/N Calibration Due Date EMI Test Receiver Rohde & Schwarz ESIB40 100306 24.07.2011 Hybrid Log Periodic Antenna TDK HLP3003C 130334 17.02.2011 Broadband Horn Antenna Schwarzbeck Mess- Electronik BBHA9170 9170- 344,2007 14.02.2011 Double Ridged Horn Antenna Schwarzbeck Mess- Electronik BBHA9120D 2008 14.08.2011 Pre-Amplifier TDK-RFSolution PA-02 100008 15.02.2011 Testing Facilities 1) Wipro Technologies Survey No. 70, 77, 78 / 8A, Dodda Kannelli, Sarjapur Road, Bangalore – 560 035 India www.tuv.com Test Report No.:02422841 001 Date: 12.01.2011 Page 5 of 58 General Product Information Product Function and Intended Use The Low Cost ISA100 Radio Module is a easy to use wireless platform solut…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 1 von 10 Page 1 of 10 Radiated Test setup Radiated Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 2 von 10 Page 2 of 10 Radiated Test setup Radiated Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 3 von 10 Page 3 of 10 Radiated Test setup Radiated Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 4 von 10 Page 4 of 10 Radiated Test setup Radiated Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 5 von 10 Page 5 of 10 Radiated Test setup Radiated Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 6 von 10 Page 6 of 10 Radiated Test setup Radiated Test setup Radiated Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 7 von 10 Page 7 of 10 Radiated Test setup Radiated Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 8 von 10 Page 8 of 10 Radiated Test setup Radiated Test setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 9 von 10 Page 9 of 10 Radiated Test setup: Module inside host Radiated Test setup: Module inside host www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02422841 001 Seite 10 von 10 Page 10 of 10 Radiated Test setup: Module inside host Test Setup: Conducted Emissions on Mains – with Module inside Host
