S9ADECT33-B67-B39US DECT PHONE- HEADSET

Product Definition Document SunCorp Communications (Europe) Ltd. PD366 Product Definition Document Version 4.0 Customer: XACT / US Model: XV6602 Roadmap Number: 33-2 Cabinet Reference: B67 + B39 FCC INTERFERENCE INFORMATION x FCC Interference Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference. • Reorient or relocate and increase the separation between the telecommunications equip- ment and receiving antenna. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. FCC RF Radiation Exposure Statement The installation of the base unit should allow at least 20 centimeter between the base and persons in compliance with FCC RF exposure guidelines. For body worn operation, the portable part (handset) has been tested and meets FCC RF exposure guidelines. This device must not be co-located or operating in conjunction with any other antenna or transmitter.The changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. FCC Part 15.19 FCC Part 15.21 FCC Part 15.105(b) FCC Part 2.1091 FCC Part 2.1093 INSTRUCTIONS TO USER'S This equipment complies with Part 68 of the FCC Rules. On the back side is a label that contains, among other information, the FCC registration number and the ringer equivalence number (REN) for this equipment. You must, upon request, provide this information to your local telephone company. the information associated with the services the equipment is to be connected are REN: 0.0 B, Jack type: RJ-11 If you experience trouble with this equipment, please contact : Name XACT COMMUNICATION, LLC Address105 Madison Avenue New York, NY 10016 Telephone212 481 7950 For information on obtaining service or repairs. The telephone company may ask that you disconnected this equipment from the network until the problem has been corrected or until you are sure that the equipment is not malfunctioning. This product meets the applicable Industry Canada technical specifications The Ringer Equivalence Number is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices does not exceed five Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Product Definition Document SunCorp Communications (Europe) Ltd. PD366 9 2 Panel Layout 2.1 Handset Front 1 4096 Colour; Full Graphic (1.4 inch), 128 x 128 pixels LCD 2 Soft Key 1 3 Talk On / Handsfree (toggle between handset and handsfree mode) 4 Enter List of Names or Buddy List / Volume Down 5 * / Switch from Pulse to Tone 6 Intercom / Flash 7 Clear / Back 8 # / Switch between Lowercase and Uppercase 9 Talk Off 10 Enter Redial List / Pause / Volume Up 11 Soft Key 2 Product Definition Document SunCorp Communications (Europe) Ltd. PD366 10 2.2 Black Box 1 USB Connector Port 2 Power / In Use / Event Indicator LED 3 Page Key 2.3 Charger Front Product Definition Document SunCorp Communications (Europe) Ltd. PD366 11 3 Additional Information 3.1 Menu Icons Calls List Clock & Alarm Settings Registration 3.2 Wallpapers Sunset Butterfly Island SunCorp XACT Model XV6602 Dual Phone - VoIP MMI version 1.2 01 December 2006 Short press: Dial # HANDSET PANEL LAYOUT - Dual Phone KEYS KEY_SOFT_1 Enter Menu KEYS STANDBY MODEMENU MODEIN-CALL MODE Select Current Menu Option KEY_SOFT_2 Toggle between Phone and Skype Call Mode Go Back to Previous Menu KEY_UP Short press: Enter Phone or Skype Redial List (depending on Long press: Enter Pause (during pre-dialling) Change Menu Selection Receiver Volume Up KEY_DOWN Enter Local Contact List or Buddy List (depending on KEY_SOFT_2 label in idle screen) Change Menu Selection Receiver Volume Down KEY_TALK Go Off Hook No Action Toggle between Handset and Handsfree Talk mode KEY_END Long press: Switch Handset Power On and Off Exit / Return to Idle Go On Hook (for current active call) KEY_1 Short press: Pre-dial 1 No Action Short/Long press: Dial 1 KEY_2 Short press: Pre-dial 2 Short/Long press: Pre-dial 4 No Action KEY_5 Short/Long press: Pre-dial 5 KEY_6 Short/Long press: Pre-dial 6 KEY_7 Short press: Pre-dial 7 KEY_8 Short press: Pre-dial 8 KEY_9 Short press: Pre-dial 9 KEY_0 Short press: Pre-dial 0 -- TALK 13 2 46 5 79 8 *# 0 INT R Clr END KEY_STAR Short press: Pre-dial * No Action Long press: Switch from Pulse to Tone Short press: Dial * Long press: Switch from Pulse to Tone KEY_HASH Short press: Pre-dial # No Action Long press: Engage Keylock (Keylock feature can be disabled) KEY_INT_R Short press:…

Text truncated - open the document above for the full version.

KDB Inquiry Tracking Number – 648031

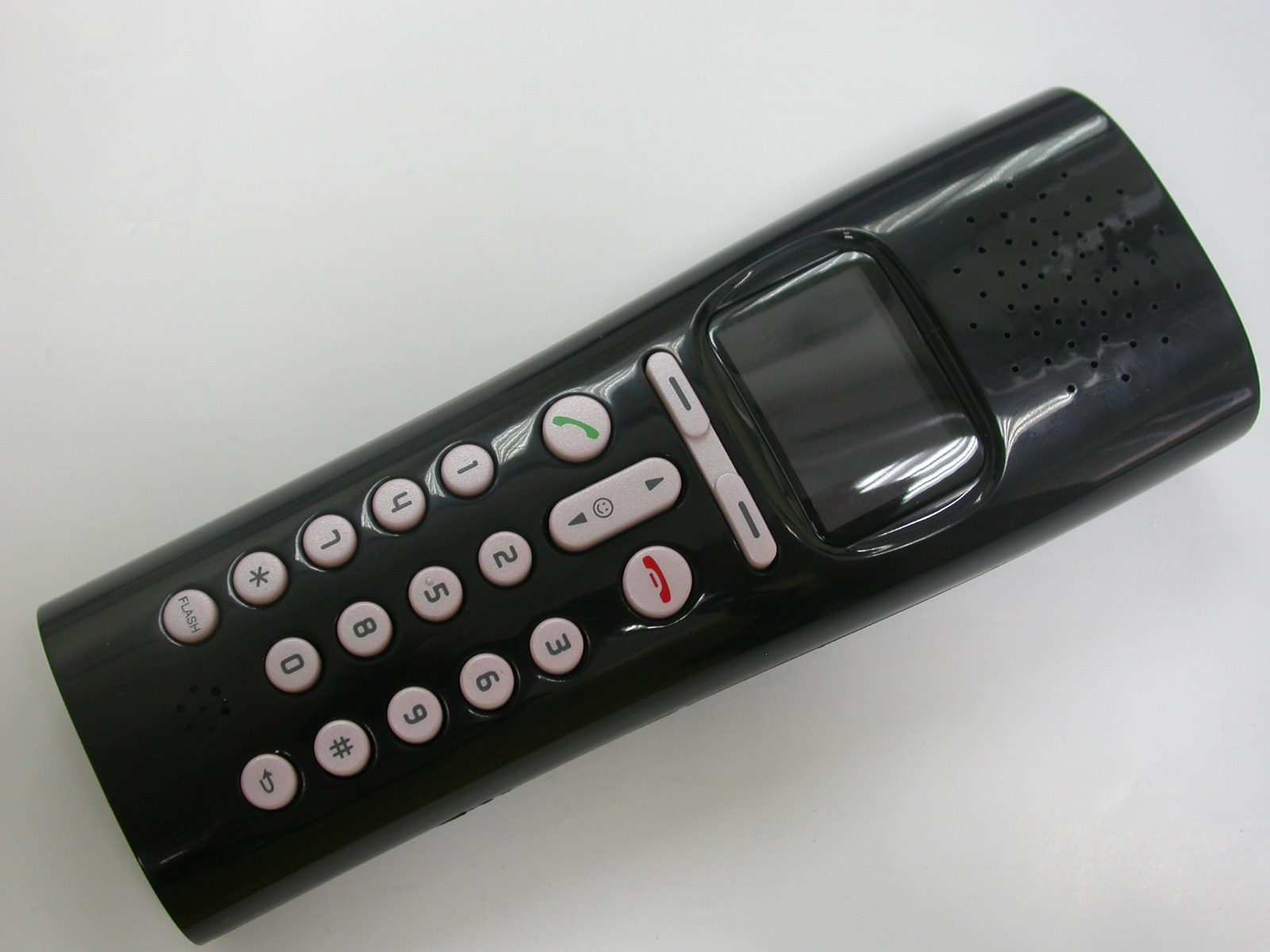

FCC ID: S9ADECT33-B67-B39 ETC Report No.: 06-10-MAS-161-01 IC ID: 6801A-D33B6739 Page A1 of A1 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

ID Label_Location The batteries for this device are designed for easy removal and that the label will be visible whenever the batteries are removed for charging or replacement.

FCC ID: S9ADECT33-B67-B39 ETC Report No.: 06-10-MAS-161-01 IC ID: 6801A-D33B6739 Page B1 of B3 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: S9ADECT33-B67-B39 ETC Report No.: 06-10-MAS-161-01 IC ID: 6801A-D33B6739 Page B2 of B3 3. Front view of PCB1 4. Rear view of PCB1 FCC ID: S9ADECT33-B67-B39 ETC Report No.: 06-10-MAS-161-01 IC ID: 6801A-D33B6739 Page B3 of B3 5. Front view of PCB2

Report No.: 06-10-MAS-161-03 Page 1 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT33-B67-B39 Report No.: 06-10-MAS-161-03 Client: Suncorp Communications Limited Product: US DECT Handset Model: XV6602；XHB662 Manufacturer/supplier: Shenzhen Guo Wei Electronics Co., Ltd. Date test item received: 2006/10/16 Date test campaign completed: 2006/10/19 Date of issue: 2006/11/13 Test Result: ■ Compliance □ Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 mW/g averaged over any 1g tissue according to FCC OET Bulletin 65 Supplement C (Edition 01-01) and Industry Canada RSS-102 (Issue 2, 2005). The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 60 pages Test Engineer Eric Lin Checked by Joe Hsieh Approved by TÜV HK Jeff Pong The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. SAR Evaluation Report for FCC OET Bulletin 65 Supplement C and Industry Standard RSS-102 Issue 2 Report No.: 06-10-MAS-161-03 Page 2 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Applicant Information Client : Suncorp Communications Limited Address : Room 1907-08, Harcourt House, 39 Gloucester Road, Wanchai, Hong Kong Contact : CW Cheung Title : Head of Engineering Department Manufacturer : Shenzhen Guo Wei Electronics Co., Ltd. Address : No.68 Guowei Road, Liantang Industrial District, Shenzhen, P.R.C. EUT : UPCS DECT Cordless Handset Trade Name : SUNCORP Model No. : XV6602 ； XHB662 Standard Applied : FCC OET 65 Supplement C (Edition 01-01, June 2001) Industry Standard RSS-102 Issue 2 (November 2005) IEEE Standard 1528-2003 Test Location : Electronics Testing Center, Taiwan (www.etc.org.tw) No.8, Lane 29, Wenming RD.,LeShan Tsuen, GuiShan Shiang,Taoyuan County 33383, Taiwan, R.O.C. The US DECT handset of XV6602/XHB662 is in compliance with the FCC Report and Order 93-326 and Health Canada Safety Code 6, and the tests were performed according to the FCC OET65c and RSS-102 Issue 2 for uncontrolled exposure. Report No.: 06-10-MAS-161-03 Page 3 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Table of Contents EXECUTIVE SUMMARY........................................................................................................................ 5 1 GENERAL INFORMATION................................................................................................................. 6 1.1 Description of Equipment Under Test .......................................................................................... 6 1.2 Photograph of EUT ....................................................................................................................... 6 1.3 Environment Conditions ............................................................................................................... 7 1.4 FCC Requirements for SAR Compliance Testing ........................................................................ 7 1.4.1 RF Exposure Limits .............................................................................................................................7 1.5 The SAR Measurement Procudure for Mobile ............................................................................. 8 1.5.1 General Requirements..........................................................................................................................8 1.5.2 Phantom Requirements ........................................................................................................................8 1.5.3 Test Positions .......................................................................................................................................8 1.5.4 Test Procedures..................................................................................................................................10 2 D ESCRIPTION OF THE TEST EQUIPMENT...................................................................................... 11 2.1 Test Equipment List .................................................................................................................... 11 2.2 DASY4 Measurement System Diagram: .................................................................................... 12 2.3 DASY4 Measurement Server...................................................................................................... 13 2.4 DAE (Data Acquisition Electronics)........................................................................................... 14 2.5 Phantom....................................................................................................................................... 15 2.6 Device Holder ............................................................................................................................. 15 2.7 Specifications of Probes .............................................................................................................. 16 2.8 SAR Measurement Procedures in DASY4.................................................................................. 16 2.9 Simulating Liquids ...................................................................................................................... 17 2.10 System Performance Check....................................................................................................... 17 2.10.1 Purpose..........................................................................…

Text truncated - open the document above for the full version.

Report No.: 06-10-MAS-161-03 Page 31 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong ANNEX B: SAR RESULTS System Performance Check Head Report No.: 06-10-MAS-161-03 Page 32 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 33 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 34 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Left Head Report No.: 06-10-MAS-161-03 Page 35 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Left Cheek Report No.: 06-10-MAS-161-03 Page 36 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Left Tilted Report No.: 06-10-MAS-161-03 Page 37 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Right Head Report No.: 06-10-MAS-161-03 Page 38 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Right Cheek Report No.: 06-10-MAS-161-03 Page 39 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Right Tilted Report No.: 06-10-MAS-161-03 Page 40 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Right Cheek Report No.: 06-10-MAS-161-03 Page 41 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 42 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Right Cheek

Report No.: 06-10-MAS-161-03 Page 43 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong ANNEX C: DIPOLE CERTIFICATE Report No.: 06-10-MAS-161-03 Page 44 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 45 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 46 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 47 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 48 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 49 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 50 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 51 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 52 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong ANNEX D: PROBE CERTIFICATE Report No.: 06-10-MAS-161-03 Page 53 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 54 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 55 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 56 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 57 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 58 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 59 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Report No.: 06-10-MAS-161-03 Page 60 of 60 FCC ID: S9ADECT33-B67-B39 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong

FCC ID: S9ADECT33-B67-B39 Sheet 1 of 88 Sheets IC ID: 6801A-D33B6739 ETC Report No.: 06-10-MAS-161-01 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D Industry Canada RSS-213, Issue 2 Report No.: 06-10-MAS-161-01 Client: Suncorp Communications Limited Product: US DECT PHONE - Handset (PP) Model: XV6602; XHB662 FCC ID: S9ADECT33-B67-B39 IC ID: 6801A-D33B6739 Manufacturer/supplier: Shenzhen Top Guo Wei Electronics Co., Ltd Date test item received: 2006/10/24 Date test campaign completed: 2006/11/20 Date of issue: 2006/11/23 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 88 pages Total number of pages of photos: External photos 1 pages Internal photos 3 pages Setup photos 4 pages Test Engineer Checked By Approved By Eric Lin, Justin Ma Joe Hsieh Jeff Pong FCC ID: S9ADECT33-B67-B39 Sheet 2 of 88 Sheets IC ID: 6801A-D33B6739 ETC Report No.: 06-10-MAS-161-01 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Table of Contents Page 1 GENARAL INFORMATION......................................................................................................... 4 1.1 Testing Laboratory..................................................................................................................... 4 1.2 Client Information....................................................................................................................... 4 1.3 Manufacturer............................................................................................................................... 4 2 TEST INFORMATION.................................................................................................................. 5 2.1 Description of Tested Device(s).............................................................................................. 5 2.2 Test Environment....................................................................................................................... 6 3 TEST REPORT SUMMARY........................................................................................................ 7 3.1 Test Summary............................................................................................................................ 7 3.2 Other Comments........................................................................................................................ 8 4 TEST SETUP................................................................................................................................. 9 4.1 Frequency and Timing Measurements................................................................................... 9 4.2 Conducted Emission Tests......................................................................................................9 4.3 Radiated Emission Tests........................................................................................................ 10 4.4 Power line Conducted Tests.................................................................................................. 10 4.5 Monitoring Tests....................................................................................................................... 11 5 TEST EQUIPMENT LIST........................................................................................................... 12 6 TEST RESULT............................................................................................................................ 13 6.1 Coordination with fixed microwave........................................................................................ 13 6.2 Cross Reference...................................................................................................................... 14 6.3 Labeling Requirements........................................................................................................... 16 6.4 Power line Conducted Emissions.......................................................................................... 17 6.5 Antenna Requirement............................................................................................................. 20 6.6 Digital Modulation Techniques............................................................................................... 20 6.7 Peak Transmit Power.............................................................................................................. 21 6.8 Power Spectral Density........................................................................................................... 25 6.9 Antenna Gain............................................................................................................................ 29 6.10 Automatic discontinuation of transmission........................................................................ 29 6.11 Safety exposure levels.......................................................................................................... 30 6.12 Emission Bandwidth B.......................................................................................................... 31 6.13 Monitoring time....................................................................................................................... 35 6.14 Monitoring threshold.............................................................................................................. 36 6.15 Maximum transmit period..................................................................................................... 37 6.16 System Acknowledgement................................................................................................... 39 FCC ID: S9ADECT33-B67-B39 Sheet 3 of 88 Sheets IC ID: 6801A-D33B6739 ETC Report No.: 06-10-MAS-161-01 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat…

Text truncated - open the document above for the full version.

FCC ID: S9ADECT33-B67-B39 ETC Report No.: 06-10-MAS-161-01 IC ID: 6801A-D33B6739 Page 1 of 4 Photos of Radiation Measuring Setup x-axis FCC ID: S9ADECT33-B67-B39 ETC Report No.: 06-10-MAS-161-01 IC ID: 6801A-D33B6739 Page 2 of 4 y-axis z-axis FCC ID: S9ADECT33-B67-B39 ETC Report No.: 06-10-MAS-161-01 IC ID: 6801A-D33B6739 Page 3 of 4 Charging mode FCC ID: S9ADECT33-B67-B39 ETC Report No.: 06-10-MAS-161-01 IC ID: 6801A-D33B6739 Page 4 of 4 Photos of Conduction Measuring Setup
